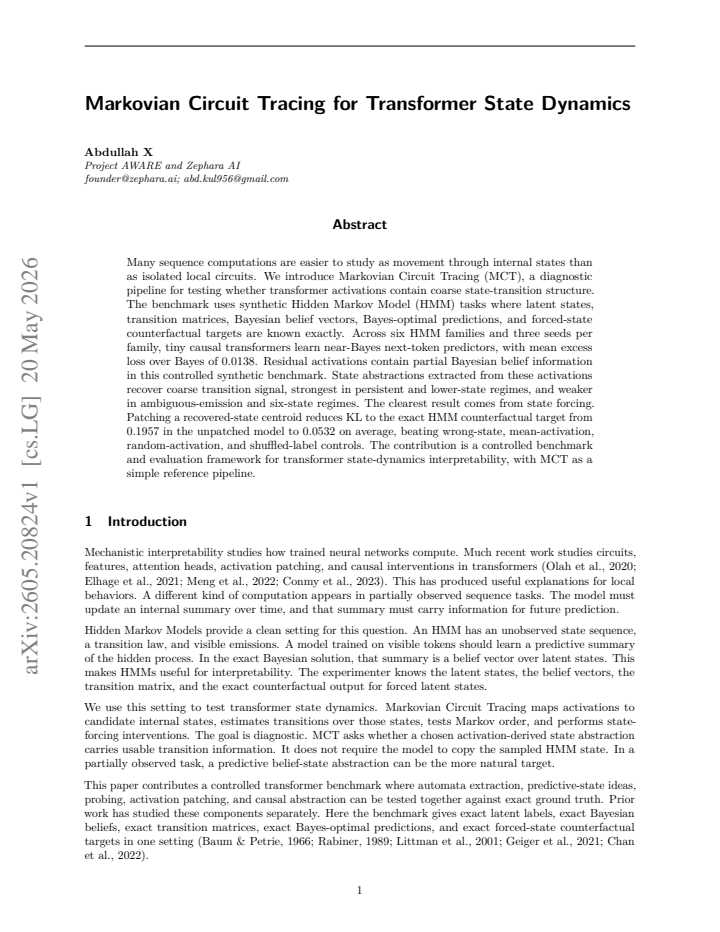

arxiv: 2605.20824 · v1 · pith:WVK7EY2Qnew · submitted 2026-05-20 · 💻 cs.LG

Markovian Circuit Tracing for Transformer State Dynamic

Abdullah X This is my paper

Pith reviewed 2026-05-21 06:02 UTC · model grok-4.3

classification 💻 cs.LG
keywords transformer interpretabilityhidden markov modelsstate dynamicscausal interventionsresidual activationssynthetic benchmarksnext-token predictioncounterfactual targets
0
0 comments X

The pith

Patching recovered-state centroids from residual activations steers transformer predictions toward exact hidden Markov model counterfactual distributions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Transformers trained on synthetic HMM tasks learn to approximate Bayes-optimal next-token predictions with low excess loss. Residual activations in these models hold partial information about the underlying latent states. Extracting coarse state abstractions as centroids from the activations allows targeted interventions. Patching the correct centroid into the model moves output distributions substantially closer to the forced-state counterfactual targets produced by an exact HMM. This setup supplies a controlled benchmark for checking whether transformers maintain internal state-transition structure during sequence computation.

Core claim

Markovian Circuit Tracing recovers coarse state abstractions from residual activations in tiny causal transformers trained on synthetic HMM families. When these recovered-state centroids are patched into the model, the KL divergence to the exact HMM counterfactual target drops from 0.1957 in the unpatched case to 0.0532 on average, outperforming wrong-state, mean-activation, random-activation, and shuffled-label controls across persistent, lower-state, ambiguous-emission, and six-state regimes.

What carries the argument

Markovian Circuit Tracing (MCT), a diagnostic pipeline that extracts state centroids from residual activations and performs causal state-forcing interventions on synthetic HMM benchmarks with known latent states and counterfactual targets.

If this is right

  • State forcing via centroid patching supplies a direct causal test of whether a transformer maintains coarse transition structure rather than computing only locally.
  • The same pipeline can compare state-recovery strength across HMM regimes that differ in persistence, ambiguity, and number of states.
  • Transformers that pass the benchmark encode enough Bayesian belief information in residual streams to support forced-state interventions.
  • The controlled synthetic tasks with exact Bayes-optimal targets and counterfactuals provide a reference for future state-dynamics evaluations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be extended to probe whether larger language models internally track latent states when predicting over natural language sequences.
  • If the centroid correspondence holds more generally, it would imply that some transformer computations can be reframed as approximate movement through discrete state spaces.
  • Further tests might examine whether multi-layer patching recovers finer-grained or hierarchical state information beyond the coarse centroids used here.

Load-bearing premise

Centroids extracted from residual activations correspond to the true latent states of the underlying HMM in a way that allows causal intervention via patching to produce the expected counterfactual output distribution.

What would settle it

A replication in which patching the recovered-state centroid fails to reduce KL divergence to the HMM counterfactual target below the levels achieved by wrong-state or random-activation controls.

Figures

Figures reproduced from arXiv: 2605.20824 by Abdullah X.

Figure 1
Figure 1. Figure 1: Markovian Circuit Tracing pipeline. A transformer is trained on visible HMM emissions. Activations [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Family-level behavior. Left, residual MCT transition row-wise KL. Right, held-out order-0 to [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

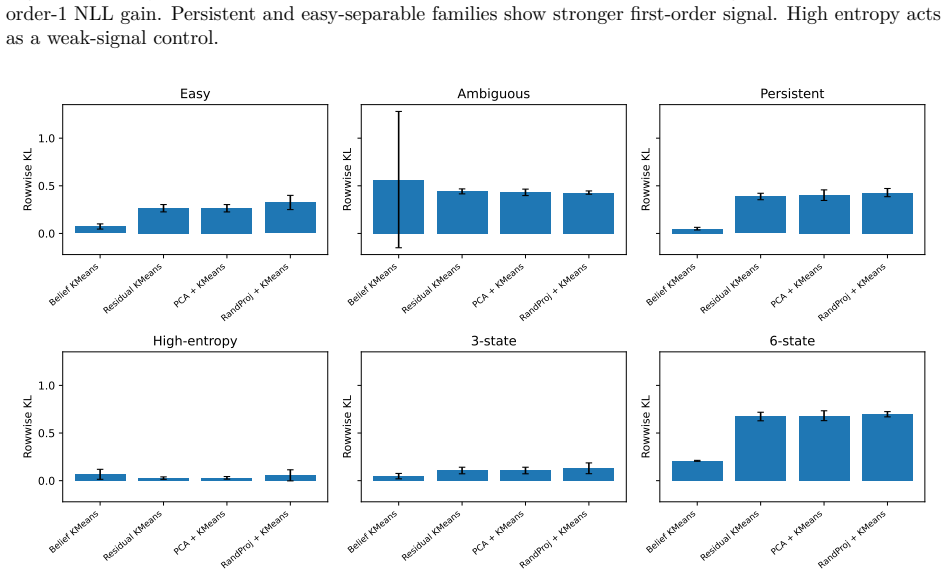

Figure 3. Figure 3: True- [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Layer-wise results. Later layers often expose stronger transition and belief structure, though the [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: State-forcing controls. Recovered-centroid patching gives the lowest KL to the exact HMM [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Conceptual Markovian state-transition view used by the benchmark. The diagram is illustrative [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Residual MCT under cluster-count misspecification. Left, belief reconstruction KL. Right, next [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8

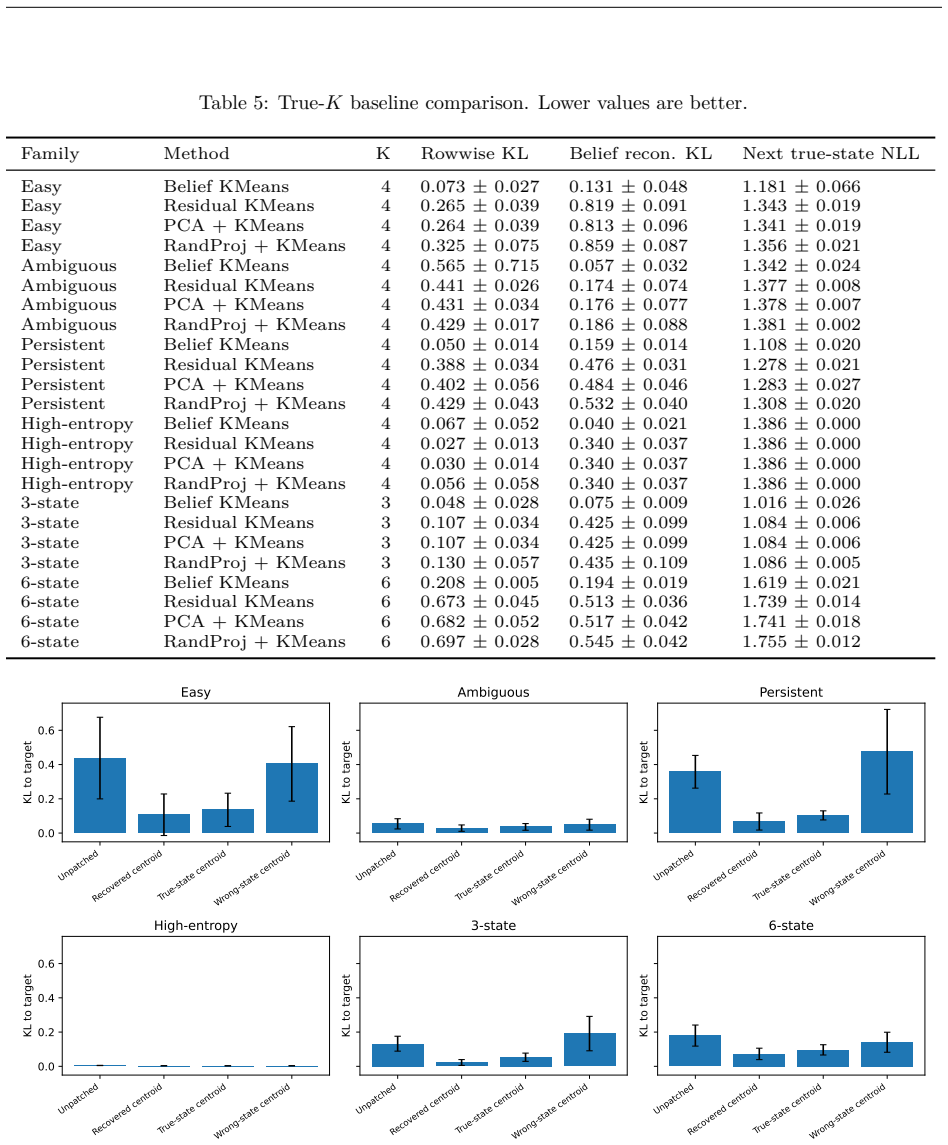

Figure 8. Figure 8: State-forcing controls by family. Recovered-centroid patching is strongest in the families with [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
read the original abstract

Many sequence computations are easier to study as movement through internal states than as isolated local circuits. We introduce Markovian Circuit Tracing (MCT), a diagnostic pipeline for testing whether transformer activations contain coarse state-transition structure. The benchmark uses synthetic Hidden Markov Model (HMM) tasks where latent states, transition matrices, Bayesian belief vectors, Bayes-optimal predictions, and forced-state counterfactual targets are known exactly. Across six HMM families and three seeds per family, tiny causal transformers learn near-Bayes next-token predictors, with mean excess loss over Bayes of 0.0138. Residual activations contain partial Bayesian belief information in this controlled synthetic benchmark. State abstractions extracted from these activations recover coarse transition signal, strongest in persistent and lower-state regimes, and weaker in ambiguous-emission and six-state regimes. The clearest result comes from state forcing. Patching a recovered-state centroid reduces KL to the exact HMM counterfactual target from 0.1957 in the unpatched model to 0.0532 on average, beating wrong-state, mean-activation, random-activation, and shuffled-label controls. The contribution is a controlled benchmark and evaluation framework for transformer state-dynamics interpretability, with MCT as a simple reference pipeline

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces Markovian Circuit Tracing (MCT), a diagnostic pipeline for testing whether transformer residual activations encode coarse state-transition structure. It uses synthetic HMM tasks with exact ground truth (latent states, transitions, Bayesian beliefs, and counterfactual targets) across six HMM families and three seeds. Tiny causal transformers achieve near-Bayes performance with mean excess loss 0.0138. State centroids extracted from activations recover transition signal (strongest in persistent and low-state regimes), and centroid patching reduces KL to exact HMM counterfactuals from 0.1957 to 0.0532 on average, outperforming wrong-state, mean-activation, random-activation, and shuffled-label controls. The contribution is a controlled benchmark and reference pipeline for transformer state-dynamics interpretability.

Significance. If the results hold, the work supplies a valuable, fully controlled benchmark with known ground truth for evaluating state abstraction and causal intervention methods in transformers. The regime-dependent findings, multiple controls, and concrete quantitative metrics (excess loss, KL reductions) make it a useful reference pipeline for interpretability research. The synthetic setup enables precise falsifiable tests that are difficult to obtain in natural data.

major comments (2)
  1. [Methods] Methods: The manuscript reports aggregate statistics (excess loss 0.0138, KL from 0.1957 to 0.0532) but does not include error bars, per-seed or per-family variances, or explicit dataset-generation parameters. These details are load-bearing for assessing whether the state-recovery and patching effects are robust across the six HMM regimes and three seeds.
  2. [Results] Results (patching experiment): The claim that recovered-state centroids correspond to true latent states in a causally intervenable way rests on the observed KL reduction and controls. Direct quantitative comparison between the patched model's output distribution and the exact Bayesian belief vector (rather than only the final counterfactual target) would more tightly link the centroid to the HMM state.
minor comments (1)
  1. [Abstract] The abstract and results sections use 'coarse state-transition structure' without a precise definition or metric for 'coarseness'; a short clarifying sentence would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive evaluation and recommendation for minor revision. The comments highlight important aspects for improving the clarity and robustness of our results, which we address below.

read point-by-point responses

  1. Referee: [Methods] The manuscript reports aggregate statistics (excess loss 0.0138, KL from 0.1957 to 0.0532) but does not include error bars, per-seed or per-family variances, or explicit dataset-generation parameters. These details are load-bearing for assessing whether the state-recovery and patching effects are robust across the six HMM regimes and three seeds.

    Authors: We agree with the referee that including measures of variance and explicit generation parameters is important for evaluating robustness. In the revised version, we will add error bars to all reported aggregate statistics, include a breakdown of results per HMM family and seed, and provide the full dataset-generation parameters (transition matrices, emission distributions, sequence lengths, and random seeds) in the Methods section and a new appendix table. revision: yes

  2. Referee: [Results] The claim that recovered-state centroids correspond to true latent states in a causally intervenable way rests on the observed KL reduction and controls. Direct quantitative comparison between the patched model's output distribution and the exact Bayesian belief vector (rather than only the final counterfactual target) would more tightly link the centroid to the HMM state.

    Authors: This is a valuable suggestion for strengthening the causal link. While the counterfactual target is the primary metric for assessing intervention success, we will incorporate an additional analysis comparing the patched output distributions to the full Bayesian belief vectors. This will be added to the supplementary results in the revision, providing a more direct quantification of how well the centroids recover the state beliefs. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical benchmark with external HMM ground truth

full rationale

The paper introduces an empirical diagnostic pipeline (MCT) that trains small transformers on synthetic HMM tasks with fully known latent states, transitions, and counterfactual targets. It then extracts residual activations, computes centroids as state abstractions, performs patching interventions, and reports KL reductions to exact HMM counterfactuals while comparing against wrong-state, mean-activation, random, and shuffled controls. All load-bearing claims are direct measurements against this external ground truth rather than any derivation, fit, or self-citation that reduces to the inputs by construction. No equations or steps are shown that equate a prediction to a fitted parameter or rename a known result; the evaluation framework is self-contained against the provided HMM benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented entities are detailed beyond the use of synthetic HMM tasks and small causal transformers.
