Relating the Cabibbo angle to $\tan\beta$ in a two Higgs-doublet model
T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read The Cabibbo angle is not a free parameter in a D4-symmetric two-Higgs-doublet model; the paper establishes $\sin\theta_C = \sin 2\beta$, tying quark mixing to the scalar vacuum.
desk verdict A compact D4-based 2HDM that gets a genuinely new tree-level relation between the Cabibbo angle and tan beta, with the main caveat being an unproven stability assumption about radiative corrections. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the $D_4$-symmetric two-Higgs-doublet Yukawa texture and the identity $V_{\rm CKM}=U_\beta^2$: the square of the vacuum rotation that diagonalizes each mass matrix. Because the left-handed up- and down-quark diagonalizations are $U_\beta$ and $U_\beta^\dagger$, their product is the rotation by $2\beta$, directly identifying the Cabibbo angle with twice the angle that defines $\tan\beta$. The scalar potential with soft $D_4$ breaking supplies the freedom needed to realize the required $\tan\beta$, and the alignment limit $\alpha=\beta-\pi/2$ keeps the lightest CP-even scalar SM-like.
What would settle it
A one-loop computation of the Yukawa corrections to Eq. (17) would settle the matter: if the corrections move $\sin 2\beta$ away from $\sin\theta_C$ by more than $|V_{ub}|\approx 0.003$, the leading-order identification is not self-consistent. On the experimental side, an independent measurement of $\tan\beta$ from charged-Higgs or heavy-scalar channels that disagreed with $\sin\theta_C=\sin 2\beta$ beyond those corrections would falsify the relation.
Extended reading notes
Core claim
On the paper's own terms: $D_4$-symmetric Yukawa interactions, with the first two quark doublets and right-handed pairs in the doublet representation and the third generation in singlet representations, force the mass matrices to the texture of Eq. (7), whose only nonzero entries connect the first two generations to the third. Diagonalizing $M_u M_u^\dagger$ and $M_d M_d^\dagger$ requires the same rotation $U_\beta$ (and its inverse) in the up and down sectors, so the CKM matrix is $V_{\rm CKM}=U_\beta^2$, a rotation through $2\beta$. Hence $\sin\theta_C=\sin 2\beta\approx 0.22$. This is a leading-order result: the first-generation masses are zero and the CKM matrix is exactly the Cabibbo block, and the paper expects the relation to be stable under quantum corrections because it follows from the texture rather than from numerical coincidences.
Load-bearing premise
Everything rests on treating the leading-order limit $m_u=m_d=0$ with the CKM matrix exactly the two-by-two Cabibbo block as a valid starting point, and on the expectation, stated but not computed in the paper, that quantum corrections do not shift $\sin\theta_C=\sin 2\beta$ by more than the observed small mixings.
Editorial extensions
If this is right
- The Cabibbo angle is determined by the scalar vacuum: independent measurements of $\tan\beta$ become predictions for $\sin\theta_C$.
- The leading-order quark sector contains exactly five parameters for four masses and one mixing angle; first-generation masses and $V_{ub}$, $V_{cb}$, $V_{td}$, and $V_{ts}$ are predicted to vanish, so any observed values must come from corrections outside the minimal texture.
- Flavor-changing neutral currents are completely fixed by known quark masses and are suppressed by at least $m_b/v$ in the down sector, lowering the nonstandard-scalar mass bound to about 3 TeV and making the scalars collider-testable.
- In the alignment limit the lightest scalar has SM-like couplings; a small misalignment $|\cos(\beta-\alpha)|\lesssim 3\%$ is allowed, and future measurements of $\kappa_\lambda$ together with $\cos(\beta-\alpha)$ would single out a definite $m_H$.
- A precise determination of $\tan\beta$ from scalar-sector observables combined with the measured Cabibbo angle provides a direct consistency check of Eq. (17).
Reading between the lines
- Beyond the paper: a one-loop calculation of the Yukawa correction to $\sin\theta_C=\sin 2\beta$ is the natural next step and would test the paper's stability expectation, which is asserted but not computed.
- Beyond the paper: if the relation survives radiative corrections, precision Higgs and electroweak data become an alternative route to the Cabibbo angle, and any tension between the two determinations would point to structure beyond this model.
- Beyond the paper: the same square-of-the-vacuum-rotation mechanism might transfer to other discrete flavor symmetries where both handedness rotations are forced to be inverse vacuum rotations, giving a generic relation between a mixing angle and a vacuum angle.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper constructs a two-Higgs-doublet model with a D4 flavor symmetry acting on the first two quark generations and on the two Higgs doublets. The D4 charge assignments produce two-zero-texture mass matrices for the up- and down-type quarks, with vanishing first-generation masses. Diagonalizing these matrices gives a CKM matrix that is a pure 2x2 Cabibbo rotation with angle 2β, leading to the central relation sin θ_C = sin 2β (Eq. 17). The author shows that a softly D4-broken scalar potential can accommodate the required tan β, computes the resulting FCNC couplings, and argues that they are sufficiently suppressed to allow nonstandard scalars at the few-TeV scale. The paper explicitly presents this as a leading-order, minimal scenario: m_u = m_d = 0 and the full CKM structure (including CP violation) are not reproduced.
Significance. If the relation sin θ_C = sin 2β survives quantum corrections, the model provides a compact and elegant connection between the quark mixing angle and the scalar vacuum structure. The tree-level derivation is transparent and correct, and the FCNC couplings are fully determined by the physical masses, a clear strength of the construction. The model is a useful proof-of-principle that a discrete flavor symmetry can reduce the quark Yukawa sector to five parameters while fixing the Cabibbo angle from the Higgs sector. However, the central quantitative claim rests on the unproven stability of Eq. (17) under radiative corrections, and the leading-order texture itself is an approximation whose quantitative reliability is not assessed.
major comments (2)
- [After Eq. (17)] The assertion that the relation sin θ_C = sin 2β 'should be stable under quantum corrections' is not supported. The scalar potential in Eq. (18) contains soft D4-breaking bilinears (μ_1^2 ≠ μ_2^2 and μ_12^2 ≠ 0), which are precisely what allows tan β ≠ 1. These operators can be inserted in quark self-energy loops and generate finite corrections to the effective Yukawa matrices. The accidental chiral symmetries protect the zeros (m_u = m_d = 0) but do not protect the ratios of the non-zero entries that determine the rotation angle U_β in Eq. (12); consequently Eq. (17) may receive unsuppressed corrections in parts of the parameter space. The author should either compute the one-loop corrections to sin θ_C or identify a symmetry (e.g., a non-renormalization theorem) that suppresses them. Without this, the central result is not established beyond tree level.
- [Eq. (1) and the texture approximation] The paper uses the leading-order texture of Eq. (1), with m_u = m_d = 0 and a block-diagonal CKM matrix, as the basis for the relation, but it does not quantify the expected size of corrections to sin θ_C from the light quark masses and the small non-zero CKM elements |V_cb| and |V_ub|. Since the measured Cabibbo angle is used to fix tan β through Eq. (17), an estimate of the relative error—for example, whether corrections of order m_u/m_t and m_d/m_b shift sin 2β by less than the current precision—is necessary for the predictive claim. Furthermore, the model must be extended to lift the first-generation masses and to generate CP violation, and it is not discussed how such an extension might affect the value of θ_C. The final paragraph acknowledges the first-generation mass issue but does not connect it to the stability of Eq. (17).
minor comments (4)
- [Abstract] The phrase 'Due to small number of parameters' should read 'Due to the small number of parameters'.
- [Section on FCNCs, Eq. (32)] The statement that the lower bound on nonstandard scalar masses is 'about 3 TeV' is made without showing the underlying flavor constraints. A brief derivation or reference to the specific ΔF=2 or B-decay bounds used would strengthen this claim.

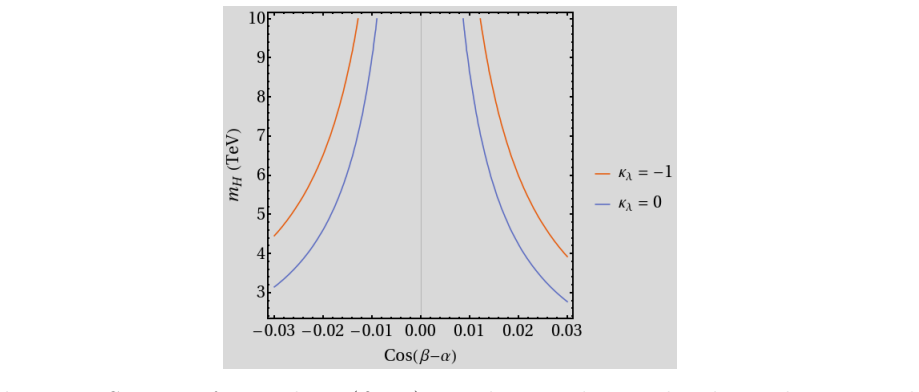

- [Eq. (33) and Fig. 1] The caption of Fig. 1 does not specify the value of tan β used apart from sin 2β = 0.22, nor the range of cos(β−α). Adding these details would improve reproducibility.
- [Conclusion] The final sentence of the Conclusion states that 'the interesting features of this model outweigh the dissatisfaction with the small parameters in the quark sector'; this is a matter of taste and could be rephrased in more objective terms, e.g., by summarizing the quantitative progress made.
Circularity Check
No significant circularity: Eq. (17) is derived from the D4 Yukawa texture, and the observed Cabibbo angle is used only after the derivation to fix tan beta.
full rationale
The central claim, sin theta_C = sin 2 beta (Eq. 17), is obtained by explicit diagonalization of the mass matrices that follow from the D4-symmetric Yukawa Lagrangian (Eqs. 6-16). The observed value of the Cabibbo angle is not an input to the derivation: it appears only afterward, when Eq. (17) is compared with Eq. (1) to fix tan beta. The representation assignments are indeed motivated by the desired leading-order texture of Eq. (1), but that is ordinary model building and does not make the derived relation circular; the relation sin theta_C = sin 2 beta is not assumed at any stage. The paper is also transparent that the Yukawa sector has five parameters for five nonzero leading-order observables (four masses and one angle), so the relation is a constraint rather than an over-determined prediction; this limits the predictive reach but is not a circularity. The one-line assertion after Eq. (17) that the relation 'should be stable under quantum corrections' is unsupported and is a genuine correctness risk, but it is not a circular step because no loop calculation or fitted input is being invoked. The self-citations ([2], [6], [9]) are used for standard 2HDM conventions, the scalar-sector alignment limit, and related model properties; they do not carry the Cabibbo-angle derivation. Finally, the paper honestly acknowledges that the complete CKM matrix and nonzero first-generation masses are not reproduced, which is a stated limitation rather than a hidden circular assumption. Overall, no derivation step reduces to its own input, and no fitted parameter is renamed as a prediction.
Assumptions & free parameters
free parameters (3)
- tan beta (or equivalently sin 2 beta) =
sin 2 beta = 0.22, so tan beta approx 0.11 or 9.0
- Yukawa couplings A_u, B_u, A_d, B_d =
A_u = sqrt(2) m_c/v, B_u = sqrt(2) m_t/v, A_d = sqrt(2) m_s/v, B_d = sqrt(2) m_b/v
- Scalar potential parameters lambda1, lambda2, lambda3, lambda4, mu12^2 =
free, traded for physical masses and mixing angle
assumptions (5)
- standard math D4 group representation theory and tensor products (Eq. 3) are correct and complete.
- domain assumption The quark and Higgs fields transform under D4 as specified in Eqs. (4) and (5).
- domain assumption Yukawa couplings can be taken real by absorbing phases in quark fields.
- ad hoc to paper The leading-order texture with mu=md=0 and a block-diagonal CKM matrix is a good approximation to the real quark sector.
- ad hoc to paper The alignment limit alpha = beta - pi/2 is imposed so that h has SM-like couplings.
Cite this review
Pith. "Pith review of Relating the Cabibbo angle to $\tan\beta$ in a two Higgs-doublet model." pith.science (2026). https://pith.science/paper/TQBIFPHR
@misc{pith2026190803961,
author = {Pith},
title = {Pith review of: Relating the Cabibbo angle to $\tan\beta$ in a two Higgs-doublet model},
year = {2026},
howpublished = {\url{https://pith.science/paper/TQBIFPHR}},
note = {Machine review of arXiv:1908.03961}
}
abstract
In a two Higgs-doublet model with $D_4$ flavor symmetry, we establish a relation between $\tan\beta$ and the Cabibbo angle. Due to a small number of parameters, the quark Yukawa sector of the model is very predictive. The flavor changing neutral currents are small enough to allow for relatively light nonstandard scalars to pass through the flavor constraints.
Figures
Reference graph
Works this paper leans on
-
[1]
G. C. Branco, P. M. Ferreira, L. Lavoura, M. N. Rebelo, M. Sher, and J. P. Silva, Theory and phenomenology of two-Higgs-doublet models , Phys. Rept. 516 (2012) 1–102, [ arXiv:1106.0034]
arXiv 2012
-
[2]
G. Bhattacharyya and D. Das, Scalar sector of two-Higgs-doublet models: A minireview , Pramana 87 (2016), no. 3 40, [ arXiv:1507.06424]
arXiv 2016
-
[3]
H. Ishimori, T. Kobayashi, H. Ohki, Y. Shimizu, H. Okada, and M. Tanimoto, Non-Abelian Discrete Symmetries in Particle Physics , Prog. Theor. Phys. Suppl. 183 (2010) 1–163, [arXiv:1003.3552]
arXiv 2010
-
[4]
P. B. Pal, Symmetries of Regular Geometrical Objects , p. 281–310. Cambridge University Press, 2019
work page 2019
-
[5]
J. F. Gunion and H. E. Haber, The CP conserving two Higgs doublet model: The Approach to the decoupling limit, Phys. Rev. D67 (2003) 075019, [ hep-ph/0207010]
arXiv 2003
-
[6]
Search for a 'stable alignment limit' in two Higgs-doublet models
D. Das and I. Saha, Search for a stable alignment limit in two-Higgs-doublet models , Phys. Rev. D91 (2015), no. 9 095024, [ arXiv:1503.02135]
work page Pith review arXiv 2015
-
[7]
P. S. Bhupal Dev and A. Pilaftsis, Maximally Symmetric Two Higgs Doublet Model with Natural Standard Model Alignment, JHEP 12 (2014) 024, [ arXiv:1408.3405]. [Erratum: JHEP11,147(2015)]
arXiv 2014
- [8]
Show all 19 references
-
[9]
Bhattacharyya, D
G. Bhattacharyya, D. Das, P. B. Pal, and M. N. Rebelo, Scalar sector properties of two-Higgs-doublet models with a global U(1) symmetry , JHEP 10 (2013) 081, [arXiv:1308.4297]. 7
2013 arXiv
-
[10]
O. U. Shanker, Flavor Violation, Scalar Particles and Leptoquarks , Nucl. Phys. B206 (1982) 253–272
1982
-
[11]
CMS Collaboration, A. M. Sirunyan et al., Combination of searches for Higgs boson pair production in proton-proton collisions at √s = 13 TeV, Phys. Rev. Lett. 122 (2019), no. 12 121803, [arXiv:1811.09689]
2019 arXiv
-
[12]
A TLASCollaboration, Combination of searches for Higgs boson pairs in pp collisions at 13 TeV with the ATLAS experiment. , Tech. Rep. ATLAS-CONF-2018-043, CERN, Geneva, Sep, 2018
2018
-
[13]
Adulpravitchai, A
A. Adulpravitchai, A. Blum, and C. Hagedorn, A Supersymmetric D4 Model for mu-tau Symmetry, JHEP 03 (2009) 046, [ arXiv:0812.3799]
2009 arXiv
-
[14]
Ishimori, T
H. Ishimori, T. Kobayashi, H. Ohki, Y. Omura, R. Takahashi, and M. Tanimoto, D(4) Flavor Symmetry for Neutrino Masses and Mixing , Phys. Lett. B662 (2008) 178–184, [arXiv:0802.2310]
2008 arXiv
-
[15]
Hagedorn and R
C. Hagedorn and R. Ziegler, µ−τ Symmetry and Charged Lepton Mass Hierarchy in a SupersymmetricD4 Model, Phys. Rev. D82 (2010) 053011, [ arXiv:1007.1888]
2010 arXiv
-
[16]
Meloni, S
D. Meloni, S. Morisi, and E. Peinado, Stability of dark matter from the D4xZ2 flavor group , Phys. Lett. B703 (2011) 281–287, [ arXiv:1104.0178]
2011 arXiv
-
[17]
V. V. Vien, Neutrino mass and mixing in the 3-3-1 model with neutral leptons based on D4 flavor symmetry, Mod. Phys. Lett. A29 (2014) 1450122
2014
-
[18]
V. V. Vien and H. N. Long, The D4 flavor symmery in 3-3-1 model with neutral leptons , Int. J. Mod. Phys. A28 (2013) 1350159, [ arXiv:1312.5034]
2013 arXiv
-
[19]
V. V. Vien and H. N. Long, Quark Masses and Mixings in an Extension of the Standard Model with D 4 Flavor Symmetry, Phys. Atom. Nucl. 81 (2018), no. 6 750–757. 8
2018
