Subsystem Development for the All-Sky Medium Energy Gamma-ray Observatory (AMEGO) prototype
T0 review · 2 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read The authors claim that the ComPair prototype, combining a silicon tracker, CZT and CsI calorimeters, and an anticoincidence detector, is mature enough to begin integration in late 2019 and to fly on a balloon in 2021, providing the first…
desk verdict A clear, honest status report on the AMEGO prototype; no new science, and the tracker's unmeasured noise is the key gap. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument

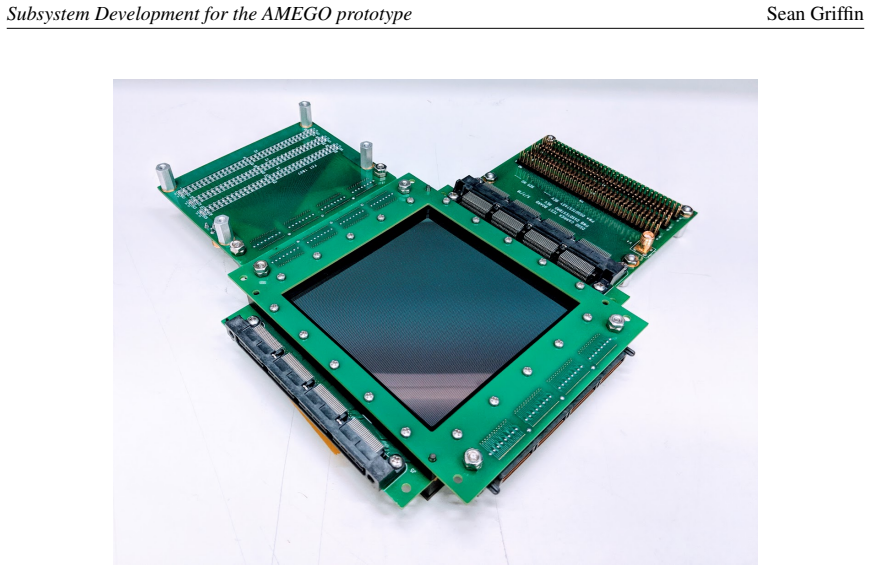

The load-bearing object is ComPair itself, a proof-of-principle instrument whose modular, highly segmented design mirrors the full AMEGO telescope. The silicon tracker is the first point of interaction, acting as both Compton-scattering target and pair-conversion material, with double-sided detectors and analogue readout used to record the position and energy of Compton electrons. The CZT calorimeter locates scattered photons in three dimensions using the signal ratios and drift times of virtual Frisch-grid bars arranged in 4 by 4 modules. The CsI calorimeter measures high-energy pair products with hodoscopic bars and silicon photomultipliers, and the anticoincidence detector rejects cosmic-ray events. The paper singles out one technical quantity as central: the noise of a silicon detector 'ladder' formed by daisy-chaining several detectors, since that noise determines whether low-energy Compton electron tracks can be reconstructed.
What would settle it
Measure the per-strip electronic noise of a daisy-chained double-sided silicon detector ladder read out by the qualified ASIC, and compare it with the signal expected from a roughly 100 keV Compton electron: if the noise is too high for track reconstruction, the claim that integration can begin in late 2019 fails. Conversely, a beam test that reconstructs Compton rings and pair tracks from 2-100 MeV photons would confirm it.
Extended reading notes
Core claim

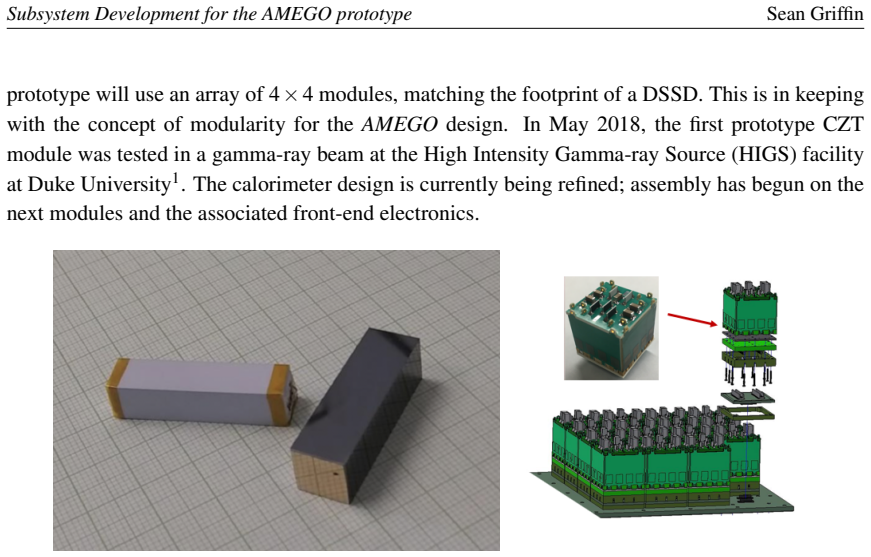

The paper's discovery, at this stage, is that the ComPair prototype has moved from design into assembly: the silicon tracker uses double-sided strip detectors with analogue readout so that Compton-scattered electrons deposit measurable energy; the CZT calorimeter uses position-sensitive virtual Frisch-grid bars with sub-percent energy resolution; the CsI calorimeter is a four-layer hodoscope read out by silicon photomultipliers; and the anticoincidence detector is segmented to reduce false vetoes from backscattered high-energy photons. The authors state that integration will begin at the end of 2019, that the integrated instrument will be tested in a gamma-ray beam from 2 to 100 MeV, and that a short-duration balloon flight is targeted for 2021. If these milestones hold, ComPair will serve as a proof-of-principle that the AMEGO mission concept can work across the Compton and pair-production regimes.
Load-bearing premise
The whole schedule rests on the silicon tracker being quiet enough: the authors assume that chaining several detectors into a ladder and reading them out with the new ASIC will produce low enough electronic noise to reconstruct Compton electron tracks, but no measured ladder noise is reported and the ASIC is still being qualified.
Editorial extensions
If this is right
- If ComPair is beam-tested successfully over 2-100 MeV, one instrument will have demonstrated event reconstruction in both the Compton regime and the pair-production regime, the two halves of the previously inaccessible band.
- A successful late-2019 integration would validate the modular, highly segmented design philosophy, which allows parallel assembly lines and easy production of spare components for the full mission.
- The 2021 balloon flight would provide the first end-to-end operation of this four-subsystem combination in a near-space environment, testing triggers, data acquisition, and veto logic together.
- If tracked Compton events reduce arrival-direction reconstruction from a ring to an arc as the paper describes, the prototype would demonstrate a concrete sensitivity improvement for future MeV missions.
Reading between the lines
- A successful ComPair flight would strengthen the case that the MeV gap can be closed with a single moderately priced observatory rather than a collection of specialized instruments, a step the authors leave implicit.
- The virtual Frisch-grid CZT technology, if it performs well in flight, could be reused for dedicated nuclear-line spectroscopy missions because of its high energy resolution.
- Because the subsystems are modular, any one of them could be tested or flown separately; a partial failure on the balloon flight would not necessarily invalidate the others, though the paper does not draw this out.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports the development status of the ComPair prototype, a four-subsystem pathfinder for the AMEGO gamma-ray mission concept. It describes the silicon tracker, CZT and CsI calorimeters, and the anticoincidence detector, and states that subsystem integration will begin in late 2019, followed by a beam test at HIGS and a balloon flight in 2021. The paper is a conference contribution (ICRC 2019) and presents no full scientific results; its central claim is that the prototype subsystems are mature enough for integration and flight.
Significance. The paper provides a useful archival status update for a mission concept targeting the poorly explored MeV gamma-ray band. Its value is primarily as a pointer to more detailed subsystem papers (e.g., [6] and [10]) and as documentation of the early-stage hardware. The only quantitative laboratory result is a single CZT spectrum; there is no new physics result. If the ComPair prototype achieves its Compton-tracking demonstration, this report will record the starting point of a validation path for AMEGO, but the paper itself adds little beyond a narrative of ongoing work.
major comments (2)
- [Section 2.1] The text states that 'the noise in a detector ladder scales with the number of detectors in it, so a good understanding of the performance of a ladder is crucial to AMEGO,' yet no measured noise (ENC) for the ladder is reported and the VATA460.3 ASIC 'is in the process of being qualified.' Because the tracker is the first interaction point and its analogue readout is essential for measuring low-energy Compton-scattered electrons, the absence of any measured noise figure leaves the central claim of Section 3—that subsystems can be integrated at the end of 2019 with a balloon flight in 2021—without supporting evidence. This is an evidence gap in the paper's own logic and should be addressed by adding the relevant measured data or by softening the readiness statement until qualification is complete.
- [Sections 2.2-2.4] The status descriptions for the CZT and CsI calorimeters and the ACD rely largely on references to prior work rather than on data presented here; the only measured spectrum shown (Figure 2) lacks statistical uncertainties and a description of background subtraction. Given that the paper's purpose is to document readiness for integration, the absence of quantitative performance milestones (e.g., measured energy or position resolution for the CsI hodoscope, veto efficiency for the ACD) makes the stated integration timeline difficult to assess. I recommend adding any available measured performance figures, or clearly labeling such results as expected versus demonstrated.
minor comments (6)
- [Introduction] The word 'Survay' should be 'Survey', and 'e−/e+' appears with inconsistent spacing.
- [Section 2.3] The phrase 'read our using the ROSSPAD' should be 'read out using the ROSSPAD'.
- [Section 2.4] The phrase 'falase vetos' should be 'false vetoes'.
- [Section 3] The misspelling 'subsytem' should be corrected to 'subsystem'.
- [Figure 2] The spectrum would be more informative if the peaks at 1.4 MeV and 2.6 MeV were explicitly labeled and if statistical uncertainties or confidence intervals were shown.
- [References] Reference [6] is an accepted/published version of the same group's work; consider updating the citation to the final journal version if available.
Circularity Check
No circularity: the paper is a subsystem status report with no derivation chain that reduces to its inputs.
full rationale
This is a conference proceedings status report describing the current development of the four ComPair prototype subsystems. There is no derived prediction, no fitted parameter renamed as a result, and no mathematical derivation whose conclusion is equivalent to its premise by construction. The few self-citations, such as [6] for the silicon tracker development and [10] for the CsI calorimeter, are references to earlier papers on the same hardware; they are used to point to prior subsystem work, not to justify the central claim that the prototype subsystems are being assembled and will be integrated at the end of 2019. That claim is supported by directly stated current activities (e.g., 'the ASIC is in the process of being qualified', 'assembly has begun on the next modules', and 'a photo of the prototype hodoscope is given in Figure 4') rather than by the cited prior work. The acknowledged open item, that tracker ladder noise is crucial to AMEGO and has not yet been reported with a measured value, is an evidence gap or correctness risk about subsystem maturity, not a circular use of the paper's inputs. Therefore no circular step can be quoted and exhibited, and the appropriate score is 0.
Assumptions & free parameters
assumptions (3)
- domain assumption Compton scattering and pair production are the dominant interaction processes for photons between roughly 200 keV and 10 GeV, with a crossover near 10 MeV.
- ad hoc to paper A prototype with one detector per layer and smaller calorimeter dimensions is a valid proof-of-principle for the full AMEGO design.
- domain assumption The CZT energy resolution shown in Figure 2 (0.5% FWHM at 662 keV) is representative of future modules.
Cite this review
Pith. "Pith review of Subsystem Development for the All-Sky Medium Energy Gamma-ray Observatory (AMEGO) prototype." pith.science (2026). https://pith.science/paper/YF4UDBQN
@misc{pith2026190804154,
author = {Pith},
title = {Pith review of: Subsystem Development for the All-Sky Medium Energy Gamma-ray Observatory (AMEGO) prototype},
year = {2026},
howpublished = {\url{https://pith.science/paper/YF4UDBQN}},
note = {Machine review of arXiv:1908.04154}
}
abstract
The gamma-ray sky from several hundred keV to $\sim$ a hundred MeV has remained largely unexplored due to the challenging nature of detecting gamma rays in this regime. At lower energies, Compton scattering is the dominant interaction process whereas at higher energies pair production dominates, with a crossover at about 10 MeV depending on the material. Thus, an instrument designed to work in this energy range must be optimized for both Compton and pair-production events. The All-sky Medium Energy Gamma-ray Observatory (AMEGO) is a NASA Probe-class mission concept being submitted to the Astro2020 review. The instrument is designed to operate from 200 keV to $>$10 GeV and is made of four major subsystems: a plastic anti-coincidence detector for rejecting cosmic-ray events, a silicon tracker for tracking pair-production products and tracking and measuring the energies of Compton-scattered electrons, a CZT calorimeter for measuring the energy and location of Compton scattered photons, and a CsI calorimeter for measuring the energy of the pair-production products at high energies. A prototype instrument comprising each subsystem is currently being developed in preparation for a beam test and a balloon flight. In this contribution we discuss the current status of the prototype subsystems.
