An Introduction to Stellarators: From magnetic fields to symmetries and optimization

Adelle M. Wright; Elizabeth J. Paul; Lise-Marie Imbert-Gerard

An Introduction to Stellarators: From magnetic fields to symmetries and optimization

T0 review · 0 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper shows that stellarator design can be traced in one self-contained chain from Maxwell's equations and Hamiltonian mechanics to coil optimization.

desk verdict A solid, well-organized tutorial review of stellarator theory that delivers on its stated pedagogical goal; no new science, but real and useful for mathematicians entering the field. read the letter →

arxiv 1908.05360 v2 pith:GD2FSJI2 submitted 2019-08-14 physics.plasm-ph

Lise-Marie Imbert-Gerard , Elizabeth J. Paul , Adelle M. Wright This is my paper · ORCID

classification physics.plasm-ph PACS 52.55.Hc

keywords stellaratormagneticconfinementfusionmagnetohydrodynamicsfluxsurfacesquasisymmetryBoozercoordinatesrotationaltransformcoiloptimization

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to make stellarator design comprehensible to non-plasma physicists by tracing a single chain of reasoning from Maxwell's equations and Hamiltonian mechanics all the way to coil optimization. The authors' claim is that the practical difficulty of stellarators, and the cure through 'hidden symmetries' such as quasisymmetry and omnigeneity, can be understood from the same mathematical objects: flux surfaces, rotational transform, Boozer coordinates, and the Hamiltonian structure of field-line flow. If the tutorial works, a mathematically trained reader should be able to see why nested flux surfaces are not guaranteed in three dimensions, why current is not the only way to generate rotational transform, and why design therefore becomes an optimization problem. The payoff claimed is an accessible entry point into the stellarator research literature, not a new experimental discovery.

What carries the argument

The carrier of the argument is the Hamiltonian description of magnetic field lines: with the poloidal flux as the Hamiltonian and the toroidal flux as the conjugate momentum, field lines become orbits of a dynamical system, so axisymmetry is a conserved quantity, magnetic coordinates straighten field lines, and Boozer coordinates reduce the field to $B = I(\psi)\nabla\vartheta + G(\psi)\nabla\phi + K(\psi,\vartheta,\phi)\nabla\psi$, where the field strength carries the symmetry information. In this language, quasisymmetry is the condition that $B$ depends on only one angle, omnigeneity is a weaker condition on particle trapping, and the rotational transform $\iota = d\Psi_P/d\Psi_T$ emerges as the rotation number of field lines. A second workhorse is the near-axis expansion, which shows how torsion and axis ellipticity generate rotational transform without plasma current and supplies low-order design targets. The optimization chapters then treat coil design as a regularized inverse problem, choosing coil shapes that reproduce a target equilibrium.

What would settle it

Compute an ideal-MHD equilibrium with a pressure gradient that does not vanish on a rational surface with $\iota = n/m$ and a nonzero Fourier component $(\sqrt{g}\,\nabla\cdot J_\perp)_{m,n}$; the paper's equation (211) then has no smooth solution, so any numerically smooth equilibrium would show the model is being violated, and a time-dependent calculation should instead develop an island or current sheet.

Watch

Extended reading notes

Core claim

The central claim is that all of stellarator modeling and design can be presented as one coherent theory. Magnetic confinement requires field lines that stay on nested toroidal surfaces; in an axisymmetric tokamak such surfaces are guaranteed by a conserved toroidal canonical momentum, but in a stellarator the absence of symmetry makes field-line flow a non-autonomous Hamiltonian system whose invariant tori can break, producing islands and chaos. The paper then shows that rotational transform can still be produced without plasma current through the torsion and rotating ellipticity of the magnetic axis, that ideal magnetohydrodynamics imposes integral constraints on rational surfaces and can give rise to current sheets, and that the design goals of quasisymmetry, omnigeneity, and related properties can be formulated in Boozer coordinates and pursued numerically. The closing claim is that fixed-boundary equilibrium, near-axis construction, and coil optimization form a single tractable design pipeline.

Load-bearing premise

The entire design story assumes that ideal magnetohydrodynamics with continuously nested flux surfaces adequately describes a real finite-pressure stellarator plasma; the paper itself flags in Section 10.3 that this model develops singular currents or current sheets at rational surfaces.

Editorial extensions

If this is right

A stellarator can confine plasma without a large net current: the near-axis expansion shows that rotational transform arises from axis torsion and rotating ellipticity, so the coils must be shaped to create those geometric properties.
Quasisymmetric or omnigenous fields restore tokamak-like trapped-particle confinement, so design targets can be phrased as symmetry conditions on the field strength rather than as ad hoc heuristics.
The existence of flux surfaces is not all-or-nothing: small deviations from integrability leave a positive-measure set of surfaces when the rotational transform is sufficiently irrational and the shear is nonzero.
Coil design is intrinsically ill-posed and must be regularized or reformulated through winding surfaces or filament methods, making coil complexity an explicit part of stellarator design.
Finite pressure at rational surfaces forces a choice: either flatten the pressure there or construct special geometry, because the ideal-MHD parallel current becomes singular at $\iota = n/m$ unless an integral constraint is satisfied.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

A quantitative test of the near-axis design rule would be to take a vacuum field with a prescribed axis torsion and ellipticity profile and compare the numerically computed rotational transform with the expansion-derived formula; a mismatch would show where the expansion ceases to be useful for design.
The Hamiltonian framing suggests a direct analogy with symplectic maps: stellarator design could be reformulated as prescribing the field-line map's generating function, which may expose which symmetry properties are achievable beyond the near-axis regime.
If the singular-current constraint is generic, then every smooth high-beta equilibrium with nested surfaces must either flatten pressure at rational surfaces or be specially constructed; one could scan random boundary perturbations of a fixed device and measure how often the constraint fails.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Bottom line: this is a well-executed tutorial review, not a research contribution. It does exactly what it says: it gives a mathematically coherent path from Maxwell's equations and Lagrangian mechanics through guiding-center motion, MHD equilibrium, magnetic coordinates, quasisymmetry, and coil optimization, pitched at readers with PDE and variational-calculus background but no plasma physics. There is no new result and no circularity problem, because the paper makes no predictive claims and re-presents established material. The standard derivations I checked are accurate, and the authors consistently flag where ideal MHD is being idealized.

The strongest part is the explicit derivation of the gyroaveraged Lagrangian in Section 5.2 and the careful Fourier/method-of-characteristics treatment of the Boozer coordinate equation in Section 9.3. That is more detail than most existing reviews provide, and it is genuinely useful for mathematicians who want to see where the formulas come from. The paper is also honest about the 1/x and delta-function current singularities at rational surfaces in 3D MHD, and it does not pretend that the symmetry-based design methods escape those limitations. The discussion of ideal MHD's limits, islands, and resistive extensions is present in the text itself, not hidden.

The soft spots are minor for a tutorial but worth naming. The claim to be "self-contained" is slightly generous: Section 7.6.2 states the Mercier near-axis result and defers the mechanism to Section 10.5, but Section 10.5 appears to summarize the near-axis expansion rather than fully derive it. A reader who wants to actually see that mechanism must go to the cited literature. That is acceptable for this kind of document, but the authors should soften the claim or add the omitted steps. There are also occasional typos and small presentation slips, none of them load-bearing.

Who is this for: mathematics graduate students, applied mathematicians, and computational scientists entering stellarator research. Plasma physicists will find the early sections basic but may still want the later sections as a reference map. The paper deserves serious peer review. I would accept it as a tutorial/review with minor revisions: adjust the self-containment wording, add pointers to fuller near-axis derivations, and clean up the typos before final publication.

Referee Report

0 major / 6 minor

Summary. This manuscript is a pedagogical review of stellarator physics, developing the subject from Maxwell's equations, classical mechanics, single-particle motion, and guiding-center theory, through ideal MHD equilibria, magnetic and Boozer coordinates, Hamiltonian field-line dynamics, singular currents, near-axis equilibria, hidden symmetries, and numerical optimization. Its central claim, stated in the Preface, is that it is a self-contained document presenting the theoretical building blocks for understanding stellarator modeling, the associated challenges, and optimization for stellarator design, aimed at readers with a mathematics background but no prior plasma physics. The exposition is largely derivational rather than survey-style, with explicit assumptions and frequent pointers to the primary literature.

Significance. If the manuscript's pedagogical claim is judged by what a tutorial can reasonably deliver, it is successful and valuable: it bridges the terminology gap between plasma physics and applied mathematics, writes out many standard derivations, and flags the main limitations of the models it presents. The discussions of singular currents on rational surfaces, KAM persistence of flux surfaces, and the ill-posedness of coil optimization are unusually explicit for an introductory text and will help newcomers understand why stellarator design is mathematically rich. The stress-test concern that Sections 12-13 rely on idealized equilibrium models is largely mitigated because Sections 10.3-10.4 themselves document the breakdown of nested flux surfaces and describe non-ideal extensions; the tutorial does not hide these limitations. No circularity burden arises, since the paper introduces no new predictions or fitted parameters.

minor comments (6)

[8.1] The cross-reference stating 'In Section 6.4 we will discuss the result that ideal MHD does not allow for changes in topology' points to the wrong section; the flux-freezing and topology discussion appears in Section 8.2 and should be cited there.
[7.6.2 and 10.5] The Mercier near-axis computation, which underpins the claim that rotational transform can be produced by torsion and ellipticity, is summarized rather than fully derived; since the Preface promises derivations 'when it is not too involved', the text should include an explicit statement that the near-axis expansion is only sketched and refer the reader to the original Mercier references for the complete derivation.
[10.3.1] The sentence 'Therefore, the 1/x Pﬁrsch-Schlüter term is not a physical singularity, as it would imply an infinite amount of current' is confusing; the intended meaning appears to be that the 1/x term is unphysical because it produces an infinite current, and the wording should be adjusted accordingly.
[10.3.3] There is a typo in 'the jump in the margnetic field' and a grammatical error in 'Choosing the value of ~ψk(0) will may also lead'; these should be corrected.
[10.4.1] The sentence beginning 'It has been proposed [199] in that a small pressure gradient...' contains an extra 'in' and should be rewritten for clarity.
[4] The text contains an encoding artifact, 'NewtonâĂŹs approach', near the beginning of Section 4; this should be fixed in the final version.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the paper is an expository tutorial whose derivations are built from standard first principles, with no fitted input relabeled as a prediction and no load-bearing self-citation chain.

full rationale

The paper's stated goal is pedagogical: to present 'the basic theoretical building blocks to understand modeling of stellarator magnetic fields, some of the challenges associated with modeling, and optimization for designing stellarators.' Nothing in the text claims to derive a new empirical prediction from fitted parameters. The derivation chain runs from Maxwell's equations and classical mechanics through ideal MHD, flux coordinates, Hamiltonian field-line flow, and near-axis expansion; these are presented as textbook material with explicit derivations where feasible. The near-axis Mercier result is introduced in Section 7.6.2 as 'A classic result of Mercier [167, 95]' and deferred to Section 10.5, but deferring a proof to the literature is not circularity, and the tutorial does not rest its central claim on asserting its own conclusion. The paper explicitly flags the limitations of the ideal-MHD assumptions in Section 10.3, including 1/x and delta-function singularities on rational surfaces, and in Section 10.4 moves beyond ideal MHD. This acknowledgment prevents any hidden reliance on idealized models from being smuggle. No self-citation is used to justify a forbidden uniqueness claim or to define a quantity in terms of the quantity being derived. Accordingly, the appropriate finding is no significant circularity.

Assumptions & free parameters 0 free parameters · 8 assumptions · 0 invented entities

The paper relies on standard physics models and mathematical results; no free parameters or invented entities are introduced. The main domain assumptions are the validity of ideal MHD and the guiding center approximation, plus the existence of nested flux surfaces for the coordinate systems and symmetry concepts.

assumptions (8)

standard math Maxwell's equations (Eqs. 4-7) govern the electromagnetic fields.
Invoked throughout Section 3 as the starting point for all field models.
domain assumption The ideal MHD model (Eqs. 104-108) is a valid description of fusion plasmas for the design concepts discussed.
Assumed in Sections 8 and 11 for equilibrium calculations; the paper notes its limitations in Section 10.4.
domain assumption The guiding center approximation with small gyroradius (Eq. 50) is valid for fusion conditions.
Used in Section 5.2 to derive drifts and adiabatic invariants; justified by the scale separation in Table 1.
standard math Magnetic field line flow can be represented as a Hamiltonian system (Eqs. 173-174).
Foundational for the existence-of-surfaces discussion in Section 10.1.
standard math KAM theory (Diophantine condition, Eq. 201) applies to magnetic field line flows.
Used in Section 10.2.4 to argue persistence of some flux surfaces in 3D.
domain assumption Mercier's near-axis asymptotic expansion (Section 10.5, Eq. 267) correctly describes rotational transform generation by axis torsion and ellipticity.
Invoked in Section 7.6.2 to explain current-free rotational transform; the full calculation is only summarized.
domain assumption The concept of quasisymmetry provides confinement properties comparable to axisymmetry (Section 12.1).
Underlies the optimization objectives in Section 13.
domain assumption Boozer coordinates require the existence of nested flux surfaces and vanishing radial current (Section 9.3).
Used in Sections 9 and 12 to infer symmetry properties.

how reviews work

0 comments

Cite this review

Pith. "Pith review of An Introduction to Stellarators: From magnetic fields to symmetries and optimization." pith.science (2026). https://pith.science/paper/GD2FSJI2

@misc{pith2026190805360,
  author       = {Pith},
  title        = {Pith review of: An Introduction to Stellarators: From magnetic fields to symmetries and optimization},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GD2FSJI2}},
  note         = {Machine review of arXiv:1908.05360}
}

read the original abstract

In this self-contained document, we aim to present the basic theoretical building blocks to understand modeling of stellarator magnetic fields, some of the challenges associated with modeling, and optimization for designing stellarators. As often as possible, the ideas will be presented using equations and pictures, and references to other relevant introductory material will be included. This document is accessible to those who may not have a physics background but are interested in applications of mathematical and computational tools to stellarator research.

Figures

Figures reproduced from arXiv: 1908.05360 by the authors.

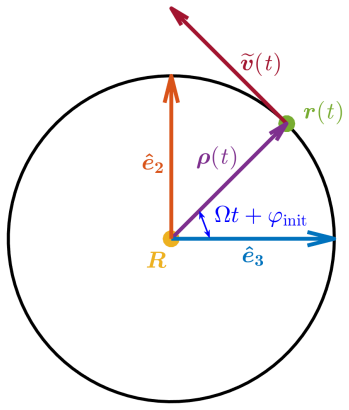

**Figure 2.** The motion in the plane perpendicular to the magnetic field is described by the orthonor [PITH_FULL_IMAGE:figures/full_fig_p017_2.png] view at source ↗

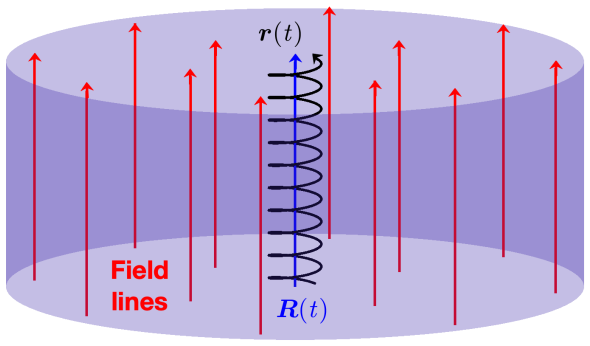

**Figure 3.** In a straight, uniform magnetic field, charged particles exhibit fast helical motion about [PITH_FULL_IMAGE:figures/full_fig_p018_3.png] view at source ↗

Figures from the paper (41 more)

**Figure 4.** Figure 4: A solenoid is use to produce an (approximately) straight, uniform magnetic field. [PITH_FULL_IMAGE:figures/full_fig_p018_4.png]

**Figure 5.** Figure 5: We illustrate a particle orbit in a magnetic field pointing into the page with a gradient [PITH_FULL_IMAGE:figures/full_fig_p023_5.png]

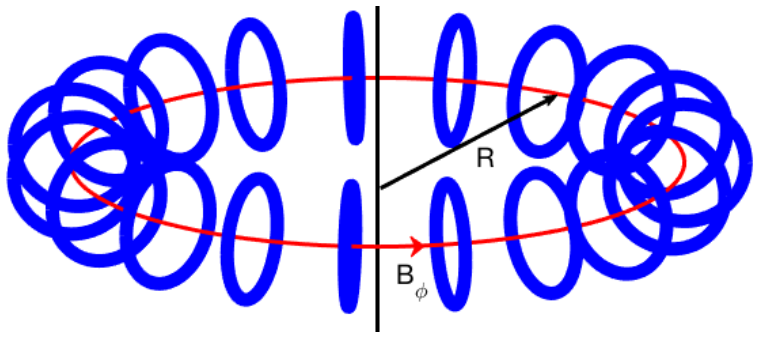

**Figure 6.** Figure 6: In a toroidal vacuum magnetic field, the magnitude of the toroidal field varies as [PITH_FULL_IMAGE:figures/full_fig_p024_6.png]

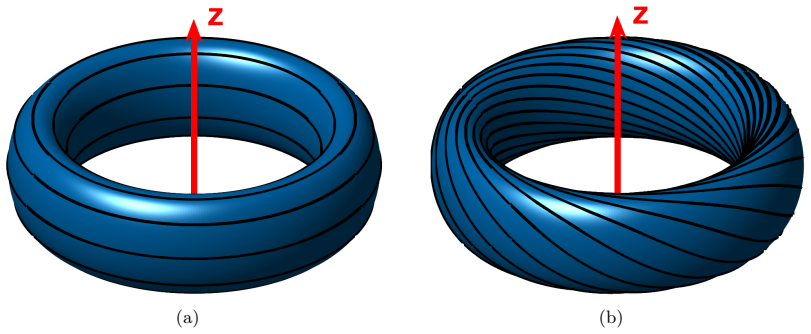

**Figure 7.** Figure 7: A purely toroidal field (a) cannot provide confinement due to the guiding center drifts. [PITH_FULL_IMAGE:figures/full_fig_p025_7.png]

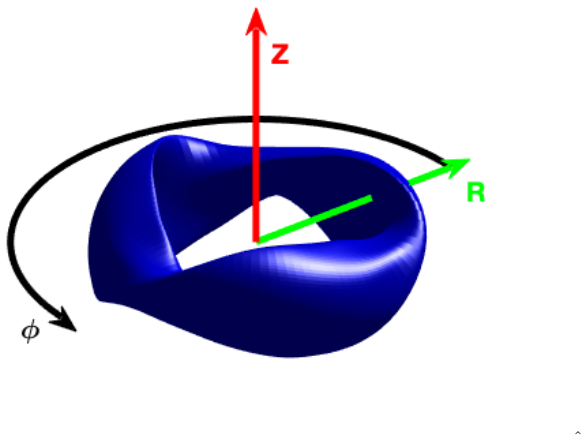

**Figure 8.** Figure 8: The standard cylindrical coordinate system: [PITH_FULL_IMAGE:figures/full_fig_p026_8.png]

**Figure 9.** Figure 9: Comparison of orthogonal (left) and non-orthogonal (right) flux coordinate systems [PITH_FULL_IMAGE:figures/full_fig_p028_9.png]

**Figure 10.** Figure 10: To produce this Figure, field lines are followed, and each time they hit a plane at [PITH_FULL_IMAGE:figures/full_fig_p029_10.png]

**Figure 11.** Figure 11: The position in a toroidal system is often described by two angles. A poloidal angle [PITH_FULL_IMAGE:figures/full_fig_p030_11.png]

**Figure 12.** Figure 12: The toroidal flux, ΨT (ψ), is the magnetic flux through a surface at constant φ bounded by the surface labeled by ψ [PITH_FULL_IMAGE:figures/full_fig_p031_12.png]

**Figure 13.** Figure 13: The poloidal flux, ΨP (ψ), is the magnetic flux through a ribbon-like surface (pink) at constant θ bounded by the surface labeled by ψ (orange) and the magnetic axis (black). 31 [PITH_FULL_IMAGE:figures/full_fig_p031_13.png]

**Figure 14.** Figure 14: We consider a flux coordinate system consisting of tori with circular cross-sections. [PITH_FULL_IMAGE:figures/full_fig_p033_14.png]

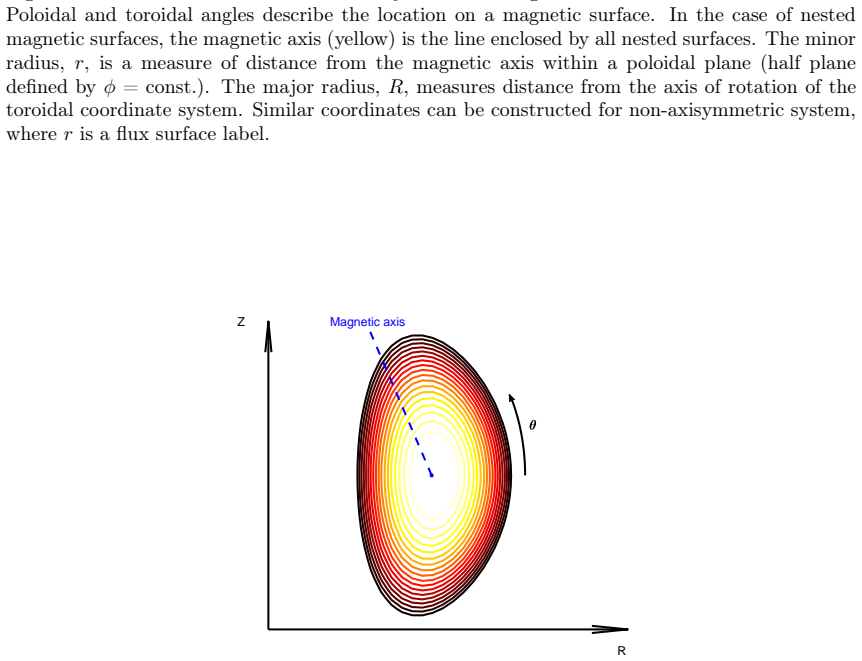

**Figure 15.** Figure 15: Poloidal angle θ and level curves of the flux label ψ in a poloidal half plane. In the poloidal plane, the magnetic axis is the point enclosed by all the flux surfaces. 33 [PITH_FULL_IMAGE:figures/full_fig_p033_15.png]

**Figure 16.** Figure 16: The poloidal magnetic field of a tokamak is produced by toroidal plasma current, which [PITH_FULL_IMAGE:figures/full_fig_p036_16.png]

**Figure 17.** Figure 17: A stellarator confines hot plasma with magnetic fields that do not exhibit a continuous [PITH_FULL_IMAGE:figures/full_fig_p037_17.png]

**Figure 18.** Figure 18: Two examples of field lines on a toroidal surface. An [PITH_FULL_IMAGE:figures/full_fig_p038_18.png]

**Figure 19.** Figure 19: The magnetic axis of the TJ-II stellarator (black) is displayed with the orthonormal [PITH_FULL_IMAGE:figures/full_fig_p040_19.png]

**Figure 20.** Figure 20: A flux tube is shown (blue) on which field lines lie (black). The magnetic flux through [PITH_FULL_IMAGE:figures/full_fig_p042_20.png]

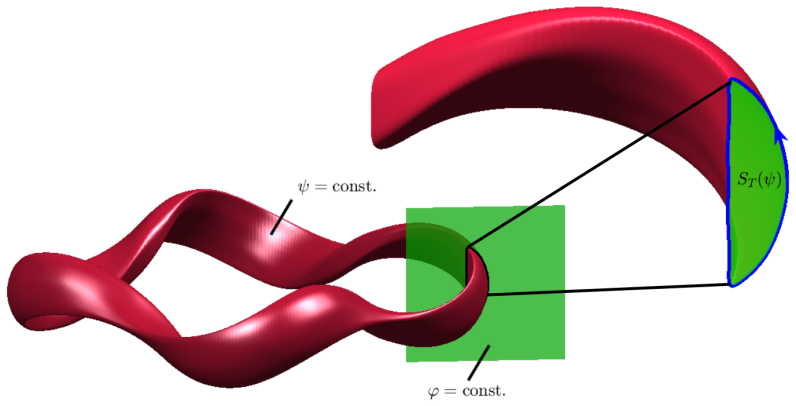

**Figure 22.** Figure 22: The integration curve at ϕ = const. and ψ = const. (black) encloses the surface ST (ψ) (green) through which the toroidal current is integrated. 9.2 Covariant form The magnetic field can also be written in the basis of the gradients of the magnetic coordinates (ψ,ϑ,ϕ)…

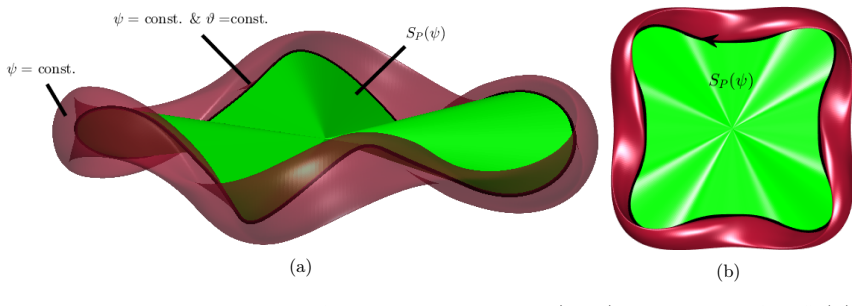

**Figure 23.** Figure 23: The integration curve at ϑ = const. and ψ = const. (black) encloses the surface SP (ψ) (green) through which the poloidal current is integrated. torus. The requirement that IP be a flux function comes from integration of (132) with respect to ϕ, noting that Bϑ must be…

**Figure 24.** Figure 24: Poincaré surfaces of section are shown for the model magnetic field ( [PITH_FULL_IMAGE:figures/full_fig_p060_24.png]

**Figure 25.** Figure 25: The reference (δ = 0) and perturbed (δ > 0) domains in the (y, x)-plane are shown. The black and red lines correspond to x = ±a and x±a(y), respectively. R x 0 By(x 0 , y) dx0 and hence write the components of the magnetic field B = Bxxˆ + Byyˆ + Bzzˆ as Bx = − ∂ ∂y Z…

**Figure 26.** Figure 26: Illustrating the solutions of (231) in the (y, x) plane for ψe(0) = 0 (a) and ψe(0) = B0/ cosh(ka) (c), with B0 = 1, a = 1, k = 1 and δ = 0.1. The stream plots of the corresponding magnetic field in the (y, x) plane are shown in (b) and (d), respectively. If a time-de…

**Figure 27.** Figure 27: We consider a surface of constant ψ near the magnetic axis, r0(l) (a). The cross-section of such a surface in the plane spanned by eˆ1(l) and eˆ2(l) is shown in (b). A point in this plane is given in the (ρ, ϑ, l) coordinate system by (249). Near the axis, the magneti…

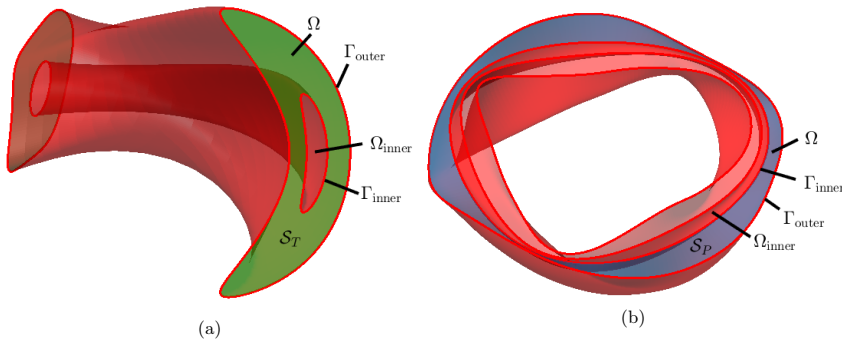

**Figure 28.** Figure 28: A force-free equilibrium can be computed in an annular region [PITH_FULL_IMAGE:figures/full_fig_p082_28.png]

**Figure 29.** Figure 29: (a) The last magnetic surface of NCSX is shown with the colorscale indicating field [PITH_FULL_IMAGE:figures/full_fig_p087_29.png]

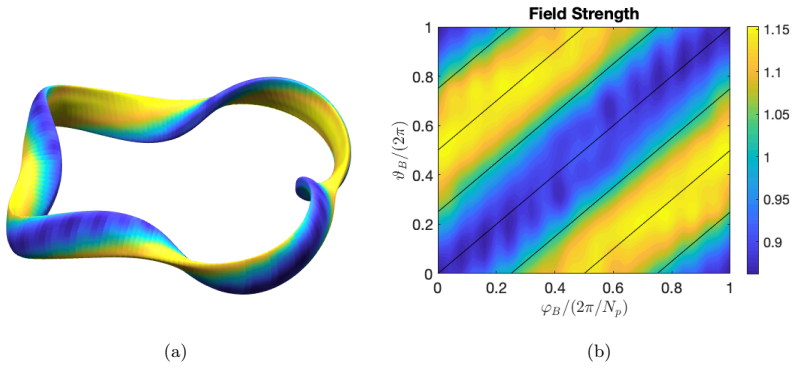

**Figure 30.** Figure 30: (a) The last magnetic surface of HSX is shown with the colorscale indicating field [PITH_FULL_IMAGE:figures/full_fig_p088_30.png]

**Figure 31.** Figure 31: The last closed magnetic surface of the W7-X configuration is shown with the color [PITH_FULL_IMAGE:figures/full_fig_p091_31.png]

**Figure 32.** Figure 32: Stellarator symmetry describes an inversion about the line [PITH_FULL_IMAGE:figures/full_fig_p092_32.png]

**Figure 12.** Figure 12: The so-called ‘mono-energetic’ diffusion coefficient (see [63] for details) versus collisionality, ν∗ = νR/ιv, where ν is the mono-energetic pitch-angle-scattering frequency, R the major radius and v the speed of the particles, in the standard configuration of W7-X (b…

**Figure 34.** Figure 34: A schematic of the ARIES-CS stellarator power plant concept. The modular coils lie [PITH_FULL_IMAGE:figures/full_fig_p106_34.png]

**Figure 35.** Figure 35: The surface, S, used for evaluating the integral form of Ampere’s law (393). This integral involves a line integral along C, the intersection of S with Scoil. S is the union of six faces that can be defined as,    {r(−∆b, θ, e ζe); [PIT…

**Figure 36.** Figure 36: (a) The outer boundary of the NCSX LI383 equilibrium [ [PITH_FULL_IMAGE:figures/full_fig_p114_36.png]

**Figure 37.** Figure 37: A cross-section of a modular coil of the NCSX stellarator, displaying the conducing [PITH_FULL_IMAGE:figures/full_fig_p115_37.png]

**Figure 38.** Figure 38: A diagram of the Princeton Model A stellarator based on Lyman Spitzer’s figure-eight [PITH_FULL_IMAGE:figures/full_fig_p116_38.png]

**Figure 39.** Figure 39: A schematic diagram of the Wendelstein-I (WI) experiment, which adopted the racetrack [PITH_FULL_IMAGE:figures/full_fig_p117_39.png]

**Figure 40.** Figure 40: The coil system of the Wendelstein 7-A stellarator, a classical stellarator whose con [PITH_FULL_IMAGE:figures/full_fig_p117_40.png]

**Figure 41.** Figure 41: The modular field coils, planar toroidal field coils, and flux surface of the Wendelstein [PITH_FULL_IMAGE:figures/full_fig_p118_41.png]

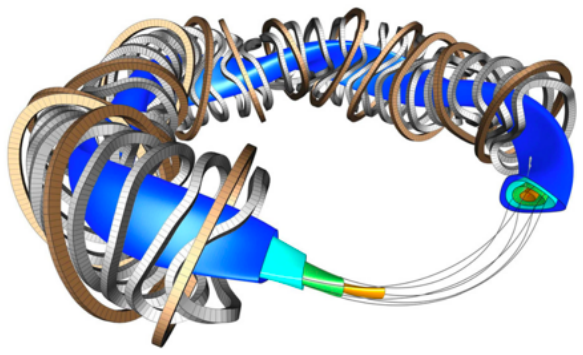

**Figure 42.** Figure 42: Modular field coils (silver), toroidal field coils (bronze), and magnetic surfaces of the [PITH_FULL_IMAGE:figures/full_fig_p119_42.png]

**Figure 43.** Figure 43: The plasma (pink) and coils of the Large Helical Device (LHD). Figure reproduced [PITH_FULL_IMAGE:figures/full_fig_p120_43.png]

**Figure 44.** Figure 44: A schematic diagram of the Helically Symmetric Experiment (HSX). Figure reproduced [PITH_FULL_IMAGE:figures/full_fig_p121_44.png]

**Figure 45.** Figure 45: The NCSX modular coils obtained through integrated coil-plasma optimization. Figure [PITH_FULL_IMAGE:figures/full_fig_p122_45.png]
