Effective field theory and scalar extensions of the top quark sector

T0 review · 2 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read NLO-matched effective field theory reproduces a top-philic scalar model down to scalar masses near LHC energies, while the leading-order EFT overestimates the high-mass tails.

desk verdict A solid NLO matching case study showing that naive LO EFT overestimates top-pair tails; the main soft spot is unquantified matching-scale dependence, but that is a fixable weakness, not a fatal flaw. read the letter →

arxiv 1908.05588 v2 pith:VT3UID7A submitted 2019-08-15 hep-ph hep-ex

Christoph Englert , Peter Galler , Chris D. White This is my paper · ORCID
classification hep-phhep-ex
keywords effectivefieldtheorytopquarksimplifiedmodelnext-to-leadingordermatchingpairproductionfourdimension-sixoperatorsLHCconstraints
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper asks when effective field theory (EFT) can stand in for a concrete new-physics model at the Large Hadron Collider. It studies a minimal extension in which a new heavy scalar couples only to top quarks, derives the two dimension-six operators generated at low energy, and matches them to the full model at next-to-leading order. The central finding is that the matched EFT reproduces the full model's top-antitop invariant-mass distribution almost exactly even when the scalar mass is only slightly above LHC energies, whereas a naive leading-order EFT fit overestimates the high-mass tail. This matters because LHC searches increasingly set EFT constraints; if those constraints are computed at leading order, they could be over-optimistic by a large margin. The paper also projects HL-LHC sensitivities and finds that four-top and top-pair production have comparable exclusion power, with constraints for large scalar masses drifting into a non-perturbative region where matching the EFT to the full model is no longer possible.

What carries the argument

The load-bearing object is the NLO-matched pair of dimension-six operators generated by the scalar: $O_{tt} = (\bar t t)^2$ (or the scalar-propagator expansion at low momentum) and $O_{tG} = v\,\bar t_L T^a \sigma^{\mu\nu} t_R\, G^a_{\mu\nu}$. The four-fermion operator is tree-induced and fixes the coefficient $c_{tt}$ through $t\bar t\to t\bar t$ scattering; the dipole operator is loop-induced, and its Wilson coefficient is fixed by matching the one-loop full-theory amplitude to the one-loop EFT amplitude at $\mu_M = m_S/2$. A one-loop insertion of $O_{tt}$ generates a UV divergence that is absorbed by a counterterm for $O_{tG}$, and that operator mixing is what restores agreement with the full theory. Dropping the $O_{tt}$ contribution, as a naive LO fit does, removes the balance and produces the overestimate of the tail.

What would settle it

Measure the unfolded $m_{t\bar t}$ distribution at the HL-LHC with per-bin uncertainties below 3% in the 1–3 TeV range; if the high-mass tail falls below the NLO-matched EFT prediction or tracks the leading-order EFT shape, the claimed validity of NLO matching for $m_S\simeq 2$ TeV is falsified.

Watch

Extended reading notes

Core claim

In the simplified model of a new heavy scalar $S$ that couples only to top quarks, $\mathcal{L}_{\rm BSM} = \tfrac12 \partial_\mu S\,\partial^\mu S - \tfrac12 m_S^2 S^2 - (c_S\,\bar t_L t_R S + \mathrm{h.c.})$, integrating out $S$ generates two dimension-six operators: a four-top contact operator $O_{tt}$ that enters at tree level, and a gluon-top dipole operator $O_{tG}$ that is loop-induced. The paper matches the EFT to the full theory at next-to-leading order in $c_S$, renormalising the one-loop $O_{tt}$ insertion in the $\overline{\rm MS}$ scheme and fixing $O_{tG}$ at a matching scale $\mu_M = m_S/2$. The central discovery is that the NLO-matched EFT reproduces the full model's $m_{t\bar t}$ distribution to within a few percent for scalar masses as low as about 2 TeV, essentially down to LHC energies, whereas a naive leading-order EFT that fits only $O_{tG}$ severely overestimates the high-mass tail and would yield over-optimistic bounds on new physics. Using projected HL-LHC uncertainties, the paper further finds that four-top production has comparable exclusion power to top-pair production at low scalar masses, while for larger masses the projected constraints enter a regime where the full model is non-perturbative and cannot be matched to the EFT.

Load-bearing premise

The projected exclusion curves rest on assumed future measurement uncertainties—a flat 3% uncertainty on the unfolded top-pair invariant-mass distribution, an 18% uncertainty on the four-top cross section, and an approximate K factor of 2.5—not on established data, and if those assumptions are wrong the claimed constraints shift.

Editorial extensions

If this is right

  • Top-pair EFT fits at the LHC are reliable for a top-philic scalar down to $m_S\simeq 1.5$–$2$ TeV only if next-to-leading-order matching and operator mixing are included.
  • A leading-order EFT that floats only $O_{tG}$ overestimates the high-mass tail, so published constraints derived that way are too strong for this class of models.
  • Four-top final states contribute constraints comparable to top-pair production at low scalar masses and should be included in global top-sector EFT fits.
  • For scalar masses above roughly $2$–$3$ TeV, projected HL-LHC uncertainties push allowed couplings into the non-perturbative regime, so the full and EFT descriptions cannot be perturbatively matched there.
  • Improving the theoretical uncertainty of Standard Model top final states is the prerequisite for pushing LHC constraints into the perturbatively matchable region.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Inference: the same failure mode—a tree-induced operator mixing into a loop-induced one—is likely to distort LO EFT fits in other top-philic scenarios beyond a single scalar, so the LO-overestimation lesson generalises.
  • Inference: the paper demonstrates the point with the $m_{t\bar t}$ distribution, but the mechanism suggests other tail-sensitive observables, such as the top $p_T$ distribution, should show the same NLO-versus-LO discrepancy.
  • Inference: because the four-top comparison is leading order in the full model, higher-order corrections there could shift the mass at which the full model loses sensitivity; a full NLO four-top calculation would be a direct test.
  • Inference: if actual HL-LHC unfolded top-pair uncertainties are larger than the assumed 3%, the constraints enter the non-perturbative region at even lower scalar masses, strengthening the paper's caution.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper studies a simplified model in which a heavy scalar S couples to top quarks via cS * tbar_L t_R S + h.c. It computes the O(cS^2) corrections to top pair production in the full theory (gluon fusion and quark-antiquark annihilation) with on-shell renormalization and explicit UV-finiteness checks, derives the low-energy dimension-six EFT consisting of the chromomagnetic operator OtG and the four-top operator Ott, and matches the EFT to the full theory at NLO in the simplified-model coupling. It then compares the full theory with the NLO-matched EFT and with a naive bottom-up LO EFT fit as functions of mS and the t-tbar invariant mass, finding excellent NLO-EFT agreement for scalar masses down to a few TeV while the naive LO approach overestimates the high-mass tail. Finally, it projects HL-LHC constraints from t-tbar and four-top production on the (mS, cS) plane, concluding that four-top production is competitive with t-tbar for low masses and that estimated systematic uncertainties push constraints into the non-perturbative regime of the full model for larger masses.

Significance. If the claims hold, this is a useful and concrete case study of when NLO matching is mandatory in EFT analyses of top-quark sectors, and it quantifies the danger of naive LO EFT constraints. The paper's strengths include an explicit one-loop calculation with on-shell renormalization and UV-finiteness checks, a transparent matching relation in Appendix A, and direct EFT-to-full-theory comparisons in Figs. 6-8 that provide a falsifiable, quantitative statement about the range of EFT validity. The demonstration that the NLO-matched EFT reproduces the full model while the LO EFT overestimates kinematic distributions is a genuinely informative result for LHC phenomenology. The main caveat is the residual matching-scale and scheme dependence, which is acknowledged in the text but not quantified; this affects the central 'excellent validity' claim and needs to be addressed before the conclusion can be fully trusted.

major comments (2)
  1. [Section II / Appendix A, Eqs. (A6)-(A8), Fig. 5] The central validity comparison in Figs. 6-8 is performed at a single matching scale mu_M = mS/2. Fig. 5 shows that the matched coefficient ctG varies substantially with mu_M (roughly a factor of 2-3 at mS = 5 TeV between mu_M = 1 TeV and mu_M = mS), and Appendix A notes that Eq. (A6) fixes only the sum of the loop-inserted ctt and the tree-level ctG, so finite terms can be moved between the two coefficients. Because the NLO EFT result is a cancellation between a tree-level OtG insertion with this scale-dependent coefficient and a one-loop Ott insertion, the good agreement with the full theory in Figs. 6-8 could be specific to the chosen scheme. Please quantify the residual scheme dependence, for example by repeating the validity analysis for mu_M = mS/4 and mu_M = mS and showing that the mmax(tbar-t) lines in Fig. 8 shift by less than the quoted tolerance, or by giving a reasoned argument for why the chosen scheme is the preferred one.
  2. [Section III, Figs. 6-7] The 'naive effective' curves, which are the basis for the claim that a bottom-up LO fit overestimates the high-mass tail, are not reproducible as presented. The text says only that ctG was treated as a free parameter and fitted to Monte Carlo data generated with the full theory; the fitted observable, binning, and fit range are not given. Since the amount of overestimation (and hence the 'over-optimistic constraints' statement in Section IV) depends on where in the m_tt distribution the coefficient is normalized, please specify the fitting procedure or, alternatively, show the result of the fit for two different normalization choices to demonstrate that the qualitative conclusion is robust.
minor comments (4)
  1. [Section IV, Fig. 9] The assumptions behind Fig. 9 (flat 3% uncertainty for the unfolded m_tt distribution, 18% accuracy for the tttt cross section, and an approximate K factor of 2.5 for the squared s-channel contribution) are stated, but a small sensitivity scan would help the reader judge how robust the 'constraints enter the non-perturbative regime' conclusion is.
  2. [Figs. 6-7] The axis label 'ratio wrst full' is ambiguous; please replace it with something like '|EFT - full| / |full|' or 'ratio w.r.t. full'.
  3. [Fig. 9 caption] The red curves for four-top production are LO only, as stated in the text and Footnote 2, but the figure caption does not say so; please add 'LO' to the caption to avoid confusion with the NLO t-tbar curves.
  4. [Abstract] The phrase 'excellent validity' is quantified in Fig. 8 only for cS = 1 and a specified percentage tolerance; the abstract could state this qualification (for example, 'within 10-20% for m_tt up to ...').

Circularity Check

0 steps flagged · score 1.0 of 10

No circular derivation: the NLO EFT is matched to, then compared with, an independently computed full model, and the only fitted quantity in the paper is explicitly criticized as the wrong approach.

full rationale

The paper's derivation chain is not circular. The Wilson coefficient ctG is fixed by matching the full theory to the EFT at a chosen scale (Eq. A6-A8), and the full-theory amplitudes are computed independently in Vbfnlo with on-shell renormalization. The subsequent comparison of NLO EFT and full-model distributions (Figs. 6-8) is a validity test of the operator expansion, not a fit of the target observable: the matching fixes a short-distance coefficient at one scale, while the invariant-mass distributions are evaluated over a range of scales. The paper explicitly constructs a 'naive effective' LO EFT in which ctG is fitted to full-theory Monte Carlo data and shows that this bottom-up fit fails to reproduce the distributions; this is the opposite of presenting a fitted input as a prediction. The projected LHC constraints in Sec. IV rest on clearly stated assumed uncertainties (3% for the ttbar distribution, 18% for four-top, an approximate K factor of 2.5), which are inputs to the projection rather than outputs disguised as predictions. The acknowledged matching-scale dependence and the statement in Appendix A that 'only the sum of loop-inserted ctt and tree-level ctG is defined' indicate scheme freedom, but this is a systematic uncertainty in the EFT comparison, not a reduction of a predicted quantity to an input by construction. Self-citations appear in the bibliography, but no load-bearing argument reduces to a self-cited uniqueness theorem or ansatz. Accordingly, no specific circular step can be exhibited, and the circularity score is minimal.

Assumptions & free parameters 4 free parameters · 6 assumptions · 1 invented entities

The paper's quantitative claims depend on assumed experimental uncertainties and an approximate K factor rather than on measured data, and on the choice of a simplified scalar model. These are transparently stated, but they are the inputs that shape the exclusion contours.

free parameters (4)
  • Assumed flat 3% uncertainty on unfolded mtt distribution = 3%
    Sets the normalization of the ttbar exclusion contours in Fig. 9; called 'optimistic' by the authors.
  • Assumed 18% uncertainty on unfolded tttt cross section = 18%
    Used for the four-top projection; slightly worse than the ATLAS extrapolation.
  • Approximate K factor for squared resonance contribution = 2.5
    Applied to the s-channel scalar contribution in the full-model ttbar exclusion; authors note it significantly impacts the result.
  • Matching scale mu_M = mS/2 (default)
    Scheme choice for extracting ctG; residual dependence shown in Fig. 5.
assumptions (6)
  • domain assumption The simplified model with a gauge-singlet scalar S coupling only to the top quark is representative of generic top-philic new physics.
    Motivated in Sec. I as covering singlet mixing and multi-Higgs doublet scenarios, but not proven to generalize.
  • domain assumption Only two dimension-six operators (OtG and Ott) contribute at the considered order.
    Argued in Sec. II based on the model's couplings and loop structure.
  • standard math Perturbative unitarity of ttbar scattering in the full model limits cS^2 to about 8pi.
    Used in Sec. IV to define the non-perturbative region; derived from partial wave projection.
  • standard math The on-shell and MS renormalization schemes provide a consistent definition of the matching.
    Standard EFT practice; UV finiteness is verified.
  • domain assumption Assumed LHC systematic uncertainties of 3% (ttbar) and 18% (tttt) are valid extrapolations.
    These numbers drive the quantitative constraint curves; the authors flag 3% as optimistic.
  • domain assumption NLO QCD corrections to the scalar resonance can be approximated by a constant K factor of 2.5.
    Used in the full-model exclusion; taken from heavy-Higgs QCD corrections.
invented entities (1)
  • Heavy scalar S with top-philic Yukawa coupling cS
    purpose: Simplified UV model used as a test case for EFT matching and LHC constraints.
    Postulated as a toy extension; no experimental anomaly motivates it, and it provides no falsifiable signature beyond the studied top-pair and four-top collider signals.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Effective field theory and scalar extensions of the top quark sector." pith.science (2026). https://pith.science/paper/VT3UID7A

@misc{pith2026190805588,
  author       = {Pith},
  title        = {Pith review of: Effective field theory and scalar extensions of the top quark sector},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VT3UID7A}},
  note         = {Machine review of arXiv:1908.05588}
}
read the original abstract

Effective field theory (EFT) approaches are widely used at the LHC, such that it is important to study their validity, and ease of matching to specific new physics models. In this paper, we consider an extension of the SM in which a top quark couples to a new heavy scalar. We find the dimension six operators generated by this theory at low energy, and match the EFT to the full theory up to NLO precision in the simplified model coupling. We then examine the range of validity of the EFT description in top pair production, finding excellent validity even if the scalar mass is only slightly above LHC energies, provided NLO corrections are included. In the absence of the latter, the LO EFT overestimates kinematic distributions, such that over-optimistic constraints on BSM contributions are obtained. We next examine the constraints on the EFT and full models that are expected to be obtained from both top pair and four top production at the LHC, finding for low scalar masses that both processes show similar exclusion power. However, for larger masses, estimated LHC uncertainties push constraints into the non-perturbative regime, where the full model is difficult to analyse, and thus not perturbatively matchable to the EFT. This highlights the necessity to improve uncertainties of SM hypotheses in top final states.

Figures

Figures reproduced from arXiv: 1908.05588 by the authors.

Figure 1
Figure 1. FIG. 1: Representative one-loop Feynman diagram contributions to [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2: Representative counter term contributions to [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3: (a), (b) tree-level graph in the theory of eq.( [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (5 more)
Figure 5
Figure 5. Figure 5: FIG. 5: Matched value of [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 6

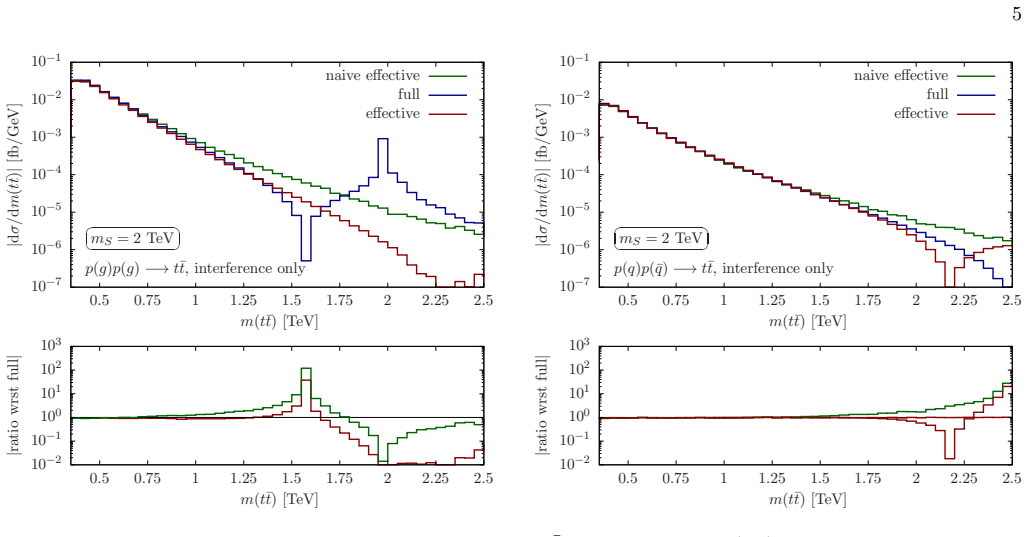

Figure 6. Figure 6: FIG. 6: BSM interference contribution as a function of the invariant [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7: Like fig [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8: Validity within percentage of the EFT computa [PITH_FULL_IMAGE:figures/full_fig_p006_8.png]
Figure 9
Figure 9. Figure 9: FIG. 9: 95% confidence level exclusion contours for the sim [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
