REVIEW 1 major objections 5 minor 1 cited by
Cost Reduction of Swapping Bonds Part in Anisotropic Tensor Renormalization Group
T0 review · 1 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read This paper proposes a cheaper swapping-bonds step for anisotropic tensor renormalization group, cutting the step's cost from $O(\chi^{2d+1})$ to $O(\chi^{\max(d+3,7)})$ and the whole algorithm's memory from $O(\chi^{2d})$ to…
desk verdict A useful optimization of ATRG's swapping step with real speedups in 4D, but the equivalence argument in Sec. IV needs a corrected proof before the consistency claim is fully certified. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the factorized swap matrix $M_s = B_s C_s$, where $B_s$ and $C_s$ are the singular-value-weighted right factors of the individual SVDs of $B$ and $C$. The partial SVD of $M_s$, rather than of the full contraction $M$, is what changes the bond combinations at reduced cost, and the original tensors $X$ and $Y$ are recovered by contracting back with $U^C$ and $U^B$. This object carries the argument because it converts the $O(\chi^{2d+1})$ bottleneck into the $O(\chi^{\max(d+3,7)})$ step, which is no longer the dominant cost of ATRG.
What would settle it
Take one coarse-graining step of the 4D Ising model at moderate $\chi$, compute the full SVD of $M$ and the full SVD of $M_s$, reconstruct the truncated tensors $X$ and $Y$ by both routes, and compare the resulting coarse-grained tensor entry by entry; if the difference does not go to zero as the kept rank approaches the common rank $\chi^3$, the claimed equivalence fails.
Extended reading notes
Core claim
The central claim is that the swapping-bonds bottleneck of ATRG, namely the contraction of two tensors $B$ and $C$ into a matrix $M$ followed by a partial SVD that recombines the bonds, can be replaced by a factorized procedure. The replacement performs SVDs of $B$ and $C$ separately, keeps the singular values inside reduced factors $B_s$ and $C_s$, contracts those into a smaller matrix $M_s$, performs the partial SVD on $M_s$, and then contracts the resulting factors back with the left singular vectors $U^B$ and $U^C$ to form the tensors $X$ and $Y$. The paper claims this lowers the swapping-bond cost from $O(\chi^{2d+1})$ to $O(\chi^{\max(d+3,7)})$ and the whole-algorithm memory cost from $O(\chi^{2d})$ to $O(\chi^{\max(d+1,6)})$, and it attributes the numerical agreement with the original ATRG to the fact that the rank of $M$ is $\chi^3$, the same as the rank of $M_s$.
Load-bearing premise
The load-bearing premise is that truncating the smaller factored matrix $M_s$ throws away exactly the same information as truncating the original matrix $M$—the paper shows their ranks agree, but it does not prove that the two truncations select identical subspaces.
Editorial extensions
If this is right
- The swapping-bonds part is no longer the dominant cost of ATRG; the $O(\chi^{2d+1})$ contractions in step (e) become the new bottleneck, so further speedups should target those contractions.

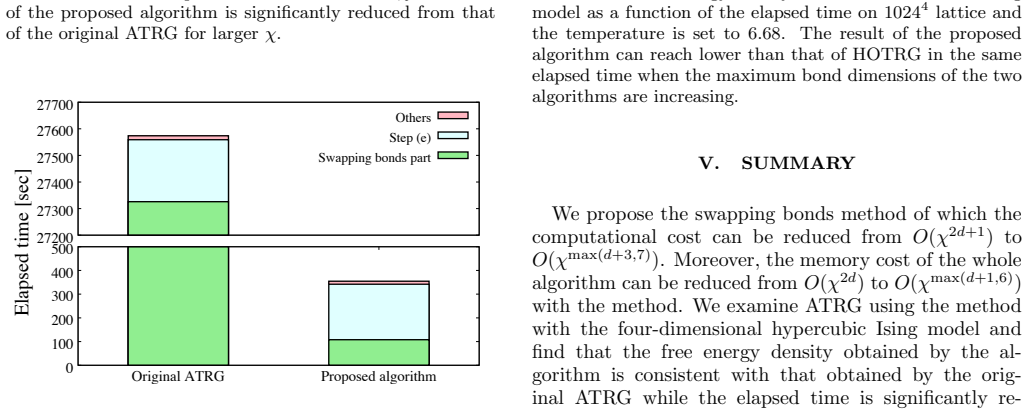

- For the 4D Ising model on a $1024^4$ lattice at $T=6.68$, the proposed algorithm gives free-energy densities consistent with the original ATRG while taking significantly less wall-clock time.
- In a fixed-elapsed-time comparison, the proposed algorithm reaches lower free-energy densities than HOTRG as the bond dimension increases.
- The whole-algorithm memory requirement falls to $O(\chi^{\max(d+1,6)})$, enabling larger bond dimensions or higher dimensions on a fixed memory budget.
- With $\chi$ RSVD iterations and $2\chi$ oversamples, the RSVD error in the free-energy density is small enough in the tested regime for $\chi \ge 10$.
Reading between the lines
- The same factorized-SVD strategy is not limited to this specific ATRG step: any tensor-network coarse graining that contracts two tensors and then partially decomposes the result could in principle use the same trick, with the relative gain growing with dimensionality because the gap between $\max(d+3,7)$ and $2d+1$ widens as $d$ grows.
- If the SVD-equivalence is made rigorous, the method should reproduce the original ATRG free energy at every bond dimension, not only the tested range; comparing the full singular-value spectra of $M$ and $M_s$ would settle this more directly than free-energy curves alone.
- The memory bound $O(\chi^{\max(d+1,6)})$ suggests that, at fixed hardware, the practical ceiling on $\chi$ in ATRG is raised substantially: at $d=4$ storage drops from $\chi^8$ to $\chi^6$, which could permit bond dimensions several times larger than before.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a modification of the swapping-bonds step in anisotropic tensor renormalization group (ATRG). Instead of forming the large tensor M by contracting B and C and then performing a partial SVD of M, the new method performs SVDs of B and C without truncation, contracts their reduced factors to form a smaller matrix Ms, performs the partial SVD on Ms, and reconstructs the tensors X and Y. The claimed cost of the swapping step is reduced from O(χ^{2d+1}) to O(χ^{max(d+3,7)}), and the memory cost of the whole algorithm is reduced from O(χ^{2d}) to O(χ^{max(d+1,6)}). The numerical section studies the four-dimensional Ising model on a 1024^4 lattice and reports that the free energy density of the proposed algorithm is consistent with that of the original ATRG while the elapsed time is reduced, and that the proposed algorithm reaches a lower free energy density than HOTRG at fixed elapsed time.
Significance. If the equivalence between truncating M and truncating Ms is properly established, the paper presents a clean and practical improvement to ATRG: the memory reduction from O(χ^{2d}) to O(χ^{d+1}) for d≥5 is particularly valuable, and the cost reduction of the swapping step is significant for d≥4. The numerical benchmark is performed on an external model, the 4D Ising model, with no parameter fitted to the target free energy; the RSVD hyperparameters are studied in Appendix B rather than tuned to the target quantity. The main weakness is that the consistency argument in Sec. IV is only a terse rank-coincidence statement rather than a proof, and that statement is ambiguous without specifying the matrix flattening used in the SVD.
major comments (1)
- [Sec. IV] The consistency of the proposed algorithm with the original ATRG is attributed to the statement that 'the rank of M in the original ATRG is χ^3 and coincides with the rank of Ms in the proposed algorithm.' As written this is not a proof and is ambiguous. For the flattening with rows Ω1Ω2 and columns αβ, M in Eq. (7) is a sum of χ rank-one terms and has rank at most χ; the rank-χ^3 statement can only refer to the flattening used in Eq. (8), namely rows Ω2α and columns Ω1β. The authors should state that flattening explicitly and prove that the top-χ PSVD of M is equivalent to the top-χ PSVD of Ms. The missing argument is: writing B=U^B Bs and C=U^C Cs gives M=P Ms Q^T with P_{(Ω2α),(να')}=δ_{αα'}U^C_{Ω2ν} and Q_{(Ω1β),(μβ')}=δ_{ββ'}U^B_{Ω1μ}; since P and Q are isometries, the nonzero singular values of M and Ms coincide, and the reconstructed X and Y in Eqs. (30)-(31) are the transformed singular factors. Without this proof, the numerical agreement in Fig. 5 is only evidence for the range χ≤25 and does not certify the equivalence at larger χ.
minor comments (5)
- [Abstract and text] There are several typos: 'renromalization' in the abstract, 'consistis' in Sec. II, 'algorighm' in the caption of Fig. 7, 'paralell' in Sec. V, and 'enegy' in Appendix B.
- [Sec. III] The asymptotic claims should state explicitly that for d=3 the proposed swapping step has the same leading cost O(χ^7) as the original, so the asymptotic improvement applies for d≥4; the numerical speedup in d=4 is a prefactor/bottleneck improvement rather than an improvement of the total ATRG scaling, which remains O(χ^{2d+1}).
- [Appendix B] Figure 10 shows the original ATRG only at χ=10 while the proposed algorithm is shown at χ=10 and χ=14; adding the original ATRG at χ=14 would make the convergence comparison symmetric and would better support the statement that n=2χ and χ iterations are sufficiently large at all χ used in Sec. IV.
- [Figs. 5-8] The numerical results are presented without error estimates. Since RSVD is randomized, reporting a quantitative tolerance for the agreement between the proposed algorithm and the original ATRG, or repeating the RSVD draws, would make the consistency claim more robust.
- [Fig. 8] The comparison with HOTRG relies on identifying a lower free energy density with higher accuracy; this is plausible from the monotonic decrease with χ but is not self-evident for non-variational tensor renormalization algorithms. The caption or text should state this more carefully as an empirical observation rather than an established variational bound.
Circularity Check
No significant circularity: the cost reduction is structural and the consistency check is benchmarked against an external model.
full rationale
The paper's central claim is an algorithmic cost reduction in the swapping-bonds part of ATRG plus a numerical consistency check. The cost scalings in Sec. III follow from the constructed tensor index dimensions; for example, Eq. (26) contracts Bs and Cs over x1 with auxiliary indices mu and nu whose maximum bond dimensions are chi^2, giving the stated O(chi^{max(d+3,7)}) scaling. No parameter is fitted to the target free energy density. The agreement with the original ATRG shown in Fig. 5 is an external benchmark on the 4D Ising model, and the RSVD oversampling/iteration parameters are selected in a separate convergence study in Appendix B (Fig. 10) rather than tuned to reproduce the original ATRG value. There is no self-citation chain that forces the result: the original ATRG [25] is cited from other authors and used as a baseline, not as an unexamined premise unique to this work. The paper's stated explanation for consistency, that 'the rank of M in the original ATRG is chi^3 and coincides with the rank of Ms', is mathematically questionable because M is a sum of chi rank-one terms and therefore has matrix rank at most chi; however, this is a rigor or correctness issue in justifying the equivalence, not circularity. The proposed algorithm's output is not defined in terms of the original ATRG's output, and the numerical agreement is not enforced by construction. No circular step is established, so the score is 0.
Assumptions & free parameters
free parameters (2)
- RSVD oversampling parameter n =
2chi
- RSVD iteration count =
chi
assumptions (3)
- standard math SVD and randomized SVD provide valid low-rank approximations with controllable error.
- ad hoc to paper The truncation of Ms followed by transformation with U^B and U^C is equivalent to the truncation of M.
- domain assumption The tensor network representation of the 4D Ising partition function is exact and periodic boundary conditions are maintained through coarse graining.
Cite this review
Pith. "Pith review of Cost Reduction of Swapping Bonds Part in Anisotropic Tensor Renormalization Group." pith.science (2026). https://pith.science/paper/U2RSML55
@misc{pith2026190807295,
author = {Pith},
title = {Pith review of: Cost Reduction of Swapping Bonds Part in Anisotropic Tensor Renormalization Group},
year = {2026},
howpublished = {\url{https://pith.science/paper/U2RSML55}},
note = {Machine review of arXiv:1908.07295}
}
abstract
The bottleneck part of anisotropic tensor renormalization group (ATRG) is a swapping bonds part which consists of a contraction of two tensors and a partial singular value decomposition of a matrix, and their computational costs are $O(\chi^{2d+1})$, where $\chi$ is the maximum bond dimension and $d$ is the dimensionality of a system. We propose an alternative method for the swapping bonds part and it scales with $O(\chi^{\max(d+3,7)})$, though the total cost of ATRG with the method remains $O(\chi^{2d+1})$. Moreover, the memory cost of the whole algorithm can be reduced from $O(\chi^{2d})$ to $O(\chi^{\max(d+1,6)})$. We examine ATRG with or without the proposed method in the four-dimensional Ising model and find that the free energy density of the proposed algorithm is consistent with that of the original ATRG while the elapsed time is significantly reduced. We also compare the proposed algorithm with higher-order tensor renromalization group (HOTRG) and find that the value of the free energy density of the proposed algorithm is lower than that of HOTRG in the fixed elapsed time.
