Global electromagnetic gyrokinetic simulations of internal transport barriers in reversed-shear tokamaks

T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Reversed-shear tokamaks form internal transport barriers only when the safety-factor minimum sits close to a low-order rational value (q=2), because that lets turbulent eddies close on themselves and sustain a strong sheared zonal flow.

desk verdict A serious global gyrokinetic study with a genuinely new flux-driven ITB result, but the headline 'necessary ingredient' claim leans on an unconverged qmin=2.03 run and needs a longer run or a softer claim. read the letter →

arxiv 2412.10027 v1 pith:JN2PP7MB submitted 2024-12-13 physics.plasm-ph

Giovanni Di Giannatale , Arnas Volčokas , Justin Ball , Alberto Bottino , Stephan Brunner , Philippe Griveaux , Moahan Murugappan , Thomas Hayward-Schneider
show 1 more author
Laurent Villard
This is my paper · ORCID
classification physics.plasm-ph PACS 52.35.Ra52.55.Fa52.65.Tt
keywords internaltransportbarrierreversedmagneticsheargyrokineticsimulationzonalflowscurrentseddyself-interactionsafetyfactorturbulencesuppression
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish a causal condition for internal transport barrier (ITB) formation in reversed-shear tokamaks: the minimum of the safety factor profile, $q_{\min}$, must lie on or very near a low-order rational value (2 in these simulations), so that turbulent eddies can wrap around the torus and 'bite their own tail.' Using global electromagnetic gyrokinetic simulations with kinetic electrons, the authors show that including electron dynamics is essential even when the dominant instability is the ion temperature gradient mode; kinetic electrons produce strong zonal-flow shearing that tears eddies apart and zonal current sheets that flatten and lower the q profile around the rational surface. In flux-driven runs with $q_{\min}=2$ an ion-channel transport barrier develops at two radii around the q minimum, while with $q_{\min}=2.03$ no barrier forms. The result matters because it points to a concrete testable rule for triggering ITBs in fusion devices and explains why experiments preferentially see barriers when $q_{\min}$ hits an integer.

What carries the argument

The load-bearing mechanism is parallel eddy self-interaction at a low-order rational surface. In a low-shear region, turbulent eddies become extremely elongated along the magnetic field; when $q_{\min}$ is exactly 2, they extend far enough to close on themselves, 'biting their own tail' and locking turbulence to that surface. This self-interaction, enabled only by kinetic electron dynamics, produces two coupled structures: a strong zonal $E\times B$ shearing dipole that de-correlates eddies and quenches transport, and a steady zonal parallel electron current that, through the perturbed vector potential, flattens and locally shifts the safety factor. The flattening creates a positive feedback loop when $q_{\min}$ is close enough to the rational value (within roughly $\Delta q \sim \rho^* q_0/n$), dragging $q_{\min}$ toward 2 and strengthening self-interaction.

What would settle it

Run the $q_{\min}=2.03$ flux-driven simulation long enough that the radially integrated turbulent losses equal the injected power everywhere in the core, then compare the converged ion temperature and temperature-gradient profiles with the $q_{\min}=2$ run; if the core gradient equilibrates at a similar level, the necessary-ingredient claim fails.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that rational $q_{\min}$ is a necessary ingredient for ITB formation in reversed-shear configurations. With adiabatic electrons, the transport coefficient shows only a smooth monotonic increase with $q_{\min}$ and no special response at $q_{\min}=2$; once kinetic (drift-kinetic) electrons are included, $q_{\min}=2$ produces a global reduction of heat transport, strong radial profile corrugation, and a steady dipole of $E\times B$ shearing around the zero-shear surface, whereas $q_{\min}=2.03$ behaves like a non-rational value. The electromagnetic response adds zonal parallel currents that persist in time and, through Ampère's law, modify the safety factor: the q profile flattens around $q_{\min}$, an effect that is weak when self-interaction is already complete but decisive when it is only partial. In flux-driven simulations the $q_{\min}=2$ case forms an internal transport barrier in the ion channel at inner and outer radii around $q_{\min}$; the $q_{\min}=2.03$ case, run to a state where core losses still exceed input power, is extrapolated to lose core temperature and not form a barrier. A case starting at $q_{\min}=2.01$ shows partial eddy self-interaction evolving into complete self-interaction as zonal currents drag q down to 2.0, in agreement with flux-tube predictions. The width of the flattened q region scales between $\rho^*$ and $\rho_i$, and the power needed for equal on-axis temperatures is close to gyro-Bohm in the two system sizes considered.

Load-bearing premise

The $q_{\min}=2.03$ flux-driven case was stopped before reaching quasi-steady state, so the claim that no ITB forms at $q_{\min}=2.03$ depends on the assumption that the core temperature continues to drop as its yet-unbalanced power losses suggest.

Editorial extensions

If this is right

  • If the claim is right, placing $q_{\min}$ on a low-order rational value is a necessary condition for an ion-channel ITB in reversed-shear tokamaks, not merely a helpful detail.
  • Kinetic electron response must be retained in simulations of ITB onset: adiabatic-electron models miss the $q_{\min}=2$ sensitivity entirely in this scenario.
  • Turbulent self-generated currents can move $q_{\min}$ downward toward a rational value, so the q profile and the turbulence state are self-consistently coupled: a plasma starting at $q_{\min}=2.01$ can transition to full self-interaction and form a barrier.
  • The sensitivity window for self-interaction widens with $\rho^*$, so smaller devices (larger $\rho^*$) should tolerate larger deviations of $q_{\min}$ from the rational value.
  • Power requirements for equal on-axis temperatures in this barrier regime are close to gyro-Bohm: going from the smaller to the larger device size costs only about 20% more power in the two cases considered.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • This suggests a possible control strategy: modest current drive that nudges $q_{\min}$ onto an integer could trigger an ITB even without a strong shear reversal, and the resulting barrier might then be self-sustaining via the q-flattening feedback.
  • Because $q_{\min}=2.01$ evolves toward 2 while $q_{\min}=2.03$ does not, the outcome may be history-dependent for a narrow range of $q_{\min}$, with the same nominal target producing a barrier or not depending on the path taken.
  • If the $\rho^*$-dependent tolerance is generic, larger devices (smaller $\rho^*$) would need tighter control of $q_{\min}$ to exploit rational-surface triggering, which could be tested by scanning $q_{\min}$ offsets across device sizes.
  • A testable extension would be to map the threshold curve $\Delta q_{\max}(\rho^*)$ in global simulations and see whether it quantitatively matches the flux-tube estimate $\Delta q \sim \rho^* q_0/n$.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript reports global electromagnetic gyrokinetic simulations with the ORB5 code, examining internal transport barrier (ITB) formation in reversed-shear tokamaks with the minimum safety factor qmin near 2. The paper compares three electron models (adiabatic, hybrid, and fully kinetic) and finds that kinetic electron dynamics is essential: it produces strong zonal flows, temperature profile corrugation, and zonal current sheets that flatten the local safety factor profile. In flux-driven simulations, the authors report that qmin = 2 leads to an ion-channel ITB, while qmin = 2.03 does not, and they attribute this difference to turbulent eddy self-interaction enabled by the rational qmin. Additional simulations show that the width of the q-flattening region scales between rho* and rho_i, that the input power scaling is close to gyroBohm for the two system sizes considered, and that an initial qmin = 2.01 profile evolves toward qmin = 2.0 under the action of turbulence-induced zonal currents.

Significance. If the main claims hold, this work provides a credible causal chain linking a rational minimum safety factor to ITB formation through kinetic-electron-driven zonal flows and zonal currents, extending earlier flux-tube results to global flux-driven simulations. The systematic comparison of adiabatic, hybrid, and fully kinetic electron models is valuable, and the Appendix A check of the df0/dt|_0=0 assumption strengthens confidence in the numerical setup. The q-flattening mechanism is qualitatively consistent with the companion flux-tube paper (Ref. [1]), and the reported system-size dependence is a useful step toward extrapolating ITB physics to reactor scale. However, the central claim that 'qmin close to a lowest order rational value is a necessary ingredient' is currently supported by a single non-converged comparison, so the significance is contingent on closing that gap.

major comments (3)
  1. [Section 6.1, Figs. 17-19] The decisive comparison between qmin = 2 and qmin = 2.03 is not completed: the text explicitly states that the qmin = 2.03 case 'has not reached quasi steady-state yet', and the no-ITB conclusion is carried by the dashed black 'future' curve in Fig. 17, which is an extrapolation based on the power imbalance in Fig. 19. Because this comparison is the primary evidence for the abstract's claim that rational qmin is a 'necessary ingredient', the claim is not yet demonstrated. Please extend the qmin = 2.03 run to a genuine quasi-steady state, or provide a quantitative convergence check (e.g., time traces of the core temperature and power balance showing approach to a steady state), and report how the central conclusion would change if the extrapolation is inaccurate.
  2. [Section 6.1, Fig. 19] The heating source for the qmin = 2.03 run is taken from the qmin = 2 gradient-driven calibration. The extrapolated cooling of the core relies on the assumption that the turbulent losses exceeding the source in the s in [0.2, 0.3] region persist long enough to lower the core temperature. However, if the qmin = 2.03 equilibrium were instead simulated toward its own power balance with a different source profile or amplitude, a different outcome cannot be excluded a priori. Please justify the common source choice or test the sensitivity of the conclusion to the source strength and shape.
  3. [Abstract and Section 7] The term 'necessary ingredient' overstates the logical force of a single pair of simulations. The paper demonstrates that, in this specific setup, qmin = 2 is sufficient to produce an ITB and qmin = 2.03 is not (if the extrapolation holds); it does not establish that no other qmin value or alternative mechanism can produce an ITB. Please soften the claim to state that rational qmin is a necessary ingredient in the parameter regime studied here, or explicitly discuss the limited scope of the necessity claim.
minor comments (5)
  1. [Section 5.2, text near Fig. 15] The sentence 'The modified q-profile shown in Figure 15 has been computed using equation 5' appears to be a citation error: Eq. (5) defines the effective heat diffusivity chi, while the q-modification is computed via Eq. (7)-(8). Please correct the cross-reference.
  2. [Section 6.2, Fig. 24-25] The conclusion of 'almost GyroBohm scaling' is based on only two values of rho* with different levels of power balance; please add an explicit caveat that the scaling is preliminary and may depend on the chosen comparison temperature and on the non-converged status of the qmin = 2.03 case.
  3. [Section 2, numerical setup] The phrase 'solves the full-f Vlasov equation in spite of the delta-f splitting' is awkward and potentially confusing; it would be clearer to say that the code evolves the full distribution function while using a control-variate delta-f splitting for noise reduction.
  4. [Throughout] There are several typographical errors and inconsistent hyphenation, for example 'Ècole Polytechnique Féedérale', 'V olčokas', and the varying use of 'quasi-steady state' versus 'quasi steady-state'. A careful proofreading pass is recommended.
  5. [Figure 17] The dashed black curve is described as an extrapolation, but the method used to construct it (beyond 'smoothing of R/LT' and the power imbalance) is not fully specified; please describe the extrapolation procedure or add a note on its uncertainty.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central ITB comparison is a numerical experiment, not a fit; the qmin=2.03 limitation is a convergence risk, not a circular reduction.

full rationale

The derivation chain is self-contained numerical simulation rather than a reduction to inputs. The only apparent candidate for circularity is the qmin=2.03 flux-driven comparison, but Section 6.1 explicitly states "The qmin=2.03 case has not reached quasi steady-state yet" and labels the dashed final profile as "an extrapolation of the final core profile based on the fact that the system has not reached quasi steady-state in the core." That is a disclosed convergence/extrapolation limitation, not a fitted parameter renamed as a prediction; it affects the strength of the causality claim but is not a definitional identity. The heating source is consistently taken from gradient-driven calibration for both qmin=2 and qmin=2.03 runs, so the comparison is not forced by construction. Prior papers by the same group (Refs. [1], [16], [17]) supply the self-interaction and q-flattening concepts, but the present work reproduces eddy self-interaction (Figure 23), zonal-flow shearing (Figures 20-22), and q-flattening (Figures 26-29) in its own global simulations, so the self-citations are corroborative rather than load-bearing. No equation is defined in terms of its target output, and no fitted quantity is relabeled as a prediction. Therefore no circular step passes the quote-and-reduction test.

Assumptions & free parameters 2 free parameters · 3 assumptions · 0 invented entities

The paper introduces no new particles, forces, or conserved quantities. It does rely on several modeling choices: a prescribed equilibrium, the neglect of df0/dt|0, a heavy electron mass ratio, and a low-beta electromagnetic ordering. These are assumptions about the simulation, not fitted parameters.

free parameters (2)
  • electron-to-ion mass ratio mi/me = 500
    Set to 500 for computational affordability. The paper notes this overestimates growth rates and transport coefficients compared with realistic mass ratio, so quantitative power and barrier-strength statements carry model dependence.
  • plasma beta = 4e-4
    Chosen small enough not to alter linear ITG stability but large enough to include electromagnetic zonal current effects. The claim that EM q-flattening matters is tested only at this low beta.
assumptions (3)
  • domain assumption The ad-hoc circular, concentric ideal-MHD equilibrium with a prescribed fifth-order polynomial q(r) represents a relevant tokamak configuration.
    Used throughout. Grad-Shafranov equilibria are not used; the q profile is user-prescribed and only weakly tied to a self-consistent equilibrium.
  • domain assumption The term df0/dt|0 is neglected for fully kinetic electrons.
    Neglected for computational speed. Appendix A tests one case and reports that the main conclusions do not change, but the assumption affects the core region.
  • domain assumption Collisionless gyrokinetic dynamics is sufficient for ITB formation in this scenario.
    No collisions are included; the paper does not assess whether collisional damping of zonal flows would alter barrier formation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Global electromagnetic gyrokinetic simulations of internal transport barriers in reversed-shear tokamaks." pith.science (2026). https://pith.science/paper/JN2PP7MB

@misc{pith2026241210027,
  author       = {Pith},
  title        = {Pith review of: Global electromagnetic gyrokinetic simulations of internal transport barriers in reversed-shear tokamaks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JN2PP7MB}},
  note         = {Machine review of arXiv:2412.10027}
}
abstract

This work aims at improving our understanding of the conditions enabling the development of an Internal transport barriers (ITB), using a more comprehensive physical model, including low-$\beta$ electromagnetic flux-driven simulations. Our key findings are that electron dynamics is crucial for ITB formation even in an ITG scenario and that having $q_{\text{min}}$ close to a lowest order rational value (2 in our simulations) to allow for eddies self-interaction is a necessary ingredient. Electron dynamics has two critical effects. First, it leads to a structure formation characterized by strong zonal flows shearing rate, reduction of turbulence and profile corrugation. Second, it leads to zonal current sheets that result in a broadening of the minimum-q region, qualitatively consistent with the flux-tube simulations of Vol\v{c}okas et al. [1]. Flux-driven simulations performed with $q_{\text{min}}=2$ reveal the development of the transport barrier in the ion channel, forming at inner and outer radial positions with respect to the $q_{\text{min}}$ position. The ITB formation in flux-driven setup is not recovered if $q_{\text{min}} = 2.03$. Additionally, a simulation at higher $\rho^*$ indicates that the extent of the flattened region of the q-profile due to turbulent self-interaction does not change proportionally to $\rho^*$ or to $\rho_i$, but somewhere in between. On the other hand, the input power required to achieve similar on-axis temperatures appears to exhibit almost GyroBohm scaling (for the two considered $\rho^*$ values). Furthermore, considering an initial q-profile with $q_{\text{min}} = 2.01$, flux-driven simulations show that partial self-interaction can evolve to complete self-interaction. This occurs due to turbulent-driven zonal currents that lower and flatten the q-profile down to $q_{\text{min}} = 2.0$, in line with what is reported in Vol\v{c}okas et al.[1].

Figures

Figures reproduced from arXiv: 2412.10027 by the authors.

Figure 1
Figure 1. Safety factor (left) and magnetic shear (right) pr [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Ion transport coefficient for simulations performe [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Ion and electron transport coefficients for three di [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (28 more)
Figure 4

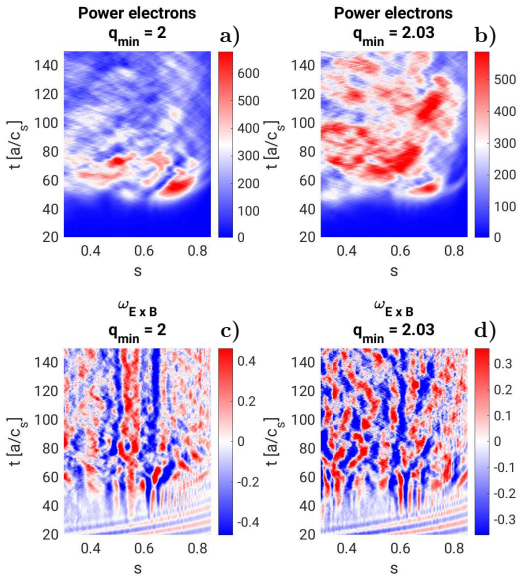

Figure 4. Figure 4: 2D (time and radial coordinates) plots of the heat p [PITH_FULL_IMAGE:figures/full_fig_p009_4.png]
Figure 5
Figure 5. Figure 5: Heat flux for ions (left) and electrons (right) for [PITH_FULL_IMAGE:figures/full_fig_p010_5.png]
Figure 6
Figure 6. Figure 6: Comparison of heat power (top) and transport coeffic [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: Comparison of logarithmic gradients between the h [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
Figure 8
Figure 8. Figure 8: Comparison of the electron parallel velocity betw [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 9
Figure 9. Figure 9: Time averaged E × B shearing rate hωE×Bit (left) and hvE×Bit due to the zonal electrostatic potential component φ¯ (right). Comparison between hybrid and fully kinetic models. Gradient-driven ES simulations. properties of the ITG (such as the decrease of the growth rat…
Figure 10
Figure 10. Figure 10: Heat power comparison between electrostatic (re [PITH_FULL_IMAGE:figures/full_fig_p013_10.png]
Figure 11
Figure 11. Figure 11: Comparison of evolved R/LT between electrostatic (red) and electromagnetic with β = 10−4 (blue) simulations. The black line represents the initial gradients. Gradient-driven simulations. The ion temperature gradient corrugation is less pronounced than for electrons, b…
Figure 12
Figure 12. Figure 12: Comparison of the effective heat conductivity [PITH_FULL_IMAGE:figures/full_fig_p014_12.png]
Figure 13
Figure 13. Figure 13: Comparison of the time averaged E × B shearing rate hωE×Bit between electrostatic (red) and electromagnetic with β = 10−4 (blue) simulations. Gradient￾driven simulations. current and its shear are displayed in [PITH_FULL_IMAGE:figures/full_fig_p015_13.png]
Figure 14
Figure 14. Figure 14: Comparison of parallel velocity between electro [PITH_FULL_IMAGE:figures/full_fig_p016_14.png]
Figure 15

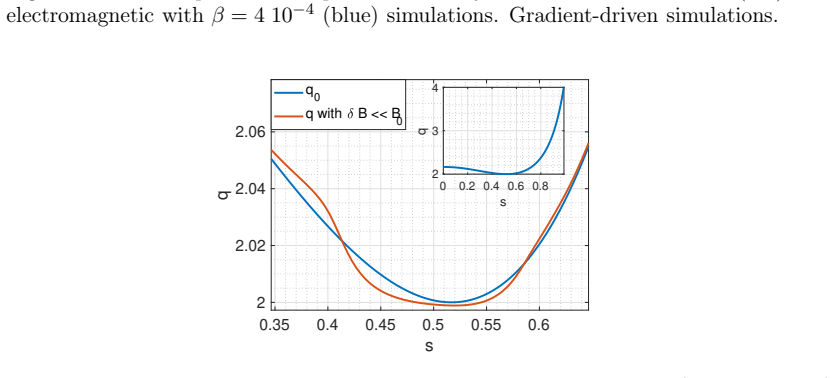

Figure 15. Figure 15: Safety factor modification due to the zonal compon [PITH_FULL_IMAGE:figures/full_fig_p016_15.png]
Figure 16
Figure 16. Figure 16: Input power shape for the flux-driven simulations [PITH_FULL_IMAGE:figures/full_fig_p017_16.png]
Figure 17
Figure 17. Figure 17: Final temperature profiles for ions (left) and ele [PITH_FULL_IMAGE:figures/full_fig_p019_17.png]
Figure 18
Figure 18. Figure 18: Logarithmic gradient profiles for the qmin = 2 (blue) and qmin = 2.03 (red and dashed black). The black curve is an extrapolation to the future as the temperature for s ∈ [0, 0.23] is still dropping (since losses are larger than input power) and typical parabolic prof…
Figure 19
Figure 19. Figure 19: Power balance: radial integral of the input power [PITH_FULL_IMAGE:figures/full_fig_p020_19.png]
Figure 20
Figure 20. Figure 20: Time averaged E × B shearing rate hωE×Bit , averaged in t cs/a ∈ [100, 150] (left) and t cs/a ∈ [200, 250] (right) for the qmin = 2 and qmin = 2.03 cases (blue and red, respectively). Flux-driven EM simulations. think that this can partially explain the barrier provid…
Figure 21
Figure 21. Figure 21: Time snapshot of the non-zonal electrostatic pot [PITH_FULL_IMAGE:figures/full_fig_p022_21.png]
Figure 22
Figure 22. Figure 22: Non-zonal electrostatic potential φ˜ = φ − φ¯ (with φ¯ the zonal component) correlation with respect to the point s = 0.52 for the qmin = 2, 2.03 cases (blue and red, respectively). Flux-driven EM simulations 6.2. system size comparison We now analyze how the properti…
Figure 23
Figure 23. Figure 23: Contours of φ˜ = φ−φ¯ (with φ¯ the zonal component) at s = 0.52 (corresponding to the qmin location) as a function of θ and ζ, poloidal and toroidal angles respectively. Left panel: qmin = 2 case; right panel: qmin = 2.03 case. Flux-driven EM simulations. conditions a…
Figure 24
Figure 24. Figure 24: R/LT comparison between the simulations with ρ ∗ = 1/186 (blue) and ρ ∗ = 1/100 (red). Flux-driven EM simulations. Concerning the flattening of the safety factor around the rational surface q = 2, the ρ ∗ = 1/100 simulation exhibits similar features to the CBC system …
Figure 25
Figure 25. Figure 25: Power balance analysis for two ρ ∗ values, TCV-like (ρ ∗ = 1/100) and DIII-D￾like (ρ ∗ = 1/186). Flux-driven EM simulations. 0.35 0.4 0.45 0.5 0.55 0.6 0.65 s 2 2.02 2.04 2.06 2.08 2.1 q original * =1/100 * =1/186 [PITH_FULL_IMAGE:figures/full_fig_p025_25.png]
Figure 26
Figure 26. Figure 26: Safety factor flattening for the ρ ∗ = 1/186 and ρ ∗ = 1/100 cases (black and red, respectively). Flux-driven EM simulations. simulations shown in [PITH_FULL_IMAGE:figures/full_fig_p025_26.png]
Figure 27
Figure 27. Figure 27: Initial and final q-profiles for the simulation wit [PITH_FULL_IMAGE:figures/full_fig_p026_27.png]
Figure 28
Figure 28. Figure 28: Non-zonal electrostatic potential φ˜ = φ − φ¯ (with φ¯ the zonal component) at the toroidal angle ζ = 0 for different times (a/cs normalization). Top: flux-driven EM case; bottom: flux-driven ES case. 0.45 0.5 0.55 0.6 s 2 2.01 2.02 2.03 2.04 q q 0 q t 76, 96 q t 124,…
Figure 29
Figure 29. Figure 29: Time averaged radial profiles of safety factor (ri [PITH_FULL_IMAGE:figures/full_fig_p027_29.png]
Figure 30
Figure 30. Figure 30: Temperature evolution in two radial windows, [PITH_FULL_IMAGE:figures/full_fig_p028_30.png]
Figure 31

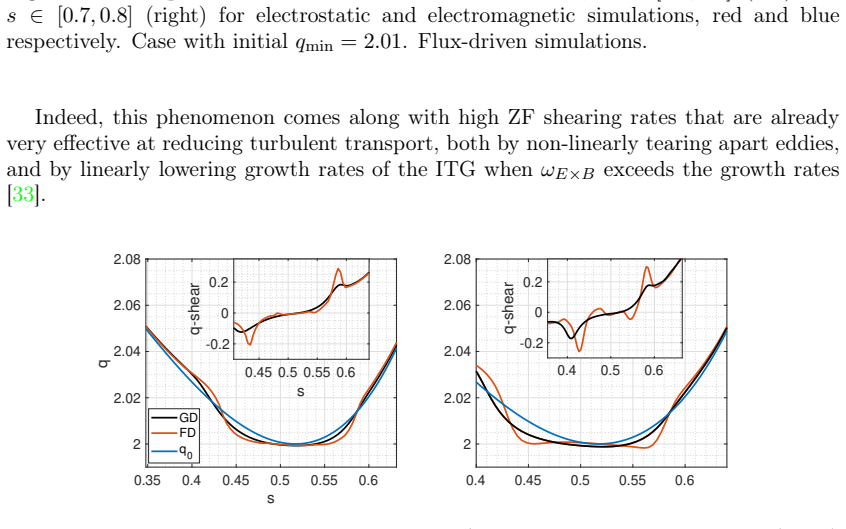

Figure 31. Figure 31: Safety factor flattening for the ρ ∗ = 1/186 case for the gradient-driven (black) and flux-driven (red) simulations. In the subplot the modified magnetic shear is shown. Profiles computed over the time interval t cs/a ∈ [100, 200] (left) and over the time interval ove…
