Inverse-Transpilation: Reverse-Engineering Quantum Compiler Optimization Passes from Circuit Snapshots

T0 review · 4 major / 6 minor · reviewed 2026-08-16 · deepseek-v4-flash

Pith's one-line read A neural network trained on circuit pairs can identify which of a fixed set of quantum-compiler optimization passes was applied, with F1 scores up to 0.96.

desk verdict The task is genuinely new but the security claim outruns the evidence, because the evaluation assumes labeled training data the adversary never gets. read the letter →

arxiv 2504.19113 v1 pith:X44MYQYI submitted 2025-04-27 quant-ph cs.LG

classification quant-phcs.LG
keywords quantumcircuitcompilationcompilerconfidentialityoptimizationpassdetectiontranspilationforensicsmulti-labelclassificationfingerprintingreverseengineeringmachinelearningsecurity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that a black-box quantum compiler's optimization choices are not fully secret: by comparing an original quantum circuit with its compiled output, a machine-learning model can infer which of a predefined set of optimization passes the compiler applied. The authors build a supervised multi-label classifier on 10,000 synthetic random circuit pairs and report that a neural network identifies the applied passes with a Hamming score of 0.682, with the most distinctive pass detected at an F1-score of 0.96. If true, this would show that compiler-optimization techniques are recoverable from circuit snapshots alone, a previously unexamined confidentiality threat to proprietary quantum compilation.

What carries the argument

The load-bearing component is a supervised multi-label classifier trained on circuit-pair fingerprints. Each fingerprint is a human-interpretable feature vector: five global descriptors (depth, total gate count, register width, qubit count, and circuit size), a histogram of the fourteen most common one- and two-qubit gate types, and aggregate sums and ratios of one-qubit versus two-qubit gates. Training data come from a synthetic dataset builder that generates random circuits, applies a random non-empty subset of six baseline optimization passes plus, with probability 0.25, one of two miscellaneous passes, and records the applied-pass one-hot vector as ground truth. The features let the model separate passes by signatures such as depth reduction or changes in two-qubit gate counts.

What would settle it

Generate circuit pairs using an optimization pass held out from the eight training labels, or using a different pass ordering, and test the trained model; if detection performance drops to chance, the claimed inference does not generalize beyond the fixed training menu.

Watch

Extended reading notes

Core claim

The central claim is that structural differences between an original quantum circuit and its optimized form carry a detectable fingerprint of the optimization passes that were applied. On 10,000 randomly generated circuits with a fixed menu of eight optimization techniques, a neural-network multi-label classifier achieves a Hamming score of 0.682, meaning it correctly identifies about 68 percent of the passes in each circuit. Pass-specific results range from F1-score 0.96 for template optimization, the most structurally distinctive pass, down to roughly 0.5 for passes whose effects overlap, and 0.10 for the catch-all miscellaneous class.

Load-bearing premise

The classifier is trained on ground-truth labels of which passes were applied, but the stated black-box threat model gives the adversary only the original and optimized circuits, not those labels.

Editorial extensions

If this is right

  • A black-box observer with access only to original and optimized circuits can decide, with measurable confidence, which of a fixed menu of optimization passes a compiler applied.
  • Compiler optimization recipes become a recoverable asset: a competitor could compare a paid service's output against known pass signatures and infer parts of its proprietary pipeline.
  • The same classifier can serve as a compiler-forensics tool, letting users verify whether a vendor applied a specific optimization such as a CNOT-cancellation stage.
  • Because the miscellaneous class is detected poorly, unknown or novel passes are not reliably exposed, so the demonstrated threat currently applies to known techniques only.
  • The reported performance suggests that future work on secure quantum compilation must treat pass-level information as sensitive, not just the circuit or the coupling map.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The reported accuracy likely overstates the real attack, because the threat model gives the adversary only circuits while the training procedure requires labels of which passes were applied; obtaining those labels in practice is the hard part.
  • A more realistic attack could replace author-generated labels with labels obtained by differential testing: toggle candidate passes on and off, submit the same circuit, and record which candidate best explains each observed output.
  • The deliberately shallow feature set leaves room for richer circuit signatures, such as commutation structure, local gate-cancellation events, or learned embeddings of the circuit DAG, which could separate the passes currently stuck near F1 0.5.
  • The method's success on random circuits may not transfer directly to structured algorithmic circuits, whose optimization footprints differ; testing on variational or algorithmic workloads would be a natural next step.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a machine-learning framework to reverse-engineer which quantum-circuit optimization passes a black-box compiler applies, by comparing structural features of original and transpiled circuits. Circuits are generated with Qiskit's random_circuit, a random non-empty subset of six 'baseline' Qiskit passes is applied, and a 'miscellaneous' class is simulated by additionally applying one of two other passes with probability 0.25. From each circuit pair the authors extract simple, human-interpretable statistics (depth, gate counts, per-gate histograms, aggregate ratios). They train random forest, logistic regression, gradient boosting, kNN, and a neural network on 10,000 samples (80/20 split) for multi-label classification. The neural network achieves the best overall Hamming score of 0.682 and average F1 of 0.594; per-pass F1 reaches 0.96 for TemplateOptimization but stays near 0.49-0.51 for the other baseline passes, and drops to 0.10 for the Miscellaneous class. The authors conclude that their initial study demonstrates the viability of a threat to compiler confidentiality.

Significance. If the central claim were fully supported, this would be a worthwhile first contribution to a genuinely new security question: inferring the optimization strategy of a proprietary quantum compiler from input/output circuit pairs. The paper is transparent about its experimental setup, uses a clean train/test split on a reasonably sized synthetic dataset, and its feature set is simple and reproducible in spirit. However, as presented, the claim of a viable confidentiality threat is substantially weakened by two structural gaps: the supervised learning setup requires ground-truth pass labels that the stated adversary never possesses, and the measured performance is largely driven by one easy pass while most passes are detected at levels close to what a trivial or heavily imbalanced baseline would achieve. The paper is best read as a proof of concept for fingerprinting known passes of a known open-source compiler, not for reverse-engineering proprietary and unknown optimization techniques.

major comments (4)
  1. [Section 3.1 and Section 4.2, Algorithm 1] The threat model grants the adversary only (C_orig, C_opt) pairs from a black-box API, with no labels indicating which passes were applied. Yet Algorithm 1 generates the ground-truth label vector y from the authors' own random pass selection, and the supervised classifiers are trained on these labels. A real adversary targeting a proprietary compiler would never receive such labels; the evaluation therefore assumes away the very knowledge the attack is meant to extract. This is a load-bearing gap: the reported Hamming score of 0.682 is an upper bound under perfect label access, not a demonstration of the stated threat. The paper should either relax the threat model to a 'known compiler fingerprinting' setting (where labels are available, e.g., from an open-source compiler) or provide an unsupervised or semi-supervised evaluation that does not require pass labels.
  2. [Table 1, Table 2, Section 5.2] The overall metrics are dominated by TemplateOptimization (F1=0.96), while the other five baseline passes all have F1 near 0.49-0.51. The paper acknowledges this but does not compare against a trivial baseline such as majority-class prediction or a random multi-label predictor. Given the dataset's label distribution is not reported, it is unclear whether the model beats random guessing for the hard passes at all. The claim that the framework can 'infer underlying optimization techniques' in general is not supported by the per-pass results; at best it supports detecting one pass with a very distinctive structural footprint. The paper should report class frequencies, a random/majority baseline, and per-pass precision/recall in a way that lets the reader judge how much signal exists beyond the easy pass.
  3. [Section 5.2, Miscellaneous row; Section 5.3] The Miscellaneous class, designed to simulate the presence of unknown or proprietary passes, achieves F1=0.10 (precision 0.25, recall 0.07). This is direct evidence that the model fails to detect passes outside its predefined set. Since the paper's stated target is proprietary compilers whose optimization techniques are by definition outside the six known Qiskit passes, the Miscellaneous result contradicts the conclusion that the threat to compiler confidentiality is viable. The discussion in Section 5.3 that 'the model can flag unrecognized patterns (Miscellaneous label) with effective feature engineering' is speculative; the current feature set is not effective for this purpose, as the paper itself notes. The authors need to either demonstrate a better-performing unknown-pass detection mechanism or explicitly scope the claimed threat to compilers that use exactly the known, pre-trained pass set.
  4. [Section 4.2 and Section 5.1] The evaluation is conducted exclusively on Qiskit-generated random circuits with qubit counts in [4,12] and depth 50. No experiments are run on algorithmic benchmarks (e.g., QASMBench, MQTBench) or on circuits compiled by other compilers such as TKET or proprietary systems. Random circuits may not reflect the structured gate patterns of real quantum workloads, and the feature statistics may behave differently on such patterns. The claim of 'extensive evaluation' is therefore overstated with respect to generalizability. A minimal additional experiment on a few standard benchmark circuits would substantially strengthen the external validity of the results.
minor comments (6)
  1. [Abstract and Section 1] The abstract says 'thousands of quantum circuits' and the paper evaluates 10,000; this is fine, but the phrasing 'extensive evaluation' should be tempered to 'synthetic evaluation' given the reliance on randomly generated circuits.
  2. [Algorithm 1, line 9] The label vector y is described as 'one-hot', but since multiple baseline passes can be applied simultaneously, the label vector is multi-hot (binary with several 1s). Please correct the terminology.
  3. [Section 5.1, Table 1] The pass listed in the text as 'CommutationAnalysis + CommutativeCancellation' appears in Table 1 as 'CommutationCancel'. Use a consistent name to avoid confusing readers.
  4. [Section 5.1] The rationale for the Miscellaneous inclusion probability of 0.25 is unclear: 'since it comprises 2 techniques out of 8 total' does not justify 0.25, as the two miscellaneous passes are not counted individually in the label vector. Please clarify the intended probability model.
  5. [Section 4.3] The feature list includes both 'qubit count' and 'register width' as well as 'circuit size'; these descriptors may be redundant. Please define each precisely and state which features are used in the final vector.
  6. [General] No code or dataset is provided. For a machine-learning paper whose main artifact is the dataset builder and feature extraction, releasing the code (or at least the exact pass configurations and random seeds) would greatly aid reproducibility; please consider including it.

Circularity Check

1 steps flagged · score 3.0 of 10

The supervised classifier is trained on pass labels that the paper's own PassManager generates (Algorithm 1), while the stated black-box adversary never receives such labels, so the reported F1/Hamming scores are in-distribution results on the authors' synthetic label space rather than validated predictions about unknown proprietary passes.

  1. fitted input called prediction [Algorithm 1, lines 5–9 and Section 4.2; threat model in Section 3.2]
    "The optimization choices made in this step become the ground-truth one-hot label vector that the classifier is trained on. [Sec. 4.2] ... the adversary trains an ML-based model to infer details about the proprietary algorithm using only the input (original) and output (optimized) quantum circuits. [Sec. 3.2]"

    The attack is supposed to infer a proprietary compiler's optimization passes from (C_orig, C_opt) alone, but the training labels in Algorithm 1 (y← OneHot(S_b)) are created by the authors' own random pass selection. A black-box adversary, as described in Section 3.2, never obtains these one-hot labels; obtaining them would require already knowing which passes were applied, which is exactly the knowledge the attack claims to extract. The 'Miscellaneous' class is likewise not truly unknown: it is a bucket of two known Qiskit passes, and Section 5.3 concedes that passes entirely outside the predefined set lead to misclassification.

full rationale

This is not an equation-level circularity, and there is no load-bearing self-citation chain: the paper trains standard ML models on a held-out split of a synthetic dataset, so within that dataset the evaluation is methodologically sound. However, the central claim that the results demonstrate the viability of a threat to compiler confidentiality is partially circular. Section 4.2 states that the PassManager's optimization choices 'become the ground-truth one-hot label vector,' while Section 3.2 defines an adversary who sees only original and optimized circuits through an API and has no access to such labels. The paper therefore supplies the answer key for the very classification task it presents as a black-box inference. The model's success is real only for the six baseline and two miscellaneous Qiskit passes chosen by the authors; the poor Miscellaneous F1 (0.10) and the paper's own limitation statement confirm that truly novel passes are not handled. Because the prediction target is generated by the same pipeline that defines the training distribution, the threat-model conclusion overreaches the evidence, though the held-out test set prevents the score from being higher.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The paper does not introduce new physical or algorithmic entities. Its load-bearing assumptions are domain choices: that random circuits stand in for real workloads, that a small fixed set of Qiskit passes represents proprietary optimization, that global circuit statistics carry enough signal, and most critically that the adversary has access to labeled training data despite the black-box threat model.

free parameters (3)
  • misc_inclusion_probability = 0.25
    Probability of adding a miscellaneous pass to the pipeline, chosen by hand. It controls the prevalence of the miscellaneous label and directly affects the reported F1-score for that class.
  • random_circuit_depth = 50
    Circuit depth used for all generated random circuits, chosen by hand as a representative near-term depth.
  • qubit_range = [4, 12]
    The uniform range for the number of qubits in generated circuits, chosen by hand; the paper states this as the default evaluation setting.
assumptions (5)
  • domain assumption Random circuits generated by Qiskit's random_circuit, with 4-12 qubits and depth 50, approximate the structure of real quantum workloads.
    Section 4.2 justifies this by citing approximate unitary t-designs, but no real algorithmic circuits are tested.
  • domain assumption The hand-picked set of six baseline and two miscellaneous Qiskit passes is representative of the optimization techniques used by proprietary compilers.
    Section 4.1 states the passes were chosen to cover the spectrum of likely production optimizations. If a real compiler uses novel passes, the classifier was not trained to detect them, as the paper itself notes in Section 5.3.
  • domain assumption Global structural features (depth, total gate counts, gate type histogram, aggregate ratios) are sufficient to discriminate the applied optimization passes.
    Section 4.3 argues these features reflect a human expert's view. The low F1-scores for most passes in Table 1 indicate the assumption is only partially true.
  • domain assumption The adversary can obtain labeled training data, meaning pairs of circuits together with the identities of the passes that were applied.
    The threat model in Section 3.1 gives the adversary only original and optimized circuits, while Algorithm 1 in Section 4.2 generates ground-truth labels by applying known passes. The paper never explains how a real adversary would obtain these labels.
  • domain assumption Multi-label supervised learning on synthetic pass combinations generalizes to the pass selection behavior of an unseen target compiler.
    The evaluation is entirely within the synthetic data distribution; no real or unseen compiler is tested.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Inverse-Transpilation: Reverse-Engineering Quantum Compiler Optimization Passes from Circuit Snapshots." pith.science (2026). https://pith.science/paper/X44MYQYI

@misc{pith2026250419113,
  author       = {Pith},
  title        = {Pith review of: Inverse-Transpilation: Reverse-Engineering Quantum Compiler Optimization Passes from Circuit Snapshots},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/X44MYQYI}},
  note         = {Machine review of arXiv:2504.19113}
}

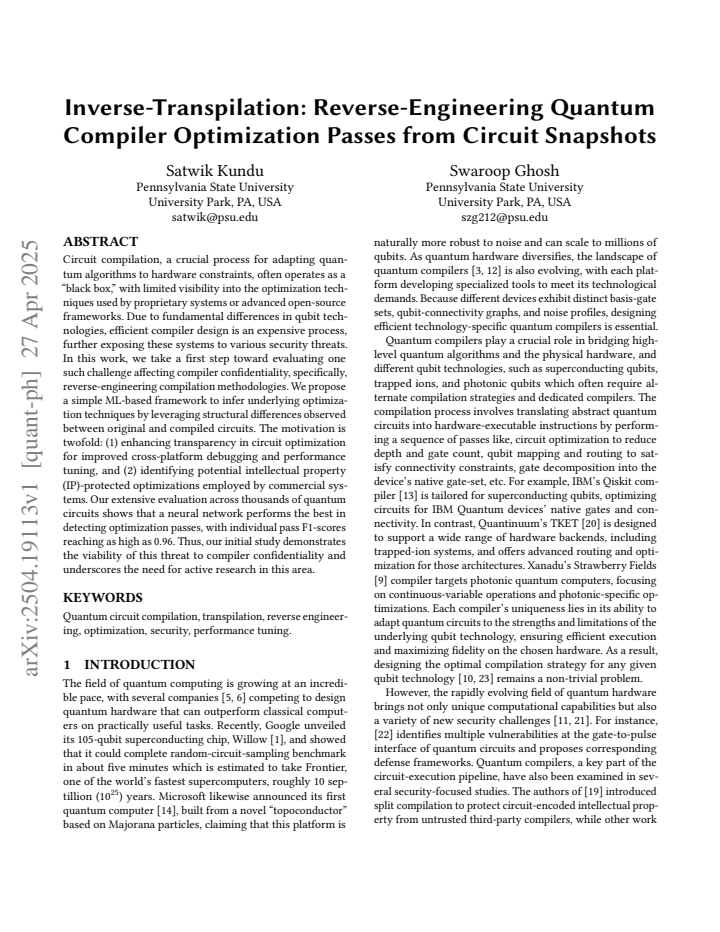

read the original abstract

Circuit compilation, a crucial process for adapting quantum algorithms to hardware constraints, often operates as a ``black box,'' with limited visibility into the optimization techniques used by proprietary systems or advanced open-source frameworks. Due to fundamental differences in qubit technologies, efficient compiler design is an expensive process, further exposing these systems to various security threats. In this work, we take a first step toward evaluating one such challenge affecting compiler confidentiality, specifically, reverse-engineering compilation methodologies. We propose a simple ML-based framework to infer underlying optimization techniques by leveraging structural differences observed between original and compiled circuits. The motivation is twofold: (1) enhancing transparency in circuit optimization for improved cross-platform debugging and performance tuning, and (2) identifying potential intellectual property (IP)-protected optimizations employed by commercial systems. Our extensive evaluation across thousands of quantum circuits shows that a neural network performs the best in detecting optimization passes, with individual pass F1-scores reaching as high as 0.96. Thus, our initial study demonstrates the viability of this threat to compiler confidentiality and underscores the need for active research in this area.

Figures

Figures reproduced from arXiv: 2504.19113 by the authors.

Figure 1
Figure 1. High-level overview of the threat model demonstrating a scenario where a stealthy adversary can infer details about black-box circuit-optimization software from the original and optimized circuits. shots), and the most frequent outcomes are considered the final results. 2.2 Quantum Circuit Compilation Quantum-circuit compilation [12, 15, 18] transforms an algo￾rithm level circuit, expressed in an idealized gate set,… view at source ↗
Figure 2
