Prediction of Apophis's deformation-driven rotational evolution during its closest encounter to the Earth in 2029

T0 review · 3 major / 6 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Apophis's 2029 flyby may twist its spin by degrees if the asteroid is as soft as 10 kPa.

desk verdict The paper makes a testable forward prediction—a ≤10 kPa Young's modulus could give a few-degree spin deviation within days—but the exact threshold is anchored to a borrowed, unshown spring conversion and a hand-set damping coefficient, so the numbers are provisional until a sensitivity analysis is done. read the letter →

arxiv 2507.17710 v1 pith:NBUNIPN6 submitted 2025-07-23 astro-ph.EP

Masatoshi Hirabayashi This is my paper · ORCID
classification astro-ph.EP
keywords 99942ApophisasteroidsdynamicsrotationtidessolidbodyrotationalYoung'smodulus
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

On April 13, 2029, Apophis will pass within six Earth radii, close enough for Earth's tides to change its tumbling spin. This paper argues that the spin change cannot be understood from rigid-body dynamics alone: if the asteroid deforms during the encounter, the reshaping alters its moment of inertia and thereby its angular velocity, producing a spin state that differs from the rigid-body case even when the deformation itself stays tiny. Using a dumbbell-shaped spring-damper model, it predicts that for a Young's modulus of about 1 MPa or higher the deviation stays at a few degrees over a year, whereas for about 10 kPa or less the deviation can reach a few degrees within days and possibly 90 degrees within months. The result matters because telescopes and spacecraft that will observe Apophis in 2029 could look for this signature and, if found, read off the asteroid's interior stiffness.

What carries the argument

The load-bearing object is a semi-analytic dumbbell model: Apophis is treated as two equal spherical lobes connected by a massless rod, with the momentum equation decomposed into translation, rotation, and deformation modes. Deformation is closed by a linear spring-damper, g_i(σ) = −k m_i u_i − c m_i ẋ_i, with spring coefficient k = 90E/m converted from soft-sphere discrete-element simulations and a constant damping coefficient c = 0.1 s⁻¹. This machinery converts an assumed Young's modulus E into a long-axis displacement, changes the moment of inertia I_ζ, and through angular momentum conservation changes the angular velocity; after the encounter the body settles to a new equilibrium displacement, leaving a permanent spin deviation from the rigid-body case.

What would settle it

A decisive check is to monitor Apophis's spin state continuously from before closest approach until several months after April 13, 2029, with sub-degree precision. If the observed post-encounter spin evolution matches the rigid-body prediction to within a fraction of a degree while independent radar or thermal measurements indicate a Young's modulus around 10 kPa or below, the proposed deformation-driven mechanism—or the spring–damper stiffness mapping that produces it—would be ruled out.

Watch

Extended reading notes

Core claim

The central claim, stated on the paper's own terms, is that Apophis's deformation-driven rotational evolution may be observable even if the deformation itself is not. The model tracks the long-axis stretching of a dumbbell-shaped two-lobe body under Earth's tidal torque, letting the changing moment of inertia feed back into the spin through angular momentum conservation. It finds a stiffness threshold: at a Young's modulus near 1 MPa or above, the deformation-driven deviation from the rigid-body spin is a few degrees over one year; at 10 kPa or below, the deviation reaches a few degrees within a few days after closest approach and can grow to about 90 degrees within months, depending on the tumbling state at encounter. Because the pre-encounter tumbling state is uncertain, the paper propagates 10,000 initial states from photometric measurements and finds that the deviation magnitude is highly sensitive to the spin state, so detailed pre-encounter characterization is needed to predict or interpret it.

Load-bearing premise

The whole prediction depends on the assumption that a simple spring-and-damper model with a spring constant set by k = 90E/m and a damping rate chosen by hand faithfully represents how Apophis actually deforms during the flyby.

Editorial extensions

If this is right

  • If Apophis's Young's modulus is 10 kPa or below, optical observations from Earth and spacecraft could see a spin-state deviation of a few degrees within days of closest approach, growing to about 90 degrees within months.
  • If the Young's modulus is about 1 MPa or higher, the deformation-driven deviation stays at a few degrees even a year after the encounter, making the signal hard to separate from rigid-body evolution.
  • Because the deviation is sensitive to the tumbling state, the same stiffness can produce very different observable outcomes; measuring the pre-encounter spin state to high precision is a prerequisite for interpreting post-encounter lightcurves.
  • The spin deviation appears without any irreversible resurfacing or internal failure, so a reversible elastic response alone is enough to produce a measurable rotational signature.
  • Spacecraft measurements of the moment of inertia, gravity field, or seismic and radar response before and after the encounter could separate deformation-driven spin change from rigid-body spin change and constrain bulk strength.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the spring-coefficient conversion k = 90E/m over- or under-estimates the real stiffness by, say, an order of magnitude, the quoted 10 kPa threshold would shift correspondingly, so the observable window of stiffness values is wider or narrower than the paper's numbers suggest.
  • The same deformation–spin feedback should operate in other rubble-pile asteroids that pass close to planets, offering a general way to infer bulk strength from rotational lightcurves without resolving deformation.
  • A testable extension would couple this dumbbell model to the full radar shape model, checking whether multi-axis deformation modes, which the paper argues would only increase the deviation, push the predicted angles above the few-degree level at higher stiffness.
  • If a spacecraft measures both shape elongation and spin state continuously through the encounter, inverting the observed deviation against this model could yield a direct, in-situ estimate of Apophis's Young's modulus.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper predicts that deformation of Apophis during its 2029 Earth flyby can change its spin state relative to the rigid-body case. Apophis is modeled as a dumbbell of two spherical lobes connected by a massless spring-damper element, with the deformation dynamics coupled to translation and rotation following Hirabayashi (2023). The authors propagate the observed tumbling spin state with uncertainties, run rigid-body and deformation cases from a common pre-encounter state, and report angular deviations as a function of Young's modulus via the conversion k = 90E/m. They find that for E ~ 1 MPa deviations are a few degrees over a year, while for E ~ 10 kPa deviations may reach a few degrees within days, with possible larger deviations over months. The paper includes a statistical analysis over 10,000 spin states and an analytic validation in Appendix A.

Significance. If the constitutive mapping is accepted, the paper provides a falsifiable, forward-model prediction linking Apophis's interior strength to an observable spin-state signature during the 2029 encounter. This would be valuable for the upcoming Apophis observation and mission campaigns and for constraining the bulk strength of sub-kilometer rubble-pile asteroids. The study's strengths include the forward (non-fitted) nature of the simulation, the propagation of observational spin-state uncertainties through 10,000 cases, and the explicit benchmarking of displacement magnitudes against SSDEM and FEM results. However, the quantitative headline depends almost entirely on two poorly constrained constitutive parameters introduced in Section 4.1, and the long-term deviation claims in the discussion are not supported by results shown in Section 5.

major comments (3)
  1. [Section 4.1, Eq. (8)] The central threshold E ≲ 10 kPa is controlled by the constitutive mapping k = 90E/m and the hand-set damping c = 10^-1 s^-1, but the rescaling factor behind k = 90E/m is not shown and no sensitivity analysis for c is provided. In the cited SSDEM work, the contact stiffness is particle-scale (kn ~ π R E), so translating it to a body-scale dumbbell spring requires the effective particle radius and contact network; a factor-of-10 uncertainty in that translation shifts the E threshold by a factor of 10, moving the predicted few-degree deviation across the observational detectability boundary. Please provide the derivation of the factor 90 and a sweep over both k and c.
  2. [Sections 6 and 7 vs. Abstract] The claim that at E = 10 kPa the spin deviation 'may reach 90° within two months' appears only in the Discussion and Conclusion; the Abstract states only 'a few degrees even a few days after the closest encounter,' and Section 5 presents results only over a 48-hour simulation. No figure or quantitative run supporting the 90°-in-months claim is shown. The manuscript should either present the long-term simulation used for that claim or restrict the statement to the simulated time interval.
  3. [Appendix A] The Appendix A validation checks the angular-momentum bookkeeping of Eq. (A.2) to about 20%, but it does not validate the physical mapping from Young's modulus to the spring constant or the damping model. Since the headline conclusion is a prediction of spin deviation at a given E, the lack of a direct validation of the constitutive mapping is a load-bearing gap rather than a mere technical issue.
minor comments (6)
  1. [Table 3] The system mass is listed as 6×10^6 kg in Table 3 but as 6×10^10 kg in Section 4.1; the table value is inconsistent with the stated bulk density and radius and should be corrected.
  2. [Table 3] The unit for Iζ appears as 'k m2', which is not a valid unit; it should presumably be 'kg m^2'.
  3. [Table 1] The table header contains the typo 'Unites' instead of 'Units'.
  4. [Section 4.1] The text says 'pdkgrav modeling' rather than 'pkdgrav modeling'; also, the phrase 'with pdkgrav' should be corrected.
  5. [Section 7] The conclusion states that the model uses 'two equally massive, spherical lobes,' but Section 5 explicitly parameterizes m1/m2 = 0.43, 0.67, and 1.0; this description should be revised.
  6. [Figure 6 caption] The caption says Panel c is 'identical to Panel a,' but Panel c is a maximum-angle map while Panel a is a time series; the relationship should be described more precisely.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the predicted spin deviation is a forward-model output, not a refit of the paper's constitutive inputs.

full rationale

The paper is a forward parametric simulation. The constitutive inputs k=90E/m and c=10^-1 s^-1 are set in Section 4.1, and the deformation-driven spin deviation is computed by integrating the coupled translation-rotation-deformation equations in Section 3; it is never fitted to any observed Apophis spin quantity. The spring scale is chosen so that the model's displacement is consistent with prior SSDEM and FEM displacement levels, and displacement is a different observable from the predicted spin deviation, so the central claim does not reduce to that calibration by construction. The self-citation to Hirabayashi (2023) supplies the modeling framework, but the governing equations are re-derived in the present paper, making the citation illustrative rather than load-bearing. Appendix A provides an internal consistency check rather than a fit. The unshown rescaling factor behind k=90E/m and the hand-set damping coefficient are genuine robustness limitations, but they do not make the spin prediction equivalent to the inputs; they shift the quantitative threshold without forcing the output to equal the input. No step satisfies the bar of Eq. X = Eq. Y by construction or a fitted parameter renamed as a prediction.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The model relies on a simplified dumbbell geometry, a linear spring-damper constitutive law, and several hand-set parameters (damping, conversion factor, density, lobe mass ratio). No new physical entities are introduced. The main free parameters are the Young's-modulus-driven spring coefficient and the damping coefficient, both varied or fixed by practical convenience rather than by direct measurement.

free parameters (6)
  • Young's modulus E = 10 kPa, 100 kPa, 1 MPa (varied across simulations)
    Controls the spring stiffness k=90E/m; the central thresholds depend on this assumed range, not fitted to observation.
  • Spring coefficient k = 1.51e-5, 1.51e-4, 1.51e-3 s^-2
    Derived from E via k=90E/m; it sets the elastic response of the two-lobe model.
  • Damping coefficient c = 0.1 s^-1 (constant)
    Chosen by hand; the paper says test runs show no significant variations unless oscillatory, but no sensitivity analysis is shown.
  • Conversion factor 90 in k=90E/m = 90 (dimensionless)
    Introduced as a rescaling factor from SSDEM (DeMartini et al.); not derived in this paper, and the quantitative predictions hinge on it.
  • Bulk density = 2900 kg/m^3
    Assumed from DeMartini et al. (2019); affects mass and MOI estimates, with a stated ~35% uncertainty.
  • Lobe mass ratio m1/m2 = 0.43, 0.67, 1.0
    Varied in the study; paper finds it does not alter spin evolution because m and I_zeta are held constant.
assumptions (5)
  • domain assumption Apophis is modeled as a dumbbell of two spherical lobes connected by a massless rod
    Section 3 states this explicitly; it ignores shape details and constrains deformation modes to the long axis.
  • domain assumption The deformation follows a linear spring-damper law with constant damping coefficient
    Equations (7)-(8); the damping coefficient is set to 0.1 s^-1 without a constitutive justification.
  • domain assumption The tidal torque from Earth acts on the two point masses
    Equations (3)-(5); the model treats Earth as a point mass and lobes as point masses, which is a strong simplification.
  • ad hoc to paper The trial-case initialization (no Earth gravity) produces the same pre-encounter spin state for both rigid-body and deformation cases
    Section 4.2; this procedure is introduced to avoid initial-state mismatch but is not independently validated.
  • domain assumption Only the longest-axis deformation is considered; all other deformation modes are neglected
    Introduction and Section 3; the authors state this underestimates real displacement and gives a lower bound on rotational change.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Prediction of Apophis's deformation-driven rotational evolution during its closest encounter to the Earth in 2029." pith.science (2026). https://pith.science/paper/NBUNIPN6

@misc{pith2026250717710,
  author       = {Pith},
  title        = {Pith review of: Prediction of Apophis's deformation-driven rotational evolution during its closest encounter to the Earth in 2029},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NBUNIPN6}},
  note         = {Machine review of arXiv:2507.17710}
}
read the original abstract

In 2029, the near-Earth asteroid (99942) Apophis approaches the Earth within six Earth radii. This opportunity is one of the rarest natural experiments that we can use to better characterize a small body through telescopic observations and space missions. Earlier geological investigations consistently suggested that major geological processes might not occur on Apophis during this closest encounter, including surface processing and interior deformation. However, minor resurfacing may occur, depending on local geological conditions. A critical finding is that the rotational evolution occurs due to the tidal effect from the Earth. The present study offers an additional perspective on the rotational evolution, which may vary due to variations in interior properties. Namely, possible deformation processes may change the spin state variation from the rigid body state, even if deformation is not measurable. The effort in this work is to explore this issue using a simplified model, motivated by earlier studies by Hirabayashi (2023) and Taylor et al. (2023). The results show that the deformation-driven spin state change may be possible, depending on Young's modulus. If this asteroid's Young's modulus is ~1 MPa or higher, the spin state only deviates a few degrees from the rigid body state over one year. However, if it is ~10 kPa or less, the spin state deviation may reach a few degrees, even a few days after the closest encounter. Both telescopic observations and space missions can provide strong insights into this phenomenon.

Figures

Figures reproduced from arXiv: 2507.17710 by the authors.

Figure 1
Figure 1. Apophis’s orbital state during the closest approach. Panels a and b show the same condition in [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Spin state variations at 2029 APR 13 09:00:00 TDB, given earlier photometric observations by [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Schematic of the present model. are given as m1 and m2, the forces are written as follows: f1 = − GMm1 x 3 1 x1 − Gm1m2 ∥q1 − q2∥ 3 (q1 − q2 ) (3) f2 = − GMm2 x 3 2 x2 − Gm1m2 ∥q2 − q1∥ 3 (q2 − q1 ) (4) where M is the Earth’s mass, and G is the gravitational constant. Later, subscripts 1 and 2 may be replaced with i to discuss further model formulation. Characterizing the full coupling dynamics requires accounting f… view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: Time evolution of displacement along the long axis, which is the [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
Figure 5
Figure 5. Figure 5: Angular variations with time along three principal axes. The blue lines show the angular variations [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 6

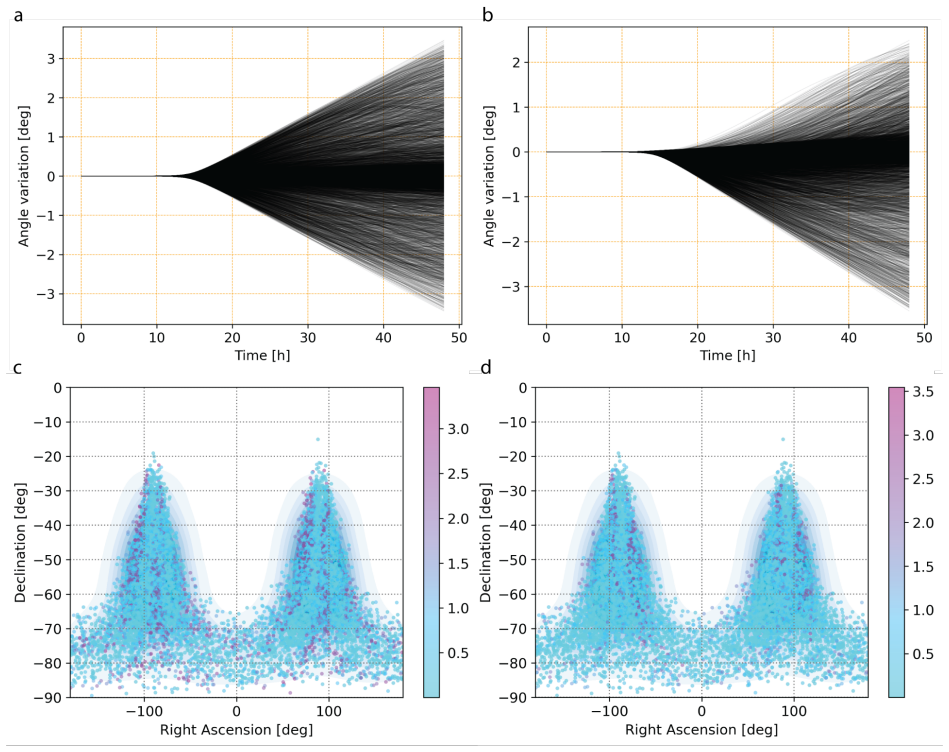

Figure 6. Figure 6: Statistical analysis using the rotational distributions from Figure 2. Panels a and b show the [PITH_FULL_IMAGE:figures/full_fig_p015_6.png]
