Cross-Modal Generative Framework for Signal Translation from Fetal-Maternal Electrocardiograms to Fetal Doppler Waveforms

T0 review · 4 major / 6 minor · reviewed 2026-07-10 · glm-5.2

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Selective attention to maternal ECG cuts Doppler synthesis error 39%

desk verdict Cross-modal attention for maternal-fetal ECG-to-Doppler synthesis is a genuine methodological contribution, but the headline 39% improvement claim is inflated by a broken baseline. read the letter →

arxiv 2607.08073 v1 pith:O5KVV4HO submitted 2026-07-09 cs.LG eess.SP

Tongli Su , Alireza Rafiei , Marly van Assen , Reza Sameni , Gari D. Clifford , Faezeh Marzbanrad , Nasim Katebi This is my paper · ORCID
classification cs.LGeess.SP
keywords cross-modalattentionfetalDopplersynthesismaternal-fetalcardiaccouplingdilatedconvolutionelectrocardiogrampowerspectraldensitymechanismgenerativemodel
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that maternal-fetal cardiac coupling, the intermittent synchronization between maternal and fetal heartbeats, can be computationally exploited to improve fetal Doppler waveform synthesis from ECG, but only when the model learns to selectively attend to maternal signals rather than treating them as uniformly relevant input. The central mechanism is cross-modal attention, where fetal ECG features serve as queries and maternal ECG features as keys and values, allowing the model to emphasize maternal ECG segments temporally correlated with fetal blood flow while suppressing irrelevant noise. Naive concatenation of maternal and fetal ECG provides zero benefit and degrades temporal alignment; cross-modal attention yields a 39% reduction in frequency-domain reconstruction error. The framework also decomposes Doppler waveforms into components recoverable from electrical recordings (timing, morphology, heart rate) and residual components that depend on mechanical factors such as ventricular compliance, placental resistance, and preload, which are invisible to ECG. Clinical indices like pulsatility index and resistance index show near-zero correlation across all architectures, indicating these metrics are mechanically determined and fundamentally inaccessible to ECG-based synthesis.

What carries the argument

Cross-modal attention with fetal features as queries and maternal features as keys/values, combined with dilated residual convolutions for multi-scale temporal modeling and self-attention for long-range beat-to-beat dependencies

What would settle it

If a model with cross-modal attention trained on a larger, more diverse cohort including pathological pregnancies showed no improvement over naive dual-channel concatenation, the claim that selective attention quantifies maternal-fetal coupling would fail.

Watch

Extended reading notes

Core claim

The discovery is that maternal-fetal cardiac coupling, while physiologically real, is computationally useless without learned selectivity, and that the boundary between what Doppler information is electrically recoverable versus mechanically determined can be quantified by comparing what attention-based models can and cannot reconstruct from ECG alone.

Load-bearing premise

The 39% improvement attributed to maternal-fetal coupling is measured on 39 mid-gestation, predominantly healthy pregnancies without formal per-segment statistical testing, so the claimed quantification of coupling contribution rests on descriptive mean and standard deviation comparison across a narrow cohort that may not generalize to pathological populations where coupling patterns differ.

Editorial extensions

If this is right

  • Wearable fECG devices could provide continuous fetal heart rate and waveform morphology monitoring where Doppler ultrasound is impractical, though clinical indices dependent on mechanical factors would still require direct Doppler measurement
  • The decomposition framework could be extended to other excitation-contraction coupling systems where electrical and mechanical signals provide complementary information
  • The finding that selective attention outperforms naive fusion suggests that other intermittent physiological couplings, such as cardiorespiratory coupling, may require similar attention-based architectures rather than simple multi-channel approaches
  • Residual Doppler components, those not reconstructable from ECG, may themselves be clinically significant biomarkers if they correlate with mechanical abnormalities like placental dysfunction

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the 39% improvement from cross-modal attention genuinely reflects maternal-fetal coupling rather than overfitting to a narrow cohort, then pathological conditions that alter coupling, such as pre-eclampsia or fetal growth restriction, should produce measurably different attention patterns, making attention weights themselves a potential diagnostic signal
  • The near-zero correlation of pulsatility and resistance indices across all architectures suggests that ECG-to-Doppler synthesis may have a fundamental information-theoretic ceiling, which could be quantified by measuring mutual information between ECG features and specific Doppler indices
  • The domain-specific pattern of improvements, frequency-domain and alignment gains but not pointwise amplitude gains, implies that attention mechanisms primarily improve temporal modeling rather than amplitude prediction, which could guide architecture design for other physiological signal translation tasks
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. This paper proposes a cross-modal generative framework that synthesizes fetal Doppler velocity envelopes from fetal and maternal ECG signals. The architecture combines dilated convolutions, cross-modal attention (to selectively incorporate maternal ECG), and self-attention (to capture long-range temporal dependencies). Trained on 885 segments from 39 pregnancies in the NInFEA dataset, the model is evaluated across time-domain, frequency-domain, and clinical metrics. The central claims are: (1) naive maternal ECG concatenation provides no benefit and can degrade performance, while cross-modal attention selectively exploiting maternal-fetal cardiac coupling (MFCC) yields a 39% PSD MSE reduction over the two-channel baseline; and (2) clinical indices such as PI and RI show near-zero correlation across all architectures, revealing mechanically determined Doppler components inaccessible to ECG. The work is well-motivated and the ablation design is thoughtful, but the headline quantification of coupling contribution is framed against a degraded baseline, and the absence of formal statistical testing weakens several comparative claims.

Significance. The paper addresses a clinically meaningful problem: understanding which Doppler waveform components are recoverable from ECG and which require direct mechanical measurement. The decomposition into electrically recoverable versus residual mechanical components is a valuable conceptual contribution. The ablation design isolating cross-modal attention from naive concatenation is a strength, as is the honest reporting that clinical indices (PI, RI) remain unrecoverable. The composite loss function (Eq. 3) balancing pointwise, derivative, and correlation objectives is a reasonable design choice for physiological waveform reconstruction. The finding that naive dual-channel concatenation degrades temporal alignment (DTW) while selective attention restores it is interesting and physiologically interpretable.

major comments (4)
  1. The headline claim that cross-modal attention yields a '39% PSD MSE reduction over naive dual-channel concatenation, quantifying the contribution of maternal-fetal coupling' (Abstract; §IV.B; §V.B) is misleading. Table I shows the two-channel baseline (102.0 dB^2) performs worse than single-channel (84.1 dB^2), so the 39% figure (102.0 to 61.8) conflates recovery from the degraded baseline with genuine coupling benefit. The comparison that isolates maternal information's contribution is cross-attention (61.8) vs. single-channel (84.1), yielding approximately 26%. The authors should reframe the quantification: either report both comparisons transparently or justify why the two-channel baseline is the appropriate reference for 'quantifying coupling.' As stated, the claim that 39% 'quantifies the contribution of maternal-fetal cardiac coupling' is not supported by the experimental design.
  2. The combined attention model (cross+self) achieves the headline PSD MSE of 49.9 dB^2, but cross-attention alone yields 61.8 dB^2. Self-attention thus contributes an additional 19% improvement that is not attributable to maternal-fetal coupling. The abstract and §V.B attribute the 39% figure to cross-modal attention specifically, but the best reported PSD MSE (49.9) includes self-attention gains. The attribution chain needs clarification: what exactly is being claimed as the coupling contribution, and from which model variant?
  3. All comparative claims rest on descriptive mean±SD across five folds without formal statistical testing, which the authors acknowledge in §V.D. For the central claims (39% PSD MSE reduction, 26% DTW improvement), paired statistical tests across folds or per-segment comparisons would substantially strengthen the evidence. Without this, it is unclear whether the reported differences exceed fold-to-fold variability. This is particularly important for the cross-attention vs. single-channel comparison (~26%), where the standard deviations (61.8±16.6 vs. 84.1±17.1) suggest potential overlap.
  4. Table II reports near-zero correlations for PI (r = -0.04 to -0.08) and RI (r = -0.04 to 0.07) across all architectures, which the authors interpret as evidence that these indices depend on mechanically determined factors invisible to ECG (§V.A). This is a strong claim. An alternative explanation is that the model has not learned to reconstruct these features adequately due to dataset size (39 pregnancies), segment length (3.75s), or loss function design. The composite loss (Eq. 3) optimizes pointwise and derivative fidelity but does not explicitly target clinical index accuracy. Can the authors rule out that a loss function or training regime explicitly targeting PI/RI would not improve these correlations? The conclusion that these components are 'fundamentally inaccessible' (§VI) should be softened or supported by additional evidence.
minor comments (6)
  1. §III.A: The segment length of 3.75s is stated to span 6-10 cardiac cycles at 110-160 bpm. At 110 bpm, 3.75s spans approximately 6.9 cycles; at 160 bpm, approximately 10 cycles. This is correct but could be stated more precisely.
  2. Table I: The dagger footnote for two-channel DTW is helpful, but the main text in §IV.B states the two-channel variant has 'substantially worse DTW' without giving the percentage. Adding the percentage degradation (18%, from 287.2 to 340.0) would improve clarity.
  3. §III.C: The loss weight α=0.5 is described as informed by preliminary training runs. Providing more detail on how this was selected (e.g., grid search results) would improve reproducibility.
  4. Figure 2: The figure caption mentions progressive improvements from (a) to (d), but the panels would benefit from annotations marking PSV and EDV points to help readers assess morphological fidelity.
  5. §V.D: The authors mention validation on pathological cohorts is essential. It would strengthen the paper to briefly discuss what specific coupling pattern changes are expected and how the framework could be adapted.
  6. Reference [25] (Verma et al.) and [26] (Rafiei et al.) are cited as prior work on fECG-to-Doppler synthesis. A brief comparison of architectural differences and performance (where comparable metrics exist) would contextualize the contribution.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the 39% improvement claim is an empirical ablation result, not a definitional reduction or self-citation chain

full rationale

The paper's central claim — that cross-modal attention yields a 39% PSD MSE reduction over naive dual-channel concatenation — is an empirical ablation result measured on held-out validation data (Table I: two-channel PSD MSE 102.0±20.0 vs. cross-attention 61.8±16.6 dB²). This is not circular: the model is trained on training folds and evaluated on disjoint validation folds with patient-level splitting, so the reported improvement is not forced by construction. The loss function (Eq. 3) combines MAE, derivative error, and correlation with fixed weights (α=0.5), but these weights do not define the output — they are hyperparameters chosen from preliminary training dynamics, and the evaluation metrics (PSD MSE, DTW, etc.) are computed independently of the training loss. The physiological interpretation of maternal-fetal cardiac coupling draws on external citations [8, 9, 33] that are not authored by the present paper's authors (Van Leeuwen et al., Marzbanrad et al., Nichting et al.), providing independent grounding. The self-citations [26, 35-37] reference prior methodological work (Auto-FEDUS, attentive networks) but are not load-bearing for the central quantitative claim — they provide context, not the mathematical basis for the 39% figure. The skeptic's concern about the 39% conflating recovery from a degraded baseline with genuine coupling improvement is a validity/framing concern, not a circularity issue: the numbers in Table I are independently measured, and the comparison is explicitly stated. No equation, definition, or citation chain reduces the claimed result to its inputs by construction. The only minor self-citation is to Auto-FEDUS [26] for prior fECG-to-Doppler work, which is contextual rather than load-bearing. Score: 1 (one minor self-citation, not load-bearing, central claim independently grounded).

Assumptions & free parameters 7 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new physical entities or postulated mechanisms. All architectural components (dilated convolutions, cross-attention, self-attention) are established techniques. The free parameters are standard neural network hyperparameters. The domain axioms rest on cited physiological literature, though the pathway for MFCC is acknowledged as unverified. The main analytical construct—decomposing Doppler into recoverable and residual components—is a framework, not an invented entity.

free parameters (7)
  • α (loss weight) = 0.5
    Composite loss weight set empirically by monitoring training dynamics (§III.C). Informed by preliminary runs to balance gradient contributions.
  • Number of attention heads = 4
    Architecture hyperparameter for multi-head cross-attention and self-attention (§III.B). No justification provided for this specific choice.
  • d_k (attention key dimension) = 64
    Attention mechanism dimensionality (§III.B). Standard choice but not justified.
  • Number of dilated residual blocks = 8
    Architecture depth with dilation rates 2^0 to 2^7 (§III.B). Chosen to span ~0.88s receptive field.
  • Learning rate = 1e-3
    Initial Adam learning rate (§III.D). Standard default.
  • Batch size = 8
    Training batch size (§III.D).
  • Segment length = 3.75s (1065 samples at 284 Hz)
    Input segment duration chosen to span 6-10 cardiac cycles (§III.A).
assumptions (4)
  • domain assumption Maternal-fetal cardiac coupling (MFCC) occurs through hemodynamic, vibroacoustic, or autonomic pathways and is computationally exploitable via attention.
    Invoked in §I and §V.B. Based on external evidence [8, 9, 33] showing phase synchronization and transfer entropy, but the physiological pathways are 'not definitively verified' per the paper's own citation of [9].
  • domain assumption Electromechanical coupling provides a robust basis for cross-modal synthesis: R-R intervals determine pulsation frequency and QRS timing predicts systolic onset.
    Invoked in §V.A. Based on [4, 5, 6]. Standard physiological assumption but the paper extends it to claim that residual components are 'purely mechanical,' which is an inference.
  • domain assumption The NInFEA dataset segments are representative enough to quantify maternal-fetal coupling contributions.
    Implicit in all results. The paper acknowledges (§V.D) that 39 mid-gestation healthy pregnancies may not capture pathological coupling patterns.
  • domain assumption PSD MSE and DTW are appropriate primary metrics for evaluating Doppler reconstruction fidelity.
    The paper emphasizes frequency-domain and alignment metrics over pointwise error (§IV, §V.B). This choice supports the central claim but is not independently validated against clinical utility.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Cross-Modal Generative Framework for Signal Translation from Fetal-Maternal Electrocardiograms to Fetal Doppler Waveforms." pith.science (2026). https://pith.science/paper/O5KVV4HO

@misc{pith2026260708073,
  author       = {Pith},
  title        = {Pith review of: Cross-Modal Generative Framework for Signal Translation from Fetal-Maternal Electrocardiograms to Fetal Doppler Waveforms},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/O5KVV4HO}},
  note         = {Machine review of arXiv:2607.08073}
}
read the original abstract

Fetal electrocardiogram (fECG) and Doppler ultrasound provide complementary views of fetal cardiovascular function: fECG captures electrical activity while Doppler reflects mechanical hemodynamics shaped by factors such as placental resistance and vascular compliance. Understanding the recoverable and unrecoverable Doppler components through reconstruction from fECG offers insight into the relative contributions of electrical versus mechanical factors in fetal circulation, thereby informing clinical decisions. In addition, clinical evidence of maternal-fetal cardiac coupling suggests that maternal cardiovascular dynamics may also inform fetal hemodynamics. To computationally model these relationships, we propose a cross-modal generative framework combining dilated convolutions with cross-modal attention to selectively incorporate maternal ECG and self-attention to capture long-range temporal dependencies. Trained on 885 synchronized fetal/maternal ECG and Doppler envelope segments from 39 pregnancies, our model synthesizes Doppler envelopes with power spectral density mean squared error (PSD MSE) of 49.9 +/- 15.8 dB^2 (51% lower than two-channel baseline) and heart-rate error of 4.71 +/- 0.77 bpm (1.5% better than baseline; negligible relative to the 110-160 bpm physiological range). Cross-modal attention yields a 39% PSD MSE reduction over naive dual-channel concatenation, quantifying the contribution of maternal-fetal coupling. Our proposed framework advances computational modeling of the maternal-fetal cardiovascular system by enabling the synthesis of Doppler envelopes from dual-lead ECG. By analysis of both recoverable and residual Doppler components, this approach enables quantification of the purely mechanical contributions to Doppler waveforms -- those not recoverable from electrical recordings -- ultimately facilitating a more comprehensive fetal assessment.

Figures

Figures reproduced from arXiv: 2607.08073 by the authors.

Figure 1

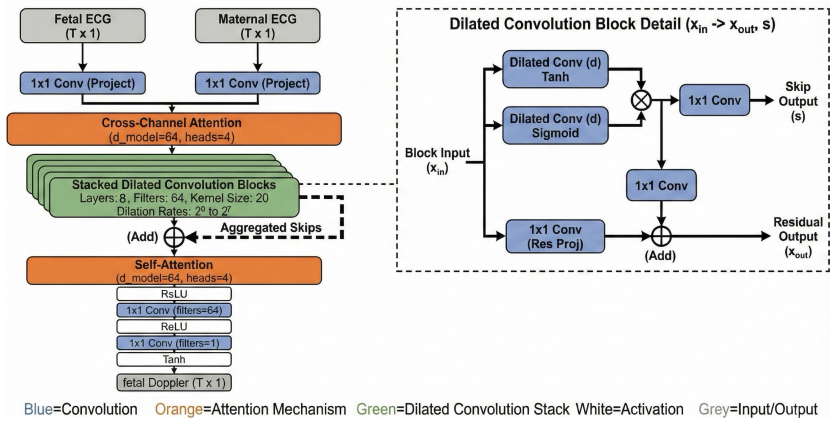

Figure 1. Overview of the proposed cross-modal generative model. Dilated convolution layers extract features from fetal and maternal ECG, cross-modal attention [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

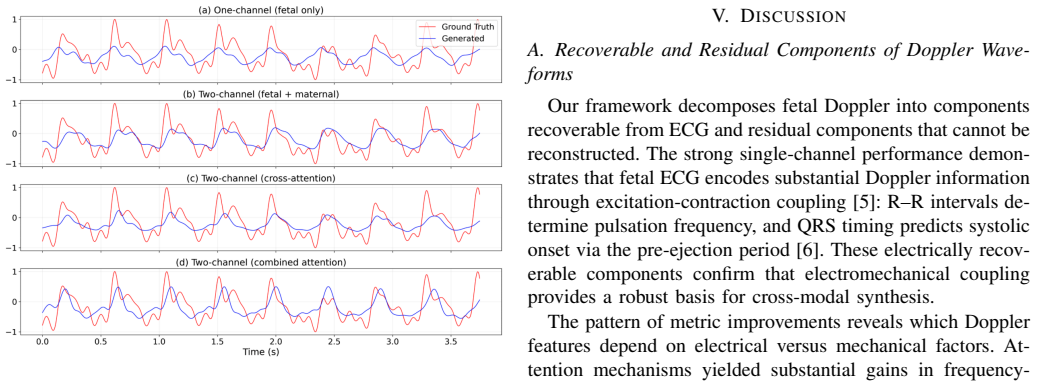

Figure 2. Example Doppler velocity envelopes generated by each model variant. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
