Efficient three-dimensional variational data assimilation of multi-plane PIV data

T0 review · 3 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Restricting the adjoint control space to 12% of the mesh reproduces a global 3D flow assimilation while using 58% of the memory.

desk verdict Adjoint localisation is a genuinely useful idea and the reconstruction evidence is solid, but the two headline memory-savings numbers are internally inconsistent with the stated mechanism and the abstract overstates which case is actually comparable in fidelity. read the letter →

arxiv 2608.07469 v1 pith:W63ATWXH submitted 2026-08-07 physics.flu-dyn

Uttam Cadambi Padmanaban , Samaresh Midya , Ping He , Bharathram Ganapathisubramani , Sean Symon This is my paper · ORCID
classification physics.flu-dyn
keywords variationaldataassimilationdiscreteadjointlocalisationReynolds-averagedNavier-StokesparticleimagevelocimetryrecirculationbubblememoryreductionSpalart-Allmarasmodel
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper establishes that three-dimensional variational data assimilation of sparse experimental velocity data can be made practical by optimising a corrective momentum forcing over a small subdomain instead of the entire mesh. Using 12 cross-stream planes of stereo PIV data in the wake of a vehicle-like bluff body at $Re_L=5.64\times10^5$, it finds that a localisation box covering the body and near wake reproduces the full-domain reconstruction in the integrated $L^1$ velocity mismatch, in the forcing pattern, and in the mean flow on the symmetry plane, while using 58% of the peak memory. The method corrects the baseline RANS eddy-viscosity solution well enough to recover the asymmetric three-dimensional recirculation bubble, and derived quantities such as Reynolds shear stress and mean pressure show agreement with experiment or with vorticity structure. The data-efficiency result implies that measurement planes must extend at least to the end of the primary recirculation region; otherwise the reconstructed far wake is too weak.

What carries the argument

The central object is the corrective momentum forcing $f_c$ added to the time-averaged momentum equations, together with a gradient-based regularisation term $\lambda\sum|\nabla f_c|^2$ that prevents spurious localised corrections. Adjoint localisation restricts $f_c$ to a static, user-defined subdomain $\Omega_d\subset\Omega$ specified by a rectangular bounding box; only the $3|\Omega_d|$ components inside the box are registered as inputs on the reverse-mode automatic-differentiation tape. The state-space machinery of the discrete adjoint, including the ILU preconditioner, GMRES Krylov basis, and the full-domain residual tape, remains unchanged and sets a memory floor that localisation cannot reduce below.

What would settle it

Take the optimised forcing $f_c$, evaluate $\int_{\Omega_d}|\nabla\cdot f_c|^2\,\mathrm{d}V$, and repeat the pressure-Poisson solve with and without $\nabla\cdot f_c$ as a source; if the two pressure fields differ appreciably, the recovered pressure is not determined by the corrected velocity alone.

Watch

Extended reading notes

Core claim

The paper claims that a momentum-forcing correction in the RANS equations, optimised only inside a static subdomain around the body and near wake, reproduces the full-domain discrete-adjoint assimilation of three-component mean velocity data from 12 stereo-PIV cross-sectional planes. In the body-wake case, with 12.5% of the mesh cells, the objective-function convergence, plane-by-plane $L^1$ velocity mismatch, spatial distribution of the forcing, and symmetry-plane mean flow all match the global case, while peak memory drops from 441.87 GB to 254.89 GB, that is, 58% of the global footprint. The paper also reports that an upstream-only box gives the largest memory saving, down to 36.2% of global, but that configuration converges to a higher mismatch and fails to produce the required wake correction, while the downstream-only box is intermediate. From the assimilated fields, the asymmetric primary recirculation bubble is recovered with two tilted eddy centres like the experiment, the Reynolds shear stress is brought closer to experimental peaks, and the mean pressure field is argued to be consistent with in-plane vorticity structure because the corrective forcing is assumed divergence-free.

Load-bearing premise

The pressure-consistency argument assumes the optimised corrective forcing is divergence-free, but nothing in the optimisation enforces that and the paper does not verify it.

Editorial extensions

If this is right

  • The body-wake localisation case achieves the same integrated velocity mismatch, the same spatial forcing distribution, and the same symmetry-plane mean flow as the full-domain case while using 58% of peak memory.
  • Upstream-only localisation is ineffective because corrections cannot convect to the measurement planes, so the control subdomain must overlap both the model surface and the near-wake data region.
  • Twelve sparse cross-stream planes are enough to recover the asymmetric, three-dimensional primary recirculation bubble and to push the Reynolds shear stress toward experimental levels.
  • Sparse coverage that stops before the primary recirculation region ends, as in the 3-plane case, yields a qualitatively weaker wake recovery, so data planes should extend at least to the end of the bubble.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural next step is to choose the localisation subdomain from the adjoint sensitivity field itself, for instance by keeping cells where sensitivity exceeds a threshold, which would remove the need for manual box selection.
  • Because localisation cannot shrink the state-space memory floor, pairing it with a coarse-grid adjoint or dual-mesh strategy would attack the dominant remaining overhead, a direction the paper itself lists as future work.
  • The data-efficiency trend implies a practical sensor-placement rule: place measurement planes through the recirculation bubble and its closure rather than through the smooth far wake, and rank plane positions by predicted adjoint sensitivity.
  • The unresolved solenoidality of $f_c$ suggests a testable improvement: add a divergence-free projection or penalty to the optimisation and check whether the pressure-vorticity correlations sharpen.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper presents a three-dimensional variational data assimilation (3DVar) framework for reconstructing the time-averaged flow around a vehicle-like bluff body at Re = 5.64×10^5, using 12 planes of three-component stereoscopic PIV data. The authors solve the RANS equations with the Spalart–Allmaras model and optimise a momentum forcing term via a discrete adjoint implemented in DAFoam. Their methodological contribution is 'adjoint localisation', which restricts the control variable to a user-defined subdomain. They compare global, upstream, body-wake, and downstream localisation cases, finding that the body-wake case (about 12% of control cells) closely matches the global reconstruction in L1-norm misfit, forcing-field structure, and mean-flow topology, while reducing peak memory by roughly 42%; the upstream case achieves a 64% reduction but degrades fidelity. They also assess derived quantities not used in the fit (Reynolds shear stress, mean pressure) and study data efficiency by progressively removing measurement planes.

Significance. If the memory-reduction claim is substantiated, the paper offers a practically important step for discrete-adjoint 3DVar on fine meshes, since memory rather than optimisation is often the bottleneck. The authors deserve credit for a genuine out-of-sample check: the Reynolds shear stress is not part of the velocity objective function, so its improvement is not built in by construction. The plane-by-plane L1 norms, forcing-field comparisons, and reconstructions of the recirculation bubble topology provide useful physical evidence for the body-wake case. The data-efficiency study, including the finding that coverage must extend to the end of the primary recirculation bubble, is a useful practical guideline. However, the central efficiency claim is currently undermined by an internal inconsistency in the reported peak-memory figures: the stated mechanism predicts nearly identical savings for the upstream and body-wake cases, yet the reported savings differ by about 95 GB. This issue must be resolved before the paper's headline conclusion can be accepted.

major comments (3)
  1. [§6.2, Table 5] The reported peak memories for the upstream (160.18 GB, ratio 0.362) and body-wake (254.89 GB, ratio 0.577) cases are inconsistent with the stated memory-saving mechanism. The text says the saving arises solely from reducing the number of registered AD inputs from 3N_Omega to 3N_Omega_l, and that the dominant stored quantities (the ILU preconditioner, GMRES Krylov basis, and full-domain AD tape) are independent of the choice of Omega_l. Since Table 4 gives N_l/N_Omega = 0.126 and 0.125 for the two cases, these cases should exhibit nearly identical memory footprints. The text attributes the difference to the upstream region lying in a lower mesh-density part of the domain, but that contradicts the asserted independence of the fixed memory floor from the localisation geometry; per-control-cell seed storage is also independent of cell density. This discrepancy affects both the 64% and 42% savings figures, which are the paper's central efficiency claims, and needs to be resolved either by a revised memory model that accounts for the location of Omega_l or by direct measurements of the floor versus control-input contributions.
  2. [Abstract and §9] The abstract claims that 'restricting the control variable to 12% of the full control space yields a maximum reduction in peak memory of 64%, while producing assimilated fields of comparable fidelity.' The 64% reduction is achieved by the upstream localisation case, but §6.2 and Fig. 10 show that this case converges to a substantially higher objective value, and Fig. 11 shows consistently higher L1 norms than the global case. Comparable fidelity is demonstrated only for the body-wake case, which saves approximately 42%, not 64%. The abstract and conclusion should associate each memory saving with the corresponding fidelity level, and avoid implying that the 64% saving is accompanied by comparable fidelity.
  3. [§7.2] The pressure-consistency argument rests on the assertion that 'since f_c is divergence-free, it acts as a solenoidal body force... and does not contribute to the pressure Poisson solve.' No constraint enforcing div(f_c)=0 is described in the optimisation formulation of §2 or §6, and no numerical verification of this property is reported. If f_c is not divergence-free, it contributes to the pressure equation, and the statement that the recovered pressure is determined entirely by the corrected velocity does not follow. The authors should either demonstrate that the discrete forcing is divergence-free by construction, provide a numerical check of div(f_c), or soften the claim to a qualitative consistency argument based on the vorticity correlation.
minor comments (4)
  1. [Table 6] The Plane 3 baseline row reports the same minimum and maximum values (-0.0164 and 0.0120) as the Plane 2 baseline row, which is likely a copy-paste error. If correct values differ, the comparison in the text ('peak magnitudes roughly half those of the experiment on Plane 3') should be updated.
  2. [Eq. (2.4)] The momentum equation in (2.4) appears to be missing the '= 0' at the end; please check the equation formatting.
  3. [§6.2] The phrase 'in this chapter' appears several times (e.g., 'adopted for all assimilation cases in this chapter'); this should be 'paper' or 'section' for a journal article.
  4. [Figures 19–20] The term 'in-plane vorticity' is used to mean vorticity whose vector lies in the y–z plane, but this phrasing is confusing because the rotation it describes occurs out of the plane. A clearer wording would be 'out-of-plane vorticity components' or 'vorticity components normal to the measurement-plane axes'.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity; the Reynolds shear stress and pressure checks are genuine out-of-sample predictions, with only minor non-load-bearing self-citation.

full rationale

The core derivation is self-contained and does not reduce to its own inputs. The objective function (2.5) and its regularised form (2.7) fit only the three mean velocity components on the twelve PIV planes; neither the Reynolds shear stress nor the mean pressure appears in the objective or in the regularisation term. The Reynolds shear stress comparison (Section 7.2, Figure 18) is therefore an out-of-sample check: it is computed from the Boussinesq relation using the model eddy viscosity, which is not directly fitted. The pressure consistency argument (Section 7.2) relies on an unverified assertion that the optimised corrective forcing f_c is divergence-free; this is a correctness caveat, not a circular reduction, because the pressure is nonetheless not a fitted quantity. The adjoint-localisation memory comparison (Section 6.2, Table 5) is measured against the global case on the same data, and the efficiency claim is independent of the fidelity claim; the internal inconsistency in Table 5 is a credibility/correctness issue, not circularity. Self-citations to Cadambi Padmanaban et al. (2026a,b) appear in the introduction and conclusion as motivation or explanatory mechanism, but the current paper uses its own experimental dataset and its own global-case reference, so no load-bearing argument depends on those self-citations. No uniqueness theorem, ansatz, or definition is imported from the authors' prior work to force the present result. Consequently, no circular step can be exhibited from the paper's own equations.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The paper introduces no new physical entities. The main free parameters are the regularisation weight, the manually selected localisation boxes, and the data processing choices. The most fragile assumption is the unverified divergence-free property of the forcing field, which underpins the pressure-consistency interpretation.

free parameters (4)
  • Regularisation weight λ = 5 × 10⁻⁵
    Chosen by L-curve analysis (Appendix A) and applied to all assimilation cases. It controls the smoothness of the optimised forcing field.
  • Localisation bounding boxes = Coordinates in Table 4 (upstream, body-wake, downstream)
    User-defined a priori based on physical reasoning. The choice of subdomain strongly affects reconstruction quality and memory savings.
  • Data downsampling grid spacing = ≈12 mm × 12 mm
    Set to match the computational grid spacing; affects the spatial resolution of the reference data used in the assimilation.
  • Γ₁ eddy-centre threshold and radius = Threshold ≈0.8, radius 0.08 Lx
    Used in Section 7.1 to identify dominant eddy centres for comparing the bubble topology; a manually chosen criterion.
assumptions (5)
  • domain assumption RANS equations with the Boussinesq hypothesis and the Spalart-Allmaras model provide a valid baseline closure for the mean flow.
    Invoked in Section 2.1; the entire assimilation framework assumes the mean flow can be represented by this model plus a corrective forcing.
  • domain assumption The discrete adjoint gradients computed by DAFoam are correct for the discretised RANS equations.
    The optimisation relies on reverse-mode AD within DAFoam; the paper does not independently verify the adjoint gradients against finite differences.
  • domain assumption The stereo PIV mean-velocity fields from Midya & Symon (2025) are converged and accurate after folding and downsampling.
    Used as ground truth for the objective function; no uncertainty quantification is reported for the experimental data.
  • ad hoc to paper The optimised corrective forcing f_c is divergence-free.
    Assumed in Section 7.2 to argue the pressure field is independent of f_c. No constraint enforcing div(f_c)=0 is described and no numerical check is provided.
  • domain assumption Spanwise symmetry about the x-y plane at z*=0 permits a half-domain simulation and symmetric folding of the experimental data.
    Used in Section 3.3 and Section 4; the model geometry is symmetric about this plane, and the experimental data are folded accordingly.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Efficient three-dimensional variational data assimilation of multi-plane PIV data." pith.science (2026). https://pith.science/paper/W63ATWXH

@misc{pith2026260807469,
  author       = {Pith},
  title        = {Pith review of: Efficient three-dimensional variational data assimilation of multi-plane PIV data},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/W63ATWXH}},
  note         = {Machine review of arXiv:2608.07469}
}
abstract

We perform three-dimensional variational data assimilation (3DVar) using a discrete adjoint approach to optimise the time-averaged momentum equations. The experimental data consist of sparse stereoscopic particle image velocimetry (PIV) measurements collected along $12$ cross-stream planes in the wake of a vehicle-like bluff body at a Reynolds number $Re_L = 5.64 \times 10^5$ based on the streamwise body length. Adjoint localisation is proposed and implemented to reduce the memory footprint of the discrete adjoint method for spatially-varying control variables in 3DVar by confining the control variable space to a user-defined subdomain. Restricting the control variable to $12$ % of the full control space yields a maximum reduction in peak memory of $64$ %, while producing assimilated fields of comparable fidelity with respect to mean velocity and the optimised momentum forcing field. The localised adjoint case improves upon the baseline Spalart--Allmaras turbulence model and recovers the correct asymmetric topology of the complex three-dimensional (3D) recirculation bubble. The assimilated Reynolds shear stress agrees well with the experiment, and the assimilated mean pressure is shown to be physically consistent when correlated with the in-plane vorticity fields. A data efficiency study is also performed, in which the number of planes provided for assimilation is progressively reduced, demonstrating that the data coverage must extend at least to the end of the primary recirculation bubble to adequately constrain the near-wake dynamics. The efficiency that adjoint localisation affords is crucial for assimilating sparse, experimental data for 3D separated flows on fine meshes that can tackle industrial problems of interest.

Figures

Figures reproduced from arXiv: 2608.07469 by the authors.

Figure 1
Figure 1. Front (– plane) and back (– plane) views of the multi-wake model. Camera 1 Camera 2 Fixed dual pulse laser S1 S2 100 mm Plane1 Plane2 Plane3 Movable platform Subplanes [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Experimental setup for stereo PIV of the multi-wake model. by 100 mm, beginning 11 mm downstream of the rear face of the body. The free-stream velocity is ∞ = 10 ms−1 , giving a Reynolds number based on the streamwise body length of = 5.64 × 105 . The normalised streamwise, wall-normal, and spanwise velocity components are defined as ∗ = /∞, ∗ = /∞, and ∗ = /∞, respectively, where , , and are the dimensional mean ve… view at source ↗
Figure 3
Figure 3. (From left to right) Mean streamwise, wall-normal and spanwise components of velocity in the wake of the model along (a) Plane 2 and (b) Plane 10. See table 1 for the streamwise locations of the measurement planes. (2025) for details). The identical camera specifications yield individual FOVs measuring 448 mm in and 405 mm in . The flow is seeded with smoke particles generated by a fog machine with a nominal particl… view at source ↗
Figures from the paper (22 more)
Figure 4
Figure 4. Figure 4: Data processing pipeline applied as a post-processing step to the experimental mean velocity fields, illustrated using the mean streamwise velocity component on Plane 2. (From left to right) Raw: the mean velocity field at full resolution, with the solid black line ind…
Figure 5
Figure 5. Figure 5: Computational domain for the half-body configuration, with dimensions shown along the streamwise, wall-normal, and spanwise directions. The domain boundaries are indicated as follows: symmetry plane, inlet, outlet, top face, side face. Inlet Outlet Symmetry, top & side…
Figure 6
Figure 6. Figure 6: Comparison of the mean streamwise, wall-normal, and spanwise velocity components between the baseline SA model and the experiment on (a) Plane 2 and (b) Plane 10. Results are presented as butterfly plots, where the left half shows the baseline fields reflected about th…
Figure 7
Figure 7. Figure 7: 1 norm per measurement plane, computed between the baseline SA model and the experimental data using (5.1), evaluated separately for each of the three mean velocity components ( ∗ [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]
Figure 8
Figure 8. Figure 8: Schematic of the adjoint localisation procedure. The full computational grid and the localised subdomain , defined by a rectangular bounding box with corners (min, min, min) and (max, max, max), are shown. The momentum forcing f is restricted to cells within . gradient…
Figure 9
Figure 9. Figure 9: Schematic of the localisation cases considered in this chapter, shown as wireframe representations of the computational mesh. The full grid ( ) and the localised grid ( ) are shown in each panel. (a) Global case, where ≡ . (b) Upstream localised case, where covers the …
Figure 10
Figure 10. Figure 10: Convergence of the normalised objective function [PITH_FULL_IMAGE:figures/full_fig_p021_10.png]
Figure 11
Figure 11. Figure 11: 1 norm of the velocity misfit between the assimilated fields and the experimental reference data, decomposed by velocity component and shown for each measurement plane. Results are shown for the baseline and the four cases: global, upstream localised, body-wake locali…
Figure 12
Figure 12. Figure 12: Streamwise component of the corrective forcing , on the – symmetry plane for the global and three localised cases. The fields are interpolated onto a common regular grid, and a single colour scale, symmetric about zero, is shared across all four panels. The localised …
Figure 13
Figure 13. Figure 13: Mean streamwise velocity /∞ on the – symmetry plane for the global and three localised cases. The dashed line denotes the = 0 isoline of the respective case, marking the boundary of the recirculation bubble. The body outline is shown in white. Case / Peak memory (GB) …
Figure 14
Figure 14. Figure 14: Comparison of the mean streamwise, wall-normal, and spanwise velocity components between the body-wake assimilated and the experiment on (a) Plane 2 and (b) Plane 10. Plotting format similar to figure 6. upstream of the model and computed using ParaView’s Stream Trace…
Figure 15

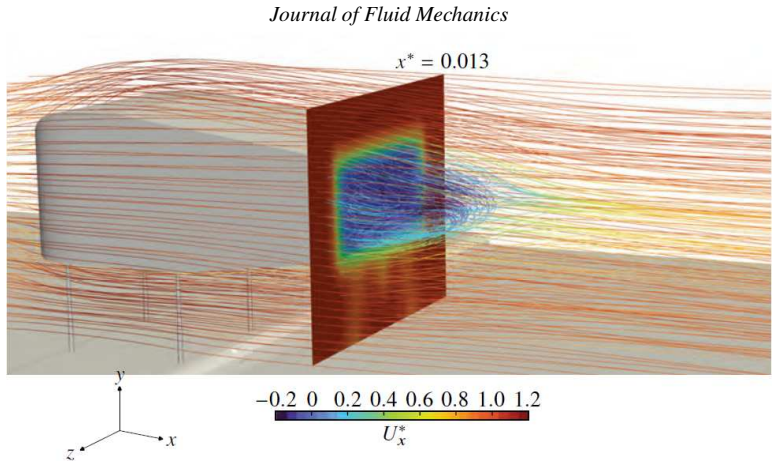

Figure 15. Figure 15: Isometric view of mean velocity streamlines in the wake of the multi-wake model, coloured by the normalised streamwise velocity ∗ [PITH_FULL_IMAGE:figures/full_fig_p027_15.png]
Figure 16
Figure 16. Figure 16: Mean velocity streamlines coloured by the normalised streamwise velocity ∗ [PITH_FULL_IMAGE:figures/full_fig_p027_16.png]
Figure 17
Figure 17. Figure 17: Mean streamwise velocity ∗ on the – symmetry plane at ∗ = 0 for the experiment (top), baseline SA model (middle) and the body-wake assimilated case (bottom). The dashed line denotes the ∗ = 0 isoline delineating the primary recirculation bubble, and the filled green c…
Figure 18
Figure 18. Figure 18: Comparison of the Reynolds shear stress ′ ′/2 ∞ between the baseline SA model, the body-wake assimilated field, and the experiment on (a) Plane 2 and (b) Plane 3. In both panels, the right half of the butterfly plot corresponds to the experiment and the left half to t…
Figure 19
Figure 19. Figure 19: Assimilated fields on Plane 2 in the near wake. Each subplot presents the mean pressure coefficient on the left half and a vorticity component on the right half: wall-normal vorticity ∗ [PITH_FULL_IMAGE:figures/full_fig_p031_19.png]
Figure 20
Figure 20. Figure 20: Assimilated fields on Plane 3 in the near wake. Each subplot presents the mean pressure coefficient on the left half and a vorticity component on the right half: wall-normal vorticity ∗ [PITH_FULL_IMAGE:figures/full_fig_p033_20.png]
Figure 21
Figure 21. Figure 21: Plane-by-plane 1 norm of the mean velocity field comparing the baseline SA model and the body￾wake assimilated cases with progressively reduced measurement data. The stacked bars show the individual contributions of , , and to the total 1 norm. The green gradient deno…
Figure 22
Figure 22. Figure 22: Mean streamwise velocity ∗ on Plane 10 ( ∗ = 1.041), which lies downstream of all input planes in every sparse case. Each panel compares a sparse assimilation case (left half) with the full 12-plane reference (right half) in a butterfly plot format. The panels show pr…
Figure 23
Figure 23. Figure 23: Reynolds shear stress ′ ′/2 ∞ on Plane 3–6 comparing sparse data assimilation cases with the full 12-plane reference in a butterfly plot format. In each panel, the left half shows the sparse case and the right half shows the 12-plane reference. The columns correspond …
Figure 24
Figure 24. Figure 24: L-curve analysis showing the trade-off between the residual and regularisation norms [PITH_FULL_IMAGE:figures/full_fig_p039_24.png]
Figure 25
Figure 25. Figure 25: Effect of regularisation on the assimilated forcing field for the global control variable, shown on the symmetry plane ∗ = 0. Left column: streamwise component , /2 ∞. Right column: wall-normal component , /2 ∞. Top row: assimilation without regularisation ( = 0). Bot…
