PASCHEN-1D: A one-dimensional fluid plasma solver with multi-mechanism surface emission and flexible external circuit coupling

T0 review · 3 major / 7 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A one-dimensional fluid solver, PASCHEN-1D, claims to reproduce gas-discharge benchmarks by self-consistently coupling drift-diffusion transport, multi-mechanism electrode emission, and external RLC circuits.

desk verdict Useful, honest software paper whose core validation claim is overstated: the Paschen benchmark is a pd-dependent parameter fit, and the open-source claim lacks a repository. read the letter →

arxiv 2608.07721 v1 pith:HXQKGCEQ submitted 2026-08-07 physics.plasm-ph physics.comp-ph

Asif Iqbal , Yves Heri , Bingqing Wang , Lan Jin , Md Arifuzzaman Faisal , Peng Zhang This is my paper · ORCID
classification physics.plasm-phphysics.comp-ph PACS 52.80.-s52.65.Kj52.25.Fi
keywords fluidplasmasolverdrift-diffusion-PoissongasdischargebreakdownsurfaceelectronemissionexternalcircuitcouplingPaschencurvedielectric-barrierultrafastphotoemission
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

PASCHEN-1D is a one-dimensional time-dependent fluid plasma solver that solves drift-diffusion equations for electrons and ions together with Poisson's equation, while dynamically coupling to lumped RLC circuits and to multiple electrode emission mechanisms. The paper's central claim is that this self-consistent coupling lets a single code reproduce published behavior across nanosecond pulsed dielectric-barrier discharges, DC Townsend-to-glow transitions, argon and nitrogen Paschen curves, and ultrafast photoemission-driven discharges. The reason a reader should care is that breakdown and transient discharge behavior is often controlled precisely by the interplay of surface emission, space charge, and circuit impedance, effects that most fluid codes treat separately or crudely. If the claim holds, PASCHEN-1D provides a low-cost, physically transparent platform for studying and designing pulsed and DC discharge systems.

What carries the argument

The load-bearing object is the coupled drift-diffusion-Poisson system itself, advanced by a finite-volume discretization: continuity equations $\partial n_s/\partial t + \partial \Gamma_s/\partial x = S_s$ with $\Gamma_e = -D_e \partial n_e/\partial x - \mu_e n_e E$ and $\Gamma_i = -D_i \partial n_i/\partial x + \mu_i n_i E$, a Poisson equation for the potential, and source terms combining Townsend ionization $\nu_i = \alpha \mu_e |E|$ with electron-ion recombination. The argument is carried by the two feedback loops built on this system: plasma fluxes produce a circuit current, the circuit returns the gap voltage imposed as a Dirichlet boundary condition, and the electrode emission module converts surface physics into an electron flux boundary condition, with a Picard iteration keeping the density boundary conditions consistent with the electric field. Transport and ionization coefficients come from user closures or from local-field interpolation of swarm-data tables, so the solver is modular across gases.

What would settle it

A direct test would be to measure the low-pd breakdown voltage of argon in a well-characterized cell with clean electrodes of known secondary-emission yield, and compare it with a PASCHEN-1D run that uses the measured yield rather than a fitted one; if the solver cannot reproduce the left branch of the Paschen curve with independently measured surface parameters, the claim that it captures breakdown physics rather than fitted coefficients would fail. Alternatively, a kinetic particle-in-cell simulation with identical cross-sections and surface yields would serve the same purpose.

Watch

Extended reading notes

Core claim

The discovery is a numerical one: a drift-diffusion-Poisson solver with Kurganov-Tadmor fluxes, explicit fourth-order Runge-Kutta time stepping, and a Picard iteration between density boundary conditions and the electrostatic field can hold together a much wider loop than usual. The loop includes ion-induced secondary emission, Fowler-Nordheim and Murphy-Good field emission, Richardson-Dushman thermionic emission, and quantum-mechanical photoemission at the electrodes, plus an external circuit whose instantaneous gap voltage is fed back into the Poisson boundary condition and whose current is computed from the space-averaged charged-particle fluxes via the Ramo-Shockley relation. On the strength of the benchmark cases, the paper claims that this unified framework reproduces the reference results without tuning beyond the parameters reported in the original studies, and that the numerical convergence study shows the reported agreement reflects the modeled physics rather than discretization artifacts.

Load-bearing premise

The load-bearing premise is that the drift-diffusion approximation with local-field transport coefficients and a single effective ion species adequately describes the electrons and ions in all benchmark regimes, a premise the paper itself flags as fragile at low pd, where the ionization mean free path becomes comparable to the gap and only two to three ionization events occur per gap.

Editorial extensions

If this is right

  • The solver reproduces nanosecond pulsed dielectric-barrier discharges, including avalanche onset, space-charge screening, and dielectric-mediated field redistribution, using parameters taken from the reference benchmark.
  • For DC discharges in argon at pd = 1 Torr cm, PASCHEN-1D produces pre-breakdown, Townsend, and glow regimes and identifies breakdown at the onset of negative differential gap-voltage slope, with microsecond relaxation to quasi-steady plateaus.
  • Argon and nitrogen Paschen curves are reproduced across the tested pd range, but only when the ion-induced secondary emission yield is allowed to vary with pd; the low-pd branch is governed by surface emission and the high-pd branch by the Townsend $\alpha$-process.
  • The ultrafast photoemission benchmark shows the code bridging picosecond emission physics and microsecond plasma-circuit recovery, matching measured voltage and current transients along with independent particle-in-cell simulation results.
  • A convergence study on the quasi-steady mid-gap electron density shows resolution-independent behavior for sufficiently small $\Delta t/\Delta x$, supporting the claim that benchmark agreement is physical rather than numerical.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension the authors do not pursue is replacing pd-dependent effective $\gamma$ with a single energy-dependent secondary emission model; if such a model could reproduce the left Paschen branch without tuning, it would strengthen the fluid approach in regimes where only a few ionization events occur per gap.
  • Because the circuit module accepts arbitrary RLC combinations, the solver could be used to co-design external drive waveforms and discharge geometry, for example sweeping shunt inductors or series capacitors to find operating points for pulsed-power or thruster applications.
  • The precomputed quantum photoemission pulse at the cathode suggests a route to modeling multi-pulse laser trains or RF-modulated photoemission by concatenating emission pulses, which would connect the solver to laser-triggered breakdown and high-repetition-rate experiments.
  • The modular transport interface means adding an energy-equation closure or multiple ion species could be done without altering the validated plasma-circuit coupling; such extensions would likely be required before the solver could reliably model molecular-gas chemistry or capacitively coupled discharges.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. PASCHEN-1D is a one-dimensional drift-diffusion-Poisson fluid solver for gas discharges, with multi-mechanism electrode emission (ion-induced secondary, field, thermionic, and quantum photoemission) and flexible lumped-RLC external circuit coupling. The paper presents the governing equations, numerical methods (Kurganov-Tadmor fluxes, explicit diffusion, fourth-order Runge-Kutta, Picard iteration for density-Poisson coupling), and validation benchmarks: a nanosecond pulsed dielectric-barrier discharge, a numerical convergence study, DC Townsend-to-glow transitions, Paschen curves for argon and nitrogen, and an ultrafast photoemission-driven transient discharge. The central claim is that the solver is validated against published results with consistent agreement. However, the Paschen-curve agreement is obtained only after post hoc adjustment of the secondary-electron yield gamma and the Townsend coefficient B as functions of pd, which the paper acknowledges in Section 4.4 and Section 5. This weakens the predictive-validation claim for the Paschen benchmark, which is one of the headline validations.

Significance. If the solver is reliable, it addresses a real gap: many fluid plasma solvers lack self-consistent external circuit coupling and sophisticated emission physics. The modular architecture, the multiple emission mechanisms, and the unified circuit formulation are valuable. A clear strength is the convergence study in Section 4.2, which provides internal numerical consistency. The nanosecond-DBD and DC glow benchmarks are credible, though qualitative, and the photoemission case is compared against prior work by the same group and a WarpX PIC simulation. However, the most quantitative-looking validation, the Paschen curve, is effectively a parameter fit rather than a predictive test. The paper is honest about this limitation in its text, but the abstract and conclusions present the Paschen comparison as a validation benchmark without that qualification. With the validation claims recalibrated, the solver could be a useful community tool for breakdown and transient-discharge studies.

major comments (3)
  1. [Section 4.4 / Abstract / Section 6] The Paschen-curve benchmark is not a predictive validation. The paper states (Section 4.4, after Fig. 7) that no single constant gamma can reproduce the experimental curve; agreement across the full pd range is recovered only by allowing the effective gamma to increase on the low-pd branch and reducing B on the high-pd branch. Since Eq. (34) shows the breakdown voltage is exponentially sensitive to gamma, adjusting these inputs to match the target data constitutes a parameter fit rather than a test of the solver's physics. The abstract and Section 6 list 'Paschen curve construction/reconstruction' among validation benchmarks without this qualification. Please reframe Section 4.4 explicitly as a sensitivity study of Paschen's law (or a demonstration of the solver's flexibility in exploring parameter dependence), and qualify the corresponding claims in the abstract and conclusions. This is load-bearing because the paper's central claim of being 'validated ... with results consistent with published studies' is overstated.
  2. [Section 4.2] The convergence statement is stronger than the data support. Figure 3 shows that at fixed dt/dx, the quasi-steady electron density depends on the spatial resolution: N=500 and N=1000 overpredict the density relative to N=2000, with the text attributing this to numerical diffusion. The claim that 'all benchmark results presented in this study are obtained using discretization within the converged regime' requires reporting the specific spatial and temporal resolutions used in each benchmark (for example, the grid and time step in Section 4.1) and showing that these resolutions lie in the converged plateau for the observable of interest, or quantifying the discretization error. Without this, the blanket convergence claim is not substantiated for every benchmark.
  3. [Section 4.5 / Section 4.1] The photoemission-driven discharge validation is qualitative. The text states that PASCHEN-1D results 'are in agreement' with the experiments of Ref. [21] and with WarpX PIC simulations and that 'trends recovered' agree, but no quantitative error metrics are given: peak current values, voltage-sag magnitudes, or recovery times are not compared numerically. The same holds for the nanosecond-DBD benchmark in Section 4.1, where 'close agreement' is asserted without quantitative comparison. Please provide quantitative measures of agreement (e.g., relative errors in peak current, voltage, and timing) for these cases, or explicitly label them as qualitative comparisons that support code behavior but not quantitative predictive accuracy.
minor comments (7)
  1. [Section 4, opening paragraph] The sentence 'All benchmark cases are reproduced using parameters reported in the original references, without tuning or empirical fitting beyond those explicitly stated' is misleading, because Section 4.4 explicitly tunes gamma and B to match the experimental Paschen curve. Please revise this sentence to clarify that the Paschen comparison involves parameter adjustment.
  2. [Eq. (17)] Equation (17) is garbled in the typeset text (the expression for beta_2 appears as 'beta_2=2el epsilon, epsilon_3 L' with missing symbols). Please correct the equation and define all variables.
  3. [Eq. (34) and Section 4.4] The paper reports that Eq. (34) gives a negative breakdown voltage of -147.98 V at pd=0.2 Torr cm for A=11.5, B=176, and gamma=0.05. A direct evaluation of the standard Paschen formula with these constants gives approximately -16 V. Please check the arithmetic and the parameter values used.
  4. [Section 3.3 vs. Section 4.1] Section 3.3 states that first-order (piecewise constant) reconstruction is used in the Kurganov-Tadmor scheme, which involves no slope limiter, yet Section 4.1 mentions setting 'a slope limiter theta=1.01 in the Kurganov-Tadmor Scheme.' Please reconcile this contradiction, either by removing the slope-limiter parameter from the benchmark description or by clarifying that the implementation supports higher-order reconstruction with slope limiting but first-order was used for the reported results.
  5. [Section 2.4.1] The Einstein-relation closure is typeset as D_i = mu_i k(T_i/e, missing the closing parenthesis. Please correct this to D_i = mu_i k T_i / e.
  6. [Table 1] Table 1 lists PASCHEN-1D as 'Open-source: Yes' and the text cites it as open source, but no repository URL or code-availability statement is provided anywhere in the manuscript. Please add the distribution information.
  7. [Figure 3 caption] The caption says 'resolution-independent plateau,' but the plateau is visibly dependent on N: N=500 and N=1000 give higher densities than N=2000. Please change the wording to 'N-dependent plateau' or 'resolution-dependent plateau' and discuss the implications.

Circularity Check

1 steps flagged · score 6.0 of 10

Paschen-curve benchmark is a pd-dependent parameter fit rather than a predictive validation; the solver's central breakdown claim is partly constructed.

  1. fitted input called prediction [Section 4.4, 'Paschen curve and the role of ion-induced secondary electron emission', Eq. (34) and Fig. 7(b)]
    "Agreement across the full experimental Paschen curve is recovered only when the effective secondary electron emission yield is allowed to vary with pd, as indicated by the discrete markers in Fig. 7(b). Specifically, increasing γ on the left branch and reducing the effective B value on the right branch yields breakdown voltages that closely match the experimental data."

    In Eq. (34), Vb = Bpd / [ln(Apd) - ln(ln(1+1/γ))], so the breakdown voltage is exponentially sensitive to the assumed secondary-electron yield γ. The paper states that 'the match cannot be obtained using a single, constant value... of γ' and that agreement is recovered 'only when the effective secondary electron emission yield is allowed to vary with pd' while 'reducing the effective B.' Since γ and B are free input parameters adjusted to the experimental curve, the reported Paschen 'prediction' is a fit of the target data, not an independent validation of the drift-diffusion model.

full rationale

The central validation claim in the abstract includes 'Paschen curve construction for argon and nitrogen,' but the paper's own Section 4.4 shows that no single constant γ reproduces the experimental curve and that agreement is obtained only by allowing γ to vary with pd and B to be reduced. Because Vb depends exponentially on γ and directly on B, this is a fitted input presented as a benchmark result, not a predictive test. The remaining validations have independent content: the nanosecond DBD benchmark uses geometric and operating parameters from Adamovich et al.; the DC breakdown and glow transition benchmark uses standard Raizer/Lieberman coefficients; and the circuit verification in Appendix A is self-contained. The photoemission benchmark compares against the same group's experimental publication [21] plus an independent WarpX PIC simulation, so it is not a self-citation chain, though the experimental anchor is shared with the present authors. The presence of one central benchmark that reduces to a pd-dependent fit, alongside several non-circular benchmarks, makes the overall circularity partial rather than total, supporting a score of 6.

Assumptions & free parameters 4 free parameters · 6 assumptions · 0 invented entities

The load-bearing assumptions are the standard fluid local-equilibrium closure and the dielectric mapping from Ref. [33]. The genuine free parameters are the pd-dependent gamma and B used to fit the Paschen curve, plus numerical and initialization choices that are not fully documented.

free parameters (4)
  • Effective ion-induced secondary electron yield gamma(pd) = varied per pd range; e.g., gamma=0.05 at pd=1 Torr cm and increased values on the low-pd branch
    Section 4.4 states no constant gamma reproduces the experimental Paschen curve; agreement is recovered only when gamma is allowed to vary with pd. This is a fit to the target data.
  • Effective Townsend coefficient B(pd) = reduced from literature value (Ar: 176 V cm-1 Torr-1) on the high-pd branch
    Section 4.4: a reduced effective B value is used to improve agreement on the right branch. This is a post hoc adjustment.
  • Slope limiter theta in Kurganov-Tadmor scheme = 1.01
    Section 4.1 gives theta=1.01; this numerical parameter influences diffusion and was chosen by the authors.
  • Initial plasma density n0 = not explicitly reported; user-specified
    Section 2.6.1 initializes with uniform quasi-neutral density n0; the value affects breakdown timing and is not given for the benchmarks, making exact reproduction difficult.
assumptions (6)
  • domain assumption Drift-diffusion approximation with locally equilibrated transport
    Used throughout Sections 2.2 to 2.4; non-Maxwellian and nonlocal effects are approximated by effective coefficients. Acknowledged in Section 5.
  • domain assumption Single effective ion species
    Section 5 states the plasma is treated as electrons plus one ion species; adequate for benchmarks but not general discharges.
  • standard math Ramo-Shockley theorem applied to a uniform 1D gap to compute induced circuit current
    Section 2.7.1, Eq. (14). Standard result for planar electrodes.
  • domain assumption Dielectric mapping relations from Adamovich et al. (Eqs. 17-19)
    Section 2.7.2 adopts the two-coefficient dielectric model from Ref. [33]; the DBD benchmark depends on it.
  • domain assumption Maxwellian half-range flux for electron impact energy at the anode (2Te)
    Eq. (25) assumes a Maxwellian distribution for electrons incident on the anode when computing the Vaughan secondary yield.
  • domain assumption Classical Townsend form alpha = A p exp(-B p/|E|)
    Eq. (5d) is an empirical closure from Raizer. Used in several benchmarks.

how reviews work

0 comments
Cite this review

Pith. "Pith review of PASCHEN-1D: A one-dimensional fluid plasma solver with multi-mechanism surface emission and flexible external circuit coupling." pith.science (2026). https://pith.science/paper/HXQKGCEQ

@misc{pith2026260807721,
  author       = {Pith},
  title        = {Pith review of: PASCHEN-1D: A one-dimensional fluid plasma solver with multi-mechanism surface emission and flexible external circuit coupling},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HXQKGCEQ}},
  note         = {Machine review of arXiv:2608.07721}
}
read the original abstract

We present PASCHEN-1D (Plasma Advanced Solver with Coupled High-fidelity Emission and external Network), a one-dimensional time-dependent fluid plasma solver developed for self-consistent simulation of gas discharges and plasma breakdown with coupled electrode surface emission and flexible external circuit networks. The code solves drift-diffusion continuity equations for electrons and ions together with Poisson's equation. It is dynamically coupled to lumped RLC circuits, which self-consistently treat plasma transport, plasma-surface interaction, dielectric effects, and circuit response within a single framework. The electrode emission module includes ion-induced secondary electron emission, Fowler-Nordheim and Murphy-Good field emission, Richardson-Dushman thermionic emission, and photoemission based on a general, exact quantum mechanical emission theory. A finite-volume formulation with Kurganov-Tadmor fluxes, explicit diffusion, and fourth-order Runge-Kutta time integration is employed to ensure stable transient (sometimes ultrafast) evolution across breakdown and glow regimes. The solver is validated against multiple benchmark cases, including nanosecond pulsed dielectric-barrier discharges, DC breakdown and glow transitions, and Paschen curve construction for argon and nitrogen, with results consistent with published studies. With high-fidelity emission physics and a flexible circuit-coupling framework, PASCHEN-1D provides a versatile and efficient tool for modeling breakdown and transient discharge phenomena.

Figures

Figures reproduced from arXiv: 2608.07721 by the authors.

Figure 1
Figure 1. Schematic of the PASCHEN-1D external lumped-element circuit coupled to the one-dimensional plasma gap. The applied source voltage V!(t) drives the R" − C! − L! series branch and feeds node V#. At V#, C$ and L$ are shunt branches, while R% connects to the plasma/electrode terminal labelled V&'$ in the figure. The load-side capacitance C()* and the plasma/dielectric gap branch are connected from this terminal to the r… view at source ↗
Figure 2
Figure 2. Reproduction of nanosecond pulsed dielectric-barrier discharge results from Adamovich et al. [33] using the PASCHEN-1D solver. (a) Applied Gaussian voltage pulse V! (t) with peak amplitude V"#$% = 20 kV and pulse width τ = 15 ns. (b) Temporal evolution of the electron density at the mid-gap location x = L/2 (solid curve), showing close agreement with [PITH_FULL_IMAGE:figures/full_fig_p020_2.png] view at source ↗
Figure 3
Figure 3. Numerical convergence study for a DC nitrogen discharge at pd = 1 Torr cm. Electron number density at the mid-gap location (x = L/2) evaluated at late time as a function of the discretization ratio Δt/Δx, shown for three spatial resolutions (N+ = 500, 1000, 2000). Convergence toward a resolution-independent plateau is observed for sufficiently small Δt/Δx, confirming numerical consistency of the coupled drift–diffus… view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: DC discharge characteristics in argon at pd = 1 Torr cm obtained using PASCHEN-1D with a series ballast resistor R, = 1 MΩ and no dielectric layer. (a) Applied voltage V$"" (blue) and steady-state gap voltage V-$" (orange) plotted against the discharge current, reveali…
Figure 5
Figure 5. Figure 5: Effect of ballast resistance on the post-breakdown DC discharge characteristics in argon at pd = 1 Torr cm. Shown are the gap voltage V-$" as a function of discharge current for three series resistances: R! = 50 kΩ, 300 kΩ, and 1 MΩ. For moderate ballast resistance (R!…
Figure 6

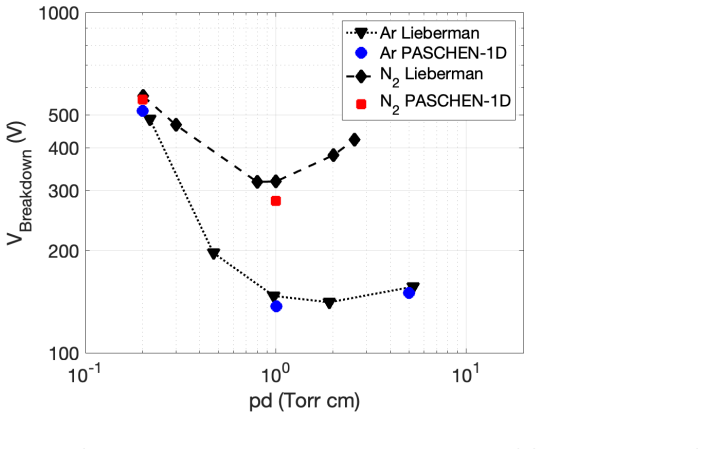

Figure 6. Figure 6: Paschen curves for argon and nitrogen obtained using the PASCHEN-1D solver for d = L = 1cm and 0.24 < p (Torr) < 5, compared against experimental data reported in [2]. The breakdown voltage V0'#$%2345 is shown as a function of the pressure–gap product pd. The close agr…
Figure 7
Figure 7. Figure 7: Sensitivity of Paschen’s law breakdown characteristics to secondary electron emission yield and Townsend ionization parameters for argon at d = L = 1cm and 0.24 < p (Torr) < 5 . (a) Comparison between the experimental Paschen curve reported by [2] and Paschen’s law (Eq…
Figure 8
Figure 8. Figure 8: Photoemission–driven discharge response obtained from experimental measurements [21] (solid curves), PASCHEN-1D simulation (dotted curves) and 1D WarpX Particle-in-Cell simulation (dashed curve). Blue curves correspond to the plasma gap voltage V-& [PITH_FULL_IMAGE:fi…
