Set-up and Characterisation of Atmospheric Boundary Layers in the 10'x5' Wind Tunnel

T0 review · 3 major / 4 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper claims that Irwin spires alone, with no floor roughness, can generate marine atmospheric boundary layers matching target velocity and turbulence profiles, and that a multi-hole probe measures the flow nearly as accurately as a…

desk verdict Solid incremental wind-tunnel study; the 'reliable marine ABL' claim needs the missing spectral/length-scale evidence before it lands. read the letter →

arxiv 2608.07764 v1 pith:M7J2UVZG submitted 2026-08-07 physics.flu-dyn

Sita M. Nair , Kevin Gouder This is my paper · ORCID
classification physics.flu-dyn
keywords atmosphericboundarylayerwindtunnelsimulationIrwinspiresmarineoffshoreLaserDopplerAnemometrymulti-holeprobeturbulenceintensity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper sets out to show that marine atmospheric boundary layers can be reproduced in a wind tunnel using only Irwin spires, without floor roughness, and that a multi-hole pressure probe can measure the resulting flow nearly as accurately as a laser Doppler anemometer. If that is right, offshore wind inflow testing becomes much cheaper and quicker. The authors build two target profiles, one intended to bridge different international wind-engineering standards and one aimed at wind farm inflow conditions in the English Channel and North Sea. They report agreement between the measured profiles and these targets in normalised velocity and turbulence intensity, plus spanwise uniformity and spectral consistency. The practical payoff is a low-cost, validated setup for studying loads and inflows relevant to offshore wind energy.

What carries the argument

The load-bearing object is the Irwin spire: a set of triangular plates mounted at the wind tunnel inlet whose blockage produces a shear layer and turbulence that develop into a boundary layer downstream. The paper combines two diagnostics: Laser Doppler Anemometry (LDA) as the reference measurement and a multi-hole probe (MHP) as the practical, cheaper instrument. The target profiles themselves—normalised mean velocity and turbulence intensity curves from international standards and from English Channel and North Sea inflow conditions—serve as the validation yardstick; agreement with them, plus spanwise uniformity and spectra, is what qualifies the spires as sufficient. No floor roughness is used, so the argument rests on the spires doing all the boundary layer generation.

What would settle it

Measure the same spire-generated flow with an independent technique, such as a hot-wire anemometer or a second LDA system, at the same test conditions; if the streamwise mean velocity differs from the MHP by more than 1 percent or any turbulent component's standard deviation differs by more than 5 percent, the validation claim fails.

Watch

Extended reading notes

Core claim

The central claim is that Irwin spires alone—triangular spires placed at the tunnel inlet to generate large-scale shear—can produce credible marine ABLs without floor roughness elements. Two target profiles were defined: Profile 1 as a commonality framework across international wind-engineering standards, and Profile 2 as a model of wind farm inflow over the English Channel and North Sea. The study reports that the measured normalised velocity and turbulence intensity match these targets, that MHP streamwise velocity differs from LDA by under 1 percent, and that standard deviations in all three velocity components differ by under 5 percent. Spanwise uniformity and spectral checks across different inflow speeds are used to argue that the simulated ABLs are robust. The conclusion is that this spire-only configuration is a cost-effective and reliable way to simulate marine ABLs for offshore wind applications.

Load-bearing premise

The demonstration depends on the target profiles being accurate stand-ins for real marine atmospheric boundary layers; if those targets misrepresent the true offshore wind environment, a good match to them would not prove the tunnel reproduces the real inflow.

Editorial extensions

If this is right

  • A wind tunnel can reproduce marine ABL inflow using spires alone, eliminating the cost and complexity of floor roughness elements.
  • The multi-hole probe can replace laser Doppler anemometry for this kind of characterization to within 1 percent in mean streamwise velocity and 5 percent in turbulence standard deviation, shortening measurement campaigns.
  • The two profiles give future studies ready-made target curves: one that spans international wind-loading standards and one that represents English Channel and North Sea inflow.
  • Because spanwise uniformity and spectra were stable across inflow velocities, the setup can be reused for parametric studies of offshore wind turbine loads.
  • The Profile 1 commonality framework gives wind engineering a potential reference for comparing how different national standards specify ABL inflow.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The spire-only configuration should transfer to other smooth-terrain boundary layers, such as coastal or ice-covered offshore sites, so long as the target roughness remains low; this is a natural next test.
  • The reported MHP-versus-LDA agreement suggests the probe could be trusted for two-component turbulence statistics, but the claim is stated for standard deviation, not for full spectra or higher moments, which would need separate validation.
  • The commonality profile could serve as a benchmark for reconciling national wind-load standards, but the paper only demonstrates the tunnel reproduces one such curve; testing against more standards is needed.
  • A direct field comparison, using lidar or mast measurements at an English Channel or North Sea site, would check whether the tunnel targets themselves are faithful to real offshore conditions.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The manuscript (presented as an abstract) reports a wind-tunnel study in which two marine atmospheric boundary layer (ABL) profiles are generated using Irwin spires without floor roughness elements. Profile 1 targets a commonality framework across international wind engineering standards, and Profile 2 targets inflow conditions for wind farms in the English Channel and North Sea. The flow is measured with Laser Doppler Anemometry (LDA) and a multi-hole probe (MHP). The authors report that MHP agrees with LDA to within 1% in streamwise velocity and within 5% standard deviation in all three velocity components, that the profiles agree with target normalised velocity and turbulence intensity, and that spanwise uniformity and spectral analysis confirm robustness. The central conclusion is that Irwin spires provide a cost-effective and reliable method for simulating marine ABLs, with relevance to offshore wind energy systems.

Significance. If the claims are substantiated, this work would provide a low-cost experimental method for generating marine ABL inflow conditions, which is valuable for wind tunnel testing of offshore wind turbines and for comparing measurement techniques (MHP vs. LDA). The use of external benchmarks (wind engineering standards, LDA as an independent reference) avoids circularity and is a strength. However, the abstract alone does not provide the quantitative evidence needed to assess whether the simulated flow reliably reproduces a marine ABL, particularly regarding turbulence spectra and length scales.

major comments (3)
  1. [Abstract] The abstract states that "spectral analysis confirmed the robustness of the simulation," but no quantitative spectral or turbulence length-scale comparison is reported. For a marine ABL relevant to offshore wind turbine loads, the integral length scale and spectral shape (e.g., Kaimal or von Kármán with appropriate parameters) are as important as mean velocity and turbulence intensity. Without showing that the generated turbulence has marine-like spectra and length scales, the claim that Irwin spires alone "reliably" simulate marine ABLs is not fully supported. Please provide quantitative comparisons of the measured spectra and integral length scales against target marine spectra for both profiles.
  2. [Abstract] The MHP/LDA agreement is reported as "less than 1% deviation in the streamwise velocity" and "under 5% standard deviation in the streamwise, spanwise, and wall-normal velocity components." It is unclear what statistical quantity "deviation" refers to (bias, root-mean-square difference, uncertainty?) and how the standard deviation was computed (over spatial locations? repeated runs?). No measurement uncertainty, sample size, or convergence criterion is given. Without this information, the reader cannot assess the reliability of the 1% and 5% claims. Please specify the definitions, report uncertainties, and state the number of measurement points and samples.
  3. [Abstract] The profiles "achieved good agreement with target metrics such as normalised velocity and turbulence intensity," but the abstract gives no quantitative measure of agreement, such as maximum deviation, root-mean-square error, or relative error, and does not specify the exact target profiles or their sources for Profile 1 and Profile 2. Since the central conclusion depends on these profile matches, please report quantitative fit metrics and reference the standard or dataset used for each target profile.
minor comments (4)
  1. [Title/Abstract] The tunnel dimensions "10'x5'" should be written with proper unit notation (e.g., 10 ft × 5 ft) to avoid ambiguity.
  2. [Abstract] The phrase "MHP showed a reasonably high accuracy" is informal; the quantitative statement that follows is stronger and should replace it or be integrated.
  3. [Abstract] Please clarify whether the "standard deviation" in the MHP/LDA comparison refers to the standard deviation of the measurement error or to the variability of the flow fluctuations themselves.
  4. [Abstract] The abstract mentions "varying inflow velocities" but does not state the range of wind speeds tested; please add this information for completeness.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: validation is against external standards and LDA reference, not the paper's own outputs.

full rationale

The abstract's derivation chain is self-contained. The target ABL profiles are fixed by external criteria (international wind engineering standards and English Channel/North Sea inflow conditions), and the measured LDA/MHP quantities are compared against those fixed targets. Nothing described as a prediction is constructed from the measured data: the 1% streamwise and 5% standard-deviation MHP-vs-LDA comparison is a metrological cross-check against an independent instrumentation principle, not a fitted parameter renamed as validation. The spire generation of the boundary layer is set by standard Irwin-spire design considerations, and the paper reports agreement with target normalised velocity and turbulence-intensity profiles as an outcome, not as a constraint used to define the target. No self-citation is invoked, and no uniqueness theorem or imported ansatz is used to forbid alternatives. The absence of full text prevents checking spectral or length-scale details, but the reader's concern about missing spectral validation is a completeness or validity issue, not circularity: the claim would be premature if spectra are unmatched, but that would not make the derivation circular. Under hard rule 3, self-contained comparison against external benchmarks merits score 0-2; here the comparison is explicitly external (standards, LDA), so the honest finding is no significant circularity.

Assumptions & free parameters 2 free parameters · 3 assumptions · 0 invented entities

The central claim rests on the choice of external target profiles, on LDA as a reference measurement, and on standard assumptions about wind tunnel flow. The only genuine free parameters are the spire dimensions, which are not disclosed in the abstract. No new physical entities are introduced.

free parameters (2)
  • Irwin spire geometric parameters for Profile 1 = not reported in abstract
    Spire height, width, and spacing were chosen to generate a target ABL matching international wind engineering standards; the abstract does not provide the values.
  • Irwin spire geometric parameters for Profile 2 = not reported in abstract
    Spire geometry was chosen to model inflow to wind farms in the English Channel and North Sea; values are not given.
assumptions (3)
  • domain assumption The target ABL profiles from international standards and from the English Channel/North Sea are representative of real marine boundary layers.
    The abstract says Profile 1 'served as a framework for establishing commonality among the various international wind engineering standards' and Profile 2 is 'more suitable for modelling the inflow to wind farms in the English Channel and the North Sea.' The validity of the simulation depends on these targets being correct.
  • domain assumption Laser Doppler Anemometry provides an accurate reference velocity measurement.
    The MHP accuracy is judged against LDA, accepting LDA as ground truth without stated uncertainty.
  • domain assumption The wind tunnel flow is stationary and statistically converged during measurements.
    Spectral analysis and spanwise uniformity checks assume the measurements represent the true flow state; convergence criteria are not described in the abstract.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Set-up and Characterisation of Atmospheric Boundary Layers in the 10'x5' Wind Tunnel." pith.science (2026). https://pith.science/paper/M7J2UVZG

@misc{pith2026260807764,
  author       = {Pith},
  title        = {Pith review of: Set-up and Characterisation of Atmospheric Boundary Layers in the 10'x5' Wind Tunnel},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/M7J2UVZG}},
  note         = {Machine review of arXiv:2608.07764}
}
read the original abstract

The Atmospheric Boundary Layer (ABL) plays a critical role in influencing objects exposed to atmospheric conditions, making its study crucial. Due to the high cost of real-world testing, this thesis focuses on replicating marine ABLs in a wind tunnel environment. Two profiles were developed: one that served as a framework for establishing commonality among the various international wind engineering standards ('Profile 1'), and a second profile, which is more suitable for modelling the inflow to wind farms in the English Channel and the North Sea ('Profile 2'). The ABLs were generated using Irwin spires without floor roughness elements, and the flow characteristics were measured using Laser Doppler Anemometry (LDA) and a multi-hole probe (MHP). MHP showed a reasonably high accuracy when compared to LDA, with less than 1% deviation in the streamwise velocity and under 5% standard deviation in the streamwise, spanwise, and wall-normal velocity components. The profiles achieved good agreement with target metrics such as normalised velocity and turbulence intensity. Spanwise uniformity and spectral analysis confirmed the robustness of the simulation across varying inflow velocities. Overall, Irwin spires proved to be a cost-effective and reliable method for simulating marine ABLs, offering valuable insights for optimising offshore wind energy systems.

Figures

Figures reproduced from arXiv: 2608.07764 by the authors.

Figure 1
Figure 1. Flowchart to summarise the establishment of ‘Profile 1’ ‘Profile Wind Farm (WF)’ Having established a methodology for calculating the desired ABL characteristics from various standards, the procedure is now used to calculate the wind characteristics of a particular marine site located in the North Sea. The ISO methodology was selected for this design, since it takes into account the sea roughness due to surface wave… view at source ↗
Figure 2

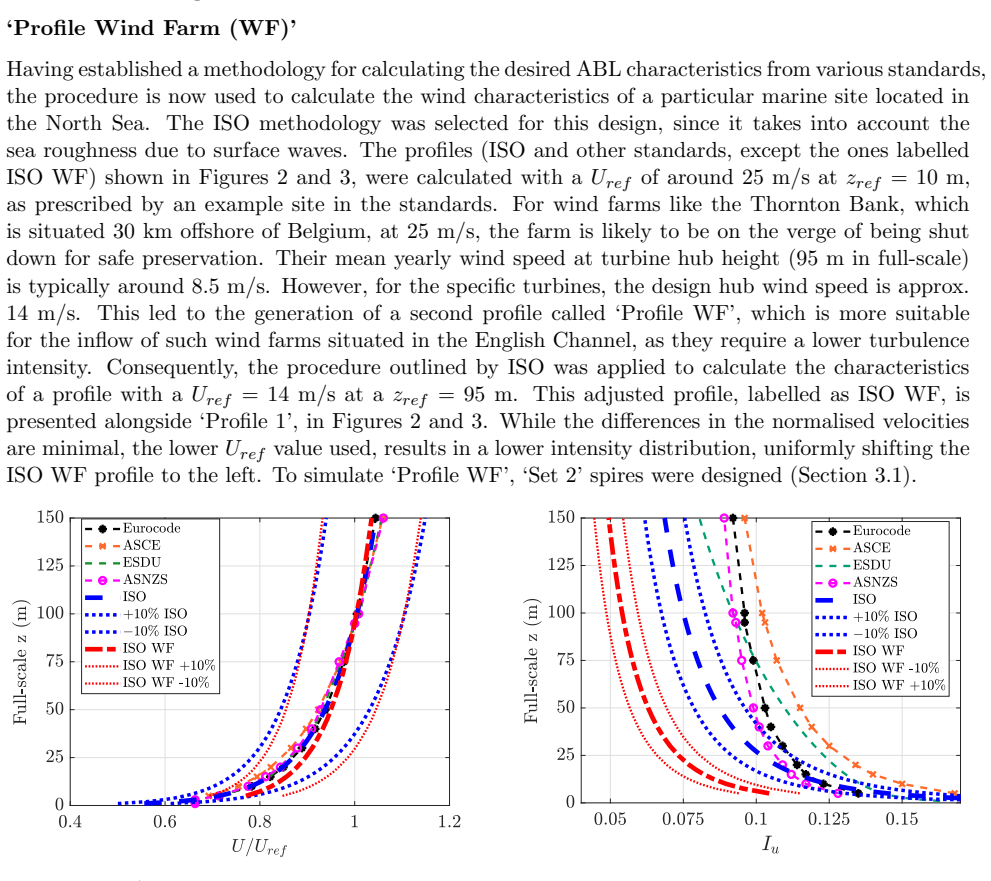

Figure 2. U/Uref from ‘Profile 1’, ‘Profile WF’ [PITH_FULL_IMAGE:figures/full_fig_p018_2.png] view at source ↗
Figure 4
Figure 4. Comparison of a general set of Irwin spires — original (left), truncated (right): (a) 3D view, (b) front view, (c) side view, (d) plan view. The Irwin and Counihan spires have also been employed to simulate suburban type terrains, as reported by Paepe et al. [16], who compared the wind tunnel results using Counihan quarter ellipse spires with roughness elements to similar configurations involving Irwin spires. The r… view at source ↗
Figures from the paper (59 more)
Figure 5
Figure 5. Figure 5: (a) Lower TS, (b) Upper TS The design process was largely dependent on the wind tunnel testing scale (1:250, which is typical for the wind farms in the British Channel or North Sea), full-scale boundary layer height δ, the power law exponent value α, and the tunnel tes…
Figure 6
Figure 6. Figure 6: LDA and MHP, lower TS The LDA measurements were conducted using a FiberFlow LDA system, capable of measuring different velocity components at a single point in space. 2-dimensional LDA can measure two velocity components (the streamwise and wall-normal velocities), whe…
Figure 7
Figure 7. Figure 7: Seven-hole probe [61] Before each test, a no flow condition was acquired in order to account for and remove the drift in the output voltage. Pressure differences between the top, bottom, and side holes of the probe help determine pressure coefficients, from which veloc…
Figure 8
Figure 8. Figure 8: Modified traverse set-up The traverse system enabled velocity measurements at various heights and spanwise positions with minimal disturbance caused to the incoming flow. Initially, a triangular Minitec aluminium frame with an encoder-controlled vertical carriage (of m…
Figure 9
Figure 9. Figure 9: Lower TS arrangement (a) 3 spire ‘Set 1’ (b) 2 spire ‘Set 1’ (c) 2 spire ‘Set 2’ [PITH_FULL_IMAGE:figures/full_fig_p029_9.png]
Figure 10
Figure 10. Figure 10: Upper TS arrangement: 4 spires (a) ‘Set 1’ (b) ‘Set 2’; 5 spires (c) ‘Set 1’ (d) ‘Set 2’ For experiments carried out in the lower test section, once the sufficient seeding was established, the LDA probe’s datum position in the wind tunnel was recorded, serving as the …
Figure 11
Figure 11. Figure 11: Contour plot of U/Uref , using ‘Set 1’ 3 spires, in the lower TS [PITH_FULL_IMAGE:figures/full_fig_p030_11.png]
Figure 14
Figure 14. Figure 14: 2D plots of Iu and Iw, using ‘Set 1’ 3 spires, in the lower TS 4.1.2 2 Spires ‘Set 1’ Following from the previous test case, two ‘Set 1’ spires were installed in the lower test section [PITH_FULL_IMAGE:figures/full_fig_p031_14.png]
Figure 15
Figure 15. Figure 15: Contour plot of U/Uref using ‘Set 1’ 2 spires, in the lower TS [PITH_FULL_IMAGE:figures/full_fig_p032_15.png]
Figure 18
Figure 18. Figure 18: 2D plots of Iu and Iw using ‘Set 1’ 2 spires, in the lower TS 20 [PITH_FULL_IMAGE:figures/full_fig_p032_18.png]
Figure 19
Figure 19. Figure 19: Contour plot of U/Uref , using ‘Set 1’ 2 spires+green mesh, in the lower TS [PITH_FULL_IMAGE:figures/full_fig_p033_19.png]
Figure 22
Figure 22. Figure 22: 2D plots of Iu and Iw using ‘Set 1’ 2 spires+green mesh, in the lower TS 21 [PITH_FULL_IMAGE:figures/full_fig_p033_22.png]
Figure 23
Figure 23. Figure 23: Contour plot of U/Uref using ‘Set 2’ 2 spires, in the lower TS [PITH_FULL_IMAGE:figures/full_fig_p034_23.png]
Figure 26
Figure 26. Figure 26: 2D plots of Iu, and Iw, using ‘Set 2’ 2 spires, in the lower TS 22 [PITH_FULL_IMAGE:figures/full_fig_p034_26.png]
Figure 27
Figure 27. Figure 27: Time series of LDA vs MHP, using the original traverse system [PITH_FULL_IMAGE:figures/full_fig_p035_27.png]
Figure 29
Figure 29. Figure 29: Contour plot of U/Uref , using ‘Set 1’ 5 spires, in the upper TS, relative to the test section dimensions [PITH_FULL_IMAGE:figures/full_fig_p036_29.png]
Figure 30
Figure 30. Figure 30: Contour plot of U/Uref , using ‘Set 1’ 5 spires, in the upper TS The measurement range of the multi-hole probe, relative to the wind tunnel section 2.7 m high by 5.8 m wide, along with the spanwise uniformity in the normalised U velocity (U/Uref = U/Uhub) is shown in …
Figure 31
Figure 31. Figure 31: 2D plot of U/Uref , V /Uref , and W/Uref , using ‘Set 1’ 5 spires, in the upper TS 24 [PITH_FULL_IMAGE:figures/full_fig_p036_31.png]
Figure 32
Figure 32. Figure 32: 2D plots of Iu, Iv, and Iw, using ‘Set 1’ 5 spires, in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p037_32.png]
Figure 33
Figure 33. Figure 33: Contour plots of Iu, Iv, and Iw, using ‘Set 1’ 5 spires, in the upper TS 4.2.2 5 Spires ‘Set 2’ Based on the spanwise uniformity results from the 5 spires ‘Set 1’ configuration, the number of spanwise location for this test case was reduced. Measurements focused on sp…
Figure 34
Figure 34. Figure 34: Contour plot of U/Uref , using ‘Set 2’ 5 spires, in the upper TS, relative to the test section dimensions [PITH_FULL_IMAGE:figures/full_fig_p038_34.png]
Figure 35
Figure 35. Figure 35: Contour plot of U/Uref , using ‘Set 2’ 5 spires, in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p038_35.png]
Figure 36
Figure 36. Figure 36: 2D plot of U/Uref , V /Uref , and W/Uref , using ‘Set 2’ 5 spires, in the upper TS 26 [PITH_FULL_IMAGE:figures/full_fig_p038_36.png]
Figure 37
Figure 37. Figure 37: 2D plots of Iu, Iv, and Iw, using ‘Set 2’ 5 spires, in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p039_37.png]
Figure 38

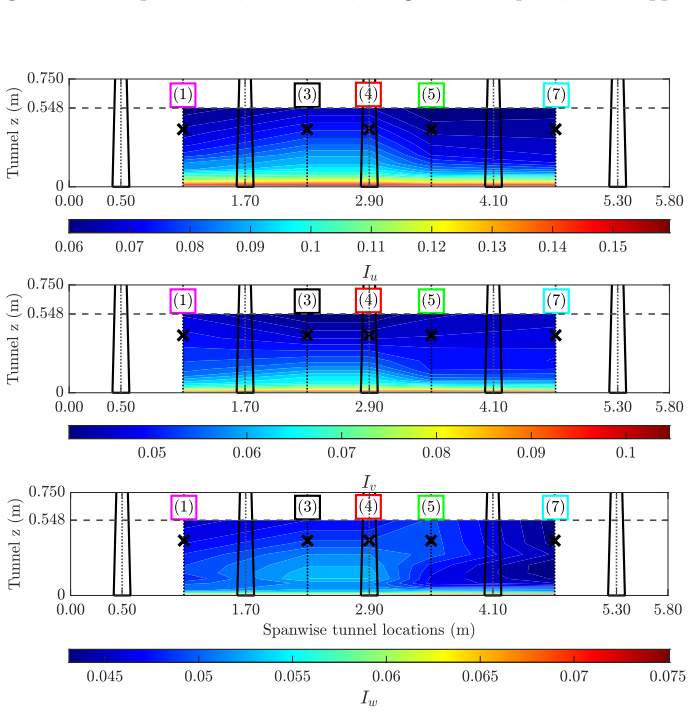

Figure 38. Figure 38: Contour plots of Iu, Iv, and Iw, using ‘Set 2’ 5 spires, in the upper TS 4.2.3 4 Spires ‘Set 2’ Measurements were recorded near the tunnel centre and the outer edges to get an idea of the maximum spanwise extent of the flow across the tunnel width. This was done, sinc…
Figure 39
Figure 39. Figure 39: Contour plot of U/Uref , using ‘Set 2’ 4 spires, in the upper TS, relative to the test section dimensions [PITH_FULL_IMAGE:figures/full_fig_p040_39.png]
Figure 40
Figure 40. Figure 40: Contour plot of U/Uref , using ‘Set 2’ 4 spires, in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p040_40.png]
Figure 41
Figure 41. Figure 41: 2D plot of U/Uref , V /Uref , and W/Uref , using ‘Set 2’ 4 spires, in the upper test-section 28 [PITH_FULL_IMAGE:figures/full_fig_p040_41.png]
Figure 42

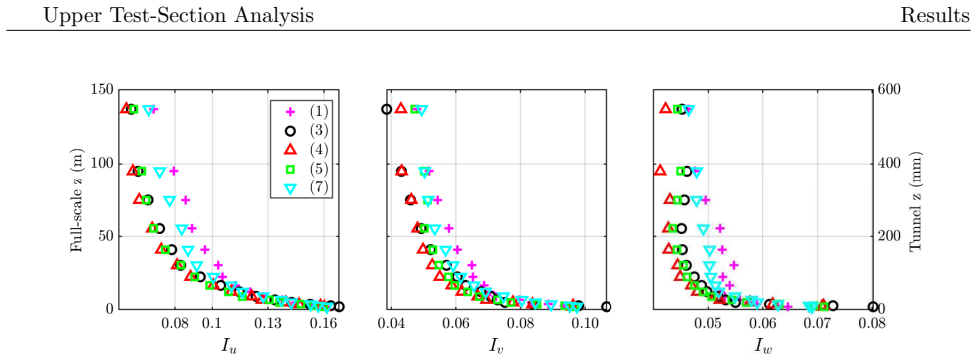

Figure 42. Figure 42: 2D plots ofIu, Iv, and Iw, using ‘Set 2’ 4 spires, in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p041_42.png]
Figure 43
Figure 43. Figure 43: Contour plots of Iu, Iv, and Iw, using ‘Set 2’ 4 spires, in the upper TS 4.2.4 4 spires ‘Set 1’ For the 4 spire ‘Set 1’ testing, fewer spanwise locations were used to save time, as key flow behaviour was already observed in the outermost spanwise locations, as describ…
Figure 44
Figure 44. Figure 44: Contour plot of U/Uref , using ‘Set 1’ 4 spires, in the upper TS, relative to the test section dimensions [PITH_FULL_IMAGE:figures/full_fig_p042_44.png]
Figure 45
Figure 45. Figure 45: Contour plot of U/Uref , using ‘Set 1’ 4 spires, in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p042_45.png]
Figure 46
Figure 46. Figure 46: 2D plot of U/Uref , V /Uref , and W/Uref , using ‘Set 1’ 4 spires, in the upper TS 30 [PITH_FULL_IMAGE:figures/full_fig_p042_46.png]
Figure 47
Figure 47. Figure 47: 2D plots ofIu, Iv, and Iw, using ‘Set 1’ 4 spires, in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p043_47.png]
Figure 48
Figure 48. Figure 48: Contour plots of Iu, Iv, and Iw, using ‘Set 1’ 4 spires, in the upper TS 31 [PITH_FULL_IMAGE:figures/full_fig_p043_48.png]
Figure 49
Figure 49. Figure 49: Comparing the spectra of LDA and MHP, at different sampling rates To support the spectra findings, a time series comparison was also performed earlier in Figures 27 and 28, where the data series acquired utilising the modified probe holder/ traverse design shows excel…
Figure 50
Figure 50. Figure 50: Lower TS configurations vs ‘Profile 1’, via normalised velocity in U [PITH_FULL_IMAGE:figures/full_fig_p046_50.png]
Figure 52
Figure 52. Figure 52: Lower TS configurations vs ‘Profile WF’, via normalised velocity in U [PITH_FULL_IMAGE:figures/full_fig_p046_52.png]
Figure 54
Figure 54. Figure 54: Upper TS configurations vs ‘Profile 1’, via normalised velocity in U [PITH_FULL_IMAGE:figures/full_fig_p048_54.png]
Figure 56
Figure 56. Figure 56: Upper TS configurations vs ‘Profile WF’, via normalised velocity in U [PITH_FULL_IMAGE:figures/full_fig_p048_56.png]
Figure 59
Figure 59. Figure 59: PSD of the test cases in the upper TS at hub height, using MHP subsampled to 250 Hz; e.g., 5(1) = 5 spires from set 1. 37 [PITH_FULL_IMAGE:figures/full_fig_p049_59.png]
Figure 60
Figure 60. Figure 60: Lu,x from standards vs 5 spire ‘Set 1’ and 3 spires ‘Set 1’, at 95 m (hub height) Method Value (m) von K´arm´an fit 0.30 Spectra peak 0.29 y-intercept 0.35 Autocorrelation 0.31 [PITH_FULL_IMAGE:figures/full_fig_p050_60.png]
Figure 61
Figure 61. Figure 61: Normalised U profile for the urban standards, wrt 95 m [PITH_FULL_IMAGE:figures/full_fig_p058_61.png]
Figure 63
Figure 63. Figure 63: Normalised U of all the LDA spanwise, 2 spire ’set 1’ [PITH_FULL_IMAGE:figures/full_fig_p059_63.png]
Figure 64
Figure 64. Figure 64: Turbulence intensity in U of all the LDA spanwise, 2 spire ’set 1’ [PITH_FULL_IMAGE:figures/full_fig_p059_64.png]
Figure 65
Figure 65. Figure 65: Turbulence intensity in W of all the LDA spanwise, 2 spire ’set 1’ ii [PITH_FULL_IMAGE:figures/full_fig_p059_65.png]
Figure 67
Figure 67. Figure 67: Original traverse design for the MHP - closeup C.2 Modified Traverse [PITH_FULL_IMAGE:figures/full_fig_p060_67.png]
Figure 68

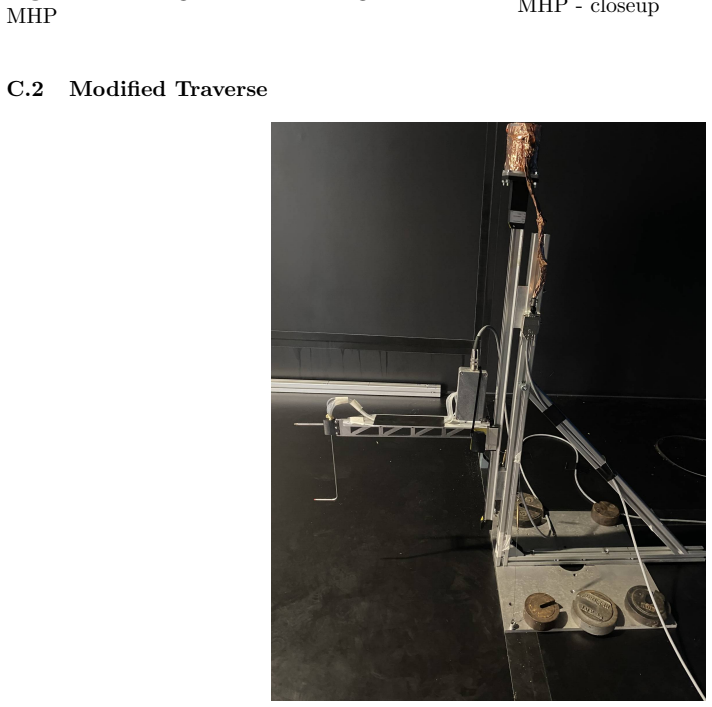

Figure 68. Figure 68: New traverse design for the MHP iii [PITH_FULL_IMAGE:figures/full_fig_p060_68.png]
Figure 69
Figure 69. Figure 69: MHP when closest to the floor at 8.13 mm approx [PITH_FULL_IMAGE:figures/full_fig_p061_69.png]
Figure 71
Figure 71. Figure 71: Traverse being aligned spanwise using a minitec (removable) on the tunnel floor iv [PITH_FULL_IMAGE:figures/full_fig_p061_71.png]
Figure 72
Figure 72. Figure 72: MHP’s sensor box C.5 CAD designs 1. MHP and static holder [PITH_FULL_IMAGE:figures/full_fig_p062_72.png]
Figure 73
Figure 73. Figure 73: CAD of the holder for MHP and static 2. Aluminium truss structure [PITH_FULL_IMAGE:figures/full_fig_p062_73.png]
Figure 74
Figure 74. Figure 74: CAD of the Aluminium truss structure for the traverse v [PITH_FULL_IMAGE:figures/full_fig_p062_74.png]
Figure 75
Figure 75. Figure 75: Green mesh roughness with 2 spire ‘set 1’ - lower TS D.2 2, 3 spires - Lower TS [PITH_FULL_IMAGE:figures/full_fig_p063_75.png]
Figure 76
Figure 76. Figure 76: 2 spires installed in the lower TS [PITH_FULL_IMAGE:figures/full_fig_p063_76.png]
Figure 78
Figure 78. Figure 78: 4 spires installed in the upper TS [PITH_FULL_IMAGE:figures/full_fig_p064_78.png]
Figure 80
Figure 80. Figure 80: LDA setup - lower TS vii [PITH_FULL_IMAGE:figures/full_fig_p064_80.png]
Figure 81
Figure 81. Figure 81: Old MHP traverse system, with LDA - lower TS D.6 Spire installation - Upper TS (a) Turnbuckle to keep the cable under tension (b) Cable clamp onto the spire side (c) Cable connecting different spires [PITH_FULL_IMAGE:figures/full_fig_p065_81.png]
Figure 82
Figure 82. Figure 82: Upper TS - spire setup viii [PITH_FULL_IMAGE:figures/full_fig_p065_82.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

63 extracted references · 61 canonical work pages

  1. [1]

    The atmospheric boundary layer; 2025

    Office M. The atmospheric boundary layer; 2025. Accessed 2025-04-10. Available from:https: //www.metoffice.gov.uk/research/foundation/parametrizations/boundary-layer

    work page 2025

  2. [2]

    Eurocode 1: Actions on structures - Parts 1-4: General actions - Wind actions

    British-Standard-Institution. Eurocode 1: Actions on structures - Parts 1-4: General actions - Wind actions. Eurocodes. 2005:1-16

    work page 2005

  3. [3]

    NA to BS EN 1991-1-4:2005+A1:2010

    British-Standard-Institution. NA to BS EN 1991-1-4:2005+A1:2010. UK National Annex Eurocode I - Actions on structures, Part1-4: General actions - wind actions, British Standards. 2010:1-16

    work page 1991

  4. [4]

    International Standard for Standardization

    ISO 19901-1:2015, Petroleum and natural gas industries - Specific requirements for offshore structures - Part 1: Metocean design and operating considerations. International Standard for Standardization. 2015

    work page 2015

  5. [5]

    ASCE 7-22

    American Society of Civil Engineers, Minimum design loads for buildings and other structures. ASCE 7-22. 2022

    work page 2022

  6. [6]

    Part II: single pointdataforstrongwinds(neutralatmosphere)

    ESDU85020 Characteristics of atmospheric turbulence near the ground. Part II: single pointdataforstrongwinds(neutralatmosphere). EngineeringSciences Data Unit 85020

    work page

  7. [7]

    AS/NZS 11702:2021

    Australian/ New Zealand Standard, Structural design actions, Part 2: Wind actions. AS/NZS 11702:2021. 2021

    work page 2021

  8. [8]

    The application of the boundary layer wind tunnel to the prediction of wind loading

    Davenport AG, Isyumov N. The application of the boundary layer wind tunnel to the prediction of wind loading. In: Proceedings of the International Research Seminar: Wind Effects on Buildings and Structures. Ottawa, Canada. September; 1967. p. 11-5. Available from:https://www.aivc. org/sites/default/files/members_area/medias/pdf/Airbase/airbase_00393.pdf

    work page 1967

Show all 63 references
  1. [9]

    Guidelines for converting between various wind averaging periods in tropical cyclone conditions

    Harper B, Kepert J, Ginger J. Guidelines for converting between various wind averaging periods in tropical cyclone conditions. Citeseer; 2010

    2010

  2. [10]

    Wind actions to BS EN 1991-1-4

    Hughes A. Wind actions to BS EN 1991-1-4. Steel Construction Institute; 2014

    1991

  3. [11]

    Converging profile relationships for offshore wind speed and turbulence intensity

    Jeans G. Converging profile relationships for offshore wind speed and turbulence intensity. Wind Energy Science. 2024;9(10):2001-15

    2024

  4. [12]

    Evaluation of marine wind profiles in the North Sea and Norwegian Sea based on measurements and satellite-derived wind products

    Olsen AM, Øiestad M, Berge E, Køltzow MØ, Valkonen T. Evaluation of marine wind profiles in the North Sea and Norwegian Sea based on measurements and satellite-derived wind products. Tellus A: Dynamic Meteorology and Oceanography. 2022;74(1)

    2022

  5. [13]

    A mathematical model of the structure of strong winds

    Deaves D. A mathematical model of the structure of strong winds. CIRIA Report 76, Const Ind Research and Inf Assoc. 1978. Available from:https://cir.nii.ac.jp/crid/ 1570009749310590336

    1978

  6. [14]

    ESDU spreadsheet

    01008 E. ESDU spreadsheet;. [14/10/2024]]. Available from:https: //imperiallondon-my.sharepoint.com/:x:/g/personal/smn21_ic_ac_uk/ ESDt2bm2ATpGushPp_gkGTQBWmin6ml9TyjNUB4O_EPmCQ?e=UaMCI1

    2024

  7. [15]

    What’s the gust wind speed?; 2013

    Ginger JHJ, Harper B. What’s the gust wind speed?; 2013

    2013

  8. [16]

    Simplified elements for wind-tunnel measurements with type-III-terrain atmospheric boundary layer

    De Paepe W, Pindado S, Bram S, Contino F. Simplified elements for wind-tunnel measurements with type-III-terrain atmospheric boundary layer. Measurement. 2016;91:590-600. Available from:https://www.sciencedirect. com/science/article/pii/S0263224116302457?casa_token=I5Xsi0xLOOo...

    2016

  9. [17]

    A wind tunnel study of wind loads on a model wind turbine in atmospheric boundary layer winds

    Tian W, Ozbay A, Hu H. A wind tunnel study of wind loads on a model wind turbine in atmospheric boundary layer winds. Journal of Fluids and Structures. 2019;85:17-26. Available from:https://www.sciencedirect.com/science/ article/pii/S0889974618301543?casa_token=OdhMqbDAOv0AAAA...

    2019

  10. [18]

    Experiments on integral length scale control in atmospheric boundary layer wind tunnel

    Varshney K, Poddar K. Experiments on integral length scale control in atmospheric boundary layer wind tunnel. Theoretical and applied climatology. 2011;106:127-37. Available from:https: //link.springer.com/article/10.1007/s00704-011-0415-y

    2011 doi

  11. [19]

    Wind-tunnel simulation of the wake of a large wind turbine in a stable boundary layer

    Hancock PE, Pascheke F. Wind-tunnel simulation of the wake of a large wind turbine in a stable boundary layer. Part 1: the boundary-layer simulation. Boundary-layer meteorology. 2014;151(1):3-21. Available from:https://link.springer.com/article/10. 1007/s10546-013-9886-y

    2014

  12. [20]

    Wind-tunnel simulation of weakly and moderately stable atmospheric boundary layers

    Hancock PE, Hayden P. Wind-tunnel simulation of weakly and moderately stable atmospheric boundary layers. Boundary-layer meteorology. 2018;168:29-57. Available from:https://link. springer.com/article/10.1007/s10546-018-0337-7

    2018 doi

  13. [21]

    Wind-tunnel simulation of approximately horizontally homogeneous stable atmospheric boundary layers

    Hancock PE, Hayden P. Wind-tunnel simulation of approximately horizontally homogeneous stable atmospheric boundary layers. Boundary-layer meteorology. 2021;180(1):5-26. Available from:https://link.springer.com/article/10.1007/s10546-021-00611-7

    2021 doi

  14. [24]

    Part-depth wind tunnel simulations of the atmospheric boundary layer

    De Bortoli M, Natalini B, Paluch M, Natalini M. Part-depth wind tunnel simulations of the atmospheric boundary layer. Journal of Wind Engineering and Industrial Aerodynamics. 2002;90(4-5):281-91. Available from:https://www.sciencedirect.com/science/article/ pii/S01676105010020...

    2002

  15. [26]

    Generating an artificially thickened boundary layer to simulate the neutral atmospheric boundary layer

    Hohman TC, Van Buren T, Martinelli L, Smits A. Generating an artificially thickened boundary layer to simulate the neutral atmospheric boundary layer. Journal of Wind Engineering and Industrial Aerodynamics. 2015;145:1-16. Available from:https://www.sciencedirect.com/ science/...

    2015

  16. [27]

    The development and structure of simulated neutrally stable atmospheric boundary layers; 1979

    Robins A. The development and structure of simulated neutrally stable atmospheric boundary layers; 1979

    1979

  17. [28]

    The design of spires for wind simulation

    Irwin H. The design of spires for wind simulation. Journal of wind engineering and industrial aerodynamics. 1981;7(3):361-6. Available from:https://www.aivc.org/sites/ default/files/members_area/medias/pdf/Airbase/airbase_00778.pdf

    1981

  18. [30]

    Progress Report II on Simulation of Earth’s Surface Winds by Artificially Thickened Wind Tunnel Boundary Layers

    Campbell GS, Standen N. Progress Report II on Simulation of Earth’s Surface Winds by Artificially Thickened Wind Tunnel Boundary Layers. National Research Council of Canada, National Aeronautical Establishment; 1969

    1969

  19. [31]

    Time-resolved PIV measurements of a ship airwake in a simulated atmospheric boundary layer

    Seth D, Zhang Z, Gnanamanickam EP, Leishman JG. Time-resolved PIV measurements of a ship airwake in a simulated atmospheric boundary layer. In: AIAA Aviation 2020 Forum; 2020. p

    2020

  20. [32]

    Establishing a database for flight in the wakes of structures

    Healey JV. Establishing a database for flight in the wakes of structures. Journal of Aircraft. 1992;29(4):559-64. Available from:https://arc.aiaa.org/doi/pdf/10.2514/3.46202? casa_token=Fg40vLkosPEAAAAA:HZzCSgWsEOofsTz6cs6bisWW3yd9AUGnw6fOK7w7JnWMoblzw_ vGoQ0UeB7WYFPe-Tg8WzWwyA

    1992 doi

  21. [33]

    Potential wind: The effect of obstacles on wind measurements needs to be filtered out

    KNMI. Potential wind: The effect of obstacles on wind measurements needs to be filtered out

  22. [34]

    Simula¸ c˜ ao da camada limite atmosf´ erica em t´ unel de vento

    Loredo-Souza AM, Schettini EBC, Paluch MJ. Simula¸ c˜ ao da camada limite atmosf´ erica em t´ unel de vento. Turbulˆ encia Rio de Janeiro: Associa¸ c˜ ao Brasileira de Engenharia e Ciˆ encias Mecˆ anicas-ABCM. 2004;4:137-63

    2004

  23. [35]

    Atmospheric boundary layer flows: their structure and measurement

    Kaimal JC, Finnigan JJ. Atmospheric boundary layer flows: their structure and measurement. Oxford university press; 1994

    1994

  24. [37]

    Wind tunnel simulation of the atmospheric boundary layer for studying the wind pattern at centro de lan¸ camento de alcˆ antara

    Avelar AC, Brasileiro FLC, Marto AG, Marciotto ER, Fisch G, Faria AF. Wind tunnel simulation of the atmospheric boundary layer for studying the wind pattern at centro de lan¸ camento de alcˆ antara. Journal of Aerospace Technology and Management. 2012;4(4):463-73. Available fr...

    2012

  25. [38]

    Numerical modelling of velocity profile parameters of the atmospheric boundary layer simulated in wind tunnels

    Abubaker A, Kosti´ c I, Kosti´ c O. Numerical modelling of velocity profile parameters of the atmospheric boundary layer simulated in wind tunnels. In: IOP Conference Series: Materials Science and Engineering. vol. 393. IOP Publishing; 2018. p. 012025. Available from:https: //...

    2018 doi

  26. [39]

    Determining the power-law wind-profile exponent under near-neutral stability conditions at sea

    Hsu S, Meindl EA, Gilhousen DB. Determining the power-law wind-profile exponent under near-neutral stability conditions at sea. Journal of Applied Meteorology (1988-2005). 1994:757-65. Available from:https://www.jstor.org/stable/26186719?casa_token=ksl0Gn9F5xMAAAAA% 3AM3XArnP7...

    1988

  27. [40]

    Wind tunnel simulation of atmospheric boundary layer flows

    Barbosa P, Cataldi M, Freire APS. Wind tunnel simulation of atmospheric boundary layer flows. Journal of the Brazilian Society of Mechanical Sciences. 2002;24(3):177-85. Available from: https://www.scielo.br/j/jbsms/a/DLMQYyR3wML8pDypZtGRWzR/?lang=en

    2002

  28. [41]

    Simula¸ c˜ ao da estrutura do vento natural em um t´ unel de vento aerodinˆ amico

    Blessmann J. Simula¸ c˜ ao da estrutura do vento natural em um t´ unel de vento aerodinˆ amico. S˜ ao Jbs´ e dos Campos. 1973

    1973

  29. [42]

    Truncated vortex generators for part-depth wind-tunnel simulations of the atmospheric boundary layer flow

    Kozmar H. Truncated vortex generators for part-depth wind-tunnel simulations of the atmospheric boundary layer flow. Journal of Wind Engineering and Industrial Aerodynamics. 2011;99(2-3):130-6. Available from:https://www.sciencedirect.com/science/article/pii/ S0167610510001194

    2011

  30. [43]

    Scale effects in wind tunnel modeling of an urban atmospheric boundary layer

    Kozmar H. Scale effects in wind tunnel modeling of an urban atmospheric boundary layer. Theoretical and Applied Climatology. 2010;100:153-62. Available from:https://link. springer.com/article/10.1007/s00704-009-0156-3

    2010 doi

  31. [44]

    On simulating the lower third of the urban adiabatic boundary layer in a wind tunnel

    Cook N. On simulating the lower third of the urban adiabatic boundary layer in a wind tunnel. Atmospheric Environment (1967). 1973;7(7):691-705. Available from:https://www. sciencedirect.com/science/article/abs/pii/0004698173901510

    1967

  32. [45]

    Wind-tunnel simulation of the adiabatic atmospheric boundary layer by roughness, barrier and mixing-device methods

    Cook N. Wind-tunnel simulation of the adiabatic atmospheric boundary layer by roughness, barrier and mixing-device methods. Journal of Wind Engineering and Industrial Aerodynamics. 1978;3(2-3):157-76. Available from:https://www.sciencedirect.com/science/article/abs/ pii/016761...

    1978

  33. [46]

    A spire array for generating thick turbulent shear layers for natural wind simulation in wind tunnels; 1972

    Standen N. A spire array for generating thick turbulent shear layers for natural wind simulation in wind tunnels; 1972. Available from:https://www.aivc.org/resource/ spire-array-generating-thick-turbulent-shear-layers-natural-wind-simulation-wind-tunnels

    1972

  34. [47]

    Development of an Atmospheric-Boundary-Layer Profile at the NASA Langley Transonic Dynamics Tunnel

    Ivanco TG, Keller DF, Pinkerton JL, Disotell KJ, Collins JG, Seliquini SL. Development of an Atmospheric-Boundary-Layer Profile at the NASA Langley Transonic Dynamics Tunnel. In: 2018 AIAA Space and Astronautics Forum and Exposition; 2018. p. 5184. Available from:https: //arc....

    2018 doi

  35. [48]

    An experimental investigation on the wake interference of multiple wind turbines in atmospheric boundary layer winds

    Ozbay A, Tian W, Yang Z, Sarkar P, Hu H. An experimental investigation on the wake interference of multiple wind turbines in atmospheric boundary layer winds. In: 30th AIAA Applied Aerodynamics Conference; 2006. p. 2784. Available from:https://arc.aiaa.org/doi/ pdf/10.2514/6.2012-2784

    2006 doi

  36. [49]

    Simulations of the atmospheric boundary layer in a wind tunnel with short test section

    Pires LBM, Paula IBd, Fisch G, Gielow R, Girardi RdM. Simulations of the atmospheric boundary layer in a wind tunnel with short test section. Journal of Aerospace Technology and Management. 2013;5(3):305-14. Available from:https://www.scielo.br/j/jatm/a/ TbtV5fd6z7KCNPq3Nw7z9h...

    2013

  37. [50]

    Atmospheric boundary layer simulation in a short wind tunnel

    Shojaee S, Uzol O, Kur¸ c ¨O. Atmospheric boundary layer simulation in a short wind tunnel. International Journal of Environmental Science and Technology. 2014;11:59-68. Available from: https://link.springer.com/article/10.1007/s13762-013-0371-4

    2014 doi

  38. [51]

    Progress in the Statistical Theory of Turbulence*

    von K´ arm´ an T. Progress in the Statistical Theory of Turbulence*. Proceedings of the National Academy of Sciences. 1948;34(11):530-9. Available from:https://www.pnas.org/doi/abs/10. 1073/pnas.34.11.530

    1948

  39. [52]

    The local structure of turbulence in incompressible viscous fluid for very large Reynolds numbers

    Kolmogorov AN. The local structure of turbulence in incompressible viscous fluid for very large Reynolds numbers. Proceedings of the Royal Society of London Series A: Mathematical and Physical Sciences. 1991;434(1890):9-13. Available from:https://royalsocietypublishing. org/do...

    1991

  40. [53]

    Experiments on the wind tunnel simulation of atmospheric boundary layers

    Farell C, Iyengar AK. Experiments on the wind tunnel simulation of atmospheric boundary layers. Journal of wind engineering and industrial aerodynamics. 1999;79(1-2):11-35. Available from:https://www.sciencedirect.com/science/article/pii/S0167610598001172

    1999

  41. [54]

    Experimental investigation of the influence of Reynolds number and buoyancy on the flow development of a plane jet in the transitional regime

    Suresh P, Sundararajan T, Srinivasan K, Das SK. Experimental investigation of the influence of Reynolds number and buoyancy on the flow development of a plane jet in the transitional regime. Journal of Turbulence. 2021;22(1):26-47

    2021

  42. [55]

    Autocorrelation functions and the determination of integral length with reference to experimental and numerical data

    O’Neill PL, Nicolaides D, Honnery D, Soria J, et al. Autocorrelation functions and the determination of integral length with reference to experimental and numerical data. In: 15th Australasian fluid mechanics conference. vol. 1. University of Sydney, Sydney, NSW, Australia

  43. [56]

    Turbulent flows

    Pope SB. Turbulent flows. Measurement Science and Technology. 2001;12(11):2020-1

    2001

  44. [57]

    Comparison of turbulence integral length scale determination methods

    TRUSH 1 A, POSP ´IˇSIL1 S, Kozmar H. Comparison of turbulence integral length scale determination methods. Advances in Fluid Mechanics XIII. 2020;128:113

    2020

  45. [58]

    Physical fluid dynamics

    Tritton DJ. Physical fluid dynamics. Springer Science & Business Media; 2012

    2012

  46. [59]

    Wind-tunnel simulations of the suburban ABL and comparison with international standards

    Kozmar H. Wind-tunnel simulations of the suburban ABL and comparison with international standards. Wind and Structures, An International Journal. 2011;14(1):15-34

    2011

  47. [60]

    Wind structure in the atmospheric boundary layer

    Pasquill F. Wind structure in the atmospheric boundary layer. Philosophical Transactions of the Royal Society of London Series A, Mathematical and Physical Sciences. 1971;269(1199):439-56. Available from:https://royalsocietypublishing.org/doi/abs/10.1098/rsta.1971.0043

    1971

  48. [61]

    Probing PIV: multi-hole pressure and PIV measurements upstream and downstream of an instrumented model turbine

    Craig Thompson MG Kevin Gouder. Probing PIV: multi-hole pressure and PIV measurements upstream and downstream of an instrumented model turbine. Wind Energy Science Conference, France. June 2025

    2025

  49. [62]

    Laser Doppler anemometry measurements of steady flow through two bi-leaflet prosthetic heart valves

    Bazan O, Ortiz JP, Vieira Junior FU, Vieira R W, Antunes N, Tabacow FBD, et al. Laser Doppler anemometry measurements of steady flow through two bi-leaflet prosthetic heart valves. Brazilian Journal of Cardiovascular Surgery. 2013;28:462-9

    2013

  50. [63]

    Cross Line Red Laser; 2025

    DEW ALT. Cross Line Red Laser; 2025. Accessed 2025-05-25. Available from:https://www. dewalt.co.uk/product/dw088k-xj/cross-line-red-laser

    2025

  51. [64]

    Quality Assurance Manual: Wind Engineering Studies of Buildings

    A WES Q. Quality Assurance Manual: Wind Engineering Studies of Buildings. Australasian Wind Engineering Society. 2019. Appendix A Simulation of the Urban Profile A.1 Profiles from the Standards Figure 61.NormalisedUprofile for the urban standards, wrt 95 m Figure 62.Turbulence...

    2019

  52. [67]

    MHP and static holder Figure 73.CAD of the holder for MHP and static

  53. [68]

    Aluminium truss structure Figure 74.CAD of the Aluminium truss structure for the traverse v D Wind Tunnel Set-up D.1 Green mesh roughness - Lower TS Figure 75.Green mesh roughness with 2 spire ‘set 1’ - lower TS D.2 2, 3 spires - Lower TS Figure 76.2 spires installed in the lo...

  54. [2025]

    Available from:https://www.knmi.nl/kennis-en-datacentrum/ project/potential-wind

    Accessed 2025-05-20. Available from:https://www.knmi.nl/kennis-en-datacentrum/ project/potential-wind

    2025

  55. [2701]

    Available from:https://arc.aiaa.org/doi/abs/10.2514/6.2020-2701

    2020 doi

Pith tools

Reviewed August 11, 2026 · model on record in the stance chip above.
