Structural, Optical and Magnetic Properties of Superparamagnetic Fe3O4@TiO2 and Fe3O4@SiO2@TiO2 CoreShell Nanostructures

Grecia Alejandra Gomez-Iriarteb; L. Bernardo; Rosana R. Rangela; Sergio Seabra. Pablo; Wagner Henrique Gamas

REVIEW 4 major objections 5 minor 12 references

Structural, Optical and Magnetic Properties of Superparamagnetic Fe3O4@TiO2 and Fe3O4@SiO2@TiO2 CoreShell Nanostructures

T0 review · 4 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A TiO2 shell can coat magnetic cores without killing either function.

desk verdict A useful comparative characterization undermined by overclaimed core-shell evidence and internal inconsistencies. read the letter →

arxiv 2608.11165 v1 pith:Y6YILQX2 submitted 2026-08-11 cond-mat.mtrl-sci

Wagner Henrique Gamas , Rosana R. Rangela , Grecia Alejandra Gomez-Iriarteb , Sergio Seabra. Pablo , L. Bernardo This is my paper · ORCID

classification cond-mat.mtrl-sci

keywords core-shellnanoparticlessuperparamagneticironoxidetitaniumdioxideshellsilicainterlayersol-gelsynthesismagnetichyperthermiadiffusereflectancespectroscopySQUIDmagnetometry

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports the synthesis and characterization of two core–shell nanoparticle architectures: magnetite (Fe₃O₄) cores wrapped directly in titanium dioxide (TiO₂), and magnetite cores with an intermediate silica (SiO₂) layer before the TiO₂ shell. The authors aim to establish that both structures keep the superparamagnetic behavior of the iron-oxide core while acquiring a tetragonal TiO₂ shell with an optical band gap close to that of pure TiO₂. If correct, this would give a single nanometer-scale platform that combines magnetic hyperthermia and MRI from the core with light-triggered therapy and optical imaging from the shell. The coated samples showed only the tetragonal TiO₂ phase in X-ray diffraction, superparamagnetic hysteresis loops, and band gaps of 3.41 and 3.37 eV for the direct and silica-spaced designs respectively.

What carries the argument

The load-bearing object is the core–shell architecture itself, assembled by sol-gel chemistry: Fe₃O₄ cores prepared by a modified Stöber method, an optional SiO₂ interlayer grown from tetraethyl orthosilicate, and a TiO₂ shell formed by hydrolysis of titanium isopropoxide followed by calcination at 500 °C. The SiO₂ interlayer does two jobs: it caps particle growth and raises interparticle electrostatic repulsion, giving well-dispersed ~68 nm particles, and it acts as an optical insulator that blocks direct Fe–Ti charge transfer, restoring the TiO₂-like band gap. The argument that the shell fully covers the core relies on XRD Rietveld refinement showing only tetragonal TiO₂ reflections and on FTIR showing Fe–O absorption masked by Ti–O/Ti–O–Ti bands; the functional claims rest on diffuse-reflectance Tauc plots and SQUID magnetometry.

What would settle it

Elemental mapping across individual particles with transmission electron microscopy, or X-ray photoelectron spectroscopy depth profiling, would settle encapsulation: iron detected at the outer surface of a coated particle would disprove the complete-shell claim, just as a measurable coercivity or a zero-field-cooled magnetization peak would disprove room-temperature superparamagnetism.

Watch

Extended reading notes

Core claim

The central claim, stated in the conclusion, is that TiO₂ shell formation successfully integrates optical and magnetic functionalities into a single platform. In the Fe₃O₄@TiO₂ sample, direct sol-gel coating produced highly agglomerated nanoflake clusters of about 196 nm with an indirect band gap blueshifted to 3.41 eV, which the authors attribute to Fe–Ti interfacial states. Inserting an SiO₂ spacer changed the outcome: particles shrank to about 68 nm, dispersed well, and recovered a sharp absorption edge at 3.37 eV, close to the 3.32 eV of pure TiO₂. Both coated systems remained superparamagnetic, with saturation magnetization reduced from about 60 emu/g in the bare core; the authors explain the reduction by Fe³⁺–Ti⁴⁺ interactions, the diamagnetic silica layer, and surface spin canting.

Load-bearing premise

The claim that the titanium dioxide shell fully covers the magnetite core rests on the absence of iron-oxide reflections in X-ray diffraction and on infrared bands that overlap between iron–oxygen and titanium–oxygen vibrations; neither measurement alone can rule out small, poorly crystallized, or partially exposed core material.

Editorial extensions

If this is right

Both coated architectures remain superparamagnetic, so the oxide shells do not destroy the magnetic response the core is chosen for.
The silica-interlayer design produces smaller, better-dispersed particles and a UV absorption edge close to that of pure TiO₂, making it the stronger candidate for biomedical use.
The blueshift in Fe₃O₄@TiO₂ points to Fe–Ti interfacial electronic states that could be tuned independently of the bulk shell properties.
If the structural results hold, a single particle can in principle carry MRI contrast, magnetic hyperthermia, phototherapy, and optical imaging functions at once.
The reduced saturation magnetization of the coated particles implies that hyperthermia performance will be lower per gram than for bare magnetite, so heating efficiency must be measured directly.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The evidence for complete encapsulation is indirect: X-ray diffraction cannot detect small or amorphous core fractions, and the Fe–O and Ti–O infrared bands overlap, so depth-resolved elemental mapping would be needed to confirm that no core surface is exposed.
By tuning the SiO₂ layer thickness, one could control how much charge transfer occurs between TiO₂ and the core, connecting this biomedical design to photocatalytic applications where charge separation is wanted rather than blocked.
The natural next experiment is a quantitative specific-absorption-rate measurement under alternating magnetic fields; if the shell suppresses heating, the optical gains may not compensate for the magnetic loss.
Since both coated band gaps sit in the ultraviolet, the phototherapy claim implicitly assumes UV illumination or future visible-light sensitization of the shell.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Rough take: the paper's comparative data on Fe3O4@TiO2 and Fe3O4@SiO2@TiO2 are worth having, but the central claim of complete TiO2 encapsulation is not established by the evidence shown, and there are internal contradictions that would need fixing before publication.

What's genuinely useful: the authors ran the same synthesis and characterization suite on both architectures, and the differences are clean: the silica spacer improves dispersibility, reduces particle size, and preserves a TiO2-like band gap (3.37 eV vs 3.32 eV), while the direct Fe3O4@TiO2 composite shows a blueshift to 3.41 eV. The SQUID data show superparamagnetic behavior in all samples with reduced magnetization after coating. That is a plausible, reproducible dataset for a materials-science audience.

The soft spots are real but not equally soft. The most load-bearing weakness is the proof of complete shell formation. XRD shows no Fe3O4 reflections in the core-shell samples, but that is consistent with small, strained, or partially dissolved cores—especially given the glacial acetic acid at 90 °C and calcination at 500 °C. FTIR is not decisive because the Fe-O band sits inside the broad Ti-O envelope; masking is not encapsulation. The TEM for Fe3O4@TiO2 explicitly shows poor core-shell contrast, so direct imaging evidence is missing for the simpler architecture. So the statement 'confirming the successful formation of TiO2 shell' goes beyond the data.

There are also two outright internal inconsistencies. The abstract and highlight claim a redshift, but Section 3.2 reports a blueshift for Fe3O4@TiO2 (Eg 3.41 eV vs 3.32 eV for pure TiO2). And the sample labeled 'undoped TiO2' in Section 3.1 is actually bare Fe3O4—the Rietveld refinement gives a cubic Fe3O4 structure. The crystallite-size discussion also mixes Fe3O4 core sizes with TiO2 shell sizes without making the distinction clear. These are fixable but they are not cosmetic.

Novelty is modest; similar Fe3O4/TiO2 and Fe3O4/SiO2/TiO2 systems appear in the cited literature. The comparative design with and without the silica spacer is the main addition.

Who gains from this: someone working on magnetic-photoresponsive core-shell particles who wants a quick comparison of two synthesis paths. It is not a breakthrough, but it is a legitimate characterization study.

Recommendation: send it to peer review, but with the expectation of major revision. The reviewers should ask for direct evidence of encapsulation (TEM-EDX line scan or mapping, or at least an explicit discussion of the detection limits) and corrections to the internal contradictions. If those are addressed, it becomes a reasonable contribution to an applied materials journal.

Referee Report

4 major / 5 minor

Summary. The manuscript reports the synthesis and characterization of Fe3O4@TiO2 and Fe3O4@SiO2@TiO2 core-shell nanostructures prepared by sol-gel and Stöber methods, with structural, optical, and magnetic properties assessed via XRD with Rietveld refinement, FTIR, TEM, HR-SEM, diffuse reflectance UV-Vis, and SQUID magnetometry. The authors claim successful formation of a tetragonal TiO2 shell without spurious phases, retention of superparamagnetic behavior, and band gaps close to that of TiO2, positioning the materials as a platform for hyperthermia-assisted multimodal cancer therapy. The conclusions rest on the absence of Fe3O4 reflections in XRD, the masking of the Fe-O band by Ti-O/Ti-O-Ti absorption in FTIR, and supporting microscopy and magnetometry.

Significance. If the core-shell architecture is genuinely as complete and phase-pure as claimed, the work provides a useful demonstration of a dual-function magnetic/photo-responsive nanoplatform for multimodal therapy, with a comparatively simple synthesis route. The manuscript has strengths: it employs a broad characterization suite, reports Rietveld refinement indices, and presents superparamagnetic hysteresis loops. However, the central claim of complete TiO2 encapsulation is not uniquely established by the provided XRD and FTIR evidence, and there are internal contradictions in the optical results. In its current form the paper is a plausible materials report, but the load-bearing evidence needs strengthening before the core-shell conclusion can be accepted.

major comments (4)

[Section 3.1.1 and Figure 3.1.1] The assertion that the absence of Fe3O4 reflections in the core-shell XRD patterns 'confirm[s] the successful formation of TiO2 shell' is not justified. XRD cannot detect small, highly strained, or amorphous iron-oxide fractions, and the synthesis conditions (glacial acetic acid at 90 °C followed by calcination at 500 °C) may partially etch or oxidize Fe3O4 to an amorphous or weakly scattering phase. The manuscript provides no detection-limit estimate or control experiment (e.g., physical mixtures or partially coated samples). This evidence alone does not distinguish complete encapsulation from core dissolution, phase transformation, or a separate TiO2 phase mixed with magnetite. This is load-bearing because the entire 'integration of optical and magnetic functionalities into a single platform' rests on the core-shell geometry.
[Section 3.1.2, Figure 3.1.2e] The FTIR interpretation that the Fe-O band near 570 cm⁻¹ is 'masked' by Ti-O/Ti-O-Ti absorption in the 400–800 cm⁻¹ range does not uniquely demonstrate core encapsulation. The overlapping absorption regions mean that the same spectrum would be obtained for a physical mixture of Fe3O4 and TiO2 nanoparticles or for a sample with incomplete, porous shells. The authors should provide additional evidence for a closed shell—for example, TEM-EDS elemental mapping, XPS depth profiling, or magnetic saturation measurements that can be compared with mass fractions—before claiming encapsulation.
[Abstract, Highlights, and Section 3.2] There is a direct internal contradiction in the optical claims. The Abstract and Highlights state that diffuse reflectance spectroscopy confirmed a 'redshift from nanostructures absorption in comparison to pure titanium dioxide,' whereas Section 3.2 reports Eg = 3.41 eV for Fe3O4@TiO2 and Eg = 3.37 eV for Fe3O4@SiO2@TiO2, both of which are blueshifts relative to the pure TiO2 value of 3.32 eV. Since the optical band-gap behavior is a central result of the paper, the manuscript must be corrected to report the actual shift and reconcile the text with the data.
[Section 3.1.2, Figure 3.1.2a–d] The comparison of crystallite sizes is misleading. The sizes 14.97 nm (Scherrer) and 14.98 nm (W-H) are for the Fe3O4 core, while 11.77 nm and 12.59 nm are for the TiO2 shell phase. These are crystallite sizes of different materials, not a change in core size upon coating. The statement that 'this reduction suggests that the core restricts TiO2 growth' is therefore not a valid inference from these numbers. A proper analysis would compare TiO2 crystallite sizes in pure TiO2 versus shell TiO2, or track core size before and after coating via TEM or XRD line broadening of the core reflections.

minor comments (5)

[Section 3.1] The sample labeled 'undoped TiO2' in the XRD discussion is actually bare Fe3O4, as evidenced by the reported cubic Fe3O4 structure and lattice parameters. Please correct this label throughout the text and figures.
[Section 3.2] Figure numbering is inconsistent: the text refers to 'Figure 3.3.2(a-d)' and 'Figure 3.3.2(e-f)', while the figure caption reads 'Figure 3.2.1'. Similarly, earlier text refers to 'Figure 3.1.2' for FTIR with part labels that are not fully aligned with the caption. Please standardize the figure and part references.
[Section 3.2] The magnetic characterization would benefit from reporting quantitative Ms values for Fe3O4@TiO2 and Fe3O4@SiO2@TiO2, not just the statement that they 'significantly decreased'. This would allow readers to assess the trade-off between shell formation and magnetic functionality.
[Section 2.1] The synthesis states that the dried product was 'ground and calcined at 500 °C for 4 h', but it is not clear whether the Fe3O4@TiO2 gel was washed or purified before calcination. Please specify the washing/purification steps and the heating ramp during calcination.
[References] Reference [9] is incomplete ('CULLITY, B. Elements of. X-ray! Jiffraction, 1978.'); please provide the full bibliographic entry. Also, the PCrystalX and MagMicros citations are self-citations to web resources; please ensure they include version or access information.

Circularity Check

0 steps flagged · score 0.0 of 10

No derivational circularity: all reported quantities are measured outputs, and the self-cited software is ancillary, not load-bearing.

full rationale

This is a synthesis-and-characterization paper with no first-principles derivation and no fitted model whose outputs are later relabeled as predictions. The central claim—successful TiO2 shell formation—is supported by measured XRD patterns, FTIR spectra, TEM/HR-SEM images, DRS band gaps, and SQUID magnetometry. Lattice parameters, crystallite sizes, band gaps, and saturation magnetizations are all reported as experimental outputs, not as parameters tuned to force a conclusion. The self-citations to PCrystalX [8] and MagMicros [12] are to software used for crystallite-size and particle-size estimation from the same diffraction and microscopy data; those estimates are ancillary and the core-shell claim does not reduce to them. The evidence for complete encapsulation may be incomplete—XRD detection limits and FTIR band overlap mean that partial coverage or phase mixtures are not uniquely excluded—but that is an evidentiary weakness about correctness, not circularity. No equation in the paper defines a target quantity in terms of its own conclusion, and no fitted input is subsequently presented as an independent prediction. Therefore the circularity score is 0.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The paper makes no derivational claim, so it introduces no fitted parameters. Standard analysis formulas, such as Scherrer, Williamson-Hall, and Tauc, are assumptions, and the FTIR band assignments are domain assumptions. No new physical entities are postulated.

assumptions (4)

standard math Scherrer equation relates XRD peak broadening to crystallite size under the assumption of small, strain-free, spherical crystallites with a shape factor K = 0.9.
Used in Section 3.1.2 to compute crystallite sizes from XRD line broadening.
standard math Tauc relation for indirect band gap: the linear region of (alpha*h*nu)^(1/2) versus h*nu is extrapolated to zero to obtain Eg.
Used in Section 3.2 to obtain band gaps of 3.32, 3.41, and 3.37 eV; assumes parabolic band edges and ignores excitonic effects.
domain assumption Superparamagnetism is inferred from zero remanence and zero coercivity in the SQUID magnetization loops.
Invoked in Section 3.2 to classify all samples as superparamagnetic; measurement temperature and blocking behavior are not fully described.
domain assumption FTIR band assignments: Fe-O near 570 cm^-1 is masked by Ti-O/Ti-O-Ti absorption, and Si-OH near 996 cm^-1 indicates the silica layer.
Used in Section 3.1.2 to infer core encapsulation and silica presence; overlapping absorption bands make the assignments non-unique.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Structural, Optical and Magnetic Properties of Superparamagnetic Fe3O4@TiO2 and Fe3O4@SiO2@TiO2 CoreShell Nanostructures." pith.science (2026). https://pith.science/paper/Y6YILQX2

@misc{pith2026260811165,
  author       = {Pith},
  title        = {Pith review of: Structural, Optical and Magnetic Properties of Superparamagnetic Fe3O4@TiO2 and Fe3O4@SiO2@TiO2 CoreShell Nanostructures},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/Y6YILQX2}},
  note         = {Machine review of arXiv:2608.11165}
}

read the original abstract

Tailoring core-shell nanostructures using iron oxide core (Fe3O4) and titanium dioxide shell (TiO2) offer a promising multifunctional platform for multimodal cancer therapies. TiO2 shell exhibits photo-responsive optical properties suitable for optical imaging and phototherapies, while Fe3O4 magnetic core enables magnetic resonance imaging (MRI) and magnetic hyperthermia therapy (MHT). This present work reports synthesis and characterization from core-shell Fe3O4@TiO2 and Fe3O4@SiO2@TiO2 nanostructures. Structural and physical properties were evaluated using X-ray Diffraction (XRD), Fourier-Transform Infrared Spectroscopy (FTIR), Transmission Electron Microscopy (TEM), High-Resolution Scanning Electron Microscopy (HRSEM), Diffuse UV-Vis Reflectance Spectroscopy (DRS) and SQUID magnetometry. This work highlights the potential use of magnetic (core) and optically activated (shell) nanostructures for multimodal therapies assisted by magnetic hyperthermia.

Figures

Figures reproduced from arXiv: 2608.11165 by the authors.

**Figure 3.1.** 1(a–d) [PITH_FULL_IMAGE:figures/full_fig_p002_3_1.png] view at source ↗

Figures from the paper (1 more)

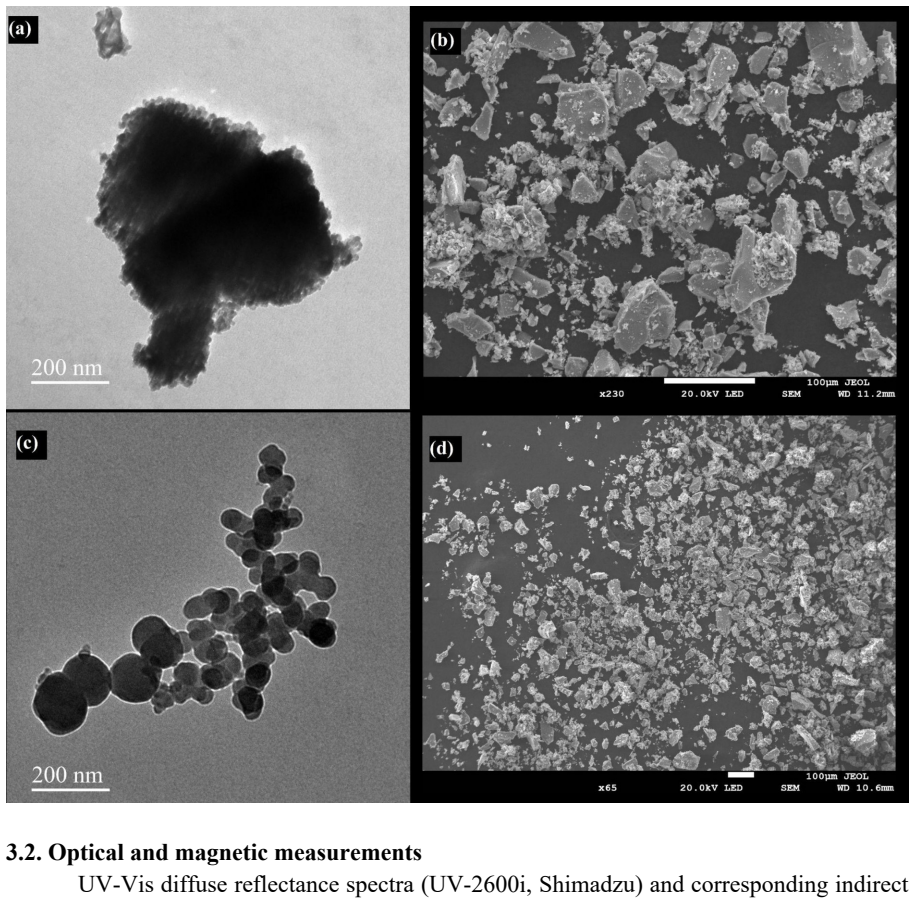

**Figure 3.3.** Figure 3.3: 2(a-d) [PITH_FULL_IMAGE:figures/full_fig_p005_3_3.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages

[1]

Economic and accessible portable homemade magnetic hyperthermia system

CASTELO-GRANDE, Teresa et al. Economic and accessible portable homemade magnetic hyperthermia system. Materials, v. 17, n. 10, p. 2279, 2024

work page 2024
[2]

Magnetite-silica core/shell nanostructures: from surface functionalization towards biomedical applications

SPOIALĂ, Angela et al. Magnetite-silica core/shell nanostructures: from surface functionalization towards biomedical applications. Applied Sciences, v. 11, n. 22, p. 11075, 2021

work page 2021
[3]

HAGHIGHI, H. et al. An amplified sonodynamic therapy by a nanohybrid of titanium dioxide-gold-polyethylene glycol-curcumin: Ultrasonics Sonochemistry, v. 102, p. 106747, 2024

work page 2024
[4]

Enhanced photocatalytic activity of magnetite/titanate (Fe3O4/TiO2) nanocomposite for methylene blue dye degradation under direct sunlight

RAJABATHAR, Jothi Ramalingam et al. Enhanced photocatalytic activity of magnetite/titanate (Fe3O4/TiO2) nanocomposite for methylene blue dye degradation under direct sunlight. Optical Materials, v. 148, p. 114820, 2024

work page 2024
[5]

Development and application of multifunctional Fe3O4/SiO2/TiO2/Cu nanocomposites for sustainable water treatment

MAZHARI, Mohammad-Peyman et al. Development and application of multifunctional Fe3O4/SiO2/TiO2/Cu nanocomposites for sustainable water treatment. Journal of Sol-Gel Science and Technology, v. 110, n. 1, p. 156-168, 2024

work page 2024
[6]

KHALID, A. et al. Fe3O4 nanoparticles and Fe3O4@ SiO2 core-shell: synthesize, structural, morphological, linear, and nonlinear optical properties. Journal of Alloys and Compounds, v. 947, p. 169639, 2023

work page 2023
[7]

ADEDOKUN, O. et al. Structural, optical and magnetic studies of sol-gel synthesized Mg- doped pure anatase TiO2 nanoparticles for spintronic and optoelectronics applications. Physica b: Condensed Matter, v. 667, p. 415199, 2023

work page 2023
[8]

PCrystalX -- Web Application

Bernardo, Pablo L. "PCrystalX--Web Application." Xiv:2204.14072 (2022)

work page Pith review arXiv 2022

Show all 12 references

[9]

Elements of

CULLITY, B. Elements of. X-ray! Jiffraction, 1978

1978
[10]

DEMIN, Alexander M. et al. Magnetic-responsive doxorubicin-containing materials based on Fe3O4 nanoparticles with a SiO2/PEG shell and study of their effects on cancer cell lines. International journal of molecular sciences, v. 23, n.16, p. 9093, 2022

2022
[11]

Surface-modified TiO2@ SiO2 nanocomposites for enhanced dispersibility and optical performance to apply in the printing process as a pigment

WANG, Lei et al. Surface-modified TiO2@ SiO2 nanocomposites for enhanced dispersibility and optical performance to apply in the printing process as a pigment. ACS omega, v. 8, n. 22, p. 20116-20124, 2023

2023
[12]

https://magnano.uenf.br/magmicros

Bernardo, Pablo L. “https://magnano.uenf.br/magmicros”

Pith tools

Reviewed August 12, 2026 · model on record in the stance chip above.

[1] [1]

Economic and accessible portable homemade magnetic hyperthermia system

CASTELO-GRANDE, Teresa et al. Economic and accessible portable homemade magnetic hyperthermia system. Materials, v. 17, n. 10, p. 2279, 2024

work page 2024

[2] [2]

Magnetite-silica core/shell nanostructures: from surface functionalization towards biomedical applications

SPOIALĂ, Angela et al. Magnetite-silica core/shell nanostructures: from surface functionalization towards biomedical applications. Applied Sciences, v. 11, n. 22, p. 11075, 2021

work page 2021

[3] [3]

HAGHIGHI, H. et al. An amplified sonodynamic therapy by a nanohybrid of titanium dioxide-gold-polyethylene glycol-curcumin: Ultrasonics Sonochemistry, v. 102, p. 106747, 2024

work page 2024

[4] [4]

Enhanced photocatalytic activity of magnetite/titanate (Fe3O4/TiO2) nanocomposite for methylene blue dye degradation under direct sunlight

RAJABATHAR, Jothi Ramalingam et al. Enhanced photocatalytic activity of magnetite/titanate (Fe3O4/TiO2) nanocomposite for methylene blue dye degradation under direct sunlight. Optical Materials, v. 148, p. 114820, 2024

work page 2024

[5] [5]

Development and application of multifunctional Fe3O4/SiO2/TiO2/Cu nanocomposites for sustainable water treatment

MAZHARI, Mohammad-Peyman et al. Development and application of multifunctional Fe3O4/SiO2/TiO2/Cu nanocomposites for sustainable water treatment. Journal of Sol-Gel Science and Technology, v. 110, n. 1, p. 156-168, 2024

work page 2024

[6] [6]

KHALID, A. et al. Fe3O4 nanoparticles and Fe3O4@ SiO2 core-shell: synthesize, structural, morphological, linear, and nonlinear optical properties. Journal of Alloys and Compounds, v. 947, p. 169639, 2023

work page 2023

[7] [7]

ADEDOKUN, O. et al. Structural, optical and magnetic studies of sol-gel synthesized Mg- doped pure anatase TiO2 nanoparticles for spintronic and optoelectronics applications. Physica b: Condensed Matter, v. 667, p. 415199, 2023

work page 2023

[8] [8]

PCrystalX -- Web Application

Bernardo, Pablo L. "PCrystalX--Web Application." Xiv:2204.14072 (2022)

work page Pith review arXiv 2022
