On Hypergraph Representation of Multipartite Quantum Systems

Adil Belhaj; Salah Eddine Ennadifi; Zakariae Ennadifi

REVIEW 3 major objections 6 minor 26 references

On Hypergraph Representation of Multipartite Quantum Systems

T0 review · 3 major / 6 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims that every k-qubit hyperedge in a hypergraph state can be generated by a projector Hamiltonian whose effective coupling falls as $J/2^k$, and that decoherence therefore caps realizable hyperedge order at $\log_2(J…

desk verdict A known hypergraph-state formalism wrapped in toric-geometry language, undercut by a wrong Pauli expansion that invalidates the paper's main decoherence bound. read the letter →

arxiv 2608.12067 v1 pith:RDZXOY2P submitted 2026-08-12 hep-th

Adil Belhaj , Salah Eddine Ennadifi , Zakariae Ennadifi This is my paper · ORCID

classification hep-th

keywords qubitshypergraphstatesquantumcorrelationsmany-bodyinteractionscontrolled-Zgatesdecoherencescalabilitytoricgeometry

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that multipartite quantum states described by hypergraphs—graphs whose edges can join more than two qubits—can be generated by continuous Hamiltonian evolution, not only by discrete controlled-Z gates. It constructs hypergraph states $|H_n\rangle$ from generalized phase gates and shows that each hyperedge of order $k$ corresponds to a many-body projector interaction with coupling $J$. Expanding that projector in Pauli operators, the paper finds an effective coupling $J_{\rm eff}=J/2^k$ for each k-body term. Because the gate time is inversely proportional to that effective coupling, completing a k-hyperedge gate takes $2^k\pi/J$, so decoherence with coherence time $T_c$ limits the realizable hyperedge order to $\log_2(J T_c/\pi)$. If this is right, hypergraph entanglement is scalable only with long coherence times and strong many-body couplings.

What carries the argument

The load-bearing object is the projector Hamiltonian $\hat{H}^{(k)}=-J P^{(k)}$ for a single k-hyperedge, with $P^{(k)}=|1\ldots1\rangle\langle1\ldots1|$. Its Pauli expansion is what turns a discrete controlled-Z operation into a continuous evolution and produces the factor $1/2^k$ in front of the joint spin operator $Z_1\cdots Z_k$. That factor is the entire mechanism behind the exponential gate-time growth and the logarithmic size bound.

What would settle it

Measure the duration needed to acquire the $\pi$ phase of a controlled-Z gate generated by $H=-J P$ on $k$ qubits, with $J$ fixed, for $k=2,3,4$. If the duration is $\pi/J$ in all cases, the $2^k$ slowdown and the bound $k_{\max}=\log_2(JT_c/\pi)$ do not hold.

Watch

Extended reading notes

Core claim

Starting from the discrete construction in which each hyperedge $e^{(k)}$ of a hypergraph $H_n$ is assigned a generalized controlled-Z gate $C^k Z$ acting on the $k$ connected qubits, the paper shows that the resulting hypergraph state $|H_n\rangle$ equals the time-evolved state $e^{-iHt}|+\rangle^{\otimes n}$ under a many-body projector Hamiltonian $H=-\sum_\alpha J^{(k_\alpha)} P^{(k_\alpha)}$, where $P^{(k)}=|1\ldots1\rangle\langle1\ldots1|$. Expanding the projector in the Pauli-Z basis gives an effective coupling $J/2^k$ for each k-body term, so the gate duration needed to implement a k-hyperedge is $\Delta t = 2^k \pi/J$. Imposing $\Delta t < T_c$ yields the bound $k_{\max}=\log_2(J T_c/\pi)$, which the paper reads as a fundamental scalability limit: hypergraph states with large hyperedges require either long coherence times or exponentially strong many-body couplings.

Load-bearing premise

The exponential limit assumes that the physically relevant coupling for a k-hyperedge is the coefficient $J/2^k$ that appears after expanding the projector in Pauli operators, so that the gate time is $2^k\pi/J$ rather than $\pi/J$.

Editorial extensions

If this is right

Any quantum platform that realizes hypergraph states through this Hamiltonian must have a coherence time of at least $2^k\pi/J$ for a k-hyperedge, so hypergraphs with many high-order edges become exponentially harder to generate.
The Hamiltonian-hypergraph correspondence turns the combinatorial structure into an interaction hierarchy: a k-hyperedge contributes one k-body term $Z_1\cdots Z_k$ plus lower-order terms, so target k-body interactions can be designed by choosing hyperedge orders.
The bound $k_{\max}=\log_2(J T_c/\pi)$ gives a concrete resource estimate: improving the coherence time by a factor of 2 adds only one unit to the maximal hyperedge order unless the coupling also grows.
With strong many-body couplings, hypergraph states of moderate size remain within reach; the paper thereby identifies long coherence and strong coupling, rather than state-preparation complexity alone, as the key scalability constraints.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Because the exponential slowdown comes from the Pauli expansion of the projector, a direct implementation of $H=-J P$ without expanding would give a k-independent gate time; measuring the gate time as a function of $k$ would discriminate the paper's effective-coupling picture from the raw-projector picture.
The same counting that yields $m=2^n-n-1$ hyperedges implies $2^{2^n-n-1}$ hypergraph states; this super-exponential count could serve as a resource measure for multipartite entanglement, though the paper does not develop it.
The toric-geometry analogy suggests associating each k-hyperedge with a simplex in a dual polytope; extending the construction to qudit hypergraph states could produce a hierarchy of q-level couplings analogous to the $Z_1\cdots Z_k$ terms.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

You should know this one for the textbook example of how a small expansion error collapses a paper's central claim. The paper re-derives hypergraph states via C^kZ = e^{iπP}, maps them to projector Hamiltonians, and then claims that the Pauli expansion shows exponentially weak effective couplings, imposing a fundamental k_max bound. The first part is standard and correct; the last part is built on an incorrect expansion.

What's actually new is only the toric-geometry analogy: drawing n qubits as vertices of an n-gon with hyperedges as 'communication spheres' between Bloch spheres. That framing is more suggestive than useful—it doesn't generate any new result or technique. The hypergraph state formalism, the identity, and the Pauli expansion of the projector are all in the cited literature (refs 8, 11, 12, 15).

The paper does do a few things correctly: the projector Hamiltonian H = -J P with the phase-matching condition Δt J = π does generate C^kZ, and the gate time is π/J for any k. Eq. (21) states that. But then Eq. (23) tries to expand P in Pauli operators and keeps only the identity and the full product Z_1...Z_k, dropping all 2^k - 2 intermediate terms. The correct expansion is 2^{-k} Σ_{S⊆[k]} (-1)^{|S|} ∏_{i∈S} Z_i. From that, each individual Pauli string has coefficient J/2^k, but that's not an energy scale of the physical Hamiltonian—the spectral gap of -J P is J. Consequently the claimed gate time Δt = 2^k π/J in Eq. (24) contradicts the paper's own condition (21), and the k_max bound in Eq. (26) is unsupported. If you use the exact Hamiltonian, you get the C^kZ gate in time π/J regardless of k; there is no exponential slowdown from this mechanism.

So the main physical conclusion is wrong, and the rest is a re-presentation of known material. The paper is short, but the error is load-bearing. I don't see how a revision could preserve any novel claim, because the only 'new' part is the toric-geometry picture, which is not developed enough to be a result.

This is not a paper I'd send for serious peer review. It's more like a seminar note with a mistake in it. You could use it as a cautionary tale about expanding projectors in Pauli bases, but that's about it.

Recommendation: desk reject.

Referee Report

3 major / 6 minor

Summary. The paper proposes a hypergraph representation of n-qubit systems, motivated by the use of toric-geometry diagrams in string compactifications. It constructs hypergraph states with generalized controlled-Z gates and then maps each k_alpha-hyperedge to a projector Hamiltonian H = -J P. The central quantitative claims are that the Pauli expansion of this Hamiltonian reveals a hierarchy of multipartite couplings with effective strength J/2^k, that the required gate time grows as 2^k pi / J, and that decoherence therefore imposes the scalability bound k_max = log_2(J T_c / pi). These claims appear in Secs. 4.2, 4.3 and in the concluding remarks.

Significance. The standard identity e^{i pi P} = C^kZ and the exact unitary evolution generated by a projector Hamiltonian are correctly stated, and these ingredients give a valid construction of hypergraph states by continuous evolution. If the exponential slowdown and the derived bound were correct, they would constitute a practically relevant scalability limitation for hypergraph-state generation. However, the paper's main quantitative result is invalidated by an incorrect Pauli expansion, and the exponential gate time contradicts the paper's own phase-matching condition. The toric-geometry vocabulary is not used in any derivation and remains decorative. The paper is useful as a reminder of the elementary projector-to-C^kZ mapping, but the central scalability claim does not follow from the presented model.

major comments (3)

[Sec. 4.2, Eq. (23)] The expansion of the projector is incorrect. For P_{v_1...v_k}=|1...1><1...1|, the exact identity is P = 2^{-k} prod_{i=1}^k (I - Z_{v_i}) = 2^{-k} sum_{S subset of [k]} (-1)^{|S|} prod_{i in S} Z_{v_i}. Eq. (23) keeps only the identity and the full k-fold product, omitting all 2^k - 2 intermediate Pauli strings. This contradicts the surrounding text in Sec. 4.2, which claims that Eq. (23) 'contains all possible interaction orders'; the displayed formula actually contains only two terms.
[Sec. 4.3, Eq. (24)] The gate time in Eq. (24) contradicts Eq. (21) and the exact evolution. For H = -J P, the unitary is U(t) = e^{-iHt} = I + (e^{iJt} - 1)P, so the C^kZ gate is obtained at t = pi/J for every k, exactly as required by the phase-matching condition Delta t J = pi in Eq. (21). The expression Delta t = 2^k pi / J would describe a different Hamiltonian, namely a bare k-body term -J/2^k Z_1 ... Z_k, not the projector Hamiltonian in Eq. (20). Therefore the exponential slowdown does not follow from the model under consideration.
[Sec. 4.3, Eq. (26)] The bound k_max = log_2(J T_c / pi) follows from Eq. (24), and since Eq. (24) is not the gate time of the projector Hamiltonian, the bound is unsupported. With the correct gate time pi/J, the condition Delta t < T_c is independent of k, so the paper's central conclusion about an exponential reduction of achievable hyperedge order with decoherence is not established.

minor comments (6)

[Sec. 3.1] In the n=3 example the text says 'one has k_3 = 4' for the single 3-edge e_4^{(3)}; this should presumably be k_4 = 3, since k_alpha is the order of hyperedge alpha and k_alpha <= n.
[Sec. 2.2, Eq. (10)] The identity 2n - 1 = n + m is used to motivate m 'communication spheres', but this counting relation does not imply that CP^{2n-1} can be decomposed into n plus m independent 2-spheres; the geometric representation is asserted rather than derived.
[Eq. (15)] The middle equality in Eq. (15) writes the action on |1...1> with a redundant product of 1s and a sign factor (-1)^{k_alpha}; this notation is confusing and should be simplified or removed.
[Sec. 2.1 and Eq. (5)] The qubit basis is written |1>, |2> in Sec. 2.1 but |0>, |1> in Sec. 3.2; the notation should be made consistent throughout.
[Throughout] There are numerous typographical errors, including 'Hypegraphs', 'secanrios', 'rouphly', 'oders', and inconsistent reference formatting; a careful proofreading pass is needed.
[Sec. 2 and Sec. 4] The toric-geometry and Calabi-Yau material in Sec. 2 is not used in the Hamiltonian derivation of Sec. 4; if the analogy is kept, the paper should either make it operational or explicitly label it as motivational.

Circularity Check

0 steps flagged · score 2.0 of 10

No load-bearing circularity: the Hamiltonian is explicitly defined to generate the hypergraph states, and the self-citations are motivational background, not evidence for the central claim.

full rationale

The core construction is not circular. The hypergraph state is defined in Eqs. (15)-(16) via products of projectors e^{iπP}, and the Hamiltonian is introduced in Eq. (20) explicitly as H = -J P, followed by the phase-matching condition Δt J = π in Eq. (21). Under that condition, the propagator reproduces the desired controlled-Z gate by direct construction; this is a legitimate constructive definition, not a hidden input renamed as a prediction. No data are fitted, and no external uniqueness theorem or prior result is invoked to force the central claim. The exponential gate time in Eq. (24) and the bound k_max = log2(J T_c/π) in Eq. (26) are derived from the Pauli expansion claimed in Eq. (23), not assumed in the defining Hamiltonian; whether that expansion is mathematically correct is a separate correctness issue, not a circularity, because the bound does not appear among the inputs. References [23], [25], and [26] are self-citations used only for toric-geometry vocabulary in Sections 1 and 2.1; they are not load-bearing for the Hamiltonian formulation, the hypergraph-state construction, or the scalability discussion. The central derivation is therefore self-contained in the circularity sense. The score of 2 reflects only the presence of minor, non-load-bearing self-citations; no specific circular step meets the evidentiary bar of exhibiting a reduction of the target result to its own inputs.

Assumptions & free parameters 1 free parameters · 4 assumptions · 1 invented entities

The paper introduces no new physical parameters beyond an arbitrary coupling J and an assumed coherence time T_c. Its central scaling claim depends on an incorrect Pauli expansion (Eq. 23). The geometric 'communication spheres' are invented entities with no independent empirical support.

free parameters (1)

J^(kα) (per-hyperedge coupling strength)
Arbitrary coupling constant chosen by hand in Eq. (20); the gate time and decoherence bound depend linearly and logarithmically on it.

assumptions (4)

standard math C^kZ = e^{i π P} for projector P = |1><1|^⊗k
Standard identity for controlled phase gates; used in Eq. (15) and (22).
ad hoc to paper The projector expands as H = -J/2^k [I + (-1)^k Π Z_i]
This incorrect expansion appears as Eq. (23) and is the basis for the claimed 1/2^k effective coupling. It omits intermediate Pauli strings and contradicts Sec 4.2.
ad hoc to paper n-qubit state space can be represented by an n-polygon with n Bloch spheres and m 'communication spheres'
Introduced in Sec 2.2 as a 'novel graph representation'; no derivation is provided linking this geometric picture to the Hilbert space structure beyond counting dimensions.
domain assumption Decoherence suppresses off-diagonal coherences over timescale T_c
Standard, but invoked in Sec 4.3 to convert gate time into a bound on hyperedge order.

invented entities (1)

'Communication spheres' (extra 2-spheres encoding the quantum entanglement space)
purpose: To justify representing n qubits by n vertices plus m extra edges in a hypergraph; they are meant to account for the dimension m = 2^n - n - 1.
The spheres are a geometric re-labeling of hyperedges; no physical observable or measurement is attached to them, and no independent evidence is offered.

how reviews work

0 comments

Cite this review

Pith. "Pith review of On Hypergraph Representation of Multipartite Quantum Systems." pith.science (2026). https://pith.science/paper/RDZXOY2P

@misc{pith2026260812067,
  author       = {Pith},
  title        = {Pith review of: On Hypergraph Representation of Multipartite Quantum Systems},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RDZXOY2P}},
  note         = {Machine review of arXiv:2608.12067}
}

read the original abstract

Borrowing ideas from the link between Calabi-Yau singularities and toric geometry in string theory compactifications, a hypergraph framework for multipartite quantum systems, extending graph representations to higher-order quantum correlations, is investigated. By implementing hyperedges in many-body Hamiltonian interactions, an interplay between hypergraph states and quantum state dynamics is established. The corresponding Hamiltonian hypergraph reveals the hierarchy of all possible multipartite interactions. However, the decoherence effects impose constraints on the realization of large hypergraph states. The findings show the importance of long coherence times and strong many-body couplings for the realization of large hypergraph states.

Figures

Figures reproduced from arXiv: 2608.12067 by the authors.

**Figure 2.** Hypergraph representation of 3-qubits. Thus, the total number of hyperedges |E| in (10) is obtained such as |E| = Xn kα=2 C kα n = 2 n − n − 1 = m, n ⩾ 2. (12) In this scenario, the total number of hypergraph states for n vertices turns out to be 2 Pn kα−=2 C kα n = 2 2 n−n−1 . 3.2. Hypergraph states Provided a mathematical hypergraph Hn = (V, E), the corresponding quantum state |Hn⟩ can be obtained by assigning to… view at source ↗

**Figure 1.** Graphic representation of 2-qubits. It is easy to show, by counting all possible edge configurations, that the number of graph states is 2C 2 n , where C 2 n is the binomial coefficient n choose 2. 3. Hypergraph state description of n-qubit systems In this section, we investigate the hypergraph states of nqubit systems using the above concepts. 3.1. Hypergraph representation In the part, the hypergraph notation Hn… view at source ↗

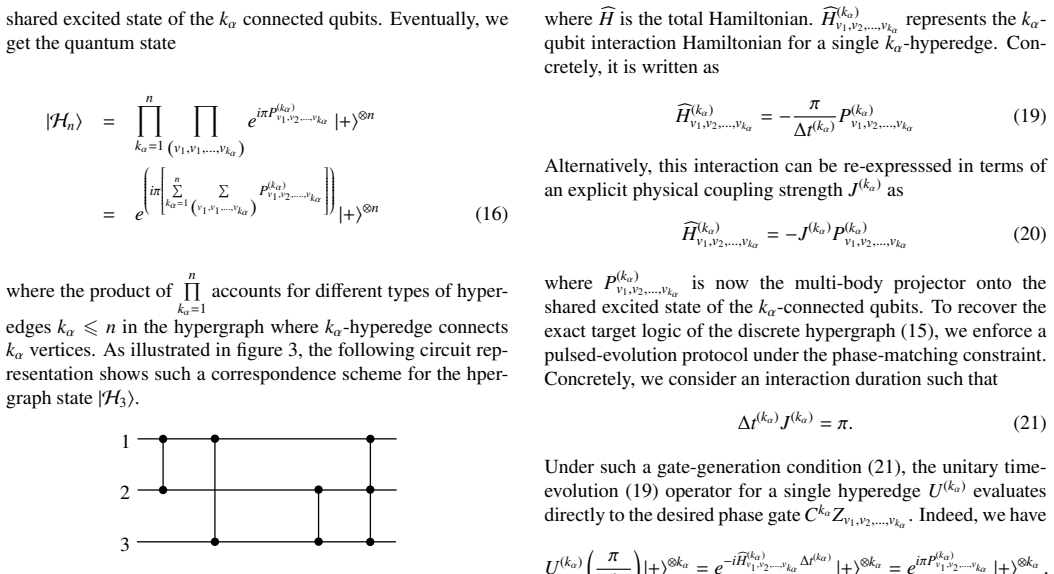

**Figure 3.** Hpergraph state |H3⟩. This is a leading example of the quantum hypergraph state |H3⟩ obtained from the hypergraph H3 for n = 3. In this way, the gates are represented by a line, with dots indicating qubits on which they are acting. 4. Hamiltonian formulation for hypergraph states 4.1. Dynamical evolution From a dynamical perspective, the C kα Zv1,v1,...,vkα discrete gates generating the hypergraph state map directly… view at source ↗

Discussion (0). Continue with ORCID to comment.
