Quantum-limited imaging using diffractive optical neural networks

T0 review · 2 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read General imaging can operate at the quantum precision limit using a trainable phase-mask photon-counting receiver.

desk verdict The 1D low-contrast results are convincing and the SDP machinery is sound, but the 2D high-contrast saturations claims are not backed by the computed bounds. read the letter →

arxiv 2608.12300 v1 pith:E2BKLDAY submitted 2026-08-12 quant-ph

Aakash Warke , Aonan Zhang , A. I. Lvovsky This is my paper · ORCID
classification quant-ph
keywords quantum-limitedimagingmultiparameterquantumestimationNagaoka-HayashiCramer-Raoboundsemidefiniteprogrammingdiffractiveopticalneuralnetworkphotoncountingsuperresolutionmicroscopyspatial-frequency
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper recasts incoherent imaging as a finite multiparameter quantum estimation problem and claims that a trainable optical device can reach the fundamental precision limit for measurements on single photons. The object is expanded in band-limited spatial-frequency cosine modes, the collected light becomes a quantum state linear in the mode amplitudes, and the tightest single-copy precision bound—the Nagaoka–Hayashi Cramér–Rao bound—is evaluated by semidefinite programming. A diffractive optical neural network followed by photon counting is then trained to maximize the Fisher information of its outputs, and in simulation it saturates the bound for one, two, and up to fifteen amplitudes while direct imaging falls short. The payoff, if correct, is a practical receiver that recovers sub-Rayleigh image features at the quantum limit in photon-starved microscopy, telescopy, and remote sensing.

What carries the argument

Three objects carry the argument. The Fourier-cosine parametrization of the object makes the per-photon density matrix linear in the unknown amplitudes, giving diagonal analytic Fisher matrices for direct imaging and for the quantum limit. The Nagaoka–Hayashi Cramér–Rao bound, formulated as a semidefinite program in Eq. (5), provides the computable precision target for measurements that act on each photon independently. The diffractive optical neural network—a cascade of trainable phase masks separated by optical Fourier transforms that applies a programmable unitary to the collected field—followed by photon counting is the physical receiver; because its output count rates are linear in the amplitudes, its Fisher information is differentiable in the mask phases, so gradient descent on $\mathrm{Tr}[F^{-1}]$ trains the measurement directly, and a fixed linear estimator built from calibration data closes the gap to the bound.

What would settle it

Evaluate the Nagaoka–Hayashi semidefinite program at the true parameters of the Fig. 4 scenes without the low-contrast replacement $\rho\to\rho_0$, and compare the resulting bound with the empirical covariance of the trained network's linear estimator on Monte-Carlo counts at those same contrasts. If the estimator variance exceeds the exact bound, the claimed saturation at the quantum limit does not hold for the demonstrated objects; if it matches, the low-contrast route is validated.

Watch

Extended reading notes

Core claim

The paper's central claim is that the quantum-limited precision for imaging an arbitrary incoherent object under single-copy measurements is both computable and physically attainable. Using the Fourier-cosine expansion $f(r;\theta)=a_0+\sum_{0<|k|\le k_c} a_k \cos(k_x x)\cos(k_y y)$ and the per-photon state $\rho(\theta)$ of Eq. (3), it derives diagonal analytic Fisher matrices for direct imaging and for the quantum limit, showing that direct imaging carries a penalty factor $1/\mathrm{OTF}(k)$ in variance that diverges at the incoherent cutoff. Solving the Nagaoka–Hayashi semidefinite program shows that the single-copy bound lies strictly above the quantum Cramér–Rao bound once a second amplitude is added, with the gap growing with the number of parameters. A diffractive optical neural network with $P$ phase masks implements the unitary $V(\phi)=F e^{i\phi_P}\cdots F e^{i\phi_1}$; because the output count rates depend linearly on the amplitudes, the Fisher information of Eq. (8) is a differentiable, parameter-independent function of the mask phases, so minimizing $\mathrm{Tr}[F^{-1}]$ by gradient descent yields a measurement that saturates the Nagaoka–Hayashi bound. The matched linear estimator of Eq. (9) attains $F^{-1}/N$ and is calibrated without the object, so the device operates on unseen scenes; the paper demonstrates this in one-dimensional frequency sweeps and in two-dimensional reconstructions of an abstract pattern, an atomic lattice, and a diatom frustule.

Load-bearing premise

The load-bearing assumption is that the low-contrast approximation $a_k\ll a_0$ remains valid for the objects on which the method is demonstrated, because it underlies the analytic Fisher matrices, the semidefinite-program evaluation of the Nagaoka–Hayashi bound, the training loss, and the linear estimator; if it fails for the atomic lattice and diatom scenes, the computed bounds are not the true quantum limits and saturation is not established.

Editorial extensions

If this is right

  • Simulations show a trained diffractive optical neural network saturates the single-copy quantum precision bound for one, two, and up to fifteen jointly estimated spatial-frequency amplitudes across the transmitted band.
  • Direct imaging is worse by a factor of about $1/\mathrm{OTF}(k)$ in per-photon variance, so near the incoherent cutoff the trained receiver needs many times fewer photons for the same precision.
  • The Nagaoka–Hayashi bound separates from the quantum Cramér–Rao bound as soon as a second amplitude is estimated, so single-copy receivers cannot attain the collective-measurement limit; the paper's semidefinite program gives the attainable benchmark.
  • The receiver is a fixed linear map from photon counts to amplitudes, calibrated once without the object, so it can be applied to unseen scenes without retraining.
  • The same passive architecture is expected to transfer to astronomy, satellite imaging, and remote sensing wherever photon number is the limiting resource.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A direct next test, not reported by the paper, is to evaluate the exact Nagaoka–Hayashi bound at the true parameters of a high-contrast scene and compare it with the trained network's covariance; this would either certify the low-contrast route or expose where it starts to fail.
  • The paper's hybrid suggestion—direct imaging for low-frequency amplitudes and a diffractive network only near the cutoff—could be tested quantitatively, since the variance advantage is concentrated at high spatial frequencies.
  • The same training procedure could be run on non-ideal noise statistics such as camera read noise and dark counts rather than ideal Poisson counts, a regime the paper lists as future work but does not quantify.
  • If the phase masks were updated in real time using earlier detection outcomes, the receiver might exceed the single-pass Nagaoka–Hayashi limit by exploiting scene information; the paper mentions adaptivity as an extension but does not analyze its achievable gain.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper proposes a framework for treating incoherent imaging as multiparameter quantum estimation of Fourier-cosine amplitudes of a band-limited object, computes the Nagaoka-Hayashi Cramér-Rao bound via semidefinite programming, and introduces a diffractive optical neural network followed by photon counting that is trained on the Fisher information to saturate that bound. The one-dimensional results with up to fifteen parameters are supported by SDP solutions cross-checked between CLARABEL and SCS, by an analytic upper bound, and by Monte Carlo variances matching Fisher predictions. The two-dimensional demonstrations involve high-contrast objects with up to M=314 estimated amplitudes, for which the NHCRB is not computed, and all precision bounds are evaluated under the low-contrast assumption a_k << a_0.

Significance. If the validity issues are resolved, this is a potentially important contribution: it connects trainable optical receivers to multiparameter quantum estimation, provides a computable NHCRB for imaging states, and includes a clean weak-commutativity proof in Sec. S2. Strengths include the careful SDP implementation (cross-checked between two solvers in 1D), the analytic upper bound that sandwiches the numerical NHCRB, the Monte Carlo verification of estimator variances, and the public code/data. However, the headline claim that the receiver reaches the quantum limit on large, high-contrast scenes is not yet supported because the low-contrast approximation is load-bearing and unquantified for the demonstrated objects, and because the large-M scenes have no computed NHCRB.

major comments (2)
  1. [Evaluation of precision bounds; Eqs. (4), (5), (8), (9); Sec. S1] The analytic QCRB and direct-imaging FIM in Eq. (4), the SDP in Eq. (5), the training loss in Eq. (8), and the linear estimator in Eq. (9) are all derived under the replacement rho(theta) -> rho_0, valid to first order in a_k/a_0. The text asserts that this approximation remains accurate at high contrast, citing Ref. [25], but it does not verify the condition for the objects in Fig. 4, whose intensity modulations are visibly not small compared with the background. Sec. S1 confirms that all plotted bounds are evaluated under the low-contrast assumption alone. The Monte Carlo agreement reported in Sec. S5 would be a partial check if it explicitly covered the high-contrast 2D objects, but the paper does not report the relevant amplitude ratios or isolate that comparison. Please report max_k |a_k|/a_0 for each demonstrated object, and validate the bounds either by computing the exact state at the true amplitudes for the M=3 object or by testing a high-contrast 1D benchmark where the exact spectral calculation is feasible.
  2. [Imaging arbitrary objects; Fig. 4 and Table S1] For the atomic lattice and diatom scenes, M=314 and K=358, and the text states that these high mode counts prevented NHCRB estimation. Column (v) of Fig. 4 therefore shows no NHCRB for these objects. The claim that the DONN saturates the NHCRB on these scenes is asserted rather than demonstrated; the data show only that the DONN Fisher information is lower than that of direct imaging. Either compute the NHCRB for a reduced but representative parameter subset, such as the high-frequency amplitudes where the advantage is claimed, or explicitly restrict the saturation claim to the parameter sets for which the bound is actually evaluated. This is needed to support the 'large parameter set' version of the central claim.
minor comments (4)
  1. [Introduction] The phrase 'has remainedterra incognita' is missing a space between 'remained' and 'terra'.
  2. [Acknowledgements] The name 'Stanis law Kurdzia lek' contains escaped-space artifacts and should be cleaned to a proper name.
  3. [Reference [16]] Reference [16] lists a DOI-like string '10.1063/1.2916093' under the journal placeholder 'J. Phys. A'; verify the journal, volume, and article number.
  4. [Fig. 2 caption] The caption says the shaded region shows the upper bound (10), but the shaded region is not visible in the text version; ensure the figure displays it clearly.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the NHCRB benchmark and the trained DONN FIM are independently computed, and the estimator variance is a derived identity rather than a fitted prediction.

full rationale

The central derivation chain is self-contained. The NHCRB is obtained by solving the independent SDP of Eq. (5) using the quantum state model of Eq. (3) and its fixed derivative operators; the trained DONN's classical Fisher information of Eq. (8) is a separate quantity, and the paper's saturation claim is a genuine variational comparison between a restricted class of measurements and the SDP lower bound over all separable measurements. The estimator of Eq. (9) is a linear map built from the same FIM, so its covariance F^{-1}/N at theta=0 is an algebraic identity derived in Supplement S5 and then verified by Monte Carlo; this is a self-consistency check, not a prediction forced by fitted data. The analytic DI and QCRB formulas in Eq. (4) are derived in Supplement S3 from the explicitly stated low-contrast approximation, and the SDP implementation is cross-checked against independent analytical bounds (Eq. 10 and the sandwich with the QCRB). The one notable self-citation is Ref. [25], used for the Fourier-cosine parametrization and for the assertion that low-contrast CRBs remain accurate at high contrast; this is an appeal to prior work rather than a reduction of the present derivation to its own inputs, and the paper transparently states that all plotted bounds are evaluated under the low-contrast assumption. The absence of a computed NHCRB for the M=314 scenes is a numerical-scope limitation, not a circular step.

Assumptions & free parameters 1 free parameters · 6 assumptions · 0 invented entities

The central claim rests on a linearized, low-contrast, shot-noise-limited model of incoherent imaging, plus a truncated mode-space for the SDP. The only hand-chosen numerical parameter that affects the computed bound is the eigenvalue threshold for the mode projection. No new physical entities are introduced. The low-contrast approximation and the real-PSF assumption are the most fragile inputs; both are stated, but the first is justified partly by a self-citation and the second is extended to aberrated pupils without proof.

free parameters (1)
  • Support-projection eigenvalue threshold = 10^-12 (default), 10^-4 (Fig. 4 first object)
    Chosen by hand to truncate the mode space for the NHCRB SDP. The elevated threshold for the 2D M=3 case reduces K and may bias the computed bound upward, which affects the saturation claim for that case.
assumptions (6)
  • domain assumption Weak incoherent sources emit at most one photon per temporal mode, so the detected state is a classical mixture of single-photon PSF modes (Eq. 3).
    Standard model for photon-starved incoherent imaging; underlies all subsequent Fisher information and SDP computations.
  • domain assumption The object intensity is band-limited by the hard aperture to |k| <= k_c = 4*pi*NA/lambda, and the truncated Fourier-cosine expansion captures all observable information (Eq. 2).
    Follows from the OTF cutoff for a hard pupil; the paper treats it as exact.
  • domain assumption Low-contrast approximation a_k << a0, replacing rho(theta) by rho0 and u by u(0) in Fisher information and SLD equations (S3).
    Used in Eq. (4), SDP evaluation, DONN training loss (8), and the linear estimator (9). The paper invokes self-cited Ref. [25] for validity at higher contrast, but the demonstrated diatom and lattice objects are not explicitly low contrast.
  • domain assumption The amplitude PSF is real, so rho(theta) and its derivatives are real symmetric in the position basis, implying weak commutativity and Holevo equals QCRB (S2).
    Holds for an ideal hard pupil; the extension to arbitrary pupil phase variations is stated without proof and may fail for complex aberrated PSFs.
  • domain assumption Photon counting is shot-noise-limited with Poisson statistics (S5).
    Defines the classical Fisher information (8) and the estimator covariance (S41).
  • domain assumption The finite mode-space truncation K about M_c retains all modes with non-negligible light (S4).
    The SDP and DONN operate in a truncated Hilbert space; the proof of sufficiency relies on eigenvalue decay of the Gram matrix, and the elevated threshold for Fig. 4 weakens this guarantee.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Quantum-limited imaging using diffractive optical neural networks." pith.science (2026). https://pith.science/paper/E2BKLDAY

@misc{pith2026260812300,
  author       = {Pith},
  title        = {Pith review of: Quantum-limited imaging using diffractive optical neural networks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/E2BKLDAY}},
  note         = {Machine review of arXiv:2608.12300}
}
read the original abstract

We cast general imaging as multiparameter quantum estimation of band-limited spatial-frequency amplitudes. For separable (single-copy) measurements, we compute precision limits using semidefinite programming to evaluate the Nagaoka-Hayashi Cram\'er-Rao bound. We then introduce an architecture for a measurement apparatus based on diffractive optical neural networks and photon counting that saturates this bound. Extending the framework to arbitrary objects and many amplitudes, we show image reconstructions in which our architecture recovers fine features at the quantum limit, outperforming direct imaging. Together, these results open a scalable route to saturating multiparameter quantum limits in superresolution microscopy, telescopy, and remote sensing.

Figures

Figures reproduced from arXiv: 2608.12300 by the authors.

Figure 1

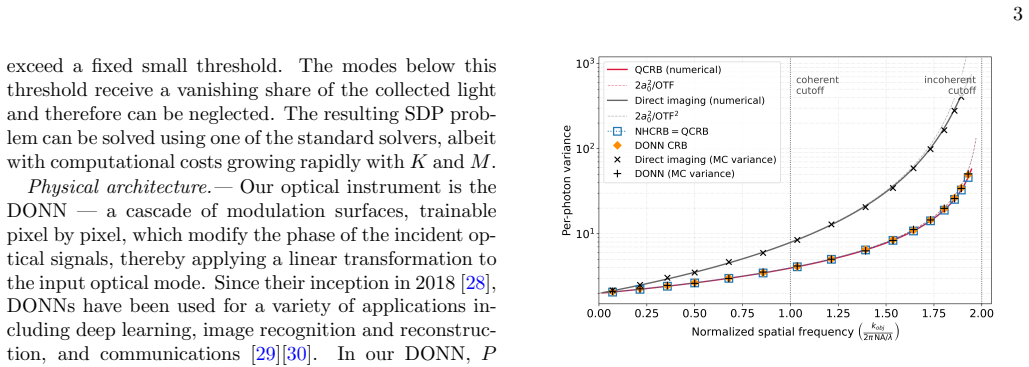

Figure 1. FIG. 1: Variances for single-amplitude estimation and [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2: Two-amplitude estimation. The first spatial [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. FIG. 4: Image reconstructions of 2D objects with sub-Rayleigh features. Each object occupies a 2 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
