JWST COMPASS: A NIRSpec G395H Transmission Spectrum of the Super-Earth GJ 357 b

T0 review · 3 major / 6 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read JWST's NIRSpec G395H spectrum of the warm super-Earth GJ 357 b is featureless, and forward models exclude low-mean-molecular-weight and low-metallicity atmospheres at 3σ, leaving a heavy secondary atmosphere or a bare rock.

desk verdict Solid single-transit non-detection that sharpens the GJ 357 b constraints, but the abstract overstates the exclusion limits and the constant detector-offset assumption deserves a second look. read the letter →

arxiv 2507.07165 v1 pith:5GQAEM4I submitted 2025-07-09 astro-ph.EP

Jea Adams Redai , Nicholas Wogan , Nicole L. Wallack , Munazza K. Alam , Artyom Aguichine , Angie Wolfgang , Hannah R. Wakeford , Johanna Teske
show 9 more authors
Nicholas Scarsdale Sarah E. Moran Mercedes Lopez Morales Annabella Meech Peter Gao Anna Gagnebin Natasha E. Batalha Natalie M. Batalha Lili Alderson
This is my paper
classification astro-ph.EP
keywords GJ357bsuper-EarthtransmissionspectroscopyNIRSpecG395HJWSTexoplanetatmospheresmeanmolecularweightatmosphericescape
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports the JWST NIRSpec G395H transmission spectrum of GJ 357 b, a warm ($T_{\mathrm{eq}}\approx 525$ K) rocky super-Earth orbiting a nearby M dwarf at 9.44 pc. The spectrum, binned into 53 channels with median precisions of 18 and 27 ppm on the two detectors, is flat: no molecular absorption features appear, and a two-flat-line model is preferred over a model with an agnostic Gaussian feature. Comparing the data with 1D forward models rules out atmospheres with mean molecular weight below $8$ g/mol and metallicities below roughly $300$–$500\times$ solar at $3\sigma$, for cloud tops above about $10^{-4}$ bar. The paper concludes that GJ 357 b most likely has either a high-mean-molecular-weight secondary atmosphere, perhaps rich in CO$_2$ or O$_2$, or no atmosphere at all. This matters because it adds one of the closest super-Earths to the evidence that warm rocky planets around M dwarfs rarely retain light primordial envelopes, and it sets up a scheduled thermal-emission observation to distinguish the two remaining scenarios.

What carries the argument

The argument is carried by the flat transmission spectrum together with a specific treatment of a known instrument systematic. The 53 spectroscopic channels are fit with two zero-slope lines, one per detector, allowing a single constant vertical offset between the NRS1 and NRS2 detectors; a Bayes factor of $0.49$–$0.68$ prefers this flat model over a model that adds a Gaussian feature. The physical exclusions come from forward models: chemical-equilibrium spectra at multiples of solar metallicity, H$_2$O–H$_2$ mixtures, an analytical pressure–temperature profile, and a transmission-spectrum code, all compared with the data using both $\chi^2$ tests and Bayesian retrievals with an error-inflation term. The detector offset is the load-bearing systematic, since absorbing it as one fitted constant per detector is what prevents a known instrumental jump from masquerading as an atmospheric feature.

What would settle it

Split the observed visit into halves and refit the detector offset separately for each half; if the two inferred offsets differ by more than their uncertainties, the flat-spectrum conclusion and the atmospheric exclusions would need revision.

Watch

Extended reading notes

Core claim

The central claim is that the featureless 3–5 μm transmission spectrum of GJ 357 b is an informative null result. Against chemical-equilibrium models, the data exclude metallicities below about $300$–$500\times$ solar, and against H$_2$O–H$_2$ mixtures they exclude mean molecular weights below about $8$ g/mol, both at $3\sigma$, for opaque pressure levels above roughly $10^{-4}$ bar. Because the planet's bulk density allows at most a $\sim$180 bar H$_2$–He envelope and energy-limited escape would strip such an envelope within about 50 Myr, a primordial low-MMW atmosphere is implausible at the planet's $\gtrsim$5 Gyr age. The paper therefore argues that the two viable states are a high-MMW secondary atmosphere, most plausibly O$_2$- or CO$_2$-rich given preferential hydrogen loss, or a bare rock with no atmosphere, which fits the data at $0.3\sigma$.

Load-bearing premise

The atmospheric limits assume that the brightness offset between the two detectors is a single constant that does not change with wavelength or time; if that offset drifts, the measured flatness and the resulting exclusions could be biased.

Editorial extensions

If this is right

  • A primordial hydrogen-dominated envelope is ruled out at $3\sigma$, so GJ 357 b joins the growing set of warm rocky planets around M dwarfs with no detectable low-mean-molecular-weight atmosphere.
  • If an atmosphere exists, it must be a high-mean-molecular-weight secondary atmosphere, and evolutionary escape models make a CO$_2$- or O$_2$-rich composition more likely than H$_2$O- or CH$_4$-rich air.
  • The single archived MIRI F1500W secondary eclipse should distinguish a bare basalt surface from an atmosphere with $\gtrsim$0.1 bar CO$_2$ at $\gtrsim$2$\sigma$, giving a near-term empirical test.
  • A joint analysis with the published NIRISS/SOSS spectrum could push the metallicity exclusion beyond $500\times$ solar, but because both spectra are flat it will not separate a bare rock from a high-MMW atmosphere with high clouds.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension is to apply the same two-offset-line analysis to the other planets in the same survey; if most of them also come back flat, the conclusion that M-dwarf super-Earths routinely lose their primordial envelopes becomes a population statement rather than a single-object result.
  • The escape-lifetime argument assumes an energy-limited efficiency of 30%; if the true efficiency is much lower, a heavier primordial envelope could survive longer, and the interpretation would shift from 'escaped long ago' to 'never accreted in appreciable amounts.'
  • Thermal emission at longer wavelengths than the single F1500W point would do more than separate airless from aired: a full MIRI spectrum of the 15 μm CO$_2$ band could directly measure the secondary atmosphere's composition if one is present.
  • Time-resolved fits of the detector offset on this same visit would directly test the weakest assumption, and could be reported as a robustness check in a follow-up paper.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. Adams Redai et al. present a single JWST/NIRSpec G395H transmission observation of the super-Earth GJ 357 b, reduced independently with the Tiberius and Eureka! pipelines. From white-light and 53-bin spectroscopic light-curve fits they obtain a spectrum that is consistent with a flat line plus a constant offset between the NRS1 and NRS2 detectors; a non-physical Gaussian-feature model is mildly disfavored by Bayesian evidence. Comparing the binned spectrum to 1D equilibrium-chemistry and H2O-H2 forward models, they report 3-sigma exclusions of mean molecular weight below about 8 g/mol and metallicity below about 300-500x solar for cloud-free cases, with a high-altitude cloud/haze caveat stated in the body. They combine mass-radius constraints and energy-limited escape calculations to argue that a primordial H2-rich envelope would have escaped, and conclude that GJ 357 b most likely has either a high-MMW secondary atmosphere (e.g., CO2/O2 rich) or no atmosphere at all. The paper also predicts that an archived JWST MIRI F1500W secondary eclipse can provide tentative discrimination between these scenarios.

Significance. If the reported constraints hold, this is a valuable addition to the small but growing JWST sample of warm, rocky planets around M dwarfs with featureless transmission spectra. The paper's strengths include two independent reductions with consistent results, use of publicly available reduction and modeling tools, high per-bin precision (18-27 ppm), and clear presentation of the model-dependent exclusion contours. The quantitative lower bounds on mean molecular weight and metallicity are useful for population synthesis and for planning future observations, and the MIRI eclipse prediction is concrete and testable. The result is not paradigm-breaking, but it is exactly the kind of careful atmospheric constraint that the field currently needs.

major comments (3)
  1. [Sections 3.1-3.2; Table 3; Figs. 2 and 4] The central quantitative claims - the 3-sigma exclusions of MMW < 8 g/mol and Z < 300-500x solar - are derived after modeling the NRS1-NRS2 discontinuity with a single, wavelength-independent vertical offset per detector. The paper tests time-dependent systematics and limb-darkening choices, but it never tests a wavelength-dependent component of this offset (e.g., a slope, curvature, or fringing within NRS1 or NRS2). Because the molecular features of interest are also wavelength-dependent, such a systematic could either mimic or mask spectral features and thereby bias the flatness conclusion and the exclusion contours. Agreement between the Tiberius and Eureka! reductions does not remove this concern, since both reductions use the same instrument data and similar systematics. I recommend adding tests with per-detector linear or low-order polynomial offset terms in both the non-physical and physical model fits, and/or deriving the exclusions independently from NRS1 and NRS2 and from wavelength subsets, to demonstrate that the reported 3-sigma boundaries are robust to the offset parameterization.
  2. [Section 4.1, Eq. (6)] I am unable to reproduce the quoted escape rate and lifetimes from the stated inputs. With F_XUV = 1.156e2 erg/s/cm2, R_p = 1.217 R_Earth, M_p = 1.84 M_Earth, a = 0.035 AU, and eta = 0.3, Equation (6) gives about 7e4 kg/s, not 6.63e5 kg/s; the corresponding lifetime for the 0.01 wt% H2-He envelope is about 0.5 Gyr, not 50 Myr. Similarly, the 1.97 wt% envelope under the saturation flux of about 1.13e5 erg/s/cm2 is lost in roughly 100 Myr (or about 10 Myr if the paper's 6.63e5 kg/s rate is used), not 500 kyr. The qualitative conclusion that a primordial envelope is unlikely to survive may still hold, but the numerical values and the '50 Myr' and '500 kyr' statements need to be corrected and checked. If F_XUV was intended to be 1.156e3 erg/s/cm2, that value and the conversion to L_XUV should be stated consistently.
  3. [Abstract and Section 5] The abstract and the summary bullets state that MMW <= 8 g/mol and metallicity <= 300-500x solar are ruled out without the high-altitude cloud caveat that is explicit in Section 3.2 ('A low MMW atmosphere remains possible only if the atmosphere has a high altitude cloud or haze layer (e.g., < 10^-2 bar; Figure 4)'). As written, the headline claims overstate the constraints. The abstract and conclusions should carry the same condition, for example 'in the cloud-free case' or 'for opaque pressure levels above about 10^-2 bar'.
minor comments (6)
  1. [Section 2.2.1] There is a missing space in 'theTiberius pipeline', and the text refers to 'GJ-527-b' where 'GJ 357 b' is intended.
  2. [Title and Abstract] The typeset manuscript title contains 'COMP ASS' and 'T ransmission'; these should be 'COMPASS' and 'Transmission'.
  3. [Section 3.2] The text uses 'Baysian' instead of 'Bayesian' in the description of the model comparison approaches.
  4. [Section 4.1] The notation is confusing because the text reports an X-ray luminosity L_X in erg/s and then an XUV flux F_XUV in erg/s/cm2 without explicitly stating how L_XUV in watts is obtained for Equation (6); please state the conversion relation used.
  5. [Figure 4 caption] The caption states 'MMW <~ 10 g/mol' for the metallicity panels, while the text quotes a range of 10-15 g/mol for the corresponding threshold metallicities; these numbers should be harmonized.
  6. [Section 4.3] There is a typo in 'the tranmission spectrum'; it should be 'transmission spectrum'.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the atmospheric exclusions follow from externally computed forward models compared to measured spectra, with detector offsets fitted as nuisance parameters rather than as predicted quantities.

full rationale

The paper's central quantitative claims are obtained by comparing a measured transmission spectrum to forward-modeled spectra. The derivation chain is: (i) two independent reductions (Tiberius and Eureka!) produce 53 binned spectroscopic light curves; (ii) a non-physical flat model with a free vertical offset per detector is preferred over a Gaussian-feature model by Bayes factors of 0.49 and 0.68; (iii) physical model spectra are generated with Photochem chemical equilibrium, PICASO radiative transfer, archived opacity databases, and an external analytical P-T profile, with a vertical offset and an error-inflation term as fitted nuisance parameters; (iv) exclusions are computed by chi-square tests and Bayesian retrievals. At no stage is the excluded quantity (mean molecular weight or metallicity) an input to the generation of the observed spectrum, and the detector offset is a free parameter, not a fitted prediction renamed as a result. The escape argument is a separate consistency check using an XMM-Newton X-ray luminosity, Sanz-Forcada XUV scaling, and an energy-limited escape formula; it is not used to derive the non-detection. Self-citations to previous COMPASS papers are frequent but serve as methodological precedent (reduction choices, known detector offset, cloud-deck parametrization) and are not the evidence that rules out low-MMW atmospheres; the same conclusions are reached with two independent reductions and externally validated tools. The assumption that the NRS1-NRS2 offset is constant with wavelength is a modeling assumption that could affect robustness, and the paper explicitly acknowledges alternate scenarios (high-altitude clouds, bare rock) and theoretical disagreement on secondary-atmosphere escape; these are uncertainty or assumption limitations, not circular reductions. The abstract states the metallicity exclusion somewhat more strongly than the body's opaque-pressure caveat, but that is an accuracy issue, not circularity. No equation or parameter in the paper is defined in terms of the target result, so no circular step can be exhibited.

Assumptions & free parameters 5 free parameters · 6 assumptions · 0 invented entities

The atmospheric constraints rest on forward models with several free parameters (metallicity, cloud-top pressure, per-detector offsets, error inflation); the escape interpretation adds an assumed efficiency and a single-epoch XUV estimate. No invented entities are introduced.

free parameters (5)
  • metallicity (multiple of solar) = posterior favors high values; <300-500x solar excluded at 3-sigma
    Free parameter in forward-model fits and Bayesian retrieval over 1-1000x solar; the exclusion threshold is the main atmospheric result.
  • opaque pressure level (cloud top pressure) = excluded above about 1e-4 bar for the low-metallicity bound; lower (higher-altitude) cloud decks allow low-MMW…
    Free parameter (1 to 1e-5 bar) in model grids and retrievals; the cloud-deck degeneracy is central to the interpretation.
  • per-detector vertical offsets (NRS1, NRS2) = 56-57 ppm offset between detectors, fitted for each reduction
    Free parameter in flat and Gaussian feature models and in atmospheric-model fits; the offset assumption is a key systematic choice.
  • error inflation term f = not reported quantitatively
    Added in quadrature to observed errors in Bayesian likelihood (Eq. 4-5); inflates uncertainties and changes exclusion boundaries.
  • escape efficiency eta = 0.3 (assumed)
    Hand-chosen from Luger & Barnes (2015), not fitted; lifetime estimate scales linearly with eta, but central conclusion is robust for reasonable eta.
assumptions (6)
  • domain assumption Energy-limited XUV escape approximation, Eq. 6
    Used in Sec 4.1 to estimate H2-He lifetime; assumes efficient, energy-limited escape of a primordial atmosphere.
  • domain assumption Current XUV luminosity derived from one XMM-Newton X-ray observation via Sanz-Forcada relation
    Sec 4.1. Single-epoch X-ray luminosity extrapolated to XUV; history of saturation period uses Owen & Wu (2017).
  • domain assumption Forward atmospheric models (PICASO, photochem chemical equilibrium, Guillot 2010 P-T profile, curated opacities) are representative
    Sec 3.2; the exclusion limits and allowed compositions depend on these models.
  • domain assumption NRS1-NRS2 offset is instrumental and constant per detector
    Sec 3.1; a single vertical offset per detector is fit; if offset were wavelength-dependent, the flat spectrum and constraints could change.
  • domain assumption Bulk composition models (Zeng & Jacobsen 2016, Lopez & Fortney 2014) bound the H2-He envelope to <0.01 wt%
    Sec 4.1 and Fig 6; used to estimate maximum primary atmosphere mass for escape lifetime.
  • standard math Standard transit light-curve and systematic models with batman, including limb darkening from stellar grids
    Sec 2.2; used to derive transit depths from raw light curves.

how reviews work

0 comments
Cite this review

Pith. "Pith review of JWST COMPASS: A NIRSpec G395H Transmission Spectrum of the Super-Earth GJ 357 b." pith.science (2026). https://pith.science/paper/5GQAEM4I

@misc{pith2026250707165,
  author       = {Pith},
  title        = {Pith review of: JWST COMPASS: A NIRSpec G395H Transmission Spectrum of the Super-Earth GJ 357 b},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5GQAEM4I}},
  note         = {Machine review of arXiv:2507.07165}
}
abstract

We present JWST NIRSpec/G395H transmission spectroscopy observations of GJ 357 b, a warm ($T_{\mathrm{eq}} \approx 525$ K) super-Earth ($1.2\ \mathrm{R_{\oplus}} $, $1.84\ \mathrm{M_{\oplus}} $) orbiting a nearby M3-type star, with a median precision of 18 ppm and 27 ppm in NRS1 and NRS2, respectively. These precisions are obtained by binning the spectrum into 53 spectroscopic channels with a resolution of 60 pixels (around 0.02 $\mu$m) each. Our analysis of the transmission spectrum reveals no detectable atmospheric spectral features. By comparing the observed spectrum with 1D forward models, we rule out atmospheres with mean molecular weights (MMW) lower than 8 g/mol to $3 \sigma$, as well as atmospheres with metallicities less than 300x solar. The lack of a low MMW primary atmosphere is consistent with a primordial H$_2$ rich atmosphere having escaped, given the planet's $\gtrsim5$ Gyr age, relatively low surface gravity (log g = 3.09), and its likely history of substantial incident extreme ultraviolet radiation. We conclude that GJ 357 b most likely possesses either a high-MMW secondary atmosphere, perhaps rich in oxidized gases like CO$_2$, or is a bare rock with no atmosphere. Upcoming scheduled JWST thermal emission observations could help distinguish between these scenarios by detecting signatures indicative of atmospheric heat redistribution or molecular absorption.

Figures

Figures reproduced from arXiv: 2507.07165 by the authors.

Figure 1

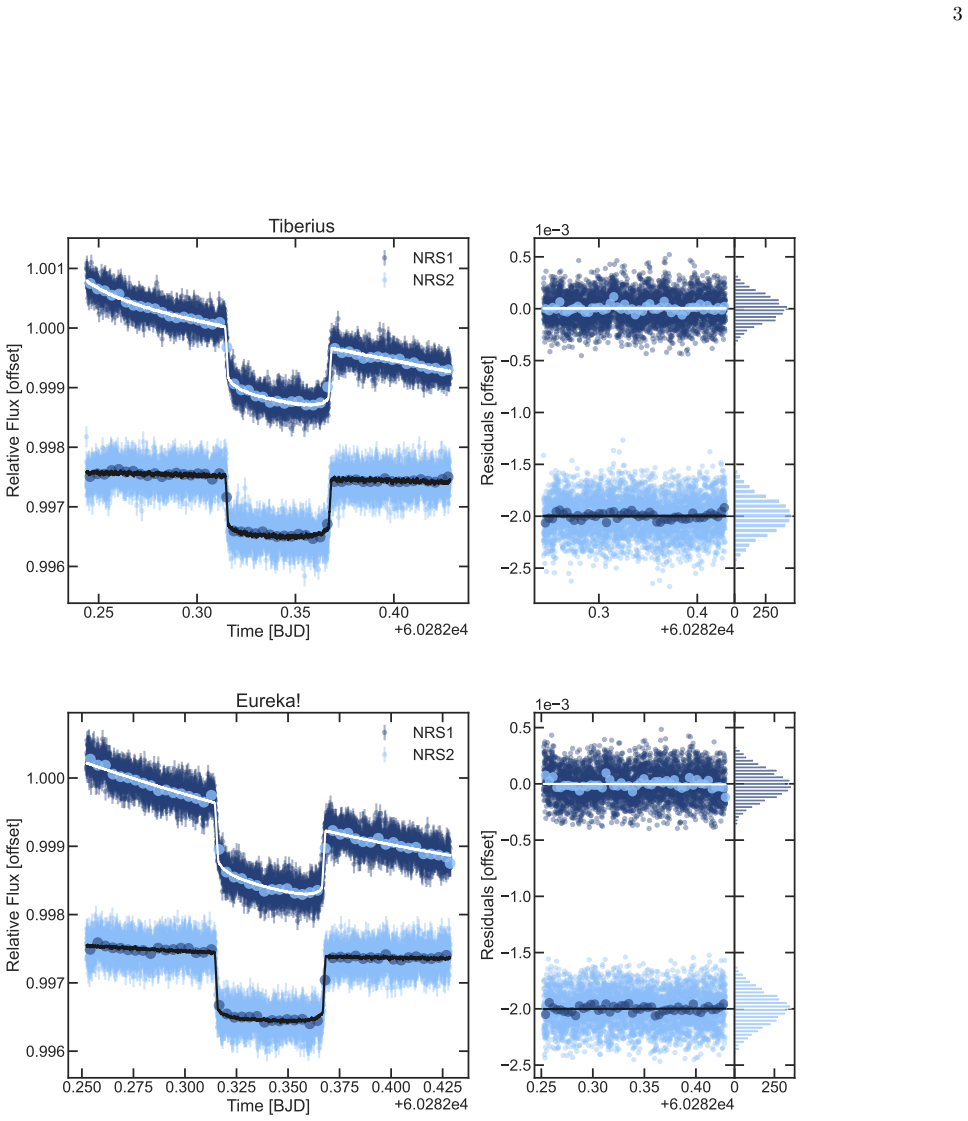

Figure 1. Top: Tiberius white light curves for each detector and reduction. Our best-fit models, including systematics, are overplotted on the data in white (NRS1) and black (NRS2). Right column: the residuals from the models. Binned light curves and residuals are also shown. Bottom: Same as top, for Eureka! Reduction [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Top: Comparison of the Tiberius (pale blue) and Eureka! (dark blue) transmission spectra of GJ 357 b in 60 pixel bins. Bottom: Difference between the two reductions. our single visit. The spectra derived from the two inde￾pendent reductions, Tiberius and Eureka!, show gen￾eral consistency in shape. The pipelines were kept inde￾pendent by design to ensure our conclusions were robust against data reduction choices. Al… view at source ↗
Figure 3
Figure 3. Comparison of transit depth precisions achieved by each independent reduction (Tiberius in pale blue, Eureka! in dark blue) compared to the predicted values from PandExo simulations [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p010_4.png]
Figure 5
Figure 5. Figure 5: The Tiberius reduction compared to several atmospheric compositions for GJ 357 b. Modeled atmospheres are fit to the the NRS1 and NRS2 datasets independently, as indicated by the vertical grey bar. The 100× solar metallicity atmosphere is confidently ruled out by the d…
Figure 6
Figure 6. Figure 6: Mass-radius diagram for small planets (0.2 ≤ Mp ≤ 30M⊕) derived from the NASA Exoplanet Archive, with planets shown as points and color-coded by composition. The left panel depicts the bulk water mass fraction (Aguichine et al. 2021), while the right panel shows the bu…
Figure 7
Figure 7. Figure 7: Predicted day side thermal emission from GJ 357 b for a bare rock with zero albedo (black line), bare basalt (gray line), pure CO2 atmospheres with surface pres￾sures of 0.1 and 100 bar (red and blue lines), and an atmo￾sphere with 0.1 bar CO2 and 10 bar O2 (orange lin…
