A dipolar Bose-Bose mixture of Dysprosium isotopes with controllable interspecies interactions

M. Duerbeck , L. Reihs , J.P. Marulanda-Serna , B. Choudhari , J. Seifert , N. Werum , G. Meijer , G. Valtolina This is my paper

Pith reviewed 2026-06-26 05:56 UTC · model grok-4.3

classification ❄️ cond-mat.quant-gas physics.atom-ph
keywords dysprosiumbose-einstein condensatefeshbach resonancedipolar gasmiscible-immiscible transitionultracold mixturequantum degenerate gas
0
0 comments X

The pith

A mixture of two dysprosium Bose-Einstein condensates is tuned between miscible and immiscible phases via a broad interspecies Feshbach resonance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors create a quantum-degenerate Bose-Bose mixture of the isotopes 162Dy and 164Dy. The near-identical masses and polarizabilities of the two species allow the mixture to thermalize and evaporate efficiently, with trajectories that closely match single-species cases. A broad interspecies Feshbach resonance is then used to vary the interaction strength and drive a transition from miscible to immiscible behavior between the two condensates. The platform combines this tunability with the large magnetic dipole moment of dysprosium, positioning it for studies of dipolar physics in multicomponent systems.

Core claim

We report on the realization of a quantum-degenerate Bose-Bose mixture of 162Dy and 164Dy. Owing to the near-identical mass and polarizability of the two isotopes, the mixture thermalizes efficiently, with evaporation trajectories closely following those of the single-isotope case. Using a broad interspecies Feshbach resonance, we explore a miscible-immiscible transition between the two Bose-Einstein condensates. The tunability of the interspecies interaction, combined with the large magnetic dipole moment of Dy, makes this platform well suited for exploring dipolar effects in ultracold mixtures, including multi-component supersolidity.

What carries the argument

Broad interspecies Feshbach resonance that tunes the scattering length between the two dysprosium isotopes while both species remain quantum degenerate.

If this is right

  • The mixture remains stable and quantum degenerate while the interspecies interaction is tuned across the miscible-immiscible boundary.
  • The large magnetic dipole moments of both species remain available for dipolar physics once the contact interaction is adjusted.
  • The same evaporation sequence used for single-species dysprosium works for the mixture without additional optimization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Independent tuning of intra-species and inter-species dipolar strengths could become possible by combining the Feshbach resonance with magnetic-field orientation control.
  • Phase-separation dynamics near the transition could be studied with high spatial resolution to test predictions for dipolar binary condensates.
  • Extension to three-component mixtures or to mixtures with different dysprosium isotopes might reveal additional supersolid phases.

Load-bearing premise

The two isotopes have sufficiently similar mass and polarizability that the mixture thermalizes efficiently and follows single-species evaporation trajectories.

What would settle it

No observable change in spatial overlap or density profiles between the two condensates when the magnetic field is swept across the reported interspecies Feshbach resonance.

Figures

Figures reproduced from arXiv: 2606.23528 by B. Choudhari, G. Meijer, G. Valtolina, J.P. Marulanda-Serna, J. Seifert, L. Reihs, M. Duerbeck, N. Werum.

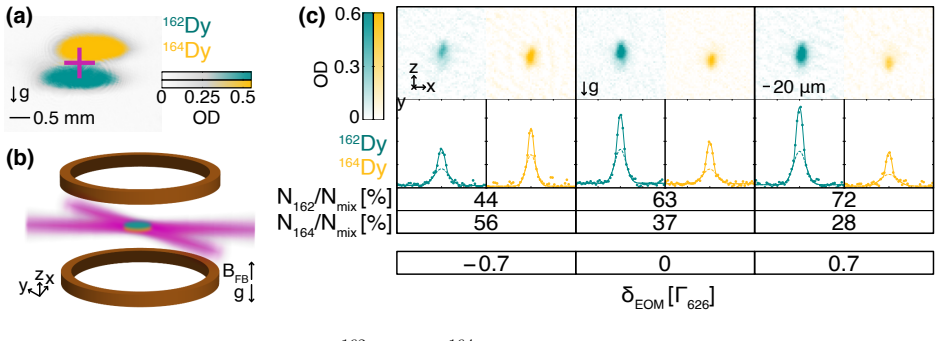

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Absorption images of [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

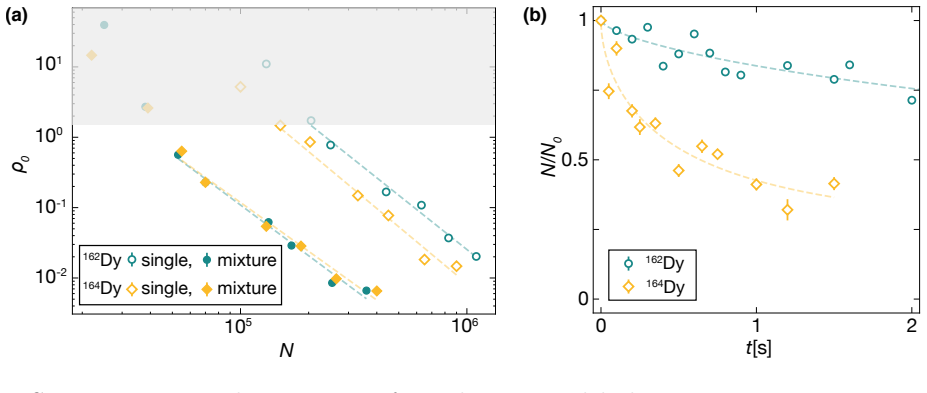

Figure 2
Figure 2. Figure 2: FIG. 2. Evaporative cooling trajectories for single-species and dual-species operation at a magnetic [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

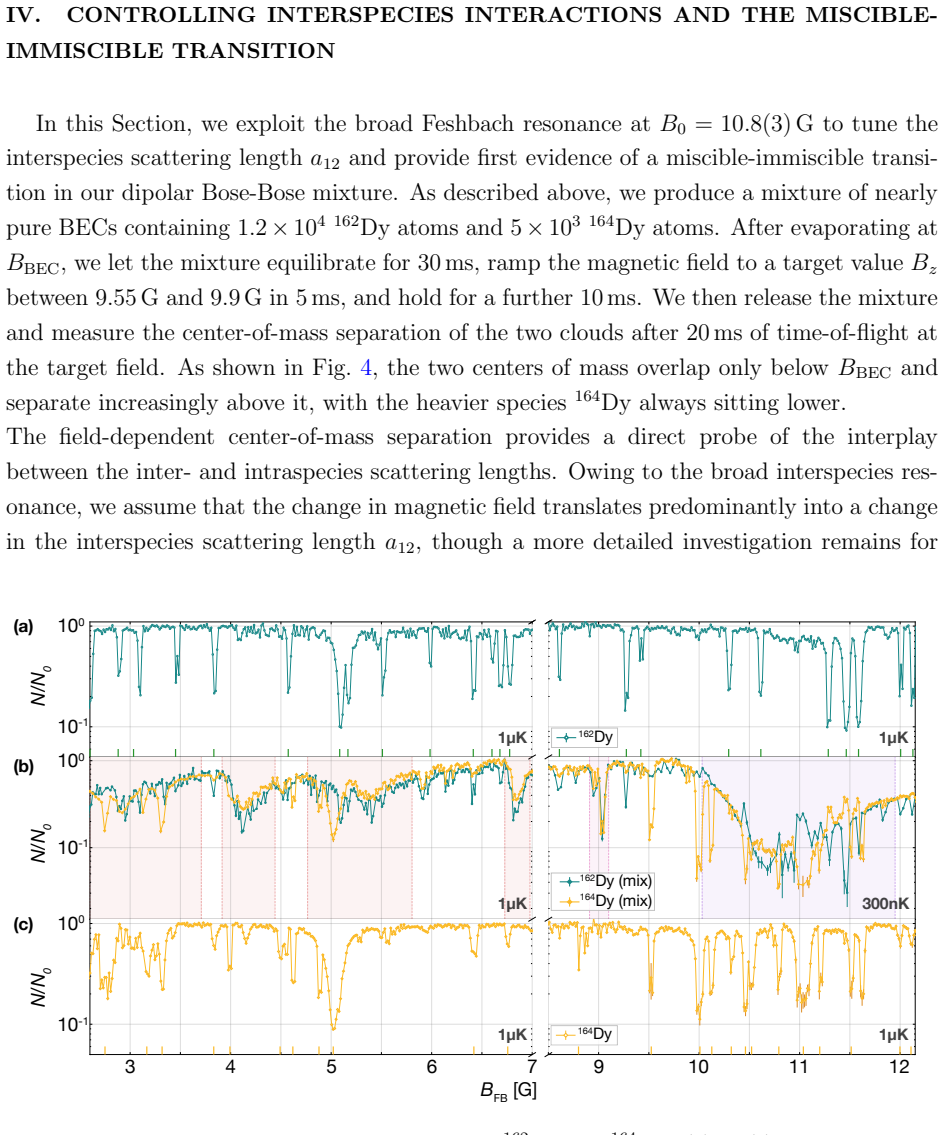

Figure 3
Figure 3. Figure 3: FIG. 3. Interspecies Feshbach resonances between [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

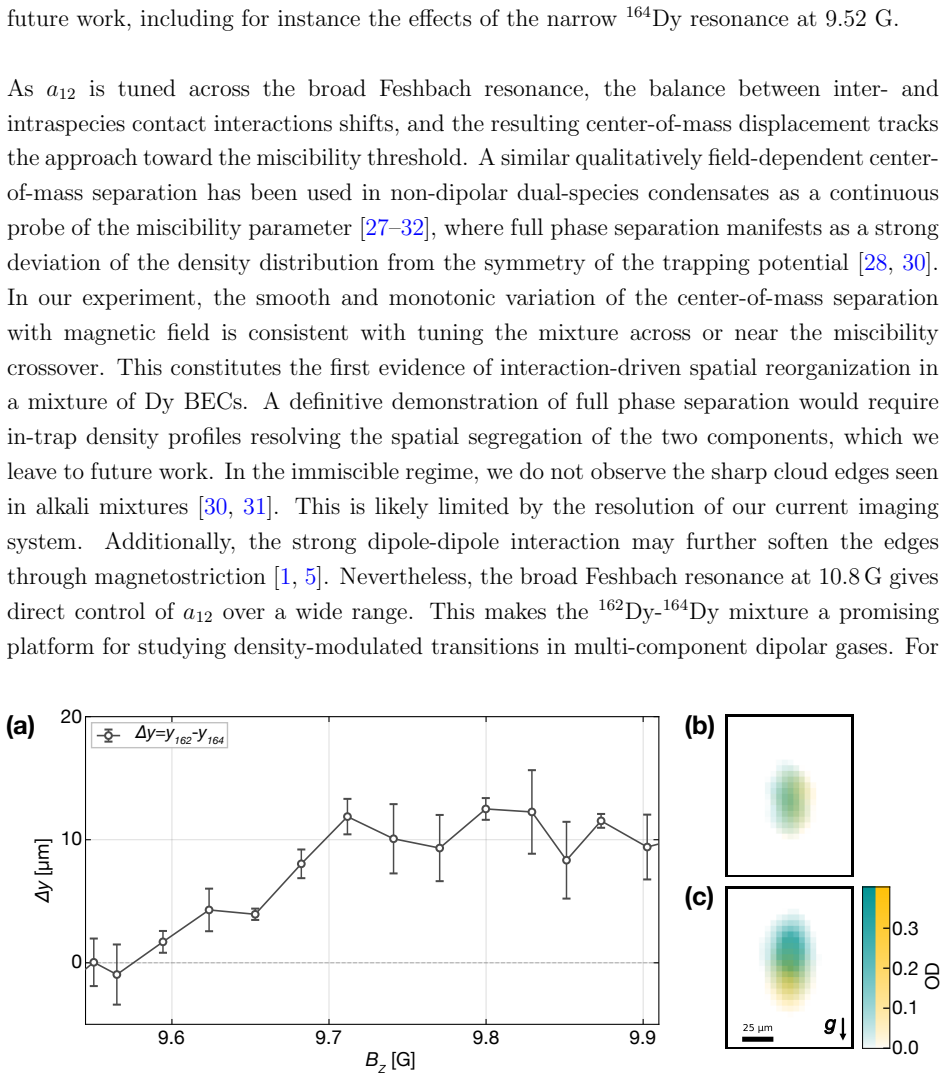

Figure 4
Figure 4. Figure 4: FIG. 4. Evidence of miscible-immiscible transition in a Dy miture. (a) Relative vertical displace [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

We report on the realization of a quantum-degenerate Bose-Bose mixture of 162Dy and 164Dy. Owing to the near-identical mass and polarizability of the two isotopes, the mixture thermalizes efficiently, with evaporation trajectories closely following those of the single-isotope case. Using a broad interspecies Feshbach resonance, we explore a miscible-immiscible transition between the two Bose-Einstein condensates. The tunability of the interspecies interaction, combined with the large magnetic dipole moment of Dy, makes this platform well suited for exploring dipolar effects in ultracold mixtures, including multi-component supersolidity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript reports the experimental realization of a quantum-degenerate Bose-Bose mixture of 162Dy and 164Dy. Owing to the near-identical mass and polarizability of the isotopes, the mixture thermalizes efficiently during evaporation. A broad interspecies Feshbach resonance is used to tune the interspecies interaction and observe the miscible-immiscible transition between the two condensates. The work positions the platform for future studies of dipolar effects in mixtures, including multi-component supersolidity.

Significance. If the experimental claims hold, the result establishes a new tunable dipolar Bose mixture with efficient thermalization, which is a practical advantage for reaching degeneracy. This could enable controlled studies of dipolar multi-component physics that are difficult in other systems.

minor comments (2)
  1. [Abstract] Abstract: the statement that evaporation trajectories 'closely follow' the single-isotope case is presented without quantitative comparison (e.g., atom number or temperature vs. time); adding a brief metric or reference to a figure would strengthen the claim.
  2. [Abstract] The manuscript does not specify the magnetic-field location or width of the interspecies Feshbach resonance in the abstract or early sections; providing these values (or a citation to the resonance characterization) would clarify the accessible interaction range.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation for minor revision. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity: purely experimental report

full rationale

The manuscript is an experimental realization paper reporting the production of a quantum-degenerate 162Dy-164Dy Bose-Bose mixture, observation of a tunable miscible-immiscible transition via an interspecies Feshbach resonance, and positioning the system for future dipolar studies. No derivation chain, fitted parameters, predictions, or self-referential equations appear in the abstract or described content. The statement that evaporation trajectories follow the single-isotope case is presented as a direct consequence of the isotopes' near-identical mass and polarizability—an external physical fact, not an internal fit or self-definition. No load-bearing self-citations, ansatzes, or uniqueness theorems are invoked. The work is self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities can be identified from the provided text.
