Pith. sign in

REVIEW 2 major objections 1 minor 39 references

Interfacial-melt stability as a thermodynamic prerequisite for solid-state synthesis

T0 review · 2 major / 1 minor · reviewed 2026-06-26 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Solid-state synthesis of hull-stable phases requires the interfacial melt to remain stable against spinodal decomposition.

desk verdict The paper proposes interfacial-melt stability against spinodal decomposition as a new synthesizability filter, but the MD evidence comes from bulk melts rather than actual solid-melt interfaces. read the letter →

arxiv 2606.22885 v1 pith:C5FKJJ33 submitted 2026-06-22 cond-mat.mtrl-sci

Zihan Zhang , Mengyi Chen , Qianxiao Li , Peichen Zhong This is my paper · ORCID
classification cond-mat.mtrl-sci
keywords solid-statesynthesisinterfacialmeltspinodaldecompositionFe-Bsystemmachine-learningpotentialthermodynamicstabilityconvexhull
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that thermodynamic stability on the convex hull is insufficient for solid-state synthesizability when routes proceed through an interfacial melt. It shows that the melt itself must stay locally stable, meaning its free-energy curve at the target composition must remain convex rather than concave. In the Fe-B system this condition fails for FeB4 at ambient pressure, producing a demixing instability visible in both the free-energy landscape and the concentration structure factor, while applied pressure restores convexity via the PV term and matches the known high-pressure synthesis boundary. The work therefore proposes interfacial-melt stability, computable from melt-quench simulations, as an additional screening descriptor for AI-driven materials discovery.

What carries the argument

Local stability of the interfacial melt against spinodal decomposition, diagnosed by concavity of the composition-dependent free energy or divergence of the concentration-concentration structure factor in melt-quench molecular dynamics.

What would settle it

Direct observation, via scattering or microscopy, of spinodal decomposition inside the interfacial melt at ambient pressure for a composition near FeB4, or the absence of such decomposition under the pressures where synthesis succeeds.

Watch

Extended reading notes

Core claim

Thermodynamically stable phases such as FeB4 resist low-pressure solid-state synthesis because the B-rich interfacial melt develops a concave free-energy landscape that signals spinodal decomposition; the same melt regains local stability under pressure, consistent with experimental synthesis limits.

Load-bearing premise

Solid-state synthesis of the target phase actually proceeds through an interfacial-melt-mediated pathway rather than some other mechanism.

Editorial extensions

If this is right

  • Hull-stable candidates whose interfacial melts are concave at ambient pressure will remain unsynthesizable by melt-mediated routes until pressure or composition shifts restore melt convexity.
  • The PV contribution under modest pressure can flip an unstable melt to a stable one without changing the solid-phase hull position.
  • Structure-factor divergence or free-energy concavity from short MD runs can serve as a fast computational filter before expensive synthesis attempts.
  • The same criterion distinguishes why some predicted phases appear only under high-pressure conditions.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The descriptor could be applied to other binary or ternary systems to rank candidates by both hull depth and melt stability.
  • If melt instability is confirmed as rate-limiting, targeted doping that flattens the melt free-energy curve might enable ambient-pressure routes.
  • The approach naturally extends to ternary interfacial melts where multiple concentration variables must remain locally stable.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 1 minor

Summary. The paper claims that solid-state synthesizability via interfacial-melt-mediated routes requires an additional thermodynamic condition beyond convex-hull stability: the interfacial melt at the target composition must remain locally stable against spinodal decomposition. This is illustrated in the Fe-B system for FeB4 (experimentally accessible only under high pressure), where melt-quench MD with a fine-tuned ML interatomic potential shows a concave free-energy landscape in the B-rich melt at ambient pressure (signaled by concentration-concentration structure factor divergence and linked to icosahedral boron motifs), with pressure restoring convexity via the PV term and thereby matching the experimental synthesis boundary.

Significance. If the central mapping holds, the work supplies a practical, simulation-accessible descriptor (structure-factor divergence in the melt) for filtering synthesizability in AI-driven materials discovery, addressing why some thermodynamically stable phases remain elusive. The correlation between the computed ambient-pressure instability and known high-pressure synthesis boundaries for FeB4 is a concrete strength, as is the use of an ML potential to reach the relevant compositions and motifs.

major comments (2)
  1. [simulation results and discussion of interfacial melt] The simulations (melt-quench MD on homogeneous compositions near FeB4) establish bulk-melt concavity but do not model an explicit solid-melt interface; the title, abstract, and central claim therefore extrapolate from bulk free-energy curvature to interfacial-melt instability without direct evidence that the local chemical potential, templating, or interface structure preserve the demixing tendency.
  2. [computational methods and results] No quantitative free-energy values, error bars, or convergence checks are reported for the concavity, nor are validation details given for the fine-tuned ML potential against thermodynamic or mixing properties; this leaves the magnitude and robustness of the reported demixing instability unquantified and load-bearing for the proposed screening descriptor.
minor comments (1)
  1. [abstract] The abstract states that pressure 'introduces a convex PV contribution' but does not specify how the PV term is evaluated or whether it is computed from the same MD trajectories.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments correctly identify that our simulations address bulk-melt thermodynamics and that quantitative details on free energies and potential validation are needed. We address each point below and commit to revisions that clarify scope and add missing data.

read point-by-point responses

  1. Referee: The simulations (melt-quench MD on homogeneous compositions near FeB4) establish bulk-melt concavity but do not model an explicit solid-melt interface; the title, abstract, and central claim therefore extrapolate from bulk free-energy curvature to interfacial-melt instability without direct evidence that the local chemical potential, templating, or interface structure preserve the demixing tendency.

    Authors: We agree that the simulations are performed on homogeneous bulk compositions and do not include an explicit solid-melt interface. The manuscript's central claim is that melt stability against spinodal decomposition at the target composition is a necessary thermodynamic prerequisite; the bulk free-energy curvature serves as a computationally tractable proxy for this condition. Interface-specific effects (templating, local chemical potentials) could modulate the instability, but the bulk result already correlates with the known pressure-dependent synthesis boundary. We will revise the title, abstract, and discussion to explicitly frame the bulk melt as a proxy, add a limitations paragraph on the absence of interface simulations, and avoid language implying direct interfacial modeling. revision: partial

  2. Referee: No quantitative free-energy values, error bars, or convergence checks are reported for the concavity, nor are validation details given for the fine-tuned ML potential against thermodynamic or mixing properties; this leaves the magnitude and robustness of the reported demixing instability unquantified and load-bearing for the proposed screening descriptor.

    Authors: We acknowledge the absence of quantitative free-energy values, error bars, and convergence tests, as well as limited validation of the ML potential on mixing thermodynamics. These omissions weaken the robustness assessment of the descriptor. In the revised manuscript we will add: (i) explicit free-energy curves with statistical uncertainties from multiple independent runs, (ii) convergence checks with respect to system size and sampling time, and (iii) additional validation metrics for the ML potential against known mixing enthalpies and melting points in the Fe-B system. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity; central claim rests on independent MD computations correlated with external experiments

full rationale

The paper's derivation computes free-energy concavity and concentration-concentration structure factor directly from melt-quench MD on homogeneous B-rich compositions near FeB4 using a machine-learned potential; pressure stabilization is obtained from the standard PV term. These outputs are then correlated with known external experimental synthesis boundaries (high-pressure success, ambient failure) for FeB4. No parameter is fitted to the target synthesizability result, no self-citation chain bears the load-bearing premise, and the interfacial-melt stability criterion is an emergent simulation observable rather than a self-definition or renamed input. The derivation is therefore self-contained against external benchmarks.

Assumptions & free parameters 1 free parameters · 2 assumptions · 0 invented entities

The claim rests on the domain assumption that synthesis occurs via interfacial melts and on the accuracy of the fine-tuned ML potential; no new entities are introduced.

free parameters (1)
  • fine-tuned ML interatomic potential parameters
    The potential used for MD is fine-tuned, introducing parameters fitted to data that control the simulated melt behavior.
assumptions (2)
  • standard math Thermodynamic stability is ranked by position on the formation-energy convex hull
    Standard practice in computational materials science, stated as the common ranking method.
  • domain assumption Solid-state synthesis proceeds through interfacial-melt-mediated routes
    The proposed condition applies specifically to this synthesis mechanism.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Interfacial-melt stability as a thermodynamic prerequisite for solid-state synthesis." pith.science (2026). https://pith.science/paper/C5FKJJ33

@misc{pith2026260622885,
  author       = {Pith},
  title        = {Pith review of: Interfacial-melt stability as a thermodynamic prerequisite for solid-state synthesis},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/C5FKJJ33}},
  note         = {Machine review of arXiv:2606.22885}
}
abstract

Computational materials discovery commonly ranks candidate materials by their thermodynamic stability on the formation energy convex hull, yet many predicted-stable phases resist synthesis. We propose that solid-state synthesizability through interfacial-melt-mediated routes requires an additional thermodynamic condition: the interfacial melt at the target composition must itself remain locally stable against spinodal decomposition. We demonstrate this in the classical Fe--B system, where thermodynamically stable FeB$_4$ has been reported under high-pressure synthesis but not in low-pressure synthesis attempts. Using melt--quench molecular dynamics driven by a fine-tuned machine-learning interatomic potential, we find that, at ambient pressure, the B-rich interfacial melt near the FeB$_4$ composition develops a concave free-energy landscape, signaling a demixing instability that is corroborated by the concentration--concentration structure factor and correlated with low-energy icosahedral and pentagonal-pyramidal boron motifs. Applied pressure introduces a convex $PV$ contribution that restores melt stability, consistent with the experimental synthesis boundary. Interfacial-melt stability, which atomistic simulations can assess via structure-factor divergence, is thus proposed as a practical thermodynamic screening descriptor of synthesizability for AI-assisted materials discovery.

Figures

Figures reproduced from arXiv: 2606.22885 by the authors.

Figure 1

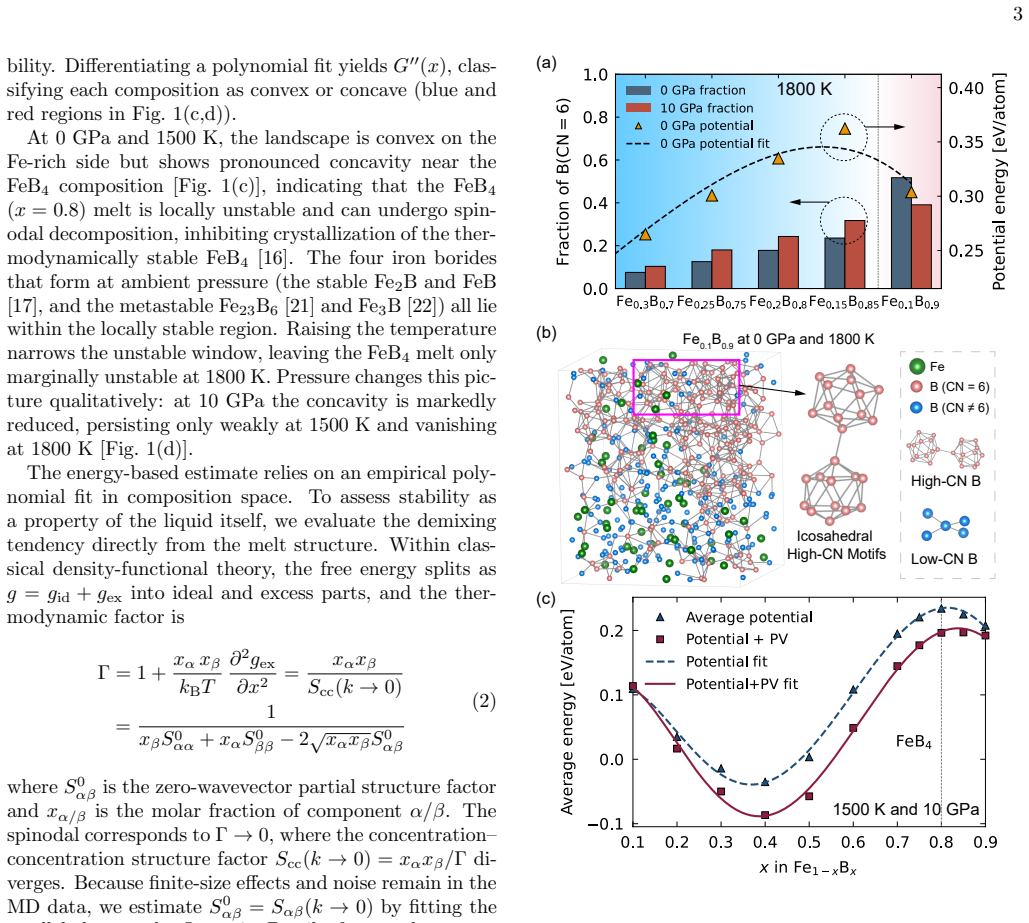

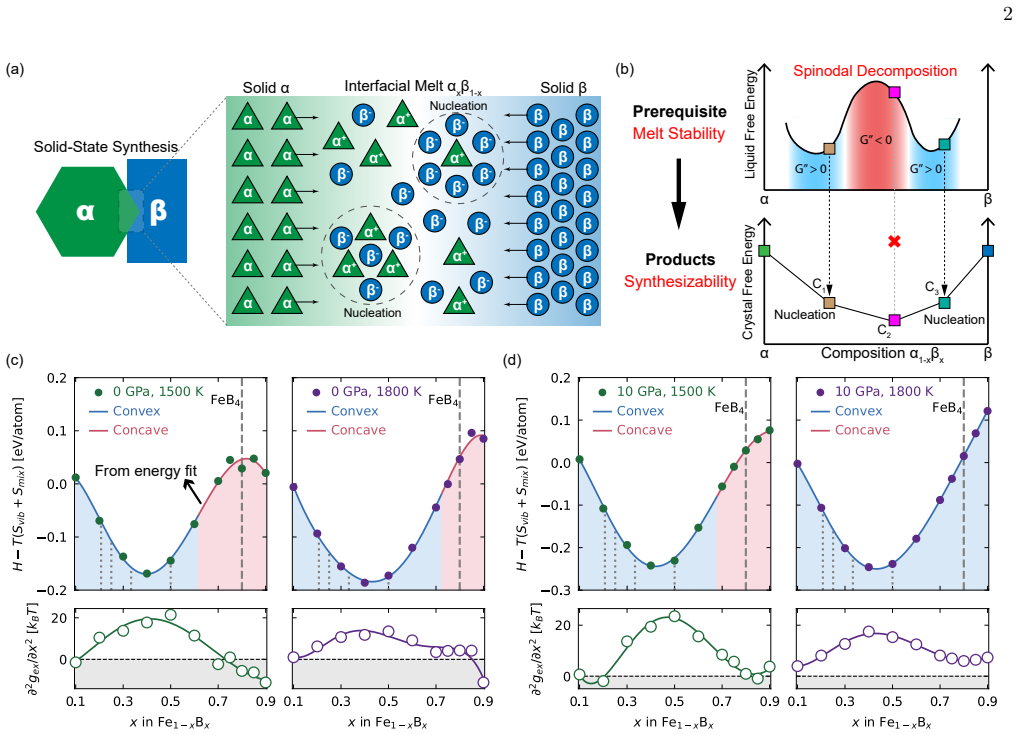

Figure 1. (a) Schematic of solid-state synthesis from precursors [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Structural and energetic properties of B-rich [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

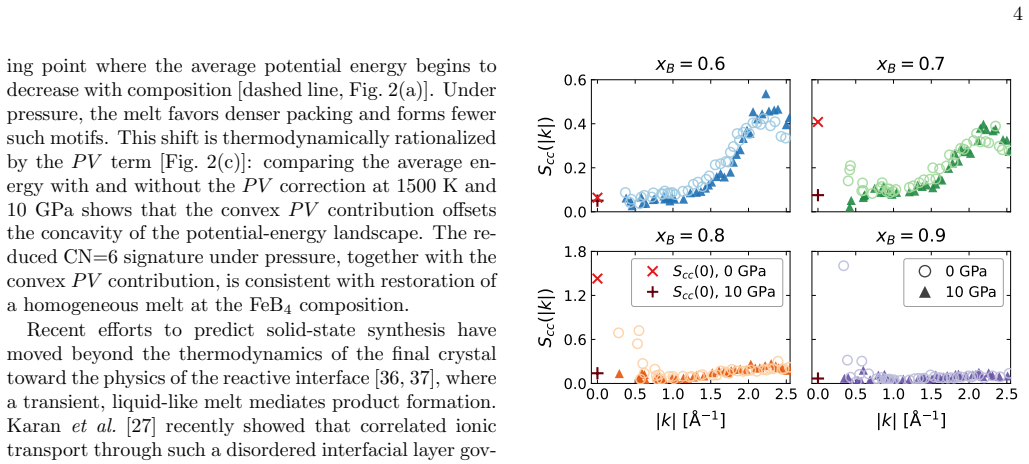

Figure 3. Concentration–concentration structure factor [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

39 extracted references · 3 canonical work pages

  1. [1]

    Riebesell, R

    J. Riebesell, R. E. A. Goodall, P. Benner, Y. Chiang, B. Deng, G. Ceder, M. Asta, A. A. Lee, A. Jain, and K. A. Persson, A framework to evaluate machine learn- ing crystal stability predictions, Nat. Mach. Intell.7, 836 (2025)

    2025

  2. [2]

    E. C.-Y. Yuan, Y. Liu, J. Chen, P. Zhong, S. Raja, T. Kreiman, S. Vargas, W. Xu, M. Head-Gordon, C. Yang, S. M. Blau, B. Cheng, A. Krishnapriyan, and T. Head-Gordon, Foundation models for atomistic simu- lation of chemistry and materials, Nat. Rev. Chem.10, 212 (2026)

    2026

  3. [3]

    Lejaeghereet al., Reproducibility in density func- tional theory calculations of solids, Science351, aad3000 (2016)

    K. Lejaeghereet al., Reproducibility in density func- tional theory calculations of solids, Science351, aad3000 (2016)

    2016

  4. [4]

    M. K. Hortonet al., Accelerated data-driven materials science with the Materials Project, Nat. Mater.24, 1522 (2025)

    2025

  5. [5]

    A. R. Oganov, C. J. Pickard, Q. Zhu, and R. J. Needs, Structure prediction drives materials discovery, Nat. Rev. Mater.4, 331 (2019)

    2019

  6. [6]

    C. J. Pickard and R. Needs, Ab initio random structure searching, J. Phys.: Condens. Matter23, 053201 (2011)

    2011

  7. [7]

    A. R. Oganov and C. W. Glass, Crystal structure predic- tion using ab initio evolutionary techniques: Principles and applications, J. Chem. Phys.124, 244704 (2006)

    2006

  8. [8]

    Y. Wang, J. Lv, L. Zhu, and Y. Ma, Crystal structure prediction via particle-swarm optimization, Phys. Rev. B82, 094116 (2010)

    2010

Show all 39 references
  1. [9]

    Zeniet al., A generative model for inorganic materials design, Nature639, 624 (2025)

    C. Zeniet al., A generative model for inorganic materials design, Nature639, 624 (2025)

    2025

  2. [10]

    X. Luo, Z. Wang, Q. Wang, X. Shao, J. Lv, L. Wang, Y. Wang, and Y. Ma, CrystalFlow: a flow-based gener- ative model for crystalline materials, Nat. Commun.16, 9267 (2025)

    2025

  3. [11]

    Zhong, X

    P. Zhong, X. Dai, B. Deng, G. Ceder, and K. A. Persson, Crystal structure prediction with host-guided inpainting generation and foundation potentials, Mater. Horiz.12, 9669 (2025)

    2025

  4. [12]

    Woodet al., UMA: A Family of Universal Models for Atoms, Adv

    B. Woodet al., UMA: A Family of Universal Models for Atoms, Adv. Neural Inform. Process. Syst.38, 129391 (2026)

    2026

  5. [13]

    Batatiaet al., A foundation model for atomistic mate- rials chemistry, J

    I. Batatiaet al., A foundation model for atomistic mate- rials chemistry, J. Chem. Phys.163, 184110 (2025)

    2025

  6. [14]

    Miura, H

    A. Miura, H. Ito, C. J. Bartel, W. Sun, N. C. Rosero- Navarro, K. Tadanaga, H. Nakata, K. Maeda, and G. Ceder, Selective metathesis synthesis of MgCr 2S4 by control of thermodynamic driving forces, Mater. Horiz. 7, 1310 (2020)

    2020

  7. [15]

    N. J. Szymanski, B. Rendy, Y. Fei, R. E. Kumar, T. He, D. Milsted, M. J. McDermott, M. Gallant, E. D. Cubuk, A. Merchant, H. Kim, A. Jain, C. J. Bartel, K. Persson, Y. Zeng, and G. Ceder, An autonomous laboratory for the accelerated synthesis of inorganic materials, Nature 624...

    2023

  8. [16]

    A. N. Kolmogorov, S. Shah, E. R. Margine, A. F. Bialon, T. Hammerschmidt, and R. Drautz, New superconduct- ing and semiconducting Fe–B compounds predicted with an ab initio evolutionary search, Phys. Rev. Lett.105, 217003 (2010)

    2010

  9. [17]

    Zhang, J

    J. Zhang, J. Liu, H. Liao, M. Zeng, and S. Ma, A review on relationship between morphology of boride of Fe-B alloys and the wear/corrosion resistant properties and mechanisms, J. Mater. Res. Technol.8, 6308 (2019)

    2019

  10. [18]

    H. Gou, N. Dubrovinskaia, E. Bykova, A. A. Tsirlin, D. Kasinathan, W. Schnelle, A. Richter, M. Merlini, M. Hanfland, A. M. Abakumov, D. Batuk, G. Van Ten- deloo, Y. Nakajima, A. N. Kolmogorov, and L. Dubrovin- sky, Discovery of a superhard iron tetraboride supercon- ductor, Ph...

    2013

  11. [19]

    Q. Wang, J. He, W. Hu, Z. Zhao, C. Zhang, K. Luo, Y. L¨ u, C. Hao, W. L¨ u, Z. Liu, D. Yu, Y. Tian, and B. Xu, Is orthorhombic iron tetraboride superhard?, J. Materiomics1, 45 (2015)

    2015

  12. [20]

    J. Chen, S. R. Cross, L. J. Miara, J.-J. Cho, Y. Wang, and W. Sun, Navigating phase diagram complexity to guide robotic inorganic materials synthesis, Nat. Synth. 3, 606 (2024)

    2024

  13. [21]

    Quirinale, G

    D. Quirinale, G. Rustan, A. Kreyssig, and A. Goldman, Synergistic stabilization of metastable Fe 23B6 andγ-Fe in undercooled Fe 83B17, Appl. Phys. Lett.106, 241906 (2015)

    2015

  14. [22]

    Y. Khan, E. Kneller, and M. Sostarich, The phase Fe3B, International Journal of Materials Research73, 624 (1982)

    1982

  15. [23]

    Miura, C

    A. Miura, C. J. Bartel, Y. Goto, Y. Mizuguchi, C. Moriyoshi, Y. Kuroiwa, Y. Wang, T. Yaguchi, M. Shi- rai, M. Nagao, N. C. Rosero-Navarro, K. Tadanaga, G. Ceder, and W. Sun, Observing and modeling the se- quential pairwise reactions that drive solid-state ceramic synthesis, Ad...

    2021

  16. [24]

    M. J. McDermott, B. C. McBride, C. E. Regier, G. T. Tran, Y. Chen, A. A. Corrao, M. C. Gallant, G. E. Kamm, C. J. Bartel, K. W. Chapman, P. G. Khali- fah, G. Ceder, J. R. Neilson, and K. A. Persson, Assess- ing Thermodynamic Selectivity of Solid-State Reactions for the Predict...

    1957

  17. [25]

    M. C. Gallant, M. J. McDermott, B. Li, and K. A. Pers- son, A Cellular Automaton Simulation for Predicting Phase Evolution in Solid-State Reactions, Chemistry of Materials37, 210 (2025)

    2025

  18. [26]

    D. Hu, M. L. Beauvais, G. E. Kamm, B. G. Mullens, B. A. Sanchez Monserrate, S. M. Vornholt, P. J. Chupas, and K. W. Chapman, Resolving Fast Relative Kinetics in Inorganic Solid-State Synthesis, Journal of the American Chemical Society145, 26545 (2023)

    2023

  19. [27]

    Karan, M

    V. Karan, M. C. Gallant, Y. Fei, G. Ceder, and K. A. Persson, Ion correlations explain kinetic selectivity in diffusion-limited solid-state synthesis reactions, Nat. Mater. 10.1038/s41563-026-02596-5 (2026)

    2026 doi

  20. [28]

    Unger and W

    C. Unger and W. Klein, Nucleation theory near the clas- sical spinodal, Phys. Rev. B29, 2698 (1984)

    1984

  21. [29]

    H. Park, F. Haftlang, Y.-U. Heo, J. B. Seol, Z. Wang, and H. S. Kim, Periodic spinodal decomposition in double– strengthened medium–entropy alloy, Nature Communi- cations15, 5757 (2024)

    2024

  22. [30]

    Barros-Luque, M

    L. Barros-Luque, M. Shuaibi, X. Fu, B. M. Wood, M. Dzamba, M. Gao, A. Rizvi, M. Uyttendaele, C. L. Zitnick, and Z. W. Ulissi, The open materials 2024 (OMat24) inorganic materials dataset and models, Nat. Comput. Sci. , 1 (2026)

    2024

  23. [31]

    Batatia, C

    I. Batatia, C. Lin, J. Hart, E. Kasoar, A. M. Elena, S. W. Norwood, T. Wolf, and G. Cs´ anyi, Cross Learning be- 6 tween Electronic Structure Theories for Unifying Molec- ular, Surface, and Inorganic Crystal Foundation Force Fields (2025), arXiv:2510.25380 [physics.chem-ph]

    2025

  24. [32]

    A. D. Kaplan, R. Liu, J. Qi, T. W. Ko, B. Deng, J. Riebe- sell, G. Ceder, K. A. Persson, and S. P. Ong, A foun- dational potential energy surface dataset for materials, arXiv preprint arXiv:2503.04070 (2025)

    2025

  25. [33]

    Hong and Z.-K

    Q.-J. Hong and Z.-K. Liu, Generalized approach for rapid entropy calculation of liquids and solids, Phys. Rev. Res. 7, L012030 (2025)

    2025

  26. [34]

    Cheng, Computing chemical potentials of solutions from structure factors, The Journal of Chemical Physics 157, 121101 (2022)

    B. Cheng, Computing chemical potentials of solutions from structure factors, The Journal of Chemical Physics 157, 121101 (2022)

    2022

  27. [35]

    Albert and H

    B. Albert and H. Hillebrecht, Boron: Elementary chal- lenge for experimenters and theoreticians, Angew. Chem. Int. Ed.48, 8640 (2009)

    2009

  28. [36]

    D. P. Shoemaker, Y.-J. Hu, D. Y. Chung, G. J. Halder, P. J. Chupas, L. Soderholm, J. F. Mitchell, and M. G. Kanatzidis, In situ studies of a platform for metastable inorganic crystal growth and materials discovery, Pro- ceedings of the National Academy of Sciences111, 10922 (2014)

    2014

  29. [37]

    M. J. McDermott, S. S. Dwaraknath, and K. A. Persson, A graph-based network for predicting chemical reaction pathways in solid-state materials synthesis, Nat. Com- mun.12, 3097 (2021)

    2021

  30. [38]

    A. K. Cheetham, R. Seshadri, and F. Wudl, Chemical synthesis and materials discovery, Nature Synthesis1, 514 (2022)

    2022

  31. [39]

    De Fontaine, An analysis of clustering and order- ing in multicomponent solid solutions—I

    D. De Fontaine, An analysis of clustering and order- ing in multicomponent solid solutions—I. Stability cri- teria, Journal of Physics and Chemistry of Solids33, 297 (1972)

    1972

Pith tools

Reviewed June 26, 2026 · model on record in the stance chip above.
