Finite-key feasibility of geostationary quantum key distribution

T0 review · 0 major / 2 minor · reviewed 2026-06-29 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Geostationary satellite quantum key distribution achieves positive secret key rates with finite-key decoy-state BB84 protocols despite high loss and noise.

desk verdict This is a competent but incremental feasibility study on GEO QKD that applies finite-key bounds and cloud data to generate practical yield estimates rather than introducing new methods. read the letter →

arxiv 2605.29706 v1 pith:FNUPFM3X submitted 2026-05-28 quant-ph

Vaisakh Mannalath , Víctor Zapatero , Marcos Curty This is my paper · ORCID
classification quant-ph
keywords quantumkeydistributiongeostationarysatellitesfinite-keyanalysisdecoy-stateBB84satellitedownlinksecretratechannelmodelingcloudcover
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper conducts an end-to-end feasibility analysis of quantum key distribution from geostationary satellites using a decoy-state BB84 protocol in the downlink. It incorporates variable-length finite-key security analysis and tight statistical bounds while modeling realistic channel losses and background noise that vary with cloud cover and environment. The study evaluates performance across rural, urban, and coastal settings at multiple wavelengths and forecasts annual secret-key yields over Europe from historical cloud data. It maps the high-dimensional parameter space to reveal trade-offs and bottlenecks that set the boundaries of workable operation. The findings supply concrete operating thresholds and design guidelines for missions seeking continuous continental-scale secure links.

What carries the argument

The physically realistic channel model that captures dominant loss and noise mechanisms, paired with finite-key security analysis applied to principal receiver architectures in the GEO downlink configuration.

What would settle it

An actual GEO satellite QKD experiment that measures secret key rates falling below the calculated positive thresholds in the modeled rural, urban, or coastal scenarios would disprove the feasibility.

Watch

Extended reading notes

Core claim

Incorporating variable-length finite-key security and tight statistical bounds into the decoy-state BB84 protocol expands the positive-key regime for GEO downlink QKD, making it feasible under a physically realistic channel model that includes extreme loss, variable cloud cover, and background noise across environments and wavelengths.

Load-bearing premise

The channel model accurately captures the dominant loss and noise mechanisms including variable cloud cover and background noise levels across environments.

Editorial extensions

If this is right

  • Positive secret key rates become achievable in rural, urban, and coastal environments at visible Fraunhofer minima and telecom wavelengths.
  • Annual secret-key yields across Europe can be forecasted from historical cloud data.
  • Systematic mapping of the parameter space identifies the key trade-offs and performance bottlenecks that govern feasibility.
  • Practical operating thresholds and actionable design guidelines emerge for future GEO-QKD missions.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Confirmation would favor GEO platforms for continuous coverage rather than relying solely on low-Earth-orbit constellations.
  • The thresholds could directly shape choices of wavelength, receiver design, and operational windows in mission planning.
  • Sensitivity tests against unmodeled extremes such as prolonged cloud cover would strengthen or limit the forecasts.
  • Hybrid systems linking GEO downlinks to ground fiber networks could extend secure reach beyond single-satellite footprints.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

0 major / 2 minor

Summary. The manuscript conducts a comprehensive end-to-end feasibility study of decoy-state BB84 QKD in a GEO satellite downlink. It incorporates variable-length finite-key security analysis with tight statistical bounds, a physically realistic channel model for loss and noise (including variable cloud cover), and historical cloud data to forecast annual secret-key yields across Europe in rural, urban, and coastal settings at multiple wavelengths. The work systematically explores the high-dimensional parameter space to identify trade-offs, performance bottlenecks, and practical operating thresholds for future missions.

Significance. If the calculations are accurate, the results provide actionable design guidelines and operating thresholds for GEO-QKD systems under realistic conditions, including daylight operation. The combination of finite-key analysis with environmental forecasting using historical data is a strength that enhances the practical relevance of the feasibility claims.

minor comments (2)
  1. [Abstract] Abstract: the phrase 'variable-length finite-key security and tight statistical bounds' would benefit from a parenthetical reference to the specific bound family (e.g., 'using the variable-length analysis of Ref. X') to allow readers to locate the exact security proof immediately.
  2. The manuscript should explicitly state the range of free parameters explored (channel loss, background rates, finite-key block sizes) and whether any were tuned post hoc to achieve positive key rates; this would strengthen the independence of the reported thresholds.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their thorough summary and positive evaluation of the manuscript, including the recommendation for minor revision. No specific major comments were listed in the report, so we have no individual points requiring detailed rebuttal or clarification at this stage. We will incorporate the minor revisions suggested by the editor and referee in the next version of the manuscript.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity

full rationale

The paper is a standard feasibility analysis applying the decoy-state BB84 protocol with finite-key bounds to a channel model and historical cloud data for yield forecasting. All reported thresholds and trade-offs follow directly from applying the stated models and data to the parameter space; no step reduces by construction to a fitted input renamed as prediction, self-definitional relation, or load-bearing self-citation chain. The central claims remain independent of the inputs once the model and data are accepted.

Assumptions & free parameters 2 free parameters · 2 assumptions · 0 invented entities

The central feasibility claims rest on standard QKD security assumptions plus numerous modeled channel parameters whose values are chosen or fitted to represent rural, urban, and coastal conditions; no new entities are postulated.

free parameters (2)
  • channel loss and background noise rates
    Values for atmospheric loss, cloud attenuation, and detector noise are selected or fitted per environment and wavelength to produce the reported key rates.
  • finite-key statistical parameters
    Block sizes, failure probabilities, and smoothing parameters in the variable-length finite-key analysis are chosen to expand the positive-key regime.
assumptions (2)
  • domain assumption Decoy-state BB84 with finite-key analysis yields secure keys against general attacks when the observed statistics satisfy the stated bounds.
    Invoked throughout the end-to-end study as the security foundation.
  • domain assumption Historical cloud data and standard atmospheric models are representative of future operating conditions.
    Used to forecast annual yields across Europe.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Finite-key feasibility of geostationary quantum key distribution." pith.science (2026). https://pith.science/paper/FNUPFM3X

@misc{pith2026260529706,
  author       = {Pith},
  title        = {Pith review of: Finite-key feasibility of geostationary quantum key distribution},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FNUPFM3X}},
  note         = {Machine review of arXiv:2605.29706}
}
read the original abstract

Quantum key distribution (QKD) via geostationary Earth orbit (GEO) satellites offers a compelling route to continuous, continental-scale secure communications. However, operation in this regime entails extreme channel loss and significant background noise, particularly if daylight operation is desired. We present a comprehensive end-to-end feasibility study of a decoy-state BB84 protocol in a GEO downlink configuration, incorporating variable-length finite-key security and tight statistical bounds to expand the achievable positive-key regime. Our analysis encompasses the principal receiver architectures relevant to downlink QKD and employs a physically realistic channel model that captures the dominant loss and noise mechanisms. We evaluate performance across rural, urban, and coastal environments at multiple wavelengths, including visible Fraunhofer absorption minima and the telecom band. Using historical cloud data across Europe, we forecast the annual secret-key yield across the continent. Through a systematic exploration of the high-dimensional parameter space, we identify key trade-offs and performance bottlenecks that determine feasibility. These results establish practical operating thresholds and provide actionable design guidelines for future GEO-QKD missions.

Figures

Figures reproduced from arXiv: 2605.29706 by the authors.

Figure 1

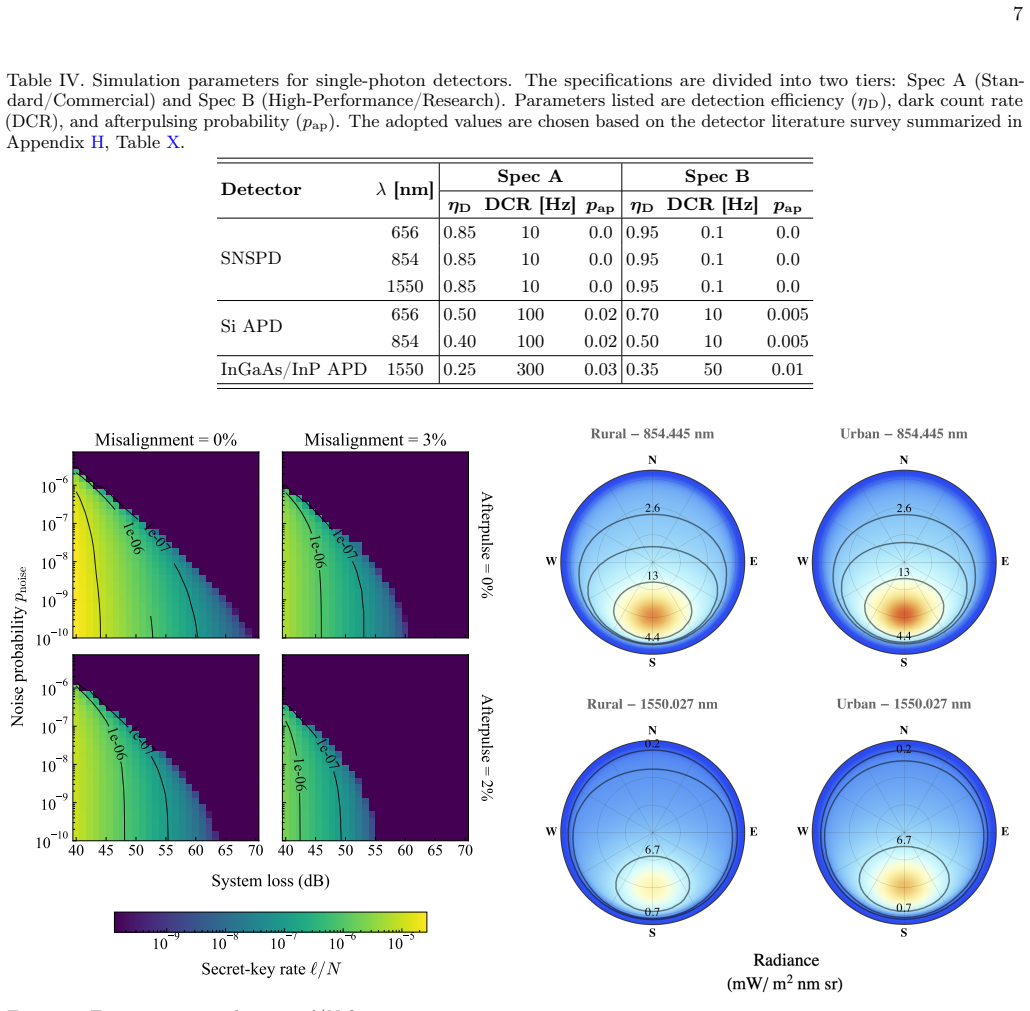

Figure 1. Finite-size secret-key rate ℓ/N for an asymmetric active BB84 receiver as a function of total system loss (x axis) and noise-click probability pnoise (y axis). The color map and black contour lines show the finite-size secret-key rate. Columns correspond to misalignment values of 0% and 3%, while rows correspond to afterpulsing probabilities of 0% and 2%. corrected coherence length grow approximately in propor￾tion … view at source ↗
Figure 3

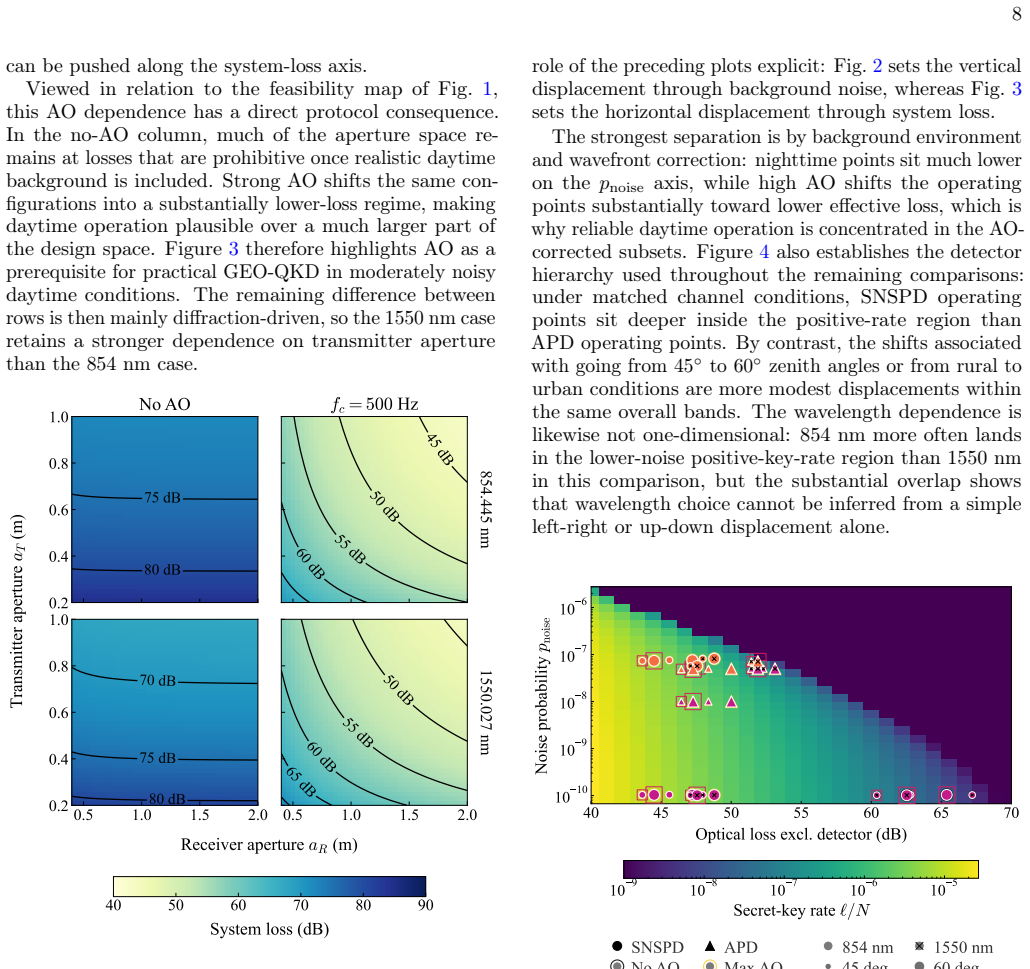

Figure 3. System loss (dB) as a function of receiver aperture [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 6

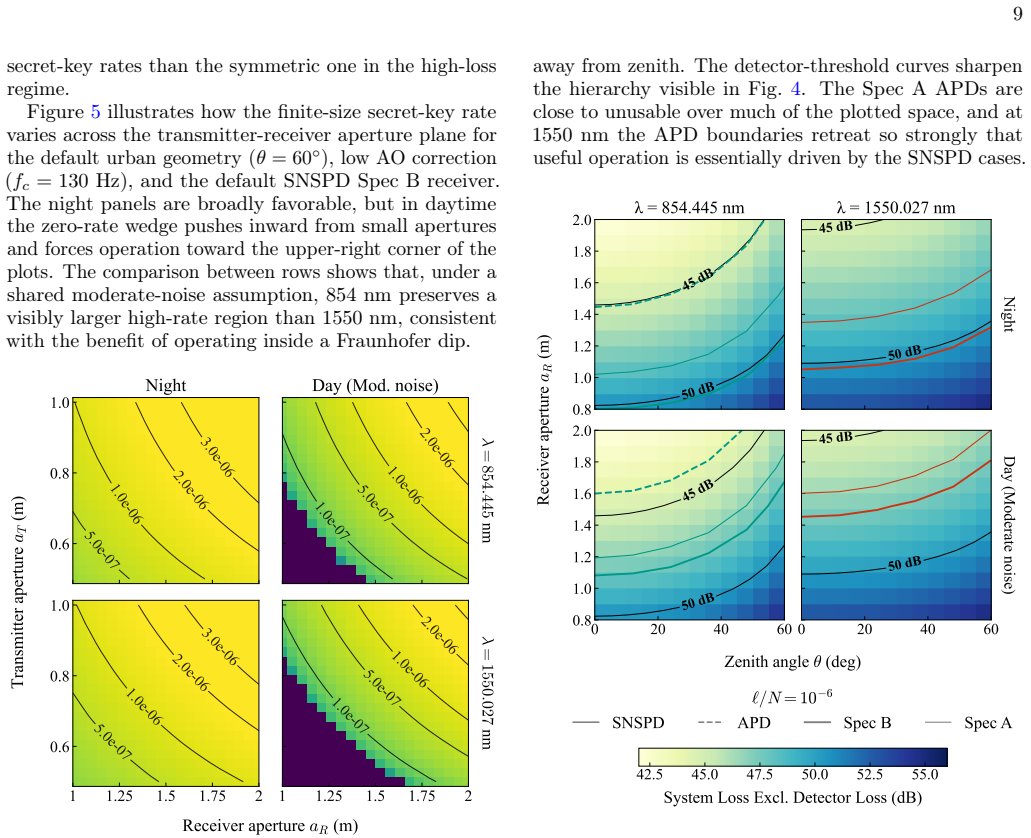

Figure 6. Combined loss and performance map as a function [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figures from the paper (21 more)
Figure 8

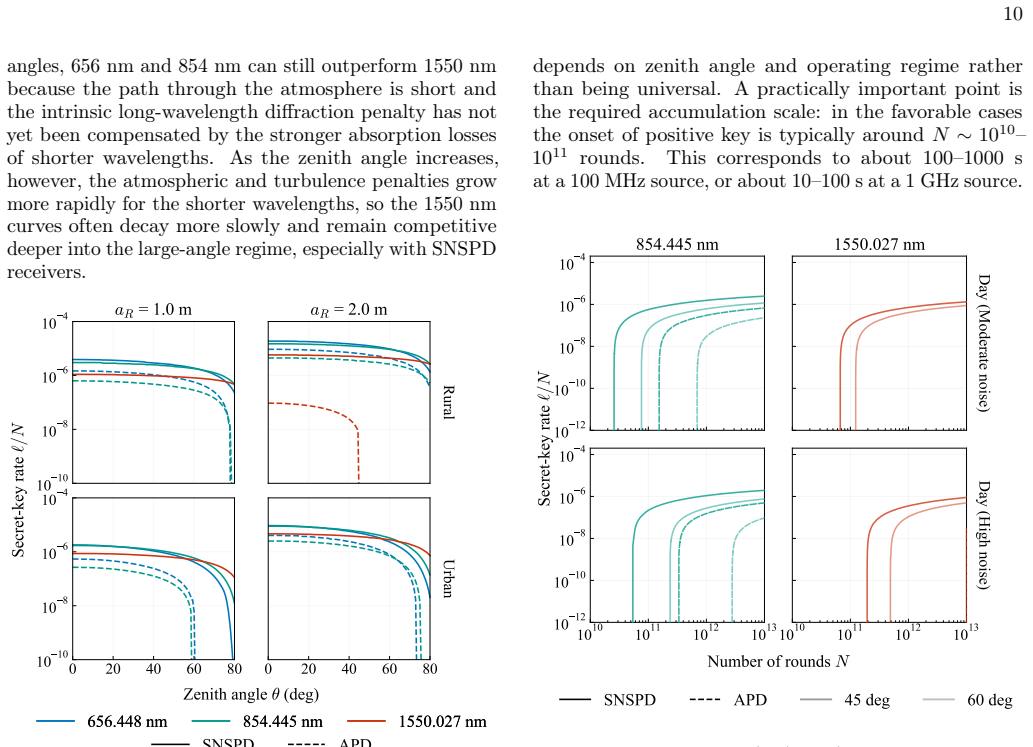

Figure 8. Figure 8: makes the finite-size cost explicit for the default urban daytime architecture with aT = 0.75 m, aR = 1.5 m, and low AO correction. It is the block-size counterpart of the preceding daytime feasibility plots: channels that are admissible in the loss-noise and zenith-an…
Figure 9

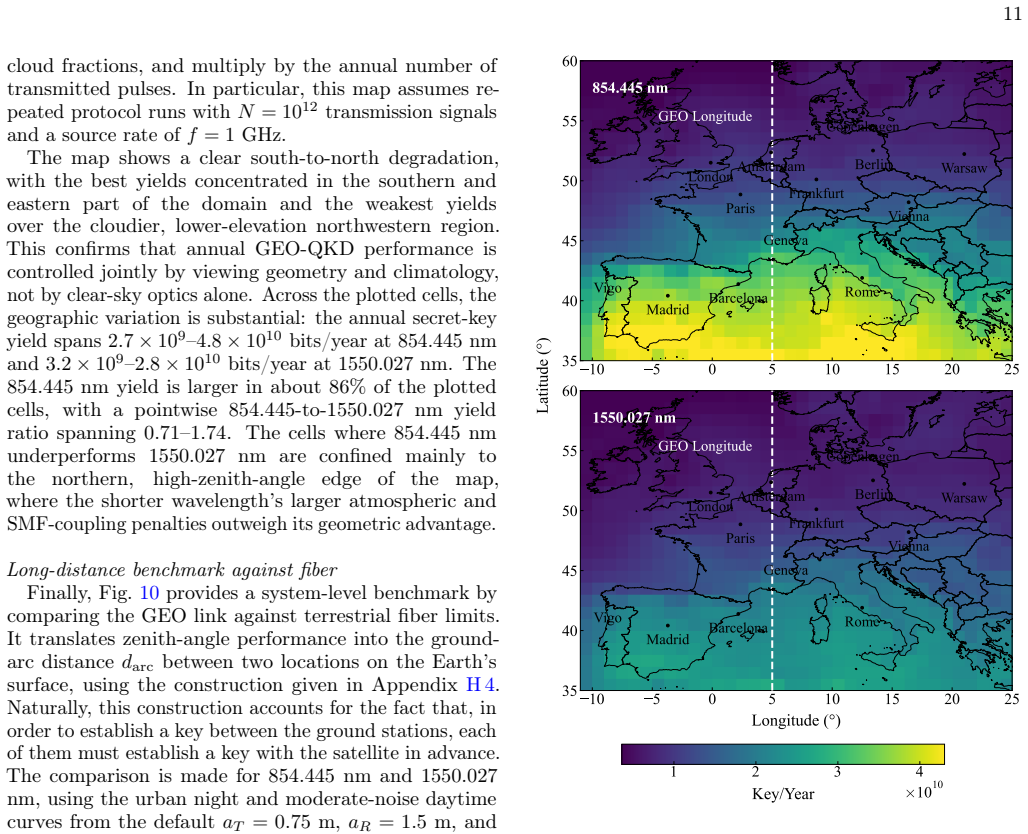

Figure 9. Figure 9: Geographic map of the cloud-weighted annual secret [PITH_FULL_IMAGE:figures/full_fig_p011_9.png]
Figure 10

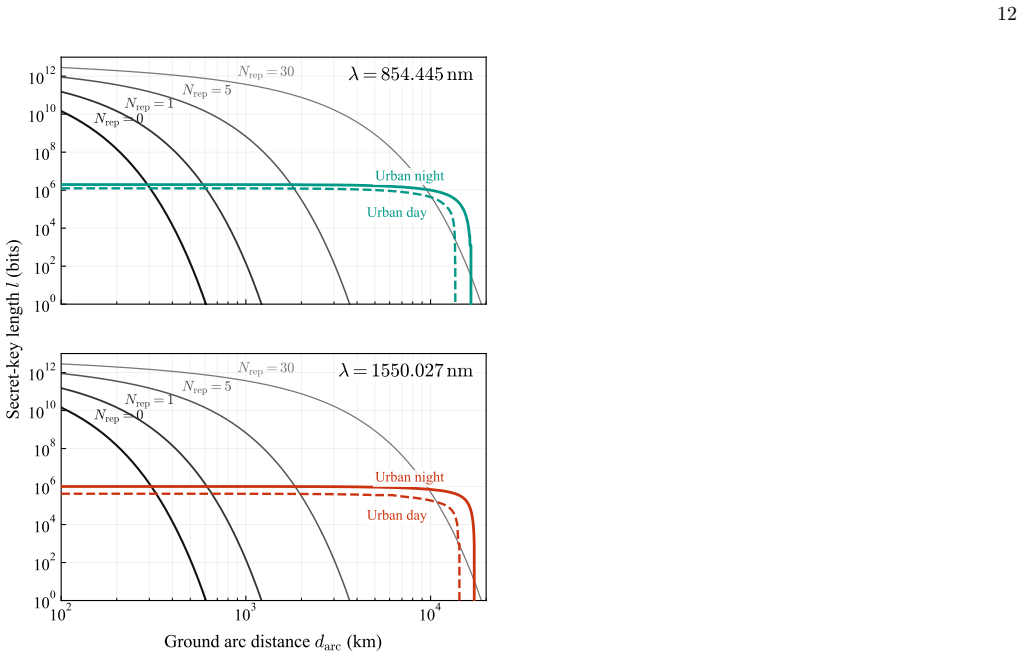

Figure 10. Figure 10: Secret-key length ℓ (y axis) versus ground arc distance darc (x axis), both on logarithmic scales, for the two signal wavelengths shown in the panel titles, λ = 854.445 nm and λ = 1550.027 nm. In each panel, the colored solid and dashed curves give the urban nighttime…
Figure 11

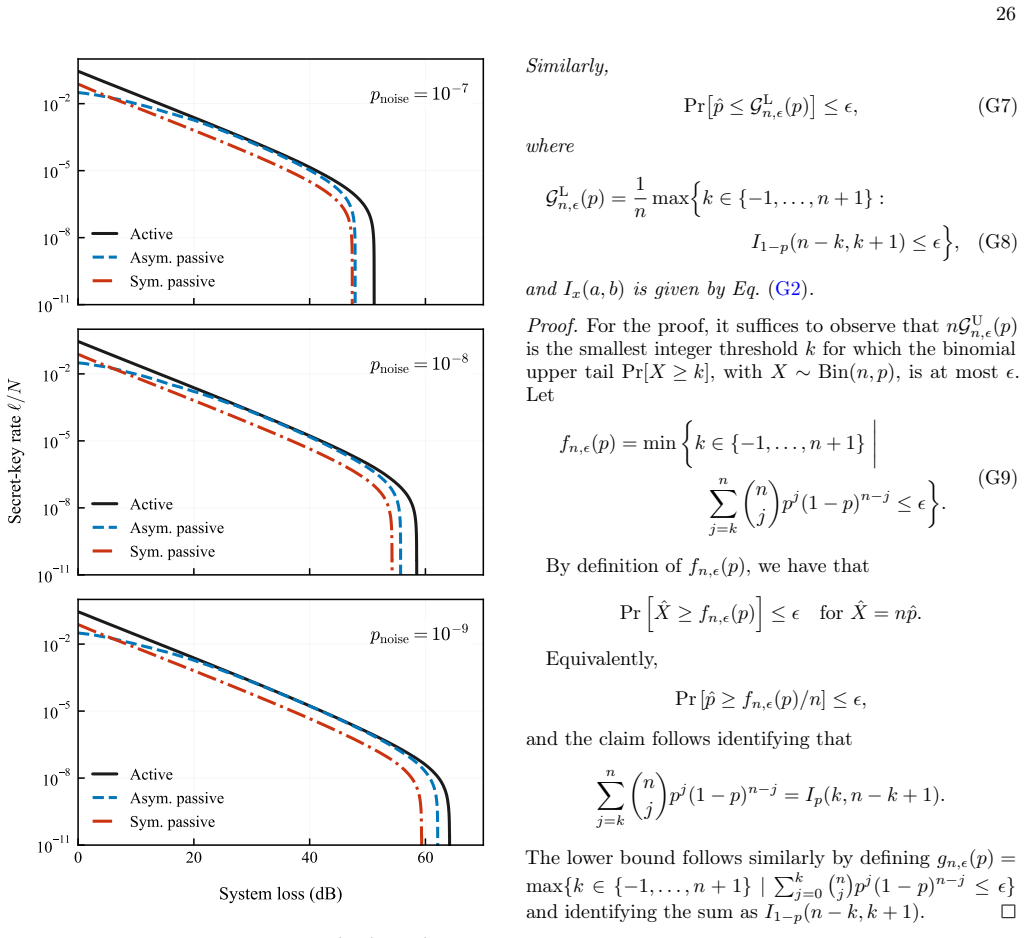

Figure 11. Figure 11: Finite-size secret-key rate ℓ/N (y axis) versus overall system loss (x axis) for asymmetric active, asymmetric passive, and symmetric passive BB84 receiver architectures. The three subfigures correspond, respectively, to background￾noise probabilities pnoise = 10−7 , …
Figure 12

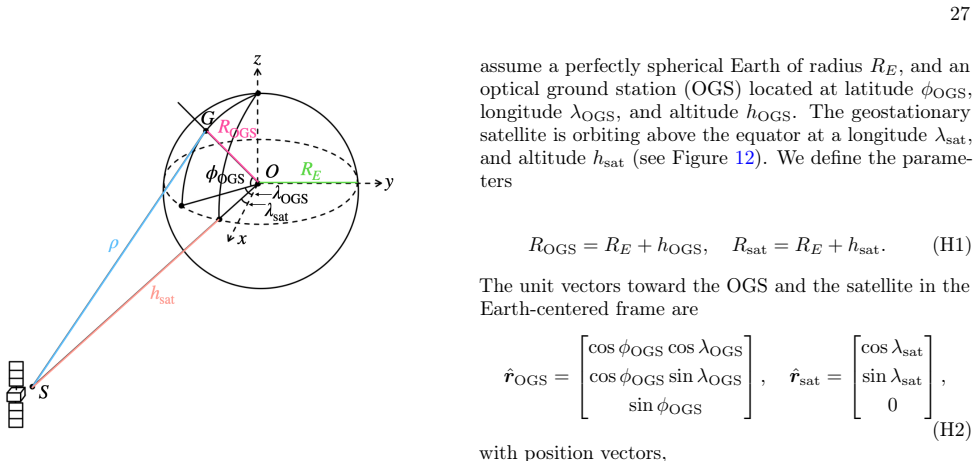

Figure 12. Figure 12: Geometry of the satellite-to-ground downlink sce [PITH_FULL_IMAGE:figures/full_fig_p027_12.png]
Figure 13

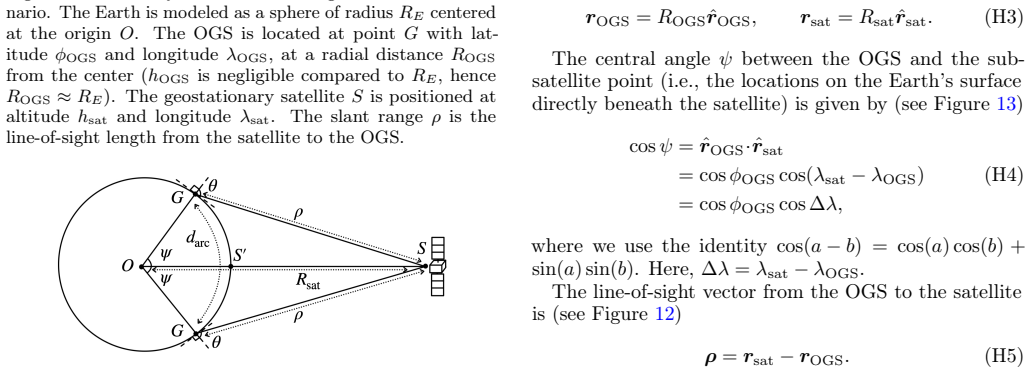

Figure 13. Figure 13: Cross-sectional geometry used to derive the max [PITH_FULL_IMAGE:figures/full_fig_p027_13.png]
Figure 14

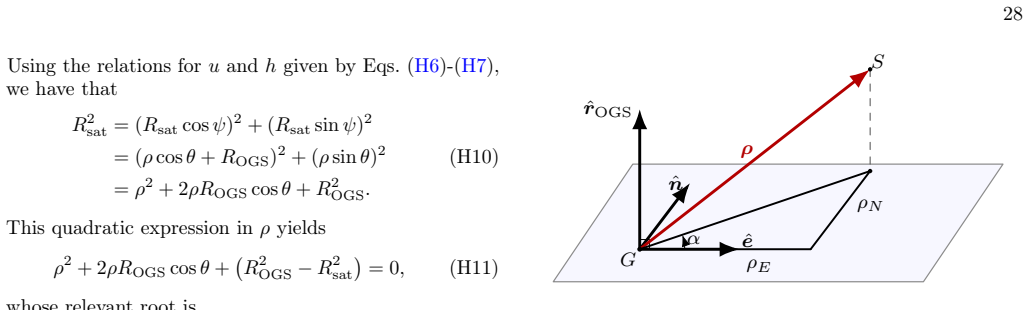

Figure 14. Figure 14: Local ENU geometry used in the azimuth derivation. [PITH_FULL_IMAGE:figures/full_fig_p028_14.png]
Figure 15

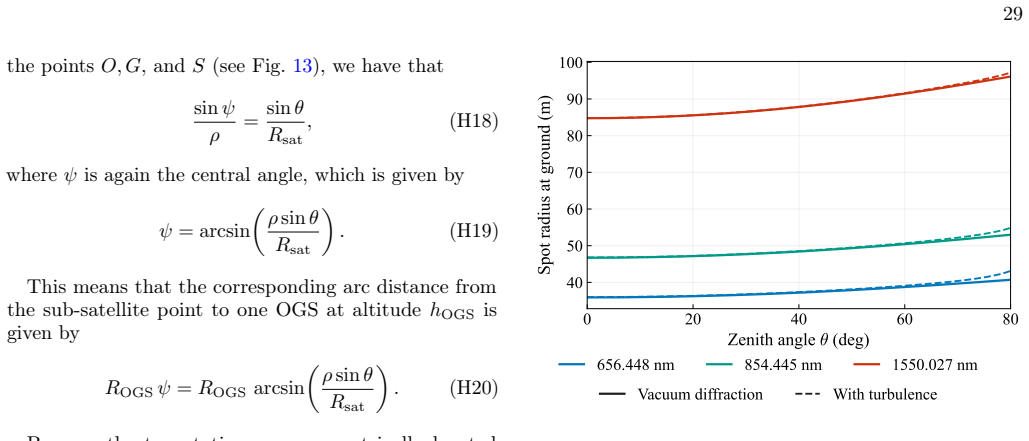

Figure 15. Figure 15: Spot radius at the ground (y axis) versus zenith [PITH_FULL_IMAGE:figures/full_fig_p029_15.png]
Figure 16

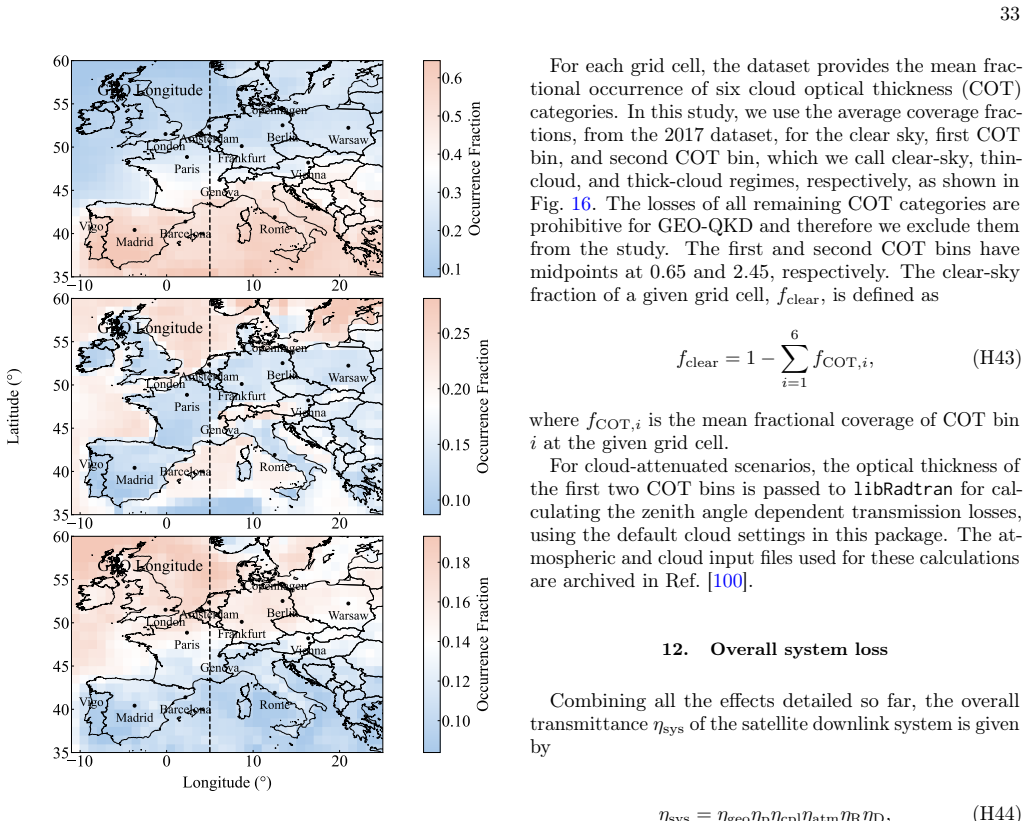

Figure 16. Figure 16: Climatological mean fraction of time for different [PITH_FULL_IMAGE:figures/full_fig_p033_16.png]
Figure 17

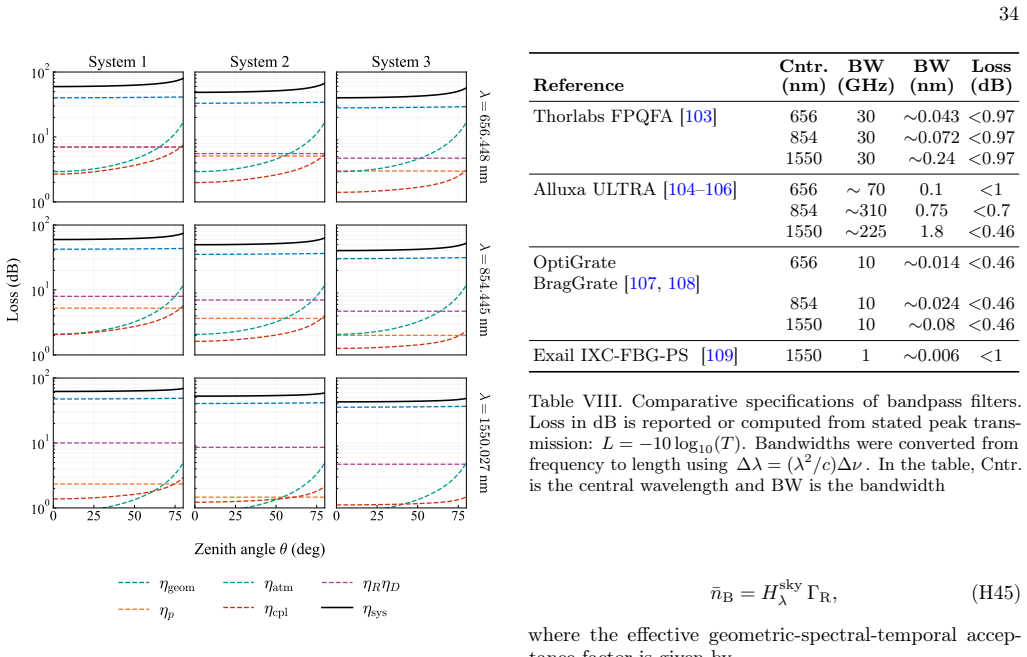

Figure 17. Figure 17: Loss-budget decomposition with loss in dB (y [PITH_FULL_IMAGE:figures/full_fig_p034_17.png]
Figure 19

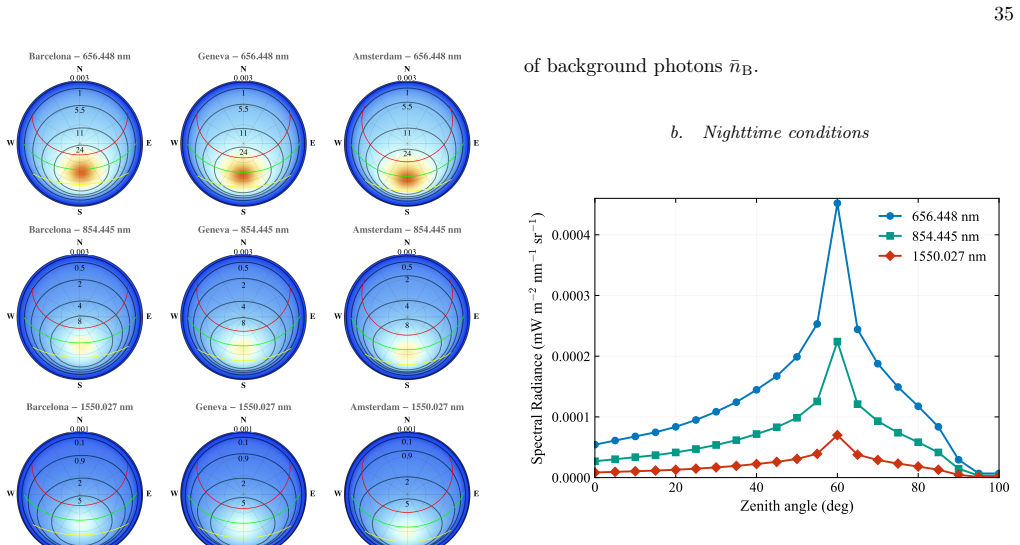

Figure 19. Figure 19: Spectral radiance (y axis) versus the full moon’s [PITH_FULL_IMAGE:figures/full_fig_p035_19.png]
Figure 21

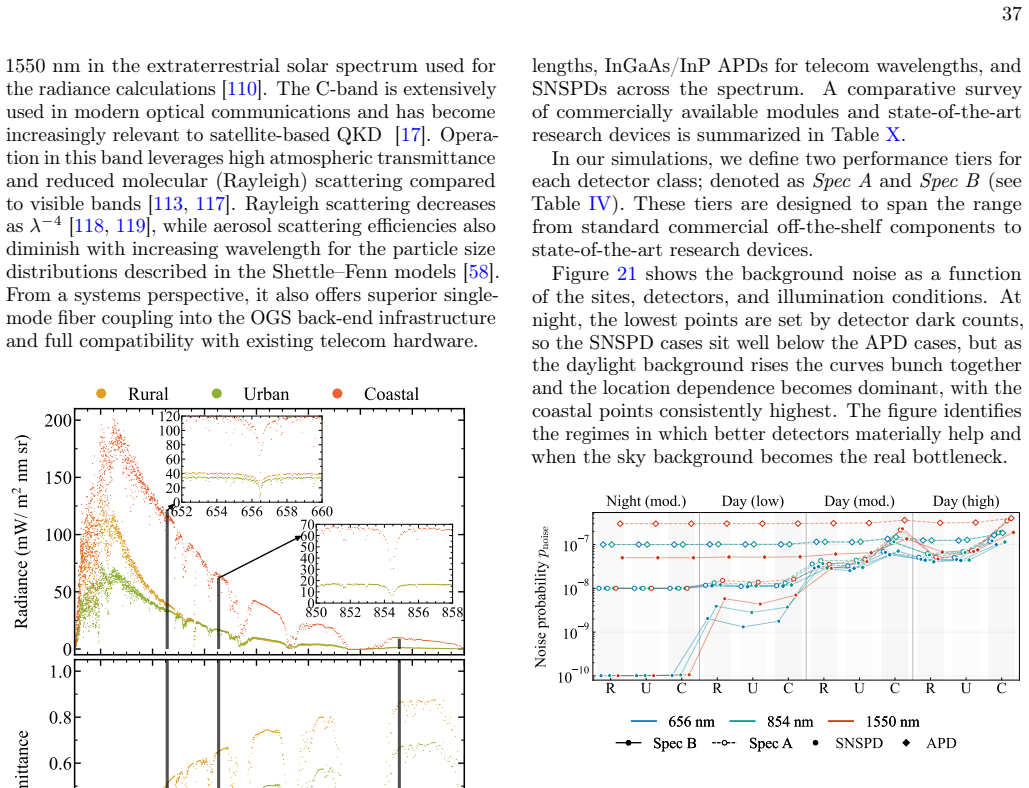

Figure 21. Figure 21: shows the background noise as a function of the sites, detectors, and illumination conditions. At night, the lowest points are set by detector dark counts, so the SNSPD cases sit well below the APD cases, but as the daylight background rises the curves bunch together …
Figure 20

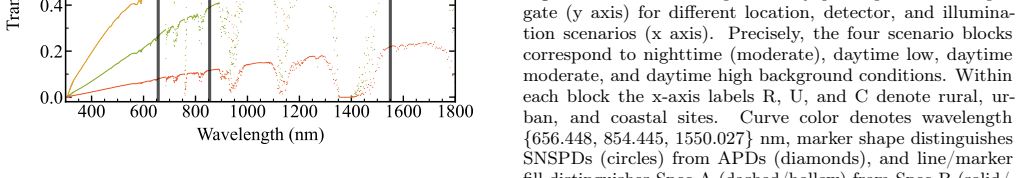

Figure 20. Figure 20: Spectral radiance (top, y axis) and atmospheric [PITH_FULL_IMAGE:figures/full_fig_p037_20.png]
Figure 23

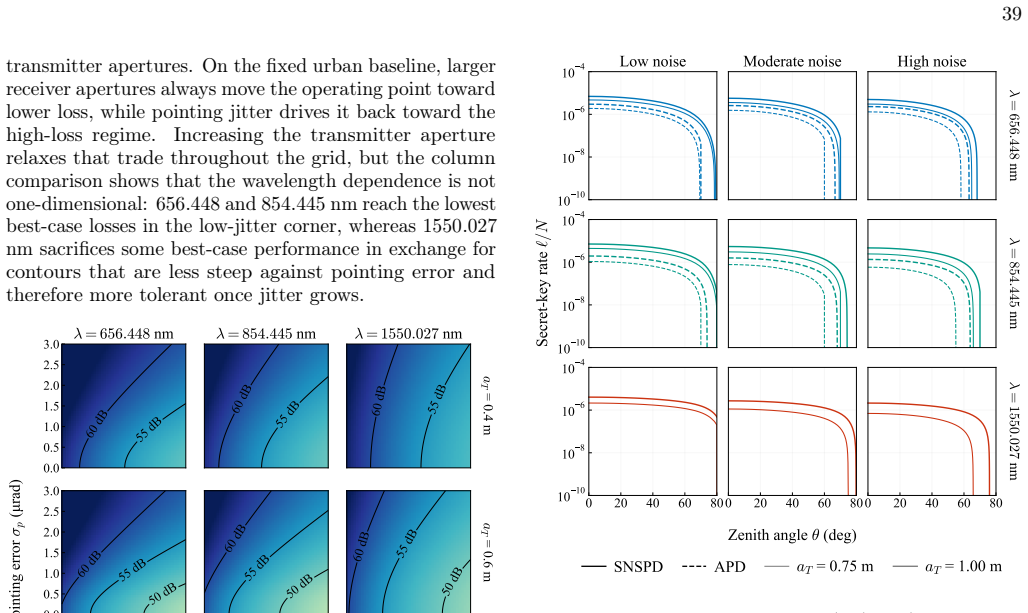

Figure 23. Figure 23: fixes the site and receiver aperture and varies daytime noise and transmitter aperture. For 656.448 and 854.445 nm, increasing the daytime background mainly acts by pulling the zenith cutoff leftward; the rate level at small zenith angles changes less dramatically tha…
Figure 22

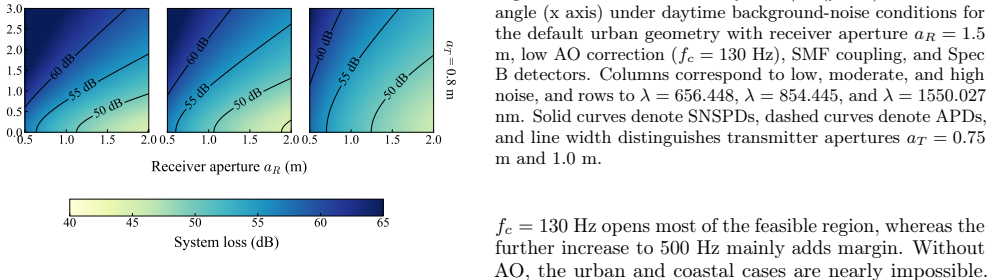

Figure 22. Figure 22: System loss (dB) as a function of receiver aperture [PITH_FULL_IMAGE:figures/full_fig_p039_22.png]
Figure 24

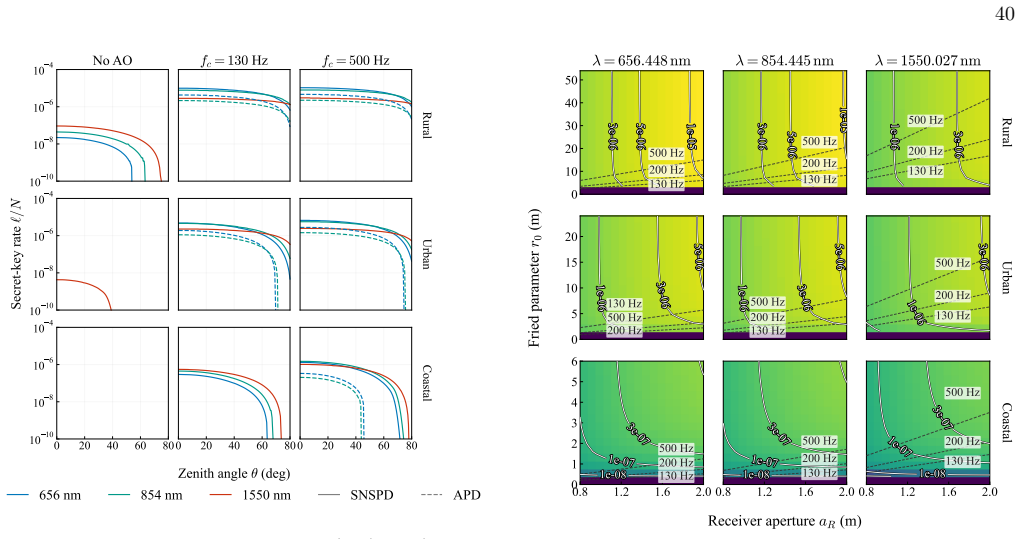

Figure 24. Figure 24: Finite-size secret-key rate ℓ/N (y axis) versus zenith angle (x axis) as a function of the bandwidth of the AO under nighttime operation at fixed apertures aT = 0.75 m and aR = 1.5 m, with SMF coupling and Spec B detectors. Rows correspond to rural, urban, and coastal…
Figure 26

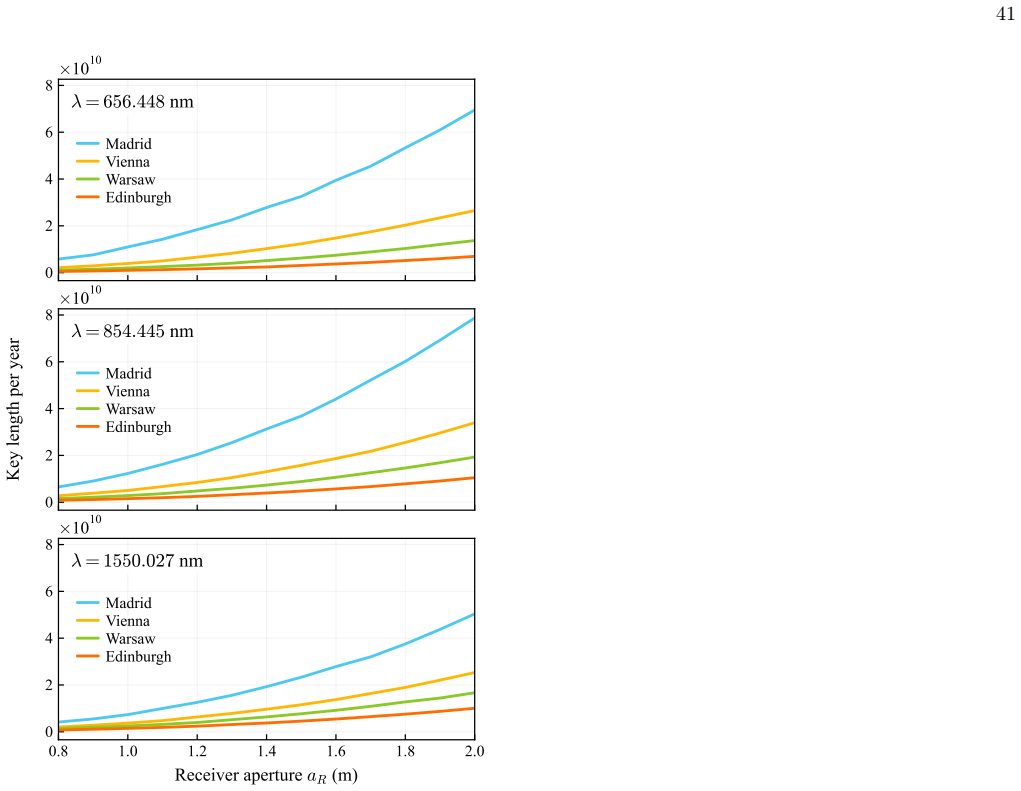

Figure 26. Figure 26: Annual finite-size secret-key volume (y axis) versus [PITH_FULL_IMAGE:figures/full_fig_p041_26.png]
Figure 28

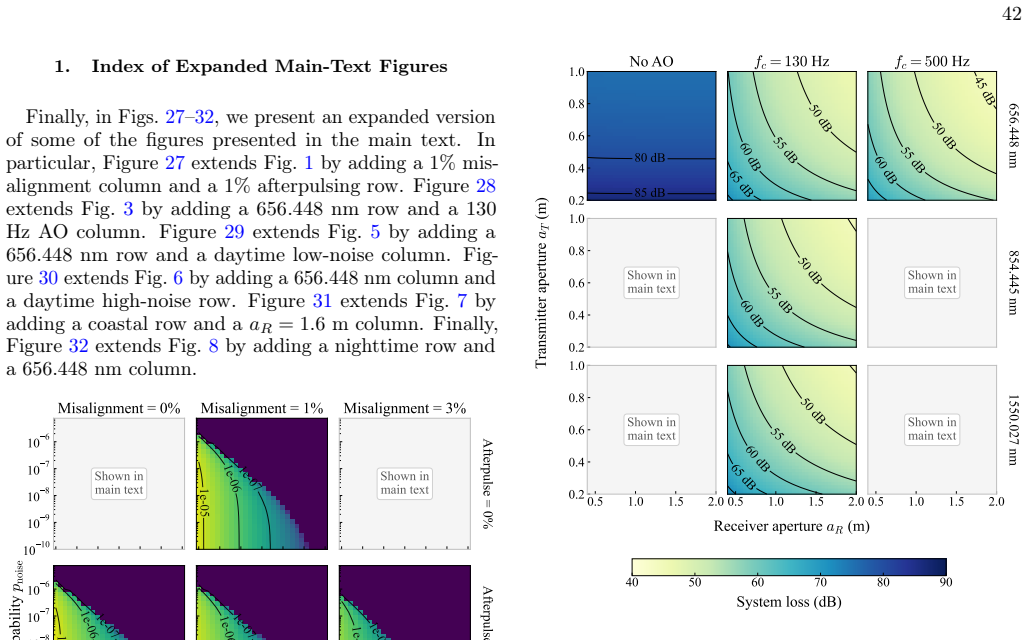

Figure 28. Figure 28: System loss (dB) as a function of the receiver [PITH_FULL_IMAGE:figures/full_fig_p042_28.png]
Figure 27

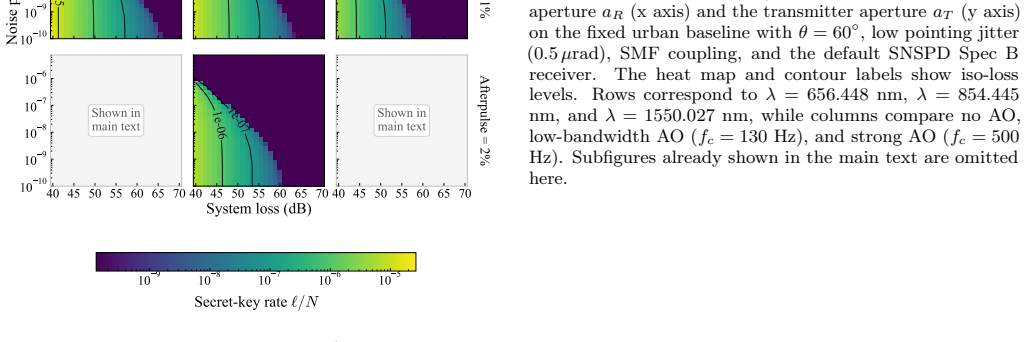

Figure 27. Figure 27: Finite-size secret-key rate ℓ/N as a function of total system loss (x axis, including receiver optics/filter and detector efficiency) and noise-click probability pnoise per de￾tector per gate (y axis, log scale) for an asymmetric active receiver assuming the default f…
Figure 29

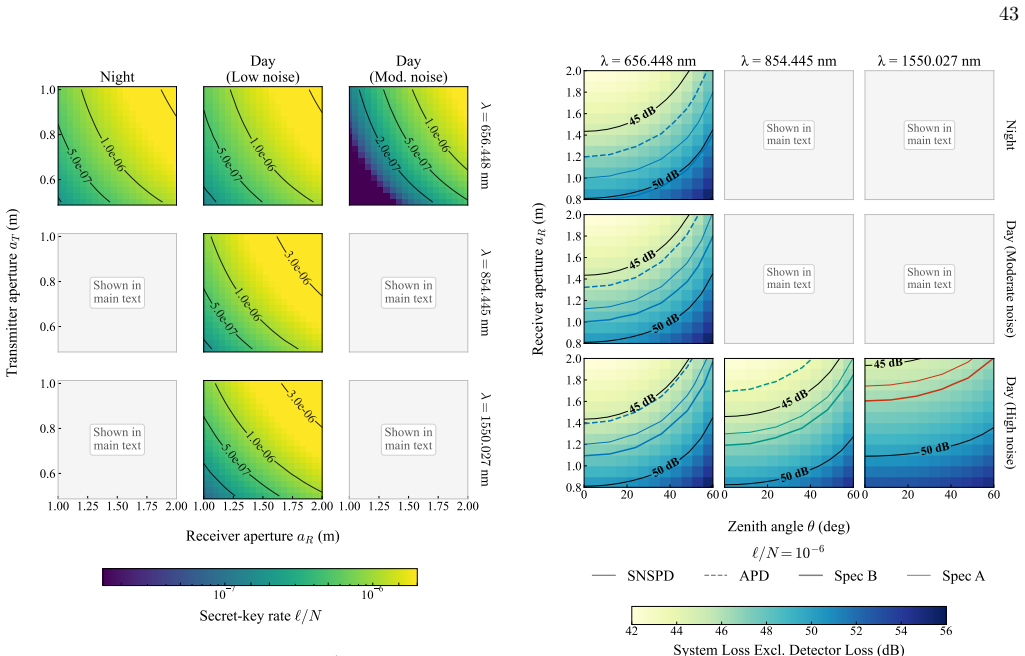

Figure 29. Figure 29: Finite-size secret-key rate ℓ/N as a function of receiver aperture aR (x axis) and transmitter aperture aT (y axis) for the default urban geometry with θ = 60◦ , low AO correction (fc = 130 Hz), SMF coupling, and an SNSPD Spec B receiver. The color map and black conto…
Figure 32

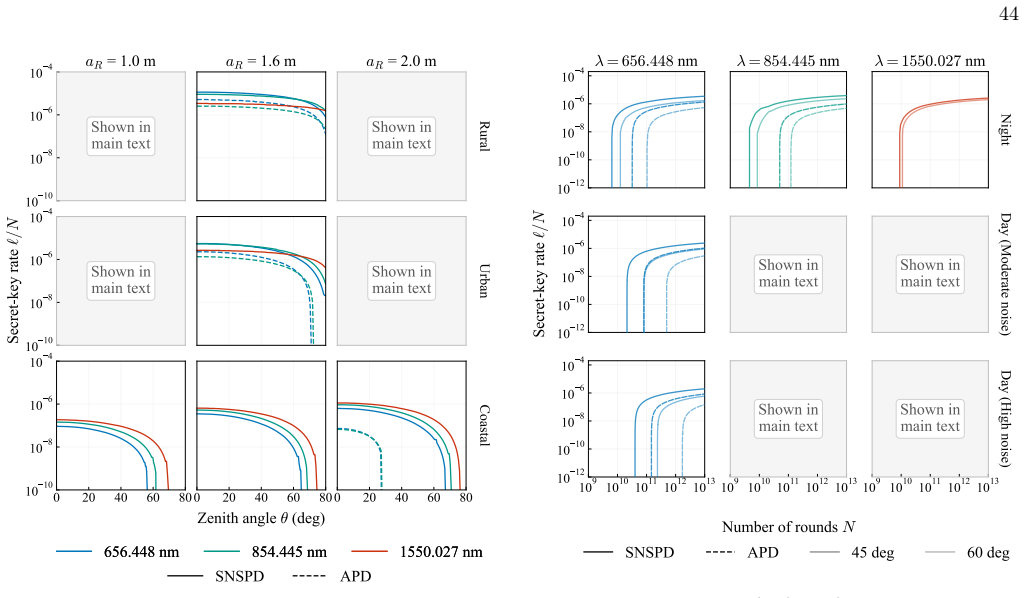

Figure 32. Figure 32: Finite-key rate ℓ/N (y axis) versus the number of transmission rounds N (x axis), with both axes on logarith￾mic scales, for the default urban link with fixed transmitter aperture aT = 0.75 m, receiver aperture aR = 1.5 m, low AO correction (fc = 130 Hz), SMF coupling…
