Pith's one-line read Instanton vacuum bridges nonperturbative QCD to parton physics

desk verdict A PhD dissertation extending the instanton liquid model to TMDs, the Collins-Soper kernel, twist-3 color-force form factors, and the nucleon EDM — broad in scope, with real new calculations but a known weak point in U(1)_A physics. read the letter →

arxiv 2607.06060 v1 pith:GHLTJPCY submitted 2026-07-07 hep-ph hep-th

Wei-Yang Liu This is my paper · ORCID

classification hep-phhep-th

keywords vacuumframeworkeffectiveoriginconstructdeterminantensemblefactorization

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This dissertation argues that the QCD vacuum, modeled as a liquid of instantons and anti-instantons with just two parameters fixed by the pion and rho meson masses, provides a quantitatively consistent description of an unusually broad range of hadronic observables. The central object is the Instanton Liquid Model (ILM): a semiclassical ensemble of topological gauge-field configurations that tunnel between distinct vacuum sectors. Light quarks passing through these configurations flip chirality via fermionic zero modes, producing the 't Hooft multi-fermion interaction, which dynamically breaks chiral symmetry, generates a constituent quark mass of roughly 400 MeV, and explains the U(1)_A anomaly and the eta-prime mass. The author develops two complementary formulations: a statistical ensemble sampled by Monte Carlo, and an effective field theory where the quark determinant is rewritten as effective multi-quark vertices. By reformulating this effective theory on the light front, the work constructs explicit light-front wave functions for mesons and baryons, then derives parton distribution functions, transverse-momentum-dependent distributions (TMDs), soft functions, generalized parton distributions, and a wide class of form factors (scalar, pseudoscalar, energy-momentum tensor, twist-3 color force) all from the same vacuum parameters. A key structural claim is that instanton-anti-instanton molecular pairs, absent in the dilute ensemble but resolved at higher resolution, generate nonperturbative relations between quark and gluon operators that are invisible in perturbative QCD. The framework is applied to hadron mass and spin decomposition, near-threshold quarkonium photoproduction, the Collins-Soper rapidity evolution kernel, and the nucleon electric dipole moment from the strong CP problem. Throughout, predictions are compared against lattice QCD and experimental data, with the author reporting quantitative agreement from low to moderate resolution scales.

What carries the argument

The 't Hooft multi-fermion vertex induced by quark zero modes delocalized across the instanton ensemble; instanton-anti-instanton molecular pairs generating additional effective interactions at higher resolution; the Bethe-Salpeter equation resumming quark bubble chains to produce meson and baryon bound states; light-front projection of Bethe-Salpeter wave functions yielding partonic observables; and the grand-canonical topological ensemble connecting vacuum fluctuations to hadronic matrix elements via topological susceptibility and compressibility.

What would settle it

A clean falsifier would be a lattice QCD calculation showing that removing instanton-dominated configurations from gauge ensembles leaves nonperturbative observables (form factors, TMD soft functions, Collins-Soper kernel) essentially unchanged at intermediate Q^2, which would mean instantons are not the dominant carriers of nonperturbative physics the model claims them to be.

Watch

Extended reading notes

Core claim

The QCD instanton vacuum, parameterized solely by an instanton size of about one-third femtometer and a density of about one per cubic fermimeter, generates effective quark interactions that produce hadron spectra, form factors, parton distributions, TMDs, soft functions, and rapidity evolution kernels in a single unified framework. The same two vacuum parameters, fixed by the pion and rho masses, yield predictions for observables ranging from the Collins-Soper kernel to nucleon gravitational form factors to near-threshold J/psi photoproduction, with the author reporting consistency with lattice QCD and experiments across this range. The mechanism carrying the argument is the chirality-flip零

Load-bearing premise

The ILM approximates the full QCD vacuum by saturating it with instantons and anti-instantons, dropping gauge-field fluctuations that are neither self-dual nor associated with near-zero Dirac eigenmodes. If these omitted configurations contribute significantly to observables like Wilson loops, soft functions, or form factors at intermediate resolution, the framework's quantitative predictions would be systematically biased.

Editorial extensions

If this is right

If the ILM parameters truly suffice to predict both hadron spectra and partonic structure, then lattice QCD calculations of PDFs, TMDs, and form factors could be cross-checked against a far cheaper semiclassical model with transparent physical interpretation.
The nonperturbative quark-gluon operator relations derived from instanton molecules could guide targeted lattice QCD calculations by predicting which form factors are correlated and testing those correlations numerically.
The vacuum-origin explanation of the Collins-Soper kernel, if accurate, would provide a physical mechanism for rapidity evolution that complements purely perturbative derivations and could reduce phenomenological uncertainty in TMD extractions.
The instanton-based prediction for the nucleon electric dipole moment from strong CP offers a concrete target for next-generation neutron EDM experiments, tying a topological vacuum parameter to a potentially measurable signal.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The framework implicitly suggests a natural hierarchy of nonperturbative contributions: chiral-symmetry-breaking observables are dominated by isolated instantons, while confinement-sensitive and gluon-dominated observables may require the molecular or even non-self-dual configurations the ILM omits. This predicts a systematic pattern of where the model should succeed and where it should fail, whic
The resolution-dependent splitting between dilute instantons and molecular pairs resembles a Wilsonian RG flow in topological space. One could test whether the molecular density parameter, treated as phenomenological here, can be derived from the gradient-flow evolution of lattice gauge configurations at intermediate flow times, closing the gap between the model and first-principles lattice data.
If the two-parameter ILM genuinely captures the dominant nonperturbative physics at moderate Q^2, then the breakdown of perturbative factorization in this regime may be quantifiable as the point where instanton-induced operators compete with perturbative gluon exchange, offering a diagnostic for when pQCD-based extractions of parton distributions become unreliable.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Desk Editor's Note

read the letter

Two things matter here. First, this is a genuinely broad extension of the ILM framework to observables it has never touched before: TMD soft functions, the Collins-Soper kernel, twist-3 color Lorentz force form factors, near-threshold quarkonium production, and the nucleon EDM from instantons. Second, the eta-prime mass comes out at 640 MeV versus 958 MeV experimentally, and that 33% miss is not a minor blemish — it traces directly to the topological susceptibility, which feeds into several downstream calculations including the EDM and pseudoscalar form factors in Chapters 5 and 9. The stress-test concern on this point lands and is the most important quantitative issue in the paper. The core ILM formalism is well-established (Shuryak, Diakonov, Petrov, 't Hooft), and the dissertation does not claim to invent it. What is new is the systematic application to partonic observables — the CS kernel computation (Ch. 11), the twist-3 color-force form factors (Ch. 8), and the light-front wave function construction connecting to PDFs and GPDs (Ch. 10). The comparisons to lattice data across meson spectra, gravitational form factors, and the CS kernel are extensive and mostly show 10-20% agreement, which is reasonable for a semi-classical model with a few fitted parameters. The parameters (rho, n_I+A, M, G_IA) are fixed by pion and rho masses, so the circularity burden is moderate — the framework does produce predictions, not just fits, but the parameter space is small enough that the distinction is not sharp. The eta-prime discrepancy is the main soft spot. The Witten-Veneziano relation ties chi_t to the singlet meson mass, and chi_t enters the grand-canonical fluctuation formula (Eq. 3.149) that underlies the pseudoscalar matrix elements. If chi_t is off by a third, those specific predictions carry a systematic bias of comparable size. The author is transparent about this — the 640 MeV is reported plainly in Table 4.3 without spin. The molecular density n_mol is an additional free parameter in the dense regime, which gives extra flexibility but also weakens the predictive power in channels where it enters. Chapter 10 (LaMET connection) is explicitly stated as in progress, which is fine for a dissertation but means that bridge is not yet load-bearing. No code or data is shipped, which limits reproducibility of the numerical results. This is a substantial piece of work for researchers in nonperturbative QCD phenomenology, especially those working on TMDs, form factors, and topological aspects of hadron structure. It deserves a serious referee who can assess the CS kernel and twist-3 calculations in detail, and who will push back on the eta-prime issue and its downstream propagation.

Referee Report

3 major / 9 minor

Summary. This dissertation develops a quantitative framework for nonperturbative QCD based on the instanton liquid model (ILM), in which the infrared QCD vacuum is modeled as an ensemble of instantons and anti-instantons. The framework is formulated both as a statistical ensemble (with weights defined by the instanton action and quark determinant) and as an effective field theory (via the 't Hooft vertex interaction). The author applies this framework to a broad range of observables: meson and baryon spectra, electromagnetic and gravitational form factors, twist-3 color Lorentz force distributions, near-threshold quarkonium photoproduction, nucleon EDM and strong CP, parton distribution functions, and transverse-momentum-dependent (TMD) soft functions including the Collins-Soper kernel. The ILM parameters (instanton size rho, density n_{I+A}, constituent mass M, molecule coupling G_IA, determinantal mass m*) are fixed primarily by the pion and rho meson masses, and the framework's predictions are compared against lattice QCD and experimental data throughout. The work demonstrates reasonable quantitative agreement (typically at the 10-30% level) across many observables, while also identifying known limitations such as the eta' mass underprediction.

Significance. The manuscript provides a comprehensive and ambitious synthesis of the instanton liquid model applied to a very wide range of hadronic observables, from spectroscopy to partonic structure. Its strengths include: (1) a unified framework connecting vacuum topology to both low-energy hadron physics and light-front parton observables; (2) explicit construction of light-front wave functions and their connection to Euclidean Bethe-Salpeter wave functions; (3) falsifiable predictions for form factors, TMD soft functions, and the Collins-Soper kernel, compared against lattice and phenomenological extractions; (4) a systematic 1/N_c and instanton-density expansion organizing the effective quark Lagrangian. The computation of the Collins-Soper kernel from the ILM (Sec. 11.4) and its comparison to recent lattice results is a particularly noteworthy new result. The framework is not parameter-free (rho, n_{I+A}, M, G_IA, m* are fitted), but the number of fitted parameters is modest relative to the range of observables addressed.

major comments (3)

Table 4.3, eta' mass row: The ILM predicts m_{eta'} = 640 MeV versus the experimental 958 MeV, a 33% discrepancy. This is a known limitation of the N_f=2 ILM, but it is load-bearing for the central claim of 'quantitatively consistent' nonperturbative QCD. The eta' mass is set by the topological susceptibility chi_t via the Witten-Veneziano relation (Eq. 3.41), and the same chi_t enters the grand-canonical fluctuation formula (Eq. 3.149-3.152) used for hadronic matrix elements of F tilde-F, including the pseudoscalar form factor (Sec. 5.5) and nucleon EDM (Ch. 9). The manuscript should explicitly quantify the systematic uncertainty propagated from this discrepancy into observables derived from Eq. 3.149. At minimum, a clear statement is needed that the U(1)_A sector is not quantitatively controlled within the N_f=2 framework, and that observables sensitive to topological fluctuations (pse
Sec. 3.4.5, Eq. 3.129: The determinantal mass m* is computed from the same instanton parameters (rho, n_{I+A}) that are fitted to the pion and rho masses, and m* then enters the effective 't Hooft coupling G_I in Eq. 4.2. This creates a degree of circularity in the parameter chain: rho and n_{I+A} are fixed by m_pi and m_rho; m* is derived from rho, n_{I+A}, and the quark condensate; and m* then determines G_I which feeds back into the spectrum. The manuscript should clarify which observables are genuine predictions (i.e., depend only on the fitted rho, n_{I+A}, M, and G_IA) versus those that implicitly inherit the GOR relation by construction. A flowchart or table mapping parameters to observables would strengthen the claim of quantitative consistency.
Sec. 11.4, Eqs. 11.38 and 11.43: The Collins-Soper (CS) kernel is computed in two versions — the full ILM expression and the weak-field approximation — and compared to lattice data in Fig. 11.10. The ILM parameters used here (rho = 0.343 fm, n_{I+A} = 7.46 fm^{-4}) differ significantly from those used in the spectroscopy chapter (rho = 0.33 fm, n_{I+A} = 0.85-1.056 fm^{-4} in Tables 4.1 and 4.7). The manuscript attributes this to the dense vs. dilute ILM distinction (Sec. 3.4.3), but the prescription for choosing which parameter set applies to which observable is not systematically specified. This is load-bearing because the CS kernel result is presented as a key prediction, yet it uses a different parameter regime than the spectroscopy that fixes those parameters. A clear RG/resolution argument for the parameter choice in each chapter is needed.

minor comments (9)

Table 4.1 caption: 'Contituent' should be 'Constituent' (also in Sec. 4.5.2 heading).
Sec. 2.1: 'gredient flow' should be 'gradient flow' in the Chapter 3 overview (Sec. 1.1).
Fig. 3.2 caption: 'instnaton' should be 'instanton'.
Table 4.3: The sigma meson mass range 400-800 MeV from PDG is very broad; the ILM value of 682 MeV falls within this range, but the comparison would be more informative if the specific PDG assignment (e.g., f_0(500) vs. f_0(980)) were clarified.
Sec. 5.6.1 and Fig. 5.21-5.22: The pion and nucleon mass decompositions are presented at two resolutions (mu ~ 1/rho and mu = 2 GeV), but the DGLAP evolution procedure used to go between them is only briefly referenced. A short statement of the evolution order (LO/NLO) and the input PDFs at the low scale would improve reproducibility.
Sec. 9, Table 9.1: The proton and neutron EDM values are presented without uncertainties. Given the eta' mass discrepancy discussed above, an estimate of the systematic uncertainty on these predictions would be appropriate.
Fig. 11.11 and 11.12 appear to be nearly identical plots with different captions (one referencing TMDPDFs, the other referencing the same). This may be a duplication error.
The bibliography is extensive but several references to lattice collaborations could be updated to the most recent results (e.g., FLAG 2024 where available).
Sec. 3.2.1, Eq. 3.28: The two-loop running is used for the instanton size distribution, but the prefactor S(ρ)^{2N_c} is only known at one-loop. The manuscript notes this but does not estimate the systematic uncertainty from the missing higher-loop prefactor.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for a careful and constructive report. The referee raises three major comments concerning: (1) the eta' mass discrepancy and its implications for observables derived from topological susceptibility, (2) the degree of circularity in the parameter chain from rho, n_{I+A} through m* to G_I, and (3) the use of different ILM parameter sets (dense vs. dilute) across chapters, particularly for the Collins-Soper kernel. We agree that all three points identify legitimate gaps in the manuscript's presentation and will revise accordingly. Below we address each comment in detail.

read point-by-point responses

Referee: Table 4.3, eta' mass row: The ILM predicts m_{eta'} = 640 MeV versus the experimental 958 MeV, a 33% discrepancy. This is a known limitation of the N_f=2 ILM, but it is load-bearing for the central claim of 'quantitatively consistent' nonperturbative QCD. The manuscript should explicitly quantify the systematic uncertainty propagated from this discrepancy into observables derived from Eq. 3.149. At minimum, a clear statement is needed that the U(1)_A sector is not quantitatively controlled within the N_f=2 framework, and that observables sensitive to topological fluctuations (pseudoscalar form factor, nucleon EDM) carry this systematic uncertainty.

Authors: The referee is correct that the eta' mass discrepancy is a known and significant limitation of the N_f=2 ILM, and we agree that the manuscript does not currently state this clearly enough or trace its implications for downstream observables. We will revise the manuscript to address this in three concrete ways. First, we will add an explicit statement in Sec. 4.5.3 that the U(1)_A sector is not quantitatively controlled within the N_f=2 framework: the eta' mass is underpredicted by approximately 33%, reflecting the fact that the topological susceptibility in the N_f=2 ILM is set by the instanton density and quark screening (Eq. 3.106) rather than by the full Witten-Veneziano relation with physical singlet meson masses. Second, we will add a discussion in Sec. 3.5.1 quantifying the systematic uncertainty propagated into observables derived from the grand-canonical fluctuation formula (Eqs. 3.149-3.152). The key observation is that the pseudoscalar gluonic matrix element (Eq. 3.152) is proportional to chi_t, and the ratio chi_t^{ILM}/chi_t^{WV} can be estimated from Table 3.2: the ILM prediction using exact duality gives chi_t/V = (75.1 MeV)^4 for N_f=2+1, while the Witten-Veneziano relation gives (72.6 MeV)^4, a discrepancy of approximately 4%. For the N_f=2 case used in the spectroscopy chapter, the discrepancy is larger. We will state that observables sensitive to topological fluctuations — specifically the pseudoscalar form factor (Sec. 5.5) and nucleon EDM (Ch. 9) — carry a systematic uncertainty of order this ratio, and we will add error bands or caveats to the relevant figures and tables. Third, we will clarify in the abstract and conclusion that the framework's claim of 'quantitative consistency' applies to the SU(N_f) sector and observables dominated by chiral (而非 revision: yes
Referee: Sec. 3.4.5, Eq. 3.129: The determinantal mass m* is computed from the same instanton parameters (rho, n_{I+A}) that are fitted to the pion and rho masses, and m* then enters the effective 't Hooft coupling G_I in Eq. 4.2. This creates a degree of circularity in the parameter chain. The manuscript should clarify which observables are genuine predictions versus those that implicitly inherit the GOR relation by construction. A flowchart or table mapping parameters to observables would strengthen the claim of quantitative consistency.

Authors: The referee identifies a legitimate concern about the parameter chain. We agree that the relationship between fitted parameters and derived quantities is not transparently presented. We will add a table (or flowchart) in Sec. 4.1 mapping the full parameter dependency structure. To be specific: the primary fitted parameters are rho, n_{I+A}, M, and G_IA, fixed by m_pi, m_rho (and m_K, m_{rho} in the N_f=3 case). The determinantal mass m* is derived from rho, n_{I+A}, and the quark condensate via Eq. 3.129, and G_I is then determined from rho, n_{I+A}, and m* via Eq. 4.2. The referee is correct that this creates a degree of circularity: observables that depend only on G_I and the GOR relation (such as the pion decay constant f_pi and the quark condensate) are not independent predictions but rather inherit the GOR relation by construction. We will explicitly classify observables into three categories: (i) fitted inputs (m_pi, m_rho, and in N_f=3 also m_K), (ii) derived quantities that inherit the GOR relation (f_pi, quark condensate, m*), and (iii) genuine predictions that depend on the fitted parameters but not on the GOR relation (e.g., meson masses other than pi and rho, baryon masses, form factors, PDFs, TMDs, CS kernel). This classification will make clear which observables test the framework independently. We note that the majority of observables presented in the dissertation — including the full meson spectrum beyond pi and rho, the baryon spectrum, all form factors in Ch. 5-9, and the partonic observables in Ch. 10-11 — fall into category (iii). revision: yes
Referee: Sec. 11.4, Eqs. 11.38 and 11.43: The Collins-Soper kernel uses ILM parameters (rho = 0.343 fm, n_{I+A} = 7.46 fm^{-4}) that differ significantly from those in the spectroscopy chapter (rho = 0.33 fm, n_{I+A} = 0.85-1.056 fm^{-4}). The manuscript attributes this to the dense vs. dilute ILM distinction, but the prescription for choosing which parameter set applies to which observable is not systematically specified. A clear RG/resolution argument for the parameter choice in each chapter is needed.

Authors: The referee is correct that the manuscript does not provide a systematic prescription for choosing between the dilute and dense ILM parameter sets, and that this gap undermines the presentation of the CS kernel result. We will add a clear discussion of this point. The physical basis for the distinction is the resolution scale: the dilute ILM (n_{I+A} ~ 1 fm^{-4}) corresponds to the deeply cooled regime at resolution mu ~ 1/rho ~ 600 MeV, where short-distance IA pairs have annihilated and only isolated instantons remain. The dense ILM (n_{I+A} ~ 7-10 fm^{-4}) corresponds to a higher resolution mu ~ 2 GeV, where correlated IA pairs are resolved as additional configurations (see Sec. 3.4.3 and Fig. 2.3). The key point is that the CS kernel (Sec. 11.4) and Wilson loop observables (Ch. 6) probe the vacuum at transverse distances b_perp ~ 0.1-0.3 fm, corresponding to resolution scales mu ~ 1-2 GeV, where the dense ensemble is the appropriate description. In contrast, hadron spectroscopy (Ch. 4) and form factors at low Q^2 (Ch. 5) probe the vacuum at hadronic scales ~ 1 fm, where the dilute ensemble applies. We will add a table specifying which parameter set is used in each chapter, along with the corresponding resolution scale and the physical justification. We will also add a statement in Sec. 11.4 explicitly noting that the CS kernel calculation uses the dense ILM parameters because the relevant transverse distances are shorter than the instanton separation R ~ 1 fm. We agree that without this clarification, the parameter choice appears arbitrary, and the referee's request for a systematic RG argument is well-justified. revision: yes

Circularity Check

3 steps flagged · score 3.0 of 10

Parameters fitted to pion/rho masses then used to 'predict' other hadron observables; GOR relation built into bosonization; η′ mass underprediction signals incomplete U(1)_A dynamics rather than circularity.

fitted input called prediction [Table 4.1 and Table 4.3 (Sec. 4.1.1, 4.5.3)]
"The fitted parameters in ILM using instanton size ρ = 0.33(2) fm and constituent mass M = 395(3) MeV with fixed pion mass mπ = 139.4 MeV and rho meson mass mρ = 785(6) MeV."

The ILM parameters (ρ, n_{I+A}, M, G_I, G_{IA}) are fixed by fitting to the physical pion and rho meson masses (Table 4.1). The Bethe-Salpeter equations (Eqs. 4.37–4.40) are then solved to produce the meson spectrum (Table 4.3). Since m_π and m_ρ are inputs to the parameter fit, their 'prediction' in Table 4.3 is tautological — the BS equation is guaranteed to reproduce them by construction of the coupling constants. The σ meson mass (682 MeV) and η′ mass (640 MeV) are genuine predictions, but the η′ underprediction by 33% indicates the framework's U(1)_A dynamics are incomplete, which is a correctness concern rather than circularity.
self definitional [Eq. (4.15), Sec. 4.2 (Bosonization)]
"The last term determines the mass of the (pseudo) Goldstone boson by GOR relation. m²_π = 2mσ̄/F²_π"

The GOR relation (Eq. 4.15) is derived as a direct consequence of the bosonization procedure in Eq. (4.12). The pion mass is then used as a fitting input in Table 4.1 to fix the model parameters. When the framework subsequently 'predicts' the pion mass in Table 4.3 or uses the GOR relation to validate the chiral picture ('It successfully generate the low energy GOR relation, indicating the correct chiral picture'), this is circular: the GOR relation is built into the bosonized Lagrangian by construction, so verifying it against the same input pion mass provides no independent test.

1 more flagged steps

fitted input called prediction [Table 4.4, Sec. 4.5.3]
"Quark mass vs. chiral condensate in the ILM using Eqs. (4.34) and (4.35) with the parameters listed in Table 4.1 at the resolution μ = 1/ρ ≈ 600 MeV."

The current quark mass m and quark condensate ⟨q̄q⟩ are computed from the gap equations (4.34, 4.35) using the parameters already fitted to m_π and m_ρ in Table 4.1. Since the GOR relation m²_π = 2m⟨q̄q⟩/F²_π is built into the framework (Eq. 4.15), the product m|⟨q̄q⟩| is constrained to match the pion mass input by construction. The comparison to FLAG lattice values in Table 4.4 is therefore not an independent prediction but a consistency check of the fitted parameters against the same GOR relation that lattice QCD also satisfies.

full rationale

The paper fits ILM parameters (ρ, n_{I+A}, M, G_I, G_{IA}) to the physical pion and rho meson masses (Table 4.1), then uses the Bethe-Salpeter equation to produce a meson spectrum (Table 4.3) where m_π and m_ρ are reproduced by construction. The GOR relation is built into the bosonization procedure (Eq. 4.15), so the quark mass and condensate in Table 4.4 are constrained by the pion mass input. However, the framework does produce genuinely independent predictions for observables not used in fitting: the σ meson mass, gravitational form factors (Ch. 5), TMD soft functions (Ch. 11), color force form factors (Ch. 8), and EDM (Ch. 9) are computed from the same parameters but are not fitted. The η′ mass underprediction (640 vs 958 MeV) is a correctness limitation of the ILM's U(1)_A dynamics, not a circularity issue. Self-citations to prior ILM work (Refs. [30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41]) are used to reference established methodology, not to import unverified uniqueness theorems. The circularity is moderate: the central spectroscopic results are partially constrained by the fit, but the broader framework's applications to form factors, PDFs, and TMDs contain substantial independent content.

Assumptions & free parameters 9 free parameters · 6 assumptions · 2 invented entities

The framework has ~9 fitted or externally-input parameters. The core parameters (rho, n_I+A, M) are fixed by 2-3 hadron masses and then used across all predictions. The molecular density n_mol is an additional parameter for dense-regime calculations. The axioms are standard within the ILM literature but represent genuine approximations whose validity is not independently established for all observables computed.

free parameters (9)

rho (instanton size) = 0.33(2) fm
Fixed by fitting to lattice instanton size distribution and hadron masses (Table 4.1, 4.7)
n_I+A (instanton density) = ~0.85-1.0 fm^-4
Fixed by fitting to hadron masses and lattice data (Table 4.1)
M (constituent quark mass) = 395(3) MeV
Fixed by gap equation with pion and rho mass input (Table 4.1)
G_IA (molecule coupling) = 67.8 GeV^-2 (Nf=2), 64.8 GeV^-2 (Nf=3)
Determined from instanton parameters and hopping integral T_IA (Table 4.1, 4.7)
m* (determinantal mass) = ~103.6 MeV
Computed from instanton parameters and quark condensate (Sec. 3.4.5)
n_mol (molecule density) = 7.248 fm^-4
Introduced for dense ILM / twist-3 calculations, fixed separately from dilute n_I+A (Ch. 8)
m_0++ (scalar glueball mass) = 1.5-1.7 GeV
External input from lattice, used as a band in form factor calculations (Sec. 5.3)
sigma_piN (pion-nucleon sigma term) = 45-60 MeV
External input used for nucleon form factors (Table 5.4)
m_3g (three-gluon exchange mass) = 1.49 GeV
Fitted mass for eta_c photoproduction (Sec. 7.5)

assumptions (6)

domain assumption QCD vacuum is saturated by instantons and anti-instantons at low resolution
Core ILM assumption; non-self-dual fluctuations omitted (Sec. 2.1, 3.3)
domain assumption Large-Nc planar resummation captures dominant quark dynamics in instanton vacuum
Used throughout for quark propagator and effective Lagrangian (Sec. 3.3.2, 3.4.2)
ad hoc to paper Instanton size distribution is sharply peaked at mean value rho
Mean-field RILM approximation; used for most analytic calculations (Sec. 3.4.2)
domain assumption Two-body semiclassical interactions suffice for instanton ensemble
Only pairwise Sint included in partition function (Sec. 3.2.4)
domain assumption Zero-mode dominance for light quarks in instanton background
Non-zero modes approximated by free propagator (Sec. 3.3.2)
ad hoc to paper Ratio ansatz for IA pair interaction
Simplified alternative to streamline/Yung ansatz (Sec. 3.2.2)

invented entities (2)

Instanton-anti-instanton molecules (dense ILM) independent evidence
purpose: Short-distance correlated IA pairs for intermediate resolution observables
Observed in lattice gradient flow; density n_mol is fitted but the existence of such configurations is supported by lattice (Sec. 2.1, 3.4.3)
Determinantal mass m* independent evidence
purpose: Effective quark mass from fermion determinant in instanton ensemble
Computed from instanton parameters; consistent with numerical IILM simulations (Sec. 3.4.5)

how reviews work

0 comments

Cite this review

Pith. "Pith review of A Quantitative Framework of Nonperturbative QCD from Topological Vacuum with Application to Parton Structures." pith.science (2026). https://pith.science/paper/GHLTJPCY

@misc{pith2026260706060,
  author       = {Pith},
  title        = {Pith review of: A Quantitative Framework of Nonperturbative QCD from Topological Vacuum with Application to Parton Structures},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GHLTJPCY}},
  note         = {Machine review of arXiv:2607.06060}
}

read the original abstract

This dissertation develops a quantitative framework that provides a physical picture for non-perturbative QCD based on the topological structure of the QCD vacuum. By integrating out the ultraviolet degrees of freedom, the infrared gluon configurations are modeled as a liquid ensemble of instantons and anti-instantons, which induce effective interactions among quarks. This framework captures the origin of trace and axial anomalies through the infrared distributions of QCD and dynamically breaks chiral symmetry. More specifically, this framework can be formulated in two ways: in one, we construct a statistical ensemble with weights defined by the instanton action and Dirac determinant, while in the other we formulate an effective field theory (EFT) by rewriting the determinant as effective quark interactions. By reformulating the EFT on the light front, we explicitly construct the light-front wave functions and calculate various parton observables in linear factorization. We further embed the framework into transverse momentum dependent factorization and establish a vacuum origin for rapidity evolution by computing the soft functions. We also extend this approach to various form factors in light hadrons, including scalar, pseudoscalar, and energy-momentum tensor (EMT), as well as higher-twist color force and multigluon correlations, with applications to hadron mass and spin decomposition, near-threshold quarkonium production, and strong CP problem, highlighting the importance of the vacuum origin in hadron structures. Overall, this work demonstrates that the QCD vacuum provides a quantitatively crucial description of hadronic structure from low to moderate resolution, bridging nonperturbative vacuum physics with partonic phenomenology.

Figures

Figures reproduced from arXiv: 2607.06060 by the authors.

**Figure 1.1.** The universe is made up of three components: visible matter (5%), [PITH_FULL_IMAGE:figures/full_fig_p029_1_1.png] view at source ↗

**Figure 1.2.** (a) Lattice visualization of a YM vacuum (Image credit: [PITH_FULL_IMAGE:figures/full_fig_p030_1_2.png] view at source ↗

**Figure 2.1.** A schematic illustration of the Yang–Mills gradient flow toward [PITH_FULL_IMAGE:figures/full_fig_p034_2_1.png] view at source ↗

Figures from the paper (92 more)

**Figure 2.2.** Figure 2.2: Visualization of the QCD vacuum in different resolutions [PITH_FULL_IMAGE:figures/full_fig_p035_2_2.png]

**Figure 2.3.** Figure 2.3: Dependence of the mean instanton size ρ (left panel) and density n = nI+A (right panel) on the dimensionless gradient flow time τ = t/a2 with lattice spacing a = 0.046 fm [25], determined by √ 8t0 = 0.1 fm, or 1/ √ 8t0 ∼ 2 GeV. The quantum vacuum corresponds to the e…

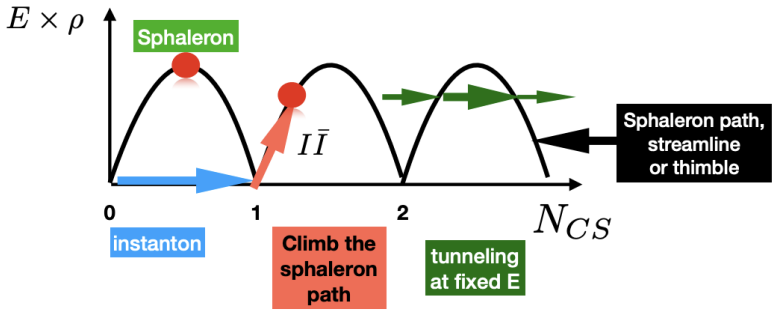

**Figure 2.4.** Figure 2.4: Topological landscape of gauge fields we obtain ⟨n + Q| e −Ht |n⟩ = 1 2π Z 2π 0 dθ eiθQ X N+,N− 1 N+! N−! [PITH_FULL_IMAGE:figures/full_fig_p041_2_4.png]

**Figure 2.5.** Figure 2.5: (a) Cartoon picture for the coexistence of center vortices and [PITH_FULL_IMAGE:figures/full_fig_p044_2_5.png]

**Figure 2.6.** Figure 2.6: Instanton (yellow) and anti-instanton (blue) configurations in the [PITH_FULL_IMAGE:figures/full_fig_p045_2_6.png]

**Figure 2.7.** Figure 2.7: The constituents of instantons (calorons): BPS and KK dyons, and [PITH_FULL_IMAGE:figures/full_fig_p047_2_7.png]

**Figure 3.1.** Figure 3.1: (a) SU(2) instanton size distribution with 1-loop (solid red) and 2- loop (solid blue) compared to lattice calculations. (b) One-loop parametrized SU(3) instanton size distribution with 1-loop (solid red) and 2-loop (solid blue) compared to lattice calculations. dens…

**Figure 3.2.** Figure 3.2: (a) Action of a IA configuration (in unit of single instnaton action 8π 2 ) in ratio ansatz vs. streamline configuration. (b) Electric field (black solid) and magnetic field (blue dashed) with µ = 3, a = 3 as functions of x4/ρ ratio ansatz as a variant version, A a µ…

**Figure 3.3.** Figure 3.3: Mean action distribution in physical YM vacuum (blue and in [PITH_FULL_IMAGE:figures/full_fig_p065_3_3.png]

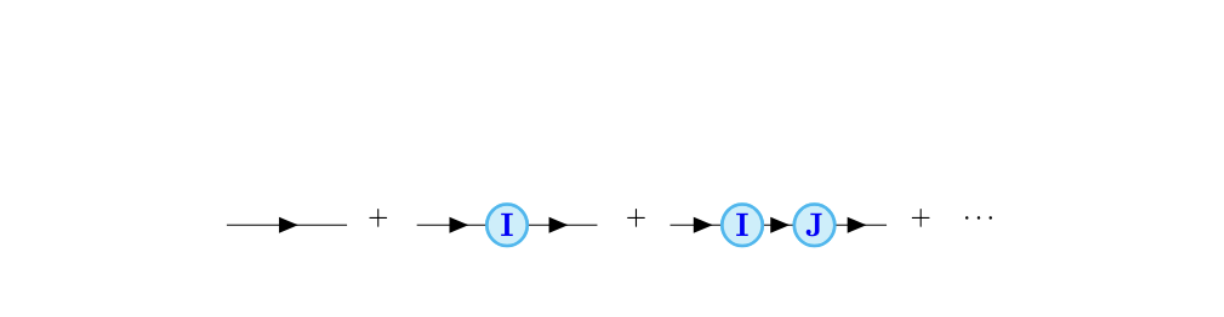

**Figure 3.4.** Figure 3.4: Quark propagator distorted by the instanton background with zero [PITH_FULL_IMAGE:figures/full_fig_p069_3_4.png]

**Figure 3.5.** Figure 3.5: The constituent mass M(k) running with the quark momentum k with the instanton size ρ = 0.313 fm and nI+A = 1.056 fm−4 compared with lattice QCD using dynamical O(a)-improved Wilson fermions [119] (red) and result using overlap and Asqtad fermions [120] in Landau gau…

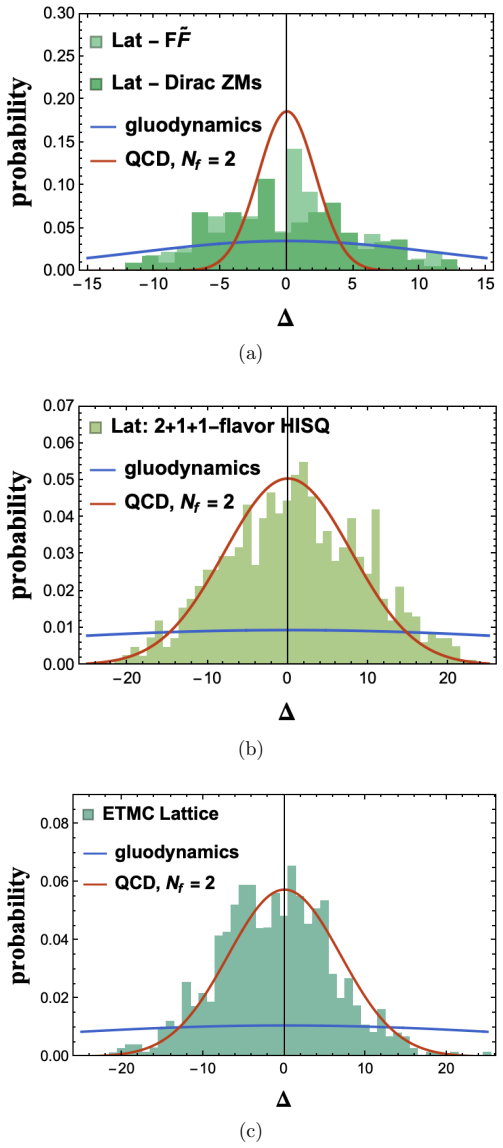

**Figure 3.6.** Figure 3.6: ILM predicted distribution of topological charges in QCD [PITH_FULL_IMAGE:figures/full_fig_p078_3_6.png]

**Figure 3.7.** Figure 3.7: Density expansion for the effective quark operators in dilute ILM [PITH_FULL_IMAGE:figures/full_fig_p083_3_7.png]

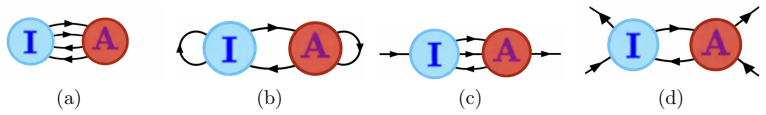

**Figure 3.8.** Figure 3.8: Feynman diagrams for the vertices (Nf = 2) induced by a close pair of instanton (I) and anti-instanton (A): (a) vacuum tunneling rate of a fully connected molecule where all flavors looped across the pair. (b) vacuum tunneling rate where one flavor looped across the …

**Figure 3.9.** Figure 3.9: Red and blue circles represents the instantons and anti-instantons [PITH_FULL_IMAGE:figures/full_fig_p085_3_9.png]

**Figure 3.10.** Figure 3.10: Vacuum resummation in the IA pair. Those internal quark loops are often omitted in diagrams for simplicity ⟨LIA⟩ = Z dρIdρAn(ρI )n(ρA)ρ Nf I ρ Nf A Z d 4RduX Nf n=1 Nf n |TIA(u, R)| m∗ 2n = nI+A 2 2 Z d 4RduX Nf n=1 Nf n |TIA| m∗ 2n (3.126) The first b…

**Figure 3.11.** Figure 3.11: Feynman diagrams in the RILM effecitve quark theory. (a) 2 [PITH_FULL_IMAGE:figures/full_fig_p090_3_11.png]

**Figure 3.12.** Figure 3.12: Feynman diagrams in the RILM effecitve Lagrangian. (a) semi [PITH_FULL_IMAGE:figures/full_fig_p091_3_12.png]

**Figure 4.1.** Figure 4.1: Light quarks flip their chirality when passing through the instanton [PITH_FULL_IMAGE:figures/full_fig_p098_4_1.png]

**Figure 4.2.** Figure 4.2: Quark-anti-quark bubble chain in meson channels [PITH_FULL_IMAGE:figures/full_fig_p106_4_2.png]

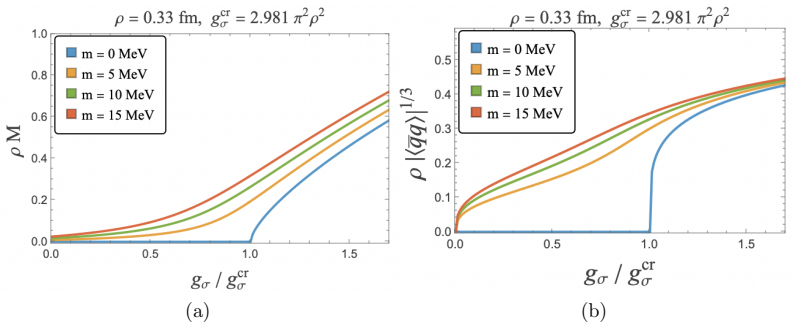

**Figure 4.3.** Figure 4.3: (a) The plot for the Nf = 2 gap equation in Eq. (4.34). Quark constituent mass vs. the ’t Hooft coupling gσ for increasing current quark mass (bottom-up). (b) The plot for the quark condensate with Nf = 2 dynamical quark in the instanton vacuum. Quark condensate vs. …

**Figure 4.4.** Figure 4.4: Pion and rho meson bound state in ILM 4.5.4 BS wave functions The meson wave function in two-body Fock space is related to the BetheSalpeter (BS) wave functions defined by i(2π) 4 δ 4 (p − k1 − k2)ΨX,ij (k1, k2; P λ)δαβ = Z d 4x1d 4x2e ik1·x1+ik2·x2 ⟨0|ψαi(x1)ψ¯ βj …

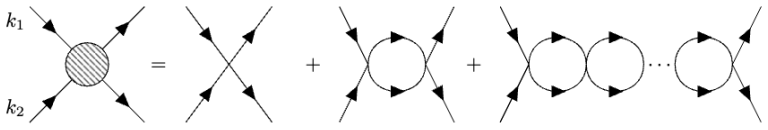

**Figure 4.5.** Figure 4.5: The Feynman diagrams for the quark bubble resummation in the [PITH_FULL_IMAGE:figures/full_fig_p136_4_5.png]

**Figure 4.6.** Figure 4.6: Baryon bound state in ILM. Nucleon has contribution from both [PITH_FULL_IMAGE:figures/full_fig_p139_4_6.png]

**Figure 4.7.** Figure 4.7: The Feynman diagrams for the quark-diquark bubble resummation [PITH_FULL_IMAGE:figures/full_fig_p140_4_7.png]

**Figure 4.8.** Figure 4.8: The quark exchange matrix in color space (a) and in flavor-spin [PITH_FULL_IMAGE:figures/full_fig_p141_4_8.png]

**Figure 5.1.** Figure 5.1: Illustration for QCD operator probing the vacuum with [PITH_FULL_IMAGE:figures/full_fig_p151_5_1.png]

**Figure 5.2.** Figure 5.2: The factorization of (a) meson and (b) baryon form factors at large [PITH_FULL_IMAGE:figures/full_fig_p152_5_2.png]

**Figure 5.3.** Figure 5.3: (a) and (b) are the perturbative gluon exchange diagrams at the [PITH_FULL_IMAGE:figures/full_fig_p152_5_3.png]

**Figure 5.4.** Figure 5.4: The soft, semi-hard, and hard Q2 energy regions characterizing different regimes of the hadronic form factors Unfortunately, there are big discrepancies between such an asymptotic theory and existing experimental data, which remain in the semi-hard regime, as illustr…

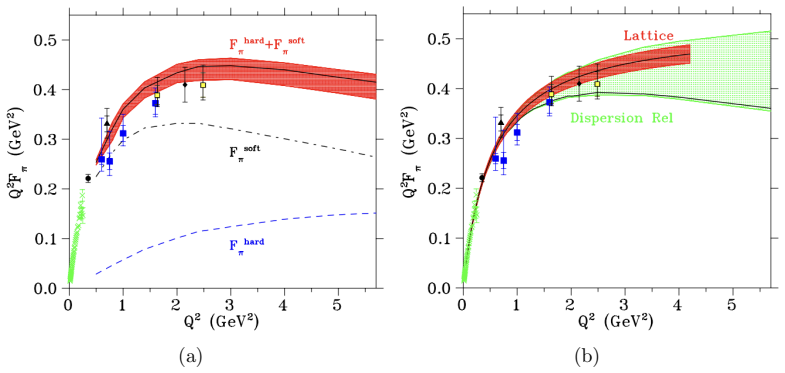

**Figure 5.5.** Figure 5.5: (a) Pion form factor Fπ data [203] compared with LO+NLO hard contributions [205] based on an analysis of the pion-photon transition form factor from CLEO [206] and CELLO [207]. The supplemented soft component is estimated from local quark–hadron duality. (b) Comparis…

**Figure 5.6.** Figure 5.6: (a) Disconnected contribution to the gluonic operators. (b) One [PITH_FULL_IMAGE:figures/full_fig_p154_5_6.png]

**Figure 5.7.** Figure 5.7: The form factors of (a) meson X and (b) baryon B at small Q2 with hadron state addressed by the BS wave function. The probe denoted by the cross dot is dressed by the instanton vacuum (See text). The momentum conservation requires k ′ 1 = k1 + q and k ′ 2,3 = k2,3. t…

**Figure 5.8.** Figure 5.8: The instanton form factors induced by molecular profile for gluonic [PITH_FULL_IMAGE:figures/full_fig_p157_5_8.png]

**Figure 5.9.** Figure 5.9: Spectral function from the ILM (open red circles) [ [PITH_FULL_IMAGE:figures/full_fig_p159_5_9.png]

**Figure 5.10.** Figure 5.10: (a) Normalized quark scalar form factors in pion using [PITH_FULL_IMAGE:figures/full_fig_p162_5_10.png]

**Figure 5.11.** Figure 5.11: Gluonic scalar form factor of pion (red solid line) together with [PITH_FULL_IMAGE:figures/full_fig_p163_5_11.png]

**Figure 5.12.** Figure 5.12: Nucleon gluonic scalar form factor (5.24) (red solid line) together with the 0++ glueball correlation function (5.15) using scalar glueball mass m0++ = 1.6 GeV (orange dashed line are presented. The red band reflects the sensitivity of the form factor to scalar glue…

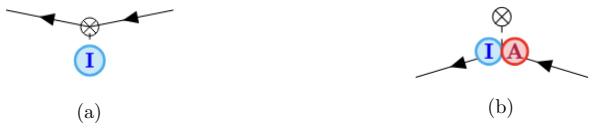

**Figure 5.13.** Figure 5.13: (a) One-body operator arising from single (anti-)instantons in [PITH_FULL_IMAGE:figures/full_fig_p167_5_13.png]

**Figure 5.14.** Figure 5.14: The instanton form factors induced by single pseudoparticle in [PITH_FULL_IMAGE:figures/full_fig_p169_5_14.png]

**Figure 5.15.** Figure 5.15: Pion trace form factor. Blue square represents the reconstruction [PITH_FULL_IMAGE:figures/full_fig_p171_5_15.png]

**Figure 5.16.** Figure 5.16: Pion form factors Aπ(Q2 ) (left red line) and Dπ(Q2 ) (right red line) in the ILM, compared to the lattice results (blue square) [219] For the separate gravitational form factors, quark and gluon contributions are scale-dependent. In [PITH_FULL_IMAGE:figures/full_f…

**Figure 5.17.** Figure 5.17: (a) Quark contribution Aq π (Q2 ) (blue) and gluon contribution Ag π (Q2 ) (red) to the pion gravitational form factor in the ILM at a resolution µ = 1/ρ (dashed lines) and at a resolution µ = 2 GeV (solid lines). The lattice results are from [219]. (b) Quark contri…

**Figure 5.18.** Figure 5.18: Nucleon trace form factor in (5.22) with σπN = 53 MeV where the red band indicates the range of m0++ = 1.5 − 1.7 GeV. DN (Q 2 ) = 4m2 N 3Q2 GN (Q 2 ) + σN (Q 2 ) − 1 + Q2 4m2 N AN (Q 2 ) + Q2 2m2 N JN (Q 2 ) (5.53) Using the result in Eq. (5.38), the nucleon…

**Figure 5.19.** Figure 5.19: Nucleon gravitational form factors AN (Q2 ) and DN (Q2 ) in the ILM with red bands indicating the range of σπN = 45 − 60 MeV, compared to the fitted lattice results [219] using dipole form. D g N (Q 2 ) = nIAγIA 2Nc(N2 c − 1)("8π 2 3 β (IA) Tg,1 (ρq) + π 2 3 ρ 2Q 2β…

**Figure 5.20.** Figure 5.20: (a) Quark contribution A q N (Q2 ) (blue) and gluon contribution A g N (Q2 ) (orange) to the pion gravitational form factor in the ILM at a resolution µ = 1/ρ (dashed lines) and at a resolution µ = 2 GeV (solid lines). The lattice results are from [219]. (b) Quark c…

**Figure 5.21.** Figure 5.21: Pion mass decomposition using Ji’s mass sum rule, in the QCD [PITH_FULL_IMAGE:figures/full_fig_p184_5_21.png]

**Figure 5.22.** Figure 5.22: Nucleon mass decomposition using Ji’s mass sum rule in the [PITH_FULL_IMAGE:figures/full_fig_p185_5_22.png]

**Figure 5.23.** Figure 5.23: Spin decomposition using Ji’s sum rule using Σ [PITH_FULL_IMAGE:figures/full_fig_p191_5_23.png]

**Figure 6.1.** Figure 6.1: Wilson loop in quenched vacuum (YM) 6.1 YM vacuum The investigation of the infrared behavior of QCD is the formulation of the non-Abelian gauge theory on loop space that becomes possible by virtue of the close correspondence between gauge and chiral fields [267]. One…

**Figure 6.2.** Figure 6.2: Wilson loop in chiral broken QCD vacuum an effective determinantal mass m∗ . Within this framework, the mean-field approximation in (6.9) remains applicable. The key difference relative to the quenched case lies in the weighting of the instanton ensemble: the average…

**Figure 7.1.** Figure 7.1: Kinematics for the γN → XN′ process. facilities, probes C-odd gluon exchanges. The latters Reggeize to the Odderon at higher center of mass energy. The aim of this chapter is to analyze the near threshold production of the ηc,b, by factorizing out the leading gluonic…

**Figure 7.2.** Figure 7.2: (a) Skewness ξ in the (W, −t) plane in the kinematically allowed region with Mηc = 2.982 GeV. The kinematically allowed region for charmonium J/ψ is similar due to the similar mass MJ/ψ = 3.097 GeV. (b) Skewness ξ in the (W, −t) plane in the kinematically allowed reg…

**Figure 7.3.** Figure 7.3: Feynman diagram for the hard kernel in J/ψ photoproduction. We use the light-cone gauge, where the unphysical longitudinally polarized collinear gluons vanish. The lower bound of the parton momentum-integral assures that the spectators in the nucleon remains physical…

**Figure 7.4.** Figure 7.4: Feynman diagram for the hard kernel for ηc photoproduction. proton, through W2g(t, ξ) = Z 1 −1 dx 1 x − ξ + i0 + 1 x + ξ − i0 + f2g(x, t, ξ) (7.8) where the two-gluon distribution is defined as f2g(x, ξ, t) = Z dz− 2π e −ixP¯+z− 1 P¯+ ⟨N ′ |F a+i [PITH_FULL_IMAGE:fi…

**Figure 7.5.** Figure 7.5: One-body operator arising from (a) instanton–anti-instanton [PITH_FULL_IMAGE:figures/full_fig_p209_7_5.png]

**Figure 7.6.** Figure 7.6: (a) The ILM prediction with the meson dominance exchange on [PITH_FULL_IMAGE:figures/full_fig_p214_7_6.png]

**Figure 7.7.** Figure 7.7: The instanton estimation on the ηc production differential cross section with the holographic prediction on the t-dependence [289] using fitted mass m3g = 1.49 GeV is compared to the model calculation using eikonal dipole approximation [310]. scale αs(µ = 2mc) = 0.30…

**Figure 7.8.** Figure 7.8: ILM estimation on the differential cross section of the [PITH_FULL_IMAGE:figures/full_fig_p216_7_8.png]

**Figure 7.9.** Figure 7.9: The t dependence for the threshold photo-production of ηc using near-threshold approximated ILM formula (f1 dominated crossection) with different the center of mass energy √ s. 191 [PITH_FULL_IMAGE:figures/full_fig_p218_7_9.png]

**Figure 7.10.** Figure 7.10: ILM differential cross section for ηc photoproduction using nearthreshold approximated formula (f1 dominated) at √ s = 300GeV, using the GPD arguments with the C-odd holographic form factor [289] (fitted mass m3g = 1.49 GeV) (blue solid line). The comparison is to …

**Figure 8.1.** Figure 8.1: The single instanton/anti-instanton vertices with the insertion of [PITH_FULL_IMAGE:figures/full_fig_p223_8_1.png]

**Figure 8.2.** Figure 8.2: A molecular pair of instanton-anti-instanton with the insertion of [PITH_FULL_IMAGE:figures/full_fig_p223_8_2.png]

**Figure 8.3.** Figure 8.3: Emergent non-local form factors β (IA) qGq ¯ associated to the color Lorentz operator in a molecular (instanton-anti-instanton) pair. 8.2 Color force on a pion To illustrate these ideas, let us start with a simpler case, that of deep inelastic scattering on a pion, a…

**Figure 8.4.** Figure 8.4: Emergent form factor F q π,1 (Q2 ) induced by a color Lorentz operator in the pion in the ILM enhanced by “molecular” IA pairs. ⟨N(p ′ , s′ )|ψigF ¯ µνγ σψ|N(p, s)⟩ = ¯us ′(p ′ ) ( (¯p µ q ν − p¯ ν q µ ) p¯ σ mN Φ q N,1 (Q 2 ) + mN (q µ g σν − q ν g σµ) Φq N,2 (Q 2 )…

**Figure 8.5.** Figure 8.5: Transverse field distribution of the color Lorentz force in an [PITH_FULL_IMAGE:figures/full_fig_p232_8_5.png]

**Figure 8.6.** Figure 8.6: Color force form factors (a) F q N,1 (Q2 ), (b) F q N,2 (Q2 ), and (c) F q N,3 (Q2 ) from ILM with parameters nmol = 7.248 fm−4 and current quark mass m = 10 − 58 MeV (mπ = 140 − 338 MeV) showing with bands, evolved to 2 GeV compared to the lattice calculation with p…

**Figure 8.7.** Figure 8.7: (a) Transverse field distribution of the color Lorentz force in an [PITH_FULL_IMAGE:figures/full_fig_p240_8_7.png]

**Figure 9.1.** Figure 9.1: Leading pseudoparticle (single instanton) contribution to the quark [PITH_FULL_IMAGE:figures/full_fig_p244_9_1.png]

**Figure 9.2.** Figure 9.2: The CP-odd electric dipole form factor F3(Q2 ) from the ILM for proton (blue) and neutron (red) is obtained using (9.9) with ILM parameters given in [PITH_FULL_IMAGE:figures/full_fig_p246_9_2.png]

**Figure 10.1.** Figure 10.1: (a,b): pQCD gluon-mediated quark pair production; (c,d): [PITH_FULL_IMAGE:figures/full_fig_p252_10_1.png]

**Figure 10.2.** Figure 10.2: Flavor asymmetry of the antiquark sea as the ratio [PITH_FULL_IMAGE:figures/full_fig_p252_10_2.png]

**Figure 10.3.** Figure 10.3: The picture of LaMET framework. The equal-time correlation is [PITH_FULL_IMAGE:figures/full_fig_p255_10_3.png]

**Figure 10.4.** Figure 10.4: Pion PDF uπ+ and kaon PDF uK+ obtained by ILM at low resolution µ0 ∼ 630 MeV To illustrate this, we use the LFWFs derived in Eqs. 4.54 and 4.55 and substitute them into Eq. (10.9) to compute the corresponding unpolarized quark PDF for mesons. The resulting pion and …

**Figure 10.5.** Figure 10.5: Pion and kaon PDF evolved to a few GeV indicated in the plot [PITH_FULL_IMAGE:figures/full_fig_p260_10_5.png]

**Figure 10.6.** Figure 10.6: The physically allowed kinematic region in GPD [PITH_FULL_IMAGE:figures/full_fig_p261_10_6.png]

**Figure 11.1.** Figure 11.1: Feynman diagram of TMD factorization for Drell-Yan with hard [PITH_FULL_IMAGE:figures/full_fig_p272_11_1.png]

**Figure 11.2.** Figure 11.2: Feynman diagram of TMD factorization for SIDIS with hard [PITH_FULL_IMAGE:figures/full_fig_p273_11_2.png]

**Figure 11.3.** Figure 11.3: Feynman diagram of TMD factorization for [PITH_FULL_IMAGE:figures/full_fig_p275_11_3.png]

**Figure 11.4.** Figure 11.4: Wilson lines in Eq. (11.18) for (a) SIDIS process with the space-like correlation function and (b) Drell-Yan process with the timelike correlation. of the above mentioned Wilson loops in Minkowski signature. Wilson loops made of Wilson lines capture important aspect…

**Figure 11.5.** Figure 11.5: The contours of the Wilson lines for the soft function of the cross [PITH_FULL_IMAGE:figures/full_fig_p278_11_5.png]

**Figure 11.6.** Figure 11.6: Soft function 11.4.1 Soft function in ILM In the ILM, the soft function associated to [PITH_FULL_IMAGE:figures/full_fig_p281_11_6.png]

**Figure 11.7.** Figure 11.7: Instanton liquid estimation on (a) Coulomb potential (b) CS [PITH_FULL_IMAGE:figures/full_fig_p283_11_7.png]

**Figure 11.8.** Figure 11.8: Asymptotic logarithmic curve compared to CS kernel in weak [PITH_FULL_IMAGE:figures/full_fig_p284_11_8.png]

**Figure 11.9.** Figure 11.9: The angular dependence of K in (11.38). in [PITH_FULL_IMAGE:figures/full_fig_p285_11_9.png]

**Figure 11.10.** Figure 11.10: (a) The black-solid curve is the ILM result for the full CS kernel [PITH_FULL_IMAGE:figures/full_fig_p287_11_10.png]

**Figure 11.11.** Figure 11.11: Pion (left) (11.58) and kaon (right) (11.60) TMDPDFs at low resolution µ = 1/ρ with ρ = 0.313 fm: (a,b) are the density plots, (c,d) the 3D plots, (e,f) the transverse momentum dependent plots for fixed x, and (g,h) the longitudinal momentum dependence for fixed k⊥…

**Figure 11.12.** Figure 11.12: Pion (left) (11.58) and kaon (right) (11.60) TMDPDFs at low resolution µ = 1/ρ with ρ = 0.313 fm: (a,b) are the density plots, (c,d) the 3D plots, (e,f) the transverse momentum dependent plots for fixed x, and (g,h) the longitudinal momentum dependence for fixed k⊥…

**Figure 11.13.** Figure 11.13: Upper panel is the contour plot of the pion TMD parton / [PITH_FULL_IMAGE:figures/full_fig_p294_11_13.png]

**Figure 11.14.** Figure 11.14: Upper panel is the contour plot of the kaon TMD parton [PITH_FULL_IMAGE:figures/full_fig_p295_11_14.png]

**Figure 11.15.** Figure 11.15: Perturbative (shaded) and non-perturbative (unshaded) regions [PITH_FULL_IMAGE:figures/full_fig_p297_11_15.png]

**Figure 11.16.** Figure 11.16: The evolved pion TMD versus b⊥ with (a) x = 0.3 and (b) x = 0.6, compared to the Drell-Yan experimental data extraction [448] from three available measurements of the transverse momentum cross section for pion-induced Drell-Yan process performed by NA3 [449], E537 …

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

290 extracted references · 290 canonical work pages

[1]

Magnetic Monopoles in Unified Gauge Theories.Nucl

Gerard ’t Hooft. Magnetic Monopoles in Unified Gauge Theories.Nucl. Phys. B, 79:276–284, 1974. doi: 10.1016/0550-3213(74)90486-6

work page doi:10.1016/0550-3213(74)90486-6 1974
[2]

Polyakov

Alexander M. Polyakov. Particle Spectrum in Quantum Field Theory. JETP Lett., 20:194–195, 1974

work page 1974
[3]

A. A. Belavin, Alexander M. Polyakov, A. S. Schwartz, and Yu. S. Tyupkin. Pseudoparticle Solutions of the Yang-Mills Equations.Phys. Lett. B, 59:85–87, 1975. doi: 10.1016/0370-2693(75)90163-X

work page doi:10.1016/0370-2693(75)90163-x 1975
[4]

Kraan and Pierre van Baal

Thomas C. Kraan and Pierre van Baal. Monopole constituents inside SU(n) calorons.Phys. Lett. B, 435:389–395, 1998. doi: 10.1016/ S0370-2693(98)00799-0

work page 1998
[5]

Dmitri Diakonov and V. Yu. Petrov. Instanton Based Vacuum from Feynman Variational Principle.Nucl. Phys. B, 245:259–292, 1984. doi: 10.1016/0550-3213(84)90432-2

work page doi:10.1016/0550-3213(84)90432-2 1984
[6]

Callan, Jr., R

Curtis G. Callan, Jr., R. F. Dashen, and David J. Gross. The Structure of the Gauge Theory Vacuum.Phys. Lett. B, 63:334–340, 1976. doi: 10.1016/0370-2693(76)90277-X

work page doi:10.1016/0370-2693(76)90277-x 1976
[7]

Callan, Jr., Roger F

Curtis G. Callan, Jr., Roger F. Dashen, and David J. Gross. Toward a Theory of the Strong Interactions.Phys. Rev. D, 17:2717, 1978. doi: 10.1103/PhysRevD.17.2717

work page doi:10.1103/physrevd.17.2717 1978
[8]

Edward V. Shuryak. The Role of Instantons in Quantum Chromo- dynamics. 1. Physical Vacuum.Nucl. Phys. B, 203:93, 1982. doi: 10.1016/0550-3213(82)90478-3

work page doi:10.1016/0550-3213(82)90478-3 1982

Show all 290 references

[9]

Dmitri Diakonov and V. Yu. Petrov. A Theory of Light Quarks in the Instanton Vacuum.Nucl. Phys. B, 272:457–489, 1986. doi: 10.1016/ 0550-3213(86)90011-8. 276

1986
[10]

A. I. Vainshtein, Valentin I. Zakharov, V. A. Novikov, and Mikhail A. Shifman. ABC’s of Instantons.Sov. Phys. Usp., 25:195, 1982. doi: 10.1070/PU1982v025n04ABEH004533

1982 doi
[11]

Chiral symmetry breaking by instantons

Dmitri Diakonov. Chiral symmetry breaking by instantons. Proc. Int. Sch. Phys. Fermi, 130:397–432, 1996. doi: 10.3254/ 978-1-61499-215-8-397

1996
[12]

Hadronic structure on the light-front

Nicholas Miesch, Edward Shuryak, and Ismail Zahed. Hadronic structure on the light-front. IX. Orbital-spin-isospin wave functions of baryons. Phys. Rev. D, 108(9):094033, 2023. doi: 10.1103/PhysRevD.108.094033

2023 doi
[13]

Hadronic structure on the light front

Edward Shuryak and Ismail Zahed. Hadronic structure on the light front. V. Diquarks, nucleons, and multiquark Fock components.Phys. Rev. D, 107(3):034027, 2023. doi: 10.1103/PhysRevD.107.034027

2023 doi
[14]

Hadronic structure on the light front

Edward Shuryak and Ismail Zahed. Hadronic structure on the light front. IV. Heavy and light baryons.Phys. Rev. D, 107(3):034026, 2023. doi: 10.1103/PhysRevD.107.034026

2023 doi
[15]

How Instantons Solve the U(1) Problem.Phys

Gerard ’t Hooft. How Instantons Solve the U(1) Problem.Phys. Rept., 142:357–387, 1986. doi: 10.1016/0370-1573(86)90117-1

1986 doi
[16]

The Hadron-Parton Bridge, From the QCD Vacuum to Partons

Edward Shuryak and Ismail Zahed. The Hadron-Parton Bridge, From the QCD Vacuum to Partons. 1 2026

2026
[17]

Springer Cham, March 2021

Edward Shuryak.Nonperturbative Topological Phenomena in QCD and Related Theories. Springer Cham, March 2021. doi: 10.1007/ 978-3-030-62990-8

2021
[18]

Thomas Sch¨ afer and Edward V. Shuryak. Instantons in QCD.Rev. Mod. Phys., 70:323–426, 1998. doi: 10.1103/RevModPhys.70.323

1998 doi
[19]

Christopher Michael and P. S. Spencer. Instanton size distributions from calibrated cooling.Nucl. Phys. B Proc. Suppl., 42:261–263, 1995. doi: 10.1016/0920-5632(95)00220-4

1995 doi
[20]

Christopher Michael and P. S. Spencer. Cooling and the SU(2) instanton vacuum.Phys. Rev. D, 52:4691–4699, 1995. doi: 10.1103/PhysRevD.52. 4691

1995 doi
[21]

Leinweber

Derek B. Leinweber. Visualizations of the QCD vacuum. InWorkshop on Light-Cone QCD and Nonperturbative Hadron Physics, pages 138–143, 12 1999. 277

1999
[22]

Gradient flows and instantons at a Lifshitz point.J

Ioannis Bakas. Gradient flows and instantons at a Lifshitz point.J. Phys. Conf. Ser., 283:012004, 2011. doi: 10.1088/1742-6596/283/1/012004

2011 doi
[23]

Biddle, Waseem Kamleh, and Derek B

James C. Biddle, Waseem Kamleh, and Derek B. Leinweber. Visualizations of Centre Vortex Structure in Lattice Simulations.PoS, LATTICE2018:256, 2018. doi: 10.22323/1.334.0256

2018 doi
[24]

Continuous renormalization group βfunction from lattice simulations.Phys

Anna Hasenfratz and Oliver Witzel. Continuous renormalization group βfunction from lattice simulations.Phys. Rev. D, 101(3):034514, 2020. doi: 10.1103/PhysRevD.101.034514

2020 doi
[25]

Athenodorou, Ph

A. Athenodorou, Ph. Boucaud, F. De Soto, J. Rodr´ ıguez-Quintero, and S. Zafeiropoulos. Instanton liquid properties from lattice QCD.JHEP, 02:140, 2018. doi: 10.1007/JHEP02(2018)140

2018 doi
[26]

Biddle, Waseem Kamleh, and Derek B

James C. Biddle, Waseem Kamleh, and Derek B. Leinweber. Visualisations of Centre Vortices.EPJ Web Conf., 245:06010, 2020. doi: 10.1051/epjconf/202024506010

2020 doi
[27]

Extracting Instantons from the Lattice.PoS, LATTICE2023:376, 2024

Falk Zimmermann. Extracting Instantons from the Lattice.PoS, LATTICE2023:376, 2024. doi: 10.22323/1.453.0376

2024 doi
[28]

Ringwald and F

A. Ringwald and F. Schrempp. Confronting instanton perturbation theory with QCD lattice results.Phys. Lett. B, 459:249–258, 1999. doi: 10.1016/S0370-2693(99)00682-6

1999 doi
[29]

Pietro Faccioli and Thomas A. DeGrand. Evidence for instanton induced dynamics, from lattice QCD.Phys. Rev. Lett., 91:182001, 2003. doi: 10.1103/PhysRevLett.91.182001

2003 doi
[30]

Glue in hadrons at medium resolution and the QCD instanton vacuum.Phys

Wei-Yang Liu, Edward Shuryak, and Ismail Zahed. Glue in hadrons at medium resolution and the QCD instanton vacuum.Phys. Rev. D, 110 (5):054005, 2024. doi: 10.1103/PhysRevD.110.054005

2024 doi
[31]

Generic framework for non-perturbative QCD in light hadrons

Wei-Yang Liu. Generic framework for non-perturbative QCD in light hadrons. 1 2025

2025
[32]

Hadronic structure on the light-front

Wei-Yang Liu, Edward Shuryak, and Ismail Zahed. Hadronic structure on the light-front. VII. Pions and kaons and their partonic distributions. Phys. Rev. D, 107(9):094024, 2023. doi: 10.1103/PhysRevD.107.094024

2023 doi
[33]

Hadronic structure on the light front

Wei-Yang Liu, Edward Shuryak, and Ismail Zahed. Hadronic structure on the light front. VIII. Light scalar and vector mesons.Phys. Rev. D, 109(7):074029, 2024. doi: 10.1103/PhysRevD.109.074029. 278

2024 doi
[34]

Pion gravitational form factors in the QCD instanton vacuum

Wei-Yang Liu, Edward Shuryak, Christian Weiss, and Ismail Zahed. Pion gravitational form factors in the QCD instanton vacuum. I.Phys. Rev. D, 110(5):054021, 2024. doi: 10.1103/PhysRevD.110.054021

2024 doi
[35]

Pion gravitational form factors in the QCD instanton vacuum

Wei-Yang Liu, Edward Shuryak, and Ismail Zahed. Pion gravitational form factors in the QCD instanton vacuum. II.Phys. Rev. D, 110(5): 054022, 2024. doi: 10.1103/PhysRevD.110.054022

2024 doi
[36]

Collins-Soper Kernel in the QCD Instanton Vacuum

Wei-Yang Liu, Ismail Zahed, and Yong Zhao. Collins-Soper Kernel in the QCD Instanton Vacuum. 12 2024

2024
[37]

Photoproduction ofηc,b near threshold

Wei-Yang Liu and Ismail Zahed. Photoproduction ofηc,b near threshold. Phys. Rev. D, 110(5):054025, 2024. doi: 10.1103/PhysRevD.110.054025

2024 doi
[38]

The color force acting on a quark in the pion and nucleon

Wei-Yang Liu, Edward Shuryak, and Ismail Zahed. The color force acting on a quark in the pion and nucleon. 11 2025

2025
[39]

Nucleon electric dipole form factor in QCD vacuum

Wei-Yang Liu and Ismail Zahed. Nucleon electric dipole form factor in QCD vacuum. 1 2025

2025
[40]

Tomography of pions and kaons in the QCD vacuum: Transverse momentum dependent parton distribution functions.Phys

Wei-Yang Liu and Ismail Zahed. Tomography of pions and kaons in the QCD vacuum: Transverse momentum dependent parton distribution functions.Phys. Rev. D, 112(3):034039, 2025. doi: 10.1103/9t4h-zpwm

2025 doi
[41]

Tomography of the rho meson in the QCD instanton vacuum: Transverse momentum dependent parton distribution functions.Phys

Wei-Yang Liu and Ismail Zahed. Tomography of the rho meson in the QCD instanton vacuum: Transverse momentum dependent parton distribution functions.Phys. Rev. D, 112(3):034028, 2025. doi: 10.1103/ 6ffp-qs8p

2025
[42]

Trivializing maps, the Wilson flow and the HMC algorithm.Commun

Martin Luscher. Trivializing maps, the Wilson flow and the HMC algorithm.Commun. Math. Phys., 293:899–919, 2010. doi: 10.1007/ s00220-009-0953-7

2010
[43]

Perturbative analysis of the gradient flow in non-abelian gauge theories.JHEP, 02:051, 2011

Martin Luscher and Peter Weisz. Perturbative analysis of the gradient flow in non-abelian gauge theories.JHEP, 02:051, 2011. doi: 10.1007/ JHEP02(2011)051

2011
[44]

Future applications of the Yang-Mills gradient flow in lattice QCD.PoS, LATTICE2013:016, 2014

Martin L¨ uscher. Future applications of the Yang-Mills gradient flow in lattice QCD.PoS, LATTICE2013:016, 2014. doi: 10.22323/1.187.0016

2014 doi
[45]

Gradient flow and the Wilsonian renormalization group flow.PTEP, 2018(5):053B02, 2018

Hiroki Makino, Okuto Morikawa, and Hiroshi Suzuki. Gradient flow and the Wilsonian renormalization group flow.PTEP, 2018(5):053B02, 2018. doi: 10.1093/ptep/pty050. 279

2018 doi
[46]

Narayanan and H

R. Narayanan and H. Neuberger. Infinite N phase transitions in continuum Wilson loop operators.JHEP, 03:064, 2006. doi: 10.1088/ 1126-6708/2006/03/064

2006
[47]

P. J. Moran and D. B. Leinweber. Buried treasure in the sand of the QCD vacuum. InQCD Downunder II, 5 2008

2008
[48]

Gluons, light and heavy quarks and their interactions in the instanton vacuum

Mirzayusuf Musakhanov. Gluons, light and heavy quarks and their interactions in the instanton vacuum. 3 2023

2023
[49]

Instantons in qcd: Theory and application of the instanton liquid model, 2001

Marcus Hutter. Instantons in qcd: Theory and application of the instanton liquid model, 2001. URLhttps://arxiv.org/abs/hep-ph/ 0107098

2001
[50]

Rapp, Thomas Sch¨ afer, Edward V

R. Rapp, Thomas Sch¨ afer, Edward V. Shuryak, and M. Velkovsky. Diquark Bose condensates in high density matter and instantons.Phys. Rev. Lett., 81:53–56, 1998. doi: 10.1103/PhysRevLett.81.53

1998 doi
[51]

Rapp, Thomas Sch¨ afer, Edward V

R. Rapp, Thomas Sch¨ afer, Edward V. Shuryak, and M. Velkovsky. High density QCD and instantons.Annals Phys., 280:35–99, 2000. doi: 10. 1006/aphy.1999.5991
[52]

Ernst-Michael Ilgenfritz and Edward V. Shuryak. Chiral Symmetry Restoration at Finite Temperature in the Instanton Liquid.Nucl. Phys. B, 319:511–520, 1989. doi: 10.1016/0550-3213(89)90617-2

1989 doi
[53]

Hadronic structure on the light front

Edward Shuryak and Ismail Zahed. Hadronic structure on the light front. I. Instanton effects and quark-antiquark effective potentials.Phys. Rev. D, 107(3):034023, 2023. doi: 10.1103/PhysRevD.107.034023

2023 doi
[54]

Edward V. Shuryak. Toward the Quantitative Theory of the ’Instanton Liquid’ 4. Tunneling in the Double Well Potential.Nucl. Phys. B, 302: 621–644, 1988. doi: 10.1016/0550-3213(88)90191-5

1988 doi
[55]

I. I. Balitsky and A. V. Yung. Collective - Coordinate Method for Quasizero Modes.Phys. Lett. B, 168:113–119, 1986. doi: 10.1016/ 0370-2693(86)91471-1

1986
[56]

A. V. Yung. Instanton Vacuum in Supersymmetric QCD.Nucl. Phys. B, 297:47, 1988. doi: 10.1016/0550-3213(88)90199-X

1988 doi
[57]

J. J. M. Verbaarschot. Streamlines and conformal invariance in Yang- Mills theories.Nucl. Phys. B, 362:33–53, 1991. doi: 10.1016/ 0550-3213(91)90554-B. [Erratum: Nucl.Phys.B 386, 236–236 (1992)]. 280

1991
[58]

D. M. Ostrovsky, G. W. Carter, and E. V. Shuryak. Forced tunneling and turning state explosion in pure Yang-Mills theory.Phys. Rev., D66: 036004, 2002. doi: 10.1103/PhysRevD.66.036004

2002 doi
[59]

Klinkhamer and N

Frans R. Klinkhamer and N. S. Manton. A Saddle Point Solution in the Weinberg-Salam Theory.Phys. Rev., D30:2212, 1984. doi: 10.1103/ PhysRevD.30.2212

1984
[60]

How to observe the QCD instanton/sphaleron processes at hadron colliders? 1 2021

Edward Shuryak and Ismail Zahed. How to observe the QCD instanton/sphaleron processes at hadron colliders? 1 2021

2021
[61]

Atiyah and Isadore M

Michael F. Atiyah and Isadore M. Singer. The index of elliptic operators on compact manifolds.Bulletin of the American Mathematical Society, 69:322–433, 1963. doi: 10.1090/S0002-9904-1963-10957-X

1963 doi
[62]

Confinement from Center Vortices: A review of old and new results.EPJ Web Conf., 137:01009, 2017

Jeff Greensite. Confinement from Center Vortices: A review of old and new results.EPJ Web Conf., 137:01009, 2017. doi: 10.1051/epjconf/ 201713701009

2017 doi
[63]

Potential energy of Yang-Mills vortices in three- dimensions and four-dimensions.Mod

Dmitri Diakonov. Potential energy of Yang-Mills vortices in three- dimensions and four-dimensions.Mod. Phys. Lett. A, 14:1725–1732,
[64]

doi: 10.1142/S0217732399001826

doi
[65]

Center vortex solutions of the Yang- Mills effective action in three and four dimensions.Phys

Dmitri Diakonov and Martin Maul. Center vortex solutions of the Yang- Mills effective action in three and four dimensions.Phys. Rev. D, 66: 096004, 2002. doi: 10.1103/PhysRevD.66.096004

2002 doi
[66]

On the spectrum of the Faddeev-Popov operator in topological background fields.Eur

Axel Maas. On the spectrum of the Faddeev-Popov operator in topological background fields.Eur. Phys. J. C, 48:179–192, 2006. doi: 10.1140/epjc/s10052-006-0003-y

2006 doi
[67]

Biddle, Waseem Kamleh, and Derek B

James C. Biddle, Waseem Kamleh, and Derek B. Leinweber. Visualization of center vortex structure.Phys. Rev. D, 102(3):034504,
[68]

doi: 10.1103/PhysRevD.102.034504

doi
[69]

Langfeld, O

K. Langfeld, O. Tennert, M. Engelhardt, and H. Reinhardt. Center vortices of Yang-Mills theory at finite temperatures.Phys. Lett. B, 452: 301, 1999. doi: 10.1016/S0370-2693(99)00252-X

1999 doi
[70]

Leinweber, and Adam Virgili

Waseem Kamleh, Derek B. Leinweber, and Adam Virgili. Numerical indication that center vortices drive dynamical mass generation in QCD. Phys. Rev. D, 110(5):L051502, 2024. doi: 10.1103/PhysRevD.110. L051502. 281

2024 doi
[71]

Phases of Theories with ZN 1-Form Symmetry, and the Roles of Center Vortices and Magnetic Monopoles.Phys

Mendel Nguyen, Tin Sulejmanpasic, and Mithat ¨Unsal. Phases of Theories with ZN 1-Form Symmetry, and the Roles of Center Vortices and Magnetic Monopoles.Phys. Rev. Lett., 134(14):141902, 2025. doi: 10.1103/PhysRevLett.134.141902

2025 doi
[72]

Self-dual monopole loops, instantons and confinement

Mendel Nguyen and Mithat ¨Unsal. Self-dual monopole loops, instantons and confinement. 9 2025

2025
[73]

Unifying Monopole and Center Vortex as the Semiclassical Confinement Mechanism.Phys

Yui Hayashi and Yuya Tanizaki. Unifying Monopole and Center Vortex as the Semiclassical Confinement Mechanism.Phys. Rev. Lett., 133(17): 171902, 2024. doi: 10.1103/PhysRevLett.133.171902

2024 doi
[74]

The metamorphosis of semi-classical mechanisms of confinement: from monopoles onR 3 ×S 1 to center-vortices onR 2 ×T 2.JHEP, 11:163,

Canberk G¨ uvendik, Thomas Schaefer, and Mithat ¨Unsal. The metamorphosis of semi-classical mechanisms of confinement: from monopoles onR 3 ×S 1 to center-vortices onR 2 ×T 2.JHEP, 11:163,
[75]

doi: 10.1007/JHEP11(2024)163

2024 doi
[76]

Kraan and Pierre van Baal

Thomas C. Kraan and Pierre van Baal. Periodic instantons with nontrivial holonomy.Nucl. Phys. B, 533:627–659, 1998. doi: 10.1016/ S0550-3213(98)00590-2

1998
[78]

Kraan and Pierre van Baal

Thomas C. Kraan and Pierre van Baal. Exact T duality between calorons and Taub - NUT spaces.Phys. Lett. B, 428:268–276, 1998. doi: 10.1016/ S0370-2693(98)00411-0

1998
[79]

Zhitnitsky

Ariel R. Zhitnitsky. Confinement- deconfinement phase transition and fractional instanton quarks in dense matter. InLight-Cone QCD and Nonperturbative Hadron Physics, pages 207–213, 1 2006. doi: 10.1142/ 9789812708267 0023

2006
[80]

Mithat Unsal and Laurence G. Yaffe. Center-stabilized Yang-Mills theory: Confinement and large N volume independence.Phys. Rev. D, 78:065035, 2008. doi: 10.1103/PhysRevD.78.065035

2008 doi
[81]

Light quarks in the screened dyon-antidyon Coulomb liquid model

Yizhuang Liu, Edward Shuryak, and Ismail Zahed. Light quarks in the screened dyon-antidyon Coulomb liquid model. II.Phys. Rev. D, 92(8): 085007, 2015. doi: 10.1103/PhysRevD.92.085007

2015 doi
[82]

Confining dyon- antidyon Coulomb liquid model

Yizhuang Liu, Edward Shuryak, and Ismail Zahed. Confining dyon- antidyon Coulomb liquid model. I.Phys. Rev. D, 92(8):085006, 2015. doi: 10.1103/PhysRevD.92.085006. 282

2015 doi
[83]

Topology and confinement.Nucl

Dmitri Diakonov. Topology and confinement.Nucl. Phys. B Proc. Suppl., 195:5–45, 2009. doi: 10.1016/j.nuclphysbps.2009.10.010

2009 doi
[84]

Interacting ensemble of the instanton-dyons and the deconfinement phase transition in the SU(2) gauge theory.Phys

Rasmus Larsen and Edward Shuryak. Interacting ensemble of the instanton-dyons and the deconfinement phase transition in the SU(2) gauge theory.Phys. Rev. D, 92(9):094022, 2015. doi: 10.1103/ PhysRevD.92.094022

2015
[85]

Instanton-dyon Ensemble with two Dynamical Quarks: the Chiral Symmetry Breaking.Phys

Rasmus Larsen and Edward Shuryak. Instanton-dyon Ensemble with two Dynamical Quarks: the Chiral Symmetry Breaking.Phys. Rev. D, 93(5):054029, 2016. doi: 10.1103/PhysRevD.93.054029

2016 doi
[86]

E. Shuryak. Instanton-dyon ensembles reproduce deconfinement and chiral restoration phase transitions.EPJ Web Conf., 175:12001, 2018. doi: 10.1051/epjconf/201817512001

2018 doi
[87]

Magnetic bion condensation: A New mechanism of confinement and mass gap in four dimensions.Phys

Mithat Unsal. Magnetic bion condensation: A New mechanism of confinement and mass gap in four dimensions.Phys. Rev. D, 80:065001,
[88]

doi: 10.1103/PhysRevD.80.065001

doi
[89]

Continuity, Deconfinement, and (Super) Yang-Mills Theory.JHEP, 10:115, 2012

Erich Poppitz, Thomas Sch¨ afer, and Mithat Unsal. Continuity, Deconfinement, and (Super) Yang-Mills Theory.JHEP, 10:115, 2012. doi: 10.1007/JHEP10(2012)115

2012 doi
[90]

Instantons, compactification and S duality in N=4 SUSY Yang-Mills theory

Nick Dorey and Andrei Parnachev. Instantons, compactification and S duality in N=4 SUSY Yang-Mills theory. 2.JHEP, 08:059, 2001. doi: 10.1088/1126-6708/2001/08/059

2001 doi
[91]

Seiberg-Witten and ’Polyakov-like’ magnetic bion confinements are continuously connected.JHEP, 07:082,

Erich Poppitz and Mithat Unsal. Seiberg-Witten and ’Polyakov-like’ magnetic bion confinements are continuously connected.JHEP, 07:082,
[92]

doi: 10.1007/JHEP07(2011)082

2011 doi
[93]

Are there monopoles in the quark-gluon plasma?Phys

Adith Ramamurti, Edward Shuryak, and Ismail Zahed. Are there monopoles in the quark-gluon plasma?Phys. Rev. D, 97(11):114028,
[94]

doi: 10.1103/PhysRevD.97.114028

doi
[95]

Computation of the Quantum Effects Due to a Four- Dimensional Pseudoparticle.Phys

Gerard ’t Hooft. Computation of the Quantum Effects Due to a Four- Dimensional Pseudoparticle.Phys. Rev. D, 14:3432–3450, 1976. doi: 10.1103/PhysRevD.14.3432. [Erratum: Phys.Rev.D 18, 2199 (1978)]

1976 doi
[96]

Shuryak and J

Edward V. Shuryak and J. J. M. Verbaarschot. Chiral Symmetry Breaking and Correlations in the Instanton Liquid.Nucl. Phys. B, 341: 1–26, 1990. doi: 10.1016/0550-3213(90)90260-K. 283

1990 doi
[97]

Edward V. Shuryak. Toward the Quantitative Theory of the Topological Effects in Gauge Field Theories. 2. The SU(2) Gluodynamics.Nucl. Phys. B, 302:574–598, 1988. doi: 10.1016/0550-3213(88)90189-7

1988 doi
[98]

Edward V. Shuryak. Probing the boundary of the nonperturbative QCD by small size instantons. 9 1999

1999
[99]

Dorokhov and Igor O

Alexander E. Dorokhov and Igor O. Cherednikov. Instanton contributions to the quark form-factor.Phys. Rev. D, 66:074009, 2002. doi: 10.1103/PhysRevD.66.074009

2002 doi
[100]

Edward V. Shuryak. Instanton size distribution: Repulsion or the infrared fixed point?Phys. Rev. D, 52:5370–5373, 1995. doi: 10.1103/ PhysRevD.52.5370

1995
[101]

Polyakov, and C

Dmitri Diakonov, Maxim V. Polyakov, and C. Weiss. Hadronic matrix elements of gluon operators in the instanton vacuum.Nucl. Phys. B, 461:539–580, 1996. doi: 10.1016/0550-3213(95)00675-3

1996 doi
[102]

Computing the Effective Hamiltonian of Low-Energy Vacuum Gauge Fields.Phys

Raffaele Millo and Pietro Faccioli. Computing the Effective Hamiltonian of Low-Energy Vacuum Gauge Fields.Phys. Rev. D, 84:034504, 2011. doi: 10.1103/PhysRevD.84.034504

2011 doi
[103]

Instanton content of the SU(3) vacuum.Phys

Anna Hasenfratz and Chet Nieter. Instanton content of the SU(3) vacuum.Phys. Lett. B, 439:366–372, 1998. doi: 10.1016/S0370-2693(98) 01058-2

1998 doi
[105]

John W. Negele. Instantons, the QCD vacuum, and hadronic physics.Nucl. Phys. B Proc. Suppl., 73:92–104, 1999. doi: 10.1016/ S0920-5632(99)85010-5

1999
[106]

Shuryak, and J

Thomas Sch¨ afer, Edward V. Shuryak, and J. J. M. Verbaarschot. The Chiral phase transition and instanton - anti-instanton molecules.Phys. Rev. D, 51:1267–1281, 1995. doi: 10.1103/PhysRevD.51.1267

1995 doi
[107]

Khoze and A

Valentin V. Khoze and A. Ringwald. Valley trajectories in gauge theories. 5 1991

1991
[108]

Shuryak and J

Edward V. Shuryak and J. J. M. Verbaarschot. On baryon number violation and nonperturbative weak processes at SSC energies.Phys. Rev. Lett., 68:2576–2579, 1992. doi: 10.1103/PhysRevLett.68.2576. 284

1992 doi
[109]

D. Forster. On the Structure of Instanton Plasma in the Two- Dimensional O(3) Nonlinear Sigma Model.Nucl. Phys. B, 130:38–60,
[110]

doi: 10.1016/0550-3213(77)90391-1

doi
[111]

Zakharov

Valentin I. Zakharov. QCD perturbative expansions in large orders. Nucl. Phys. B, 385:452–480, 1992. doi: 10.1016/0550-3213(92)90054-F

1992 doi
[112]

Mass sum rule of hadrons in the QCD instanton vacuum

Ismail Zahed. Mass sum rule of hadrons in the QCD instanton vacuum. Phys. Rev. D, 104(5):054031, 2021. doi: 10.1103/PhysRevD.104.054031

2021 doi
[113]

Spin Sum Rule of the Nucleon in the QCD Instanton Vacuum.Symmetry, 14(5):932, 2022

Ismail Zahed. Spin Sum Rule of the Nucleon in the QCD Instanton Vacuum.Symmetry, 14(5):932, 2022. doi: 10.3390/sym14050932

2022 doi
[114]

Kacir, M

M. Kacir, M. Prakash, and I. Zahed. Hadrons and QCD instantons: A Bosonized view.Acta Phys. Polon. B, 30:287–348, 1999

1999
[115]

Nowak, Mannque Rho, and I

Maciej A. Nowak, Mannque Rho, and I. Zahed.Chiral nuclear dynamics. World Scientific Publishing Company, 1996

1996
[116]

Current Algebra Theorems for the U(1) Goldstone Boson.Nucl

Edward Witten. Current Algebra Theorems for the U(1) Goldstone Boson.Nucl. Phys. B, 156:269–283, 1979. doi: 10.1016/0550-3213(79) 90031-2

1979 doi
[117]

Veneziano

G. Veneziano. U(1) Without Instantons.Nucl. Phys. B, 159:213–224,
[118]

doi: 10.1016/0550-3213(79)90332-8

doi
[119]

V. A. Novikov, Mikhail A. Shifman, A. I. Vainshtein, and Valentin I. Zakharov. Are All Hadrons Alike? .Nucl. Phys. B, 191:301–369, 1981. doi: 10.1016/0550-3213(81)90303-5

1981 doi
[120]

J. J. M. Verbaarschot. Streamlines and conformal invariance in Yang- Mills theories.Nuclear Physics B, 362(1):33–53, September 1991. doi: 10.1016/0550-3213(91)90554-B

1991 doi
[121]

The Topological susceptibility from grand canonical simulations in the interacting instanton liquid model: Zero temperature calibrations and numerical framework.Nucl

Olivier Wantz. The Topological susceptibility from grand canonical simulations in the interacting instanton liquid model: Zero temperature calibrations and numerical framework.Nucl. Phys. B, 829:48–90, 2010. doi: 10.1016/j.nuclphysb.2009.12.007

2010 doi
[122]

Dunne, Jin Hur, Choonkyu Lee, and Hyunsoo Min

Gerald V. Dunne, Jin Hur, Choonkyu Lee, and Hyunsoo Min. Calculation of QCD instanton determinant with arbitrary mass.Phys. Rev. D, 71:085019, 2005. doi: 10.1103/PhysRevD.71.085019. 285

2005 doi
[123]

L. Ya. Glozman, C. B. Lang, and M. Schrock. Symmetries of hadrons after unbreaking the chiral symmetry.Phys. Rev. D, 86:014507, 2012. doi: 10.1103/PhysRevD.86.014507

2012 doi
[124]

P. V. Pobylitsa. The quark propagator and correlation functions in the instanton vacuum.Physics Letters B, 226:387–392, 1989. URLhttps: //api.semanticscholar.org/CorpusID:120858371

1989
[125]

Pion and kaon parton distributions in the QCD instanton vacuum.Phys

Arthur Kock, Yizhuang Liu, and Ismail Zahed. Pion and kaon parton distributions in the QCD instanton vacuum.Phys. Rev. D, 102(1): 014039, 2020. doi: 10.1103/PhysRevD.102.014039

2020 doi
[126]

Pion and kaon distribution amplitudes up to twist-3 in the QCD instanton vacuum.Phys

Arthur Kock and Ismail Zahed. Pion and kaon distribution amplitudes up to twist-3 in the QCD instanton vacuum.Phys. Rev. D, 104(11): 116028, 2021. doi: 10.1103/PhysRevD.104.116028

2021 doi
[128]

Bowman, Urs M

Patrick O. Bowman, Urs M. Heller, Derek B. Leinweber, Anthony G. Williams, and Jian-bo Zhang. Infrared and ultraviolet properties of the Landau gauge quark propagator.Nucl. Phys. B Proc. Suppl., 128:23–29,
[129]

doi: 10.1016/S0920-5632(03)02454-X

doi
[131]

Shuryak and Ismail Zahed

Edward V. Shuryak and Ismail Zahed. Instanton induced effects in QCD high-energy scattering.Phys. Rev. D, 62:085014, 2000. doi: 10.1103/ PhysRevD.62.085014
[132]

Hadronic structure on the light front

Edward Shuryak and Ismail Zahed. Hadronic structure on the light front. II. QCD strings, Wilson lines, and potentials.Phys. Rev. D, 107 (3):034024, 2023. doi: 10.1103/PhysRevD.107.034024

2023 doi
[133]

WORLD SCIENTIFIC, 1996

Maciej A Nowak, Mannque Rho, and Ismail Zahed.Chiral Nuclear Dynamics. WORLD SCIENTIFIC, 1996. doi: 10.1142/1681. URL https://www.worldscientific.com/doi/abs/10.1142/1681

1996 doi
[134]

Leutwyler and Andrei V

H. Leutwyler and Andrei V. Smilga. Spectrum of Dirac operator and role of winding number in QCD.Phys. Rev. D, 46:5607–5632, 1992. doi: 10.1103/PhysRevD.46.5607. 286

1992 doi
[135]

Navas et al

S. Navas et al. Review of particle physics.Phys. Rev. D, 110(3):030001,
[136]

doi: 10.1103/PhysRevD.110.030001

doi
[137]

Aoki et al

Y. Aoki et al. FLAG Review 2021.Eur. Phys. J. C, 82(10):869, 2022. doi: 10.1140/epjc/s10052-022-10536-1

2021 doi
[138]

Harnett, J

D. Harnett, J. Ho, and T. G. Steele. Correlations Between the Strange Quark Condensate, Strange Quark Mass, and Kaon PCAC Relation. Phys. Rev. D, 103(11):114005, 2021. doi: 10.1103/PhysRevD.103. 114005

2021 doi
[139]

Nucleon electric dipole moment from theθterm with lattice chiral fermions.Phys

Jian Liang, Andrei Alexandru, Terrence Draper, Keh-Fei Liu, Bigeng Wang, Gen Wang, and Yi-Bo Yang. Nucleon electric dipole moment from theθterm with lattice chiral fermions.Phys. Rev. D, 108(9): 094512, 2023. doi: 10.1103/PhysRevD.108.094512

2023 doi
[140]

Contribution of the QCD Θ-term to the nucleon electric dipole moment.Phys

Tanmoy Bhattacharya, Vincenzo Cirigliano, Rajan Gupta, Emanuele Mereghetti, and Boram Yoon. Contribution of the QCD Θ-term to the nucleon electric dipole moment.Phys. Rev. D, 103(11):114507, 2021. doi: 10.1103/PhysRevD.103.114507

2021 doi
[141]

Alexandrou, A

C. Alexandrou, A. Athenodorou, K. Hadjiyiannakou, and A. Todaro. Neutron electric dipole moment using lattice QCD simulations at the physical point.Phys. Rev. D, 103(5):054501, 2021. doi: 10.1103/ PhysRevD.103.054501

2021
[142]

P. V. Pobylitsa. The Quark Propagator and Correlation Functions in the Instanton Vacuum.Phys. Lett. B, 226:387–392, 1989. doi: 10.1016/ 0370-2693(89)91216-1

1989
[143]

Faccioli and Edward V

P. Faccioli and Edward V. Shuryak. Systematic study of the single instanton approximation in QCD.Phys. Rev. D, 64:114020, 2001. doi: 10.1103/PhysRevD.64.114020

2001 doi
[144]

Edward V. Shuryak. Toward the Quantitative Theory of the Topological Phenomena in Gauge Theories. 3. Instantons and Light Fermions.Nucl. Phys. B, 302:599–620, 1988. doi: 10.1016/0550-3213(88)90190-3

1988 doi
[145]

C. Weiss. Nucleon matrix element of Weinberg’s CP-odd gluon operator from the instanton vacuum.Phys. Lett. B, 819:136447, 2021. doi: 10. 1016/j.physletb.2021.136447

2021
[146]

Edward V. Shuryak. THE ’INSTANTON LIQUID.’.Z. Phys. C, 38: 165–172, 1988. doi: 10.1007/BF01574532. 287

1988 doi
[147]

Nowak, J

Maciej A. Nowak, J. J. M. Verbaarschot, and I. Zahed. Flavor Mixing in the Instanton Vacuum.Nucl. Phys. B, 324:1–33, 1989. doi: 10.1016/ 0550-3213(89)90178-8

1989
[148]

Edward V. Shuryak. Theory and phenomenology of the QCD vacuum. Phys. Rept., 115:151, 1984. doi: 10.1016/0370-1573(84)90037-1

1984 doi
[149]

The Topological susceptibility from grand canonical simulations in the interacting instanton liquid model: strongly associating fluids and biased Monte Carlo.Nucl

Olivier Wantz. The Topological susceptibility from grand canonical simulations in the interacting instanton liquid model: strongly associating fluids and biased Monte Carlo.Nucl. Phys. B, 829:91–109,
[150]

doi: 10.1016/j.nuclphysb.2009.12.006

2009 doi
[151]

Olivier Wantz and E. P. S. Shellard. The Topological susceptibility from grand canonical simulations in the interacting instanton liquid model: Chiral phase transition and axion mass.Nucl. Phys. B, 829:110–160,
[152]

doi: 10.1016/j.nuclphysb.2009.12.005

2009 doi
[153]

Department of Statistics, Princeton University, 1950

Max A Woodbury.Inverting modified matrices. Department of Statistics, Princeton University, 1950

1950
[154]

Adjustment of an inverse matrix corresponding to a change in one element of a given matrix.The Annals of Mathematical Statistics, 21(1):124–127, 1950

Jack Sherman and Winifred J Morrison. Adjustment of an inverse matrix corresponding to a change in one element of a given matrix.The Annals of Mathematical Statistics, 21(1):124–127, 1950

1950
[155]

Thomas Sch¨ afer and Edward V. Shuryak. The Interacting instanton liquid in QCD at zero and finite temperature.Phys. Rev. D, 53:6522– 6542, 1996. doi: 10.1103/PhysRevD.53.6522

1996 doi
[156]

Faccioli and Edward V

P. Faccioli and Edward V. Shuryak. Proton electromagnetic form-factors in the instanton liquid model.Phys. Rev. D, 65:076002, 2002. doi: 10.1103/PhysRevD.65.076002

2002 doi
[157]

Statistical mechanics of fluid mixtures.The Journal of chemical physics, 3(5):300–313, 1935

John G Kirkwood. Statistical mechanics of fluid mixtures.The Journal of chemical physics, 3(5):300–313, 1935

1935
[158]

Balla, Maxim V

J. Balla, Maxim V. Polyakov, and C. Weiss. Nucleon matrix elements of twist - three and twist -4 operators from the instanton vacuum. In8th International Conference on the Structure of Baryons, pages 310–315, 9 1998

1998
[159]

Balla, Maxim V

J. Balla, Maxim V. Polyakov, and C. Weiss. Nucleon matrix elements of higher twist operators from the instanton vacuum.Nucl. Phys. B, 510: 327–364, 1998. doi: 10.1016/S0550-3213(98)00638-5. 288

1998 doi
[160]

N. I. Kochelev. Anomalous quark chromomagnetic moment induced by instantons.Phys. Lett. B, 426:149–153, 1998. doi: 10.1016/ S0370-2693(98)00262-7

1998
[161]

Spin Physics through QCD Instantons

Yachao Qian and Ismail Zahed. Spin Physics through QCD Instantons. Annals Phys., 374:314–337, 2016. doi: 10.1016/j.aop.2016.09.002

2016 doi
[162]

Instantons at work.Prog

Dmitri Diakonov. Instantons at work.Prog. Part. Nucl. Phys., 51:173– 222, 2003. doi: 10.1016/S0146-6410(03)90014-7

2003 doi
[163]

Gluonic Structure of the Constituent Quark.Phys

Nikolai Kochelev, Hee-Jung Lee, Baiyang Zhang, and Pengming Zhang. Gluonic Structure of the Constituent Quark.Phys. Lett. B, 757:420–425,
[164]

doi: 10.1016/j.physletb.2016.04.027

2016 doi
[165]

Anomalous Quark Chromo- magnetic Moment and Dynamics of Elastic Scattering.Phys

Nikolai Kochelev and Nikolai Korchagin. Anomalous Quark Chromo- magnetic Moment and Dynamics of Elastic Scattering.Phys. Rev. D, 89 (3):034028, 2014. doi: 10.1103/PhysRevD.89.034028

2014 doi
[167]

I. O. Cherednikov, U. D’Alesio, N. I. Kochelev, and F. Murgia. Instanton contribution to the Sivers function.Phys. Lett. B, 642:39–47, 2006. doi: 10.1016/j.physletb.2006.09.019

2006 doi
[168]

N. I. Kochelev. Instantons and Spin-Flavor effects in Hadron Physics. In15th Annual Seminar Nonlinear Phenomena in Complex Systems: Chaos, Fractals, Phase Transitions, Self-organization, 9 2008

2008
[169]

Instanton effects in twist-3 generalized parton distributions.Phys

June-Young Kim and Christian Weiss. Instanton effects in twist-3 generalized parton distributions.Phys. Lett. B, 848:138387, 2024. doi: 10.1016/j.physletb.2023.138387

2024 doi
[170]

Edward V. Shuryak. Correlation functions in the QCD vacuum.Rev. Mod. Phys., 65:1–46, 1993. doi: 10.1103/RevModPhys.65.1

1993 doi
[171]

Hadronic structure on the light front

Edward Shuryak and Ismail Zahed. Hadronic structure on the light front. III. The Hamiltonian, heavy quarkonia, spin, and orbit mixing.Phys. Rev. D, 107(3):034025, 2023. doi: 10.1103/PhysRevD.107.034025

2023 doi
[172]

Osipov and Brigitte Hiller

Alexander A. Osipov and Brigitte Hiller. Path integral bosonization of the ’t Hooft determinant: Quasiclassical corrections.Eur. Phys. J. C, 35:223–241, 2004. doi: 10.1140/epjc/s2004-01779-3. 289

2004 doi
[173]

Chiral quark - soliton model

Dmitri Diakonov. Chiral quark - soliton model. InAdvanced Summer School on Nonperturbative Quantum Field Physics, pages 1–55, 6 1997

1997
[174]

Effective chiral Lagrangians for nucleon - pion interactions and nuclear forces.Nucl

Steven Weinberg. Effective chiral Lagrangians for nucleon - pion interactions and nuclear forces.Nucl. Phys. B, 363:3–18, 1991. doi: 10.1016/0550-3213(91)90231-L

1991 doi
[175]

Small size instanton contributions to the quark quasi-PDF and matching kernel

Yizhuang Liu and Ismail Zahed. Small size instanton contributions to the quark quasi-PDF and matching kernel. 2 2021

2021
[176]

Gasser and H

J. Gasser and H. Leutwyler. Chiral Perturbation Theory to One Loop. Annals Phys., 158:142, 1984. doi: 10.1016/0003-4916(84)90242-2

1984 doi
[177]

Introduction to chiral perturbation theory.Adv

Stefan Scherer. Introduction to chiral perturbation theory.Adv. Nucl. Phys., 27:277, 2003

2003
[178]

Revisiting Wess- Zumino-Witten terms.SciPost Phys., 10(3):061, 2021

Yasunori Lee, Kantaro Ohmori, and Yuji Tachikawa. Revisiting Wess- Zumino-Witten terms.SciPost Phys., 10(3):061, 2021. doi: 10.21468/ SciPostPhys.10.3.061

2021
[179]

Ishii, W

N. Ishii, W. Bentz, and K. Yazaki. Baryons in the NJL model as solutions of the relativistic Faddeev equation.Nucl. Phys. A, 587:617–656, 1995. doi: 10.1016/0375-9474(95)00032-V

1995 doi
[180]

Oertel, M

M. Oertel, M. Buballa, and J. Wambach. Meson properties in the 1/N(c) corrected NJL model.Nucl. Phys. A, 676:247–272, 2000. doi: 10.1016/ S0375-9474(00)00198-6

2000
[181]

Shuryak and J

Edward V. Shuryak and J. J. M. Verbaarschot. Quark propagation in the random instanton vacuum.Nucl. Phys. B, 410:37–54, 1993. doi: 10.1016/0550-3213(93)90572-7

1993 doi
[182]

Shuryak and J

Edward V. Shuryak and J. J. M. Verbaarschot. Mesonic correlation functions in the random instanton vacuum.Nucl. Phys. B, 410:55–89,
[183]

doi: 10.1016/0550-3213(93)90573-8

doi
[184]

K. A. Olive et al. Review of Particle Physics.Chin. Phys. C, 38:090001,
[185]

doi: 10.1088/1674-1137/38/9/090001

doi
[186]

Patrignani et al

C. Patrignani et al. Review of Particle Physics.Chin. Phys. C, 40(10): 100001, 2016. doi: 10.1088/1674-1137/40/10/100001

2016 doi
[187]

Tanabashi et al

M. Tanabashi et al. Review of Particle Physics.Phys. Rev. D, 98(3): 030001, 2018. doi: 10.1103/PhysRevD.98.030001. 290

2018 doi
[188]

Aoki et al

Y. Aoki et al. FLAG review 2024.Phys. Rev. D, 113(1):014508, 2026. doi: 10.1103/nfzp-p5dn

2024 doi
[189]

Classification and asymptotic scaling of hadrons’ light cone wave function amplitudes.Eur

Xiang-dong Ji, Jian-Ping Ma, and Feng Yuan. Classification and asymptotic scaling of hadrons’ light cone wave function amplitudes.Eur. Phys. J. C, 33:75–90, 2004. doi: 10.1140/epjc/s2003-01563-y

2004 doi
[190]

McNeile, A

C. McNeile, A. Bazavov, C. T. H. Davies, R. J. Dowdall, K. Hornbostel, G. P. Lepage, and H. D. Trottier. Direct determination of the strange and light quark condensates from full lattice QCD.Phys. Rev. D, 87(3): 034503, 2013. doi: 10.1103/PhysRevD.87.034503

2013 doi
[191]

Jose A. Oller. The Mixing angle of the lightest scalar nonet.Nucl. Phys. A, 727:353–369, 2003. doi: 10.1016/j.nuclphysa.2003.08.002

2003 doi
[192]

S. S. Agaev, K. Azizi, and H. Sundu. The structure, mixing angle, mass and couplings of the light scalarf 0(500) andf 0(980) mesons.Phys. Lett. B, 781:279–282, 2018. doi: 10.1016/j.physletb.2018.03.085

2018 doi
[193]

Napsuciale

M. Napsuciale. Scalar meson masses and mixing angle in a U(3) x U(3) linear sigma model. 3 1998

1998
[194]

Bramon, R

A. Bramon, R. Escribano, and M. D. Scadron. The eta - eta-prime mixing angle revisited.Eur. Phys. J. C, 7:271–278, 1999. doi: 10.1007/ s100529801009

1999
[195]

Bramon, R

A. Bramon, R. Escribano, and M. D. Scadron. Radiative V P gamma transitions and eta - eta-prime mixing.Phys. Lett. B, 503:271–276, 2001. doi: 10.1016/S0370-2693(01)00161-7

2001 doi
[196]

Camilla Di Donato, Giulia Ricciardi, and Ikaros Bigi.η−η ′ Mixing - From electromagnetic transitions to weak decays of charm and beauty hadrons.Phys. Rev. D, 85:013016, 2012. doi: 10.1103/PhysRevD.85. 013016

2012 doi
[197]

Meissner

Ayse Kucukarslan and Ulf-G. Meissner. Omega-phi mixing in chiral perturbation theory.Mod. Phys. Lett. A, 21:1423–1430, 2006. doi: 10. 1142/S0217732306020743

2006
[198]

Shuryak, and J

Thomas Sch¨ afer, Edward V. Shuryak, and J. J. M. Verbaarschot. Baryonic correlators in the random instanton vacuum.Nucl. Phys. B, 412:143–168, 1994. doi: 10.1016/0550-3213(94)90497-9. 291

1994 doi
[199]

Hannes L. L. Roberts, Lei Chang, Ian C. Cloet, and Craig D. Roberts. Masses of ground and excited-state hadrons.Few Body Syst., 51:1–25,
[200]

doi: 10.1007/s00601-011-0225-x

doi
[201]

Diquark mass differences from unquenched lattice QCD.Chin

Yujiang Bi, Hao Cai, Ying Chen, Ming Gong, Zhaofeng Liu, Hao-Xue Qiao, and Yi-Bo Yang. Diquark mass differences from unquenched lattice QCD.Chin. Phys. C, 40(7):073106, 2016. doi: 10.1088/1674-1137/40/ 7/073106

2016 doi
[202]

Edward V. Shuryak. Toward dynamical understanding of the diquarks, pentaquarks and dibaryons.J. Phys. Conf. Ser., 9:213–217, 2005. doi: 10.1088/1742-6596/9/1/039

2005 doi
[203]

I. C. Cloet, Wolfgang Bentz, and Anthony William Thomas. Nucleon quark distributions in a covariant quark-diquark model.Phys. Lett. B, 621:246–252, 2005. doi: 10.1016/j.physletb.2005.06.065

2005 doi
[204]

Oettel, G

M. Oettel, G. Hellstern, Reinhard Alkofer, and H. Reinhardt. Octet and decuplet baryons in a covariant and confining diquark - quark model. Phys. Rev. C, 58:2459–2477, 1998. doi: 10.1103/PhysRevC.58.2459

1998 doi
[205]

Buck, Reinhard Alkofer, and H

A. Buck, Reinhard Alkofer, and H. Reinhardt. Baryons as bound states of diquarks and quarks in the Nambu-Jona-Lasinio model.Phys. Lett. B, 286:29–35, 1992. doi: 10.1016/0370-2693(92)90154-V

1992 doi
[206]

Clo¨ et, Wolfgang Bentz, and Anthony W

Ian C. Clo¨ et, Wolfgang Bentz, and Anthony W. Thomas. Role of diquark correlations and the pion cloud in nucleon elastic form factors.Phys. Rev. C, 90:045202, 2014. doi: 10.1103/PhysRevC.90.045202

2014 doi
[207]

Rezaeian, Niels R

Amir H. Rezaeian, Niels R. Walet, and Michael C. Birse. Relativistic Faddeev approach to a nonlocal NJL model.AIP Conf. Proc., 717(1): 690–694, 2004. doi: 10.1063/1.1799781

2004 doi
[208]

Oettel, Reinhard Alkofer, and L

M. Oettel, Reinhard Alkofer, and L. von Smekal. Nucleon properties in the covariant quark diquark model.Eur. Phys. J. A, 8:553–566, 2000. doi: 10.1007/s100500070078

doi
[209]

Hellstern, Reinhard Alkofer, M

G. Hellstern, Reinhard Alkofer, M. Oettel, and H. Reinhardt. Nucleon form-factors in a covariant diquark - quark model.Nucl. Phys. A, 627: 679–709, 1997. doi: 10.1016/S0375-9474(97)00514-9

1997 doi
[210]

Mineo, W

H. Mineo, W. Bentz, N. Ishii, and K. Yazaki. Axial vector diquark correlations in the nucleon: Structure functions and static properties. Nucl. Phys. A, 703:785–820, 2002. doi: 10.1016/S0375-9474(02)00656-5. 292

2002 doi
[211]

Mineo, W

H. Mineo, W. Bentz, and K. Yazaki. Quark distributions in the nucleon based on a relativistic three-body approach to the NJL model.Phys. Rev. C, 60:065201, 1999. doi: 10.1103/PhysRevC.60.065201

1999 doi
[212]

Jacques C. R. Bloch, Craig D. Roberts, S. M. Schmidt, A. Bender, and M. R. Frank. Nucleon form-factors and a nonpointlike diquark.Phys. Rev. C, 60:062201, 1999. doi: 10.1103/PhysRevC.60.062201

1999 doi
[213]

Mauro Anselmino, Enrico Predazzi, Svante Ekelin, Sverker Fredriksson, and D. B. Lichtenberg. Diquarks.Rev. Mod. Phys., 65:1199–1234, 1993. doi: 10.1103/RevModPhys.65.1199

1993 doi
[214]

Perturbative QCD Correction to the Hard Scattering Amplitude for the Meson Form-factor.Phys

Eric Braaten and Sze-Man Tse. Perturbative QCD Correction to the Hard Scattering Amplitude for the Meson Form-factor.Phys. Rev. D, 35:2255, 1987. doi: 10.1103/PhysRevD.35.2255

1987 doi
[215]

Sterman and Paul Stoler

George F. Sterman and Paul Stoler. Hadronic form-factors and perturbative QCD.Ann. Rev. Nucl. Part. Sci., 47:193–233, 1997. doi: 10.1146/annurev.nucl.47.1.193

1997 doi
[216]

F. M. Dittes and A. V. Radyushkin. TWO LOOP CONTRIBUTION TO THE EVOLUTION OF THE PION WAVE FUNCTION.Phys. Lett. B, 134:359–362, 1984. doi: 10.1016/0370-2693(84)90016-9

1984 doi
[217]

Nonperturbative quark-antiquark interactions in mesonic form factors.Phys

Edward Shuryak and Ismail Zahed. Nonperturbative quark-antiquark interactions in mesonic form factors.Phys. Rev. D, 103(5):054028, 2021. doi: 10.1103/PhysRevD.103.054028

2021 doi
[218]

Brodsky and Glennys R

Stanley J. Brodsky and Glennys R. Farrar. Scaling Laws at Large Transverse Momentum.Phys. Rev. Lett., 31:1153–1156, 1973. doi: 10.1103/PhysRevLett.31.1153

1973 doi
[219]

G. M. Huber et al. Charged pion form-factor between Q**2 = 0.60- GeV**2 and 2.45-GeV**2. II. Determination of, and results for, the pion form-factor.Phys. Rev. C, 78:045203, 2008. doi: 10.1103/PhysRevC.78. 045203

2008 doi
[220]

Br¨ ommel et al

D. Br¨ ommel et al. The Pion form-factor from lattice QCD with two dynamical flavours.Eur. Phys. J. C, 51:335–345, 2007. doi: 10.1140/ epjc/s10052-007-0295-6

2007
[221]

A. P. Bakulev, K. Passek-Kumericki, W. Schroers, and N. G. Stefanis. Pion form-factor in QCD: From nonlocal condensates to NLO analytic perturbation theory.Phys. Rev. D, 70:033014, 2004. doi: 10.1103/ PhysRevD.70.033014. [Erratum: Phys.Rev.D 70, 079906 (2004)]. 293

2004
[222]

Gronberg et al

J. Gronberg et al. Measurements of the meson - photon transition form- factors of light pseudoscalar mesons at large momentum transfer.Phys. Rev. D, 57:33–54, 1998. doi: 10.1103/PhysRevD.57.33

1998 doi
[223]

H. J. Behrend et al. A Measurement of the pi0, eta and eta-prime electromagnetic form-factors.Z. Phys. C, 49:401–410, 1991. doi: 10. 1007/BF01549692

1991
[224]

B. V. Geshkenbein. Pion electromagnetic form-factor in the space - like region and P phase delta(1) in one-dimension (s) of pi pi scattering from the value of the modulus of form-factor in the time - like region.Phys. Rev. D, 61:033009, 2000. doi: 10.1103/PhysRevD.61.033009

doi
[225]

R. Tarrach. The renormalization of FF.Nucl. Phys. B, 196:45–61, 1982. doi: 10.1016/0550-3213(82)90301-7

1982 doi
[226]

N. K. Nielsen. The Energy Momentum Tensor in a Nonabelian Quark Gluon Theory.Nucl. Phys. B, 120:212–220, 1977. doi: 10.1016/ 0550-3213(77)90040-2

1977
[227]

Collins, Anthony Duncan, and Satish D

John C. Collins, Anthony Duncan, and Satish D. Joglekar. Trace and Dilatation Anomalies in Gauge Theories.Phys. Rev. D, 16:438–449,
[228]

doi: 10.1103/PhysRevD.16.438

doi
[229]

Thomas Sch¨ afer and Edward V. Shuryak. Glueballs and instantons. Phys. Rev. Lett., 75:1707–1710, 1995. doi: 10.1103/PhysRevLett.75. 1707

1995 doi
[230]

Chen et al

Y. Chen et al. Glueball spectrum and matrix elements on anisotropic lattices.Phys. Rev. D, 73:014516, 2006. doi: 10.1103/PhysRevD.73. 014516

2006 doi
[231]

Glueball spectrum fromN f = 2 lattice QCD study on anisotropic lattices.Chin

Wei Sun, Long-Cheng Gui, Ying Chen, Ming Gong, Chuan Liu, Yu-Bin Liu, Zhaofeng Liu, Jian-Ping Ma, and Jian-Bo Zhang. Glueball spectrum fromN f = 2 lattice QCD study on anisotropic lattices.Chin. Phys. C, 42(9):093103, 2018. doi: 10.1088/1674-1137/42/9/093103

2018 doi
[232]

Bijnens, G

J. Bijnens, G. Colangelo, and P. Talavera. The Vector and scalar form- factors of the pion to two loops.JHEP, 05:014, 1998. doi: 10.1088/ 1126-6708/1998/05/014

1998
[233]

Bijnens, G

J. Bijnens, G. Colangelo, G. Ecker, J. Gasser, and M. E. Sainio. Pion- pion scattering at low energy.Nucl. Phys. B, 508:263–310, 1997. doi: 10.1016/S0550-3213(97)00621-4. [Erratum: Nucl.Phys.B 517, 639–639 (1998)]. 294

1997 doi
[234]

Scalar, vector, and tensor form factors for the pion and kaon from lattice QCD.Phys

Constantia Alexandrou, Simone Bacchio, Ian Cloet, Martha Constanti- nou, Joseph Delmar, Kyriakos Hadjiyiannakou, Giannis Koutsou, Colin Lauer, and Alejandro Vaquero. Scalar, vector, and tensor form factors for the pion and kaon from lattice QCD.Phys. Rev. D, 105(5):054502,
[235]

doi: 10.1103/PhysRevD.105.054502

doi
[236]

Trace anomaly form factors from lattice qcd, 2024

Bigeng Wang, Fangcheng He, Gen Wang, Terrence Draper, Jian Liang, Keh-Fei Liu, and Yi-Bo Yang. Trace anomaly form factors from lattice qcd, 2024

2024
[237]

Hackett, Patrick R

Daniel C. Hackett, Patrick R. Oare, Dimitra A. Pefkou, and Phiala E. Shanahan. Gravitational form factors of the pion from lattice QCD. 7 2023

2023
[238]

Trace anomaly form factors from lattice QCD.Phys

Bigeng Wang, Fangcheng He, Gen Wang, Terrence Draper, Jian Liang, Keh-Fei Liu, and Yi-Bo Yang. Trace anomaly form factors from lattice QCD.Phys. Rev. D, 109(9):094504, 2024. doi: 10.1103/PhysRevD.109. 094504

2024 doi
[239]

Nakamura et al

K. Nakamura et al. Review of particle physics.J. Phys. G, 37:075021,
[240]

doi: 10.1088/0954-3899/37/7A/075021

doi
[241]

Hackett, Dimitra A

Daniel C. Hackett, Dimitra A. Pefkou, and Phiala E. Shanahan. Gravitational Form Factors of the Proton from Lattice QCD.Phys. Rev. Lett., 132(25):251904, 2024. doi: 10.1103/PhysRevLett.132.251904

2024 doi
[242]

Schweitzer

P. Schweitzer. The Sigma term form-factor of the nucleon in the large N(C) limit.Phys. Rev. D, 69:034003, 2004. doi: 10.1103/PhysRevD.69. 034003

2004 doi
[243]

Martin Hoferichter, Jacobo Ruiz de Elvira, Bastian Kubis, and Ulf-G. Meißner. On the role of isospin violation in the pion–nucleonσ-term. Phys. Lett. B, 843:138001, 2023. doi: 10.1016/j.physletb.2023.138001

2023 doi
[244]

J. M. Alarc´ on and C. Weiss. Nucleon form factors in dispersively improved chiral effective field theory: Scalar form factor.Phys. Rev. C, 96(5):055206, 2017. doi: 10.1103/PhysRevC.96.055206

2017 doi
[245]

S. J. Dong, J. F. Lagae, and K. F. Liu. Pi N sigma term, anti-s s in nucleon, and scalar form-factor: A Lattice study.Phys. Rev. D, 54: 5496–5500, 1996. doi: 10.1103/PhysRevD.54.5496

1996 doi
[246]

Adam Freese and Ian C. Clo¨ et. Gravitational form factors of light mesons.Phys. Rev. C, 100(1):015201, 2019. doi: 10.1103/PhysRevC. 100.015201. [Erratum: Phys.Rev.C 105, 059901 (2022)]. 295

2019 doi
[247]

Polyakov and Hyeon-Dong Son

Maxim V. Polyakov and Hyeon-Dong Son. Nucleon gravitational form factors from instantons: forces between quark and gluon subsystems. JHEP, 09:156, 2018. doi: 10.1007/JHEP09(2018)156

2018 doi
[248]

Proton mass decomposition: naturalness and interpretations.Front

Xiangdong Ji. Proton mass decomposition: naturalness and interpretations.Front. Phys. (Beijing), 16(6):64601, 2021. doi: 10.1007/ s11467-021-1065-x

2021
[249]

Breakup of hadron masses and energy - momentum tensor of QCD.Phys

Xiang-Dong Ji. Breakup of hadron masses and energy - momentum tensor of QCD.Phys. Rev. D, 52:271–281, 1995. doi: 10.1103/ PhysRevD.52.271

1995
[250]

Quark and gluon contributions to the QCD trace anomaly.JHEP, 12:008, 2018

Yoshitaka Hatta, Abha Rajan, and Kazuhiro Tanaka. Quark and gluon contributions to the QCD trace anomaly.JHEP, 12:008, 2018. doi: 10.1007/JHEP12(2018)008

2018 doi
[251]

Jiunn-Wei Chen and Martin J. Savage. Hadronic and electromagnetic interactions of quarkonia.Phys. Rev. D, 57:2837–2846, 1998. doi: 10. 1103/PhysRevD.57.2837

1998
[252]

V. A. Novikov and Mikhail A. Shifman. Comment on the psi-prime —> J/psi pi pi Decay.Z. Phys. C, 8:43, 1981. doi: 10.1007/BF01429829

1981 doi
[253]

P. E. Shanahan and W. Detmold. Gluon gravitational form factors of the nucleon and the pion from lattice QCD.Phys. Rev. D, 99(1):014511,
[254]

doi: 10.1103/PhysRevD.99.014511

doi
[255]

Pefkou, Daniel C

Dimitra A. Pefkou, Daniel C. Hackett, and Phiala E. Shanahan. Gluon gravitational structure of hadrons of different spin.Phys. Rev. D, 105 (5):054509, 2022. doi: 10.1103/PhysRevD.105.054509

2022 doi
[256]

Alexandrou, S

C. Alexandrou, S. Bacchio, M. Constantinou, J. Finkenrath, K. Hadjiyiannakou, K. Jansen, G. Koutsou, H. Panagopoulos, and G. Spanoudes. Complete flavor decomposition of the spin and momentum fraction of the proton using lattice QCD simulations at physical pion mass.Phys. Rev. ...

2020
[259]

New CTEQ global analysis of quantum chromodynamics with high-precision data from the LHC.Phys

Tie-Jiun Hou et al. New CTEQ global analysis of quantum chromodynamics with high-precision data from the LHC.Phys. Rev. D, 103(1):014013, 2021. doi: 10.1103/PhysRevD.103.014013

2021 doi
[260]

V. D. Burkert, L. Elouadrhiri, and F. X. Girod. The pressure distribution inside the proton.Nature, 557(7705):396–399, 2018. doi: 10.1038/ s41586-018-0060-z

2018
[261]

En- ergy–momentum tensor form factors of the nucleon within aπ–ρ–ω soliton model.J

Ju-Hyun Jung, Ulugbek Yakhshiev, and Hyun-Chul Kim. En- ergy–momentum tensor form factors of the nucleon within aπ–ρ–ω soliton model.J. Phys. G, 41:055107, 2014. doi: 10.1088/0954-3899/41/ 5/055107

2014 doi
[262]

Cebulla, K

C. Cebulla, K. Goeke, J. Ossmann, and P. Schweitzer. The Nucleon form-factors of the energy momentum tensor in the Skyrme model.Nucl. Phys. A, 794:87–114, 2007. doi: 10.1016/j.nuclphysa.2007.08.004

2007 doi
[264]

Singh, Frank X

Janardan P. Singh, Frank X. Lee, and Lai Wang. Eta-nucleon coupling constant in QCD with SU(3) symmetry breaking.Int. J. Mod. Phys. A, 26:947–963, 2011. doi: 10.1142/S0217751X11051561

2011 doi
[265]

N. F. Nasrallah. Couplings of the eta and eta-prime mesons to the nucleon.Phys. Lett. B, 645:335–338, 2007. doi: 10.1016/j.physletb. 2006.12.048

2007 doi
[266]

Quark structure of pseudoscalar mesons.Int

Thorsten Feldmann. Quark structure of pseudoscalar mesons.Int. J. Mod. Phys. A, 15:159–207, 2000. doi: 10.1142/S0217751X00000082

2000 doi
[267]

Flavor singlet B decay amplitudes in QCD factorization.Nucl

Martin Beneke and Matthias Neubert. Flavor singlet B decay amplitudes in QCD factorization.Nucl. Phys. B, 651:225–248, 2003. doi: 10.1016/ S0550-3213(02)01091-X

2003
[268]

A QCD analysis of the mass structure of the nucleon

Xiang-Dong Ji. A QCD analysis of the mass structure of the nucleon. Phys. Rev. Lett., 74:1071–1074, 1995. doi: 10.1103/PhysRevLett.74. 1071

1995 doi
[269]

On the hadron mass decomposition.Eur

C´ edric Lorc´ e. On the hadron mass decomposition.Eur. Phys. J. C, 78 (2):120, 2018. doi: 10.1140/epjc/s10052-018-5561-2

2018 doi
[270]

Craig D. Roberts. On Mass and Matter.AAPPS Bull., 31:6, 2021. doi: 10.1007/s43673-021-00005-4. 297

2021 doi
[271]

Revisiting the proton mass decomposition.Phys

Andreas Metz, Barbara Pasquini, and Simone Rodini. Revisiting the proton mass decomposition.Phys. Rev. D, 102(11):114042, 2021. doi: 10.1103/PhysRevD.102.114042

2021 doi
[272]

Proton Mass Decomposition from the QCD Energy Momentum Tensor.Phys

Yi-Bo Yang, Jian Liang, Yu-Jiang Bi, Ying Chen, Terrence Draper, Keh- Fei Liu, and Zhaofeng Liu. Proton Mass Decomposition from the QCD Energy Momentum Tensor.Phys. Rev. Lett., 121(21):212001, 2018. doi: 10.1103/PhysRevLett.121.212001

2018 doi
[273]

Martin Hoferichter, Jacobo Ruiz de Elvira, Bastian Kubis, and Ulf-G. Meißner. Remarks on the pion–nucleonσ-term.Phys. Lett. B, 760: 74–78, 2016. doi: 10.1016/j.physletb.2016.06.038

2016 doi
[274]

J. M. Alarc´ on. Brief history of the pion–nucleon sigma term.Eur. Phys. J. ST, 230(6):1609–1622, 2021. doi: 10.1140/epjs/s11734-021-00145-6

2021 doi
[275]

Brodsky, and Guy F

Alexandre Deur, Stanley J. Brodsky, and Guy F. De T´ eramond. The Spin Structure of the Nucleon. 7 2018. doi: 10.1088/1361-6633/ab0b8f

2018 doi
[276]

Gauge-Invariant Decomposition of Nucleon Spin.Phys

Xiang-Dong Ji. Gauge-Invariant Decomposition of Nucleon Spin.Phys. Rev. Lett., 78:610–613, 1997. doi: 10.1103/PhysRevLett.78.610

1997 doi
[277]

Aoki et al

S. Aoki et al. FLAG Review 2019: Flavour Lattice Averaging Group (FLAG).Eur. Phys. J. C, 80(2):113, 2020. doi: 10.1140/epjc/ s10052-019-7354-7

2019 doi
[278]

Stephen L. Adler. Axial vector vertex in spinor electrodynamics.Phys. Rev., 177:2426–2438, 1969. doi: 10.1103/PhysRev.177.2426

1969 doi
[279]

Nocera, Richard D

Emanuele R. Nocera, Richard D. Ball, Stefano Forte, Giovanni Ridolfi, and Juan Rojo. A first unbiased global determination of polarized PDFs and their uncertainties.Nucl. Phys. B, 887:276–308, 2014. doi: 10.1016/ j.nuclphysb.2014.08.008

2014
[280]

Quark contribution to the proton spin from 2+1+1-flavor lattice QCD.Phys

Huey-Wen Lin, Rajan Gupta, Boram Yoon, Yong-Chull Jang, and Tanmoy Bhattacharya. Quark contribution to the proton spin from 2+1+1-flavor lattice QCD.Phys. Rev. D, 98(9):094512, 2018. doi: 10.1103/PhysRevD.98.094512

2018 doi
[281]

Quark spins and Anomalous Ward Identity.Phys

Jian Liang, Yi-Bo Yang, Terrence Draper, Ming Gong, and Keh-Fei Liu. Quark spins and Anomalous Ward Identity.Phys. Rev. D, 98(7):074505,
[282]

doi: 10.1103/PhysRevD.98.074505. 298

doi
[284]

Moments of generalized parton distributions and quark angular momentum of the nucleon.PoS, LATTICE2007:158, 2007

Dirk Brommel et al. Moments of generalized parton distributions and quark angular momentum of the nucleon.PoS, LATTICE2007:158, 2007. doi: 10.22323/1.042.0158

2007 doi
[286]

Mamo and Ismail Zahed

Kiminad A. Mamo and Ismail Zahed. J/ψnear threshold in holographic QCD: A and D gravitational form factors.Phys. Rev. D, 106(8):086004,
[287]

doi: 10.1103/PhysRevD.106.086004

doi
[288]

Proton momentum and angular momentum decompositions with overlap fermions.Phys

Gen Wang, Yi-Bo Yang, Jian Liang, Terrence Draper, and Keh-Fei Liu. Proton momentum and angular momentum decompositions with overlap fermions.Phys. Rev. D, 106(1):014512, 2022. doi: 10.1103/PhysRevD. 106.014512

2022 doi
[289]

Polyakov

Alexander M. Polyakov. Gauge Fields as Rings of Glue.Nucl. Phys. B, 164:171–188, 1980. doi: 10.1016/0550-3213(80)90507-6

1980 doi
[290]

Hafidi, S

K. Hafidi, S. Joosten, Z. E. Meziani, and J. W. Qiu. Production of Charmonium at Threshold in Hall A and C at Jefferson Lab.Few Body Syst., 58(4):141, 2017. doi: 10.1007/s00601-017-1305-3

2017 doi
[291]

Ali et al

A. Ali et al. First Measurement of Near-Threshold J/ψExclusive Photoproduction off the Proton.Phys. Rev. Lett., 123(7):072001, 2019. doi: 10.1103/PhysRevLett.123.072001

2019 doi
[292]

Origin of the Proton Mass? Heavy Quarkonium Production at Threshold from Jefferson Lab to an Electron Ion Collider

Zein-Eddine Meziani and Sylvester Joosten. Origin of the Proton Mass? Heavy Quarkonium Production at Threshold from Jefferson Lab to an Electron Ion Collider. InProbing Nucleons and Nuclei in High Energy Collisions: Dedicated to the Physics of the Electron Ion Collider, pages ...

2020 doi
[293]

Anderle et al

Daniele P. Anderle et al. Electron-ion collider in China.Front. Phys. (Beijing), 16(6):64701, 2021. doi: 10.1007/s11467-021-1062-0

2021 doi
[294]

HolographicJ/ψproduction near threshold and the proton mass problem.Phys

Yoshitaka Hatta and Di-Lun Yang. HolographicJ/ψproduction near threshold and the proton mass problem.Phys. Rev. D, 98(7):074003,
[295]

doi: 10.1103/PhysRevD.98.074003. 299

doi
[296]

Mamo and Ismail Zahed

Kiminad A. Mamo and Ismail Zahed. Diffractive photoproduction of J/ψand Υ using holographic QCD: gravitational form factors and GPD of gluons in the proton.Phys. Rev. D, 101(8):086003, 2020. doi: 10. 1103/PhysRevD.101.086003

2020
[297]

Kharzeev

Dmitri E. Kharzeev. Mass radius of the proton.Phys. Rev. D, 104(5): 054015, 2021. doi: 10.1103/PhysRevD.104.054015

2021 doi
[298]

Yoshitaka Hatta and Mark Strikman.ϕ-meson lepto-production near threshold and the strangenessD-term.Phys. Lett. B, 817:136295, 2021. doi: 10.1016/j.physletb.2021.136295

2021 doi
[299]

QCD Analysis of Near- Threshold Photon-Proton Production of Heavy Quarkonium.Phys

Yuxun Guo, Xiangdong Ji, and Yizhuang Liu. QCD Analysis of Near- Threshold Photon-Proton Production of Heavy Quarkonium.Phys. Rev. D, 103(9):096010, 2021. doi: 10.1103/PhysRevD.103.096010

2021 doi
[300]

Perturbative QCD analysis of near threshold heavy quarkonium photoproduction at large momentum transfer.Phys

Peng Sun, Xuan-Bo Tong, and Feng Yuan. Perturbative QCD analysis of near threshold heavy quarkonium photoproduction at large momentum transfer.Phys. Lett. B, 822:136655, 2021. doi: 10.1016/j.physletb.2021. 136655

2021 doi

Pith tools

Reviewed July 8, 2026 · model on record in the stance chip above.

[1] [1]

Magnetic Monopoles in Unified Gauge Theories.Nucl

Gerard ’t Hooft. Magnetic Monopoles in Unified Gauge Theories.Nucl. Phys. B, 79:276–284, 1974. doi: 10.1016/0550-3213(74)90486-6

work page doi:10.1016/0550-3213(74)90486-6 1974

[2] [2]

Polyakov

Alexander M. Polyakov. Particle Spectrum in Quantum Field Theory. JETP Lett., 20:194–195, 1974

work page 1974

[3] [3]

A. A. Belavin, Alexander M. Polyakov, A. S. Schwartz, and Yu. S. Tyupkin. Pseudoparticle Solutions of the Yang-Mills Equations.Phys. Lett. B, 59:85–87, 1975. doi: 10.1016/0370-2693(75)90163-X

work page doi:10.1016/0370-2693(75)90163-x 1975

[4] [4]

Kraan and Pierre van Baal

Thomas C. Kraan and Pierre van Baal. Monopole constituents inside SU(n) calorons.Phys. Lett. B, 435:389–395, 1998. doi: 10.1016/ S0370-2693(98)00799-0

work page 1998

[5] [5]

Dmitri Diakonov and V. Yu. Petrov. Instanton Based Vacuum from Feynman Variational Principle.Nucl. Phys. B, 245:259–292, 1984. doi: 10.1016/0550-3213(84)90432-2

work page doi:10.1016/0550-3213(84)90432-2 1984

[6] [6]

Callan, Jr., R

Curtis G. Callan, Jr., R. F. Dashen, and David J. Gross. The Structure of the Gauge Theory Vacuum.Phys. Lett. B, 63:334–340, 1976. doi: 10.1016/0370-2693(76)90277-X

work page doi:10.1016/0370-2693(76)90277-x 1976

[7] [7]

Callan, Jr., Roger F

Curtis G. Callan, Jr., Roger F. Dashen, and David J. Gross. Toward a Theory of the Strong Interactions.Phys. Rev. D, 17:2717, 1978. doi: 10.1103/PhysRevD.17.2717

work page doi:10.1103/physrevd.17.2717 1978

[8] [8]

Edward V. Shuryak. The Role of Instantons in Quantum Chromo- dynamics. 1. Physical Vacuum.Nucl. Phys. B, 203:93, 1982. doi: 10.1016/0550-3213(82)90478-3

work page doi:10.1016/0550-3213(82)90478-3 1982
