Surface Nanobubbles: Theory, Simulation, and Experiment. A Review

T0 review · 0 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Pinned contact lines explain why surface nanobubbles live for days

desk verdict A competent review of surface nanobubbles that accurately reports the field's consensus on contact-line pinning, with no new evidence but with honest coverage of the main caveats. read the letter →

arxiv 1909.02658 v1 pith:HGIAOEKW submitted 2019-09-02 cond-mat.soft physics.flu-dyn

Panagiotis E. Theodorakis , Zhizhao Che This is my paper · ORCID
classification cond-mat.softphysics.flu-dyn
keywords surfacenanobubblescontact-linepinninggasoversaturationnanobubblestabilityatomicforcemicroscopymoleculardynamicssimulationsolventexchangenucleation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Surface nanobubbles are gas caps, tens of nanometres tall, that sit on solid surfaces in water and survive for hours to days even though textbook diffusion theory gives them a lifetime of microseconds. This review assembles theory, molecular simulation, and experiment to argue that the currently dominant explanation is contact-line pinning: the line where gas, liquid, and solid meet is stuck on nanoscale roughness or chemical patches of the substrate, so the bubble cannot shrink away. Gas oversaturation of the liquid supplies the driving force and supports stability, but pinning is the load-bearing element; contamination films and dynamic gas influx appear as secondary or supplementary mechanisms. The stakes are practical because surface nanobubbles are implicated in flotation, drag reduction, boiling nucleation, cleaning, and nanoporous templating, so knowing why they persist decides when they can be exploited or suppressed.

What carries the argument

The central object is the three-phase contact line of a surface nanobubble, the circle where gas, liquid, and solid meet, and the pinning of that line by nanoscale roughness or chemical heterogeneity of the substrate. When the contact line is pinned, the bubble's base radius cannot change, so dissolution must proceed by reducing the bubble's height and changing its contact angle; that geometric constraint slows or halts the diffusive outflux that would otherwise empty a micrometre-sized bubble in microseconds. The supporting machinery is the classical diffusion equation for a gas bubble, extended to a pinned geometry, and the oversaturation of dissolved gas, which reverses or weakens the concentration gradient driving gas out of the bubble. In simulation, pinning plus supersaturation is shown to stabilise nanobubbles in coarse-grained molecular dynamics, while classical density-functional theory places the pinned bubble in a thermodynamically metastable state rather than true equilibrium.

What would settle it

Track individual surface nanobubbles with a non-invasive optical method while the surrounding liquid is measurably undersaturated, and record the position of the three-phase contact line over hours. If a bubble persists for hours while its contact line moves freely across a smooth part of the substrate, pinning is not the dominant stabilizer; conversely, if every long-lived bubble has a fixed contact line and unpins before dissolving, the claim is confirmed.

Watch

Extended reading notes

Core claim

On the review's own terms, the central claim is that the long observed lifetimes of surface nanobubbles are governed by the pinning of the three-phase contact line on substrate heterogeneities, with gas oversaturation playing a supporting role. The evidence trail runs from AFM images showing a fixed contact line during growth and dissolution, through a one-dimensional diffusion model modified to include pinning, to molecular dynamics and density-functional calculations in which pinning plus oversaturation yields stable nanobubbles while unpinned ones dissolve. The review also reports a direct measurement of the force needed to unpin a nanobubble, about $0.1\,\mu\mathrm{N}$, and notes that pinning suppresses diffusive coarsening between neighbouring bubbles. Alternative mechanisms are not dismissed outright but are ranked below pinning: contamination at the gas-liquid interface can lower surface tension, and dynamic gas influx near the contact line can help, yet the currently dominant explanation in the literature is the combined pinning-plus-oversaturation picture.

Load-bearing premise

The whole explanation assumes that the objects seen in the experiments really are gas bubbles with a well-defined three-phase line that can be pinned; the review itself notes that silicone contamination from disposable needles can create nanobubble-like objects and that AFM tips deform the bubbles and change their apparent shape.

Editorial extensions

If this is right

  • Pinning sites set the bubble footprint, so engineered roughness or chemical patterning should control where nanobubbles form and how long they survive.
  • Long-lived nanobubbles should exist even in undersaturated liquids as long as the contact line is pinned, matching experiments in open systems cited by the review.
  • Pinned contact lines should suppress diffusive coarsening between neighbours, explaining why bubbles of different curvatures can coexist in a population.
  • The force needed to detach or dissolve a nanobubble is finite and measurable, about $0.1\,\mu\mathrm{N}$ in the cited optical-pulling experiment, so removal is an unpinning event.
  • Any process that depins the line, such as surfactant adsorption, should trigger rapid dissolution; the review's simulations show surfactants destabilise nanobubbles this way.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: if pinning dominates stability, then observations that do not confirm the gas phase chemically could be contaminated or deformed objects; the stability literature gains most from non-invasive methods that measure gas density and contact-line position together.
  • Editorial inference: simulations cited in the review that produce stable nanobubbles without pinning suggest pinning is sufficient but not strictly necessary; a testable extension is that a dense gas adsorption layer on a hydrophobic substrate can substitute for pinning over short times.
  • Editorial inference: if pinning is first-order, then substrate preparation and cleanliness should be treated as control variables in applications; comparisons that ignore them may attribute differences in bubble behaviour to liquid physics when they come from substrate history.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

0 major / 5 minor

Summary. This review article surveys the surface-nanobubble literature across theory, molecular simulation, and experiment. It describes the main experimental and computational methods, the morphological and mechanical properties of surface nanobubbles, formation protocols (solvent exchange, temperature difference, electrochemical generation), and the principal stabilization mechanisms proposed in the literature. The central claim is that contact-line pinning combined with gas oversaturation is currently the dominant explanation for the high stability of surface nanobubbles, with hydrophobicity and other factors playing secondary roles. The paper closes with a short perspectives section identifying needs for non-intrusive high-resolution techniques and more diverse substrate studies.

Significance. The review is a useful and generally balanced consolidation of a large and active field. Its main strength is breadth combined with explicit methodological caveats: it repeatedly notes the invasive nature of AFM, the dependence of measured sizes and shapes on tip properties and imaging modes, and the risk that PDMS contamination can create nanobubble-like objects. It also incorporates recent work on electrochemically generated nanobubbles and all-atom molecular dynamics, including the unpinned stable nanobubbles of Ref. 80. The claim that contact-line pinning is the 'currently dominant explanation' is framed as an attribution of the literature consensus rather than as a new proof, and it is backed by multiple independent experimental and theoretical citations. Because the review reports countervailing evidence rather than suppressing it, the consensus statement is credible. The paper's value is synthetic and didactic rather than adjudicative; if the consensus attribution is accurate, it provides a reliable entry point to the field.

minor comments (5)
  1. [Section 2.1] In the paragraph on contamination theory, the sentence '...a higher diffusion of gas outside NBs, which would lead to a higher stability' is self-contradictory: higher outward gas diffusion would shorten the bubble lifetime. Please reword the statement to reflect the intended stabilization mechanism (e.g., reduced surface tension and lower Laplace pressure, or reduced interfacial gas transfer).
  2. [Section 5 (see also Section 2.2)] The statement in Section 5 that pinning is strictly required in Tan et al.'s model should be reconciled with the all-atom MD result reported in Section 2.2 (Ref. 80), where stable nanobubbles are obtained without three-phase pinning sites. A single clarifying sentence noting that the consensus claim refers to the majority of experimental and theoretical studies, not to every simulation, would remove the apparent contradiction.
  3. [Section 4] The sentence 'The advantage of this approach is that any other contamination is generally avoided' is too strong in view of the later statement, supported by Ref. 138, that AFM has imaged organic pollutants introduced by the alcohol in the solvent-exchange method. Please qualify the claimed advantage.
  4. [Throughout] Please fix typographical and grammatical errors, including 'Harvei nuclei' (should be 'Harvey nuclei'), 'numeical' (numerical), 'atomic stops' (atomic steps), 'an dodecyltrichlorosilane' (a dodecyltrichlorosilane), and the inconsistent spelling 'Tyrell'/'Tyrrell'. In addition, Refs. 70 and 71 appear to refer to the same paper twice and should be consolidated or disambiguated.
  5. [Reference list] Please check reference formatting and completeness: 'Journal of American Chemical Society' should be 'Journal of the American Chemical Society', capitalization in 'Journal of colloid and Interface science' should be standardized, and several in-press references (e.g., Refs. 76, 79, 84) need page numbers or article identifiers.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the review's central claim is an explicitly framed consensus attribution, not a derived result, and its own simulation work is corroborated by independent experiment.

full rationale

This is a review article, not a derivation, and the central claim in Section 5 is explicitly presented as an attribution of consensus: 'the currently dominant explanation in the literature for the high stability of surface NBs is the combined effect of contact line pinning and gas oversaturation.' The paper makes no new predictions and fits no parameters, so there is no fitted input being renamed as prediction and no equation that reduces to its own input. The authors do cite their own prior work (Refs. 68 and 78), but these citations are not load-bearing: Ref. 68 is used to report an MD-derived density that is independently validated by experiment, and to note that simulations on ideal substrates saw bubbles dissolve, which is consistent with, not constitutive of, the pinning hypothesis. The review repeatedly documents contrary evidence, including PDMS contamination creating nanobubble-like objects (Ref. 101), AFM tip effects (Refs. 97, 102), and MD simulations obtaining stable nanobubbles without pinning (Ref. 80). Because the central claim is a consensus statement supported by many independent experimental and theoretical studies, and because the authors' own contributions are auxiliary rather than definitional, there is no circularity.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

The review uses no free parameters and introduces no new entities. Its assumptions are the reliability of the cited literature, the classical theory of bubble dissolution, and the theoretical validity of the pinning mechanism as established in prior work.

assumptions (3)
  • domain assumption The cited experimental and simulation results on surface nanobubbles are accurately reported in the primary literature.
    The review is a synthesis of published work; it does not reanalyze raw data. Its conclusions inherit the correctness of the underlying measurements and simulations. The review itself notes contamination and AFM artifacts (Sec. 2.3), so this assumption is partially qualified.
  • domain assumption The classical Epstein-Plesset and Laplace-pressure framework is the correct baseline for predicting the lifetime of a gas bubble in a liquid.
    The existence of the stability puzzle depends on this classical theory predicting microsecond lifetimes for nanoscale bubbles, as stated in Sec. 1 and Sec. 2.1.
  • domain assumption Contact-line pinning combined with gas oversaturation is a sufficient mechanism to stabilize surface nanobubbles.
    The review's main conclusion rests on theoretical models (Refs. 54, 55, 67) and simulations that establish this mechanism; the review does not derive it from first principles.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Surface Nanobubbles: Theory, Simulation, and Experiment. A Review." pith.science (2026). https://pith.science/paper/HGIAOEKW

@misc{pith2026190902658,
  author       = {Pith},
  title        = {Pith review of: Surface Nanobubbles: Theory, Simulation, and Experiment. A Review},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HGIAOEKW}},
  note         = {Machine review of arXiv:1909.02658}
}
read the original abstract

Surface nanobubbles (NBs) are stable gaseous phases in liquids that form at the interface with solid substrates. They have been particularly intriguing for their high stability that contradicts theoretical expectations and their potential relevance for many technological applications. Here, we present the current state of the art in this research area by discussing and contrasting main results obtained from theory, simulation and experiment, and presenting their limitations. We also provide future perspectives anticipating that this review will stimulate further studies in the research area of surface NBs.

Figures

Figures reproduced from arXiv: 1909.02658 by the authors.

Figure 1
Figure 1. Surface nanobubbles. (A) Nanobubbles on an HOPG surface immersed in water. [PITH_FULL_IMAGE:figures/full_fig_p050_1.png] view at source ↗
Figure 2
Figure 2. Schematic representation of main theories explaining the stability of nanobubbles. [PITH_FULL_IMAGE:figures/full_fig_p050_2.png] view at source ↗
Figure 3
Figure 3. MD simulation based on LJ potentials (all-atom and CG models). (A) LJ potential [PITH_FULL_IMAGE:figures/full_fig_p051_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: Main experimental methods for NBs imaging: (A) Schematic illustration of TM [PITH_FULL_IMAGE:figures/full_fig_p052_4.png]
Figure 5

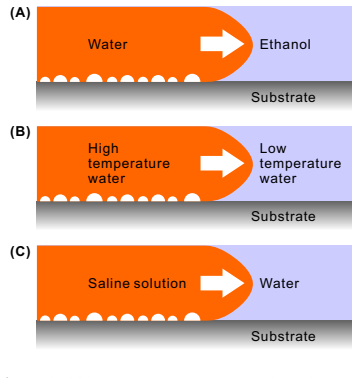

Figure 5. Figure 5: Formation of nanobubbles in experiment using the solvent exchange method. This [PITH_FULL_IMAGE:figures/full_fig_p053_5.png]
Figure 6
Figure 6. Figure 6: Contact line pinning. Morphology of surface NBs obtained from AFM and their [PITH_FULL_IMAGE:figures/full_fig_p053_6.png]
