Lattice Boltzmann Methods for Navier-Stokes Equations in General Orthogonal Coordinates for Efficient Flow Simulations using Nonuniform Clustered Grids

T0 review · 2 major / 4 minor · reviewed 2026-08-01 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read This paper claims that the standard collide-and-stream lattice Boltzmann method can be extended to continuously varying orthogonal clustered and curvilinear grids by adding metric-factor-dependent moment equilibria corrections and source te

desk verdict A genuine extension of collide-and-stream LBM to nonuniform orthogonal grids, with strong benchmark agreement, but the key cancellation of E3/E4 is asserted rather than shown, and the benchmarks don't isolate the correction terms. read the letter →

arxiv 2607.15362 v1 pith:HPNAOYHZ submitted 2026-07-16 physics.flu-dyn physics.comp-ph

Eman Yahia , Kannan Premnath This is my paper · ORCID
classification physics.flu-dynphysics.comp-ph MSC 76M2876D0565M50 PACS 47.11.Qr
keywords latticeBoltzmannmethodgeneralorthogonalcoordinatescurvilineargridsgridclusteringChapman-EnskoganalysismomentequilibriacorrectionsNavier-Stokesequationsmagnetohydrodynamics
topics Navier-Stokes Regularity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper aims to lift the standard lattice Boltzmann method's restriction to uniform Cartesian grids by constructing a new formulation in general orthogonal curvilinear coordinates (GOC). Through a Chapman-Enskog analysis, the authors specify equilibrium moments and geometric forcing terms that depend on local metric factors and their derivatives, plus correction terms involving normal velocity and density gradients. They show that this GOC-LBM recovers the Navier-Stokes equations in conservative form, including correct normal viscous stresses and shear stresses, while keeping the simple collide-and-stream steps. If correct, this gives a practical way to use grid clustering and body-fitted curvilinear meshes with the efficiency and simplicity of standard lattice Boltzmann, and the scheme reduces exactly to the usual method when the metric factors are unity.

What carries the argument

The central object is the moment equilibria correction, parameterized by the metric factors h1, h2 and the curvature coefficient matrix θij, added to the second-order diagonal moment equilibria. These corrections are derived via a Chapman-Enskog expansion and take the form of coefficients D3,k, D4,k and C3, C4 multiplying normal velocity and density gradients. They are what recover the normal stress components and cancel the non-Galilean cubic-velocity errors; without them the scheme would reduce to an inconsistent viscous-flux representation on nonuniform meshes.

What would settle it

Implement the GOC-LBM on a nontrivial orthogonal clustered grid and directly measure the recovered normal viscous stress components τ11 and τ22 against a finite-difference solution of the GOC Navier-Stokes equations; alternatively, use a computer algebra system to verify symbolically that substituting the correction coefficients eliminates E3 and E4 in the Chapman-Enskog closure.

Watch

Extended reading notes

Core claim

The central claim is that the GOC-LBM, built on the D2Q9 lattice with raw moments, central moments, or a single relaxation time, solves the 2D Navier-Stokes equations on orthogonally clustered or curved grids. The key technical step is a Chapman-Enskog analysis that identifies deviation terms E3 and E4 in the second-order non-equilibrium moments; these are then eliminated by introducing corrections to the moment equilibria—Eqs. (76)-(78)—so that the recovered viscous stress tensor matches the GOC constitutive relations. The analysis also shows that shear stresses emerge exactly from a non-equilibrium moment without extra corrections, and that the formulation is Galilean invariant to third or

Load-bearing premise

The load-bearing premise is the algebraic identity that the deviation terms E3 and E4 are exactly cancelled by the correction coefficients in Eqs. (76)-(78), a step the paper states after 'considerable algebraic manipulations' without displaying all details.

Editorial extensions

If this is right

  • Lattice Boltzmann simulations can use continuously clustered orthogonal grids to resolve thin boundary layers without interpolation or multi-block refinement while retaining the usual collide-and-stream implementation.
  • The scheme reduces exactly to standard lattice Boltzmann when all metric factors are unity, making it a modular extension that can be inserted into existing codes using any collision model.
  • Shear stresses and normal stresses can be computed locally from moments, extending the standard uniform-grid strain-rate extraction to curvilinear coordinates.
  • The same GOC construction applies to the magnetic induction equation for magnetohydrodynamics, enabling efficient simulation of thin Hartmann layers at high Hartmann numbers.
  • Numerical benchmarks—Poiseuille, Couette, lid-driven cavity, Taylor-Couette, and Hartmann flow—show agreement with analytical/reference solutions and substantial grid savings compared to uniform-grid lattice Boltzmann.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the correction-term cancellation is exact, the main practical bottleneck shifts to generating orthogonal body-fitted grids for arbitrary geometries, which the paper itself identifies as an area for future work.
  • The formulation points toward a systematic extension to three dimensions and to thermal or multiphase flows by adding analogous metric-factor corrections, although those extensions are not part of the paper's proofs.
  • One could test the method on a problem where the mixed curvature terms θ12 and θ21 are nonzero while h1 and h2 vary strongly, since the benchmarks primarily exercise diagonal curvature.
  • The local shear-stress formula suggests that the method could be coupled with turbulence models or used for wall-modeled large-eddy simulation on nonuniform grids, where accurate near-wall stresses are essential.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper constructs two-dimensional lattice Boltzmann models in general orthogonal coordinates (GOC-LBM) that retain the standard collide-and-stream structure on a uniform computational lattice while allowing continuously clustered or body-fitted orthogonal grids in the physical domain. The construction is top-down: Sec. 2 derives a conservative form of the Navier-Stokes equations in GOC; Sec. 3 performs a Chapman-Enskog analysis of a raw-moment MRT-D2Q9 model and identifies deviation terms E3 and E4 in the normal-stress recovery; Sec. 4 introduces second-order moment-equilibria corrections, Eqs. (75)-(78), which are claimed to cancel these deviations and recover the GOC Navier-Stokes equations, including normal stresses, without non-Galilean cubic-velocity artifacts. Implementations for raw-moment MRT, central-moment MRT, and SRT are given in Appendices A-G, together with coordinate stretching functions. The method is validated against Poiseuille, transient Couette, lid-driven cavity, Hartmann MHD, and Taylor-Couette benchmarks, and a grid-savings study is presented for Hartmann layers.

Significance. If the central algebraic identity of Sec. 4 is correct, this is a significant contribution: it would give a systematic way to use standard D2Q9 collide-and-stream LBM on nonuniform orthogonal grids through metric-dependent equilibria, forcing, and correction terms, reducing to the standard scheme when all metric factors are unity. The modular treatment across collision models (raw moments, central moments, SRT) and the explicit algorithmic appendices are strengths, as is the demonstration of practical grid savings in a thin-boundary-layer MHD problem. However, the paper does not ship machine-checked derivations or code, and its central claim rests on an algebraic cancellation whose derivation is explicitly omitted. The benchmark agreement is encouraging but does not isolate individual correction coefficients. The contribution is therefore promising but not yet verifiable from the manuscript in its current form.

major comments (2)
  1. [Sec. 3.3 and Sec. 4 (Eqs. 54-57, 72-78)] The central result of the paper is the set of correction coefficients D3,k, D4,k, C3, C4 in Eqs. (76)-(78), which are claimed to cancel the deviation terms E3 and E4 exactly. The manuscript explicitly states 'we omit the details of such lengthy algebraic manipulations' before Eqs. (54) and (56), and the step from Eqs. (74a)-(74b) to Eqs. (75)-(78) is also not shown. This is not a peripheral detail: a sign or prefactor error in any one coefficient would introduce spurious viscous or cubic-velocity terms into the recovered momentum equation. The numerical tests do not isolate the coefficients: Poiseuille and transient Couette flows have ∂ξ1 U1 = ∂ξ2 U2 = 0; the lid-driven cavity on straight clustered grids has θ12 = θ21 = 0; and Taylor-Couette flow does not exercise the full normal-stress correction. I ask the authors to provide the complete derivation of E3, E4 and of Eqs. (75)-(78), or,
  2. [Appendix E, Eq. (124)] The matrix F displayed in Eq. (124) does not appear to be the transformation from the bare raw-moment vector m of Eq. (80) to the bare central-moment vector mc of Eq. (122). For example, row 4 of the displayed matrix contains U1^2+U2^2 and -2U2 terms, which would be appropriate for a combined k20+k02 moment, whereas the expanded formulas in Step 2 of the same appendix correctly give k20 = k20' - 2U1 k10' + U1^2 k00'. If F is intended for a different moment ordering (e.g., combined diagonal moments), that ordering should be stated explicitly. As printed, a reader implementing Eq. (130) with the displayed F would obtain incorrect central moments. Please correct the matrix or clarify the ordering, and verify that the matrix is consistent with the step-by-step implementation.
minor comments (4)
  1. [Eq. (44a)] In the O(epsilon) moment system, the second spatial derivative of neq2 appears as ∂ξ1 neq2; from the subsequent Eq. (45a) it should be ∂ξ2 neq2. Please correct the typo.
  2. [Eq. (158) and Eq. (159)] The stated constraint 'sum_alpha W_alpha = 0' is inconsistent with the requirement that the zeroth moment of g^{eq} equals h1h2 Bi. The subsequent W0 + 4W1 = 1 and W1 = cs_m^2/2 imply sum_alpha W_alpha = 1. The first line of Eq. (158) should read '= 1'.
  3. [Secs. 7.1-7.3 and 8.2] The validation figures show good qualitative agreement, but quantitative error norms or grid-convergence data are provided only for the MHD/Hartmann study (Table 3). Please add L2 or maximum errors for the Poiseuille, Couette, cavity, and Taylor-Couette cases, and state the grid resolutions / clustering parameters used for each reported curve.
  4. [Eqs. (68) and (71)] The shear viscosity ν is defined through omega5 in Eq. (68) and through omega4 in Eq. (71). In the implementations the authors set omega4 = omega5, but the text should state explicitly that both definitions coincide only under this choice, and that the proofs/implementations assume omega4 = omega5.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the GOC-LBM construction is a top-down Chapman-Enskog derivation with externally validated benchmarks; the omitted algebraic cancellations are a completeness risk, not a circular step.

full rationale

The derivation chain is self-contained rather than circular. The paper starts from target NSE in GOC (Sec. 2), proposes raw-moment equilibria and source terms parameterized by metric factors (Sec. 3.2), performs a Chapman-Enskog expansion to identify the residual deviation terms E3 and E4 (Eqs. 55 and 57), and then constructs moment-equilibria corrections (Eqs. 75-78) whose coefficients are determined by constraints (Eqs. 69-73) that enforce recovery of the target normal stresses. This is a standard top-down LBE construction: the target equations are a design specification, not a fitted parameter, and the scheme's correctness is checked against analytic solutions (Poiseuille, Couette, Hartmann, Taylor-Couette) and published benchmark data (Ghia et al. 1982; Erturk et al. 2005) that were not used to set any coefficients. The admitted omission of the lengthy algebra leading from Eqs. (74a/b) to (76)-(78) is an unverified lemma and a correctness/completeness risk, but an omitted proof is not circularity. Self-citations to prior rectangular/cuboid LB work [28-30] and uniform-grid non-GI corrections [50,51] are not load-bearing: the GOC corrections are rederived here via C-E analysis, and the central-moments version transfers the raw-moment non-equilibrium results rather than importing an unsupported ansatz. The limit h1=h2=1 making the corrections vanish is an internal consistency check rather than a definitional identity. No step equivocates a predicted quantity with an input, and no result reduces to a self-citation chain.

Assumptions & free parameters 4 free parameters · 6 assumptions · 0 invented entities

The scheme is nearly self-contained at the level of principle: the C-E machinery is standard and the validation targets are external. What it pulls from outside is (i) the GOC tensor identities of [44], (ii) the chosen target equations (conservative compressible-effect form, Eqs. (11)-(15)), (iii) user-specified grid stretching parameters and a CFL-motivated global speed of sound, and (iv) unshown algebra claiming the correction coefficients exactly cancel the deviation terms. No new physical entities are introduced; the geometric/curvature body force (Eqs. (20), (22)) is a coordinate-induced numerical term, not an invented force, and has no independent physical status.

free parameters (4)
  • global speed of sound cs = cs = q/sqrt(3), q = min over the domain of min(h1, h2)
    Eq. (41): chosen via a CFL heuristic so the explicit scheme is stable at the finest grid spacing. This constant enters every equilibrium moment and the viscosity mapping nu = cs^2(1/omega - 1/2)Delta t, so it sets the Mach and Reynolds correspondence to physical units. The paper states this choice 'is found to work quite well' (Sec. 3.2.1); it is not derived.
  • grid stretching/clustering parameters beta (hyperbolic tangent) and gamma (Roberts) = beta=1.2 (cavity), beta=1.1 (Fig. 11), gamma=1.06 (channel tests), gamma=1.05 (Hartmann cases)
    Sec. 6: user-selected parameters controlling the degree of grid clustering. Chosen per benchmark by the authors by numerical experiment (Sec. 7.3 states grid resolutions were 'determined via performing numerical experiments'), not fitted to the validation data, but the efficiency claims in Table 3 depend on them.
  • free relaxation rates omega0, omega1, omega2, omega6, omega7, omega8 = 1.0
    Appendix D: these rates do not enter the hydrodynamic equations at the order of the C-E analysis considered and are set to unity for stability. They are free in the method.
  • fourth-order equilibrium moment k_eq'22 = rho cs^4 + rho cs^2 (U1^2 + U2^2) + rho U1^2 U2^2
    Sec. 3.2: this moment 'does not appear in the C-E analysis in determining the emergent macroscopic equations and can be freely chosen'; the authors pick the Maxwell-consistent form with no metric factors for simplicity and stability.
assumptions (6)
  • domain assumption GOC calculus identities for gradient, divergence, curl, vector and tensor divergence (Eqs. (5)-(9)) are adopted wholesale from the recent reference [44].
    Invoked in Sec. 2.1 to convert the Gibbs-form NSE into the GOC target equations, including the parenthesized-index summation convention. Any error or inconsistency in [44] propagates into the target equations and hence into the whole derivation.
  • domain assumption The target equations are the conservative-form NSE with compressible effects and independently adjustable bulk viscosity (Eqs. (11)-(15)), not the strict incompressible NSE (Eq. (1)).
    Sec. 2.2 introduces this target because LBM conserves mass and momentum and is inherently weakly compressible. Recovery of the incompressible NSE is claimed only in the low-Mach limit, and the paper does not quantify the compressibility error.
  • standard math Chapman-Enskog multiscale expansion: distribution and time-derivative expansions (Eqs. (42), (61), (167)) truncated at O(epsilon^2) with the standard equilibrium/non-equilibrium split.
    Standard LBM asymptotics; assumes sufficiently small Knudsen/Mach number and the absence of secular terms at retained orders. Used throughout Secs. 3-4 and Appendix G.
  • domain assumption The coordinate system is restricted to orthogonal coordinates (metric factors only, no cross terms in the mapping).
    Stated in the title and Sec. 2; every formula (base equilibria Eq. (38), forces Eqs. (20)/(22), corrections Eqs. (76)-(78)) assumes orthogonality. Non-orthogonal curvilinear grids are explicitly deferred to future work in Sec. 9, and the authors note that generating orthogonal body-fitted grids for complex geometries is itself hard.
  • standard math In the magnetic induction equation analysis, the unsteady term partial_t0 Lambda^{eq(0)} ~ O(Ma^3) is neglected.
    Appendix G, Sec. G.3: a stated low-Mach truncation used to close the first-moment equation, following the uniform-grid MHD-LBM reference [52].
  • domain assumption The D2Q9 lattice plus the proposed moment corrections is a sufficient basis to represent the GOC-NSE (sufficiency of the chosen nine moments).
    This is the conclusion of the C-E analysis in Secs. 3-4, but it functions here as a design assumption because the decisive cancellations (E3, E4 to the correction coefficients) are asserted, not displayed, and no formal (e.g., machine-checked) certificate is provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Lattice Boltzmann Methods for Navier-Stokes Equations in General Orthogonal Coordinates for Efficient Flow Simulations using Nonuniform Clustered Grids." pith.science (2026). https://pith.science/paper/HPNAOYHZ

@misc{pith2026260715362,
  author       = {Pith},
  title        = {Pith review of: Lattice Boltzmann Methods for Navier-Stokes Equations in General Orthogonal Coordinates for Efficient Flow Simulations using Nonuniform Clustered Grids},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HPNAOYHZ}},
  note         = {Machine review of arXiv:2607.15362}
}
read the original abstract

Resolving multiscale fluid flows or boundary layers effectively requires the use of nonuniform meshes with local grid clustering. The standard lattice Boltzmann method (LBM), a kinetic theory-based approach for computational fluid dynamics, however, is restricted to the use of uniform Cartesian grids. We present new and improved formulations of the LBM that accommodate continuously varying spatial grids via coordinate transformations to simulate the Navier-Stokes equations (NSE) in the general orthogonal coordinates (GOC). They are constructed using a Chapman-Enskog analysis to specify the equilibrium moments of the distribution functions and the geometric force terms used in the collision step to be dependent on the local metric factors and their spatial derivatives, along with the density, momentum and their fluxes, and some correction terms related to the normal velocity gradients so as to accurately represent the NSE in the GOC. The resulting GOC-LBM importantly maintains the simplicity of the collide-and-stream approach and is Galilean invariant that is free of the cubic velocity artifacts. Our GOC-LBM is general and modular in that it can be used with any collision model with appropriate modifications to the equilibria and forcing terms. We present its implementation details for a variety of collision models while the central moments-based model using multiple relaxation times was found to be the most robust in practical implementations. We validate the GOC-LBM through numerical simulations for various benchmark flow problems. Moreover, we demonstrate significant computational advantages of our approach for a case study on simulating boundary layer flows efficiently that involves coupling the GOC-LBM for the NSE with a new GOC-LB scheme for solving the magnetic induction equation for magnetohydrodynamics (MHD), and for another case study involving orthogonal curvilinear grids.

Figures

Figures reproduced from arXiv: 2607.15362 by the authors.

Figure 1
Figure 1. Grid clustering around both confining walls of a flow domain using a hyperbolic stretching [PITH_FULL_IMAGE:figures/full_fig_p029_1.png] view at source ↗
Figure 2
Figure 2. Grid clustering around only one of the confining walls of a flow domain using a hyperbolic [PITH_FULL_IMAGE:figures/full_fig_p032_2.png] view at source ↗
Figure 3
Figure 3. Grid clustering around an interior zone of a flow domain using a hyperbolic stretching [PITH_FULL_IMAGE:figures/full_fig_p033_3.png] view at source ↗
Figures from the paper (17 more)
Figure 4
Figure 4. Figure 4: Velocity profile computed using the GOC-LBM and compared with the analytical [PITH_FULL_IMAGE:figures/full_fig_p034_4.png]
Figure 5
Figure 5. Figure 5: Time-dependent velocity profile at the instants [PITH_FULL_IMAGE:figures/full_fig_p035_5.png]
Figure 6
Figure 6. Figure 6: Velocity profiles u(y) along the vertical centerlines at x = H/2 and v(x) along the horizontal centerlines at y = H/2 in a 2D lid driven cavity flow for two different Reynolds numbers of Re = 1000 and Re = 3200 computed using the GOC-LBM and compared with the benchmark…
Figure 7
Figure 7. Figure 7: Velocity profiles u(y) along the vertical centerlines at x = H/2 and v(x) along the horizontal centerlines at y = H/2 in a 2D lid driven cavity flow for two different Reynolds numbers of Re = 5000 and Re = 7500 computed using the GOC-LBM and compared with the benchmark…
Figure 8
Figure 8. Figure 8: Streamlines in a 2D lid driven cavity flow, including the presence of various corner sec [PITH_FULL_IMAGE:figures/full_fig_p039_8.png]
Figure 9
Figure 9. Figure 9: Streamlines in a 2D lid driven cavity flow, including the presence of various corner sec [PITH_FULL_IMAGE:figures/full_fig_p040_9.png]
Figure 10
Figure 10. Figure 10: Streamlines in a 2D lid driven cavity flow, including the presence of various corner [PITH_FULL_IMAGE:figures/full_fig_p041_10.png]
Figure 11

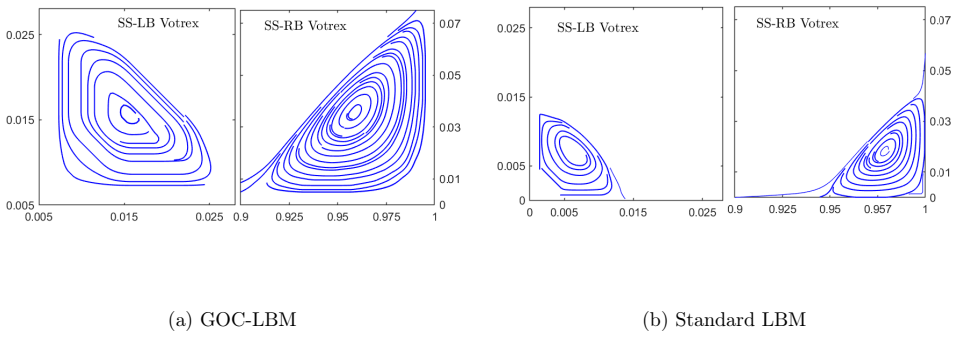

Figure 11. Figure 11: Streamlines of the second-secondary vortices around the left bottom (SS-LB) and right [PITH_FULL_IMAGE:figures/full_fig_p043_11.png]
Figure 12
Figure 12. Figure 12: Velocity profiles across a half of the channel computed using (a) the GOC-LBM and [PITH_FULL_IMAGE:figures/full_fig_p045_12.png]
Figure 13
Figure 13. Figure 13: Induced magnetic field profiles across a half of the channel computed using (a) the GOC [PITH_FULL_IMAGE:figures/full_fig_p045_13.png]
Figure 14
Figure 14. Figure 14: Velocity profiles across a half of the channel computed using (a) the GOC-LBM and [PITH_FULL_IMAGE:figures/full_fig_p046_14.png]
Figure 15
Figure 15. Figure 15: Induced magnetic field profiles across a half of the channel computed using (a) the GOC [PITH_FULL_IMAGE:figures/full_fig_p047_15.png]
Figure 16
Figure 16. Figure 16: Requirements on the number of grid points across the channel [PITH_FULL_IMAGE:figures/full_fig_p048_16.png]
Figure 17
Figure 17. Figure 17: Orthogonal curvilinear grids around a circular cylinder via conformal mapping between [PITH_FULL_IMAGE:figures/full_fig_p049_17.png]
Figure 18
Figure 18. Figure 18: Orthogonal curvilinear grids for a sector between two concentric circular cylinders via [PITH_FULL_IMAGE:figures/full_fig_p049_18.png]
Figure 19
Figure 19. Figure 19: Schematic of circular Taylor-Couette flow between two concentric cylinders of radii [PITH_FULL_IMAGE:figures/full_fig_p051_19.png]
Figure 20
Figure 20. Figure 20: Comparison of the velocity profiles uθ(r) for the Taylor-Couette flow computed using the GOC-LBM with the analytical solution. (a) The inner cylinder rotates at a fixed linear velocity U1 = Ω1R1 = Uo while the outer cylinder rotates at the following three linear veloc…
