Bipolar Thermoelectric Superconducting Quantum Devices

A. Braggio; F. Antola; F. Giazotto; G. Marchegiani

REVIEW 2 major objections 4 minor 295 references

Bipolar Thermoelectric Superconducting Quantum Devices

T0 review · 2 major / 4 minor · reviewed 2026-07-31 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Bipolar thermoelectricity: a heat difference across a reciprocal superconducting junction produces a voltage that can take either sign, experimentally up to ±150 μV.

desk verdict A competent, self-consolidating review of the authors' own bipolar thermoelectric program; the physics holds up and the key limitation is honestly labeled, but the efficiency comparison overreaches and independent replication is not addressed. read the letter →

arxiv 2607.23262 v1 pith:IIWK7AHS submitted 2026-07-25 cond-mat.supr-con cond-mat.mes-hall

F. Antola , G. Marchegiani , A. Braggio , F. Giazotto This is my paper · ORCID

classification cond-mat.supr-concond-mat.mes-hall PACS 74.50.+r74.25.F

keywords bipolarthermoelectriceffectsuperconductingtunneljunctionsSeebeckabsolutenegativeconductanceparticle-holesymmetrynonlineartransportmemoryJosephson

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This review argues that thermoelectric power generation does not require breaking particle-hole symmetry by hand. In a tunnel junction whose two electrodes have energy-symmetric densities of states pinned to their chemical potentials, the current remains reciprocal, I(μ)=−I(−μ), yet a sufficiently large temperature difference produces a current that flows against the applied bias. The open-circuit voltage takes two opposite values ±VS for the same thermal gradient, so the same device behaves as both n-type and p-type at once. The paradigmatic realization is an SIS′ junction with unequal superconducting gaps and suppressed Josephson coupling; the effect has been observed in such devices with Seebeck voltages up to ±150 μV and a nonlinear Seebeck coefficient near ±300 μV/K. If correct, this converts heat flow into bistable electrical states that can power memories, detectors, oscillators, and heat diodes.

What carries the argument

The load-bearing object is the energy-symmetric, chemical-potential-pinned density of states, Nα(ϵ)=Nα(−ϵ), which enforces current reciprocity I(δμ)=−I(−δμ) for arbitrary lead temperatures (Eq. 2.9). Combined with unequal DoSs between the leads — a superconducting gap asymmetry — and a thermal bias, it produces the strong detailed-balance violation ΓLR(δμ)<ΓLR(−δμ) that is the defining condition for thermoelectricity. The BCS DoS with its square-root singularity at the gap edge and monotonic decay above the gap supplies the energy selectivity; the matching-peak singularity at eV=|ΔL−ΔR| concentrates the power. In a parallel RC circuit the zero-voltage solution becomes dynamically unstable, a

What would settle it

Measure the open-circuit voltage of a thermally biased SIS′ junction with fully suppressed Josephson coupling. If for a fixed temperature difference the Seebeck voltage has only one sign (or is absent) while I(δμ) is reciprocal, the bipolar claim is falsified. Alternatively, if raising the hot-side temperature always increases |VS| instead of suppressing it once ΔL(TL) drops below ΔR(TR), the effect is not the one claimed.

Watch

Extended reading notes

Core claim

The central claim is that a thermoelectric response emerges in a system where linear thermoelectricity is strictly forbidden: a two-terminal tunnel junction with particle-hole symmetric densities of states, so that I(δμ)=−I(−δμ) holds at any temperature. Because the linear Onsager coefficient vanishes by symmetry, the effect is purely nonlinear: it requires a finite temperature difference and different, energy-dependent densities of states in the two leads, and it appears as a strong violation of detailed balance in which the forward tunneling rate drops below the backward rate over a finite bias window. In the paradigmatic SIS′ junction, the BCS gap in the hot electrode combines with the mo

Load-bearing premise

The entire bipolar effect presupposes that each electrode's density of states is exactly symmetric about, and pinned to, its own chemical potential, so that the current-voltage reciprocity holds at arbitrary temperatures; if gating, spin-splitting, or any spectral shift breaks that pinning, the bipolarity is lost and the junction reverts to ordinary unipolar thermoelectricity.

Editorial extensions

If this is right

The same junction, at one fixed temperature difference, delivers either positive or negative output voltage, so a single material platform covers both n-type and p-type thermoelectric functions without doping or band engineering.
The bistable voltage states ±VL realize a volatile, heat-powered memory: a current pulse writes a bit, the voltage across a load reads it, and no static bias is needed.
The measured nonlinear Seebeck coefficient (~±300 μV/K) is roughly five orders of magnitude above the normal-metal Mott estimate, making the device competitive with spin-split hybrid junctions at cryogenic temperatures.
The same nonlinearity yields heat rectification and a passive heat pipe, plus zero-bias amplification and relaxation oscillations, all powered by a temperature difference alone.
If the mechanism extends to Kondo, bilayer-graphene, and SQUIPT platforms as the review suggests, bipolar thermoelectricity could operate at higher temperatures and be tuned by gates or flux.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The crucial testable extension of the paper's logic is the boundary of reciprocity: any gate-induced shift of the Fermi energy away from the DoS center, or any spin-splitting, should weaken or destroy bipolarity and convert the response into a conventional unipolar one; an experiment mapping the disappearance of ±VS with gate voltage would isolate the mechanism.
The quantum, environment-driven variant suggests a thermoelectric 'spectrometer': the current's sensitivity to the environmental impedance spectrum could be used to measure the density of photon modes of an on-chip circuit.
If the pinning condition is relaxed in engineered materials, one might design a device in which the bipolar response is switched on and off by an external gate, giving a heat-controlled transistor-like element — a step the review does not take.
The non-monotonic dependence of VS on injected power (it first rises, then vanishes when the gap asymmetry closes) provides a diagnostic: observing a Seebeck signal that disappears with increasing ΔT is a signature of the nonlinear mechanism.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The thing to know about this paper: it is a review, and a decent one, of the authors' own bipolar thermoelectric program. If you want the full derivation of why a gap-asymmetric SIS′ junction with reciprocal IV can still generate thermoelectric power — two opposite Seebeck voltages for one temperature difference — this is the clearest place to get it. The analytic core checks out: the reciprocity argument from energy-symmetric DoS, the positive-dissipation proof for identical DoS, the g0<0 result, and the toy-model efficiency bound below Carnot. The sufficient conditions are honestly labeled, and the experimental summary (Seebeck voltages ±150 μV, nonlinear Seebeck coefficient ±300 μV/K) is drawn from published work, not invented. The quantum environment-assisted variant in Sec. 6 is a genuine conceptual extension and is presented carefully within the P(E) framework.

The real soft spot is not the physics but the scope. The review consolidates almost exclusively the authors' own outputs — theory, experiment, applications, and the quantum variant are all from the same core group. Independent replication is not discussed. That is a limitation for a 'review,' but it is an honest one; the field is young and the same group did most of the heavy lifting.

The load-bearing assumption, Eq. (2.6), is called out clearly: the DoS must be exactly even about the chemical potential and remain pinned to it. The authors state flat out that this is required for bipolarity. That is the right level of honesty. The outlook toward Kondo, 2D, and topological platforms is explicitly left unassessed, which is fine as a roadmap.

What should be fixed: the thermodynamic efficiency comparison in §2.9.2. Reporting 40% efficiency for the idealized junction next to 14–15% for bulk thermoelectric modules mixes a theoretical cryogenic engine with measured room-temperature modules. That comparison overclaims and should be reframed. Also, the appendix caption in Fig. 8.1 lists the same Dynes parameter for both panels; likely a typo that should be corrected.

Bottom line: this review deserves a serious referee and will be useful to anyone entering cryogenic thermoelectrics. I would accept it after moderate revision, with the efficiency claim softened and the appendix cleaned up.

Referee Report

2 major / 4 minor

Summary. This review develops and surveys the bipolar thermoelectric effect in tunnel junctions with energy-symmetric densities of states. The central theoretical result is that a thermally biased SIS′ junction with unequal gaps and suppressed Josephson coupling, although satisfying current reciprocity I(δμ)=−I(−δμ) and having vanishing linear Seebeck response, can develop a nonlinear thermoelectric current flowing against the bias, power generation, and two opposite open-circuit voltages ±V_S for a single temperature gradient. The authors derive sufficient conditions (gapped hot DoS, monotonically decreasing cold DoS), a toy model, thermodynamic efficiency bounds below Carnot, stability/bistability analysis, and review experimental BTJE results, applications (memories, detectors, heat pipes, amplifiers), hybrid platforms (SET, BLG, SQUIPT, spin-split), and a quantum-environment variant.

Significance. If taken at face value, the review consolidates a genuinely novel mechanism: nonlinear thermoelectricity coexisting with reciprocal IV, yielding bipolar output. The analytic derivations (Eqs. 2.7–2.9, 2.15, 2.29–2.31, 2.35) are internally consistent, and the review is unusually explicit about the assumptions, particularly Eq. (2.6) and the neglect of gating/Josephson effects. It also offers falsifiable predictions (matching-peak location, Seebeck voltage magnitudes, efficiency boundaries). The main value is as a reference for the SIS′ platform; the broader claims for Kondo/2D/topological systems are honestly deferred.

major comments (2)

[Abstract; Sec. 7] The abstract and conclusions frame the effect as a property of 'reciprocal systems' without qualification. The derivation of bipolarity rests on Eq. (2.6), the exact energy symmetry and chemical-potential pinning of each lead DoS; as the authors state in Sec. 2.5, this pinning 'is required to guarantee the IV reciprocity and, consequently, the bipolar nature of the effect.' For the Kondo, BLG, and topological platforms listed in Sec. 7, this symmetry is only approximate or unverified, and Sec. 5.2 itself shows that a gate-induced Fermi shift (E_F^BLG ≠ 0) breaks reciprocity and adds a conventional unipolar component. The scope claim should be tempered in the abstract, e.g., 'bipolar thermoelectricity in junctions with exactly energy-symmetric, chemically pinned DoS (paradigmatically SIS′).'
[Sec. 3.2.3] The review states that the BTJE experiments 'confirmed' the effect (Refs [150,127]) and quotes a nonlinear Seebeck coefficient ±300 μV/K. These experiments are from a single group, and ΔT is extracted by fitting the out-of-equilibrium IV to the same tunneling model under test. The review should explicitly flag the absence of independent replication and discuss the potential circularity in the temperature calibration, since the headline Seebeck value depends on the fitted ΔT. A brief caveat in Sec. 3.2 would address this.

minor comments (4)

[Appendix 8.1, Fig. 8.1 caption] Both panels are described with γ_j = 10^{-2}Δ0,j, but the text says panel (a) is 'higher' and panel (b) is 'lower' values. The second value is presumably 10^{-6}Δ0,j or similar; please correct.
[Sec. 2.8] Typo: 'contrasts strongly with the usual unipolar s' should be 'unipolar thermoelectrics'.
[Sec. 6.2] Typo: 'near resonantce with the gap asymmetry' should be 'resonance'.
[Sec. 2.5, footnote 8] The sentence about the self-energy is grammatically awkward ('has a even- (odd-)in energy imaginary (real) part'); please rephrase for clarity.

Circularity Check

0 steps flagged · score 2.0 of 10

Central SIS′ derivation is self-contained from stated DoS-symmetry assumptions; the reported Seebeck coefficient carries a fitted-ΔT caveat and experimental confirmation relies on same-group citations, but no step reduces to its input by construction.

full rationale

The paper's theoretical derivation is not circular. Starting from the tunneling Hamiltonian and Golden-Rule rates (Eq. 2.4), the review derives reciprocity I(δμ)=−I(−δμ) from the energy-symmetric DoS assumption (Eq. 2.6), then shows that linear thermoelectricity vanishes and derives explicit conditions (Eqs. 2.16, 2.19, 2.20) for a nonlinear bipolar response in SIS′ junctions. These results are obtained directly from stated assumptions, not from fitted parameters or from the authors' prior papers; the review re-derives the key expressions rather than merely citing them. The extension to the experimental BTJE device is presented as an independent measurement: the Seebeck voltages ±V_S are directly observed, and the paper transparently states that ΔT is extracted by fitting the out-of-equilibrium IV characteristics to the same tunneling model. This makes the numerical value of the nonlinear Seebeck coefficient (±300 μV/K) model-dependent, but the existence of the bipolar response does not rely on that fitted normalization. The heavy reliance on Refs. [59,60,127,150] and related works is a self-citation pattern typical of a research-group review, but these citations are not used to establish the derivation chain; the theoretical content is independently exhibited in the text, and no uniqueness theorem or ansatz is smuggled in via citation. The paper also explicitly acknowledges the load-bearing scope condition of Eq. (2.6): DoS pinning is 'required to guarantee the IV reciprocity and, consequently, the bipolar nature of the effect,' and the authors leave assessment of non-SIS′ platforms (Kondo, 2D, topological) to future work. This is an honest limitation rather than a circular step. Overall, while self-citation and fitting caveats warrant a slight score above zero, the central derivation is self-contained and no prediction reduces by construction to its inputs.

Assumptions & free parameters 4 free parameters · 7 assumptions · 0 invented entities

The central claims rest on standard BCS tunneling theory plus several stated domain assumptions. The main burden is the EIS/pinning assumption (Eq. 2.6) that the authors themselves identify as the origin of reciprocity and bipolarity; a second burden is the phenomenological Dynes regularization, since predicted power and efficiency values depend on γ. No invented entities (no new particles, forces, or mediators) are introduced; 'bipolar thermoelectricity' and 'strong detailed-balance violation' are labels for behaviors rather than entities, and both are operationally defined.

free parameters (4)

Dynes parameters γα = 10⁻⁴ Δ0,j in theory plots; 10⁻² in Appendix Fig. 8.1; in experiments estimated from subgap conductance
Energy-independent phenomenological broadening (Eq. 2.27); the matching-peak thermoelectric power diverges as γ→0 (Sec. 2.8.2), so the quoted power and efficiency values depend on the chosen γ. Not predicted, assigned.
Gap ratio r = ΔR,0/ΔL,0 = 0.5 in most figures; ≈0.35 for maximum power; ≈0.35 in the BTJE device via Al/Cu inverse proximity
Design parameter controlling the asymmetry; the effect vanishes as r→1. Engineered, not derived.
Lead electronic temperatures TL, TR in experimental analysis = extracted by fitting out-of-equilibrium IV characteristics (Sec. 3.2.3)
The review's headline experimental number (nonlinear Seebeck coefficient ±300 μV/K) is computed from temperatures fitted to the same IV data that show the effect, rather than from independent thermometry.
Toy-model DoS weights nα = unspecified 'film-dependent constants' (Eq. 2.22)
Ad hoc normalization constants in the delta-function toy model used for the closed-form current Eq. (2.22).

assumptions (7)

domain assumption BCS mean-field Hamiltonian for the leads (Eq. 2.1) with k-independent order parameter Δα; the DoS therefore satisfies the energy symmetry Nα(ε)=Nα(−ε) (Eq. 2.6).
Standard description of superconducting electrodes; the gap opens at the Fermi level. Load-bearing because Eq. (2.6) forces I(δμ)=−I(−δμ) (Eq. 2.9) and hence the bipolar response (Secs. 2.2-2.3).
domain assumption First-order Fermi Golden Rule tunneling with energy-independent matrix element t_kq ≃ t (Sec. 2.2, Eqs. 2.3-2.4).
Weak-barrier perturbation theory (Bardeen tunneling); used for all rates including the P(E) generalization (Eq. 6.3).
domain assumption Each electrode remains in quasi-equilibrium at a single electronic temperature Tα, with electrons thermally decoupled from phonons (Sec. 3.1.4).
The whole thermal-bias description requires fast e-e scattering and slow e-ph relaxation; the review cites this as the operating regime of the experiments but it is not independently verified here.
domain assumption Josephson coupling can be neglected in theory and sufficiently suppressed in experiment (Secs. 2.7, 3.1.3).
The QP thermoelectric signal lives in the subgap regime where a supercurrent would dominate; the BTJE suppresses Ic to 1.57‰ of its value via flux interference (Sec. 3.2.2), but residual supercurrent still modifies device operation (Sec. 3.2.5).
domain assumption P(E) treatment assumes the electromagnetic environment stays in thermal equilibrium at Te (Sec. 6.1).
Needed for the detailed-balance form P(−E)=e^(−E/kBTe)P(E); the review notes a self-consistent treatment would otherwise be required.
domain assumption Dynes-broadened BCS DoS (Eq. 2.27) with energy-independent γ regularizes the matching-peak divergences and still satisfies the energy symmetry.
Phenomenological regularizer, standard in the literature; the magnitude of thermoelectric power depends on γ, which is acknowledged (Sec. 2.8.2, Appendix 8.1).
standard math Onsager reciprocal relations assume a time-reversal symmetric Hamiltonian (Sec. 1.2).
Background for why linear thermoelectricity vanishes in reciprocal systems; standard textbook result.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Bipolar Thermoelectric Superconducting Quantum Devices." pith.science (2026). https://pith.science/paper/IIWK7AHS

@misc{pith2026260723262,
  author       = {Pith},
  title        = {Pith review of: Bipolar Thermoelectric Superconducting Quantum Devices},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/IIWK7AHS}},
  note         = {Machine review of arXiv:2607.23262}
}

read the original abstract

Quantum technologies increasingly require accurate modeling of their hardware components and of the non-equilibrium regimes in which they operate, where managing heat and energy flow becomes a central challenge. Thermoelectric effects, the direct conversion of a thermal gradient into electrical signals, offer one such route to this control. In this review, we present an overview of the bipolar thermoelectric effect, a recent development for thermoelectric conversion in reciprocal systems, where linear effects are forbidden by symmetry. This symmetry yields a bipolar thermoelectric signal, in which the generated voltage can exhibit both polarities at a fixed temperature gradient. This represents a non-trivial novelty relative to conventional thermoelectric effects, in which carrier dominance determines the sign of the thermoelectric signal. We summarize the underlying physical principles, showing how thermoelectricity emerges as a strong violation of detailed balance. Concrete physical conditions for obtaining bipolar thermoelectricity are then outlined, of which a tunnel junction between two superconductors with unequal energy gaps and suppressed Josephson coupling is the paradigmatic example. Afterward, we discuss the experimental observation of the effect to date and related proposals for different applications, including volatile memories and radiation detection. Finally, we briefly survey recent developments and outlooks, ranging from extensions to new platforms to a proposal for a novel quantum thermoelectric effect.

Figures

Figures reproduced from arXiv: 2607.23262 by the authors.

**Figure 2.** [PITH_FULL_IMAGE:figures/full_fig_p018_2.png] view at source ↗

**Figure 2.** [PITH_FULL_IMAGE:figures/full_fig_p019_2.png] view at source ↗

Figures from the paper (26 more)

**Figure 2.** Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p021_2.png]

**Figure 2.** Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p023_2.png]

**Figure 2.** Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p024_2.png]

**Figure 2.** Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p026_2.png]

**Figure 2.** Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p027_2.png]

**Figure 2.** Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p029_2.png]

**Figure 3.** Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p033_3.png]

**Figure 3.** Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p036_3.png]

**Figure 3.** Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p037_3.png]

**Figure 3.** Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p038_3.png]

**Figure 3.** Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p042_3.png]

**Figure 3.** Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p044_3.png]

**Figure 3.** Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p046_3.png]

**Figure 4.** Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p049_4.png]

**Figure 4.** Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p051_4.png]

**Figure 4.** Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p053_4.png]

**Figure 4.** Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p055_4.png]

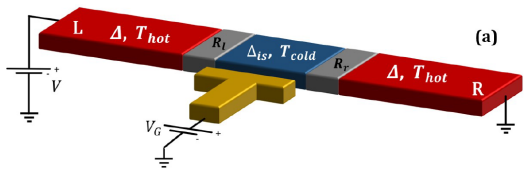

**Figure 5.** Figure 5: Bipolar thermoelectric response in a SET. [PITH_FULL_IMAGE:figures/full_fig_p058_5.png]

**Figure 5.** Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p060_5.png]

**Figure 5.** Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p061_5.png]

**Figure 5.** Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p062_5.png]

**Figure 5.** Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p063_5.png]

**Figure 6.** Figure 6 [PITH_FULL_IMAGE:figures/full_fig_p065_6.png]

**Figure 6.** Figure 6 [PITH_FULL_IMAGE:figures/full_fig_p068_6.png]

**Figure 6.** Figure 6 [PITH_FULL_IMAGE:figures/full_fig_p069_6.png]

**Figure 8.** Figure 8 [PITH_FULL_IMAGE:figures/full_fig_p073_8.png]
