Rotational Quantum Tunneling of a Magnetic Dipole in a Superconducting Trap

Francis J. Headley , Fabian M\"uller , Emre K\"ose , Tim Fuchs , Hendrik Ulbricht , Daniel Braun This is my paper

Pith reviewed 2026-05-20 10:10 UTC · model grok-4.3

classification 🪐 quant-ph
keywords rotational tunnelingquantum tunnelingnano-magnetsuperconducting trapdecoherencerest-gas scatteringrotational symmetrymagnetic dipole
0
0 comments X

The pith

A nano-magnet shaped with near-perfect rotational symmetry can tunnel through a magnetic barrier in a superconducting trap while resisting decoherence from rest-gas scattering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models a nano-magnet as a magnetic dipole pinned along its easy axis inside a superconducting trap that creates a potential barrier to rotation. Quantum tunneling through that barrier is possible in principle, but rest-gas scattering at low temperatures would normally destroy the coherence of the rotational states. The authors show that making the particle's shape sufficiently close to perfect rotational symmetry around the axis equalizes the scattering rates for different orientations and thereby protects the tunneling. They identify concrete parameter ranges for particle size, trap strength, and temperature where the tunneling rate should exceed the decoherence rate and become observable.

Core claim

The rotational degree of freedom of a magnetic dipole in a superconducting trap experiences a potential barrier but can tunnel through it quantum-mechanically. At low temperatures the dominant decoherence channel is rest-gas scattering, whose orientation dependence can be suppressed by fabricating the particle with rotational symmetry about its magnetization axis that is high enough to make the scattering rates for the relevant states nearly identical. In experimentally accessible regimes of trap depth, particle moment of inertia, and background pressure, the tunneling splitting then exceeds the decoherence rate and rotational quantum tunneling should be observable.

What carries the argument

Rotational symmetry of the nano-magnet that equalizes orientation-dependent rest-gas scattering rates and thereby protects the coherence of the tunneling states between opposite orientations.

If this is right

  • Rotational quantum tunneling becomes a feasible observable in existing superconducting trap setups once particles reach the required symmetry.
  • Rest-gas scattering dominates decoherence at low temperature, so vacuum quality sets the main experimental limit.
  • The tunneling rate depends on the moment of inertia and trap barrier height, both of which are tunable by particle size and trap current.
  • Observing the effect would demonstrate macroscopic quantum coherence in a rotational degree of freedom.
  • The same symmetry-protection principle could apply to other orientation-sensitive decoherence channels.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The result suggests that symmetry engineering could be a general strategy for protecting other macroscopic quantum degrees of freedom in levitated particles.
  • It connects to ongoing work on quantum rotors and orientational superpositions in optomechanics and ion traps.
  • A direct test would be to compare tunneling visibility in particles fabricated with deliberately varied degrees of rotational asymmetry.
  • If confirmed, the setup offers a route to studying quantum-to-classical transitions specifically for rotational motion.

Load-bearing premise

The particle can be made with rotational symmetry high enough that orientation-dependent scattering rates become negligible compared with the tunneling rate.

What would settle it

An experiment that measures the rotational decoherence rate in particles of controlled but increasing asymmetry and finds that the rate does not drop as symmetry improves, or that fails to detect the predicted tunneling splitting at the calculated parameters, would falsify the claim.

Figures

Figures reproduced from arXiv: 2605.19125 by Daniel Braun, Emre K\"ose, Fabian M\"uller, Francis J. Headley, Hendrik Ulbricht, Tim Fuchs.

Figure 1
Figure 1. Figure 1: FIG. 1. Sketch of the setup. A nanomagnet, ideally of spher [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

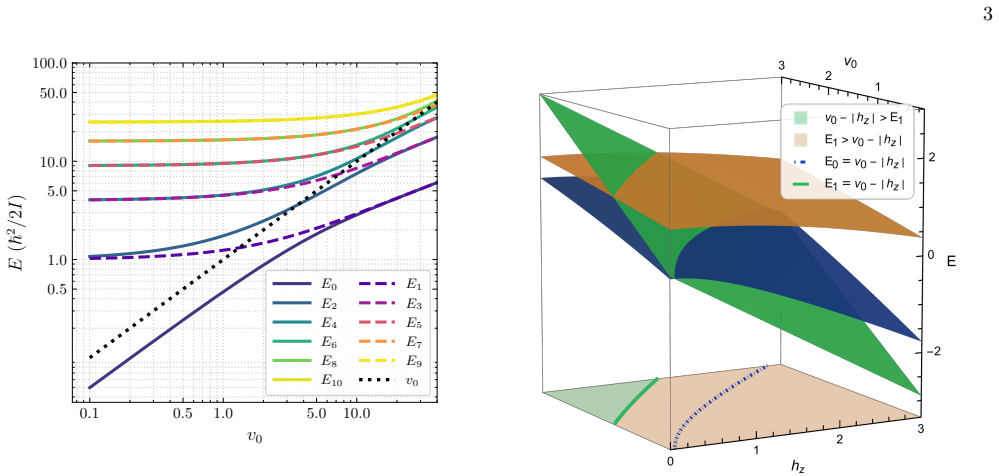

Figure 2. Figure 2: FIG. 2. Energy spectrum (in units of [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Figs. (a), (b) and (c) describes the potentials without any external field, and with external fields parallel and per [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

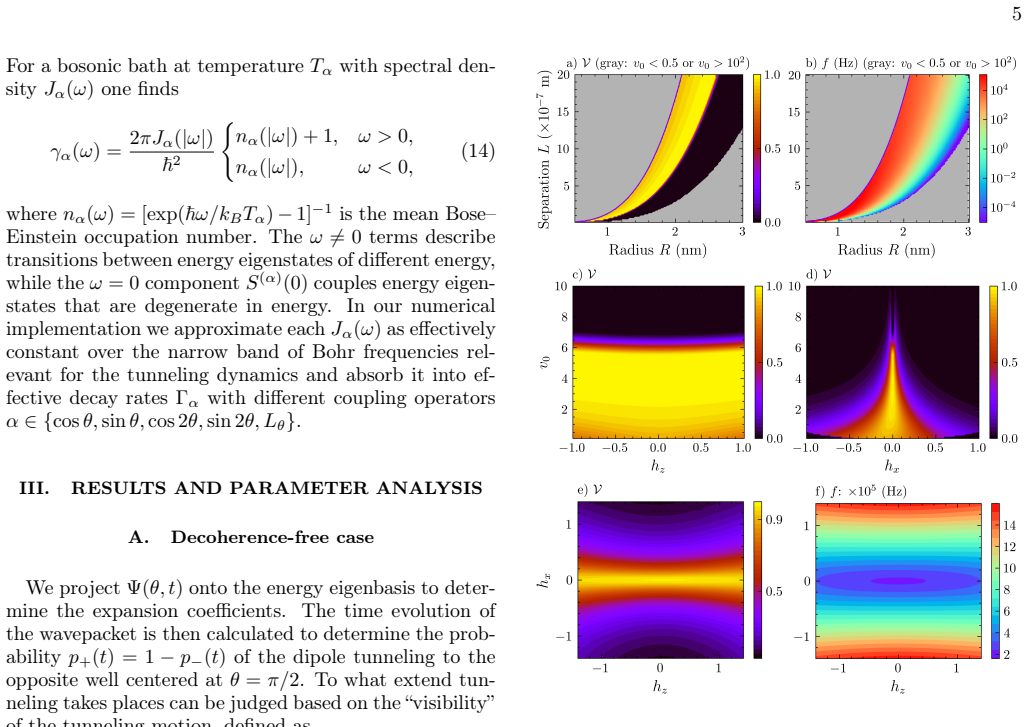

Figure 5. Figure 5: FIG. 5. Visibility and tunneling rate for the rotational double [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Decoherence of rotational tunneling for different system-environment coupling operators: [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

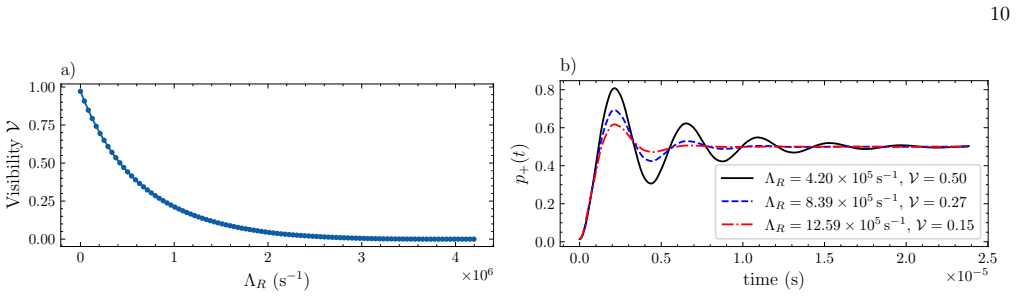

Figure 7. Figure 7: FIG. 7. Gas-scattering decoherence of rotational tunneling in the field-free case ( [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Boundary of the tunneling regime in the [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
read the original abstract

We study the quantum dynamics of the rotational degree of freedom of a nano-magnet trapped in a superconducting trap. The nano-magnet is modeled as a magnetic dipole with magnetization pinned to the easy axis of the particle. The magnetic trap then leads to a potential barrier that hinders free rotation of the particle, but through which it can tunnel. We identified rest-gas scattering as the most important decoherence mechanism at low temperatures. A shape of the particle sufficiently close to perfect rotational symmetry about the rotational axis can protect the rotational tunneling against this decoherence mechanism, and we identify experimentally feasible parameter regimes where rotational tunneling should be observable.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper models a nano-magnet as a magnetic dipole with magnetization fixed along its easy axis, trapped in a superconducting potential that creates a rotational barrier through which quantum tunneling can occur. It identifies rest-gas scattering as the dominant decoherence mechanism at low temperatures and argues that a particle shape with near-perfect rotational symmetry about the axis suppresses the orientation-dependent component of this scattering, thereby protecting the tunneling coherence. The authors identify specific, experimentally feasible parameter regimes in which rotational tunneling should become observable.

Significance. If the central claims are substantiated, the work would provide a concrete proposal for observing rotational quantum tunneling in a mesoscopic magnetic object, extending quantum mechanics into rotational degrees of freedom for levitated systems. The symmetry-protection strategy against a specific decoherence channel is a potentially useful design principle for future experiments in quantum magnetomechanics or levitated optomechanics. The identification of concrete parameter regimes strengthens the experimental relevance, though this hinges on the unverified dominance of the modeled decoherence source.

major comments (1)
  1. [Abstract and decoherence analysis] Abstract (final paragraph) and the decoherence section: the assertion that rest-gas scattering is the dominant mechanism at low T is stated without quantitative comparison to competing channels such as Johnson noise from the superconductor, residual magnetic-field fluctuations, or trap-induced electric gradients. Because the symmetry-protection argument and the claim of observable tunneling both rest on this dominance, the absence of rate comparisons or an error budget is load-bearing for the central feasibility conclusion.
minor comments (2)
  1. [Model section] The potential barrier and tunneling-rate derivation would benefit from an explicit equation or figure showing the angular dependence and the WKB or instanton approximation used.
  2. [Throughout] Notation for the rotational symmetry parameter and the scattering cross-section anisotropy should be defined consistently between text and any supplementary material.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback. We address the single major comment below and will strengthen the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract and decoherence analysis] Abstract (final paragraph) and the decoherence section: the assertion that rest-gas scattering is the dominant mechanism at low T is stated without quantitative comparison to competing channels such as Johnson noise from the superconductor, residual magnetic-field fluctuations, or trap-induced electric gradients. Because the symmetry-protection argument and the claim of observable tunneling both rest on this dominance, the absence of rate comparisons or an error budget is load-bearing for the central feasibility conclusion.

    Authors: We agree that explicit rate comparisons are needed to substantiate the dominance of rest-gas scattering. In the revised manuscript we will add a dedicated subsection to the decoherence analysis that provides order-of-magnitude estimates for Johnson noise from the superconducting surfaces, residual magnetic-field fluctuations, and trap-induced electric-field gradients, using the same experimental parameters already employed for the rest-gas calculation. These estimates will be collected into a simple error budget that shows rest-gas scattering remains the leading channel at the temperatures and pressures considered. The symmetry-protection argument and the feasibility claim will then rest on this quantitative comparison rather than on the prior qualitative statement. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation uses standard QM modeling and physical estimates without self-referential reductions

full rationale

The paper models the nano-magnet as a pinned magnetic dipole in a superconducting trap potential, applies standard quantum tunneling through a barrier, and identifies rest-gas scattering as the leading decoherence channel at low T via conventional rate estimates. It then argues that near-perfect rotational symmetry suppresses orientation-dependent scattering rates enough for observable tunneling in feasible regimes. None of these steps reduce by construction to fitted inputs, self-citations, or ansatzes smuggled from prior work; the central claim rests on independent physical modeling and parameter regimes that can be checked against external benchmarks such as measured gas-scattering cross-sections and trap frequencies. No load-bearing uniqueness theorem or prediction is forced by the result itself.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Review performed on abstract only; full derivation, parameter values, and explicit assumptions are unavailable. The ledger therefore records only the minimal assumptions stated in the abstract.

axioms (2)
  • domain assumption Magnetization is pinned to the easy axis of the particle
    Stated in the second sentence of the abstract as the modeling choice for the nano-magnet.
  • domain assumption Rest-gas scattering is the most important decoherence mechanism at low temperatures
    Explicitly identified in the abstract as the dominant channel that symmetry must protect against.

pith-pipeline@v0.9.0 · 5646 in / 1337 out tokens · 42415 ms · 2026-05-20T10:10:44.348529+00:00 · methodology
