Topological flat band, Dirac fermions and quantum spin Hall phase in 2D Archimedean lattices

T0 review · 2 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Every non-trivial Archimedean lattice hosts a quantum spin Hall phase at some filling.

desk verdict Useful systematic tight-binding catalog of the eight non-trivial Archimedean lattices, but the spin-orbit Hamiltonian in Eq. (3) is underspecified and needs fixing before the Z2 map is fully defined. read the letter →

arxiv 1908.05092 v1 pith:PL52X3BR submitted 2019-08-14 cond-mat.mes-hall cond-mat.mtrl-sci

F. Crasto de Lima , Gerson J. Ferreira , R. H. Miwa This is my paper · ORCID
classification cond-mat.mes-hallcond-mat.mtrl-sci
keywords ArchimedeanlatticesquantumspinHalleffecttight-bindingmodelspin-orbitcouplingDiracfermionsflatbandsZ2topologicalinvarianttwo-dimensionalcarbonallotropes
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that each of the eight non-trivial Archimedean lattices—the uniform tilings of the plane beyond the triangular, square, and honeycomb cases—becomes a quantum spin Hall insulator at some electronic filling once intrinsic spin-orbit coupling is turned on. It maps which occupations of Kramers pairs give $\mathbb{Z}_2 = 1$, showing backscattering-protected helical edge states in nanoribbon calculations. Along the way it catalogues type-I and type-II Dirac fermions, flat bands, and high-degeneracy points in these lattices, and validates the tight-binding picture with density functional theory on three stable carbon allotropes. If correct, any material that realizes one of these tilings is a candidate topological insulator at a predictable filling.

What carries the argument

The central object is the tight-binding Hamiltonian $H_{TB} = H_0 + H_{SO}$ with one orbital per site, nearest-neighbour hopping $t = 1$ as the energy unit, and hopping and spin-orbit amplitudes both decaying as $\exp(-\alpha d)$ with inter-site distance, normalized at the nearest-neighbour distance. Because the lattices are mirror symmetric in the plane, the Rashba term is set to zero, leaving intrinsic spin-orbit coupling as the gap-opening mechanism. The topological verdict is delivered by the $\mathbb{Z}_2$ invariant computed from the evolution of Wannier charge centers, and the same Hamiltonian is interpreted as applying to photonic, phononic, and magnonic systems as well as electrons.

What would settle it

Repeat the $\mathbb{Z}_2$ calculation of Fig. 4 for the eight lattices with nearest-neighbour-only hopping ($\alpha = 20/d_{nn}$) and check whether at least one occupation still gives $\mathbb{Z}_2 = 1$; the paper only reports the $\mathbb{Z}_2$ map at $\alpha = 3/d_{nn}$, so a lattice that loses its topological phase at $\alpha = 20/d_{nn}$ would show the result depends on the hopping range. Alternatively, compute the intrinsic spin-orbit coupling strength for the $(4,8^2)$ carbon allotrope from first principles and see whether the predicted edge states survive.

Watch

Extended reading notes

Core claim

Within a single-orbital tight-binding model with hoppings and intrinsic spin-orbit coupling that decay exponentially with distance, the paper finds that all eight non-trivial Archimedean lattices have at least one Kramers-pair band occupation with $\mathbb{Z}_2 = 1$, meaning a quantum spin Hall phase with helical, backscattering-protected edge states. The topological phases appear when spin-orbit coupling opens gaps at Dirac crossings and at degenerate flat-band points; the paper computes the $\mathbb{Z}_2$ invariant by tracking Wannier charge centers and maps it as a function of band filling. For the $(3,12^2)$, $(4,6,12)$, and $(4,8^2)$ carbon allotropes, the $p_z$-derived bands from density functional theory reproduce the Dirac crossings and flat bands of the model, supporting the claim that the model captures real materials.

Load-bearing premise

The whole $\mathbb{Z}_2$ map depends on the single-orbital tight-binding model with exponential hopping and intrinsic spin-orbit coupling and zero Rashba terms; if a real Archimedean material has significant multi-orbital mixing, substrate-induced Rashba, or a different hopping decay, the predicted topological gaps and edge states may not survive.

Editorial extensions

If this is right

  • For each of the eight non-trivial Archimedean lattices, the $\mathbb{Z}_2$ map identifies specific Kramers-pair occupations at which the system is a quantum spin Hall insulator, so a material with that lattice and filling should show helical edge states.
  • The same single-orbital model applies to photonic, phononic, and magnonic realizations, so the predicted gaps and edge modes can be probed in classical-wave lattices without electrons.
  • The three carbon allotropes $(3,12^2)$, $(4,6,12)$, and $(4,8^2)$ are dynamically stable and their $p_z$-projected bands reproduce the Dirac and flat-band features, making them concrete candidates for the predicted phases once spin-orbit coupling is introduced by proximity.
  • The type-II Dirac crossing in $(3^3,4^2)$ and the pseudospin-1 and pseudospin-2 degeneracies in $(4,8^2)$ and $(3^4,6)$ provide specific band features to search for in photoemission or transport experiments.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper stops short of computing realistic spin-orbit coupling strengths; from first principles, intrinsic spin-orbit coupling in carbon is weak, so the quantum spin Hall phase may require proximity-induced spin-orbit coupling or heavier-element versions of these lattices to be observable.
  • Because the density functional theory check tests only $p_z$ bands without spin-orbit coupling, the model's zero-Rashba assumption may break in the low-symmetry oblique $(3^3,4^2)$ lattice or on substrates; a buckling calculation would settle this.
  • The accidental degeneracy in $(4,6,12)$ that lacks a defined $\mathbb{Z}_2$ invariant could be tuned by strain or superlattice design to open a topological gap, turning a currently undefined point into a phase transition.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 6 minor

Summary. This manuscript studies the electronic structure of eight non-trivial Archimedean lattices using a single-orbital tight-binding model with exponentially decaying hoppings and an intrinsic spin-orbit coupling (SOC) term. The authors classify the zero-SOC band structures, identifying Dirac points, flat bands, partially flat bands, and high-degeneracy points, and they compute the Z2 topological invariant by Wannier charge centers for each lattice as a function of occupied Kramers pairs of bands. The central claim is that every studied Archimedean lattice hosts a quantum spin Hall (QSH) phase at some particular occupation, signaled by spin-textured edge states in nanoribbon calculations. The paper also presents PBE-DFT relaxations, phonon dispersions, and pz-projected band structures for three planar carbon allotropes with the (3,12^2), (4,6,12), and (4,8^2) lattices as a material realization of the non-SOC tight-binding band features.

Significance. If the central claim is correct, the paper provides a useful systematic catalog of single-particle band features and topological phases across the Archimedean lattices, with potential applications to carbon allotropes, metal-organic frameworks, and photonic and phononic analogs. The non-SOC band-structure analysis and the DFT phonon-stability calculations for three carbon allotropes are careful and use standard, reproducible methods; the Wannier-charge-center approach for Z2 is appropriate. The significance is currently limited because the SOC Hamiltonian in Eq. (3) is not uniquely defined for lattices with multiple two-step paths and because no numerical SOC strength is specified, so the central QSH prediction is not yet a fully quantitative, falsifiable statement. These issues are local and can be addressed in revision.

major comments (2)
  1. [II, Eq. (3)] The intrinsic SOC term is not uniquely defined as written. The intermediate site k in d_{kj} × d_{ik} is never introduced or summed over, and the double sum over i,j cannot determine k. In the honeycomb lattice each second-neighbor pair has a unique common nearest neighbor, which is the standard Kane-Mele convention, but the Archimedean lattices studied here contain square and other small cycles (e.g., (4,8^2), (3,4,6,4), (3^2,4,3,4), (3^3,4^2)) in which a pair of sites can be connected by two different two-step paths. If all intermediate k are summed, the two paths around a square give opposite cross-product contributions and may cancel; if one path is selected, the rule is unspecified and may break lattice symmetry. Because the Z2 map in Fig. 4 and the edge states in Fig. 3 are computed from this Hamiltonian, the central claim depends on an arbitrary convention. Please specify the convention, prove that the resulting Hamiltonian is Hermitian and symmetry-preserving, and verify that the Z2 assignments are independent of the choice.
  2. [III.B, Figs. 3 and 4] The SOC strength λ is never assigned a numerical value and the normalization Nλ in Eq. (5) is not defined, so the gap sizes, edge-state dispersions, and the physical regime of the QSH prediction are unspecified. The Z2 invariant is insensitive to the magnitude of λ as long as the relevant gap remains open, but the statement that all studied lattices present a QSH phase in some particular occupation is computed at a single value of the hopping decay parameter, α = 3.0/d_nn, and at an unstated λ. Please state the λ/t ratio used for Figs. 3 and 4, define Nλ, and show that the Z2 occupations are stable over a reasonable range of α and λ, or explicitly limit the claim to the chosen parameter set.
minor comments (6)
  1. [Abstract and III.C] The statement that the discussion is "validated within density functional theory calculations" is too strong: the DFT calculations in Section III.C and Fig. 5 are performed without SOC and validate only the pz-derived, non-SOC band features of three carbon allotropes. Please qualify the claim accordingly.
  2. [Title] The title advertises a "topological flat band," but no Chern number or other topological characterization of the flat bands is computed; consider rephrasing to "flat bands, Dirac fermions, and quantum spin Hall phase."
  3. [III.B, Fig. 3] Please specify the nanoribbon geometry used for the edge-state calculations, including the edge termination and width, so that the T1 and T2 edge states can be reproduced.
  4. [Throughout] There are several typographical and grammatical errors, including "arises" for "arise" (Abstract), "presents" for "present" (Section III.B), "Bellow" for "Below" (Section III.C), "backscaterring" for "backscattering" (Fig. 3 caption), and "V ASP" for "VASP" (Section III.C).
  5. [References] References 11 and 40 are the same Kane-Mele paper and should be consolidated.
  6. [Fig. 4 caption] The caption states that the occupation number indicates "the number of occupied Kramers pairs bands"; this should read "Kramers pairs of bands."

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: QSH invariants are computed from an explicit TB Hamiltonian and checked against independent DFT bands; the only self-citation is background.

full rationale

The central QSH claim is derived by applying standard Wannier-charge-centers Z2 computation (refs. 51,52) to the explicit tight-binding Hamiltonian of Eqs. (1)-(5). The model parameters (alpha, t, and the exponential decay of lambda_ij) are inputs; no parameter is fitted to the Fig. 4 Z2 map, and no target result is used to construct the Hamiltonian. The DFT section (Sec. III C) is an independent external check of the non-SOC pz-derived bands for three carbon allotropes and does not supply the QSH data. The only self-citation (ref. 17) appears in a background list for the "layer" degree of freedom and is not load-bearing. Although Eq. (3) leaves the intermediate index k in the cross product d_kj x d_ik undefined, that is a model-definition ambiguity or correctness concern, not a circular reduction: the computed Z2 values are still outputs of a stated (if underspecified) Hamiltonian, not equal to the inputs by construction. No uniqueness theorem is imported from the authors' prior work, and no fitted quantity is renamed as a prediction. The circularity burden is therefore minimal.

Assumptions & free parameters 2 free parameters · 3 assumptions · 0 invented entities

The central TB predictions depend on two hand-chosen parameters (alpha and lambda) and on the mirror-symmetry ansatz that eliminates Rashba SOC. No new physical entities are introduced. The DFT validation is independent but does not constrain these parameters, so the QSH phase map remains a model-level prediction.

free parameters (2)
  • alpha (hopping decay) = 20/dnn and 3/dnn (two regimes, not fitted)
    Controls the ratio of next-nearest-neighbor to nearest-neighbor hoppings; the QSH map is shown for 3/dnn, so the topological phase is computed at a specific choice.
  • lambda (SOC strength) = not specified in text
    Sets the magnitude of intrinsic spin-orbit coupling in Eq. (5); the gap size and edge states in Fig. 3 depend on it, yet no numerical value is given.
assumptions (3)
  • domain assumption Rashba SOC is zero because the lattices are mirror symmetric in the plane
    Used in Section II to justify keeping only the intrinsic SOC term in Eq. (3). Real substrates or broken symmetry could introduce Rashba coupling.
  • ad hoc to paper Hopping and SOC amplitudes decay exponentially with inter-site distance
    Eqs. (4) and (5) define the parametrization; this is a modeling choice, not derived from DFT or experiment, and the specific alpha values are chosen by hand.
  • standard math Z2 invariant from Wannier charge centers is valid for time-reversal-invariant gapped insulators
    Invoked via refs. 51 and 52 in Section III B; the paper also acknowledges occupations where degeneracies prevent a defined Z2 (e.g., (4,6,12) between bands 6 and 7).

how reviews work

0 comments
Cite this review

Pith. "Pith review of Topological flat band, Dirac fermions and quantum spin Hall phase in 2D Archimedean lattices." pith.science (2026). https://pith.science/paper/PL52X3BR

@misc{pith2026190805092,
  author       = {Pith},
  title        = {Pith review of: Topological flat band, Dirac fermions and quantum spin Hall phase in 2D Archimedean lattices},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/PL52X3BR}},
  note         = {Machine review of arXiv:1908.05092}
}
read the original abstract

Materials with designed properties arises in a synergy between theoretical and experimental approaches. In this study we explore the set of Archimedean lattices forming a guidance to its electronic properties and topological phases. Within these lattices, rich electronic structure emerge forming type-I and II Dirac fermions, topological flat bands and high-degeneracy points with linear and flat dispersions. Employing a tight-binding model, with spin-orbit coupling, we characterize a quantum spin Hall (QSH) phase in all Archimedean lattices. Our discussion is validated within density functional theory calculations, where we show the characteristic bands of the studied lattices arising in 2D carbon allotropes.

Figures

Figures reproduced from arXiv: 1908.05092 by the authors.

Figure 1
Figure 1. FIG. 1. All eleven Archimedean lattices or uniform tilings, [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

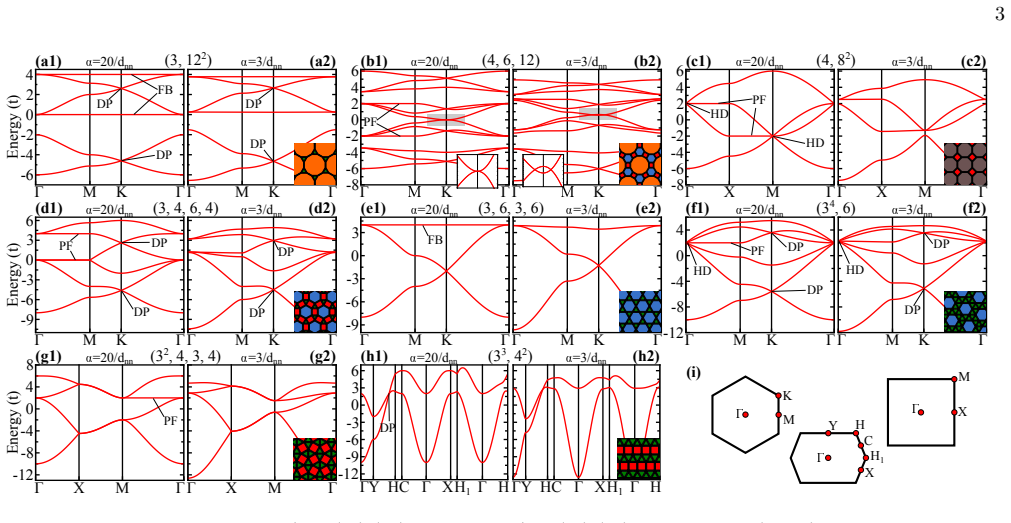

Figure 2. FIG. 2. Band structure for [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Band structure with SOC and NNN hoppings ( [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Calculated [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5

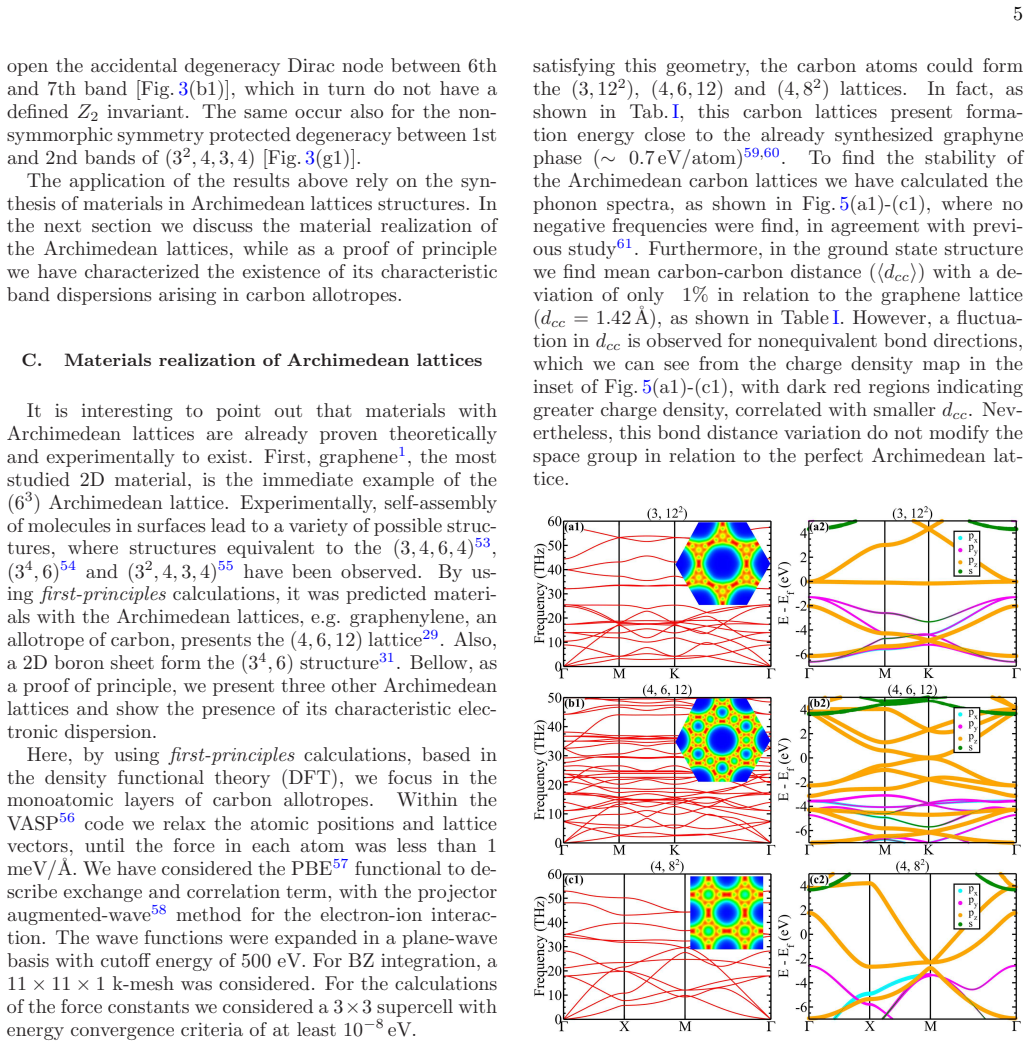

Figure 5. Figure 5: FIG. 5. Phonon dispersion (a1)-(c1) and orbital projected [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
