Towards Graph-Based Privacy-Preserving Federated Learning: ModelNet -- A ResNet-based Model Classification Dataset

T0 review · 5 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read ModelNet constructs three controlled federated-learning benchmarks from CIFAR-100, using ResNet50 embeddings to govern the semantic and statistical diversity of 5000 synthetic clients.

desk verdict A large, carefully built FL partitioning benchmark with three variants that behave as advertised in ResNet50 embedding space, but the paper claims FL training and aggregation experiments it does not actually perform. read the letter →

arxiv 2506.00476 v2 pith:SHSMTC2M submitted 2025-05-31 cs.LG

Abhisek Ray , Lukas Esterle This is my paper
classification cs.LG
keywords federatedlearningnon-IIDdatadatasetbenchmarksemanticheterogeneityCIFAR-100ResNet50embeddingsgraph-basedFLclientdiversity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces ModelNet, a benchmark for federated learning built by repartitioning CIFAR-100 into 5000 client subsets under three controlled regimes: random (ModelNet-R), semantically diverse (ModelNet-D), and semantically similar (ModelNet-S). The construction uses embeddings from a pre-trained ResNet50 to cluster classes, then samples classes to maximize or minimize intra-subset similarity. The authors' claim is that this gives researchers systematic control over both statistical and semantic heterogeneity across clients, which existing FL benchmarks lack. The dataset is meant to support both classical and graph-based FL algorithms, and the paper also proposes that sharing anonymized model parameters can preserve privacy better than sharing data. If the claim holds, ModelNet gives the FL community a controlled testbed for studying personalization, generalization, and robustness to semantic skew.

What carries the argument

The machinery is a class-level embedding computed by averaging ResNet50 features over images of each CIFAR-100 class, followed by k-means clustering into K clusters. ModelNet-D samples one class per cluster to maximize inter-class dissimilarity; ModelNet-S samples classes from a base cluster plus its top cosine-similarity clusters to concentrate on related semantics; ModelNet-R samples uniformly without replacement. The same embeddings define the evaluation metrics (pairwise cosine distances, intra-subset variance, feature-space coverage), so the representation both constructs the dataset and measures its properties.

What would settle it

Recompute the class clusters and subset statistics with a different feature extractor, such as a vision transformer or a self-supervised model; if the ordering of the three variants by diversity, redundancy, and coverage flips or disappears, the construction is tied to ResNet50's particular representation. Alternatively, generate subsets from random class labels while keeping the same pipeline; if the diversity metrics still separate the variants cleanly, the claimed semantic control is not what drives the differences.

Watch

Extended reading notes

Core claim

The paper claims that ModelNet is the first cross-environment, client-specific FL dataset with a graph-based variant, and that its three sampling strategies yield subsets with measurably different semantic structures: ModelNet-D has the highest intra-subset diversity (peak average pairwise cosine distance near 0.15), ModelNet-R sits in between (~0.14), and ModelNet-S has the lowest (~0.10), with corresponding differences in feature-space coverage, redundancy, and class occurrence frequencies. The authors argue these statistics show the dataset can simulate the heterogeneity found in real FL deployments, and that the parameter-based variant lays groundwork for graph-based, privacy-preserving model interpretation.

Load-bearing premise

The load-bearing premise is that ResNet50 embeddings capture meaningful visual relationships between classes; if they do not, the 'semantically similar' and 'semantically diverse' subsets will not have the properties the paper assigns to them.

Editorial extensions

If this is right

  • Researchers can choose a variant to stress-test specific failure modes: ModelNet-D for generalization across diverse clients, ModelNet-S for fine-grained semantic skew, and ModelNet-R as a neutral baseline.
  • The 5000 pre-built subsets make large-scale FL simulations with controlled client relationships feasible, which prior benchmarks do not offer.
  • Class-occurrence statistics imply that evaluations on ModelNet-D and ModelNet-S must account for class-frequency bias to avoid confounding results with dataset construction choices.
  • The parameter-based variant provides a starting point for graph-based FL methods that operate on model parameters rather than raw data, supporting the paper's privacy-preserving direction.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The embedding-driven construction could be extended to other datasets and backbone models, but the claimed semantic control would need to be re-validated for each new backbone; the paper asserts extensibility without demonstrating it.
  • The elevated Jaccard similarity between ModelNet-D and ModelNet-S suggests that both strategies over-select the same structurally salient classes; a testable extension is a sampling scheme that penalizes such class over-representation to make the variants more independent.
  • The stated hypothesis about using anonymized model parameters for privacy is not tested in this paper; pursuing it would require a concrete threat model and comparisons against parameter-perturbation baselines.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper introduces ModelNet, a set of three CIFAR-100-derived partitionings for federated learning: ModelNet-R (random class selection), ModelNet-D (semantically diverse classes), and ModelNet-S (semantically similar classes), each consisting of 5000 subsets of 15 classes drawn from the 100-class CIFAR-100 pool. The construction uses class-level embeddings extracted from a pretrained ResNet50 model: ModelNet-D clusters classes by k-means and selects one class per cluster, ModelNet-S samples from clusters that are close to a randomly chosen base cluster, and ModelNet-R samples uniformly at random. The evaluation section reports descriptive statistics of the generated subsets, including subset class embedding diversity, class occurrence histograms, t-SNE visualizations, Jaccard similarity, subset redundancy, intra-subset variance, and feature space coverage. The paper claims that these variants provide systematic control over semantic and statistical heterogeneity across FL clients, support a graph-based privacy-preserving FL paradigm, and are validated by extensive experiments on domain shifts and aggregation strategies.

Significance. If the dataset's properties were independently validated, ModelNet could serve as a useful benchmark for studying non-IID and semantically controlled data partitions in federated learning. The construction algorithms are simple and extensible to other base datasets and backbone models, and the public release of the dataset and code supports reproducibility. However, the current contribution is limited to a descriptive analysis of the partitioning algorithm's own optimization criteria: the diversity metrics used for validation are computed on the same ResNet50 embeddings that define the construction, and no federated learning experiments are performed. The central claim that the variants induce controlled differences in FL training behavior is therefore not yet established.

major comments (5)
  1. [Section 4, Eqs. (2) and (5), Alg. 2 and 3, Figs. 2 and 7] The validation of the semantic-control claim is circular. The construction algorithms select classes using k-means clusters computed from averaged ResNet50 embeddings (Alg. 2, Alg. 3), and the evaluation metrics D(S) and V_intra(S) are computed on exactly those same embeddings. A procedure that chooses one class per cluster or samples from nearby clusters will, by construction, score high or low on these metrics; the observed ordering D > R > S in Figs. 2 and 7 therefore follows from the design and is not independent evidence that the variants control semantic heterogeneity in an externally meaningful sense. An independent check (e.g., a different embedding model, human class-similarity ratings, or downstream task performance) is needed.
  2. [Abstract and Section 5] The claims of 'extensive experiments based on domain shifts and aggregation strategies' and validation for 'inter- and intra-client data distribution environments' are not supported by Section 4. The results section reports only descriptive statistics of the generated subsets (Figs. 2-8); no federated model is trained, no aggregation algorithm is compared, and no accuracy, convergence, or domain-shift experiment is reported. The benchmark's ability to produce controlled differences in FL training behavior is therefore not demonstrated.
  3. [Abstract, Sections 1 and 5] The privacy and graph-based contributions are asserted but not operationalized. The paper never defines the 'anonymized model parameters' sharing scheme, gives no formal privacy guarantee or attack/defense evaluation, and does not describe or release any graph-based variant despite the abstract promising a 'graph-based variant' and Section 1 claiming a foundation for graph-based FL interpretation. These load-bearing claims need either substantive support or removal.
  4. [Algorithms 2 and 3, Figs. 2-8] The hyperparameters required by the generative algorithms (K, topK, maxImgs, and the per-class image count I) are never reported. Without the exact values, the dataset generation is not reproducible from the description in this paper, and results such as the extreme class-occurrence counts (greater than 2500 for ModelNet-D in Fig. 3) cannot be interpreted.
  5. [Section 4, Figs. 2 and 7] The claim that the variants differ in diversity is based only on visual inspection of histograms and boxplots, with no significance tests, confidence intervals, or effect sizes. Because the distributions overlap substantially, the paper should provide a quantitative comparison (e.g., bootstrap confidence intervals or a permutation test) to support the ordering D > R > S.
minor comments (5)
  1. [Figure 4 caption] The caption says 'Three t-SNE plot'; it should say 'plots', and the subplots are unlabeled, making it hard to identify which panel corresponds to which variant.
  2. [Section 4, Intra-Subset Variance] The text refers to 'the underlying KNN-based selection strategy,' but Algorithms 2 and 3 use k-means clustering, not KNN; Figure 1 also shows 'KNN (n=15)' for ModelNet-S and ModelNet-D, which is inconsistent with the algorithm listings.
  3. [Table 3] The column 'Peak Dist.' is not defined; specify whether the values are histogram mode centers, KDE peaks, or means, and report them with a measure of spread.
  4. [Table 2] The table labels ModelNet variants as 'Large' in Dataset Size, but each subset contains only 15 classes; clarify whether the size claim refers to the total number of subset copies (5000) and storage footprint.
  5. [References] The ResNet50 architecture used for embedding extraction is not cited in the references; the original citation should be added.

Circularity Check

2 steps flagged · score 6.0 of 10

The semantic-control claim is validated with the same ResNet50 embedding distances that the construction algorithms optimize, making the diversity ordering a restatement of the selection rules.

  1. self definitional [Section 2 (ModelNet-D, Alg. 2), Section 3 Eq. (2), Section 4 Fig. 2]
    "To ensure diversity, each subset is constructed by randomly selecting exactly one class from each cluster, thereby maximizing inter-class dissimilarity within the subset."

    Algorithm 2 builds each ModelNet-D subset by taking one class per k-means cluster computed on ResNet50 class embeddings, i.e., it optimizes inter-class dissimilarity in that embedding space. Equation (2) defines D(S) as the average pairwise cosine distance between exactly those class embeddings, and Fig. 2 reports that ModelNet-D has the highest mean D(S). The evaluation metric is the construction objective, so the observed diversity ordering is an arithmetic consequence of the selection rule rather than independent evidence that the variant controls semantic heterogeneity.

  2. self definitional [Section 2 (ModelNet-S, Alg. 3), Section 3 Eq. (5), Section 4 Fig. 7]
    "To create each subset, we randomly pick a base cluster and form a pool including that cluster and its similar clusters. From this pool, we sample a fixed number of classes and select images per class to form subsets with semantically related classes."

    Algorithm 3 restricts each subset to a base cluster plus its top-k cosine-similar clusters, so every class in a subset lies in a small neighborhood of the same ResNet50 embedding space. Equation (5) defines intra-subset variance as the mean squared distance between those same class embeddings. Reporting in Fig. 7 that ModelNet-S shows the lowest variance is therefore just a restatement of the pooling rule; it does not externally validate semantic similarity or its effect on federated training.

full rationale

The central circularity is self-definitional: ModelNet-D and ModelNet-S are constructed by optimizing cosine distances between ResNet50 class embeddings, and the paper's main evidence for their properties (D(S) in Fig. 2, intra-subset variance in Fig. 7, feature-space coverage in Fig. 8, and the t-SNE plots in Fig. 4) is computed from those same embeddings. The reported ordering ModelNet-D > ModelNet-R > ModelNet-S on diversity metrics is built into the selection algorithms. This means the dataset's headline semantic-control property is not independently established; in particular, no downstream federated-learning training, aggregation comparison, or accuracy measurement appears despite the abstract's claim of extensive experiments on domain shifts and aggregation strategies. The privacy hypothesis, described as a new hypothesis and later asserted to enhance privacy while maintaining utility, is likewise not evaluated, which is a missing-support issue rather than a circularity. No load-bearing self-citation or imported uniqueness theorem was found: the references to ProFed and the authors' own prior coordination work serve as comparisons, not as the justification for the variants. The dataset artifact may still be useful as a public benchmark, but the quantitative validation of semantic control reduces to the construction criterion, so the circularity score is 6.

Assumptions & free parameters 5 free parameters · 2 assumptions · 0 invented entities

The dataset itself is an artifact, not an invented entity. The 'anonymized parameter-sharing' concept and 'graph-based variant' are mentioned but never defined, so they are not assessable as entities. Free parameters reflect unstated tuning choices in the generation algorithms.

free parameters (5)
  • N = 5000
    Number of generated subsets; chosen by the authors and stated in Section 2.
  • S = 15
    Number of classes per subset; chosen to be small enough for controlled diversity, stated in Section 2.
  • K = not reported
    Number of k-means clusters in Algorithms 2 and 3; directly controls how coarse or fine semantic grouping is.
  • topK = not reported
    Number of similar clusters merged in Algorithm 3; controls how similar the classes in a subset are.
  • maxImgs = not reported
    Maximum number of images per class used to compute embeddings in Algorithm 3; affects embedding quality.
assumptions (2)
  • domain assumption k-means on ResNet50 embeddings yields semantically meaningful class groupings.
    Used in Algorithms 2 and 3 and to interpret the resulting subset diversity; if this fails, the controlled semantics do not hold.
  • domain assumption Cosine distance in embedding space reflects semantic dissimilarity for image classification.
    Underlies the diversity metric D(S) and the similarity search in Algorithm 3; the paper's validation depends on this equivalence.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Towards Graph-Based Privacy-Preserving Federated Learning: ModelNet -- A ResNet-based Model Classification Dataset." pith.science (2026). https://pith.science/paper/SHSMTC2M

@misc{pith2026250600476,
  author       = {Pith},
  title        = {Pith review of: Towards Graph-Based Privacy-Preserving Federated Learning: ModelNet -- A ResNet-based Model Classification Dataset},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/SHSMTC2M}},
  note         = {Machine review of arXiv:2506.00476}
}
read the original abstract

Federated Learning (FL) has emerged as a powerful paradigm for training machine learning models across distributed data sources while preserving data locality. However, the privacy of local data is always a pivotal concern and has received a lot of attention in recent research on the FL regime. Moreover, the lack of domain heterogeneity and client-specific segregation in the benchmarks remains a critical bottleneck for rigorous evaluation. In this paper, we introduce ModelNet, a novel image classification dataset constructed from the embeddings extracted from a pre-trained ResNet50 model. First, we modify the CIFAR100 dataset into three client-specific variants, considering three domain heterogeneities (homogeneous, heterogeneous, and random). Subsequently, we train each client-specific subset of all three variants on the pre-trained ResNet50 model to save model parameters. In addition to multi-domain image data, we propose a new hypothesis to define the FL algorithm that can access the anonymized model parameters to preserve the local privacy in a more effective manner compared to existing ones. ModelNet is designed to simulate realistic FL settings by incorporating non-IID data distributions and client diversity design principles in the mainframe for both conventional and futuristic graph-driven FL algorithms. The three variants are ModelNet-S, ModelNet-D, and ModelNet-R, which are based on homogeneous, heterogeneous, and random data settings, respectively. To the best of our knowledge, we are the first to propose a cross-environment client-specific FL dataset along with the graph-based variant. Extensive experiments based on domain shifts and aggregation strategies show the effectiveness of the above variants, making it a practical benchmark for classical and graph-based FL research. The dataset and related code are available online.

Figures

Figures reproduced from arXiv: 2506.00476 by the authors.

Figure 1
Figure 1. Overall architecture for three variants of ModelNet (ModelNet-R, ModelNet-D, and ModelNet-S) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Subset diversity of ModelNet-R, ModelNet-D, and [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Class occurrence histogram of ModelNet-R, ModelNet-D, and ModelNet-S. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: Three t-SNE plot of ModelNet-R, ModelNet-D, and ModelNet-S. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Jaccard similarity of ModelNet-R, ModelNet-D, and [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Subset redundancy of the ModelNet datasets. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 8

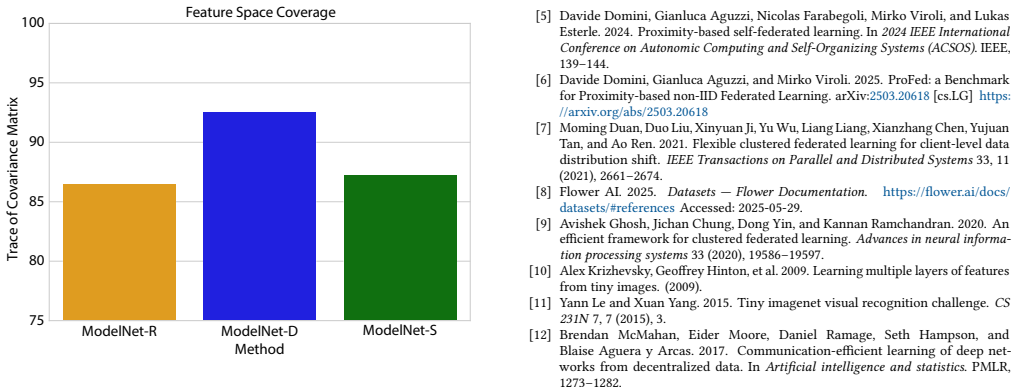

Figure 8. Figure 8: Feature space coverage of the ModelNet datasets. [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
