Pith. sign in

REVIEW 4 major objections 5 minor 45 references

Gravity and Composition Modulated Solidification and Mechanical Properties of Al-Cu Nanostructures

T0 review · 4 major / 5 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Molecular dynamics simulations of Al-Cu alloys show that gravity and copper content jointly decide solidification pathway and hardness, with the ranking between compositions inverting between Earth gravity and microgravity.

desk verdict A promising and systematic MD study undermined by an undisclosed gravity scaling that makes its central claim untestable. read the letter →

arxiv 2509.02798 v1 pith:UXFDQWFX submitted 2025-09-02 cond-mat.mtrl-sci

Apurba Sarker , Sourav Saha This is my paper
classification cond-mat.mtrl-sci
keywords Al-Cualloysmoleculardynamicssolidificationmicrogravitynanoindentationhardnessdislocationdensityspacemanufacturing
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper uses molecular dynamics simulations to ask whether gravity and copper content jointly control how Al–Cu alloys solidify and how hard the resulting nanostructures are. Its central claim is that gravitational pull changes the solidification pathway — who solidifies first, how many dislocations form, and what the final hardness is — and that adding copper does not just shift the result but can flip it. In the simulations, dilute alloys (5–10 wt.% Cu) solidify faster and harder under Earth-like gravity, while the 18 wt.% Cu alloy solidifies most cleanly and reaches its highest hardness under microgravity. If that claim holds, alloy composition becomes a design lever for in-space manufacturing: choose the alloy to compensate for the gravity level at the build site, or target a gravity level to get the microstructure and hardness you want.

What carries the argument

The central object is the composition–gravity crossover in an Al–Cu binary alloy: the reversal in solidification rate, dislocation density, and hardness ranking as gravity is reduced. The machinery that produces it is a molecular dynamics setup — an Embedded Atom Method (EAM) interatomic potential for Al–Cu, a uniform body force along the Z axis scaled to each gravity level, a directional solidification temperature gradient with Langevin-thermostatted boundaries, common-neighbor-analysis phase counting for solid fraction, and spherical-indenter nanoindentation with dislocation extraction on the solidified cells. The body force plus Cu concentration is what couples solute transport to front s

What would settle it

The gravitational potential-energy drop across the 21.87 nm simulation cell at Earth gravity is roughly 10^-13 eV per atom, while thermal energy at 1400 K is about 0.1 eV; if the reported 1g-versus-microgravity differences persist after replacing the scaled body force with its true physical magnitude (or after removing the undisclosed scaling factor), the claim survives, but if they vanish, the central result is an artifact of the scaling.

Watch

Extended reading notes

Core claim

The paper reports the first systematic all-atom molecular dynamics study of Al–Cu solidification under Earth, Martian, Lunar, and microgravity, followed by nanoindentation on the as-solidified cells. The core discovery is a composition–gravity crossover: at low Cu content, increasing gravity accelerates solidification, raises dislocation density, and increases hardness; at 18 wt.% Cu the ranking inverts, and microgravity produces the most FCC phase, the most dislocations at indentation, and the highest hardness. The proposed mechanism is that under strong gravity the heavier Cu atoms segregate to the advancing solid–liquid interface, causing constitutional undercooling, stacking irregulariti

Load-bearing premise

The load-bearing premise is that the uniform body force, scaled into the simulation's metal units, faithfully represents gravity's effect on nanoscale solidification — a premise that matters because the gravitational potential difference across the 21.87 nm cell at real 1g is orders of magnitude below thermal energy, so the observed separation between gravity levels must come from the scaling factor.

Editorial extensions

If this is right

  • Materials for space manufacturing can be selected by composition: Cu-rich Al–Cu is the better choice when solidifying in microgravity, and dilute alloys when building under Earth or Mars gravity.
  • Hardness predictions must include solidification history; the same alloy can be soft or hard depending on the gravity it solidified under, because the inherited dislocation population is what resists indentation.
  • The reversal is a testable physical signature: Earth and Mars gravity should produce columnar, defect-rich microstructures, while microgravity should yield equiaxed, more uniform grains — matching the experimental benchmarks the paper cites.
  • The same solidification-plus-indentation pipeline can be extended to other alloy families and gravity levels to map composition–gravity design charts for off-Earth fabrication.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the paper applies gravity as a scaled body force without reporting the scaling factor, the quantitative hardness and solid-fraction numbers should be read as statements about the model's artificial force, not about real 1g nanoscale physics; at real 1g, the gravitational potential-energy drop across a 22 nm cell is orders of magnitude below kT. The qualitative segregation mechanism may sti
  • The authors' own limitations section notes that no dedicated microgravity solidification or nanoindentation experiments were run on the exact simulated alloys, that the EAM potential does not stabilize the tetragonal θ-Al2Cu phase, and that the accessible nanometer/nanosecond scales restrict extrapolation; these caveats make the predicted inversion a mechanistic hypothesis until confirmed by drop-
  • If the mechanism is gravity-driven segregation of a dense solute, the same crossover should appear in other alloys whose solute is significantly heavier than the matrix (e.g., Al–Zn, Al–Fe) and should be absent for mass-matched solutes — a test the paper did not perform.
  • The crossover composition between 10 and 18 wt.% Cu is a natural target for a dedicated parametric scan; mapping it as a function of gravity level and cell size would turn the current reversal into a quantitative design chart for in-space alloy selection.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The manuscript reports molecular dynamics simulations of directional solidification of Al–Cu alloys (5, 10, and 18 wt.% Cu) under four body-force conditions labeled Earth, Martian, Lunar, and microgravity, followed by nanoindentation to extract hardness. The central claims are that gravitational forces significantly alter solidification pathways; that alloy composition can modulate, and in some cases reverse, the gravity effect; and that as-solidified hardness depends jointly on composition and gravity. The paper validates the model by comparing the melting range and lattice constant of Al–5 wt.% Cu with literature, and then interprets solid-fraction curves, microstructural snapshots, dislocation densities, and force–depth indentation responses for the twelve composition–gravity combinations.

Significance. If the central claim were established, the work would be of clear interest to in-space manufacturing and to computational design of alloys for extraterrestrial environments. The manuscript has some genuine strengths: it uses a standard EAM potential with external validation of melting range and lattice constant; it employs standard structural analysis (CNA, centrosymmetry, dislocation extraction); and it connects solidification microstructure to a mechanical property through nanoindentation. However, the central claim depends on an undisclosed gravity scaling factor, and the reported physical interpretation is not supported by the simulations as described. The single-run design and the acknowledged absence of the θ-Al2Cu phase in the potential further weaken the mechanistic conclusions. The result may be reproducible as a study of an arbitrary body force, but not as a study of physical gravity at the simulated length scale.

major comments (4)
  1. [Section 2.1] The gravity implementation is not reproducible. The text states that Earth/Mars/Moon/microgravity accelerations are 'converted into the metal unit system of LAMMPS, then scaled appropriately,' but the scaling factor is never reported. This is load-bearing: every gravity comparison in Figures 3–15 depends on that factor. At the stated box size of 21.87 nm, the gravitational potential-energy difference across the cell for an Al atom is mgh ≈ 1e-32 J, whereas kT at 1400 K is ≈ 2e-20 J, i.e., a ratio of about 5e-13. A literal 1g body force is therefore negligible; the reported separation between 'Earth gravity' and 'microgravity' must arise from a large, unreported amplification. Without disclosing and justifying that amplification, the central claim that gravity significantly affects solidification pathways is unfalsifiable.
  2. [Section 2.1 / Figures 3–4] Each of the twelve cases is a single simulation trajectory, with no repeat runs, no ensemble averaging, and no error bars. Solidification at the nanoscale is stochastic (nucleation times and front morphologies fluctuate from run to run). The claimed ordering of solid-fraction curves and the composition–gravity reversal could in principle be run-to-run noise. The paper provides no statistical support for the systematic trends it reports. This is a load-bearing issue for all quantitative comparisons, not a minor omission.
  3. [Section 3.1 and 3.3 vs Section 4] The interpretation repeatedly invokes 'θ-Al2Cu' phase competition and θ-phase stabilization/destabilization as the mechanism behind the composition-dependent trends (e.g., 'the thermodynamic preference for intermetallic formation,' 'promotes the precipitation of the θ-Al2Cu phase,' and 'formation of θ (Al2Cu) intermetallics'). However, Section 4 explicitly acknowledges that the employed EAM potential 'does not explicitly stabilize the tetragonal θ (Al2Cu) phase' and that 'phase competition between FCC–Al and θ (Al2Cu) cannot be fully represented.' The mechanistic story is therefore not supported by the model used. This discrepancy undermines the physical explanation of the central result, not merely a secondary detail.
  4. [Section 3.4.2] Hardness values are reported with reference to experimental literature, but the calculation is underspecified. The text says hardness is 'the ratio of the peak indentation force to the projected contact area, following the standard procedure adapted to atomistic scales,' but neither the projected contact area convention nor its numerical values are given. With a 20 Å diameter indenter and ~20 Å maximum depth, the contact area is ambiguous and strongly affects the final hardness numbers. Without this information, the comparison in Figure 15 and the quantitative claims about '0.7316 GPa at plateau' cannot be reproduced or assessed.
minor comments (5)
  1. [Throughout] There are numerous typographical errors, including 'evidenue,' 'molelar,' 'bianry,' 'di fferent,' and 'by the by the.' The manuscript would benefit from a careful proofreading pass.
  2. [Title page] PACS and MSC entries are placeholders ('0000, 1111'). These should be replaced with appropriate codes or removed.
  3. [Figure 15] The axis is labeled 'Hardness (GPa)' but the figure appears to lack a numerical scale and error bars. Please clarify what is plotted, including units and uncertainty.
  4. [Section 2.3] Validation of the melting range and lattice constant is performed only for Al–5 wt.% Cu, whereas the study includes 10 and 18 wt.% Cu. The text should justify why validation of the dilute composition transfers to the higher-composition cases, especially since the EAM potential is stated to be less reliable for θ-phase behavior.
  5. [Section 3.2] The microstructural snapshots (Figures 5–7) are visually descriptive but do not include quantitative metrics such as grain size, HCP fraction, or interface roughness. Adding such metrics would strengthen the claimed monotonic trends.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: simulation outputs are not fitted inputs, and the central claims rest on MD evolution, not on self-citation or definitional reduction.

full rationale

The paper's derivation chain is self-contained in the sense required for circularity analysis. The inputs are an EAM interatomic potential, a 21.87 nm liquid Al–Cu cell at 1400 K, a directional temperature gradient, and a body force whose magnitude is scaled to represent Earth, Martian, Lunar, and microgravity levels. The outputs—solid fraction evolution, microstructural snapshots, dislocation densities, and nanoindentation hardness—are obtained by time integration of the MD equations, not by fitting or renaming the inputs. The melting range (816–967 K) and lattice constant (4.038 Å) are checked against external experimental/continuum values, and the hardness values are compared to independent experimental reports. No equation in the paper defines a reported result in terms of the same reported result, and no fitted parameter is relabeled as a prediction. The self-citations [20,21] appear only as introductory examples of prior MD work on other materials and are not load-bearing. The paper explicitly acknowledges its limitations: results are simulation-only without one-to-one experimental validation, the EAM potential does not stabilize the θ-Al₂Cu phase, and nanoscale/nanosecond timescales restrict direct extrapolation. The undisclosed gravity scaling factor is a legitimate reproducibility and physical-fidelity concern—at this box size, literal 1g is negligible—but it is not circularity: the paper does not state that the scaling was chosen to produce the observed reversal, and the trends are not derived from that scaling by definition. Accordingly, no circular step can be exhibited with a quote-based reduction, so the circularity score is 0.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central claims rest on three kinds of unpaid inputs: the Cai-Ye EAM potential's fidelity (verified only for Al-5 wt.% Cu), the assumption that a uniform body force with undisclosed scaling represents gravity at the nanoscale, and simulation-analysis choices (CNA cutoffs, contact area, single trajectories) that set the numerical outputs. No new entities are introduced.

free parameters (3)
  • Gravity acceleration scaling factor = Not disclosed; 'scaled appropriately'
    This multiplier determines the actual body force on each atom. Since true 1g is negligible at 22 nm, the scaling choice is what creates the reported Earth-versus-microgravity separation.
  • Projected contact area convention for hardness = Not reported
    Section 3.4.2 defines hardness as peak force divided by projected contact area but never states how the area is computed for the 20 Å spherical indenter; different conventions would shift all hardness numbers.
  • CNA cutoff / neighbor parameters for solid fraction = Not reported
    Section 3.1 defines solid fraction by Common Neighbor Analysis without giving the cutoff radii or adaptation scheme; the solid-fraction curves are the central outcome.
assumptions (5)
  • domain assumption The Cai-Ye EAM potential accurately describes Al-Cu thermodynamics and phase stability for 5-18 wt.% Cu.
    Invoked in Section 2.1; validated only by Al-5 wt.% Cu melting range and lattice constant, so high-Cu behavior is assumed.
  • domain assumption A uniform downward body force on each atom is an adequate model of gravity's effect on nanoscale solidification.
    Invoked in Section 2.1; ignores convection and buoyancy, the main macroscopic mechanisms, and the scaling is undisclosed.
  • domain assumption The 1.5 ns directional solidification run produces a representative as-solidified structure.
    Invoked in Section 2.1; no convergence or size-effect checks are reported.
  • domain assumption MD nanoindentation at 0.1 Å/ps yields hardness comparable to experimental values.
    Invoked in Section 2.2; strain rate is orders of magnitude above experiments and no correction is discussed.
  • standard math CNA and centrosymmetry labels are sufficient to define solid fraction and crystal structure.
    Invoked in Sections 3.1 and 3.3; standard algorithms, but cutoff parameters are not given.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Gravity and Composition Modulated Solidification and Mechanical Properties of Al-Cu Nanostructures." pith.science (2026). https://pith.science/paper/UXFDQWFX

@misc{pith2026250902798,
  author       = {Pith},
  title        = {Pith review of: Gravity and Composition Modulated Solidification and Mechanical Properties of Al-Cu Nanostructures},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/UXFDQWFX}},
  note         = {Machine review of arXiv:2509.02798}
}
read the original abstract

The future of space exploration and human settlement beyond Earth hinges on a deeper understanding of in space manufacturing processes. The unique physical conditions and scarcity of experimental data demand robust computational models to investigate the atomic scale physics of solidification. This work presents a molecular dynamics (MD) model to examine the solidification behavior of the Al Cu binary alloy, focusing on the influence of varying compositions and gravity levels (Earth, Lunar, Martian, and microgravity) on atomistic solidification mechanisms and the resulting mechanical properties specifically, hardness of as solidified nanostructures. Hardness is evaluated via nanoindentation simulations. The study confirms that gravitational forces significantly affect the solidification pathways of Al Cu alloys. Notably, by tuning alloy composition, the influence of gravity can be modulated and in some cases, even reversed. Moreover, hardness exhibits a coupled dependence on both composition and gravity, offering a promising avenue for bottom-up design of components tailored for extraterrestrial environments. The article delves into the nanoscale physical mechanisms underlying these phenomena and outlines future directions for extending this modeling framework to broader applications.

Figures

Figures reproduced from arXiv: 2509.02798 by the authors.

Figure 1
Figure 1. Methodology of solidification analysis and nanoindentation study under varying gravity levels and copper compositions. a) Solidification [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Evolution of solid fraction as a function of temperature during heating. It shows a sharp dip in solid fraction, indicating melting. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Solid fraction evolution for Al–Cu alloys (5, 10, and 18 wt.%) under different gravity conditions. Earth and Martian gravity accelerate solidification in dilute alloys, whereas microgravity reverses this trend, favoring FCC growth in Cu-rich systems. 3. Analysis and Discussion 3.1. Effect of Reduced Gravity and Cu Composition on Solid Fraction Evolution For every MD simulation snapshot, solid fraction is extracted u… view at source ↗
Figures from the paper (12 more)
Figure 4
Figure 4. Figure 4: Solid fraction evolution at constant Cu contents under different gravitational fields. Dilute alloys solidify more readily at high gravity, whereas Cu-rich alloys solidify more effectively under reduced gravity [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Microstructure evolution of Al–5 wt.% Cu alloy under Earth, Martian, Lunar, and microgravity at different times. Gravity accelerates nucleation and growth, while microgravity delays solidification and produces more uniform structures [PITH_FULL_IMAGE:figures/full_fig_…
Figure 6
Figure 6. Figure 6: Microstructure evolution of Al–Cu alloys under Earth gravity. Dilute alloys solidify faster and more directionally, while Cu-rich systems develop slower fronts and stacking irregularities. to-equiaxed transitions due to melt convection. Similarly, Zhang et al. [39] dem…
Figure 7
Figure 7. Figure 7: Microstructure evolution of Al–Cu alloys under microgravity. High-Cu alloys solidify more efficiently under reduced gravity due to uniform solute distribution and stabilized fronts. 3.3. Evolution of Dislocation Density during Solidification Dislocations are line defec…
Figure 8
Figure 8. Figure 8: Dislocation density evolution for Al–Cu alloys at different gravity levels: a) Earth, b) Martian, c) Lunar, and d) micro gravity. Gravity enhances dislocations in dilute alloys, while microgravity promotes dislocations in Cu-rich alloys due to uniform solute distributi…
Figure 9
Figure 9. Figure 9: Variation of dislocation density with gravity level for [PITH_FULL_IMAGE:figures/full_fig_p012_9.png]
Figure 10
Figure 10. Figure 10: Nanoindentation force–depth curves for Al–Cu alloys with different Cu contents (a) 5%, b) 10%, and c) 18%) under varying gravity levels. Gravity strongly enhances indentation resistance in dilute alloys, but its effect is reduced at higher Cu contents [PITH_FULL_IMAG…
Figure 11
Figure 11. Figure 11: Nanoindentation response of Al–Cu alloys under different gravity conditions with varying Cu contents. a) Earth, b) Martian, c) Lunar, and d) Micro gravity. Earth gravity shows decreasing hardness with increasing Cu, while microgravity exhibits the opposite trend due t…
Figure 12
Figure 12. Figure 12: Dislocation structures’ evolution during nanoindentation of Al–5 wt.% [PITH_FULL_IMAGE:figures/full_fig_p015_12.png]
Figure 13
Figure 13. Figure 13: Dislocation analysis of Al–Cu alloys under microgravity at 5 wt.%, 10 wt.%, and 18 wt.% Cu. Higher Cu promotes lattice distortions and dislocation nucleation, with 18 wt.% showing the greatest defect density [PITH_FULL_IMAGE:figures/full_fig_p016_13.png]
Figure 14

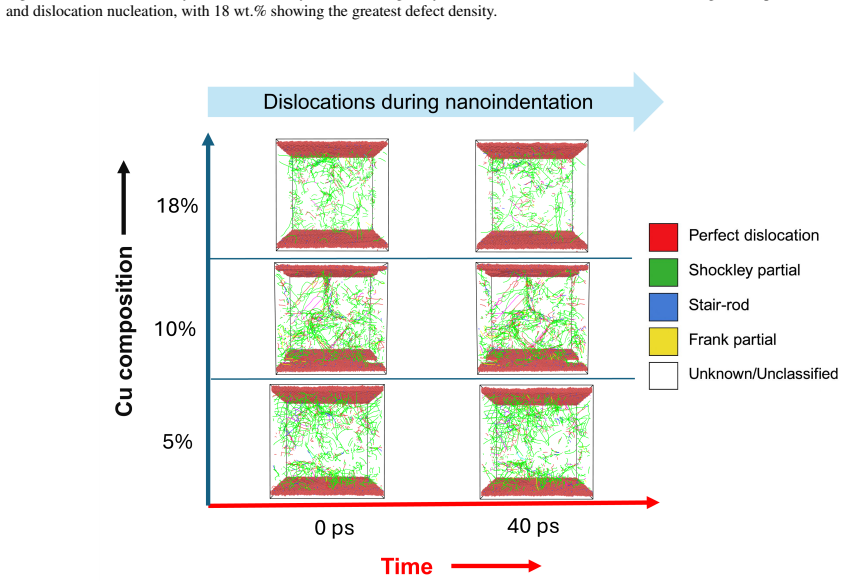

Figure 14. Figure 14: Dislocation analysis of Al–Cu alloys under Earth gravity at 5 wt.%, 10 wt.%, and 18 wt.% Cu. Unlike the microgravity case, higher Cu suppresses defect formation, with 5 wt.% Cu showing the most active dislocation network. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_14.png]
Figure 15
Figure 15. Figure 15: Mechanistic link between hardness and solidification history. Hardness trends reflect the combined influence of gravity-driven defect [PITH_FULL_IMAGE:figures/full_fig_p017_15.png]

Discussion (0). Sign in to comment.

Reference graph

Works this paper leans on

45 extracted references · 40 canonical work pages

  1. [1]

    Sowards, Welding in space: Past, present, and future, in: 2023 AWS Professional Program, 2023

    J. Sowards, Welding in space: Past, present, and future, in: 2023 AWS Professional Program, 2023

    work page 2023

  2. [2]

    McCoy, Beyond earth: Surveying public opinion on space exploration and space settlement in the united states (2021), in: AIAA SCITECH 2024 Forum, 2024, p

    C. McCoy, Beyond earth: Surveying public opinion on space exploration and space settlement in the united states (2021), in: AIAA SCITECH 2024 Forum, 2024, p. 2171

    work page 2021

  3. [3]

    A. J. Subin, J. Jackson, J. Foster, T. Silva, E. Markham, P. L. Menezes, In-space manufacturing: Technologies, challenges, and future horizons, Journal of Manufacturing and Materials Processing 9 (2025) 84

    work page 2025

  4. [4]

    Bourgeois, Convection e ffects on Skylab experiments M551, M552, and M553, phase C report, Technical Report, 1973

    S. Bourgeois, Convection e ffects on Skylab experiments M551, M552, and M553, phase C report, Technical Report, 1973

    work page 1973

  5. [5]

    Peebles, Review of electron beam welding technology for aerospace and space manufacturing, Journal of Manufacturing Processes 45 (2019) 255–268

    M. Peebles, Review of electron beam welding technology for aerospace and space manufacturing, Journal of Manufacturing Processes 45 (2019) 255–268

    work page 2019

  6. [6]

    Reitz, C

    B. Reitz, C. Lotz, N. Gerdes, S. Linke, E. Olsen, K. Pflieger, S. Sohrt, M. Ernst, P. Taschner, J. Neumann, E. Stoll, L. Overmeyer, Additive Manufacturing Under Lunar Gravity and Microgravity, Microgravity Science and Technology 33 (2021) 25. doi:10.1007/s12217-021-09878- 4

    work page doi:10.1007/s12217-021-09878- 2021

  7. [7]

    Zocca, J

    A. Zocca, J. Wilbig, A. Waske, J. G ¨unster, M. P. Widjaja, C. Neumann, M. Clozel, A. Meyer, J. Ding, Z. Zhou, X. Tian, Challenges in the Technology Development for Additive Manufacturing in Space, Chinese Journal of Mechanical Engineering: Additive Manufacturing Frontiers 1 (2022) 100018. doi:10.1016/j.cjmeam.2022.100018

    work page arXiv 2022

  8. [8]

    O’Connor, J

    A. O’Connor, J. M. Bonebrake, T. C. Bryan, Z. S. Courtright, C. T. Cowen, E. R. Crabtree, W. C. Evans, E. K. Jaynes, J. C. Ivester, L. S. Littles, et al., Establishing an in-space joining ecosystem at nasa marshall space flight center via laser beam welding, in: AIAA SCITECH 2025 Forum, 2025, p. 1784

    work page 2025

Show all 45 references
  1. [9]

    Snyder, J

    M. Snyder, J. Dunn, E. Gonzalez, The E ffects of Microgravity on Extrusion Based Additive Manufacturing, in: AIAA SPACE 2013 Conference and Exposition, American Institute of Aeronautics and Astronautics, San Diego, CA, 2013. doi:10.2514/6.2013-5439

    2013 doi

  2. [10]

    Ishfaq, M

    K. Ishfaq, M. Asad, M. A. Mahmood, M. Abdullah, C. Pruncu, Opportunities and challenges in additive manufacturing used in space sector: a comprehensive review, Rapid Prototyping Journal 28 (2022) 2027–2042. doi:10.1108/RPJ-05-2022-0166

    2022 doi

  3. [11]

    Sacco, S

    E. Sacco, S. K. Moon, Additive manufacturing for space: status and promises, The International Journal of Advanced Manufacturing Technology 105 (2019) 4123–4146. doi:10.1007/s00170-019-03786-z

    2019 doi

  4. [12]

    J. C. Steuben, A. P. Iliopoulos, J. G. Michopoulos, Discrete element modeling of particle-based additive manufacturing processes, Computer Methods in Applied Mechanics and Engineering 305 (2016) 537–561. doi:10.1016/j.cma.2016.02.023

    2016 doi

  5. [13]

    K ¨orner, A

    C. K ¨orner, A. Bauereiß, E. Attar, Fundamental consolidation mechanisms during selective beam melting of powders, Modelling and Simulation in Materials Science and Engineering 21 (2013) 085011. doi:10.1088/0965-0393/21/8/085011

    2013 doi

  6. [14]

    Ninpetch, P

    P. Ninpetch, P. Kowitwarangkul, S. Mahathanabodee, R. Tongsri, P. Ratanadecho, Thermal and Melting track Simulations of Laser Powder Bed Fusion (L-PBF), IOP Conference Series: Materials Science and Engineering 526 (2019) 012030. doi:10.1088/1757-899X/526/1/012030

    2019 doi

  7. [15]

    Kumar, O

    P. Kumar, O. Prakash, U. Ramamurty, Micro-and meso-structures and their influence on mechanical properties of selectively laser melted Ti-6Al-4V, Acta Materialia 154 (2018) 246–260. doi:10.1016/j.actamat.2018.05.044

    2018 doi

  8. [16]

    Tong, Z.-f

    R.-t. Tong, Z.-f. Quan, B. Han, G. Liu, Coarse-grained molecular dynamics simulation on friction behaviors of textured ag-coating under vacuum and microgravity environments, Surface and Coatings Technology 359 (2019) 265–271. doi:10.1016/j.surfcoat.2018.12.085

    2019 doi

  9. [17]

    Baghel, M

    V . Baghel, M. Ranjan, Numerical estimation of droplet motion on linear wettability gradient surface in microgravity environment, Materials Today Communications 32 (2022) 103916. doi:10.1016/j.mtcomm.2022.103916

    2022

  10. [18]

    X. Guo, X. Gan, H. Niu, B. Huang, W. Hu, Unraveling the mechanisms of aluminum solidification under hyper-gravity condition from molecular dynamics simulations, Journal of Applied Physics 132 (2022) 025101. doi:10.1063/5.0090633

    2022 doi

  11. [19]

    R. Tong, B. Han, X. Zhang, T. Zhang, Q. Zeng, G. Liu, Molecular Dynamics Simulation on Collision Frictional Properties of a Molybdenum Disulfide (MoS2) Film in Microgravity Environment, Microgravity Science and Technology 33 (2021) 47. doi:10.1007/s12217-021-09896-2

    2021 doi

  12. [20]

    Faiyad, M

    A. Faiyad, M. A. M. Munshi, M. M. Islam, S. Saha, Deformation mechanisms of inconel-718 at the nanoscale by molecular dynamics, Physical Chemistry Chemical Physics 23 (2021) 10650–10661

    2021

  13. [21]

    Islam, S

    K. Islam, S. Saha, A. K. M. Masud, Molecular dynamics simulation of the mechanical properties of cnt–polyoxymethylene composite with a reactive forcefield, Molecular Simulation 46 (2020) 380–387

    2020

  14. [22]

    Mahata, M

    A. Mahata, M. A. Zaeem, M. I. Baskes, Understanding homogeneous nucleation in solidification of aluminum by molecular dynamics simulations, Modelling and Simulation in Materials Science and Engineering 26 (2018) 025007. doi:10.1088/1361-651X/aa9f36

    2018 doi

  15. [23]

    Fujinaga, Y

    T. Fujinaga, Y . Shibuta, Molecular dynamics simulation of athermal heterogeneous nucleation of solidification, Computational Materials Science 164 (2019) 74–81. doi:10.1016/j.commatsci.2019.03.061

    2019 doi

  16. [24]

    Haapalehto, T

    M. Haapalehto, T. Pinomaa, L. Wang, A. Laukkanen, An atomistic simulation study of rapid solidification kinetics and crystal defects in dilute Al–Cu alloys, Computational Materials Science 209 (2022) 111356. doi:10.1016/j.commatsci.2022.111356

    2022

  17. [25]

    K. Li, D. Li, J. Liang, Y . Ye, Y . Liao, R. Liu, Y . Mo, Performance analysis of parallel algorithms in physics simulation for molecular dynamics simulation liquid metals solidification processes, Computers & Fluids 110 (2015) 19–26. doi:10.1016/j.compfluid.2014.12.016

    2015 doi

  18. [26]

    Plimpton, Fast parallel algorithms for short-range molecular dynamics, Journal of Computational Physics 117 (1995) 1–19

    S. Plimpton, Fast parallel algorithms for short-range molecular dynamics, Journal of Computational Physics 117 (1995) 1–19. doi:10.1006/jcph.1995.1039

    1995

  19. [27]

    Cai, Y .-Y

    J. Cai, Y .-Y . Ye, Simple analytical embedded-atom-method model including a long-range force for face-centered cubic metals and their alloys, Physical Review B 54 (1996) 8398–8410. doi:10.1103/PhysRevB.54.8398

    1996 doi

  20. [28]

    T. J. Williams, C. Beckermann, Benchmark Al–Cu solidification experiments in microgravity and on earth, Metallurgical and Materials Transactions A 54 (2023) 405–422. doi:10.1007/s11661-022-06909-6

    2023 doi

  21. [29]

    C. L. Kelchner, S. J. Plimpton, J. C. Hamilton, Dislocation nucleation and defect structure during surface indentation, Phys. Rev. B 58 (1998) 11085–11088. doi:10.1103/PhysRevB.58.11085

    1998 doi

  22. [30]

    Dai, S.-H

    F.-Z. Dai, S.-H. Yuan, Y .-B. Hao, X.-F. Gu, S. Zhu, J. Hu, Y . Xu, A generic and automated methodology to simulate melting point (2024). arXiv:2408.17270

    2024 arXiv

  23. [31]

    Rahmani, J

    F. Rahmani, J. Jeon, S. Jiang, S. Nouranian, Melting and solidification behavior of cu /al and ti/al bimetallic core/shell nanoparticles during additive manufacturing by molecular dynamics simulation, Journal of Nanoparticle Research 20 (2018) 133. doi:10.1007/s11051-018-4237-z. 19

    2018 doi

  24. [32]

    P. Puri, V . Yang, Effect of particle size on melting of aluminum at nano scales, The Journal of Physical Chemistry C 111 (2007) 11776–11783. doi:10.1021/jp0724774

    2007 doi

  25. [33]

    Huang, G.-F

    R. Huang, G.-F. Shao, X.-M. Zeng, Y .-H. Wen, Diverse melting modes and structural collapse of hollow bimetallic core–shell nanoparticles: A perspective from molecular dynamics simulations, Scientific Reports 4 (2014) 7051. doi:10.1038/srep07051

    2014 doi

  26. [34]

    Zhang, X

    L. Zhang, X. Gao, Z. Zhang, M. Zhang, Y . Cheng, J. Su, A doping lattice of aluminum and copper with accelerated electron transfer process and enhanced reductive degradation performance, Scientific Reports 6 (2016) 31797. doi:10.1038/srep31797

    2016 doi

  27. [35]

    J. D. Honeycutt, H. C. Andersen, Molecular dynamics study of melting and freezing of small lennard-jones clusters, The Journal of Physical Chemistry 91 (1987) 4950–4963. doi:10.1021/j100303a014

    1987 doi

  28. [36]

    Okamoto, T

    H. Okamoto, T. Massalski, et al., Binary alloy phase diagrams, ASM International, Materials Park, OH, USA 12 (1990) 3528–3531

    1990

  29. [37]

    T. B. Massalski, H. Okamoto, P. R. Subramanian, L. Kacprzak (Eds.), Binary Alloy Phase Diagrams, 2nd ed., ASM International, Materials Park, OH, 1990. Comprehensive compilation of experimentally evaluated binary alloy phase diagrams

    1990

  30. [38]

    H. Gu, L. Li, Computational fluid dynamic simulation of gravity and pressure e ffects in laser metal deposition for potential additive manu- facturing in space, International Journal of Heat and Mass Transfer 140 (2019) 51–65. doi:10.1016/j.ijheatmasstransfer.2019.05.081

    2019 doi

  31. [39]

    Zhang, X

    G. Zhang, X. Luo, Y . Li, S. Liu, Comparative study of gravity e ffects in directional solidification of Al–3.5 wt.% Si and Al–10 wt.% Cu alloys, npj Microgravity 10 (2024) 114. doi:10.1038/s41526-024-00454-9

    2024 doi

  32. [40]

    L. L. Regel, W. R. Wilcox, Improved Crystal Quality by Detached Solidification in Microgravity, Contractor or Grantee Report; presented at NASA Microgravity Materials Science Conference, NASA, 1999. NASA Document ID 19990040332; Microgravity Materials Science Conference

    1999

  33. [41]

    P. M. Anderson, J. P. Hirth, J. Lothe, Theory of dislocations, Cambridge University Press, 2017

    2017

  34. [42]

    P. Gong, T. Kwok, Y . Wang, H. Dawson, R. Goodall, D. Dye, W. M. Rainforth, A multi-scale microstructure to address the strength-ductility trade off in high strength steel for fusion reactors, Nature Communications 16 (2025) 2746

    2025

  35. [43]

    Sadeghi, E

    A. Sadeghi, E. Kozeschnik, Modeling the evolution of the dislocation density and yield stress of al over a wide range of temperatures and strain rates, Metallurgical and Materials Transactions A 55 (2024) 1643–1653. doi:10.1007/s11661-024-07358-z

    2024 doi

  36. [44]

    N. P. Bansal, R. H. Doremus, Hardness and elastic modulus of al–cu nanocrystals by nanoindentation, Journal of Materials Research 26 (2011) 499–505. doi:10.1557/jmr.2011.45

    2011 doi

  37. [45]

    Y . Zhou, X. Li, H. Wang, Y . Chen, Mechanical characterization of al and al–cu microelectromechanical films by nanoindentation, Materials & Design 235 (2024) 112345. doi:10.1016/j.matdes.2024.112345. 20

    2024

Pith tools

Reviewed August 5, 2026 · model on record in the stance chip above.
