Long-distance reconstruction of QED corrections to the hadronic vacuum polarization for the muon g-2

T0 review · 3 major / 5 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The long-distance QED correction to the hadronic vacuum polarization can be reconstructed from the rho and pion-photon finite-volume states, cutting statistical noise on the hardest diagram by more than a factor of five.

desk verdict The isospin relations are new and the method is promising, but the individual-diagram reconstruction leans on an untested D1-dominance assumption that the noise-reduction claim depends on. read the letter →

arxiv 2508.21685 v1 pith:VTG3AZ73 submitted 2025-08-29 hep-lat hep-phhep-th

Christoph Lehner , Julian Parrino , Andreas Völklein This is my paper
classification hep-lathep-phhep-th PACS 12.38.Gc
keywords latticeQCD+QEDmuong-2hadronicvacuumpolarizationlong-distancereconstructionpion-photonstatesfinite-volumediagramrelationsQEDcorrections
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the long-distance tail of QED corrections to the hadronic vacuum polarization, one of the main lattice bottlenecks for the muon g-2, can be computed from first principles by reconstructing the contributions of a small set of exclusive finite-volume states rather than measuring the noisy correlator directly. The authors identify relations between the pion-photon contributions of individual QCD+QED diagrams, allowing the dominant diagrams to be analyzed separately. Using lattice data at one lattice spacing and a pion mass of about 275 MeV, they show that the reconstructed rho and pion-photon states reproduce the long-distance integrand and reduce statistical noise on the noisy (S) diagram by more than a factor of five. If correct, this removes a major obstacle to matching the precision of the muon g-2 experiment.

What carries the argument

The central mechanism is a two-state reconstruction using a correlation matrix built from the vector current operator and a pion-photon operator. The pion-photon operator is formed by combining a charged pion with a transversely polarized photon in a definite octahedral-group channel, so that it can be used in a GEVP-like fit. The load-bearing identities are the diagram relations of Eq. (40), derived by comparing correlators with different isospin and quark-charge assignments; they relate the pion-photon contributions of diagrams (F), (V), (S), and (D1) and imply a strong cancellation in the physical combination. These relations let the authors reconstruct individual noisy diagrams from fitt

What would settle it

Compute the pion-photon contribution of diagram (D1) on the same ensemble; if it is comparable in size to the combination (V) + 2(S), the reconstruction is incomplete. Alternatively, perform a direct, high-statistics inclusive calculation of the long-distance G^(2)(t) integrand at physical pion mass and compare it with the reconstructed rho-plus-pion-photon sum.

Watch

Extended reading notes

Core claim

The paper claims that, at the pion mass studied, the long-distance part of the second-order QED contribution to the vector-vector correlator is dominated by two finite-volume states: the rho and the lowest pion-photon state. The authors construct a two-operator correlation matrix containing the physical vector current and a pion-photon operator, fit the energies and overlaps of both states, and use isospin and charge-assignment relations to connect the pion-photon contributions of diagrams (V), (S), (F), and (D1). These relations, summarized in Eq. (40), allow the pion-photon part of the noisy diagram (S) to be reconstructed from the cleaner pion-photon operator data. The numerical demonstra

Load-bearing premise

The numerical reconstruction assumes that diagram (D1) is negligible; if it is not, the relations of Eq. (40) do not by themselves determine the individual pion-photon pieces, and the agreement shown in the figures is conditional on that assumption.

Editorial extensions

If this is right

  • The long-distance tail of e^2 G^(2)(t) can be computed without relying on model-based replacements or truncations, improving the first-principles status of the QED correction to the hadronic vacuum polarization.
  • The pion-photon contribution can be separated from the rest of the QED corrections, making it possible to subtract the finite-volume QED_L pion-photon part and add back an infinite-volume QED calculation.
  • The noise reduction, demonstrated as greater than a factor of five on diagram (S), directly translates into a reduction in the computational cost or uncertainty of the final g-2 contribution.
  • At physical pion mass, the method extends by adding two-pion operators and states, so the approach is not limited to the heavy-pion demonstration presented here.
  • The diagram relations could also be used to construct correlator combinations in which the pion-photon contribution is absent, an alternative to reconstruction that may be useful in other QCD+QED observables.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same reconstruction strategy, with appropriate operators, is likely applicable to the QED corrections of other long-distance-dominated observables, such as hadronic light-by-light pieces, where pion-photon states play a similar role.
  • A testable extension is to apply the method at physical pion mass with multi-pion operators; if the reconstructed and direct inclusive long-distance integrands agree there, the method's practical validity would be established beyond the single heavy-pion ensemble.
  • The strong suppression of the pion-photon contribution in the physical combination suggests that model-based estimates of this long-distance piece, currently used in some calculations, may be less numerically important than previously thought—though the size of the neglected sub-leading diagrams still needs to be checked.
  • If diagram (D1) is found to be non-negligible, the relations of Eq. (40) would need to be extended with additional independent measurements; the current demonstration would then serve as a proof of the reconstruction machinery rather than a complete numerical result.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a method to reconstruct the long-distance part of the O(e^2) QED corrections to the hadronic vacuum polarization (HVP) from exclusive finite-volume states. Working in QCD+QED with a two-state truncation (rho and pi-gamma), the authors derive isospin/charge relations, Eq. (40), linking the pi-gamma contributions of diagrams (V), (S), (D1), and (F). They extract the pi-gamma energy and overlap factors from off-diagonal correlators and, after subtracting the pi-gamma contribution from the vector-vector correlator, fit the QED corrections to the rho parameters. Numerical results on one RBC/UKQCD ensemble at a^{-1}≈1.73 GeV and m_pi≈275 MeV are shown for the integrand t^4 G^(2)(t), including a claimed statistical noise reduction by more than a factor of five for diagram (S).

Significance. If the approach is viable, it addresses a known bottleneck in lattice HVP calculations: the long-distance QED corrections are currently modeled or truncated rather than computed from first principles. The isospin decomposition leading to Eq. (40) is explicit and checkable, and the numerical demonstration is internally consistent, with fitted effective masses, overlaps, and subtracted fits displayed. The main idea of reconstructing the pi-gamma and rho contributions to individual diagrams is attractive and potentially impactful for the g-2 precision program.

major comments (3)
  1. [Sec. III, Eq. (40)] The per-diagram pi-gamma reconstruction sets (D1)=0 through the assumption stated as 'assuming dominance over diagram (D1) for now.' Because Eq. (40) gives 2(S)-(D1)=(V), this forces (S)=V/2. The coefficient of (D1) in Eq. (3) is 25/162, comparable to the coefficients of (V) and (S), so the assumption is not a priori safe. Consequently the 'pi-gamma reconstruction' curves in Figs. 4 and 6 for (S), and hence the factor-of-five noise-reduction claim for diagram (S) in Fig. 7, are conditional on an untested assumption. The paper would need a numerical estimate or bound for the (D1) pi-gamma amplitude, or an independent means of fixing the split, before the individual-diagram reconstruction can be regarded as validated.
  2. [Sec. II A, Eq. (14)] The overlap |V_{1,pi-gamma}^{(1)}| is extracted from the same two-state effective model used to form the reconstructed pi-gamma contribution to G^(2). Thus the agreement in Figs. 4 and 6 is a self-consistency check of the model together with Eq. (40) under the D1 assumption, not an independent prediction of the vector-vector correlator. The paper should state this clearly and provide a direct test of the two-state ansatz, for example by comparing the reconstructed inclusive G^(2) against the raw correlator in the mid-time window or by adding a third operator to the GEVP.
  3. [Sec. III, Figs. 4-7] The numerical demonstration is at a single lattice spacing, a single unphysical pion mass (m_pi≈275 MeV), and m_pi L=3.8, with no systematic assessment of excited-state contamination or finite-volume QED effects. The fits include excited states, but no stability analysis or alternate fit ranges are shown, and the claimed noise reduction is not quantified with statistical errors before and after reconstruction. These limitations are acknowledged in the text as future work, but they should be reflected in the abstract and conclusion, where the strength of 'high-precision' and 'more than a factor of five' currently exceeds what one ensemble can establish.
minor comments (5)
  1. [Sec. I] Typo: 'correctons' should be 'corrections'; also 'Mobius' should be 'Möbius' if a unified spelling is desired.
  2. [Figs. 4 and 6] The legend labels are confusing: some panels are labelled '(V)' and others '(L)', and the meaning of the open symbols versus lines is not fully defined. Please use consistent labels and clarify which curves correspond to the direct lattice data and which to the reconstruction.
  3. [Sec. III, Fig. 7] The 'more than a factor of five' noise reduction is stated without a precise statistical comparison. A small table with the errors of the partial sums with and without reconstruction at representative t values would make the claim quantitative and reproducible.
  4. [Sec. II C] The third relation in Eq. (40) involving (T), (Td), (D1d), (D3), (D2d), and (D2) is derived but not used in the reconstruction. A short comment on why it is not exploited and whether it could provide a cross-check would be helpful.
  5. [Sec. III] The statement that the comparison in Fig. 4 is incomplete without vector-current renormalization is made but not elaborated. Since the pi-gamma contribution is unaffected by Z_V^QED, it would be useful to state explicitly which reconstructed quantities do and do not depend on the missing renormalization.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the diagram relations are derived from first principles and the numerical reconstruction is a transparent fit-based method, not a prediction from its own inputs.

full rationale

The central derivation (Sec. II C, Eq. (40)) obtains the relations (F)=(V) and 2(S)-(D1)=(V) by comparing isospin/charge decompositions of vector-vector and pion-photon-vector correlators. This is a first-principles result; it does not assume the target reconstruction. The numerical reconstruction uses |V^(1)_{1,pi-gamma}| fitted from the off-diagonal correlator C21 (Sec. II A/III), not from the individual diagram data it is compared against in Figs. 4 and 6. The comparison is therefore a genuine cross-check of the relations and the D1≈0 assumption, not a fit to the same data relabeled as a prediction. The paper explicitly labels the D1 neglect as an assumption ('assuming dominance over diagram (D1) for now') and lists it as future work; this is a limitation, not a circular step. The leading-order rho parameters are taken from a separate published lattice study [8]; this is external support, not a self-citation chain. No fitted parameter is renamed as a prediction, and no uniqueness theorem is imported from the authors' prior work. The method is self-contained and the numerical demonstration is honestly presented as a reconstruction.

Assumptions & free parameters 6 free parameters · 6 assumptions · 0 invented entities

The numerical claim is built on a set of fitted spectral parameters and several simplifying assumptions. None of these is hidden, but a high-precision physical result would require removing the D1 assumption, adding renormalization, and extending to physical pion mass and multiple lattice spacings.

free parameters (6)
  • E^(0)_(pi-gamma) = E_pi + E_gamma = fitted from C22 effective masses (Fig. 2)
    The reconstructed long-distance tail depends on the energy of the lowest pion-photon state.
  • |V^(1)_(2,pi-gamma)| = fitted from C22 (Fig. 2)
    Normalization of the pion-photon state in the two-operator correlation matrix.
  • |V^(1)_(1,pi-gamma)| = fitted from C21 (Fig. 3)
    Amplitude with which the vector current creates the pion-photon state; used to rebuild the pion-photon contribution to G^(2).
  • c^(2)_rho = 2Re(V^(0)_(1,rho) V^(2)*_(1,rho)) = fit to C11 after pion-photon subtraction (Fig. 5)
    QED correction to the rho amplitude in the vector-vector correlator.
  • c^(0)_rho E^(2)_rho = |V^(0)_(1,rho)|^2 E^(2)_rho = fit to C11 after pion-photon subtraction (Fig. 5)
    QED correction to the rho energy multiplied by the leading-order amplitude.
  • V^(0)_(1,rho) and E^(0)_rho = from leading-order GEVP of Ref. [8]
    Inputs from a previous pure-QCD analysis; the central claim inherits their uncertainties.
assumptions (6)
  • domain assumption At order e^2, the finite-volume spectral decomposition approximates the long-distance part of G by the rho and pion-photon states only.
    Used in the two-operator correlation matrix Eq. (11)-(14); at physical pion mass two-pion states would need to be added (Sec. II A).
  • domain assumption The pion-photon operator counts as order e in the power counting, and cross terms between rho and pion-photon vanish at leading order.
    Leads to the block-diagonal structure in Eq. (14).
  • ad hoc to paper Diagram (D1) is negligible relative to (V), (S), and (F) for the pion-photon reconstruction.
    Section III states 'assuming dominance over diagram (D1) for now'; if false, the reconstructed individual diagram contributions are incomplete.
  • domain assumption Vector-current renormalization and quark-mass shift counterterms are not needed for the long-distance reconstruction.
    Section II A states this explicitly; a final g-2 result would require them.
  • domain assumption The QED_L finite-volume regulator has a well-defined transfer matrix so that the spectral form Eq. (4) holds.
    Section I and II A; results are claimed to translate to QED_r.
  • standard math The diagram relations Eq. (40), derived for specific quark charge assignments, apply to the physical charge assignment through isospin decomposition.
    The derivations in Sec. II C use standard isospin and charge algebra.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Long-distance reconstruction of QED corrections to the hadronic vacuum polarization for the muon g-2." pith.science (2026). https://pith.science/paper/VTG3AZ73

@misc{pith2026250821685,
  author       = {Pith},
  title        = {Pith review of: Long-distance reconstruction of QED corrections to the hadronic vacuum polarization for the muon g-2},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/VTG3AZ73}},
  note         = {Machine review of arXiv:2508.21685}
}
abstract

The long-distance contribution of QED corrections to the hadronic vacuum polarization is particularly challenging to compute in lattice QCD+QED. Currently, it is one of the limiting factors towards matching the precision of the recent result by the Fermilab E989 experiment for the muon g-2. In this work, we present a method for obtaining high-precision results for this contribution by reconstructing exclusive finite-volume state contributions. We find relations between the pion-photon contributions of individual diagrams and demonstrate the reconstruction method with lattice QCD+QED data at a single lattice spacing of $a^{-1} \approx 1.73$ GeV and $m_\pi \approx 275$ MeV.

Figures

Figures reproduced from arXiv: 2508.21685 by the authors.

Figure 1

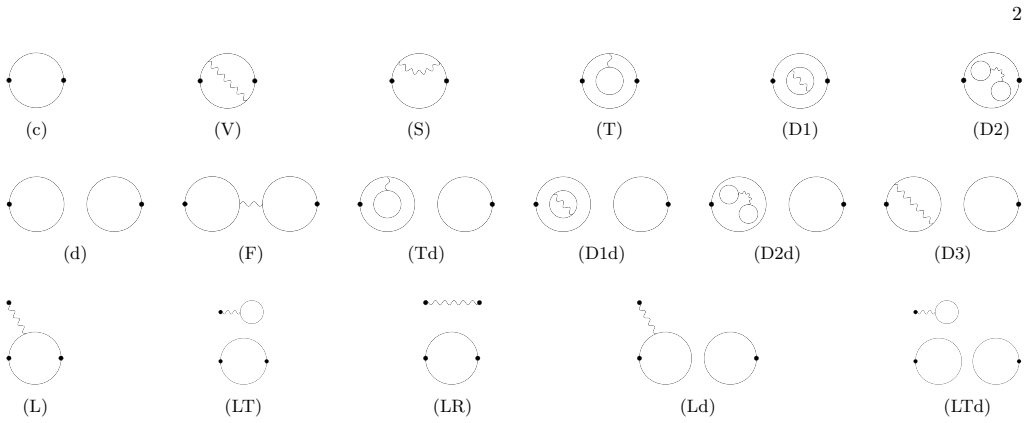

Figure 1. FIG. 1: QCD + QED diagrams considered in this work. Diagrams related by symmetry are identified by their [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2: Analysis of diagram (LR). The left plot shows the effective masses separately obtained for the photon and [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3: Analysis of diagrams (L) and (LT). The diagram (LT) is numerically negligible compared to (L) as shown in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4

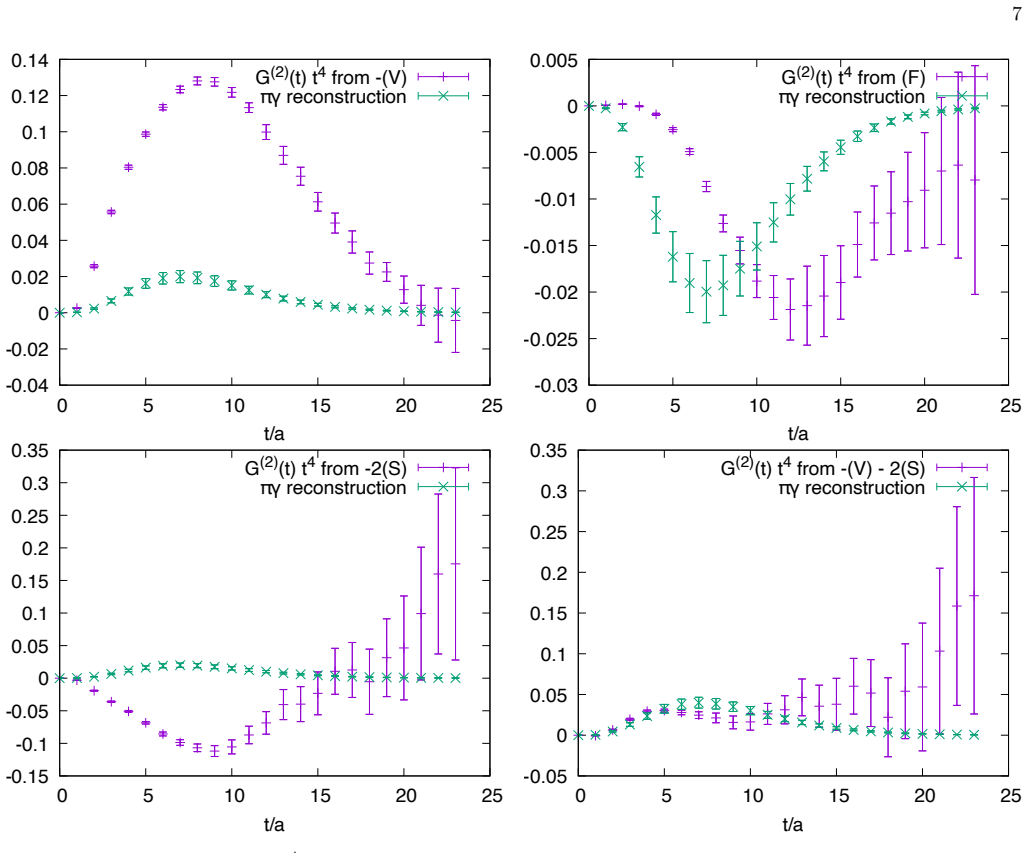

Figure 4. Figure 4: FIG. 4: Study of [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5: Fits for the QED corrections to [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6: Full reconstruction for diagrams (V), (S), and (F). [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 7

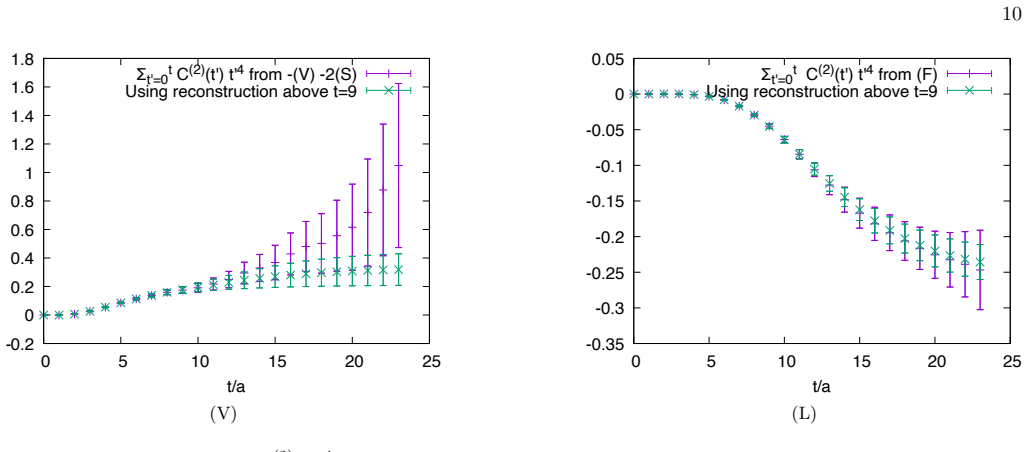

Figure 7. Figure 7: FIG. 7: Partial sum of the [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]
