Role of electrostatic forces in cluster formation in a dry ionomer

Elshad Allahyarov , Philip L. Taylor

Authors on Pith 1 claimed

Elshad Allahyarov ORCID verified

Pith reviewed 2026-05-14 20:10 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.mtrl-sci

keywords dry ionomerNafion morphologyelectrostatic interactionsdipole-dipole forcescoarse-grained simulationcluster formationGierke versus Gebel

0 comments

The pith

Dry ionomer morphology is set by the ratio of acidic-end dipole-dipole strength to the remaining electrostatic forces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper asks how electrostatic interactions alone shape the nanoscale clusters that form when a Nafion-like ionomer is completely dry. Coarse-grained simulations vary the dielectric constant, free volume, side-chain length, and the strength of the head-group dipoles, then reassemble detached chains to reach equilibrium. The resulting structures fall into two distinct classes that match the competing pictures proposed by Gierke and by Gebel. Which class appears depends on one control parameter: the relative magnitude of the dipole-dipole attraction between acidic side-chain ends compared with all other electrostatic terms in the Hamiltonian.

Core claim

When the dipole-dipole interaction between the acidic end groups is made sufficiently strong relative to the other electrostatic contributions, the simulated dry ionomer forms compact, roughly spherical clusters whose size and spacing match the morphology first proposed by Gierke; when the same ratio is reduced, the clusters instead elongate and percolate in the manner proposed by Gebel.

What carries the argument

The ratio of side-chain acidic-end dipole-dipole interaction strength to the sum of all remaining electrostatic terms in the Hamiltonian.

If this is right

Changing only the dielectric constant or the side-chain length can switch the system between the two morphologies by altering the key ratio.
Cluster size and connectivity become predictable once the dipole ratio is fixed, independent of the separate values of dielectric constant and free volume.
The same electrostatic ratio should control whether proton pathways remain isolated or form a continuous network even in the dry state.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the ratio really is the sole selector, modest chemical changes that weaken only the end-group dipoles should eliminate the compact clusters without altering backbone chemistry.
The finding supplies a simple design rule for synthesizing dry ionomers whose morphology is chosen in advance by tuning a single energy scale.

Load-bearing premise

The artificial detachment and reattachment procedure reaches the same equilibrium cluster morphologies that unbiased molecular dynamics would eventually find.

What would settle it

A single long, unbiased simulation of the intact chains at the same parameters that produces the opposite morphology from the reassembly runs would falsify the claim.

read the original abstract

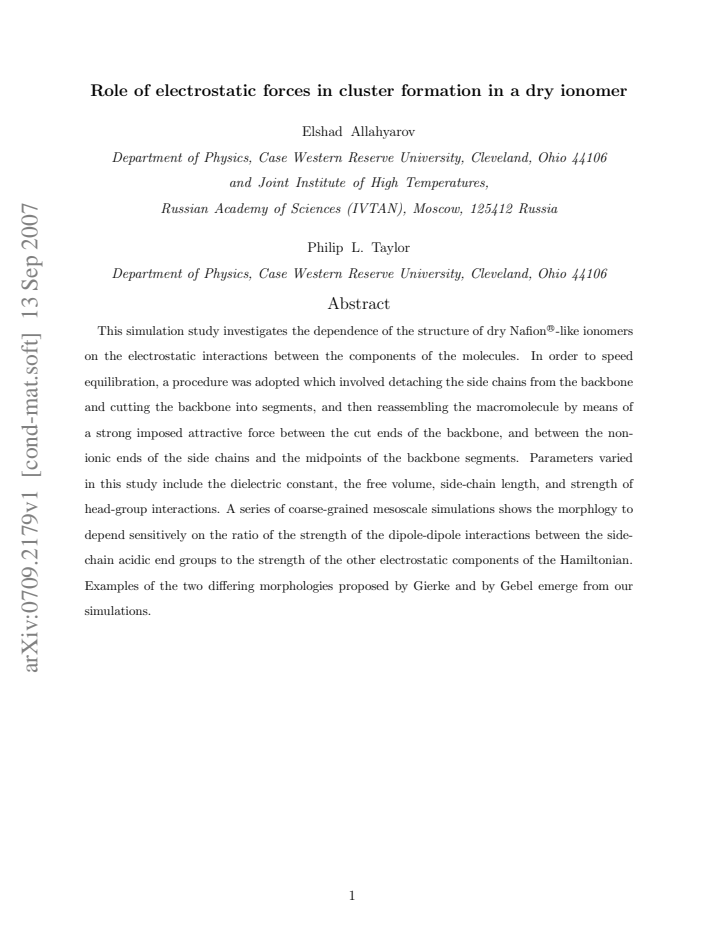

This simulation study investigates the dependence of the structure of dry Nafion$^{\tiny\textregistered}$-like ionomers on the electrostatic interactions between the components of the molecules. In order to speed equilibration, a procedure was adopted which involved detaching the side chains from the backbone and cutting the backbone into segments, and then reassembling the macromolecule by means of a strong imposed attractive force between the cut ends of the backbone, and between the non-ionic ends of the side chains and the midpoints of the backbone segments. Parameters varied in this study include the dielectric constant, the free volume, side-chain length, and strength of head-group interactions. A series of coarse-grained mesoscale simulations shows the morphlogy to depend sensitively on the ratio of the strength of the dipole-dipole interactions between the side-chain acidic end groups to the strength of the other electrostatic components of the Hamiltonian. Examples of the two differing morphologies proposed by Gierke and by Gebel emerge from our simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows both Gierke and Gebel morphologies emerging from the same coarse-grained Nafion model when the head-group dipole strength is varied relative to other electrostatic terms, but the detachment-reassembly equilibration leaves the central sensitivity claim unverified.

read the letter

The main takeaway is that a single ratio of dipole-dipole interactions to the rest of the electrostatic Hamiltonian selects between the two classic pictures of dry ionomer morphology. That mapping is new in the sense that earlier work had proposed the structures separately; here they appear as outcomes of one Hamiltonian under controlled parameter changes. The simulations also scan dielectric constant, free volume, and side-chain length, which is useful for mapping trends even if the absolute numbers are coarse-grained. Credit is due for stating the result directly from the runs rather than post-hoc fitting. The soft spot is the equilibration protocol itself. Detaching side chains, segmenting backbones, and then driving reassembly with strong imposed attractions adds non-Hamiltonian forces whose removal is not shown to leave the system in the same basin that unbiased dynamics would reach. Because the morphologies are reported to be sensitive to the very electrostatic ratio under study, any protocol bias directly affects the claimed mapping. No error bars, system-size checks, or comparison to atomistic reference data appear in the abstract, so it is impossible to judge how robust the structures are. This is the sort of work that belongs in a specialized journal on polymer electrolytes or membrane materials. A reader already thinking about Nafion design parameters will find the parameter scan worth looking at; a general soft-matter audience will not. It deserves peer review so the methods section can be examined in full, but the current abstract alone does not support strong conclusions.

Referee Report

1 major / 1 minor

Summary. The manuscript reports coarse-grained mesoscale simulations of dry Nafion-like ionomers in which side chains are detached from backbones, backbones are segmented, and the molecules are reassembled under strong imposed attractive forces. Parameters including dielectric constant, free volume, side-chain length, and head-group interaction strength are varied. The central claim is that the resulting morphology depends sensitively on the ratio of dipole-dipole interactions between acidic end groups to the remaining electrostatic terms in the Hamiltonian, and that both Gierke-type and Gebel-type morphologies can be recovered.

Significance. If the mapping from the electrostatic ratio to morphology survives validation against unbiased dynamics and atomistic benchmarks, the result would provide a concrete, falsifiable link between Hamiltonian components and experimentally relevant ionomer nanostructures.

major comments (1)

Abstract: the morphologies are obtained exclusively via an artificial detachment-reassembly protocol that adds non-Hamiltonian attractive forces. No test is reported showing that the final structures remain in the same basin once those forces are removed, yet the claimed sensitivity of morphology to the dipole-to-other-electrostatic ratio makes any protocol-induced bias directly load-bearing for the central claim.

minor comments (1)

Abstract: 'morphlogy' is a typographical error.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and for identifying a key point that bears directly on the robustness of our central claim. We address the concern below and will revise the manuscript to strengthen the validation of the reported morphologies.

read point-by-point responses

Referee: Abstract: the morphologies are obtained exclusively via an artificial detachment-reassembly protocol that adds non-Hamiltonian attractive forces. No test is reported showing that the final structures remain in the same basin once those forces are removed, yet the claimed sensitivity of morphology to the dipole-to-other-electrostatic ratio makes any protocol-induced bias directly load-bearing for the central claim.

Authors: The referee is correct that the reported structures are generated with an auxiliary attractive potential that is not part of the physical Hamiltonian. This protocol was introduced solely to accelerate equilibration of the coarse-grained chains; once assembled, the auxiliary forces are switched off and the system is evolved under the electrostatic Hamiltonian whose dipole-to-other ratio is the control parameter. We agree that an explicit demonstration that the morphologies remain stable after removal of the auxiliary forces is necessary to rule out protocol-induced bias. In the revised manuscript we will add (i) a quantitative description of the force-removal schedule and (ii) extended production runs (with the auxiliary forces set to zero) that confirm the structures remain within the same morphological class for the range of electrostatic ratios examined. revision: yes

Circularity Check

0 steps flagged

No circularity; morphologies obtained directly from coarse-grained simulations

full rationale

The paper reports morphologies produced by direct mesoscale simulations whose Hamiltonian parameters are varied explicitly. No equations, fitted functionals, or self-citations are shown that reduce any reported structural outcome to an input by construction. The equilibration protocol is a methodological choice whose correctness is independent of the parameter-to-morphology mapping that constitutes the central claim.

Axiom & Free-Parameter Ledger

3 free parameters · 2 axioms · 0 invented entities

The model rests on a coarse-grained Hamiltonian whose electrostatic terms are scaled by hand-tuned ratios; the reassembly forces are introduced ad hoc to accelerate equilibration.

free parameters (3)

dielectric constant
Varied as a control parameter; value not derived from first principles.
free volume fraction
Treated as an adjustable input.
head-group interaction strength ratio
Central scanned parameter whose value selects morphology.

axioms (2)

domain assumption Coarse-grained beads and effective potentials capture the essential electrostatic driving forces for cluster formation.
Invoked by the choice of mesoscale model.
ad hoc to paper Imposed reassembly forces do not bias the final equilibrium morphology.
Required for the equilibration protocol described.
