arxiv: 2409.18698 · v4 · submitted 2024-09-27 · 🌌 astro-ph.CO

Spectral Imaging with QUBIC: building frequency maps from Time-Ordered-Data using Bolometric Interferometry

M. Regnier , T. Laclav\`ere , J-Ch. Hamilton , E. Bunn , V. Chabirand , P. Chanial , L. Goetz , L. Kardum
show 29 more authors
A. Huchet P. Masson N. Miron Granese C.G. Sc\'occola S.A. Torchinsky E. Battistelli M. Bersanelli F. Columbro A. Coppolecchia B. Costanza P. De Bernardis G. De Gasperis S. Ferazzoli A. Flood K. Ganga M. Gervasi L. Grandsire E .Manzan S. Masi A. Mennella L. Mousset C. O'Sullivan A. Paiella F. Piacentini M. Piat L. Piccirillo E. Rasztocky M. Stolpovskiy M. Zannoni
This is my paper

Pith reviewed 2026-05-23 20:23 UTC · model grok-4.3

classification 🌌 astro-ph.CO
keywords spectral imagingbolometric interferometryCMB polarizationB-modeforeground mitigationinverse problemtensor-to-scalar ratiotime-ordered data
0
0 comments X

The pith

Bolometric interferometry reconstructs unbiased sub-frequency CMB polarization maps by modeling the frequency evolution of the synthesized beam.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a spectral-imaging technique that reconstructs sub-frequency maps of CMB polarization inside the instrument's physical bandwidth. It solves an inverse problem that uses the frequency dependence of the synthesized beam shape to recover frequency information directly from time-ordered data. External data regularizes the estimator to manage bandpass mismatch and changes in angular resolution. End-to-end simulations confirm the maps stay unbiased and support a cross-spectra forecast of σ(r) = 0.0225 after component separation.

Core claim

By modeling the frequency evolution of the synthesized beam in a bolometric interferometer and solving a regularized inverse problem on time-ordered data, sub-frequency polarization maps can be reconstructed within the instrument bandwidth, yielding unbiased maps that enable spectral imaging for foreground mitigation.

What carries the argument

The frequency evolution of the synthesized beam shape, which encodes sub-frequency information in the time domain and drives the inverse-problem estimator for map reconstruction.

If this is right

  • Reconstructed sub-frequency maps remain unbiased despite bandpass mismatch and varying angular resolution.
  • Cross-spectra analysis on simulations yields a forecasted constraint of σ(r) = 0.0225 after component separation.
  • The maps exploit the increased spectral resolution available only through bolometric interferometry.
  • Multi-frequency observations gain an internal spectral-imaging capability for foreground mitigation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The regularization step suggests the method can be combined with existing sky maps from other instruments to improve stability.
  • If the beam model transfers to real data, the approach could reduce the number of required frequency channels in future CMB surveys.
  • Similar inverse-problem techniques might apply to other time-domain interferometric observations where beam properties vary with frequency.

Load-bearing premise

The frequency evolution of the synthesized beam shape can be modeled with sufficient accuracy that an inverse-problem estimator, regularized by external data, recovers unbiased sub-frequency maps despite bandpass mismatch and varying angular resolution.

What would settle it

Reconstructed maps from end-to-end simulations that deviate systematically from the known input sub-frequency signals by more than the expected noise level would falsify the unbiased reconstruction.

Figures

Figures reproduced from arXiv: 2409.18698 by A. Coppolecchia, A. Flood, A. Huchet, A. Mennella, A. Paiella, B. Costanza, C.G. Sc\'occola, C. O'Sullivan, E. Battistelli, E. Bunn, E .Manzan, E. Rasztocky, F. Columbro, F. Piacentini, G. De Gasperis, J-Ch. Hamilton, K. Ganga, L. Goetz, L. Grandsire, L. Kardum, L. Mousset, L. Piccirillo, M. Bersanelli, M. Gervasi, M. Piat, M. Regnier, M. Stolpovskiy, M. Zannoni, N. Miron Granese, P. Chanial, P. De Bernardis, P. Masson, S.A. Torchinsky, S. Ferazzoli, S. Masi, T. Laclav\`ere, V. Chabirand.

Figure 1
Figure 1. Figure 1: Top panel: Theoretical synthesized beam for a detector at the center of the QUBIC focal plane along with with its primary beam. θ is the angle between the detector axis and the observed direction. One can clearly see the frequency-dependent position of the secondary peaks. Bottom panel: synthesized beam for one detector measured at various frequencies, from Torchinsky et al. (2022). the inverse-model appro… view at source ↗
Figure 2
Figure 2. Figure 2: Monochromatic case - From the top to the bottom: Stokes parameters I, Q, and U; from the left to the right: input, recon [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Broadband case - First row is the result of the QUBIC acquisition only with the edges e [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Broadband case - Profile of the residual RMS for Q ( [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Reconstructed spectral energy distribution (SED) of [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: 2-pt correlation function obtained from end-to-end simulations assuming [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Correlation matrix for noise reconstruction assuming [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

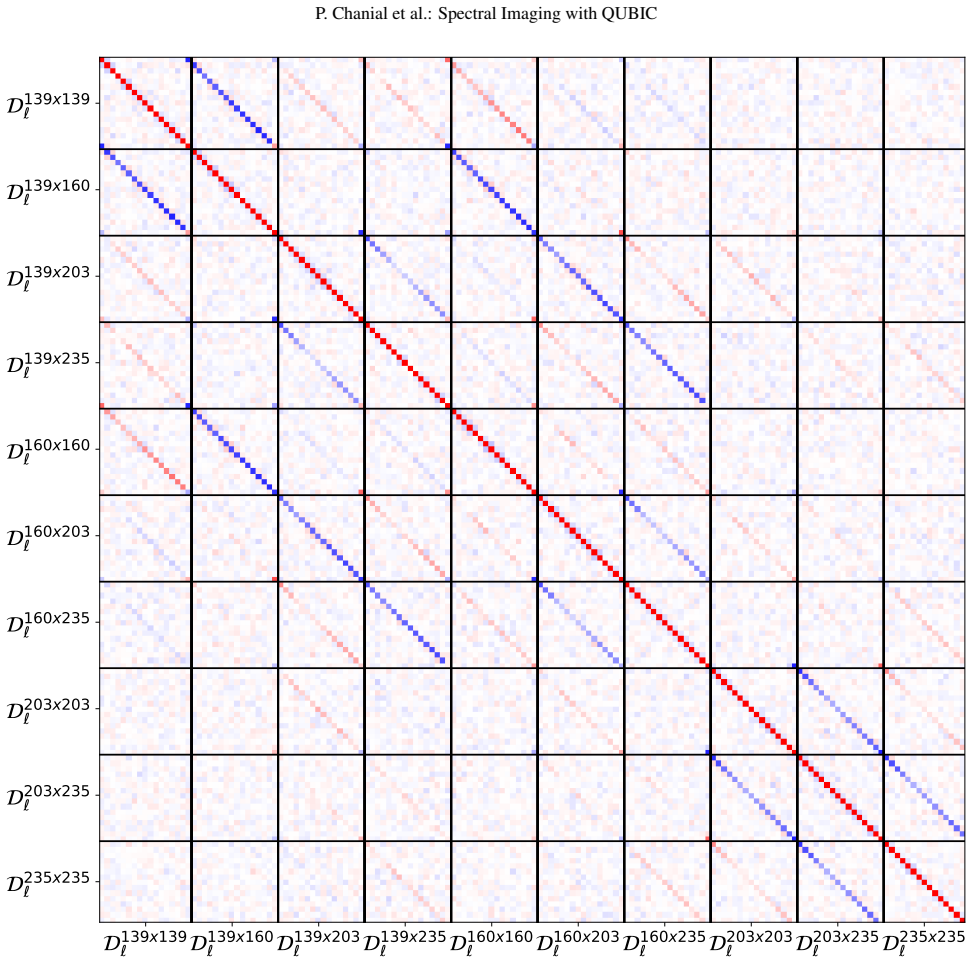

Figure 8. Figure 8: Correlation matrix for 10 pairs of cross-spectrum assuming 4 QUBIC’s reconstructed maps (2 for each physical band). [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Posterior distribution on r assuming CMB + thermal dust + noise. We assume no synchrotron contribution. information on the foregrounds within the instrumental band￾width, providing a more robust assessment of their contamina￾tion. This is particularly required in the current phase of the pri￾mordial B-modes search, where foreground complexity appears as the biggest challenge. The algorithmic complexity ind… view at source ↗
read the original abstract

The search for relics from the inflation era in the form of B-mode polarization of the CMB is a major challenge in cosmology. The main obstacle appears to come from the complexity of Galactic foregrounds that need to be removed. Multi-frequency observations are key to mitigating their contamination and mapping primordial fluctuations. We present spectral-imaging, a method to reconstruct sub-frequency maps of the CMB polarization within the instrument's physical bandwidth, a unique feature of Bolometric Interferometry that could be crucial for foreground mitigation as it provides an increased spectral resolution. Our technique uses the frequency evolution of the shape of the Bolometric Interferometer's synthesized beam to reconstruct frequency information from the time domain data. We reconstruct sub-frequency maps using an inverse problem approach based on detailed modeling of the instrument acquisition. We use external data to regularize the convergence of the estimator and account for bandpass mismatch and varying angular resolution. The reconstructed maps are unbiased and allow exploiting the spectral-imaging capacity of QUBIC. Using end-to-end simulations of the QUBIC instrument, we perform a cross-spectra analysis to extract a forecast on the tensor-to-scalar ratio constraint of $\sigma(r)= 0.0225$ after component separation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a spectral-imaging technique for the QUBIC bolometric interferometer that reconstructs sub-frequency maps of CMB polarization from time-ordered data by exploiting the frequency dependence of the synthesized beam shape. It formulates an inverse-problem estimator, regularized with external data to mitigate bandpass mismatch and resolution variations, claims the resulting maps are unbiased, and reports a forecast σ(r) = 0.0225 obtained from end-to-end simulations after component separation.

Significance. If the beam-model assumption holds, the approach would offer a distinctive capability for increasing effective spectral resolution within a single physical band, aiding foreground separation in B-mode searches. The use of end-to-end simulations to produce a concrete forecast is a positive feature of the work.

major comments (2)
  1. [Abstract] Abstract: the claim that 'the reconstructed maps are unbiased' is load-bearing for both the method and the σ(r) forecast, yet it is demonstrated solely via end-to-end simulations that embed the identical frequency-dependent beam model used by the estimator. No tests of model mismatch, focal-plane chromaticity variations, or higher-order beam effects are described, leaving the unbiasedness assertion unverified against realistic discrepancies.
  2. [Inverse-problem section] Inverse-problem section: the regularization by external data and the treatment of bandpass mismatch are stated to enable unbiased recovery, but the manuscript provides insufficient quantitative detail on the regularization strength, the external data used, or the condition number of the problem to allow independent assessment of whether residuals from beam-model error propagate into the sub-frequency maps.
minor comments (1)
  1. [Abstract] The abstract would be clearer if it specified the number of sub-frequency bins reconstructed and the precise frequency range covered by the QUBIC band.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments. We address each major comment below, indicating the revisions we will incorporate.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that 'the reconstructed maps are unbiased' is load-bearing for both the method and the σ(r) forecast, yet it is demonstrated solely via end-to-end simulations that embed the identical frequency-dependent beam model used by the estimator. No tests of model mismatch, focal-plane chromaticity variations, or higher-order beam effects are described, leaving the unbiasedness assertion unverified against realistic discrepancies.

    Authors: We agree that the demonstration of unbiased recovery is performed under the assumption that the beam model in the estimator exactly matches the one used to simulate the data. This confirms the internal consistency of the inverse-problem approach when the model is perfect. We acknowledge that the manuscript does not include explicit mismatch tests. In the revised version we will modify the abstract and relevant sections to state that the maps are unbiased assuming an accurate beam model, and we will add a dedicated paragraph discussing the sensitivity to model errors, including a qualitative estimate of their possible effect on the reported σ(r) forecast. In practice the beam model would be constrained by on-sky calibration, but we accept that this limitation should be stated more clearly. revision: partial

  2. Referee: [Inverse-problem section] Inverse-problem section: the regularization by external data and the treatment of bandpass mismatch are stated to enable unbiased recovery, but the manuscript provides insufficient quantitative detail on the regularization strength, the external data used, or the condition number of the problem to allow independent assessment of whether residuals from beam-model error propagate into the sub-frequency maps.

    Authors: We accept that additional quantitative information is required for independent evaluation. In the revised manuscript we will expand the inverse-problem section to report: the numerical value chosen for the regularization parameter and the criterion used to select it; the specific external data sets (Planck maps at 143 and 217 GHz) and the precise manner in which they enter the estimator; and the condition numbers of the system matrix with and without regularization. These additions will allow readers to assess numerical stability and the possible leakage of beam-model residuals. revision: yes

Circularity Check

0 steps flagged

No circularity: forecast derived from independent end-to-end simulations

full rationale

The paper presents an inverse-problem estimator for sub-frequency maps, regularized by external data, and states that the maps are unbiased. The σ(r)=0.0225 forecast is obtained by processing simulated time-ordered data through this pipeline and performing cross-spectra analysis. No quoted equation or step reduces the output to a fitted parameter, self-citation chain, or input by construction; the simulation provides an external test of the method under the stated modeling assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach depends on accurate forward modeling of the instrument beam and on the validity of external-data regularization; no new physical entities are postulated.

axioms (2)
  • domain assumption The frequency evolution of the synthesized beam shape is known and can be modeled from instrument design parameters.
    This modeling supplies the frequency information extracted from time-ordered data.
  • domain assumption External data regularization corrects for bandpass mismatch and resolution variation without introducing bias into the reconstructed maps.
    Invoked to stabilize the inverse-problem solution.
