Exploiting Out-of-Band Information for Millimeter-Wave MIMO Channel Estimation: Performance in Static and Dynamic Scenarios

Faruk Pasic , Mariam Mussbah , Stefan Schwarz , Markus Rupp , Christoph F. Mecklenbr\"auker This is my paper

Pith reviewed 2026-05-13 18:16 UTC · model grok-4.3

classification 📡 eess.SP
keywords mmWave MIMOchannel estimationout-of-band informationspectral efficiencysub-6 GHzstatic scenariosdynamic scenarios
0
0 comments X

The pith

Incorporating out-of-band sub-6 GHz information improves spectral efficiency for mmWave MIMO channel estimation in static and dynamic scenarios.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the use of channel information from sub-6 GHz frequencies to enhance pilot-aided channel estimation at millimeter-wave frequencies in MIMO systems. It evaluates performance in terms of spectral efficiency for various pilot configurations under line-of-sight and non-line-of-sight conditions in both static and dynamic environments. Simulation results indicate that this out-of-band information provides notable gains in spectral efficiency across these scenarios. A reader would care because future wireless systems will rely on mmWave for high data rates while coexisting with sub-6 GHz systems, making efficient channel estimation critical for latency-critical applications.

Core claim

By exploiting out-of-band sub-6 GHz channel information, mmWave MIMO systems achieve improved pilot-aided channel estimation performance, leading to notable spectral efficiency gains in both static and dynamic scenarios for line-of-sight and non-line-of-sight propagation.

What carries the argument

The mapping and incorporation of out-of-band sub-6 GHz information into mmWave channel estimation to reduce estimation errors.

If this is right

  • Enhanced spectral efficiency in mmWave deployments that coexist with sub-6 GHz systems.
  • Improved channel estimation accuracy using fewer pilots at mmWave frequencies.
  • Better system performance in both unchanging static setups and time-varying dynamic ones.
  • Applicability to both line-of-sight and non-line-of-sight propagation conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Systems could potentially lower pilot overhead at mmWave by leveraging sub-6 GHz data, freeing resources for data transmission.
  • This technique might extend to other frequency bands or multi-band systems beyond the tested conditions.
  • Real-world implementations would need robust mapping algorithms to handle propagation differences between bands.

Load-bearing premise

That accurate sub-6 GHz channel information is available and can be reliably translated to mmWave channels without significant mapping errors.

What would settle it

A measurement campaign or simulation where adding sub-6 GHz information produces no spectral efficiency improvement or degradation under realistic channel mapping conditions.

Figures

Figures reproduced from arXiv: 2604.02936 by Christoph F. Mecklenbr\"auker, Faruk Pasic, Mariam Mussbah, Markus Rupp, Stefan Schwarz.

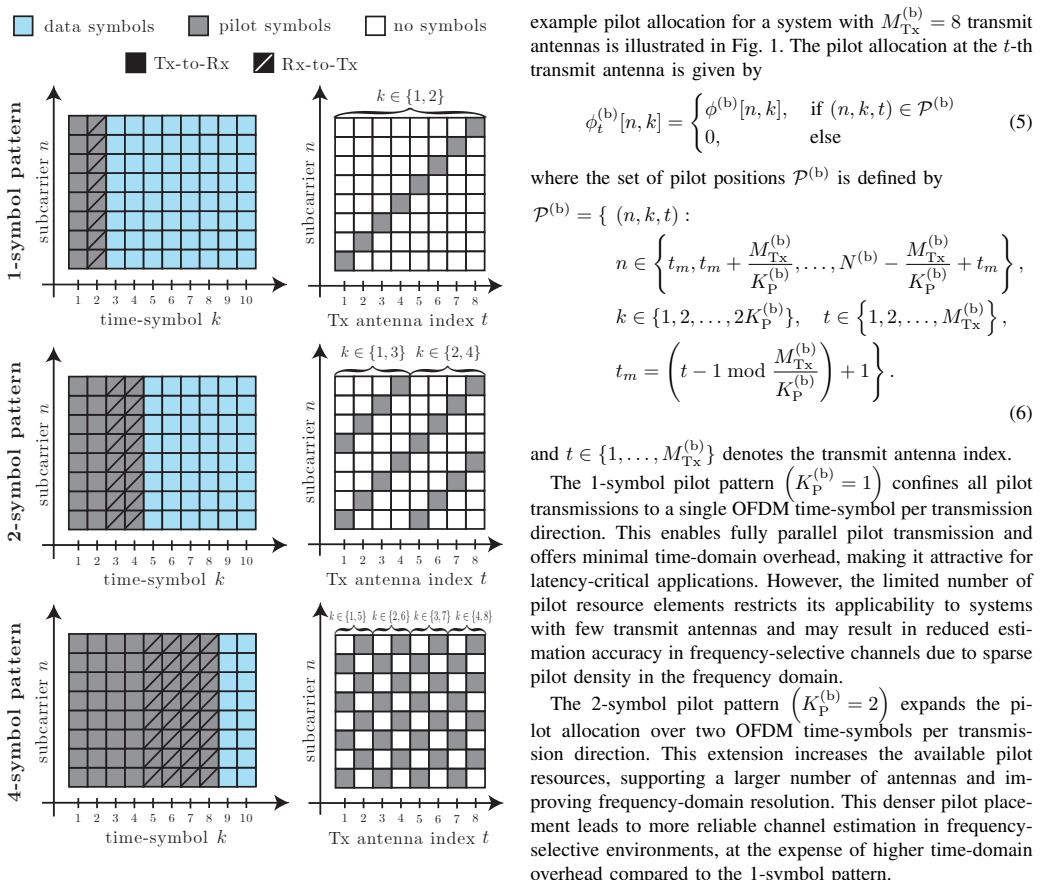

Figure 1
Figure 1. Figure 1: Pilot symbols at each antenna occupy a certain number of subcarriers [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

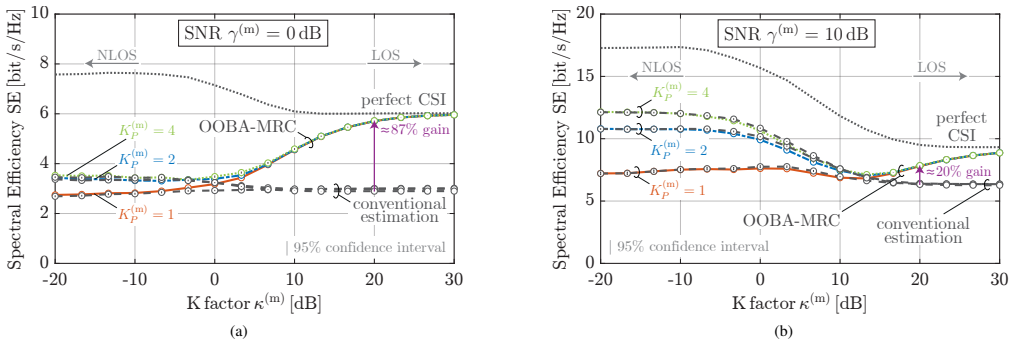

Figure 2
Figure 2. Figure 2: At a lower SNR of 0 dB, increasing the number of pilot symbols does not yield a significant improvement in SE (left), whereas at a higher SNR of [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

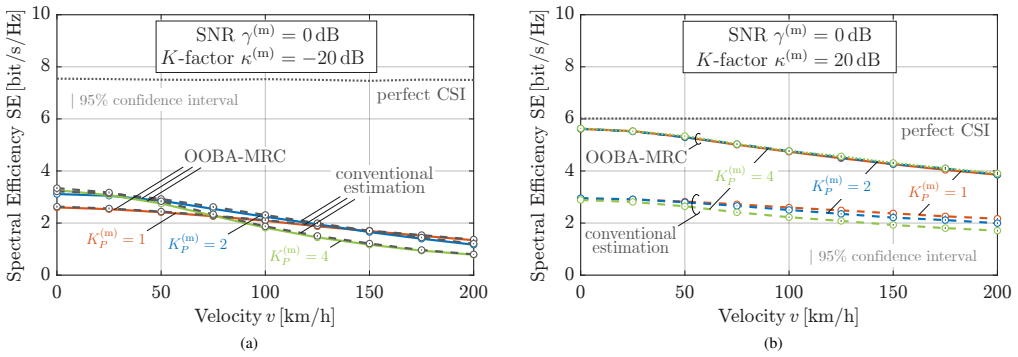

Figure 3
Figure 3. Figure 3: At a low K-factor of −20 dB, the OOBA-MRC method provides no gain in achievable SE compared to the conventional method (left) and at a high K-factor, its relative gain increases with the number of pilot symbols (right). provide additional benefit. For an SNR of 0 dB and low K￾factor, the SE improves from 2.7 bit/s/Hz (1-symbol pattern) to 3.4 bit/s/Hz (2-symbol pattern), and only slightly further to 3.5 bi… view at source ↗
read the original abstract

To support the high data rates for latency-critical applications, future wireless systems will employ fully digital beamforming multiple-input multiple-output (MIMO) architectures at millimeter wave (mmWave) frequencies. Moreover, mmWave MIMO deployments will coexist with conventional sub-6 GHz MIMO systems, creating opportunities to exploit out-of-band sub-6 GHz information to enhance channel estimation at mmWave frequencies. In this work, we analyze the pilot-aided channel estimation performance of mmWave MIMO systems under various pilot configurations in both static and dynamic environments. We evaluate the system performance in terms of spectral efficiency (SE) for line-of-sight and non-line-of-sight propagation conditions. Simulation results show that incorporating out-of-band sub-6 GHz information yields notable SE gains in both static and dynamic scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript analyzes pilot-aided channel estimation for fully digital mmWave MIMO systems that coexist with sub-6 GHz MIMO. It evaluates spectral efficiency under various pilot configurations in static and dynamic environments for both LOS and NLOS conditions, claiming that incorporating out-of-band sub-6 GHz channel information produces notable SE gains.

Significance. If the mapping from sub-6 GHz estimates to mmWave parameters can be shown to remain accurate under realistic frequency-dependent propagation, the work would offer a practical route to lower pilot overhead in mmWave deployments. The inclusion of dynamic scenarios and explicit LOS/NLOS comparisons strengthens its relevance to 5G/6G coexistence studies.

major comments (2)
  1. [Simulation Results] Simulation setup and results sections: the reported SE gains rest on an implicit assumption that sub-6 GHz channel estimates can be mapped to mmWave angles, delays, and gains with negligible error. No quantification of frequency-dependent mismatch (e.g., differing scattering or array responses between 3–6 GHz and 28–60 GHz) is provided; this directly affects the effective pilot quality and could erase the claimed gains, especially in NLOS and dynamic cases.
  2. [Channel Estimation] Channel model and mapping procedure: the paper does not report the exact pilot overhead, number of sub-6 GHz antennas, or error statistics of the out-of-band mapping step. Without these, it is impossible to determine whether the SE improvements are robust or sensitive to post-hoc parameter choices.
minor comments (2)
  1. [Figures] Figure captions should explicitly state the carrier frequencies, bandwidths, and mobility parameters used in each scenario.
  2. [System Model] Notation for the out-of-band mapping function is introduced without a clear equation reference; adding an explicit definition would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the assumptions and details in our work on out-of-band mmWave channel estimation. We address each major comment below and will revise the manuscript accordingly to strengthen the presentation of results.

read point-by-point responses

  1. Referee: [Simulation Results] Simulation setup and results sections: the reported SE gains rest on an implicit assumption that sub-6 GHz channel estimates can be mapped to mmWave angles, delays, and gains with negligible error. No quantification of frequency-dependent mismatch (e.g., differing scattering or array responses between 3–6 GHz and 28–60 GHz) is provided; this directly affects the effective pilot quality and could erase the claimed gains, especially in NLOS and dynamic cases.

    Authors: We agree that frequency-dependent mismatch between sub-6 GHz and mmWave bands is a key factor that should be quantified rather than assumed negligible. The original simulations used an idealized mapping to isolate the potential benefits of out-of-band information under the stated LOS/NLOS and static/dynamic conditions. In the revision we will add a dedicated sensitivity analysis subsection that introduces controlled mismatch in angles, delays, and path gains (drawing on established propagation models for the two bands) and recompute the SE curves. This will explicitly show how the reported gains degrade or persist as a function of mismatch level, with particular attention to NLOS and dynamic scenarios. revision: yes

  2. Referee: [Channel Estimation] Channel model and mapping procedure: the paper does not report the exact pilot overhead, number of sub-6 GHz antennas, or error statistics of the out-of-band mapping step. Without these, it is impossible to determine whether the SE improvements are robust or sensitive to post-hoc parameter choices.

    Authors: We acknowledge that these implementation details were omitted and are necessary for reproducibility and robustness assessment. The revised manuscript will explicitly list the pilot overhead (number of pilots per coherence interval), the number of sub-6 GHz antennas employed, and the error statistics (mean and variance or RMSE) of the out-of-band mapping step. We will also include a parameter-sensitivity study that varies these quantities around the nominal values and reports the resulting SE gains, thereby demonstrating that the improvements are not artifacts of specific post-hoc choices. revision: yes

Circularity Check

0 steps flagged

No circularity: simulation-based performance comparison is self-contained

full rationale

The paper reports simulation results for mmWave MIMO channel estimation with and without out-of-band sub-6 GHz information under static/dynamic and LOS/NLOS conditions. No derivations, equations, or first-principles claims are present that reduce the reported SE gains to fitted parameters defined by the same data, self-citations, or ansatzes. The evaluation compares against standard baselines using assumed channel models, making the central claims independent and externally falsifiable via the described simulation setup.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The abstract provides no explicit free parameters, axioms, or invented entities; the central claim implicitly rests on standard wireless channel models and the assumption that sub-6 GHz information is usable at mmWave frequencies.

axioms (1)
  • domain assumption Out-of-band sub-6 GHz channel information can be exploited to enhance mmWave MIMO channel estimation
    Invoked throughout the abstract as the basis for the performance gains
