arxiv: 2604.08090 · v1 · submitted 2026-04-09 · 🌌 astro-ph.EP

In-flight calibration of ESA Hera's HyperScout-H imager

G. P. Prodan , M. Popescu , J. de Le\'on , G. Kov\'acs , M. K\"uppers , B. Grieger , C. Guerbuez , E. Tatsumi
show 16 more authors
J. Licandro A. Escalante L\'opez V. Nagy A. Farina B. A. Dumitru G. Poggiali J. B. Vincent T. Kohout I. Petrisor E. Palomba M. Esposito N. Vercruyssen S. Sugita M. Lazzarin P. Abell P. Michel
This is my paper

Pith reviewed 2026-05-10 16:46 UTC · model grok-4.3

classification 🌌 astro-ph.EP
keywords Hera missionHyperScout-Hin-flight calibrationhyperspectral imagerradiometric calibrationDidymosMars swing-by
0
0 comments X

The pith

HyperScout-H shows stable bias, negligible dark current, and linear response after launch with updated radiometric constants from stars and Mars.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports calibration checks for the HyperScout-H hyperspectral imager on ESA's Hera mission during its cruise to the Didymos binary asteroid. The authors processed bias, dark, stellar field, and full-field Mars images to monitor how the instrument behaves in space. Results show the bias pattern holds steady, dark current stays low for short exposures, and the detector stays linear. Stellar and Mars data yield new radiometric factors that indicate a small shift in the detector's color response since launch. These updates matter because they enable accurate measurements of asteroid composition, space weathering, and surface materials once Hera reaches Didymos.

Core claim

The bias pattern remains stable, dark current is negligible for short exposures, the detector response is highly linear, field-of-view alignment and geometric distortion are quantified, the point spread function is evaluated from stars, and stellar plus Mars swing-by data supply updated radiometric calibration constants that indicate slight in-flight modification of the detector's spectral response.

What carries the argument

In-flight calibration sequence of bias and dark exposures, stellar field observations, and five full-FOV Mars images used to monitor stability and derive updated radiometric constants.

If this is right

  • Updated constants support accurate radiometric and spectral measurements of Didymos and Dimorphos composition.
  • Quantified geometric distortion and alignment enable precise mapping and shape reconstruction of the asteroids.
  • Evaluated point spread function confirms the instrument meets resolution needs for surface feature analysis.
  • Stable bias and low dark current support reliable data collection over the full mission duration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Periodic recalibration using planetary flybys may become standard for other hyperspectral instruments on long cruises.
  • The small spectral-response shift observed here could be checked against radiation-dose models to predict behavior on future missions.
  • Cross-validation with Mars data offers a template for using known targets to anchor calibration when ground truth is limited.

Load-bearing premise

The limited set of stellar fields and five Mars images supplies enough representative data to validate performance for the Didymos encounter.

What would settle it

Didymos encounter spectra that match pre-flight calibration predictions better than the updated constants, or show inconsistencies with independent measurements of the same targets, would show the in-flight updates are inaccurate.

Figures

Figures reproduced from arXiv: 2604.08090 by A. Escalante L\'opez, A. Farina, B. A. Dumitru, B. Grieger, C. Guerbuez, E. Palomba, E. Tatsumi, G. Kov\'acs, G. Poggiali, G. P. Prodan, I. Petrisor, J. B. Vincent, J. de Le\'on, J. Licandro, M. Esposito, M. K\"uppers, M. Lazzarin, M. Popescu, N. Vercruyssen, P. Abell, P. Michel, S. Sugita, T. Kohout, V. Nagy.

Figure 1

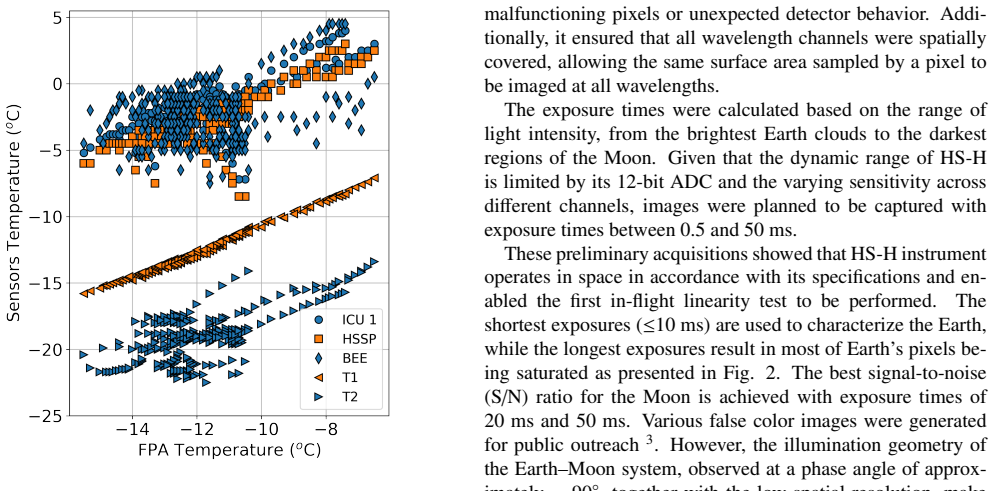

Figure 1. Figure 1: The dependence of different sensor temperatures with respect to FPA temperature during the cruise. The dependences of five HS-H sensors are shown with different marker shapes. 3. In-flight calibration observations The in-flight calibration images consisted in the commission￾ing phase, periodic checks, and opportunity observations. A summary of these activities is presented in [PITH_FULL_IMAGE:figures/full… view at source ↗
Figure 2

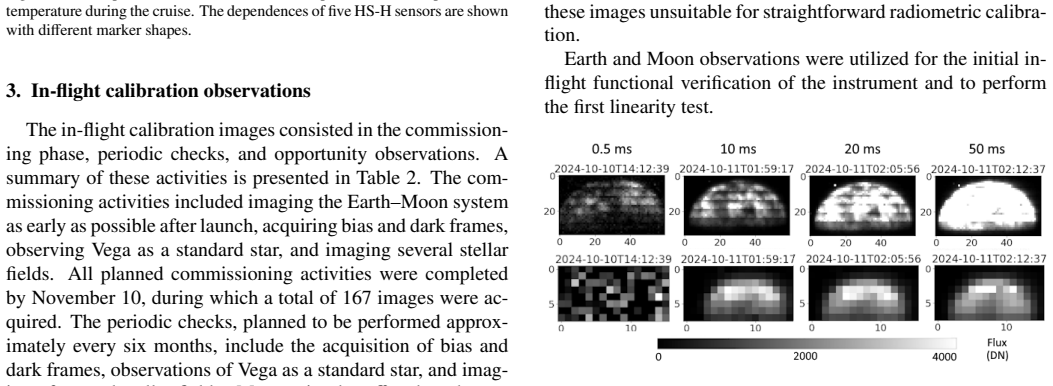

Figure 2. Figure 2: Earth (top row) and Moon (bottom row) observations with HS-H. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

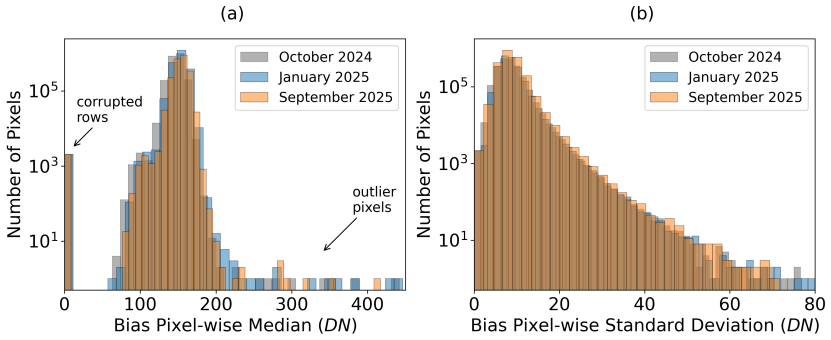

Figure 3
Figure 3. Figure 3: (a) Distribution of pixel-wise mean of the global bias level, highlighting outliers and corrupted rows. (b) Histogram of standard deviation values per [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Fig.4. No significant large-scale structures are observed to have [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

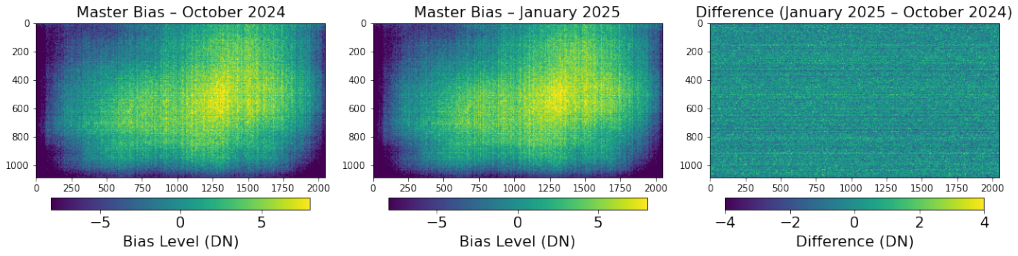

Figure 4

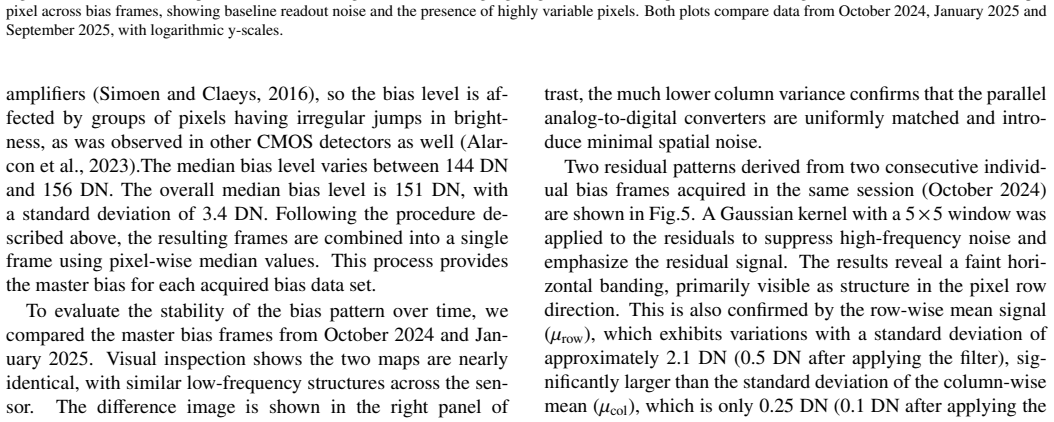

Figure 4. Figure 4: Comparison of the master bias frames acquired in October 2024 and January 2025. Each master bias was median-combined from a stack of corrected bias [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Spatial power spectra of residual bias frames. Top and bottom pan [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

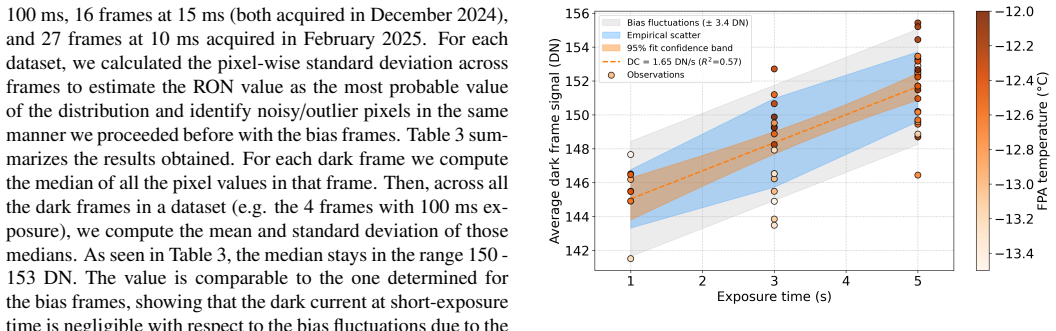

Figure 7
Figure 7. Figure 7: Mean values of dark frames as a function of exposure time in a narrow [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗

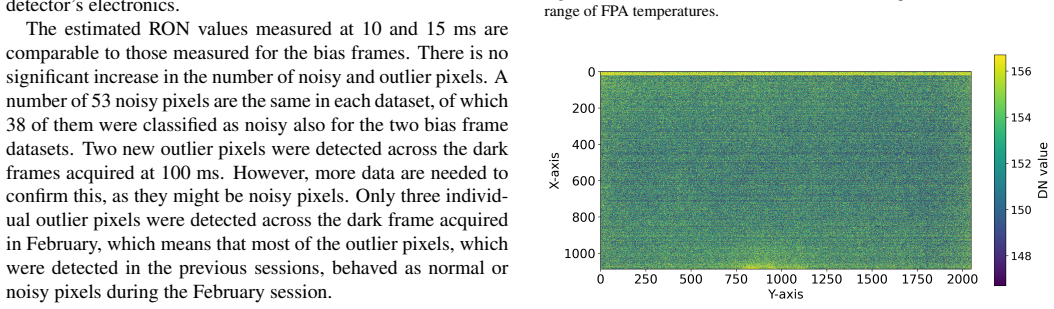

Figure 8
Figure 8. Figure 8: Master dark frame acquired at an exposure time of 5 s. [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗

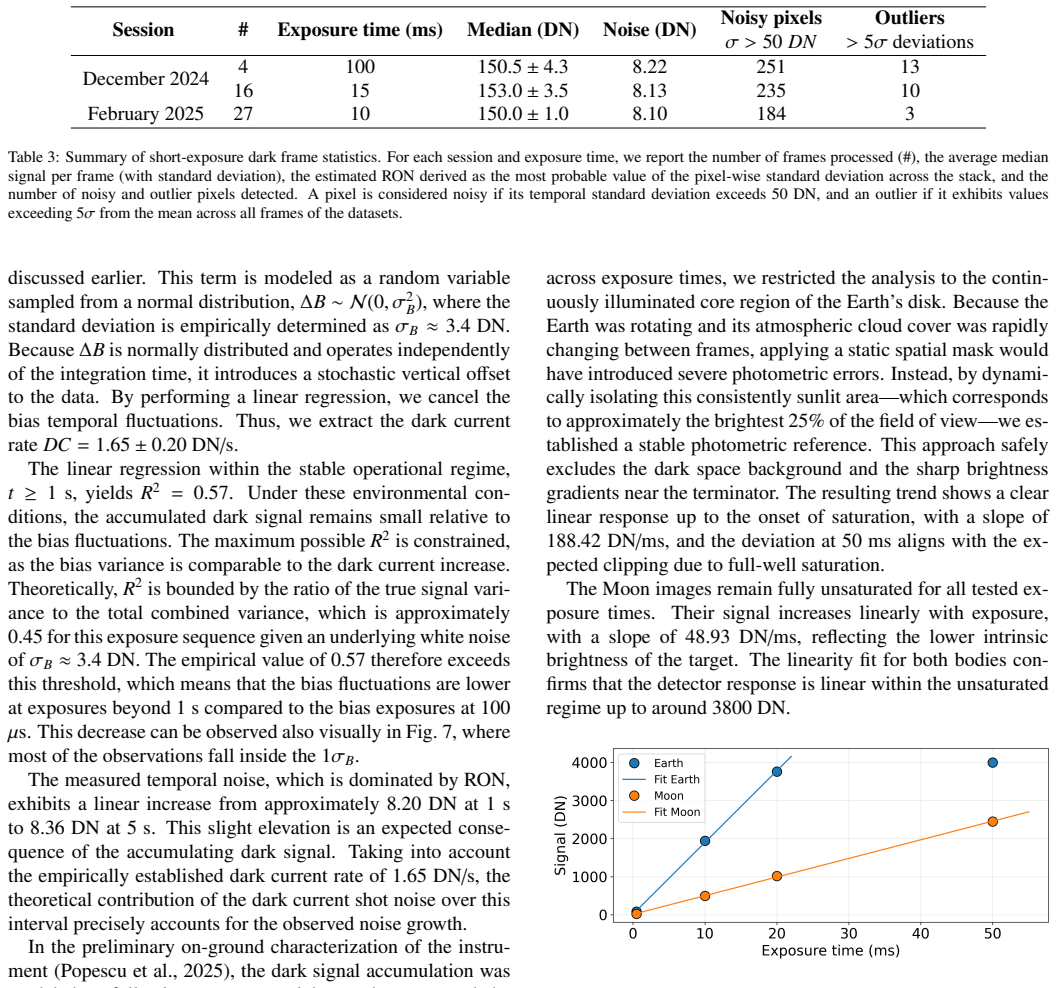

Figure 9
Figure 9. Figure 9: Linearity test of the Earth–Moon system. The plot shows the mea [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 11

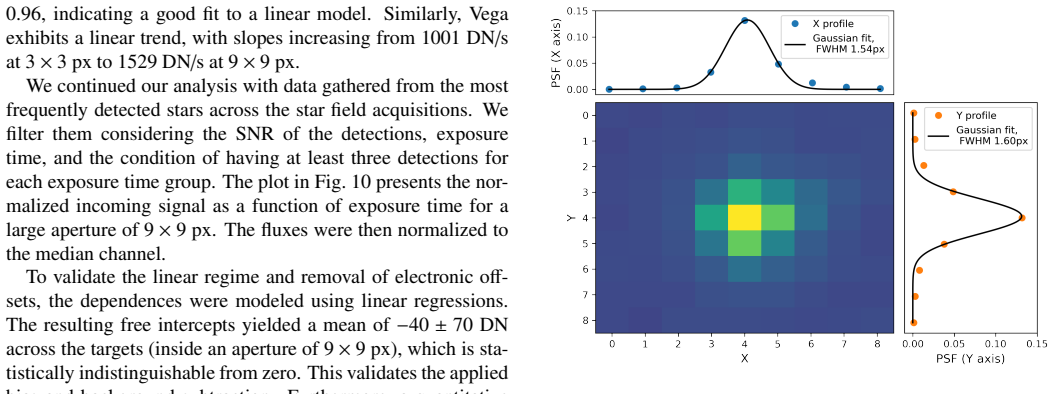

Figure 11. Figure 11: Two-dimensional PSF map obtained from all stellar profiles of [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗

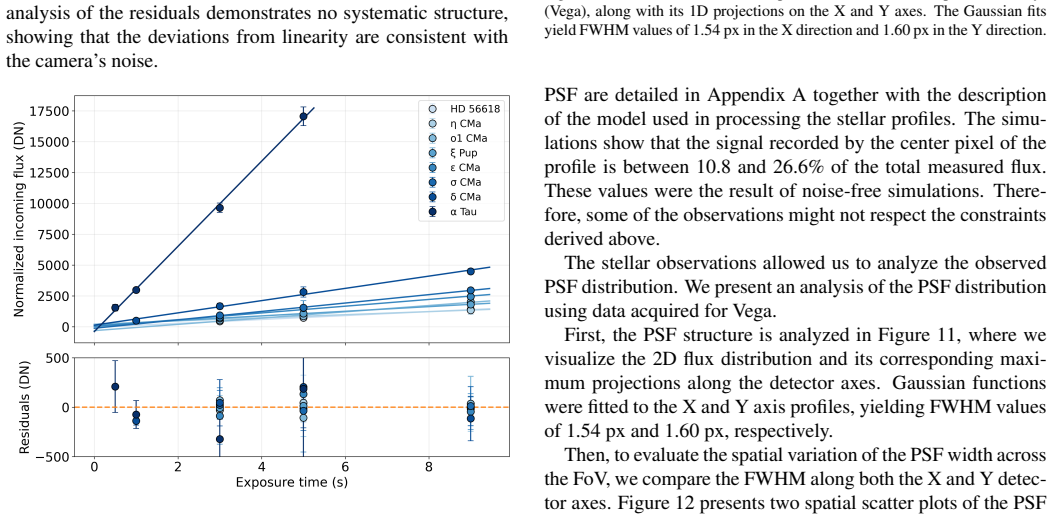

Figure 10
Figure 10. Figure 10: Linearity test with most frequent star detections. Error bars show the [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 12

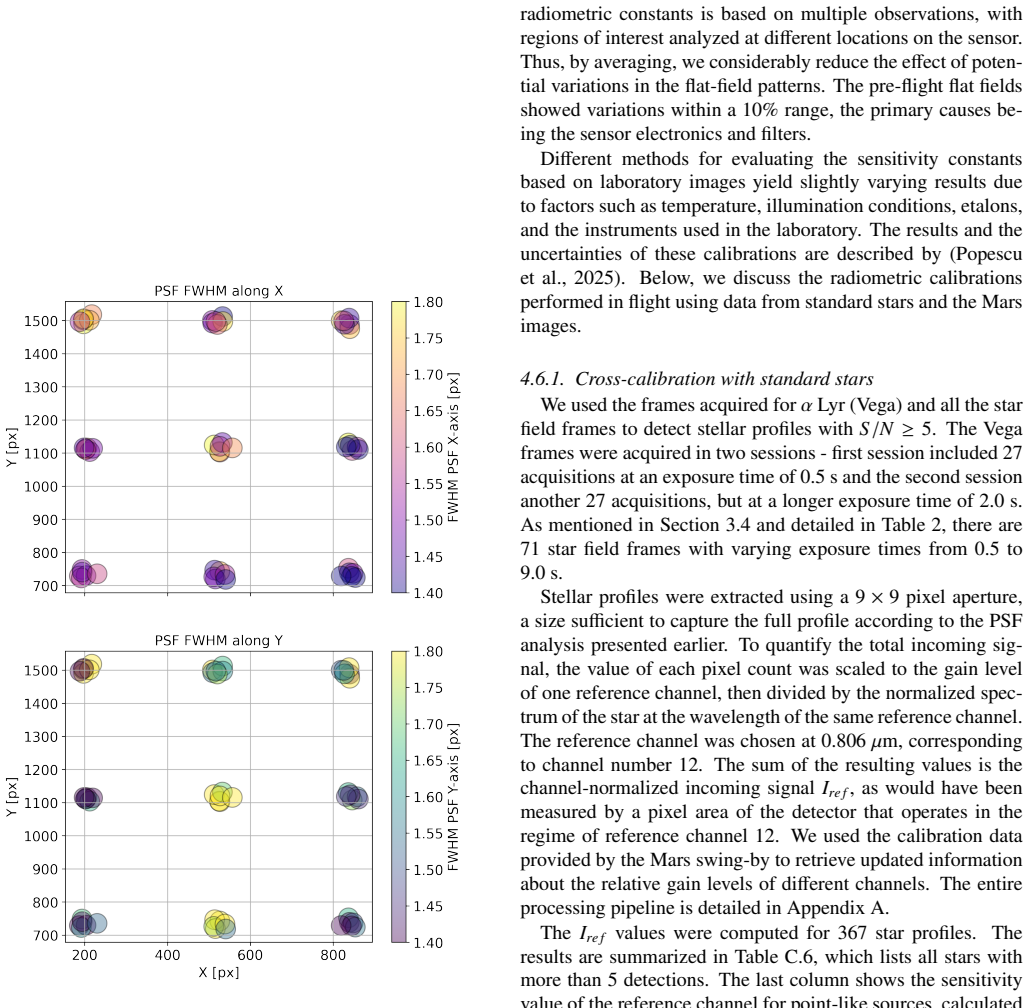

Figure 12. Figure 12: Top: Scatter map of PSF FWHM along the X-axis across the detec [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗
Figure 13

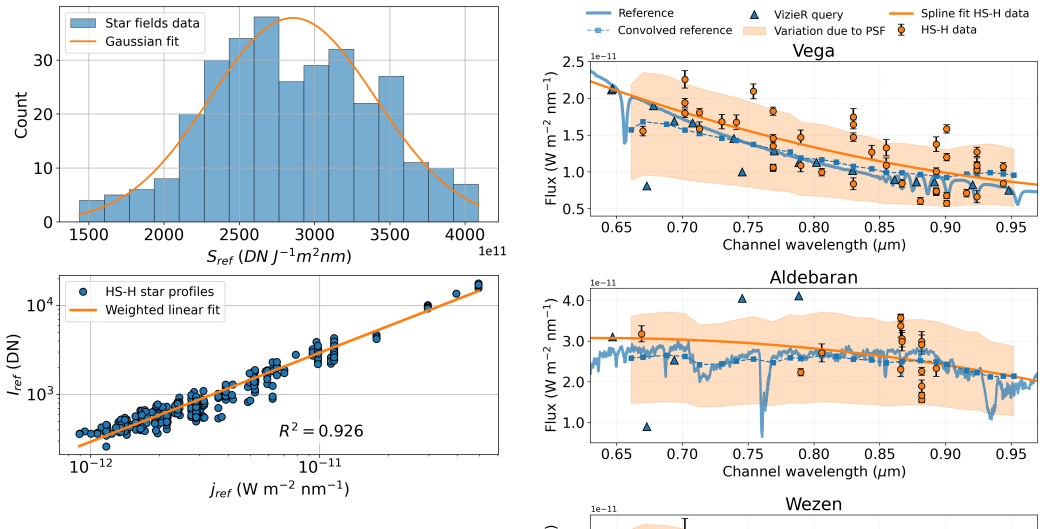

Figure 13. Figure 13: Top: Distribution of the reference-channel–normalized stellar sig￾nals. A Gaussian model is fitted to the histogram. Bottom: Comparison be￾tween measured reference-channel signals and convolved stellar irradiances. A weighted linear regression is applied using weights proportional to 1/Ire f , re￾ducing the input of noisy detections. The resulting best-fit line and coefficient of determination are shown. … view at source ↗

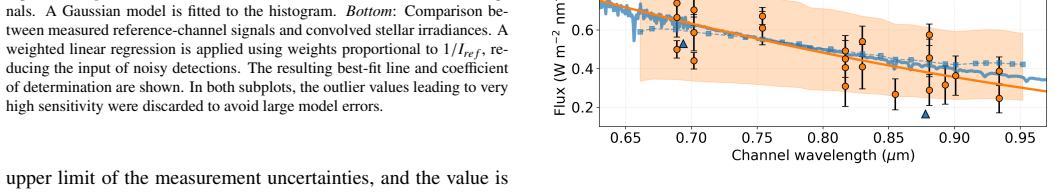

Figure 14
Figure 14. Figure 14: Comparison between the measured HS-H channel fluxes (data points [PITH_FULL_IMAGE:figures/full_fig_p014_14.png] view at source ↗
Figure 15

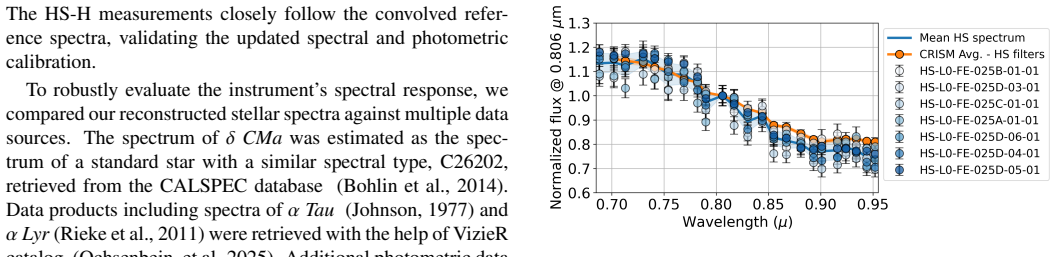

Figure 15. Figure 15: Comparison between the mean HS-H reflectance spectrum of a sub [PITH_FULL_IMAGE:figures/full_fig_p015_15.png] view at source ↗
Figure 16

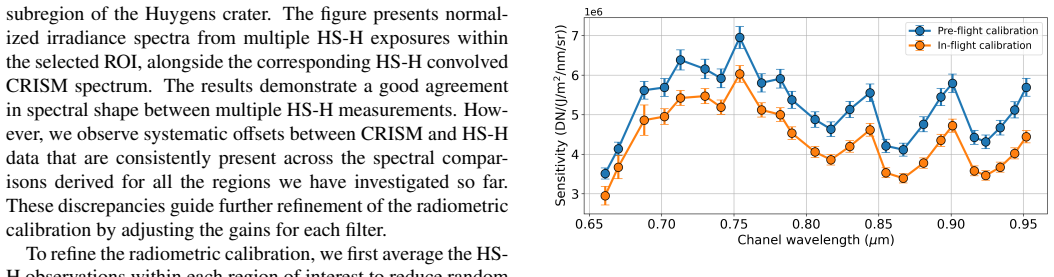

Figure 16. Figure 16: Comparison between the pre-flight and in-flight radiometric sensi [PITH_FULL_IMAGE:figures/full_fig_p016_16.png] view at source ↗
Figure 18

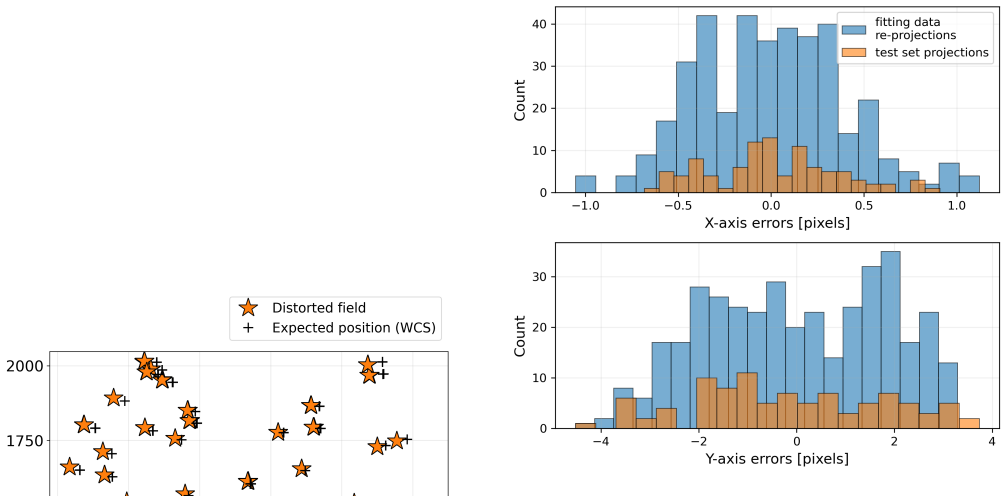

Figure 18. Figure 18: Histograms of residuals from the in-flight geometric calibration [PITH_FULL_IMAGE:figures/full_fig_p018_18.png] view at source ↗
Figure 17

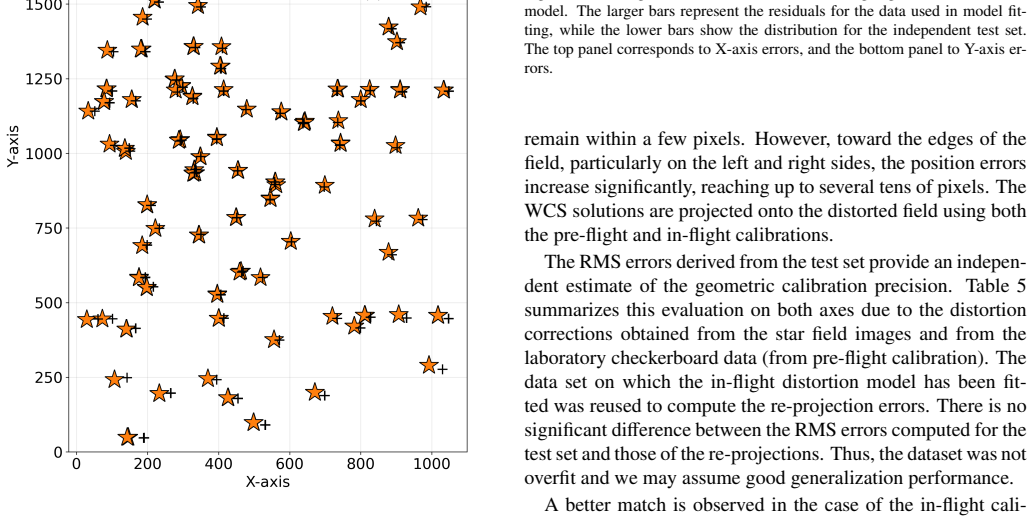

Figure 17. Figure 17: Comparison between the distorted stellar field (star signs) and the [PITH_FULL_IMAGE:figures/full_fig_p018_17.png] view at source ↗
Figure 19

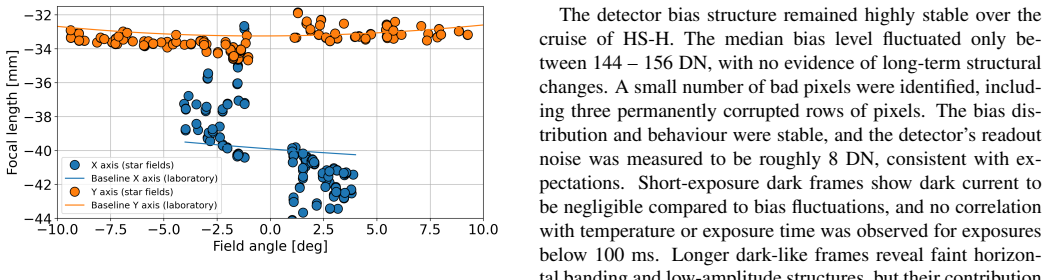

Figure 19. Figure 19: The focal lengths with respect to the field angle on both detector [PITH_FULL_IMAGE:figures/full_fig_p019_19.png] view at source ↗
read the original abstract

ESA's Hera space mission is on its way to the mission target, the binary asteroid (65803) Didymos. HyperScout-H, one of the instruments onboard Hera, is a hyperspectral imager operating in the visible and near-infrared regions between 0.65 and 0.95 microns. HyperScout-H will enable a detailed assessment of the composition of both objects, Didymos and its satellite Dimorphos, the characterization of space weathering effects, and the possible presence of exogenous material on their surfaces. To monitor instrument functionality, calibration exposures are acquired regularly. This article describes the in-flight calibrations carried out for HyperScout-H during the commissioning and cruise phases. Bias and dark exposures, as well as stellar field observations, were acquired several times after launch. We update the calibration data and monitor instrument performance in the space environment. In five images, the surface of Mars fills the entire field of view, enabling cross-validation of HyperScout-H results with those reported by other Mars missions. The calibration data indicate that the bias pattern is stable, the dark current remains negligible for short exposures, and the detector response is highly linear. We quantify the field-of-view alignment and geometric distortion, and evaluate the point spread function based on the stellar field observations. Stellar observations and Mars swing-by data provide updated radiometric calibration constants, suggesting that in-flight conditions have slightly modified the detector's spectral response. In-flight calibrations are essential to ensure data quality and reliability. The results obtained for HyperScout-H demonstrate that the instrument can achieve its scientific goals in observations of the Didymos-Dimorphos system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript describes the in-flight calibration of ESA Hera's HyperScout-H hyperspectral imager (0.65-0.95 μm) using bias/dark exposures, stellar field observations acquired multiple times post-launch, and five full-FOV Mars swing-by images. It reports a stable bias pattern, negligible dark current for short exposures, high detector linearity, quantified FOV alignment and geometric distortion, PSF evaluation from stars, and updated radiometric calibration constants from stellar and Mars data, concluding that in-flight conditions caused only slight modification to the spectral response and that the instrument is ready to meet its scientific goals for the Didymos-Dimorphos encounter.

Significance. If the calibration results hold, the work supplies essential post-launch validation for a key instrument on an active ESA planetary mission, directly supporting reliable hyperspectral data for asteroid composition, space weathering, and exogenous material studies. The multi-epoch stellar monitoring combined with external Mars cross-validation is a concrete strength that enhances credibility over purely ground-based pre-flight constants.

major comments (3)
  1. [Radiometric calibration results] Radiometric calibration section (near end of results): the updated constants are stated to indicate only 'slight' in-flight modification to spectral response, yet no uncertainties, error bars, or propagation details are provided for these constants, nor is the number of stellar fields or exact processing steps for the five Mars images specified; this directly weakens the quantitative support for the central claim of instrument readiness.
  2. [Mars cross-validation] Mars swing-by cross-validation (results and discussion): the paper uses Mars full-FOV images as an anchor to update constants for Didymos observations, but does not test or propagate the substantial differences in albedo, phase function, and atmospheric scattering; no sensitivity run replacing the Mars spectrum with a Didymos-like reflectance model is shown to confirm that the derived constants remain stable, making the applicability to the target environment a load-bearing assumption that requires explicit validation.
  3. [Geometric performance and PSF] Geometric and PSF evaluation (methods/results): the FOV alignment, distortion, and point-spread function are quantified from stellar fields, but the manuscript provides no details on the number of stars used, selection criteria, or how short-exposure linearity was verified across the detector; these omissions affect the robustness of the performance claims for the Didymos encounter environment.
minor comments (3)
  1. [Abstract] Abstract: the phrase 'consistent findings from multiple exposures' would be clearer if the exact number of bias/dark/stellar sets and their acquisition dates were stated.
  2. [Figures and tables] Figure captions and tables: several figures showing bias patterns or Mars spectra lack explicit mention of any applied corrections, scaling, or error representation.
  3. [Calibration constants] Notation: the definition of the updated radiometric constants could be given explicitly (e.g., as a table or equation) rather than described only in text.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed review of our manuscript on the in-flight calibration of HyperScout-H. We address each major comment below and indicate the revisions we will make to improve the quantitative rigor and clarity of the results.

read point-by-point responses

  1. Referee: [Radiometric calibration results] Radiometric calibration section (near end of results): the updated constants are stated to indicate only 'slight' in-flight modification to spectral response, yet no uncertainties, error bars, or propagation details are provided for these constants, nor is the number of stellar fields or exact processing steps for the five Mars images specified; this directly weakens the quantitative support for the central claim of instrument readiness.

    Authors: We agree that the absence of uncertainties and processing details limits the strength of the claim. In the revised manuscript we will add propagated uncertainties and error bars on the updated radiometric constants, explicitly state the number of stellar fields employed, and provide a concise step-by-step description of the Mars-image processing pipeline (including bias subtraction, flat-fielding, and integration-time normalization). These additions will furnish the quantitative support requested. revision: yes

  2. Referee: [Mars cross-validation] Mars swing-by cross-validation (results and discussion): the paper uses Mars full-FOV images as an anchor to update constants for Didymos observations, but does not test or propagate the substantial differences in albedo, phase function, and atmospheric scattering; no sensitivity run replacing the Mars spectrum with a Didymos-like reflectance model is shown to confirm that the derived constants remain stable, making the applicability to the target environment a load-bearing assumption that requires explicit validation.

    Authors: The radiometric constants are derived from the instrument's measured response to a known solar-illuminated target; target-specific properties are removed by forward modeling. Nevertheless, to directly address the concern we will insert a short sensitivity section that substitutes an S-type asteroid reflectance spectrum (scaled to Didymos geometry) for the Mars spectrum and shows that the resulting calibration factors change by less than the existing uncertainty. This explicit test will confirm stability for the Didymos environment. revision: yes

  3. Referee: [Geometric performance and PSF] Geometric and PSF evaluation (methods/results): the FOV alignment, distortion, and point-spread function are quantified from stellar fields, but the manuscript provides no details on the number of stars used, selection criteria, or how short-exposure linearity was verified across the detector; these omissions affect the robustness of the performance claims for the Didymos encounter environment.

    Authors: We will expand the methods and results sections to report the number of stars retained per field, the magnitude and isolation criteria applied for selection, and the procedure used to verify short-exposure linearity (comparison of stellar fluxes across exposure times, confirming <1 % deviation across the detector). These details will substantiate the geometric and PSF performance statements. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical calibration from direct observations

full rationale

The paper reports in-flight measurements of bias stability, dark current, linearity, geometric distortion, PSF, and radiometric constants derived from acquired bias/dark exposures, stellar fields, and five Mars full-FOV images. No load-bearing step reduces by construction to a fitted input renamed as prediction, self-citation chain, or ansatz smuggled from prior author work; all quantities are computed from the new data sets themselves with external Mars cross-validation. The derivation chain is therefore self-contained against the observational inputs and does not invoke uniqueness theorems or self-referential definitions.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claims rest on empirical updates to calibration constants and verification of standard instrument assumptions; no new entities postulated.

free parameters (1)
  • updated radiometric calibration constants
    Derived from stellar field and Mars swing-by data to account for in-flight changes.
axioms (2)
  • domain assumption Detector response remains linear across the observed signal range
    Invoked when stating high linearity from calibration exposures.
  • domain assumption Mars surface data from other missions provide valid independent reference for cross-validation
    Used to validate HyperScout-H radiometric results.
