arxiv: 2605.01031 · v1 · submitted 2026-05-01 · ❄️ cond-mat.mtrl-sci

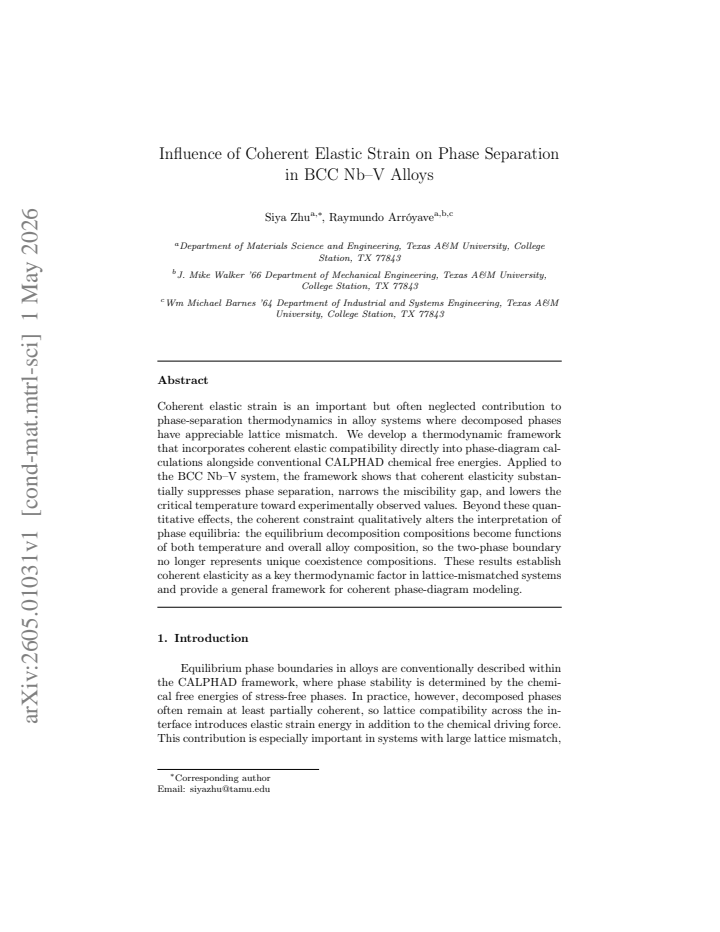

Influence of Coherent Elastic Strain on Phase Separation in BCC Nb-V Alloys

Siya Zhu , Raymundo Arr\'oyave This is my paper

Pith reviewed 2026-05-09 18:59 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords coherent elastic strainphase separationNb-V alloysmiscibility gapCALPHAD modelingthermodynamic frameworkBCC alloyslattice mismatch
0
0 comments X

The pith

Coherent elastic strain suppresses phase separation in Nb-V alloys by narrowing the miscibility gap and making equilibrium compositions depend on overall composition.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a thermodynamic framework that adds the energy from coherent elastic compatibility, arising from lattice mismatch between phases, directly to conventional chemical free energies from CALPHAD methods. Applied to the BCC Nb-V system, this shows that the elastic contribution substantially narrows the miscibility gap and lowers the critical temperature closer to experimental observations. The framework further reveals that under coherent constraints the compositions of the coexisting phases are no longer unique functions of temperature alone but also vary with the overall alloy composition. Readers would care because ignoring this elastic term has produced phase diagrams that overestimate the extent of decomposition in lattice-mismatched alloys, leading to inaccurate predictions of stability and microstructure.

Core claim

The central claim is that imposing coherent elastic compatibility across the two-phase microstructure in BCC Nb-V alloys generates an additional strain-energy term that suppresses phase separation, narrows the miscibility gap, and reduces the critical temperature toward measured values; moreover, the equilibrium decomposition compositions become explicit functions of both temperature and the bulk alloy composition, so the two-phase boundary no longer corresponds to unique coexistence points.

What carries the argument

The coherent elastic compatibility condition that determines the strain field in a two-phase microstructure and supplies a composition-dependent elastic energy added to the total free energy.

Load-bearing premise

The model assumes the elastic strain remains fully coherent across the entire two-phase region with no relaxation or interfacial contributions that would appear in actual microstructures.

What would settle it

Measurement of the compositions of the two phases in a coherent Nb-V microstructure held at fixed temperature but prepared with different overall compositions; if the observed phase compositions do not shift with overall composition, the qualitative claim would be contradicted.

Figures

Figures reproduced from arXiv: 2605.01031 by Raymundo Arr\'oyave, Siya Zhu.

Figure 1

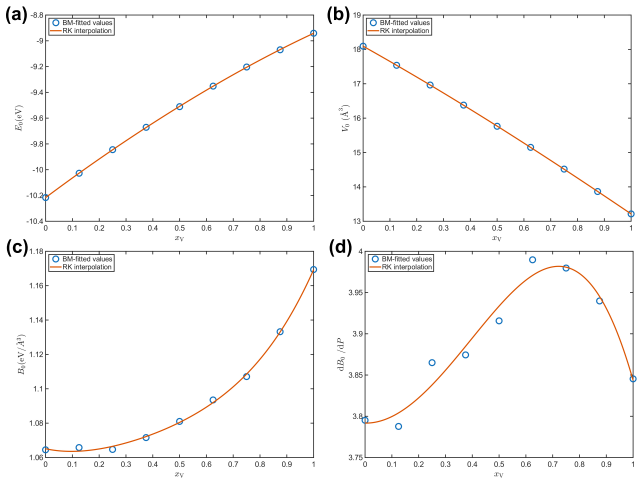

Figure 1. Figure 1: Composition dependence of the fitted isotropic Birch–Murnaghan equation-of-state view at source ↗
Figure 2
Figure 2. Figure 2: Energy as a function of biaxial strain for Nb view at source ↗
Figure 3
Figure 3. Figure 3: Comparison of phase stability predicted by the chemical-only model and by the view at source ↗
Figure 4
Figure 4. Figure 4: Equilibrium decomposition compositions under chemical-only and coherent-elastic view at source ↗
Figure 5
Figure 5. Figure 5: Analysis of the elastic origin of the composition-dependent phase behavior under view at source ↗
read the original abstract

Coherent elastic strain is an important but often neglected contribution to phase-separation thermodynamics in alloy systems where decomposed phases have appreciable lattice mismatch. We develop a thermodynamic framework that incorporates coherent elastic compatibility directly into phase-diagram calculations alongside conventional CALPHAD chemical free energies. Applied to the BCC Nb-V system, the framework shows that coherent elasticity substantially suppresses phase separation, narrows the miscibility gap, and lowers the critical temperature toward experimentally observed values. Beyond these quantitative effects, the coherent constraint qualitatively alters the interpretation of phase equilibria: the equilibrium decomposition compositions become functions of both temperature and overall alloy composition, so the two-phase boundary no longer represents unique coexistence compositions. These results establish coherent elasticity as a key thermodynamic factor in lattice-mismatched systems and provide a general framework for coherent phase-diagram modeling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript develops a thermodynamic framework that augments standard CALPHAD chemical free energies with a composition-dependent coherent elastic energy term derived from elastic compatibility constraints. Applied to the BCC Nb-V system, the model predicts substantial suppression of phase separation, narrowing of the miscibility gap, lowering of the critical temperature toward experimental values, and a qualitative change in which equilibrium decomposition compositions become functions of both temperature and overall alloy composition rather than fixed tie-line endpoints.

Significance. If the central construction holds, the work provides a practical route to include coherent strain effects in phase-diagram modeling for lattice-mismatched alloys, offering a plausible explanation for why experimental miscibility gaps are narrower than purely chemical predictions. The demonstration that the coherent constraint renders the common-tangent construction composition-dependent is a clear conceptual advance with implications for interpreting microstructures in other BCC systems.

major comments (1)
  1. [model formulation] The model assumes fully coherent strain persists across the entire two-phase region without interfacial or relaxation contributions (see the description of the elastic energy functional and the minimization procedure). This assumption is load-bearing for both the quantitative narrowing of the gap and the claim that compositions depend on overall alloy fraction; a brief sensitivity analysis or comparison to partially coherent models would strengthen the result.
minor comments (2)
  1. [abstract] The abstract and introduction would benefit from a single explicit equation or schematic showing the form of the added elastic term before the results are stated.
  2. [figures] Figure captions should explicitly note the input lattice-mismatch parameter and the source of the CALPHAD free-energy coefficients used.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the constructive comment. We address the major comment below.

read point-by-point responses

  1. Referee: The model assumes fully coherent strain persists across the entire two-phase region without interfacial or relaxation contributions (see the description of the elastic energy functional and the minimization procedure). This assumption is load-bearing for both the quantitative narrowing of the gap and the claim that compositions depend on overall alloy fraction; a brief sensitivity analysis or comparison to partially coherent models would strengthen the result.

    Authors: We agree that the assumption of fully coherent strain throughout the two-phase region is central to the quantitative results and to the finding that equilibrium compositions depend on overall alloy fraction. This is a deliberate modeling choice to isolate the thermodynamic consequences of elastic compatibility constraints. In the revised manuscript we have added an explicit statement of the assumption in Section 2 together with a short paragraph in the Discussion section noting that interfacial relaxation or partial coherence would require a separate treatment involving misfit dislocations. A quantitative sensitivity study or comparison to partially coherent models lies outside the present scope, as it would demand a substantially extended framework. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper constructs its central result by explicitly adding a composition-dependent coherent elastic energy term (derived from compatibility constraints) to the standard CALPHAD chemical free energy and then performing a common-tangent minimization of the total free energy. The reported suppression of the miscibility gap and the dependence of tie-line endpoints on overall composition follow directly from the non-convexity of the elastic contribution under the coherent constraint. The functional form of the elastic term is supplied in the manuscript, and the argument does not reduce to any fitted parameter, self-definition, or load-bearing self-citation. The construction is therefore independent of its inputs and internally consistent on its own terms.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that a coherent elastic energy term can be added to the chemical free energy without additional interfacial or relaxation contributions, and that the resulting common-tangent construction still yields the correct equilibrium states.

axioms (1)
  • domain assumption Coherent elastic compatibility can be imposed globally across the two-phase microstructure without relaxation or interfacial energy penalties.
    Stated implicitly in the abstract as the basis for the framework.
