PosNeg-Balanced Anchors with Aligned Features for Single-Shot Object Detection
T0 review · 4 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read A single-shot detector closes the gap to two-stage accuracy by promoting positive anchors and aligning features, reaching 40.0% mAP on MS COCO at 28.6 fps.
desk verdict Solid single-shot detector paper with a genuine module-design insight; the main gap is that the headline ResNet-101 result lacks a no-module baseline. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The Anchor Promotion Module (APM) and Feature Alignment Module (FAM). APM predicts a per-anchor positive score and regresses location and shape adjustments, so training the detection head sees many more and better-aligned positive boxes while easy negatives are discarded via a score threshold $\theta = 0.01$. FAM then applies deformable convolution, with offsets computed as a shared scalar translation $c$ learned from the location-change features plus a residual vector $\Delta s$ learned from the shape-change features (a "disentangled" decomposition), so that the features sampled for classification and regression correspond to the promoted anchors rather than the original grid. The two modules sit on an encoder-decoder backbone with skip connections, attaching to each decoder level.
What would settle it
Re-run Table 2's ablation (baseline, +APM_C, +APM_R, +APM, +APM+FAM) on ResNet-101 with 512×512 input on COCO minival: if the FAM increment over APM is well below 5.2 mAP, or if the full model falls short of 40.0% on test-dev, the scale-transfer assumption fails. A sharper check is to replace the disentangled offset ($c + \Delta s$) with the concatenated $F(X_l; X_s)$ at the full scale and compare the gap with the 0.7 mAP gap reported at 384×384.
Extended reading notes
Core claim
The central claim is that a dense single-shot detector can be made substantially more accurate by treating anchor boxes as editable entities: an Anchor Promotion Module (APM) scores each anchor's probability of being positive and regresses offsets to its center and size, turning some negative anchors into positive ones and improving the IoU of existing positives; this lifts the positive-to-negative ratio from roughly 1:625 to 1:10 during training. Because the promoted anchors no longer sit at original feature-grid locations, the paper introduces a Feature Alignment Module (FAM) that pools features using deformable convolution whose offsets are computed disentangled—a shared translation from the location-change branch and a per-kernel residual from the shape-change branch—rather than implicitly or by concatenating the two cues. On MS COCO test-dev the combined system reaches 40.0% mAP with ResNet-101 at 512×512 input and 28.6 fps, and ablation shows FAM contributes a 5.2 mAP gain over APM alone.
Load-bearing premise
The component-wise gains are measured only with VGG-16 at 384×384 input; the headline 40.0% mAP uses ResNet-101 at 512×512 with no per-component ablation, so the paper assumes APM and FAM transfer their gains to the heavier backbone and larger input unchanged.
Editorial extensions
If this is right
- At 384×384 with VGG-16, adding FAM on top of APM raises mAP from 31.7% to 34.8%, showing that alignment is what makes promoted anchors usable.
- On MS COCO test-dev, the ResNet-101 512×512 model reaches 40.0% mAP at 28.6 fps, outperforming RetinaNet-101-800 (37.8 mAP, ~5 fps) with several times the speed.
- Anchor promotion nearly quadruples small-object mAP in the ablation setting (12.1% to 18.6%), suggesting the method specifically addresses the recall problem that hurts small objects in dense detectors.
- Discarding low-score negatives at inference (scores below $\theta = 0.01$) means the promoted anchors and their scores are used end-to-end, not just as a training-time sampling trick.
- The ratio of positives to negatives during training improves from roughly 1:625 to 1:10, which is the direct mechanism the paper credits for easing the class imbalance.
Reading between the lines
- The "promote positives" recipe should transfer to anchor-free detectors: replacing grid points with predicted object-center candidates, then sampling features with the same disentangled offsets, could recover the small-object recall gains without dense anchor tiling.
- The disentangled offset decomposition—shared translation plus per-kernel residual—is a general way to inject known geometric transformations into deformable convolution; it could be applied to tracking or instance segmentation where motion or shape priors are available explicitly.
- The paper's own observation that gains shrink at IoU > 0.7 suggests that a cascade of promotion-and-alignment stages, trained at progressively higher IoU thresholds, might extend the method toward high-quality detection the way cascade R-CNN does for two-stage detectors.
- The ablation indicates the scoring branch (APM_C, +1.4 mAP) carries more weight than the regression branch alone (APM_R, +1.0 mAP), but the biggest jump comes from combining both and then aligning features, implying the two functions are complementary rather than redundant.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This manuscript proposes PADet, a single-shot object detector that combines an Anchor Promotion Module (APM) and a Feature Alignment Module (FAM). APM predicts the probability that each anchor is positive and adjusts its location and shape, thereby increasing the number of high-quality positive anchors while suppressing easy negatives. FAM uses the location and shape transformation information from APM to compute disentangled offsets for deformable convolution, aligning features to the promoted anchors. The detector uses an encoder-decoder backbone and is evaluated on MS COCO and PASCAL VOC with both VGG-16 and ResNet-101. The headline result is 40.0% mAP on MS COCO test-dev with ResNet-101 at 512×512 input at 28.6 fps. The ablations, all on VGG-16 at 384×384, show that APM and FAM together improve mAP from 29.6% to 34.8% on the COCO minival set.
Significance. The paper addresses a genuine problem in one-stage detection—foreground/background imbalance—by actively promoting positive anchors rather than only down-weighting easy negatives, which is a useful and timely direction. The FAM design is thoughtful, and the systematic comparison of offset-learning variants in Table 1 and component ablations in Table 2 are strengths. The method is evaluated on the external MS COCO benchmark, and the reported gains do not reduce by construction to the target metric. The release of code and the additional PASCAL VOC comparison add credibility. The main limitation is that all component analysis is confined to one backbone/input configuration, while the headline uses a different configuration, and the speed comparison is not controlled. If the transfer of APM/FAM gains across backbone and input scale can be demonstrated and the ResNet-101 configuration fully specified, the contribution would be solid.
major comments (4)
- [Section 4 and Table 6] All ablations in Tables 1–4 and the anchor statistics in Figures 1–2 are computed with VGG-16 at 384×384, while the headline 40.0 mAP (abstract and Table 6) is obtained with ResNet-101 at 512×512. No ResNet-101 baseline or component-wise ablation is reported, so the central claim that APM and FAM are responsible for the headline improvement rests on the untested assumption that the +2.1 mAP from APM and +3.1 mAP from FAM (Table 2) transfer when both the backbone and input resolution change. Because anchor stride, anchor density, and matching statistics depend on these settings, please add component ablations for ResNet-101 at 384 and 512 against a ResNet-101 encoder-decoder baseline, or at least verify that the VGG-16 gains persist at 512×512 before attributing the headline numbers to the modules.
- [Section 3, Backbone Network] The architecture description covers only the reduced VGG-16 backbone. Table 6 reports 'Ours ResNet-101 384×384' and 'Ours ResNet-101 512×512', but the paper never specifies how the encoder-decoder is adapted to ResNet-101: which ResNet stages are used, what strides and channels the decoder levels have, what anchor settings are used, and whether the training schedule differs from the VGG-16 setting. This missing specification prevents reproduction and verification of the central result. Please provide the full ResNet-101 configuration and any implementation differences.
- [Section 4.2, Table 6] The speed comparison is not controlled: the authors' FPS is measured on a GTX 1080 Ti with PyTorch 0.4.1, while the comparison values are quoted from other papers and libraries using different hardware and software. The abstract's claim of running at 28.6 fps and being 'faster' than alternatives is therefore not directly supported, and the '7.5× faster than RetinaNet-101-800' statement in Section 1 has the same issue. Several comparison rows also lack FPS values entirely (e.g., SSD ResNet-101, GA-RetinaNet, FSAF). Please either measure the comparison methods in the same environment or explicitly frame the speed numbers as indicative and soften the implied controlled comparison.
- [Section 3.1 and Section 4] The threshold θ=0.01 is central to the method's design, since it controls the positive/negative balance during training and the filtering of detections at inference, but no sensitivity analysis is reported, and all mAP values come from single runs. Because the main claimed gains are 2–3 mAP, it is important to know the effect of θ on the balance and final mAP, and ideally the variance across seeds. Please add a θ sweep (including θ=0) and, if possible, repeated runs for the main configurations in Tables 2 and 6.
minor comments (6)
- [Section 4.2] The sentence claiming results are obtained 'without multi-scale training and any testing tricks' is inconsistent with Section 3.3, which applies soft-NMS at inference; soft-NMS is generally considered a post-processing/testing technique and should be disclosed in that sentence.
- [Section 3.2] The text describes c as 'a scalar' in the disentangled offset formulation, but the module outputs 2 channels for c (an x,y translation) and 2K channels for Δs; please correct the terminology to avoid confusion.
- [Table 2 and Section 4.1] The text says adding the feature alignment module 'improves the performance by 5.2% mAP', but the table shows the full model (APM+FA) at 34.8 versus the APM-only model at 31.7, a 3.1-point gain; the 5.2-point figure appears to be the total gain from the 29.6 baseline. Please clarify which comparison is intended.
- [Section 1] There is a typo: 'RestinaNet-101-800' should be 'RetinaNet-101-800'.

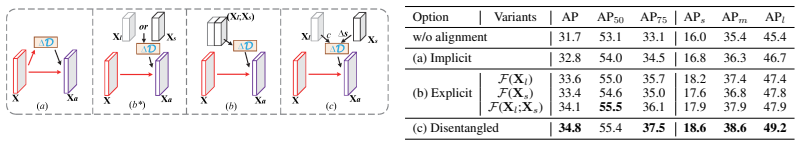

- [Figure 5 and text after it] The text refers to 'Figure 5 (b∗)' but the figure panels are labeled (a), (b), and (c); please align the references with the panel labels.
- [Section 4.1, Table 4] The paper acknowledges that small-object improvements decrease rapidly with IoU and attributes this to only 34.3% of small ground-truth objects having more than 2×2 pixels at stride 8; this limitation is stated clearly, but it would be helpful to also report the number of small objects at each IoU range so the reader can assess the statistics.
Circularity Check
No significant circularity: the central mAP claims are benchmarked on external MS COCO data, and the APM/FAM gains are measured by standard evaluation rather than derived from their own definitions.
full rationale
Walked the claimed derivation chain: the paper's central claim is that the proposed PADet detector with APM and FAM reaches 40.0% mAP on MS COCO test-dev (abstract, Table 6). This is evaluated against an external benchmark with a fixed protocol, not against any quantity fitted by the model. The component analyses in Tables 1-4 measure mAP on the COCO minival set, and the differences (e.g., 31.7 to 34.8 mAP in Table 2) are empirical results of training with the stated losses in Section 3.3, whose targets are ground-truth boxes and class labels. No fitted parameter is renamed as a prediction, and no external result is invoked through a self-citation chain. The paper contains no self-citations; all references are to prior external work (SSD, RetinaNet, RefineDet, Deformable ConvNets, soft-NMS, etc.), and no uniqueness theorem or ansatz is imported from the authors' own prior papers. The anchor-promotion statistics in Figures 1-2 are diagnostics: since the APM regressor is optimized with smooth-L1 loss toward ground-truth boxes and positivity is defined by an IoU threshold, the observed increase in positive-anchor count is expected from the training objective. However, that statistic is not the main result, and the mAP improvements do not reduce by construction to that objective. The mismatch between VGG-16/384 ablations and the ResNet-101/512 headline result is a generalizability concern, not a circularity issue.
Assumptions & free parameters
free parameters (4)
- theta threshold =
0.01
- matching IoU thresholds =
0.5 positive, 0.3 negative
- DCN kernel size =
9
- soft-NMS parameters =
sigma=0.5, Nt=0.3
assumptions (4)
- domain assumption APM scores reliably rank anchor quality (IoU with ground truth).
- ad hoc to paper Disentangled offsets (location scalar c plus shape residual Delta s) are superior to concatenated or implicit offsets for feature alignment.
- domain assumption The encoder-decoder backbone (DSSD-like) provides sufficient semantic and detail information at every decoded level for both APM and detection.
- domain assumption Deformable convolution can effectively sample features at arbitrary shifted locations.
Cite this review
Pith. "Pith review of PosNeg-Balanced Anchors with Aligned Features for Single-Shot Object Detection." pith.science (2026). https://pith.science/paper/MUQRPDKP
@misc{pith2026190803295,
author = {Pith},
title = {Pith review of: PosNeg-Balanced Anchors with Aligned Features for Single-Shot Object Detection},
year = {2026},
howpublished = {\url{https://pith.science/paper/MUQRPDKP}},
note = {Machine review of arXiv:1908.03295}
}
read the original abstract
We introduce a novel single-shot object detector to ease the imbalance of foreground-background class by suppressing the easy negatives while increasing the positives. To achieve this, we propose an Anchor Promotion Module (APM) which predicts the probability of each anchor as positive and adjusts their initial locations and shapes to promote both the quality and quantity of positive anchors. In addition, we design an efficient Feature Alignment Module (FAM) to extract aligned features for fitting the promoted anchors with the help of both the location and shape transformation information from the APM. We assemble the two proposed modules to the backbone of VGG-16 and ResNet-101 network with an encoder-decoder architecture. Extensive experiments on MS COCO well demonstrate our model performs competitively with alternative methods (40.0\% mAP on \textit{test-dev} set) and runs faster (28.6 \textit{fps}).
