Field-induced shaping of sessile paramagnetic drops

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Paramagnetic sessile drops elongate linearly with the square of an applied magnetic field, and a modified Young–Laplace equation predicts their outlines.

desk verdict The experimental scaling result is real and useful, but Eq. (3) contradicts the paper's own interpretation of the magnetic stress, and the model fitting is partly circular. read the letter →

arxiv 1908.05193 v2 pith:BBTQ22IV submitted 2019-08-14 physics.app-ph

Jennifer Dodoo , Adam A. Stokes This is my paper · ORCID
classification physics.app-ph
keywords paramagneticdropselectromagneticstresstensorYoung–LaplaceequationmagneticBondnumberdropshapingsessilesuperhydrophobicsurfacesparticle-freeactuation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper establishes that a sessile drop of paramagnetic salt solution, sitting on a superhydrophobic surface, elongates in a uniform magnetic field because of a mismatch in magnetic stress across the liquid–vapour interface. The shape change follows a modified Young–Laplace equation derived from the full electromagnetic stress tensor, and the paper confirms experimentally that the deformation grows linearly with the square of the applied field and scales with drop volume and magnetic susceptibility. The practical payoff is that magnetic fields could shape and move droplets without electrodes, contact lines, or embedded magnetic particles, complementing electrowetting and dielectrowetting for liquid lenses, liquid displays, and microfluidic mixing.

What carries the argument

The central object is the full electromagnetic stress tensor for quasi-static, non-dissipative media. Setting $D=E=0$ and using the Clausius–Mossotti approximation $\rho(\delta\chi/\delta\rho)\approx\chi$ for $\chi\ll1$ reduces its normal stress difference across the liquid–vapour interface to a term proportional to $B_n^2 - B^2$. This term is inserted into the augmented Young–Laplace equation $0 = \Delta\sigma^{\mathrm{surf}}_{nn} + \Delta\sigma^{\mathrm{grav}}_{nn} + \Delta\sigma^{\mathrm{EM}}_{nn}$, whose numerical solution for the axisymmetric outline $r(z)$ is fitted to drop photographs; the apex radius of curvature $b$ fixes the field-independent potential difference through $2\gamma b^{-1} = a^l_0 - a^v_0$. The machinery converts a field measurement plus surface tension, density, volume, and susceptibility into a predicted drop outline.

What would settle it

Map the magnetic flux density in and around a deformed paramagnetic drop—for example with a Hall-probe scan or field imaging—and compare the interface value of $B_n$ with the uniform applied field assumed in the fits. If the measured $B_n$ deviates enough to change the magnetic stress difference by more than the reported fit error, the predicted outlines and the linear $D$ versus $B^2$ relation should fail at higher fields, higher susceptibilities, or larger volumes.

Watch

Extended reading notes

Core claim

The paper's central claim is that the equilibrium shape of a paramagnetic sessile drop in a static uniform magnetic field is determined by the stress balance $0 = \Delta\sigma^{\mathrm{surf}}_{nn} + \Delta\sigma^{\mathrm{grav}}_{nn} + \Delta\sigma^{\mathrm{EM}}_{nn}$, where the magnetic term, derived from the full electromagnetic stress tensor, reduces for $\chi\ll1$ to $\Delta\sigma^{\mathrm{EM}}_{nn} = a^l_0 - a^v_0 - \xi_0\rho + \chi\mu_0^{-1}(B_n^2 - B^2)$. Numerically integrating this augmented Young–Laplace equation for the axisymmetric outline $r(z)$ and fitting it to photographed side profiles of drops made from manganese chloride and gadolinium chloride salt solutions, the authors find that the dimensionless shape parameter $D=(w-h)/(w+h)$ decreases linearly with $B^2$, that the drop elongates more when volume or magnetic susceptibility is larger, and that the normalized deformation collapses onto a single linear trend against the magnetic Bond number, $D_m/D_0 = -0.44B_m + 0.97$, with a mean fit error of $0.01$. The deformation is reversible as long as the drop volume is constant. The authors further note that the same stress-balance statement holds for ferro- and diamagnetic drops, and they propose a unified electromagnetic treatment as a route to combining electric and magnetic drop actuation.

Load-bearing premise

The prediction rests on treating the applied magnetic field as uniform and unaffected by the drop's own magnetization; if the drop distorts the field significantly, the magnetic stress and the linear $B^2$ scaling would change.

Editorial extensions

If this is right

  • For any paramagnetic sessile drop with $\chi\ll1$, the field-induced change in shape is proportional to $B^2$, so once surface tension, density, volume, and susceptibility are known, the outline at any field strength is fixed by the same fitted equation.
  • Because the same stress tensor yields the modified Young–Laplace equation for para-, dia-, and ferro-magnetic liquids, the formalism unifies magnetic and electric drop actuation, and the two can in principle be combined for shaping modes neither alone provides.
  • On superhydrophobic substrates, paramagnetic salt solutions give particle-free magnetic actuation: no ferrofluid particles are needed, and the deformation is reversible provided the drop volume is constant.
  • The linear collapse of normalized shape change against the magnetic Bond number means measurements at one volume, susceptibility, and field can be rescaled to predict another drop's deformation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A consequence the authors do not pursue is that the same stress-balance argument predicts a field tilted relative to the drop's symmetry axis should produce both elongation and a lateral force, so the setup could be extended from shaping to field-controlled drop transport.
  • The symmetry between electric and magnetic terms in the stress tensor suggests a dielectric analogue: a dielectric liquid drop in a uniform electric field should show the same linear collapse of normalized shape against an electric Bond number, and comparing the slopes would test how universal the fitted slope is.
  • The fits treat the triple contact line as mobile, while the paper notes its motion is inhibited by surface friction; including contact-line pinning in the model would predict a field threshold below which reversible elongation is suppressed, which is testable on rougher versus smoother superhydrophobic coatings.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper reports a theory and experiments for the elongation of sessile drops of paramagnetic salt solutions in a uniform magnetic field. The authors derive an augmented Young–Laplace equation by adding an electromagnetic stress difference, obtained from the electromagnetic stress tensor (EMST) of Stierstadt and Liu, to the usual surface-tension and gravitational terms. They solve this equation numerically and fit the drop outline to side-view photographs. They report that the elongation is linear in B^2 and increases with drop volume and magnetic susceptibility, and they combine these data in a master curve against a magnetic Bond number. The paper suggests applications in drop actuation and liquid optics.

Significance. The paper's strength is the direct experimental characterization of a weakly magnetic, particle-free system: the linear B^2 scaling in Fig. 3 and the monotonic dependence on volume and susceptibility are clean, falsifiable observations, and the authors are careful to note the reversibility of the deformation and the role of contact-line friction. A correct theoretical description of this system would be of practical interest to the lab-on-a-chip community. However, the central theoretical claim is currently not supported because the magnetic-stress expression used in the shape equation is inconsistent with the EMST boundary conditions stated in the paper, and the numerical fitting does not disclose which expression was actually implemented. The manuscript therefore is not acceptable in its present form.

major comments (3)
  1. [§2, Eq. (2)–(3)] The derivation of the magnetic stress is internally inconsistent. Starting from Eq. (1) and imposing the stated boundary conditions (H_t continuous, B_n continuous) for a linear paramagnet (χ << 1), the magnetic part of the normal stress difference (inside minus outside) is -χ/(2μ0)[B_n^2/(1+χ)+B_t^2] (with B_n and B_t evaluated on the air side) plus the thermodynamic terms, not χ/μ0 (B_n^2 - B^2). The printed Eq. (3) reduces to -χ/μ0 B_t^2, which vanishes at the apex (B_t = 0) and has its maximum at the equator. This directly contradicts the text and Fig. 2, which state that the magnetic stress is proportional to B_n^2 and is largest at the apex. The algebra connecting Eq. (2) and Eq. (3) is correct, but Eq. (2) itself is not the EMST result for the stated boundary conditions. Because the manuscript does not state whether the numerical fits actually solved Eq. (3) as printed or another expression, and because no code or data are provided, the experimental validation of Eq. (7) cannot be assessed. Moreover, if B in Eq. (3) is taken as the undisturbed uniform applied field, the correct leading-order stress is isotropic (proportional to -χ B0^2/(2μ0) with corrections of order χ^2), so the shape change would be second order in χ; the paper's O(χ) elongation from a B_t^2 term is therefore not the correct EMST prediction for a uniform applied field. This is a load-bearing issue that the revised manuscript must address by rederiving the stress and specifying exactly which field is used in the numerical solution.
  2. [§3, Fitting methodology] The quantitative validation of Eq. (7) is weakened by the fitting strategy. For the zero-field outline, γ is floated; for the field-on outlines, ξ0ρ is floated; and the triple-contact-line diameter is also optimized. Since ξ0ρ is a spatially constant term, it can absorb any constant error in the pressure balance, so the successful fit of Eq. (7) does not independently determine the absolute magnitude of the magnetic stress; it mainly tests the functional form of its dependence on the surface normal. The paper reports no goodness-of-fit statistics (e.g., residual errors, R^2, or confidence intervals on the fitted shapes), and the optimized triple-line diameter changes by 0.3 mm while the measured change is 0.05 mm, which indicates a systematic inconsistency in the boundary condition at the contact line. The independent checks in Figs. 3 and 4 (linear B^2 scaling, volume and susceptibility trends) are valuable and are not vitiated by this concern, but they cannot by themselves validate the specific stress expression in Eq. (3).
  3. [§2–3, Field evaluation] The manuscript never states how B_n (or H_n) in Eq. (3) is computed for a deformed drop. If B is the known uniform applied field, then B_n^2 + B_t^2 = B0^2 and Eq. (3) is purely tangential; if B is instead the self-consistent field including the drop's magnetization, the magnetostatic problem must be solved together with Eq. (7), but no such calculation is described. This ambiguity matters because the sign and spatial distribution of the magnetic stress depend on this choice. Please specify the field model used in the Runge-Kutta solve and, ideally, release the code or provide the numerical method in an appendix.
minor comments (4)
  1. [Experimental section] The abbreviation 'ppw' is not defined at first use; it presumably means parts per weight, but this should be stated explicitly.
  2. [Fig. 3] The labels V1,2,3 and χ1,2,3 are introduced only in the caption; please define them in the main text and include units on the axes.
  3. [Fig. 2 discussion] The text says the magnetic stress is 'directed outwards from the drop along the magnetic field lines'; since the stress in Eq. (3) is a normal traction, the wording should be revised to describe a normal stress difference rather than a force along field lines.
  4. [References] Reference [31] is to the authors' previous diamagnetic study; a brief comparison of the two results would help readers assess the generality of the EMST description.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; the paper's main scaling claims rest on direct measurements, not on the fitted model.

full rationale

The central quantitative claims—linear decrease of the dimensionless shape parameter with B^2 and the monotonic dependence on drop volume and magnetic susceptibility—are based on direct image measurements of drop width and height (Figs. 3 and 4), not on outputs of the fitted Young-Laplace model. Eq. (7) is used as a fitting model with free parameters (surface tension, field-independent chemical-potential term, and contact-line diameter); the statement that numerical solutions 'run smoothly along the outline' is a goodness-of-fit observation rather than an independent prediction. The fit is therefore not a fitted parameter being renamed as a prediction. The self-citation to the authors' earlier diamagnetic-drop paper is motivational and not load-bearing. There is a potentially serious algebraic/form issue in Eq. (3) as printed: with the stated boundary conditions it reduces to a term proportional to -B_t^2, whereas the text and Fig. 2 describe the magnetic stress as proportional to B_n^2 and largest at the apex. That inconsistency is a correctness concern, not an instance of circular reasoning, because it does not make the claimed result equivalent to its inputs by construction. No circular step is exhibited in the derivation chain.

Assumptions & free parameters 5 free parameters · 6 assumptions · 0 invented entities

The central claim rests on a prior stress tensor, several domain assumptions about the magnetization and thermodynamic state, and five parameters fitted or estimated during the outline analysis. No new physical entities are introduced.

free parameters (5)
  • Surface tension gamma = 66.7 mN/m for 51.4% GdCl3; 72.3, 71.3, 69.8 mN/m for the other solutions
    Allowed to freely change in the numerical fit to the drop outline to account for errors in the initial estimates of density and surface tension.
  • Field-independent chemical potential term xi0 rho_alpha = -(1.6 +/- 0.2) x 10^-3 J/kg
    Allowed to freely change in the presence of magnetic fields to account for errors in the field-independent chemical potential and the difference of the field-independent thermodynamic potentials.
  • Apex radius of curvature b = Not reported; obtained by parabolic fit to r(z) near apex
    Needed as a boundary condition for Eq. (7); fitted from the measured outline rather than measured independently.
  • Triple contact line diameter = Optimized to 0.3 mm change, while real change is 0.05 mm
    The fit routine optimizes the change in diameter because contact line friction is omitted, leading to a mismatch between the real and optimized values.
  • Solution density rho = rho_w = 997 kg/m^3 for MnCl2 solutions; 1.1 rho_w for GdCl3 solution
    Estimated by hand rather than measured, used in the gravitational stress term.
assumptions (6)
  • standard math The full electromagnetic stress tensor of Stierstadt and Liu (Eq. 1) is valid for all quasi-static, non-dissipative media.
    Invoked in the derivation of Eq. (2) without independent verification in this paper.
  • domain assumption The system is a closed thermodynamic system at constant temperature and volume, described by the Helmholtz potential.
    Used to split the free energy into field-independent and field-dependent parts; stated at the top of page 2.
  • domain assumption The magnetic susceptibility is independent of the applied field, so B = mu0(1+chi)H and M = chi H.
    This linear relation is used to express the magnetic stress in terms of B^2; reasonable for these dilute solutions but not derived.
  • domain assumption Air is approximated as vacuum in its magnetic properties and chemical potential.
    Used to simplify the stress balance across the liquid-vapour interface; stated in the derivation.
  • domain assumption The Clausius-Mossotti relation gives rho(d chi/d rho) = chi(1 + chi/3) approximately equal to chi for chi << 1.
    Used to convert Eq. (2) into Eq. (3); valid in the low-susceptibility limit but an approximation.
  • domain assumption The drop remains axisymmetric and the applied magnetic field is homogeneous and aligned with the symmetry axis.
    Required for the one-dimensional Young-Laplace equation in Eq. (6); the paper notes field and substrate inhomogeneities cause non-axisymmetric deformation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Field-induced shaping of sessile paramagnetic drops." pith.science (2026). https://pith.science/paper/BBTQ22IV

@misc{pith2026190805193,
  author       = {Pith},
  title        = {Pith review of: Field-induced shaping of sessile paramagnetic drops},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BBTQ22IV}},
  note         = {Machine review of arXiv:1908.05193}
}
read the original abstract

We use the electromagnetic stress tensor to describe the elongation of paramagnetic drops in uniform magnetic fields. This approach implies a linear relationship between the shape of the drops and the square of the applied field which we confirm experimentally. We show that this effect scales with the volume and susceptibility of the drops. By using this unified electromagnetic approach, we highlight the potential applications of combining electric and magnetic techniques for controlled shaping of drops in liquid displays, liquid lenses, and chemical mixing of drops in microfluidics.

Figures

Figures reproduced from arXiv: 1908.05193 by the authors.

Figure 1
Figure 1. FIG. 1. Images of a 60 [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

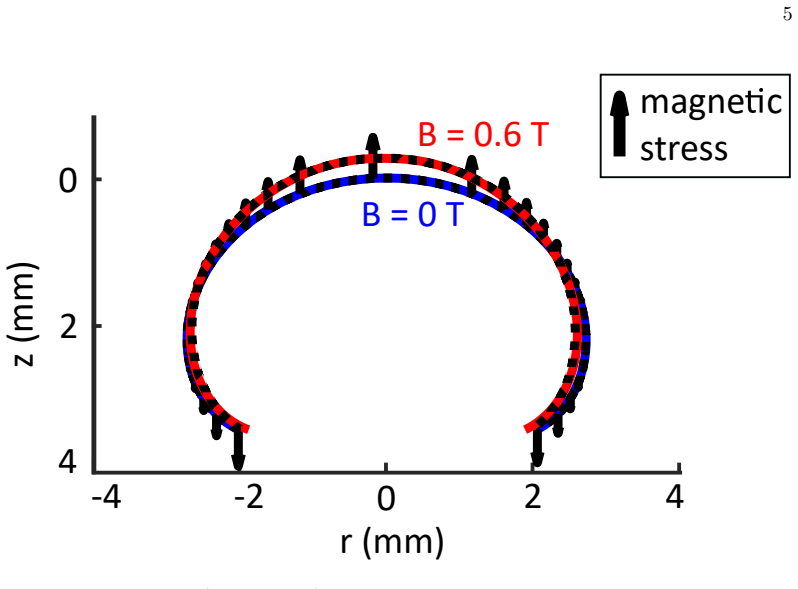

Figure 2. FIG. 2. The outlines (black dashed) of the drop in Fig. 1, and the corresponding numerical [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

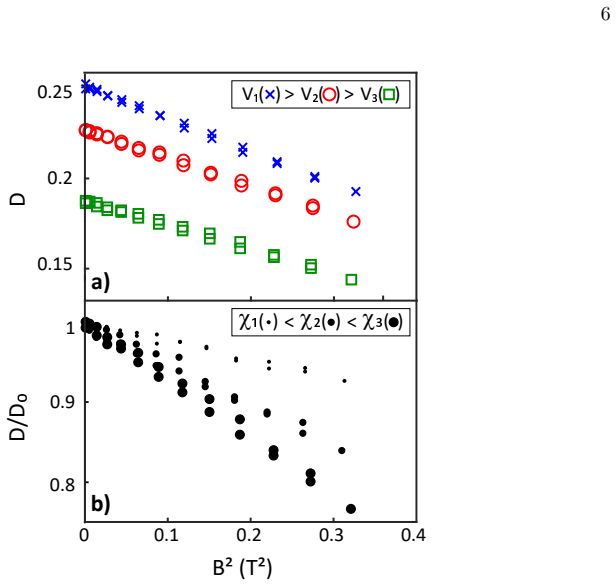

Figure 3. FIG. 3. Dimensionless shape parameter D (see text) of drops with different volumes and magnetic [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Normalized dimensionless shape parameter in an applied field of [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]

Discussion (0). Continue with ORCID to comment.
