First HAWC Spectra of Galactic Gamma-ray Sources Above 100 TeV and the Implications for Cosmic-ray Acceleration

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A blind HAWC survey finds nine Galactic gamma-ray sources above 56 TeV, with three also emitting above 100 TeV, marking the highest-energy gamma-ray sources yet detected.

desk verdict A slim and honest proceedings that delivers a new >56 TeV catalog but punts the spectra; treat it as a status report, not a final measurement. read the letter →

arxiv 1908.07059 v1 pith:ICTL3DXD submitted 2019-08-19 astro-ph.HE

Kelly Malone (for the HAWC Collaboration) This is my paper · ORCID
classification astro-ph.HE
keywords high-energygamma-rayastronomyHAWCenergyreconstructionTeVsourcesPeVatroncosmic-rayaccelerationsourcecatalogGalacticplane
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports the first catalog of Galactic gamma-ray sources detected above 56 TeV, and a first look at sources above 100 TeV, energies at which almost no gamma-ray emitters were previously known. Using 1038.8 days of data from the HAWC wide-field observatory and a new event-by-event energy-reconstruction algorithm, a blind likelihood search finds nine sources with significant emission above 56 TeV. Three of these—eHWC J1825-134, eHWC J1907+063, and eHWC J2019+368—also show emission above 100 TeV, placing them among the highest-energy gamma-ray sources ever detected. The results matter for cosmic-ray physics because a Galactic source that accelerates protons to the PeV 'knee' should radiate hard gamma-ray spectra up to about 100 TeV; these objects are the strongest new PeVatron candidates.

What carries the argument

The carrying object is the 'ground parameter' (GP) energy estimator, which reconstructs each gamma-ray event's energy from the charge collected 40 meters from the air-shower axis together with the arrival zenith angle, giving a small energy bias above roughly 30 TeV and extending HAWC's range by about a factor of three. The catalog search itself is a likelihood-ratio scan: test sources with three assumed morphologies (a point source and disks of 0.5° and 1.0° radius) are moved across the sky at two energy thresholds, and local maxima with TS>25, separated by valleys of Δ√TS>2, become catalog entries, following the established 2HWC procedure. A bin-migration test, which convolves a step-function cutoff at 56 or 100 TeV with the best-fit spectral model and re-fits, is used to show that the high-energy emission cannot be explained by lower-energy events leaking upward in reconstructed energy.

What would settle it

Take one of the three >100 TeV sources and measure its spectrum with an independent air-shower array whose energy reconstruction relies on different ground parameters; a systematic offset between the reconstructed energies larger than the bin-migration allowance would rule out the claimed >100 TeV emission.

Watch

Extended reading notes

Core claim

The paper's central claim is that HAWC's blind sky survey has found nine Galactic gamma-ray sources emitting above 56 TeV in reconstructed energy, and that three of them, eHWC J1825-134, eHWC J1907+063, and eHWC J2019+368, continue to emit above 100 TeV. This makes them, along with the Crab Nebula, the highest-energy gamma-ray sources detected by any instrument to date. All nine sources coincide spatially with known lower-energy Galactic gamma-ray emitters, and all but the Crab are extended, which the paper interprets as plausible pulsar-wind nebulae, TeV halos, or supernova remnants. The paper also reports that the Crab Nebula's spectrum, measured with the new ground-parameter energy estimator, extends beyond 100 TeV and agrees with earlier HAWC and imaging-telescope measurements at lower energies. It stops short of identifying any source as a confirmed PeVatron, noting that spectral cutoffs or curvature can be mimicked by pair production, and that definitive emission-mechanism studies are deferred.

Load-bearing premise

The classification of sources as 'above 56 TeV' or 'above 100 TeV' assumes the ground-parameter energy estimator returns faithful photon energies across the whole sky; if its energy scale is biased away from the Crab Nebula calibration, lower-energy events could masquerade as the highest-energy detections.

Editorial extensions

If this is right

  • The three >100 TeV sources give cosmic-ray physicists concrete places to look for PeVatrons, the hypothesized accelerators of Galactic cosmic rays up to the knee.
  • HAWC's Crab spectrum now reaches past 100 TeV, tripling the energy range of its previously published measurement and providing a high-energy calibration point for other gamma-ray observatories.
  • Every one of the nine sources coincides with a known lower-energy emitter, so the ultra-high-energy sky appears to be the energetic tail of known Galactic source classes rather than a new population.
  • For the three isolated sources, curved or cut-off spectra are strongly preferred over a hard cutoff (≥6σ at 56 TeV, ≥2.6σ at 100 TeV), indicating the emission really extends to ultra-high energies.
  • Dedicated multi-source fits including galactic diffuse emission are needed before full spectra of the crowded sources can be trusted; the paper quotes only integral fluxes above 56 TeV for those regions.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If all three >100 TeV detections survive cross-checks, a wide-field survey has found as many ultra-high-energy gamma-ray sources in one pass as pointed observations found in a decade, implying such sources are not rare.
  • The emergence of eHWC J1839-057 as a separate high-energy source near 2HWC J1837-065 shows that energy-thresholded surveys can decompose confused Galactic-plane regions, a technique that could map the energy-dependent structure of the Milky Way's TeV emission.
  • A joint search with neutrino observatories looking at the three isolated >100 TeV sources would directly test whether any has a hadronic component; a coincident neutrino signal would settle the PeVatron question that gamma-ray spectra alone leave open.
  • Re-running the bin-migration test with finalized spectral parameters and with simulated faint unresolved sources would turn the present check into a quantitative systematic-error budget, a template applicable to any wide-field air-shower observatory.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. This HAWC Collaboration proceeding reports a search for Galactic gamma-ray sources above 56 TeV and above 100 TeV in reconstructed energy, using 1038.8 days of data and the new ground-parameter energy estimator. Nine sources are found with TS>25 above 56 TeV, and three of these (eHWC J1825-134, eHWC J1907+063, eHWC J2019+368) also show TS>25 emission above 100 TeV. The paper describes the Crab Nebula validation of the energy estimator, the catalog construction via likelihood significance maps, and a bin-migration test claiming that a hard cutoff at 56 TeV and at 100 TeV is disfavored for the three highest-energy sources. The actual spectral fits are not shown; the authors state that best-fit parameters will appear in a forthcoming publication.

Significance. If the detections hold up, these would be among the highest-energy Galactic gamma-ray sources observed, directly relevant to the search for PeVatrons and to cosmic-ray acceleration in the Galaxy. The paper's strengths are its use of an established likelihood framework, the explicit cross-check of the energy estimator against the Crab Nebula with agreement to IACT measurements, and the explicit statement that the catalog is built in reconstructed energy. However, the significance is limited by the absence of the promised spectra, the reliance on a single-source energy-scale validation, and the acknowledged neglect of multi-source and diffuse-emission modeling in a crowded Galactic-plane region.

major comments (3)
  1. [Title, Abstract, and §5] The title and abstract promise 'First HAWC Spectra' and a discussion of implications for cosmic-ray acceleration, but no spectra are actually presented. Equations (5.1) and (5.2) give functional forms, yet the best-fit parameters are deferred ('will be given in a forthcoming publication'), no flux points, spectral energy distributions, or cutoff energies are shown, and no quantitative statement about PeVatron candidacy is made. The central advertised deliverable is therefore missing from the manuscript.
  2. [§6 and §3] The bin-migration test is an internal-consistency check and does not validate the absolute energy scale for these specific sources. It convolves a step function with a best-fit model already derived from the same reconstructed-energy data, so it cannot exclude the possibility that a source-dependent bias in the ground-parameter estimator moves sub-100 TeV events into the >100 TeV bin. The GP estimator is validated on the Crab (a point source) in §3, while all Table 1 sources are extended (Gaussian widths 0.18–0.52 deg) and lie in crowded regions; the stated ≥2.6σ preference over a hard 100 TeV cutoff does not include energy-scale or morphology systematics. This bears directly on the claim that these are 'the highest-energy sources ever detected.'
  3. [§5] The paper explicitly states that multi-source and multi-component fits are not considered and that Galactic diffuse emission and unresolved sources are not included. For sources such as eHWC J2030+412, contamination from a PWN and the Fermi cocoon is acknowledged, and for eHWC J1839-057 lower-energy source contamination is noted. Because the reported locations, extensions, and integral fluxes above 56 TeV are derived under simple point-like or single-Gaussian assumptions, these results may be biased, and the assertion that the three >100 TeV sources are 'in more isolated regions' is not quantified.
minor comments (4)
  1. [§1] The text says 'These neural pions will subsequently decay to gamma rays'; this should read 'neutral pions.'
  2. [Figure 1 caption] The caption lists 'VERTIAS' among experiments; this should be 'VERITAS.'
  3. [§5] The source is referred to as 'eHAWC J1839-057' in the text but as 'eHWC J1839-057' in Table 1; the naming should be consistent.
  4. [§3] The sentence 'This is the among the highest-energy detections of any gamma-ray source to date' contains a grammatical error and should be rephrased.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the blind catalog search and spectral claims are observational, with the energy scale calibrated on Monte Carlo and the Crab Nebula; the bin-migration test is an internal consistency check, not a fitted parameter renamed as a prediction.

full rationale

The paper's central claim is a blind catalog search: significance maps are built with a likelihood ratio against a background-only hypothesis using fixed point-source and disk morphologies, with no source parameters fitted to define the detection. The '>56 TeV' and '>100 TeV' thresholds are in reconstructed energy assigned by the GP algorithm, which is calibrated on Monte Carlo and cross-checked against the Crab Nebula and IACT measurements; this is independent evidence, not a self-citation chain. The bin-migration test in Section 6 convolves a step function with the best-fit spectral model and compares nested models; although this test inherits the energy-scale systematics of the GP estimator, it is a standard likelihood-ratio consistency check and does not reduce by construction to a fitted parameter. Self-citations to HAWC methods papers ([7], [18]) are normal collaboration practice and are not load-bearing in a circular sense. The main fragilities are systematic (source-dependent energy bias, neglected diffuse emission and multi-source contamination), which are correctness risks, not circularity.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

This observational paper introduces no new theory. Its central claims rest on the calibration of the HAWC energy estimator, the validity of the likelihood analysis, and the assumed simple source morphologies. These are standard domain assumptions for this analysis, borrowed from HAWC methods papers rather than fitted here.

assumptions (4)
  • domain assumption The ground-parameter (GP) energy estimator is unbiased above ~30 TeV and its Monte Carlo calibration correctly maps measured charges to photon energies.
    Invoked in Section 2 and Section 3; the entire 'above 56 TeV' and 'above 100 TeV' catalog depends on this energy scale.
  • domain assumption The likelihood significance maps and gamma/hadron separation correctly model background and source counts.
    Used in Section 4 for the blind search; this is a standard HAWC analysis framework referenced to [7] and [17].
  • domain assumption A power-law E^-2 template is appropriate for the blind search for PeVatron-like sources.
    Section 4; sources with very different spectra might be missed or have biased positions.
  • domain assumption Source morphologies are well described by point sources or Gaussian disks of radius 0.5 or 1.0 degrees, and contamination by neighboring sources and diffuse emission is negligible for the quoted detections.
    Section 4 and Section 5; the paper itself states multi-source fits and diffuse emission are not included, which can affect spectral and flux measurements.

how reviews work

0 comments
Cite this review

Pith. "Pith review of First HAWC Spectra of Galactic Gamma-ray Sources Above 100 TeV and the Implications for Cosmic-ray Acceleration." pith.science (2026). https://pith.science/paper/ICTL3DXD

@misc{pith2026190807059,
  author       = {Pith},
  title        = {Pith review of: First HAWC Spectra of Galactic Gamma-ray Sources Above 100 TeV and the Implications for Cosmic-ray Acceleration},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/ICTL3DXD}},
  note         = {Machine review of arXiv:1908.07059}
}
read the original abstract

We present the first catalogs of the highest-energy (above 56 TeV and 100 TeV) gamma-ray sources seen by the High Altitude Water Cherenkov (HAWC) Observatory. The wide field-of-view of HAWC naturally lends itself to unbiased all-sky surveys and newly developed event-by-event gamma-ray energy reconstruction algorithms have allowed unprecedented energy resolution. The sources presented here are the highest-energy sources ever detected. All are coincident with known lower-energy gamma-ray sources within our Galaxy. These objects may have implications for the sources of Galactic cosmic rays; since Galactic CRs have been observed up to PeV energies, sources accelerating particles to these energies must exist. These sources, called "PeVatrons", would have corresponding hard gamma-ray spectra that extend to high energies without any spectral break or cutoff. We will present measurements of the spectra of these highest-energy gamma-ray sources and discuss if any of them can be identified as PeVatron candidates.

Figures

Figures reproduced from arXiv: 1908.07059 by the authors.

Figure 1
Figure 1. The black flux points show the spectrum of the Crab Nebula obtained with the ground param￾eter method described above. The error bars are statistical uncertainties only. The solid black line is the forward-folded log-parabola best fit, and the shaded gray band is the systematic uncertainty on that fit. For comparison, the HAWC fit from [5] is shown, as are results from selected other experiments. The references for … view at source ↗

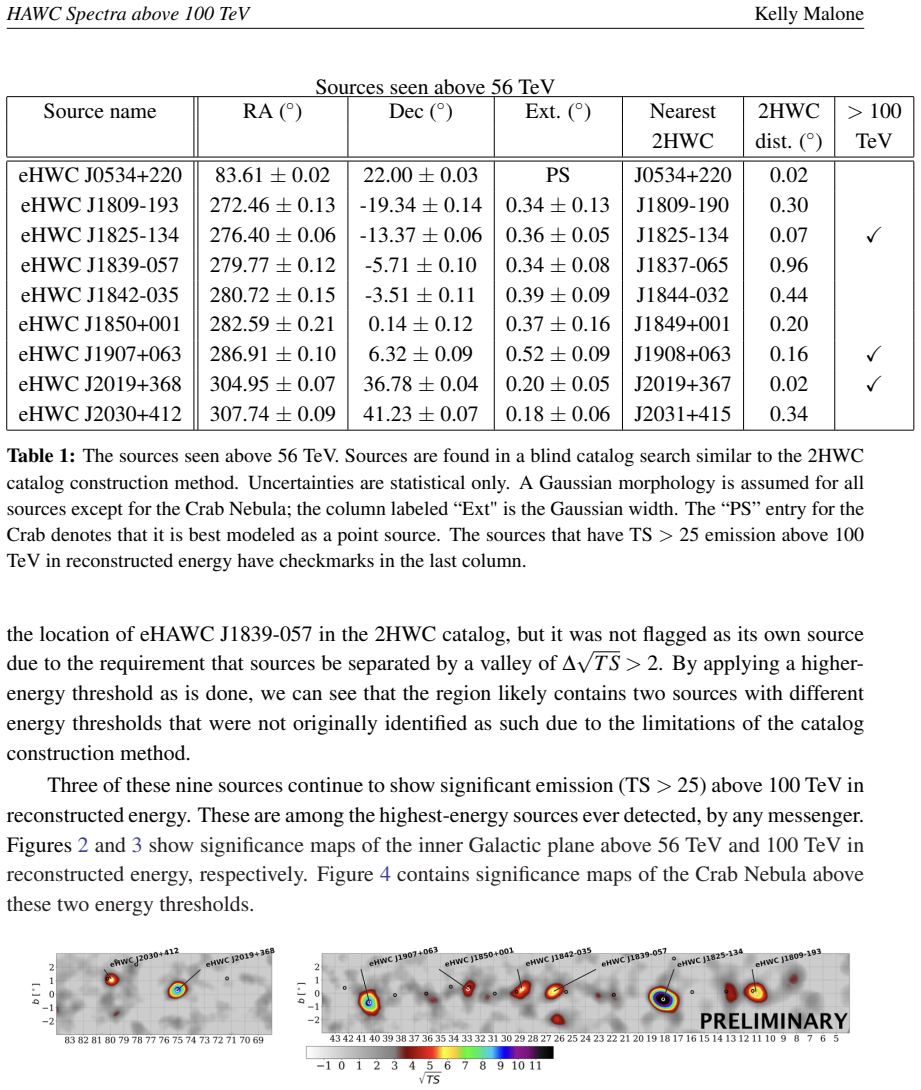

Figure 2
Figure 2. The Galactic plane above 56 TeV in reconstructed energy. Since all of these sources are extended in apparent size, the morphology in this figure is assumed to be a disk with a radius of 0.5 degree. White open circles are > 56 TeV hotspots (defined as emission with TS > 25). Black circles denote sources from the 2HWC catalog. Most of these sources are located within one degree of the Galactic plane. This region is ex… view at source ↗

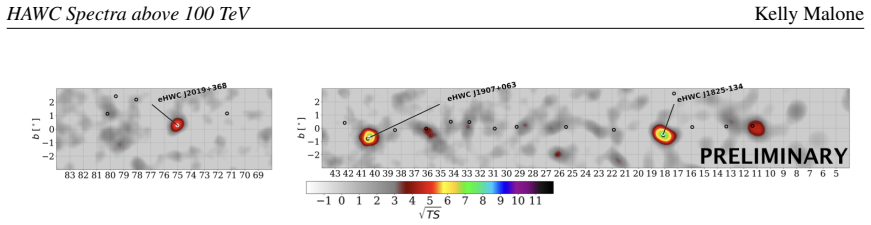

Figure 3
Figure 3. The same as [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4

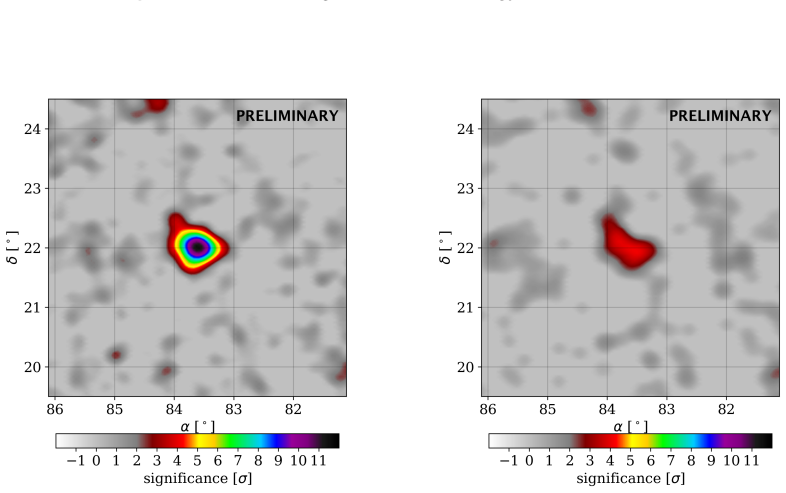

Figure 4. Figure 4: Significance map of the Crab Nebula above 56 TeV in reconstructed energy (left) and above 100 TeV in reconstructed energy (right). A point source morphology is assumed. The maximum significance is 11.59σ above 56 TeV in reconstructed energy and 4.18σ above 100 TeV in r…

Discussion (0). Continue with ORCID to comment.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score. Full citation record

  1. The Spectrum of the Crab Nebula and Highest Energy Photons Measured by HAWC
