H.E.S.S. searches for TeV gamma rays associated to high-energy neutrinos

T0 review · 0 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The H.E.S.S. telescopes found no significant TeV gamma-ray emission from TXS 0506+056, the blazar linked to the IceCube-170922A neutrino alert, and derived differential flux upper limits.

desk verdict A sound but incremental ICRC proceedings: the new March 2018 H.E.S.S. limits and the GFU source list are useful, the non-detection holds up, and only minor typos and the usual spectral-index caveat stand out. read the letter →

arxiv 1908.08364 v1 pith:CVTD6MRB submitted 2019-08-22 astro-ph.HE

Fabian Schüssler , Halim Ashkar , Michael Backes , Kathrin Egberts , Francois Brun , Matthias Fü{ss}ling , Clemens Hoischen , Jean-Philippe Lenain
show 7 more authors
Iryna Lypova Stefan Ohm Dan Parsons Carlo Romoli Monica Seglar-Arroyo Michael Zacharias Andreas Zech (on behalf of the H.E.S.S. Collaboration)
This is my paper · ORCID
classification astro-ph.HE
keywords neutrinoastronomyveryhighenergygammaraysmulti-messengerTXS0506+056IceCube-170922AimagingairCherenkovtelescopesgamma-rayupperlimitsreal-timealertfollow-up
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper reports a search for very high energy (VHE, above 100 GeV) gamma rays at the positions of neutrino events detected by IceCube, using the H.E.S.S. imaging air Cherenkov telescopes. Its central result is that no significant TeV gamma-ray emission was detected from TXS 0506+056 in the follow-up observations tied to the neutrino event IceCube-170922A, including an initial pointing that began about four hours after the alert, a later 13-hour dataset in October 2017, and a 2.7-hour observation triggered by a GeV flare in March 2018. Differential upper limits on the VHE flux are derived for these windows, with the main limits computed under the assumption of a power-law spectrum with index $-3.9$ measured in the multi-wavelength campaign. The paper also describes the activation of a real-time alert program that brings southern-hemisphere neutrino triggers into the gamma-ray follow-up network, with a predefined source list of 139 objects. The reason to care is that neutrinos and gamma rays are expected to be produced together in hadronic interactions, so these null results and limits constrain where and how cosmic-ray acceleration can accompany neutrino emission.

What carries the argument

The load-bearing mechanism is the multi-messenger coincidence search: a real-time neutrino alert defines a sky position and a time, and imaging air Cherenkov telescopes (IACTs) -- instruments that record the Cherenkov light from gamma-ray-induced air showers -- are pointed there promptly. The signal analysis uses the Model Analysis likelihood reconstruction in monoscopic mode with loose cuts to push the energy threshold down to roughly 140-150 GeV. Because no excess counts are found, the tool that turns the null result into a constraint is the TRolke limit calculator, which produces 95% confidence upper limits on the flux under an assumed power-law shape with spectral index $-3.9$; a fully independent analysis chain is used as a cross-check. The same alert infrastructure is extended through a Fermi-LAT-based candidate source list of 139 objects and an automated reaction system, so the trigger can come from either a single high-energy neutrino or a time-clustered neutrino flare.

What would settle it

Reanalyzing the 13-hour October 2017 and 2.7-hour March 2018 H.E.S.S. datasets with an energy-dependent or differently sloped spectral model and finding a gamma-ray excess above the expected background at more than five standard deviations would overturn the reported non-detection; a simultaneous measurement by another TeV instrument covering the same observation windows and showing a clear source would also contradict it.

Watch

Extended reading notes

Core claim

On the paper's own terms, the finding is a non-detection: H.E.S.S. looked for very high energy gamma rays from the direction of the flaring blazar TXS 0506+056 during the weeks around the IceCube-170922A neutrino alert and again during a GeV flare in March 2018, and found no excess above background in any of the datasets. The 13-hour October 2017 monoscopic analysis, reaching an energy threshold near 150 GeV, produced no signal, and the 2.7-hour March 2018 dataset, with a threshold near 140 GeV, also produced no signal. From the absence of emission the paper derives 95% confidence upper limits on the differential VHE flux in five energy bins, from $2.7\times10^{-6}$ ph TeV$^{-1}$ m$^{-2}$ s$^{-1}$ at 0.14-0.31 TeV down to $1.1\times10^{-9}$ ph TeV$^{-1}$ m$^{-2}$ s$^{-1}$ at 3.05-6.55 TeV. Taken together with detections reported by other very high energy instruments at different epochs, the limits are read as evidence of rapid variability in the TeV emission. The same report describes the implementation of a real-time gamma-ray follow-up program in which alerts on neutrino flares from a predefined list of 139 sources can trigger automatic H.E.S.S. observations.

Load-bearing premise

The upper limits assume the source's TeV spectrum in the H.E.S.S. observing windows had the same power-law shape with spectral index $-3.9$ that was measured in the multi-wavelength campaign; if the spectrum was harder or softer during those windows, the limits do not directly bound the true flux.

Editorial extensions

If this is right

  • If the null result holds, the TeV flux of TXS 0506+056 was below roughly $10^{-9}$ ph TeV$^{-1}$ m$^{-2}$ s$^{-1}$ above 3 TeV during the March 2018 H.E.S.S. window, bounding the simultaneous hadronic gamma-ray output of the source.
  • Combined with detections at other epochs, the non-detection implies strong variability of the source's TeV emission, with the flaring state occupying only a small fraction of the observed time.
  • The limits constrain models in which the neutrino and gamma-ray emissions come from the same pion-production process: any such model must keep the predicted TeV flux below the H.E.S.S. limits in the observed windows.
  • The extension of the alert program to southern-hemisphere neutrino events means future neutrino sources invisible to northern arrays can be observed within hours, improving the chance of catching a prompt gamma-ray counterpart.
  • The previously reported neutrino flare in 2014-2015 from the same direction, with no bright GeV counterpart, indicates that some neutrino flares may be orphaned in gamma rays; the new alert program is positioned to test whether such flares recur.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the quoted limits are tied to the $E^{-3.9}$ spectral assumption, a natural extension is to recompute them over a grid of spectral indices: a harder spectrum in the observed windows would tighten the high-energy constraints, while a softer spectrum would relax them.
  • The fact that the first H.E.S.S. pointing began about four hours after the alert and still saw nothing hints that rapidly decaying TeV flares accompanying neutrino events could be missed by repointed IACTs; wide-field monitors running in parallel would test how often such fast transients occur.
  • The orphan 2014-2015 neutrino flare suggests a testable dichotomy: if future neutrino-triggered H.E.S.S. observations repeatedly find TeV silence, neutrino sources may often be hidden from gamma rays through absorption or choked jets, whereas a single bright TeV coincidence would favor transparent hadronic models.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

0 major / 5 minor

Summary. This is an ICRC 2019 proceedings paper reporting H.E.S.S. follow-up observations of real-time IceCube neutrino alerts, with a focus on the TXS 0506+056 / IceCube-170922A campaign. The paper describes three H.E.S.S. datasets: a prompt observation starting about 4 hours after the alert, an early 3.25-hour dataset, and a 13-hour monoscopic dataset taken in October 2017; none yields a significant very-high-energy (VHE) gamma-ray excess. It then reports a Target-of-Opportunity observation in March 2018 during a Fermi-LAT flare, again with no significant excess, and gives differential flux upper limits in Table 1. The paper also describes the implementation of H.E.S.S. in the IceCube Gamma-ray Follow-Up (GFU) program, including the Fermi-LAT-based source-selection criteria and the 139-source list.

Significance. The non-detection of VHE gamma-ray emission from TXS 0506+056 in the H.E.S.S. datasets is a robust observational result that complements the MAGIC and VERITAS detections and supports the picture of rapid TeV variability in this key multimessenger source. The upper limits, while dependent on the assumed E^-3.9 spectral shape, are derived with an established H.E.S.S. analysis chain (Model Analysis, TRolke), include a stated 30% systematic uncertainty, and were cross-checked with an independent calibration and analysis chain. The paper is transparent about the spectral-index assumption and about the low significance of the neutrino-blazar association. As a proceedings contribution, the paper is necessarily concise, but the central non-detection claim is supported by the data shown and by references to prior publications.

minor comments (5)
  1. [§2.2 and Figure 5 caption] The text states that 2.7 hours of high-quality data were obtained in March 2018, while the Figure 5 caption reports analysis of the 2.4-hour dataset; please align these values and clarify whether one is the raw exposure and the other the dead-time-corrected livetime.
  2. [§2.2] The sentence 'They have been derived assuming a spectrum following E^-3.9 as measured by the MAGIC collaboration during the campaign in September 2018 [7]' appears to contain a typo: reference [7] reports MAGIC observations from September/October 2017, not September 2018; please correct the date and ensure that the same spectral assumption is explicitly stated for both the October 2017 and March 2018 datasets.
  3. [§2.2 and Table 1] For the March 2018 differential upper limits in Table 1, the paper does not specify the TRolke settings, the systematic uncertainty, or the effective exposure used; please add this information or refer to a dedicated publication so that the limits can be correctly interpreted and reproduced.
  4. [Figure 2] The red markers for the H.E.S.S. upper limits are not individually tied to the corresponding observation epochs in the text; adding a note that each red marker corresponds to a per-night limit would make the figure more self-contained.
  5. [Abstract] The phrasing 'within ~4h hours' is redundant and informal; please replace it with 'within about 4 hours,' and replace 'We'll present' with 'We present.'

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity identified; the non-detection claim is based on measured counts and the spectral-index dependence of the upper limits is explicitly disclosed.

full rationale

The paper's central claims are (1) that H.E.S.S. observations following IceCube-170922A and during the March 2018 Fermi-LAT flare found no significant very-high-energy gamma-ray emission, and (2) that upper limits were derived. The non-detection claim rests on observed excess and significance maps (Figures 3 and 5), which are direct measurements independent of any fitted model; no parameter of this paper is used as an input to produce a predicted output. The upper limits in Table 1 and Figure 2 are derived assuming a power law with spectral index -3.9 taken from MAGIC, as stated in Sections 2.1 and 2.2. This is an explicitly stated external modeling assumption, standard for IACT upper-limit calculations, and it is not a fitted parameter from this paper being renamed as a prediction. The dependence of the limits on this assumption is disclosed in the text, and the primary result 'no significant emission' does not depend on that assumption. Self-citations (e.g., refs. [3], [14], [20]) are used for context, preliminary alerts, and program descriptions, but the final analysis and limits are presented in this paper and cross-checked with an independent analysis chain [18]. There is no equation in which an output is defined in terms of the same quantity being claimed as predicted, no fitted input called a prediction, and no load-bearing uniqueness theorem imported from the authors. The small inconsistency between the 2.7 h exposure in Section 2.2 and the 2.4 h in the Figure 5 caption is a typographical discrepancy, not a circular step. Overall, the derivation is self-contained with respect to the non-detection result, and the stated assumptions are appropriately disclosed.

Assumptions & free parameters 1 free parameters · 3 assumptions · 0 invented entities

The central claims, upper limits and program status, rest on standard analysis chains and the externally measured spectral index; no new entities are introduced.

free parameters (1)
  • Assumed spectral index for H.E.S.S. upper limits = -3.9 (taken from MAGIC [7])
    Used for flux-limit calculations in Sections 2.1 and 2.2; the limits match a source with this spectral index, so the reported values are conditional on it.
assumptions (3)
  • domain assumption Neutrino and gamma-ray emission share hadronic origin (pion decay).
    Intro (Section 1) motivates the search; standard in multi-messenger astrophysics, accepted from particle physics.
  • domain assumption H.E.S.S. Monte Carlo simulations of air showers and detector response are correct.
    Analysis uses Model Analysis [16] and independent chain [18] with simulated effective areas; no detailed validation in this paper.
  • ad hoc to paper Fermi-LAT catalog variability criteria identify good neutrino-gamma source candidates.
    GFU source selection in Section 3 uses specific thresholds (variability index, z<1, flux extrapolation); the thresholds are chosen by the program, not derived.

how reviews work

0 comments
Cite this review

Pith. "Pith review of H.E.S.S. searches for TeV gamma rays associated to high-energy neutrinos." pith.science (2026). https://pith.science/paper/CVTD6MRB

@misc{pith2026190808364,
  author       = {Pith},
  title        = {Pith review of: H.E.S.S. searches for TeV gamma rays associated to high-energy neutrinos},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CVTD6MRB}},
  note         = {Machine review of arXiv:1908.08364}
}
read the original abstract

The detection of an astrophysical flux of high-energy neutrinos by IceCube is a major step forward in the search for the origin of cosmic rays, as this emission is expected to originate in hadronic interactions taking place in or near cosmic-ray accelerators. No neutrino point sources, or significant correlation with known astrophysical objects, have been identified in the IceCube data so far. The hadronic interactions responsible for the neutrino emission should also lead to the production of high-energy gamma rays. The search for neutrino sources can then be performed by studying the spatial and temporal correlations between neutrino events and very high energy (VHE, E > 100 GeV) gamma rays. We report here on the search for VHE gamma-ray emission with the H.E.S.S. imaging air Cherenkov telescopes (IACTs) at the reconstructed position of muon neutrino events detected by IceCube. We will provide an up-to-date summary of the extensive program to perform prompt IACT observations of realtime IceCube neutrino event positions. A recent highlight of this program are the H.E.S.S. observations during the broad multi-wavelength campaign that followed the detection of the neutrino event IceCube-170922A arriving from a direction consistent with the location of a flaring gamma-ray blazar TXS 0506+056 in September 2017. We'll present the H.E.S.S. observations obtained within ~4h hours of the neutrino detection as well as a complementary search for gamma-ray emission at longer timescales and put them into the multi-wavelength and multi-messenger context.

Figures

Figures reproduced from arXiv: 1908.08364 by the authors.

Figure 1
Figure 1. Overview of the H.E.S.S. neutrino follow-up program showing the high-energy neutrino [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Lightcurve of VHE gamma-ray observations of the blazar TXS 0506+056 obtained fol [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Observations of TXS 0506+056 with the 28m H.E.S.S.-2 telescope obtained during the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4

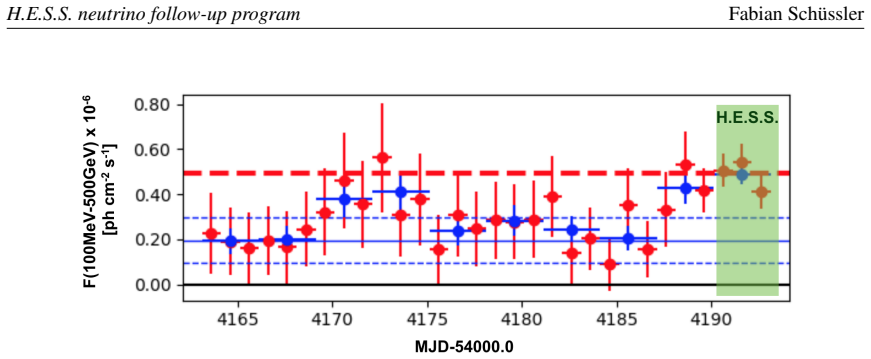

Figure 4. Figure 4: Fermi-LAT aperture photometry lightcurve of TXS 0506+056 showing the flaring episode [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5

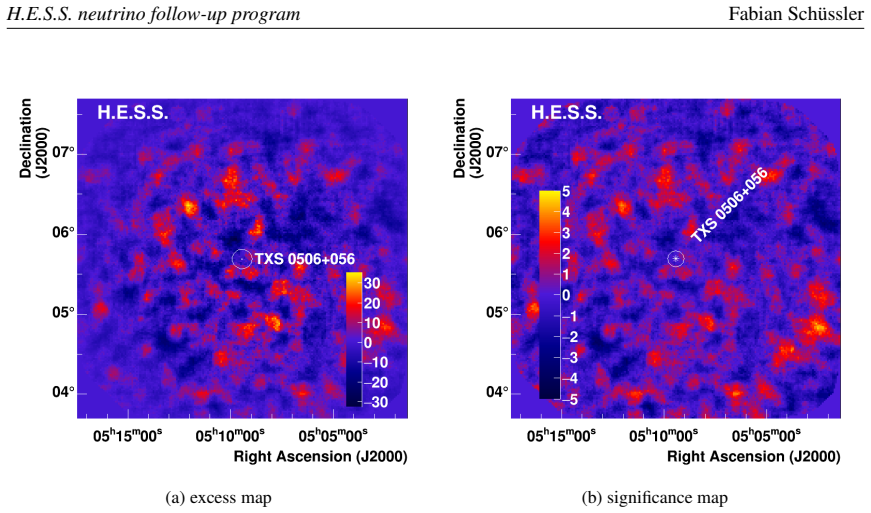

Figure 5. Figure 5: Observations of TXS 0506+056 with the 28m H.E.S.S.-2 telescope obtained during the [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

23 extracted references · 13 canonical work pages

  1. [1]

    I CECUBE collaboration, Evidence for High-Energy Extraterrestrial Neutrinos at the IceCube Detector, Science 342 (2013) 1242856 [1311.5238]

    arXiv 2013

  2. [2]

    I CECUBE collaboration, Observation and Characterization of a Cosmic Muon Neutrino Flux from the Northern Hemisphere using six years of IceCube data, Astrophys. J. 833 (2016) 3 [1607.08006]

    arXiv 2016

  3. [3]

    Schüssler et al

    F. Schüssler et al. (H.E.S.S. Collaboration), H.E.S.S. observations following multi-messenger alerts in real-time, Proceedings of the 35th ICRC, PoS 653(2017)

    work page 2017

  4. [4]

    de Naurois et al

    M. de Naurois et al. (H.E.S.S. Collaboration, H.E.S.S. follow-up of IceCube-170922A, The Astronomer’s Telegram #10787(2017)

    work page 2017

  5. [5]

    Tanaka et al

    Y . Tanaka et al. (Fermi-LAT Collaboration),Fermi-LAT detection of increased gamma-ray activity of TXS 0506+056, located inside the IceCube-170922A error region, The Astronomer’s Telegram #10791 (2017)

    work page 2017

  6. [6]

    Mirzoyan et al

    R. Mirzoyan et al. (MAGIC Collaboration), First-time detection of VHE gamma rays by MAGIC from a direction consistent with the recent EHE neutrino event IceCube-170922A, The Astronomer’s Telegram #10817 (2017)

    work page 2017

  7. [7]

    Ansoldi et al

    S. Ansoldi et al. (MAGIC Collaboration), The Blazar TXS 0506+056 Associated with a High-energy Neutrino: Insights into Extragalactic Jets and Cosmic-Ray Acceleration, ApJ Letters 863 (2018) L10 [1807.04300]

    arXiv 2018

  8. [8]

    Abeysekara et al

    A. Abeysekara et al. (VERITAS Collaboration), VERITAS Observations of the BL Lac Object TXS 0506+056, ApJ Letters 861 (2018) L20 [1807.04607]

    arXiv 2018

Show all 23 references
  1. [9]

    The IceCube, Fermi-LAT, MAGIC, AGILE, ASAS-SN, HAWC, H.E.S.S, INTEGRAL, Kanata, Kiso, Kapteyn, Liverpool telescope, Subaru, Swift/NuSTAR, VERITAS, VLA/17B-403 Collaborations, Multimessenger observations of a flaring blazar coincident with high-energy neutrino IceCube-170922A, S...

    2018 arXiv

  2. [10]

    Keivani et al., A Multimessenger Picture of the Flaring Blazar TXS 0506+056: Implications for High-energy Neutrino Emission and Cosmic-Ray Acceleration, ApJ 864 (2018)

    A. Keivani et al., A Multimessenger Picture of the Flaring Blazar TXS 0506+056: Implications for High-energy Neutrino Emission and Cosmic-Ray Acceleration, ApJ 864 (2018)

    2018

  3. [11]

    Schüssler et al., The Transient program of the Cherenkov Telescope Array, in 36th International Cosmic Ray Conference (ICRC2019), PoS 788, 2019

    F. Schüssler et al., The Transient program of the Cherenkov Telescope Array, in 36th International Cosmic Ray Conference (ICRC2019), PoS 788, 2019

    2019

  4. [12]

    Satalecka et al., Neutrino Target of Opportunity program of the Cherenkov Telescope Array, in 36th International Cosmic Ray Conference (ICRC2019), PoS 784, 2019

    K. Satalecka et al., Neutrino Target of Opportunity program of the Cherenkov Telescope Array, in 36th International Cosmic Ray Conference (ICRC2019), PoS 784, 2019

    2019

  5. [13]

    IceCube Collaboration, Icecube-170922a - icecube observation of a high-energy neutrino candidate event, 2017-09-23 (GCN 21916)

    2017

  6. [14]

    Collaboration, H.e.s.s

    H.E.S.S. Collaboration, H.e.s.s. follow-up of icecube-170922a, 2017-09-27 (ATel 10787) . 7 H.E.S.S. neutrino follow-up program Fabian Schüssler

    2017

  7. [15]

    Fermi-LAT Collaboration, Fermi-lat detection of increased gamma-ray activity of txs 0506+056, located inside the icecube-170922a error region, 2017-09-28 (ATel 10791)

    2017

  8. [16]

    de Naurois and L

    M. de Naurois and L. Rolland, A high performance likelihood reconstruction of γ-rays for imaging atmospheric Cherenkov telescopes, Astropart. Physics 32 (2009) 231 [0907.2610]

    2009 arXiv

  9. [17]

    Lundberg, J

    J. Lundberg, J. Conrad, W.Rolke, A. Lopez, Limits, discovery and cut optimization for a Poisson process with uncertainty in background and signal efficiency: TRolke 2.0, Computer Physics Communications, 181(3, 683-686 (2010)

    2010

  10. [18]

    R. D. Parsons and J. A. Hinton, A Monte Carlo template based analysis for air-Cherenkov arrays, Astropart. Physics 56 (2014) 26 [1403.2993]

    2014 arXiv

  11. [19]

    J. P. Lenain, FLaapLUC: A pipeline for the generation of prompt alerts on transient Fermi-LATγ-ray sources, Astronomy and Computing 22 (2018) 9 [1709.04065]

    2018 arXiv

  12. [20]

    Schüssler, M

    F. Schüssler, M. Seglar-Arroyo, M. Arrieta, M. Böttcher, C. Boisson, M. Cerruti et al., Target of Opportunity Observations of Blazars with H.E.S.S., International Cosmic Ray Conference 301 (2017) 652 [1708.01083]

    2017 arXiv

  13. [21]

    M. G. Aartsen, M. Ackermann, J. Adams, J. A. Aguilar, M. Ahlers, M. Ahrens et al., The IceCube realtime alert system, Astroparticle Physics 92 (2017) 30 [1612.06028]

    2017 arXiv

  14. [22]

    IceCube Collaboration, M. G. Aartsen, M. Ackermann, J. Adams, J. A. Aguilar, M. Ahlers et al., Neutrino emission from the direction of the blazar TXS 0506+056 prior to the IceCube-170922A alert, Science 361 (2018) 147 [1807.08794]

    2018 arXiv

  15. [23]

    IceCube Collaboration, M. G. Aartsen, K. Abraham, M. Ackermann, J. Adams, J. A. Aguilar et al., Very high-energy gamma-ray follow-up program using neutrino triggers from IceCube, Journal of Instrumentation 11 (2016) P11009 [1610.01814]. 8

    2016 arXiv
