Gated Convolutional Networks with Hybrid Connectivity for Image Classification

T0 review · 3 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A gated hybrid of dense and residual connections, with multi-scale modules, lets an image classifier beat previous state-of-the-art networks using far fewer parameters and computations.

desk verdict Plausible and clearly described architecture, but its SOTA accuracy claims rest on cross-paper comparisons with much longer training and stronger regularization; the real contribution needs controlled retraining to be visible. read the letter →

arxiv 1908.09699 v3 pith:KW7P2FEY submitted 2019-08-26 cs.CV

Chuanguang Yang , Zhulin An , Hui Zhu , Xiaolong Hu , Kun Zhang , Kaiqiang Xu , Chao Li , Yongjun Xu This is my paper · ORCID
classification cs.CV
keywords HCGNetDenseNethybridconnectivitygatedattentionmulti-scalefeaturesefficientimageclassificationCIFAR
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that DenseNet's redundancy comes from stacking too many modules under dense connectivity, and that the fix is to stack far fewer modules while making each one more powerful. The proposed HCGNet replaces DenseNet's bottleneck with an SMG module that squeezes input features, extracts multi-scale features with cheap depthwise convolutions, and fuses them through a forget gate and an update gate. Globally the network keeps dense concatenation across blocks and adds local residual connections inside modules, a nested 'hybrid connectivity.' On CIFAR-10/100 and ImageNet, HCGNets report lower error rates than human-designed and auto-searched networks while using fewer parameters and FLOPs, e.g., HCGNet-A3 reaches 2.14% error on CIFAR-10 with 11.4M parameters versus NASNet-A at 50.9M. The authors also report better interpretability, stronger adversarial robustness, and better transfer to COCO detection.

What carries the argument

The central object is the SMG (Squeeze-Multi-scale excitation-Gate) module, the basic building block of HCGNet. It performs a two-stage pipeline: a squeeze cell compresses the dense-concatenated input into a compact feature map (1x1 conv followed by 3x3 grouped conv, optionally stride 2), then a multi-scale excitation cell produces two parallel outputs via 3x3 and 5x5 depthwise convolutions. Two lightweight attention gates carry the gating mechanism: the update gate uses spatial attention, global attention pooling, and a two-branch softmax to fuse global context from both branches, while the forget gate applies a sigmoid-gated bottleneck to decay the reused feature map before element-wise addition. The hybrid connectivity pattern nests global dense concatenation across modules with local residual addition inside each module, so that information flows forward densely while parameters are shared locally.

What would settle it

Retrain DenseNet-BC-190, MixNet-190, and AOGNet using HCGNet's exact training schedule on CIFAR and ImageNet and compare at equal parameters and FLOPs; if any baseline matches or beats HCGNet's error rates, the claim that hybrid connectivity plus SMG modules is the reason for the gains would be refuted.

Watch

Extended reading notes

Core claim

The central discovery is that drastically reducing the number of modules in a densely connected block — from 31 to 8 in the CIFAR setting — does not hurt accuracy if each module is upgraded to the proposed SMG design, which compensates with multi-scale feature extraction and attention-based gating. The SMG module first squeezes the concatenated input into a compact feature map via 1x1 convolution and group convolution, then excites it with parallel 3x3 and 5x5 depthwise convolutions. An update gate pools global context across the two branches and a forget gate channel-wise decays the reused features before addition, so the module's output combines new multi-scale information with selectively retained old information. Under this design, HCGNet-A2 reduces DenseNet-style module count by 93% and still beats DenseNet-BC-190 on CIFAR-100 (16.54% vs 17.18% error); on ImageNet, HCGNet-B at 12.9M parameters and 2.0G FLOPs reaches 21.5% top-1 error, surpassing AOGNet-12M and approaching AOGNet-40M's 19.8% at roughly one-quarter of that model's cost.

Load-bearing premise

The comparisons against DenseNet, MixNet, and AOGNet assume those baselines, as quoted from earlier papers, were trained under the same strong recipe (very long SGDR schedules, mixup, label smoothing) as HCGNet; if they were not, the accuracy gaps may reflect training budget rather than architecture.

Editorial extensions

If this is right

  • Reducing module count under dense connectivity, when paired with a stronger module, can cut DenseNet's parameter and FLOP footprint by large factors (up to about 93% fewer modules) without sacrificing accuracy.
  • HCGNet-A3 claims CIFAR-10 error of 2.14% and CIFAR-100 error of 15.96% with 11.4M parameters, beating auto-searched networks like NASNet-A with 4.5x fewer parameters.
  • HCGNet-B claims 21.5% ImageNet top-1 error at 2.0G FLOPs, outperforming DenseNet-169, MixNet-105, and AOGNet-12M at similar or lower complexity.
  • ImageNet-pretrained HCGNet-B transfers to COCO object detection and instance segmentation, improving AP over ResNet-50-FPN and AOGNet-12M-FPN.
  • The forget and update gates are lightweight, general plug-ins that can be integrated into other CNNs with negligible overhead, according to the paper.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the architecture's advantage is real, a corollary for neural architecture search is that connection topology and module internal capacity are substitutes: search spaces with dense global connectivity can use fewer, richer cells, shrinking the search space and reducing memory cost.
  • The forget gate's channel-wise decay of reused features could be interpreted as a learned regularizer; a testable extension would be to measure whether removing the forget gate simultaneously hurts accuracy and adversarial robustness, isolating its contribution.
  • The reported interpretability (more unique detectors) and robustness may come less from the gates than from the hybrid connectivity's gradient flow; an ablation training HCGNet without the update gate while keeping connectivity would separate these causes.
  • Because the paper's ImageNet results use 630 epochs with SGDR, mixup, and label smoothing, a fair re-baselining of older architectures under the same recipe would tell how much of the gain is training schedule versus architecture.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes HCGNet, a convolutional architecture that combines global dense connectivity with local residual connectivity in a hybrid-block pattern. Each SMG module consists of a squeeze cell (1x1 convolution plus group convolution), a multi-scale excitation cell (3x3 and 5x5 depthwise convolutions), an update gate that fuses global context features from the two branches, and a forget gate that decays the reused features along a residual path. The authors instantiate several HCGNet variants and evaluate them on CIFAR-10/100 and ImageNet, reporting lower error rates than many previously published human-designed and auto-searched networks at lower parameter and FLOP counts. They also report network-dissection interpretability, FGSM adversarial robustness, and COCO object detection/instance segmentation transfer results.

Significance. If the empirical comparisons were controlled, the architecture would be significant: it demonstrates a parameter-efficient way to reduce DenseNet-style redundancy while improving accuracy, and the gate modules are lightweight and conceptually modular. The paper also provides public code and a broad evaluation suite spanning classification, transfer learning, interpretability, and robustness. However, the central evidence for the claimed superiority over prior state of the art is cross-paper and confounded by substantially different training schedules and regularization. The significance of the contribution therefore hinges on additional controlled experiments and ablations.

major comments (3)
  1. [Experiments on CIFAR and Experiments on ImageNet 2012 (Tables 2 and 3)] The central claim of superiority over prior networks is not established because every comparison in Tables 2 and 3 is cross-paper and the training protocols are mismatched. HCGNet-A1/A2/A3 are trained for 1260-1270 epochs with SGDR and mixup (alpha=1), while the cited CIFAR baselines (e.g., DenseNet-BC-190, AOGNet, MixNet-190) report results from their original, typically 300-epoch schedules without mixup. On ImageNet, HCGNet-B and HCGNet-C are trained for 630 epochs with SGDR, mixup (alpha=0.4), label smoothing (epsilon=0.1), and dropout 0.1, whereas DenseNet, ResNet, ResNeXt, and AOGNet baselines are typically trained for 90-120 epochs without these regularizers. Consequently the reported gains (e.g., HCGNet-B 21.5 vs. DenseNet-201 22.6; HCGNet-A3 15.96 vs. MixNet-190 16.96 on CIFAR-100) could be due to training budget and regularization rather than to hybrid connectivity or the SMG module. The authors should retrain representative baselines under the HCGNet recipe, or at minimum add DenseNet and ResNet runs with the same schedule, to support the abstract's claim of significantly outperforming state-of-the-art networks with less complexity.
  2. [Networks Architecture and Experiments] The paper introduces several interacting components, including hybrid connectivity, squeeze cell, multi-scale excitation, update gate, and forget gate, but reports no ablation experiments isolating any of them. In particular, the claims that the forget gate 'decays reused features' and the update gate 'models global context' are not supported by controlled removal or replacement experiments (e.g., replacing the gates with plain addition or with SE blocks, or replacing hybrid connectivity with pure dense or pure residual connectivity). Without ablations, the final accuracy cannot be attributed to the proposed mechanisms rather than to the larger training budget or hyperparameter choices. Adding at least CIFAR-level ablations would make the architectural claims testable.
  3. [Object Detection and Instance Segmentation (Table 4)] The transfer-learning comparison in Table 4 inherits the same pretraining confound: HCGNet-B is pretrained on ImageNet for 630 epochs with mixup, label smoothing, and SGDR, while the ResNet-50-FPN and AOGNet-12M-FPN backbones use standard short pretraining. The reported AP gains (38.3 vs. 37.3 for ResNet-50) may reflect the pretraining procedure rather than the backbone architecture. The authors should either pretrain the comparison backbones with the same recipe or explicitly hedge the transfer claim.
minor comments (6)
  1. [Equation (8)] Equation (8) writes b_5x5 = b_3x3 in both branches; the second bias should presumably be b_5x5.
  2. [Equations (9) and (10)] Equations (9) and (10) should parenthesize the denominators and the normalization constraint; without parentheses the expressions are ambiguous.
  3. [Equation (6)] Equation (6) indexes S by channel c even though the spatial attention map S has shape H x W x 1; the channel index should be fixed at 1 or the broadcast should be clarified.
  4. [Figure 1 caption] The caption says 'a hybrid block including n = 2 modules, where n > 2', which is self-contradictory and should be corrected.
  5. [Experiments on CIFAR] No seed variance or repeated-run statistics are reported; given the very long training schedules, at least for the smaller CIFAR models this would help assess whether the reported margins over baselines are significant.
  6. [Model Interpretability (Figure 4)] The network dissection comparison reports a single count of unique detectors per model without specifying the threshold or any variance; a brief description of the dissection procedure and threshold would improve reproducibility.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: HCGNet performance is empirically measured against external baselines, not derived from fitted inputs or self-citation chains.

full rationale

The paper claims architectural improvements over DenseNet and other networks, supported by measured classification, interpretability, robustness, and detection results. No equation in the paper defines the reported accuracies in terms of the architecture's own parameters, and no fitted quantity is later renamed as a prediction. The gates and connectivity pattern are motivated conceptually and are not tuned to reproduce the target numbers. Comparisons in Tables 2, 3, and 4 use externally published baseline results rather than self-referential predictions. There is no uniqueness theorem imported from the authors' prior work, and no load-bearing self-citation chain; the references are standard prior-art citations. Concerns about mismatched training schedules (e.g., longer epochs, mixup, label smoothing for HCGNet) are experimental-control issues that affect whether the accuracy gains are attributable to the architecture, but they do not make the derivation circular. Thus the paper is self-contained with respect to circularity and receives score 0.

Assumptions & free parameters 8 free parameters · 3 assumptions · 0 invented entities

The central empirical claim depends on a large set of hand-chosen architecture and training hyperparameters, none of which are tested for sensitivity or isolated by ablation in the text. The only unproved background is the standard behavior of CNN training and the comparability of cross-paper benchmark numbers.

free parameters (8)
  • alpha (width multiplier) = 4 in hybrid blocks, 1.5 in transitions
    Hand-chosen to control channel count in the squeeze cell; no sensitivity analysis reported.
  • ru (update gate reduction ratio) = 2 in hybrid blocks, 4 in transitions
    Hand-chosen bottleneck ratio for the update gate; no ablation reported.
  • rf (forget gate reduction ratio) = 2 in hybrid blocks, 4 in transitions
    Hand-chosen bottleneck ratio for the forget gate; no ablation reported.
  • g (group count of GConv) = 4 in hybrid blocks, 1 in transitions
    Hand-chosen group count for group convolutions; no ablation reported.
  • theta (compression factor) = 0.5
    Hand-chosen channel compression in transition layers; standard DenseNet setting, no ablation reported.
  • growth rates per block = e.g., HCGNet-B: k=32,48,64,96
    Hand-chosen per-stage growth rates; no search or sensitivity analysis reported.
  • module counts per block = e.g., HCGNet-B: 3,6,12,8 SMG modules
    Hand-chosen network depth distribution; no ablation reported.
  • training epochs and schedule = 630 epochs for ImageNet, 1260-1270 for CIFAR, SGDR T0=10, Tmul=2
    Long training with warm restarts; differs from many baselines and may inflate accuracy independent of architecture.
assumptions (3)
  • domain assumption Cross-paper comparability: baseline accuracy and complexity numbers from cited papers are directly comparable to HCGNet's despite different training recipes.
    The paper's SOTA claims in Tables 2-3 rely on comparing numbers from prior papers to its own results without re-running baselines.
  • standard math Standard backpropagation and batch-normalized convolution training behave as expected for the reported architectures.
    The paper does not prove but assumes normal CNN training dynamics, such as BN, ReLU, SGD, and SGDR working as documented.
  • domain assumption The reported parameter and FLOPs counts for all compared models are correctly measured or computed.
    The efficiency comparisons depend on accurate complexity numbers for baselines, which the paper does not independently verify.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Gated Convolutional Networks with Hybrid Connectivity for Image Classification." pith.science (2026). https://pith.science/paper/KW7P2FEY

@misc{pith2026190809699,
  author       = {Pith},
  title        = {Pith review of: Gated Convolutional Networks with Hybrid Connectivity for Image Classification},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KW7P2FEY}},
  note         = {Machine review of arXiv:1908.09699}
}
read the original abstract

We propose a simple yet effective method to reduce the redundancy of DenseNet by substantially decreasing the number of stacked modules by replacing the original bottleneck by our SMG module, which is augmented by local residual. Furthermore, SMG module is equipped with an efficient two-stage pipeline, which aims to DenseNet-like architectures that need to integrate all previous outputs, i.e., squeezing the incoming informative but redundant features gradually by hierarchical convolutions as a hourglass shape and then exciting it by multi-kernel depthwise convolutions, the output of which would be compact and hold more informative multi-scale features. We further develop a forget and an update gate by introducing the popular attention modules to implement the effective fusion instead of a simple addition between reused and new features. Due to the Hybrid Connectivity (nested combination of global dense and local residual) and Gated mechanisms, we called our network as the HCGNet. Experimental results on CIFAR and ImageNet datasets show that HCGNet is more prominently efficient than DenseNet, and can also significantly outperform state-of-the-art networks with less complexity. Moreover, HCGNet also shows the remarkable interpretability and robustness by network dissection and adversarial defense, respectively. On MS-COCO, HCGNet can consistently learn better features than popular backbones.

Figures

Figures reproduced from arXiv: 1908.09699 by the authors.

Figure 1
Figure 1. The diagram of a hybrid block including n = 2 modules, where n > 2. The symbol ”+” and ”k” de￾note element-wise addition and channel-wise concatenation among multiple feature maps, respectively. parameter sharing mechanism and thus leads to low redun￾dancy, but lacks the capability of feature preservation and exploration. To enjoy their advantages and avoid inherent limitations, many networks combine them to build a… view at source ↗
Figure 2
Figure 2. Illustrations of SMG module, update gate and forget gate. In all figures, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. A HCGNet with three hybrid blocks, where each [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4

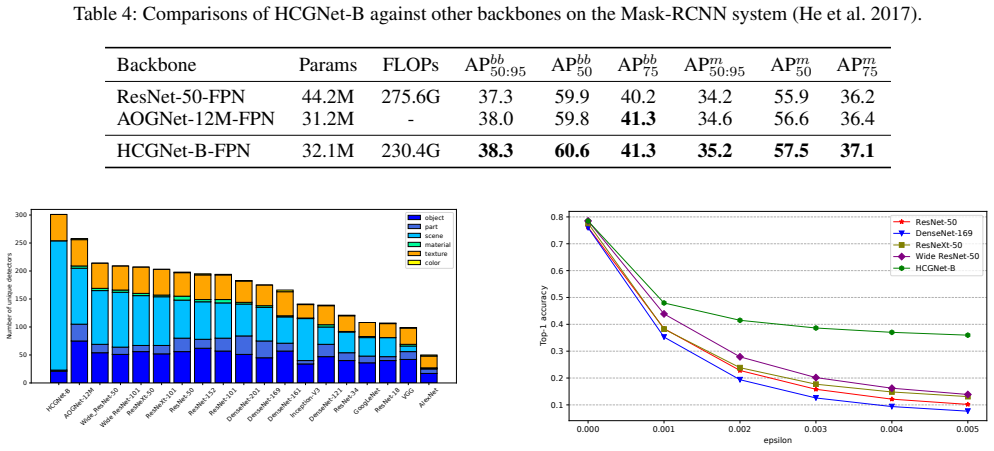

Figure 4. Figure 4: Comparisons of interpretability by network dis [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
