arxiv: 2203.09233 · v3 · submitted 2022-03-17 · 💻 cs.CC

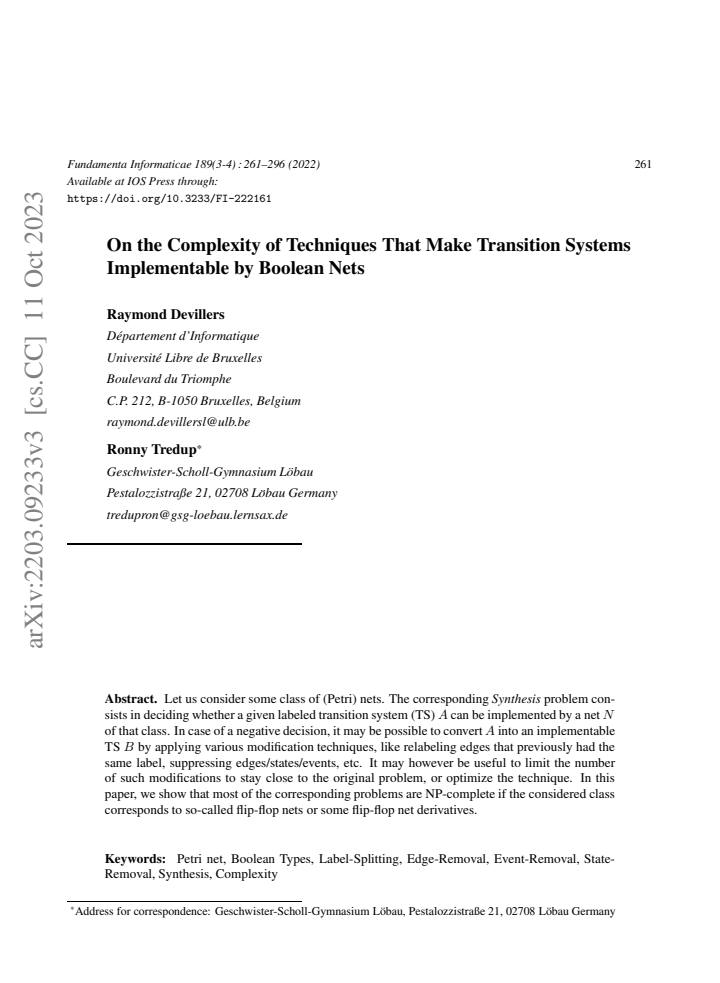

On the Complexity of Techniques That Make Transition Systems Implementable by Boolean Nets

Raymond Devillers , Ronny Tredup This is my paper

Pith reviewed 2026-05-24 11:45 UTC · model grok-4.3

classification 💻 cs.CC
keywords transition systemsBoolean netsflip-flop netssynthesisNP-completenessmodification techniquescomputational complexity
0
0 comments X

The pith

Making transition systems implementable by flip-flop nets via bounded modifications is NP-complete

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines the complexity of synthesis tasks that start from a labeled transition system and apply a limited number of changes to produce a system realizable by a flip-flop Boolean net. The changes include relabeling edges that share a label and suppressing selected edges, states, or events. The authors establish NP-completeness for most decision problems of this form when the target net type belongs to the flip-flop family or its close variants. A reader would care because the result shows that no polynomial-time procedure exists for these bounded-adjustment tasks unless P equals NP.

Core claim

The paper claims that most of the decision problems for converting a transition system into one implementable by a flip-flop net or derivative, using at most a given number of modifications such as relabeling or suppression, are NP-complete.

What carries the argument

The bounded modification techniques of relabeling edges with identical labels and suppressing edges, states or events while requiring the result to remain close to the original transition system.

If this is right

  • Unless P equals NP, no efficient algorithm decides whether a given transition system can be turned into a flip-flop-net realization with at most k modifications.
  • The same hardness applies to several derivatives of flip-flop nets.
  • Exact synthesis under a modification budget must in general consume exponential time.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Analogous bounded-modification problems for other net types may also prove hard.
  • Practical synthesis tools would likely need heuristics or approximations rather than exact bounded search.
  • The same modification framework could be used to study complexity in related models of concurrency.

Load-bearing premise

The decision problems are defined precisely around the listed modification techniques and the requirement to stay close to the original transition system.

What would settle it

A polynomial-time algorithm that solves any one of the bounded-modification problems for flip-flop nets would falsify the NP-completeness claim.

Figures

Figures reproduced from arXiv: 2203.09233 by Raymond Devillers, Ronny Tredup.

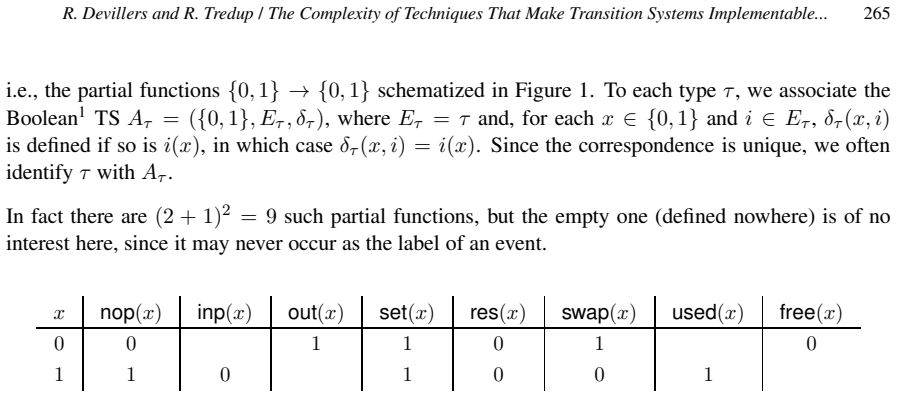

Figure 1
Figure 1. Figure 1: All interactions i of I. If a cell is empty, then i is undefined on the respective x. nop 0 1 nop inp, swap swap Aτ R1 inp a a nop ′ swap R2 inp N AN (1, 0) (0, 1) (0, 0) a a ′ [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗

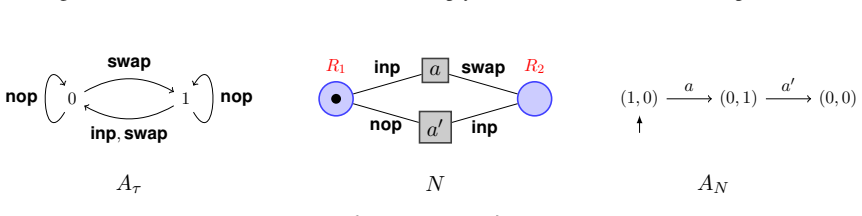

Figure 2
Figure 2. Figure 2: Left: Aτ for the the type τ = {nop, inp, swap}. Middle: A τ -net N (as usual, the initial marking is indicated by putting a token in the places p such that M0(p) = 1). Right: The reachability graph AN of N, where each state M is represented by its marking (M(R1), M(R2)), and the initial state is indicated by the arrow without source state. Definition 2.4. (τ -Nets) Let τ ⊆ I. A Boolean net N = (P, T, f, M0… view at source ↗

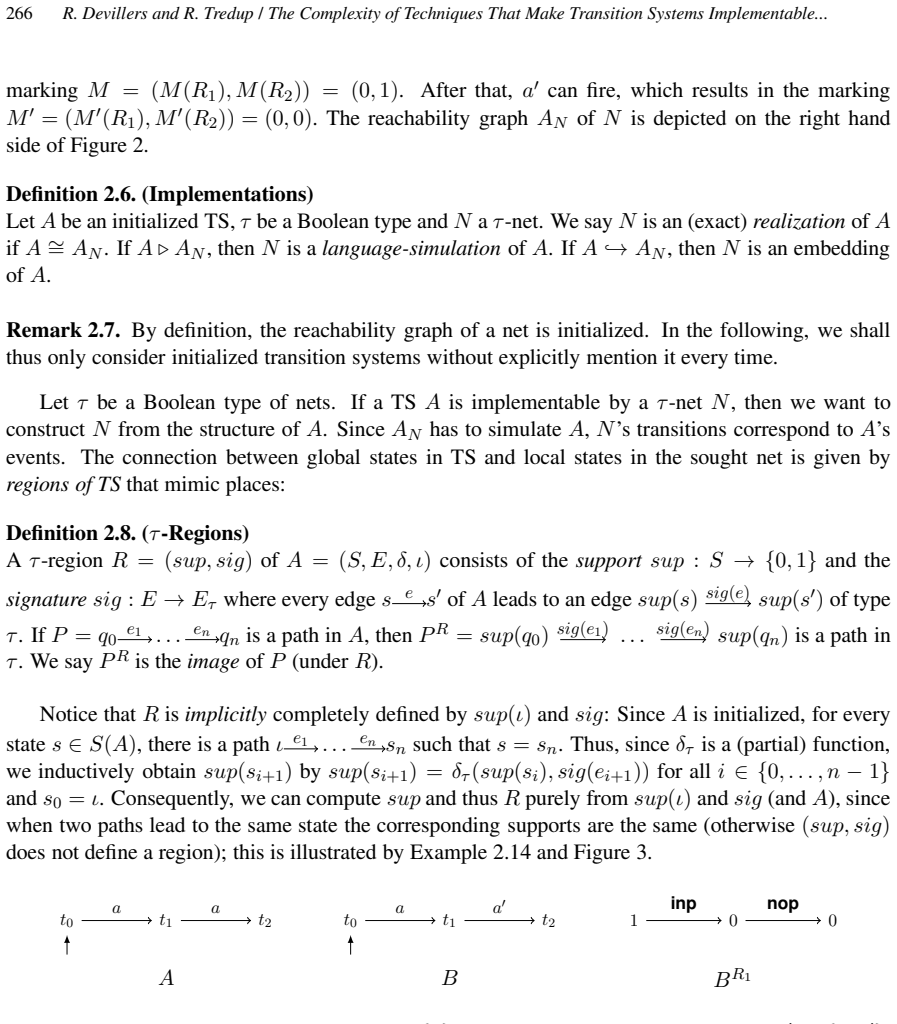

Figure 3
Figure 3. Figure 3: Left: The TS A with event set E = {a}. Middle: The TS B with event set E′ = {a, a′}. Right: The image BR1 of the τ -region R1 = (sup1, sig1) of B, where sup1(t0) = 1, sup1(t1) = sup1(t2) = 0, sig1(a) = inp and sig1(a ′ ) = nop, and τ = {nop, inp, swap}. Later, we shall also represent a region by a color convention indicating the support of each state. Every set R of τ -regions of A implies a particular syn… view at source ↗

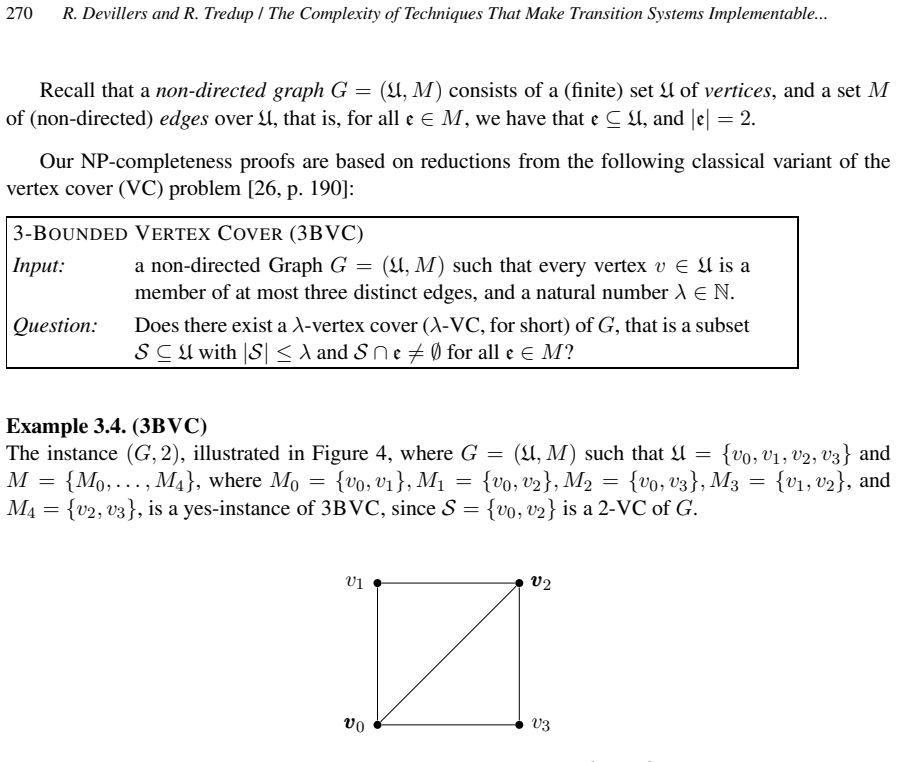

Figure 4
Figure 4. Figure 4: A running graph example G; a 2-VC is {v0,v2} (in bold). In the remainder of this paper, let (G, λ) be an input of 3BVC, where G = (U, M) is a graph with n vertices U = {v0, . . . , vn−1} and m edges M = {M0, . . . , Mm−1} such that Mi = {vi0 , vi1 } and i0 < i1 for all i ∈ {0, . . . , m − 1}. For the proof of Theorem 3.3, we polynomially reduce (G, λ) to a pair (AG, κ) of TS AG = (S, E, δ, ⊥0) and natural … view at source ↗

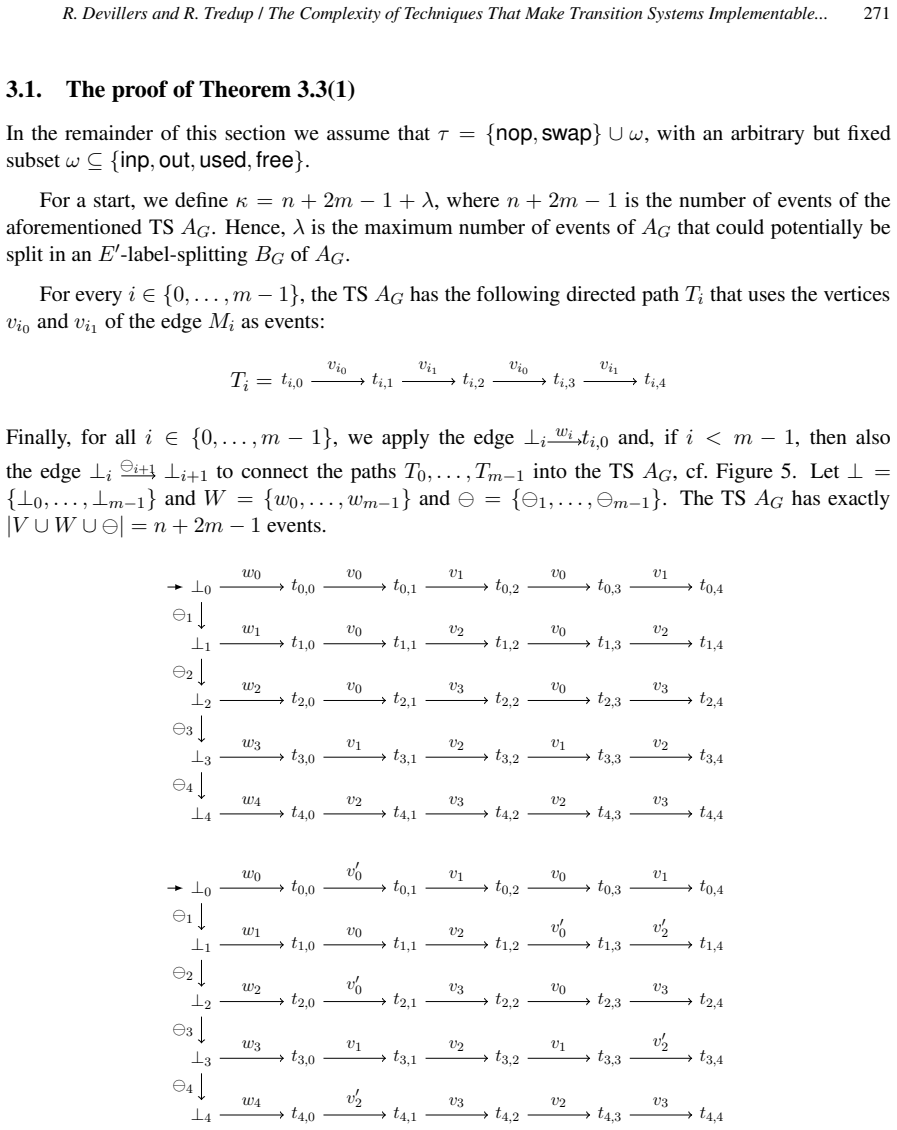

Figure 5
Figure 5. Figure 5: The transition systems AG (top) and BG (bottom) that originate from Example 3.4. They will serve for illustrating some region constructions in the proofs below [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Region R0 = (sup, sig) for v = v1. v occurs in T ′ 0 and T ′ 3 . The supports of t1,0, t2,0, t4,0 are chosen 0. The colored nodes have support 1, otherwise 0. When not indicated, signatures are nop. If v ∈ S, it may only occur in at most three paths of BG of the form T ′ i = ti,0 v ′ ti,1 vi ti,2 v ti,3 vi ti,4 or T ′ i = ti,0 vi ti,1 v ti,2 vi ti,3 v ′ ti,4, or T ′ i = ti,0 v ti,1 vi ti,2 v ′ ti,3 v ′ i t… view at source ↗
Figure 7
Figure 7. Figure 7: Region R1 = (sup, sig) for v = v1. v occurs in T ′ 0 and T ′ 3 . The supports of t1,0, t2,0, t4,0 are chosen 1. The colored nodes have support 1, otherwise 0. When not indicated, signatures are nop. fact that the companion vertex vi belongs to S or not. Again, if v belongs to several edges, all the corresponding companions must be different. Also, v occurs only once, as well as v ′ . For v, we may thus cho… view at source ↗

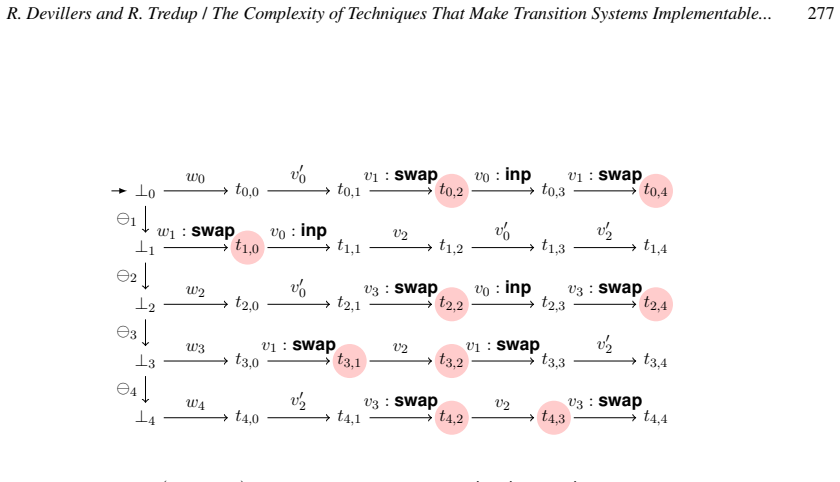

Figure 8
Figure 8. Figure 8: Region R2 = (sup, sig) for v = v0. v occurs in T ′ 0 , T ′ 1 and T ′ 2 . The supports of t3,0, t4,0 are chosen 0. The colored nodes have support 1, otherwise 0. When not indicated, signatures are nop. ⊥0 t0,0 t0,1 t0,2 t0,3 t0,4 w0 : swap v ′ 0 v1 v0 : inp v1 ⊥1 t1,0 t1,1 t1,2 t1,3 t1,4 w1 : swap v0 : inp v2 v ′ 0 v ′ 2 ⊥2 t2,0 t2,1 t2,2 t2,3 t2,4 w2 : swap v ′ 0 v3 v0 : inp v3 ⊥3 t3,0 t3,1 t3,2 t3,3 t3,4 … view at source ↗

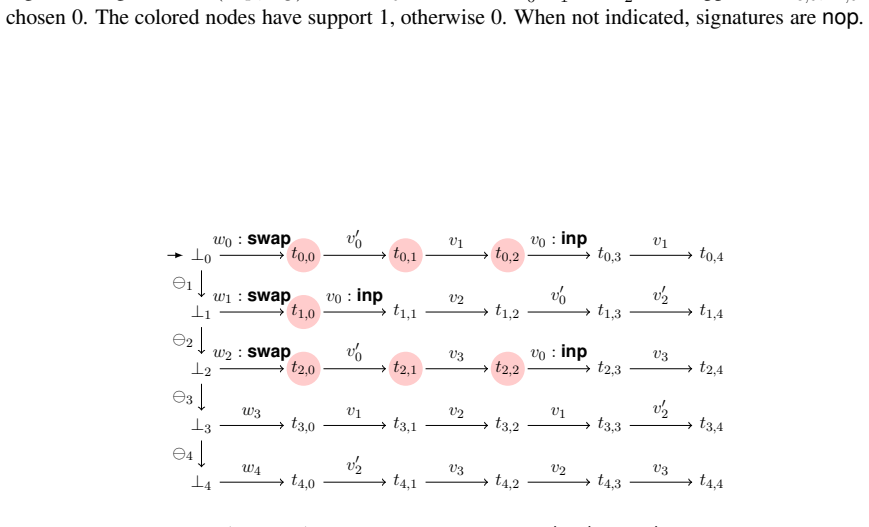

Figure 9
Figure 9. Figure 9: Region R3 = (sup, sig) for v = v0. v occurs in T ′ 0 , T ′ 1 and T ′ 2 . The supports of t3,0, t4,0 are chosen 0. The colored nodes have support 1, otherwise 0. When not indicated, signatures are nop. Note that here no vi with i 6= 0 needs to have a signature swap; hence we do not need to add a region with signature swap for wj when T ′ j does not contain v [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗

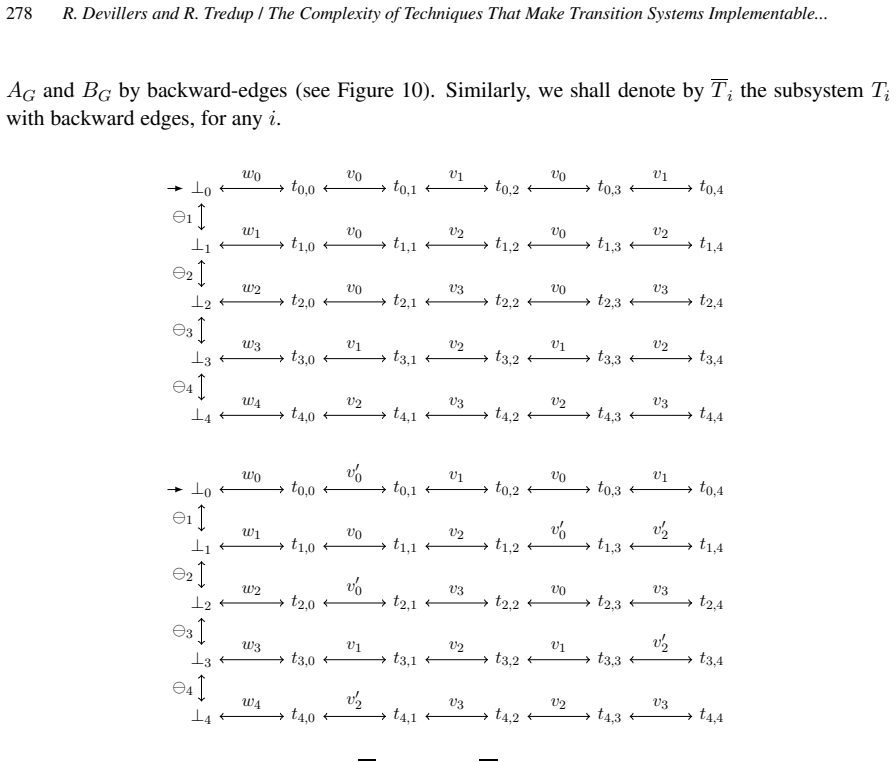

Figure 10
Figure 10. Figure 10: The new transition systems AG (top) and BG (bottom) that originate from Example 3.4. Lemma 3.12. If there is an E′ -label-splitting of AG such that |E′ | ≤ κ that has the τ -ESSP, then G has a λ-VC. Proof: The proof is similar to the one of Lemma 3.10. ⊓⊔ Conversely, let S be a λ-VC of G, and let BG = (S(BG), E′ , δ′′ , ⊥0) be the bi-directed extension of the TS BG = (S(BG), E′ , δ′ , ⊥0), which has been … view at source ↗
read the original abstract

Synthesis consists in deciding whether a given labeled transition system (TS) $A$ can be implemented by a net $N$ of type $\tau$. In case of a negative decision, it may be possible to convert $A$ into an implementable TS $B$ by applying various modification techniques, like relabeling edges that previously had the same label, suppressing edges/states/events, etc. It may however be useful to limit the number of such modifications to stay close to the original problem, or optimize the technique. In this paper, we show that most of the corresponding problems are NP-complete if $\tau$ corresponds to the type of flip-flop nets or some flip-flop net derivatives.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper studies decision problems arising in the synthesis of flip-flop nets (and some derivatives) from labeled transition systems (TS). It defines problems in which a given TS is modified by a bounded number of operations (edge relabeling of same-label edges, suppression of edges/states/events) so that the resulting TS becomes implementable by a net of the target type, and proves that most of these problems are NP-complete.

Significance. The results establish NP-completeness for a family of bounded-modification synthesis problems that remain close to the original TS. If the reductions hold, they provide a precise complexity map for these practically motivated variants of net synthesis.

minor comments (2)
  1. [Abstract] Abstract: the claim that 'most of the corresponding problems are NP-complete' is stated without any indication of the reduction sources or proof structure; a single sentence sketching the main reduction technique would improve readability.
  2. [§2–3] The decision problems are defined around specific modification operations and a 'stay close' requirement; ensure that the formal definitions in §2–3 make the distance measure (number of modifications) explicit and polynomial-time checkable.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary and recommendation of minor revision. No specific major comments were listed in the report.

Circularity Check

0 steps flagged

No significant circularity; standard NP-completeness reductions from external problems

full rationale

The paper frames its results as polynomial-time reductions establishing NP-completeness for decision problems on bounded modifications (edge relabeling, suppression) to make transition systems implementable by flip-flop nets. These are standard complexity arguments relying on known external NP-complete problems rather than any self-definition, fitted inputs renamed as predictions, or load-bearing self-citations. The abstract and problem definitions are self-contained against external benchmarks with no quoted reduction that collapses to the paper's own inputs by construction. No steps meet the criteria for circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard definitions of transition systems, Boolean net types, and NP-completeness via reductions from the existing literature on net synthesis.

axioms (1)
  • standard math NP-completeness established via polynomial-time reductions from known NP-complete problems
    Implicit foundation for all such complexity results in the field.

pith-pipeline@v0.9.0 · 5642 in / 927 out tokens · 24913 ms · 2026-05-24T11:45:52.544452+00:00 · methodology
