Retrieval Augmented Recipe Generation

T0 review · 4 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Retrieval-augmented recipes beat prior models on Recipe1M

desk verdict A plausible RAG-for-recipes paper with honest ablations but a likely training-time leakage issue and test-set-tuned SOTA numbers. read the letter →

arxiv 2411.08715 v2 pith:UZLBJQTV submitted 2024-11-13 cs.CV

Guoshan Liu , Hailong Yin , Bin Zhu , Jingjing Chen , Chong-Wah Ngo , Yu-Gang Jiang This is my paper · ORCID
classification cs.CV MSC 68T4568T50
keywords retrieval-augmentedgenerationrecipefoodcomputinglargemultimodalmodelshallucinationreductionself-consistencyvotingcross-modalretrievalRecipe1M
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Retrieval-augmented recipe generation proposes to fix the hallucination problem in large multimodal models when writing cooking instructions from food images. The paper builds a generator on frozen LLaVA with a trainable LoRA adapter, and at both training and inference time feeds it recipes retrieved from the Recipe1M training set that are semantically similar to the input image. A second component, self-consistency ensemble voting, generates several candidate recipes conditioned on different retrieved recipes and picks the one that agrees most with the others. On a fixed 5,000-image test subset of Recipe1M, the method reports state-of-the-art BLEU 30.11, SacreBLEU 6.42, and RougeL 38.93 for recipe generation, and F1 50.32 for ingredient recognition.

What carries the argument

The load-bearing mechanism has two parts. Stochastic Diversified Retrieval Augmentation (SDRA) builds a 'recipe demonstration' by randomly sampling multiple retrieved ingredient lists and one retrieved instruction list from the top-K retrieval results, giving the generator diverse but relevant context. Self-Consistency Ensemble Voting uses agreement among candidate recipes generated from different retrieved contexts as a confidence signal: the candidate with the highest average pairwise cosine similarity to the other candidates is chosen as the final output. The voting step is what converts the diversity created by SDRA into a single more reliable prediction.

What would settle it

Replace the retrieved recipes with random recipes from the Recipe1M training set while keeping the rest of the pipeline identical; if the gains over the fine-tuned LLaVA baseline shrink or reverse, the method's improvement depends on retrieval relevance rather than on the extra textual context or the voting mechanism alone.

Watch

Extended reading notes

Core claim

The paper's central claim is that retrieval augmentation can reduce hallucination in LMM-based recipe generation enough to beat all prior published systems on Recipe1M. The proposed architecture is an image-to-recipe retriever followed by a frozen LLaVA generator fine-tuned with LoRA. During training, Stochastic Diversified Retrieval Augmentation randomly samples three of the top-50 retrieved ingredient lists and one retrieved instruction list, concatenates them with fixed prompts telling the model that the search results are for reference only, and optimizes standard next-token prediction. During inference, Self-Consistency Ensemble Voting generates S candidate recipes by conditioning on the top-S retrieved recipes separately, computes pairwise cosine similarity among the candidates, and returns the candidate with the highest average agreement. The authors report that this combination outperforms two-stage methods such as InverseCooking, prior LMM-based methods such as FoodLMM, and a fine-tuned LLaVA baseline, and that ingredient recognition also improves without a dedicated recognition head.

Load-bearing premise

The central assumption is that the off-the-shelf retriever returns recipes that are semantically relevant to the input image; if retrieval is often off-target, the added context can inject wrong ingredients and make hallucinations worse, as the paper's own supplementary failure cases acknowledge.

Editorial extensions

If this is right

  • If the central claim is right, retrieval augmentation plus self-consistency voting is an effective hallucination remedy for LMMs in vertical generation tasks, not just for recipe generation.
  • The monotonic improvement with voting candidate count S up to 11 implies a simple compute-quality trade-off: using S around 5 already captures most of the gain, per the paper's own analysis.
  • Because the generator is frozen except for a LoRA adapter, the approach is a cheap way to specialise a large multimodal model to a new structured-output domain.
  • The method also lifts ingredient recognition metrics, suggesting that the retrieved ingredients act as a knowledge source that compensates for the model's limited food-domain vocabulary.
  • The fixed prompt that search results are 'only for referring' is a practical recipe for telling an LMM to use retrieval as context rather than as a literal answer.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The voting mechanism is a form of unsupervised confidence estimation; if it generalizes, any multimodal task that can be conditioned on multiple retrieved or sampled contexts could use the same agreement-based selection without extra supervision.
  • The paper's own failure cases show that when retrieval is bad, it introduces wrong ingredients and steps; a natural test is to condition on retrieval quality per sample and measure how much the voting gain varies with it.
  • Automatic n-gram metrics may understate the true gain, since the paper notes cases where 'pasta' and 'spaghetti' are counted as mismatches; a human-evaluation study of recipe plausibility and hallucination rate would likely be more informative than the reported BLEU/SacreBLEU deltas.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a retrieval-augmented large multimodal model for generating recipes from food images. It uses an off-the-shelf cross-modal retriever (Salvador et al. [57]) over the Recipe1M training set as a datastore. During training, Stochastic Diversified Retrieval Augmentation (SDRA) randomly samples three retrieved ingredient sets and one retrieved instruction set to insert into the prompt; during inference, Self-Consistency Ensemble Voting generates S candidate instruction sets using the top-S retrieved recipes and selects the candidate with the highest average pairwise cosine similarity. Experiments on a fixed 5,000-sample random subset of Recipe1M report BLEU 30.11, SacreBLEU 6.42, and ROUGE-L 38.93 for instruction generation, and IOU 33.62 / F1 50.32 for ingredient recognition, which the paper claims are state-of-the-art. The paper also presents ablations for the retrieval pool size K, the voting number S, and the way retrieved information is concatenated, together with qualitative examples and supplementary analyses of retrieval successes and failures.

Significance. If the reported numbers were obtained under a clean protocol, the paper would make a useful contribution: it shows that retrieval augmentation with a frozen LLaVA backbone and LoRA tuning improves recipe generation metrics, and that multi-candidate self-consistency voting yields consistent improvements as S grows. The internal ablations in Tables 3 and 5 are a genuine strength, and the supplementary analysis of retrieval failures is unusually candid and helpful. However, the headline SOTA claim is currently not supported because the experimental protocol has two load-bearing weaknesses: the training-time retrieval may include the ground-truth recipe of the training image, and the final configuration (K=50, S=11) is selected on the same 5,000-sample test subset that is later reported as the result. The baseline comparisons in Table 1 are also not apples-to-apples. If these protocol issues are fixed, the method itself remains plausible and worth publishing.

major comments (4)
  1. [4.1.1, 4.1.3] The training-time retrieval setup does not rule out leakage of the ground-truth recipe. Section 4.1.1 states that the Recipe1M training set is used as the external datastore M, and Section 4.1.3 states that during training the top 50 recipes are retrieved for each image. Because the datastore contains the exact image-recipe pair used as the training query, and because the retriever [57] was trained to rank image-recipe matches, the ground-truth recipe of the training image is a plausible top-50 candidate. The paper never states that this recipe is excluded from the retrieved set. If it is not excluded, the model is trained with a near-answer copy in the prompt, which can inflate BLEU/SacreBLEU/ROUGE-L and reduce hallucination without any real retrieval benefit; at test time the ground truth is not in the datastore, so the reported SOTA gap would be an artifact of this asymmetry. Please report the fraction of training queries for which the ground-truth recipe appears in the top-50, and re-run training with the ground-truth recipe removed from the datastore for each query.
  2. [4.3.1, 4.3.2, Tables 3 and 5] The final configuration is selected on the same test subset used for the headline results. Section 4.1.1 fixes a 5,000-sample random subset of the test set for all experiments; Section 4.3.1 uses this subset to choose K=50 (Table 3), and Section 4.3.2 uses it to choose S=11 (Table 5), with the selection criterion being the same BLEU/SacreBLEU/ROUGE-L metrics that are later reported in Table 1. Thus the 'Ours' row is not an independent evaluation of a pre-specified model; it is a test-set-fitted value. A validation split should be used for model selection, and Table 1 should report results on an untouched test subset, or the paper should explicitly describe the numbers as test-set-selected and avoid claiming SOTA relative to baselines that did not receive this selection.
  3. [Table 1] The comparison with prior published systems is not apples-to-apples. The paper evaluates on a random 5,000-sample subset of the Recipe1M test set, while the baseline numbers in Table 1 are taken from prior papers that use the full test set or different splits and preprocessing (e.g., [11, 56, 65]). For example, under 'FIRE' BLEU is reported as '—' and SacreBLEU/ROUGE-L numbers may have been computed under different tokenization or ingredient-clustering settings. The only fully controlled baseline is LLaVA-FT, which the authors fine-tuned themselves. To support a SOTA claim, all compared methods should be re-evaluated on the same 5,000-sample subset with the same evaluation script, or the differences should be shown not to be an artifact of subset selection.
  4. [Section 4.2, Fig. 4] The paper's stated motivation is hallucination reduction, but no quantitative hallucination metric is reported. Section 4.2.3 and Figure 4 provide qualitative examples, yet BLEU/SacreBLEU/ROUGE-L measure surface overlap and can reward copying retrieved text rather than factual correctness. Please add an ingredient-level precision/recall or hallucination metric (e.g., fraction of predicted ingredients unsupported by the image or ground truth) and compare it directly against LLaVA-FT, with and without retrieval, so the hallucination-reduction claim can be verified.
minor comments (6)
  1. [Eq. (3)] Equation (3) has a duplicated conditioning term: pθ(yi|[X;R;y<i];θ) should be pθ(yi|[X;R;y<i]).
  2. [Section 3.3] The voting method in Equation (4) uses cosine similarity between generated recipes, but the paper never specifies how the recipe texts are vectorized (e.g., TF-IDF, sentence embeddings, or token overlap). Please state this explicitly, since it is essential for reproducibility.
  3. [Section 4.2.1] The text says 'relative improvement' of 2.25%, 0.18%, and 1.97% over FoodLMM, but the values are absolute differences (30.11 vs 27.86, etc.). Please use the correct term.
  4. [Section 4.3.1] The description of 'SDRA(fixed top 1)' is confusing: 'the top 2 retrieved ingredients sets and the top 3 ingredients along with top 1 instruction' is not clear about whether 'top 3 ingredients' means a third ingredient set or the top-3 ingredient items. Please rewrite.
  5. [Fig. 6] The caption says the confusion matrix is computed for 'top 11 retrieval-augmented prediction results', while the text refers to 'seven predictions'; please make the number of candidates consistent.
  6. [Section 5] The conclusion contains a typo: 'first retrieval augmented large multimodal mode' should be 'model'.

Circularity Check

1 steps flagged · score 6.0 of 10

Headline SOTA metrics are partly selected on the test set; retrieval self-leak is an unaddressed confound but not needed for the score.

  1. fitted input called prediction [Section 4.1.1, Section 4.3.1 (Table 3), Section 4.3.2 (Table 5), Section 4.2.1 (Table 1)]
    "Generating long recipes word by word is time-consuming, so we randomly select 5,000 samples from test set and fix the seed for all experiments. ... The results displayed in Table 3 indicate that SDRA (top 50) performs the best ... We choose S=11 because the BLEU and SacreBLEU stopped improving at S=11."

    The same 5,000-sample test subset is used both to select the hyperparameters K=50 and S=11 and to produce the headline numbers. Table 3 chooses K by maximizing BLEU, SacreBLEU, and ROUGE-L on this subset; Table 5 chooses S by the same metrics on the same subset; Table 1 then reports the resulting 30.11 / 6.42 / 38.93 as state-of-the-art. The reported quantities are therefore the optimized objective of the hyperparameter search, not independent held-out predictions. The SOTA comparison is in part a test-set selection artifact.

full rationale

The architecture-level derivation is not circular: the generator is a frozen LLaVA with trained LoRA, the retriever [57] is external off-the-shelf, and the test-time voting selects among generated candidates without touching the ground truth. No load-bearing self-citation chain or imported uniqueness theorem is present; [70] is a baseline and [57] is external. The central circularity is in the evaluation protocol: K and S are chosen by maximizing the same metrics on the same 5,000-sample test set that is later reported as the SOTA result, so Table 1 partially reports fitted quantities. A separate validity concern, not counted as a derivation-level circular step, is that the Recipe1M training set is used as the retrieval datastore while each training image's own ground-truth recipe is a member of that datastore; the paper never states that this self-recipe is excluded from the top-50 training candidates. If it is retrieved, Equation 3 conditions on a prompt containing the target answer, which would confound the reported hallucination-reduction benefit. This should be ruled out in a revision, but unlike the K/S selection it depends on the retriever's ranking and is not circular by construction. Overall score 6 reflects the partial reduction of the headline numbers to test-set hyperparameter selection.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central performance claim rests on several unverified assumptions and on hyperparameters tuned on the test subset. The method introduces no new physical or conceptual entities.

free parameters (4)
  • K (retrieval pool size) = 50
    Ablated over 1, 10, 50, 100 on the test subset; 50 yields best BLEU in Table 3. This is a test-set fitted hyperparameter.
  • S (number of voting candidates) = 11
    Ablated from 1 to 11 in Table 5; chosen because BLEU and SacreBLEU stop improving at S=11 on the test subset.
  • Number of retrieved ingredient sets vs instruction sets = 3 ingredient sets, 1 instruction set
    Design choice in Section 3.2.1; Table 4 compares 1 set vs 2 sets but does not systematically vary the ratio, so the specific ratio is a free choice.
  • LoRA rank and alpha = not reported
    The paper does not specify LoRA rank, alpha, learning rate, or number of steps; these are unstated free parameters that affect the results.
assumptions (4)
  • domain assumption The pretrained cross-modal retriever [57] returns semantically relevant recipes for a given food image.
    The method relies on retrieval quality; Section 3.2.1 uses this retriever to obtain top-K ingredients and instructions. No retrieval accuracy numbers are reported.
  • domain assumption The Recipe1M training set can serve as a retrieval datastore without leaking test information.
    Section 4.1.1 states the training set is used as the external datastore M; the paper assumes train/test separation is clean.
  • domain assumption BLEU, SacreBLEU, RougeL, F1, and IOU adequately measure recipe quality and hallucination.
    Section 4.1.1 adopts these metrics from prior work; the paper claims hallucination reduction but does not use a hallucination-specific evaluation.
  • domain assumption The instruction 'The search results are only for referring, please focus on the image' prevents the model from copying erroneous retrieved content.
    This prompt is introduced in Section 3.2.1; the paper provides only qualitative evidence that the model balances image and retrieved context.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Retrieval Augmented Recipe Generation." pith.science (2026). https://pith.science/paper/UZLBJQTV

@misc{pith2026241108715,
  author       = {Pith},
  title        = {Pith review of: Retrieval Augmented Recipe Generation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/UZLBJQTV}},
  note         = {Machine review of arXiv:2411.08715}
}
read the original abstract

Given the potential applications of generating recipes from food images, this area has garnered significant attention from researchers in recent years. Existing works for recipe generation primarily utilize a two-stage training method, first generating ingredients and then obtaining instructions from both the image and ingredients. Large Multi-modal Models (LMMs), which have achieved notable success across a variety of vision and language tasks, shed light to generating both ingredients and instructions directly from images. Nevertheless, LMMs still face the common issue of hallucinations during recipe generation, leading to suboptimal performance. To tackle this, we propose a retrieval augmented large multimodal model for recipe generation. We first introduce Stochastic Diversified Retrieval Augmentation (SDRA) to retrieve recipes semantically related to the image from an existing datastore as a supplement, integrating them into the prompt to add diverse and rich context to the input image. Additionally, Self-Consistency Ensemble Voting mechanism is proposed to determine the most confident prediction recipes as the final output. It calculates the consistency among generated recipe candidates, which use different retrieval recipes as context for generation. Extensive experiments validate the effectiveness of our proposed method, which demonstrates state-of-the-art (SOTA) performance in recipe generation tasks on the Recipe1M dataset.

Figures

Figures reproduced from arXiv: 2411.08715 by the authors.

Figure 1
Figure 1. (a) The structural differences between our retrieval-augmented framework and the “two-stage” [ [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Templates for Recipe Generation. 2.2. Vision-language Multimodal Models Due to the increasing demand for versatile deep learn￾ing models, various large pre-trained models like BERT [15], ViT [16], and GPT [67] have emerged. However, their single-modality limits generalization, leading to the development of multimodal models. Autoregressive lan￾guage models are now popular for vision-language tasks [1, 2, 4, 31, 38, … view at source ↗
Figure 3

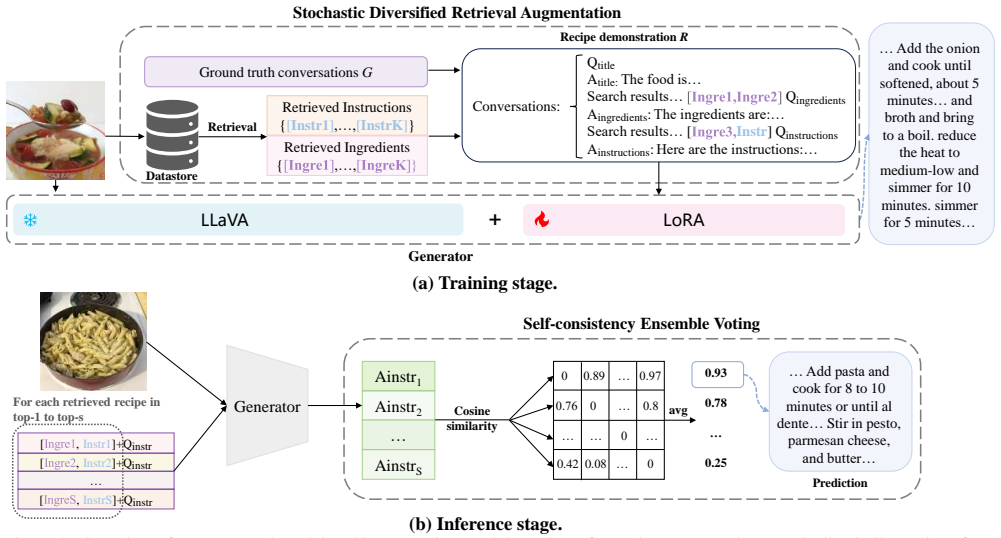

Figure 3. Overview of our proposed model architecture. Our model consists of a retriever to search semantically similar recipes from [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (14 more)
Figure 4
Figure 4. Figure 4: Qualitative results. The ingredients in generated recipes that overlap with ground truth (“GT”) are highlighted in yellow, while [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Comparison between generated recipes and GT recipes. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Confusion matrix of Self-consistency Ensemble Voting for 5,000 test samples. The horizontal axis represents the index sorted [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: One set for Recipe demonstration R. 5. Conclusion We have presented the first retrieval augmented large multimodal mode to mitigate the hallucination issue for recipe generation. We introduce the Stochastic Diversified Retrieval Augmentation to enable the model to bett…
Figure 1
Figure 1. Figure 1: Our training data organization. BOLD serves as a fixed prompt, the blue font highlights the three groups of ingredients and one group of instructions retrieved, and the rest of the content represents the ground truth. 4. Ablation of Self-consistency Ensemble Vot￾ing To…
Figure 2
Figure 2. Figure 2: Comparison between retrieval results and ground truth. BOLD represents the relevant and similar parts between the retrieved [PITH_FULL_IMAGE:figures/full_fig_p014_2.png]
Figure 3
Figure 3. Figure 3: Qualitative results of whether the best model uses retrieval information for inference. The yellow highlights indicate the parts [PITH_FULL_IMAGE:figures/full_fig_p015_3.png]
Figure 4
Figure 4. Figure 4: Comparison between retrieval results and ground truth. [PITH_FULL_IMAGE:figures/full_fig_p016_4.png]
Figure 5
Figure 5. Figure 5: Additional qualitative results. The ingredients in generated recipes that overlap with ground truth (“GT”) are highlighted in [PITH_FULL_IMAGE:figures/full_fig_p017_5.png]
Figure 6
Figure 6. Figure 6: Qualitative results of Ablation of Self-consistency Ensemble Voting. [PITH_FULL_IMAGE:figures/full_fig_p018_6.png]
Figure 7
Figure 7. Figure 7: Retrieved and predicted ingredients. BOLD represents the overlap of ingredients between both Retrieved ingredients and Predicted ingredients with the ground truth ingredients. The ingredients in red font are the ones incorrectly predicted due to errors in the retrieved…
Figure 8
Figure 8. Figure 8: Predicted and ground truth ingredients, instructions, and ingredients extracted from the predicted instructions. [PITH_FULL_IMAGE:figures/full_fig_p019_8.png]
Figure 9
Figure 9. Figure 9: Retrieval failure examples. Red text shows prediction errors influenced by the retrieved instruction, and yellow highlights indicate [PITH_FULL_IMAGE:figures/full_fig_p019_9.png]
Figure 10
Figure 10. Figure 10: Two sets of retrieval results for “butternut squash salad with hazelnuts” and their corresponding predictions. [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
