REVIEW 4 major objections 4 minor 1 cited by
Measuring the expansion velocities of broad-line Ic supernovae: An investigation of neglected sources of error in two popular methods
T0 review · 4 major / 4 minor · reviewed 2026-08-12 · deepseek-v4-flash
Pith's one-line read Spline fitting inflates supernova iron velocities on red continua
desk verdict A solid, honest methods paper that quantifies neglected error sources and shows the spline/template discrepancy is not universal, though the new red-continuum mechanism rests on a two-event comparison with published template velocities. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the Fe II feature near 5000 Å, a blended triplet with lines at 4924 Å, 5018 Å, and 5169 Å, whose minimum wavelength is converted to an expansion velocity by the Doppler formula. The spline fitting method locates the minimum of the blended feature after smoothing with a Savitzky–Golay filter and spline interpolation, while the template fitting method blueshifts and broadens an average Ic spectrum's iron lines to match the input spectrum, combining the fitted blueshift with the template's known velocity. The load-bearing mechanism is the slope of the local continuum under the triplet: assuming roughly equal line strengths, a blue continuum makes the reddest line (5169 Å) closest to the feature minimum, while a red continuum pulls the minimum toward the bluest line (4924 Å), biasing spline fitting to higher velocities. This mechanism explains why the discrepancy appears for GRB980425-SN1998bw (cooler, red continuum) and is absent for GRB130702A-SN2013dx (hotter, blue continuum), and why template fitting, which flattens the spectrum before fitting, does not show the same bias.
What would settle it
Measure the local continuum slope at the Fe II feature for a sample of Ic-BL supernovae and compare it with the difference between spline and template fitting velocities: the red-continuum mechanism predicts a strong correlation, with spline velocities exceeding template velocities by roughly 10,000–15,000 km/s when the continuum is red, and near-zero differences on blue continua. Alternatively, apply both methods to synthetic Ic-BL spectra with a known injected velocity and a controlled continuum slope; if the spline method fails to show the predicted bias on red continua, the proposed mechanism is wrong.
Extended reading notes
Core claim
On the paper's own terms, the discovery is that the two popular velocity-measurement methods for the Fe II feature near 5000 Å do not always disagree, and the template fitting method is not always better at handling blended lines. Using direct comparisons of the well-sampled supernovae GRB980425-SN1998bw and GRB130702A-SN2013dx, the authors show that spline fitting produced velocities more than 12,000 km/s higher than template fitting for the first object, while the two methods agreed within errors for the second, despite similar apparent blending. They attribute this to the slope of the local continuum: when a red continuum underlies the iron triplet, the minimum of the blended feature shifts toward the 4924 Å line, yielding an artificially high velocity from spline fitting; when the continuum is blue, the 5169 Å line sits closest to the minimum and both methods trace the same feature. The paper further quantifies additional errors of roughly 500–2000 km/s from template phase choice and smoothing in both methods, and shows that spline fitting underestimates its uncertainties by about 1000 km/s. The conclusion is that no single method is always optimal, but the velocity evolution shape appears identical regardless of method.
Load-bearing premise
The load-bearing premise is that the velocities from the previously published template fitting results of Modjaz et al. (2016) are directly comparable to the spline fitting velocities computed in this paper, even though the two sets were produced with different data reductions, smoothing choices, and template implementations; if the published values are offset for unrelated reasons, the red-continuum mechanism and its 10,000–15,000 km/s magnitude would not be established.
Editorial extensions
If this is right
- For Ic-BL supernovae with a blue continuum at the iron feature, spline and template fitting give consistent velocities, so large published samples using either method can be compared for those objects.
- For objects with a red continuum, spline fitting velocities can be inflated by 10,000–15,000 km/s, so absolute velocity comparisons (e.g., between Ic-BLs and ordinary Ic supernovae) could be systematically biased if such objects are common.
- Velocity evolution studies for the iron feature are robust to method choice, because the same line is traced throughout if one avoids switching lines after de-blending.
- The template fitting method's additional errors from phase shifts (~1000 km/s) and smoothing (~500–1000 km/s) should be added in quadrature to its quoted uncertainties, especially at late times.
- Spline fitting uncertainties should be increased by about 1000 km/s to account for unmodelled scatter, and smoothing parameters should be chosen per spectrum, with optimum filter widths near 2.5% of the spectrum length for high-quality data.
Reading between the lines
- A testable extension would be to compute the continuum slope locally at the Fe II feature for a larger sample and check whether the spline-minus-template velocity offset correlates with that slope as the mechanism predicts.
- The mechanism implies that population-level velocity comparisons between GRB-associated and non-GRB Ic-BLs are unlikely to be distorted by this bias, since the paper argues the red-continuum configuration is relatively rare based on typical temperature evolution; a broader sample could confirm this directly.
- If the red-continuum bias is common in low-temperature or dusty objects, multi-feature analyses that rely on spline fitting for Si II and Ca II may need the same continuum-slope check, since the same minimum-shift argument could apply to other blended features.
- The paper's suggestion to flatten spectra before spline fitting, or to trace the 5169 Å line backward from late times, could be validated with synthetic spectra where the true velocity is known.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper compares two widely used methods for measuring Fe II expansion velocities in broad-line Ic supernovae: the template-fitting method of Modjaz et al. (2016) and a spline-fitting method. It quantifies the sensitivity of both methods to pre-smoothing choices, identifies an additional epoch/phase-shift error for template fitting (~500-2000 km/s), and an additional scatter-type error for spline fitting (~1000 km/s). Using two GRB-SNe (SN1998bw and SN2013dx), the paper argues that the two methods agree when the Fe II feature sits on a blue continuum but disagree by ~12000 km/s when the feature sits on a red continuum, because the blended minimum is biased toward the bluest triplet line at 4924 Å. The paper also provides best-practice recommendations and concludes that the velocity-evolution morphology is the same for both methods.
Significance. If the central claims hold, the paper is a useful methodological contribution: it quantifies several previously neglected error terms, gives concrete heuristics for smoothing parameters, presents a falsifiable explanation for method discrepancies, and provides the first publicly available Python implementation of the Fourier smoothing algorithm used in the template-fitting literature. The empirical demonstration that the two methods can agree (SN2013dx) and disagree (SN1998bw) in a way that tracks the local continuum is a conceptually simple and testable idea. The paper is also honest about the limits of its evidence, explicitly, for example, stating that the red-continuum conclusion assumes the template-fitting velocities are correct.
major comments (4)
- [§5, Figs. 10 and 14] The central claim that the spline method overestimates Fe II velocities on a red continuum rests entirely on comparing new spline fits to template-fitting velocities taken from Modjaz et al. (2016) without re-fitting the same spectra with the same pipeline. The two velocity sets differ in data reduction, smoothing (Fourier k vs. Savitzky-Golay), phase assignment, binning, and possibly template implementation. A systematic offset in the published template velocities for SN1998bw, unrelated to the methods themselves, could produce or erase the claimed 12000 km/s difference. To make the red-continuum mechanism load-bearing, the authors should recompute template-fitting velocities for the same reduced spectra used for the spline fits, or otherwise demonstrate that the published values are directly comparable.
- [§5 and §6.1] The proposed red-continuum mechanism is inferred from visual inspection of two events and a single literature temperature for SN2013dx (16000 K at 9.3 days), with no quantitative measurement of the continuum slope under the Fe II feature for either event. The predicted 10000-15000 km/s offset, taken from the separation of the 4924, 5018, and 5169 Å lines, is said to 'match very well' the 12000 km/s difference, but with two events this is a two-point coincidence unless the continuum slope is actually measured. The authors should quantify the local continuum slope at the compared epochs (e.g., by fitting a pseudo-continuum or blackbody to the same spectra) or perform a simple simulation of the blended triplet on red and blue continua to demonstrate that the mechanism produces the claimed magnitude of bias.
- [§4, Fig. 9] The claim that spline fitting underestimates uncertainties by around 1000 km/s is derived by fitting power-law and broken power-law functions to the velocity evolution and measuring the residual scatter. This procedure assumes that the fitted model is the true velocity evolution; any model misspecification is automatically absorbed as an 'additional error' of the method. The paper does not report the residuals separately from the fit uncertainty, nor does it test whether the 1000 km/s scatter is consistent with the reported Monte-Carlo errors. At minimum, the authors should report the RMS of residuals and the typical Monte-Carlo error per epoch, so that the reader can see how much of the scatter is genuinely unexplained.
- [§2.2 and Appendix A] The recommendation of ~10% spline density and ~2.5% filter width as optimum parameters is based mainly on one high-resolution, high-S/N spectrum (SN1998bw, Fig. 5). The appendix shows that the optimum varies by event and spectral quality: for SN2020bvc (low-resolution, high-S/N) the suggested optimum is 5% filter width and 5% knots, while for SN2016P (low-resolution, low-S/N) there is 'no optimal smoothing level'. The stated 'optimum parameters' therefore appear to be case-dependent. The paper does note that parameters should be determined case by case, but the abstract and Section 7 present the 10%/2.5% combination as a general recommendation, which overstates the evidence from four test spectra.
minor comments (4)
- [Figures 2, 7, and 14] The axis label in Fig. 2 reads 'vFe vFe(k=100)' with a missing subscript, and the left panel of Fig. 7 is labeled 'GRB980424-SN1998bw' while the text and table use 'GRB980425-SN1998bw'. Fig. 14's caption says 'GRB130207A-SN2013dx' but the paper consistently refers to 'GRB130702A-SN2013dx'. These typos should be corrected.
- [§2.2] The description of the spline-fitting method, including the definition of 'spline density' and the Monte-Carlo error estimation, references Finneran et al. (2024b) but does not describe the method in this paper. For a self-contained methodological comparison, the essential algorithmic steps (how the minimum is located, how errors are propagated) should be summarized here or in an appendix.
- [§6.3] The paragraph on 'Unquantifiable errors' correctly notes that template construction and poor χ² fits may contribute to the large template-fitting errors, but it does not cite a specific figure or analysis showing how large these effects may be. A brief quantitative statement, even an order-of-magnitude estimate, would make this section more useful.
- [Throughout] There are many instances of the typographical spacing 'di fferent' and 'o ffers' (e.g., in the abstract, Section 2, and elsewhere). A thorough proofread would eliminate these artifacts.
Circularity Check
No significant circularity: the paper's central velocity-method comparison rests on external published template velocities and its own spline fits, not on a self-referential derivation.
full rationale
The paper's central claims are empirical comparisons. Spline velocities are computed here, while template velocities are taken from Modjaz et al. (2016), an external published dataset, so the 12000 km/s discrepancy is measured against independent results rather than defined by a fitted input. The theoretical estimate of a 10000-15000 km/s effect is derived from the rest wavelengths of the Fe II triplet (4924, 5018, 5169 Angstrom) and a Doppler argument, not from the comparison itself. The use of power-law and broken power-law residuals in Section 4 to estimate additional spline-fitting scatter is a statistical error-quantification procedure, not a prediction forced by the fitted parameters; it assumes the model form but does not make the method's output equal to its input. Self-citations to Finneran et al. (2024b) document the spline methodology and prior context, but the load-bearing velocity discrepancy and continuum explanation are established by this paper's own direct comparison in Section 5. The stated caveat that template velocities were not re-fit with the same pipeline affects the robustness of the comparison, but that is an external-data limitation rather than a circular step. No equation or fitted parameter is shown to reduce to the claimed result by construction, and no load-bearing uniqueness claim is imported from the authors' prior work.
Assumptions & free parameters
free parameters (5)

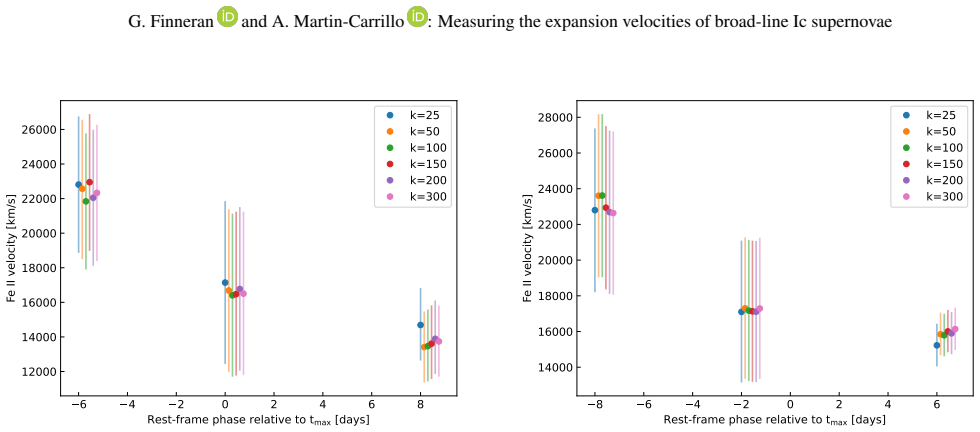

- Fourier smoothing parameter k (template fitting method) =
25, 50, 100, 150, 200, 300 (tested range)
- Savitzky-Golay filter width (spline fitting method) =
0.25% to 10% of spectrum length
- Spline density (number of knots) =
2 knots, and 5%, 10%, 20%, 50% knot densities
- Template phase shift =
-4, -2, 0, 2, 4 days applied artificially
- Power-law and broken power-law fit parameters for velocity evolution =
Best-fit slopes and break times from Figure 9, not tabulated
assumptions (5)
- domain assumption The Fe II feature near 5000 Å is a blend of three iron lines (4924, 5018, 5169 Å) with comparable strengths, and the minimum-flux wavelength tracks one of these lines.
- domain assumption Residual scatter of spline velocities around power-law or broken power-law fits represents measurement error rather than real structure in velocity evolution.
- domain assumption Published template-fitting velocities from Modjaz et al. (2016) are directly comparable to the spline velocities computed in this paper.
- domain assumption The continuum under the iron feature is dominated by a thermal or blackbody component, so its slope can be inferred from effective temperature and visual inspection.
- domain assumption Typical temperature evolution of Ic-BL supernovae, as in Taddia et al. (2019), implies most events have blue continua at the iron feature, so the red-continuum bias is rare.
Cite this review
Pith. "Pith review of Measuring the expansion velocities of broad-line Ic supernovae: An investigation of neglected sources of error in two popular methods." pith.science (2026). https://pith.science/paper/DGVFSQ2A
@misc{pith2026241112574,
author = {Pith},
title = {Pith review of: Measuring the expansion velocities of broad-line Ic supernovae: An investigation of neglected sources of error in two popular methods},
year = {2026},
howpublished = {\url{https://pith.science/paper/DGVFSQ2A}},
note = {Machine review of arXiv:2411.12574}
}
abstract
The velocities of Ic-BL supernovae can be determined using two techniques (spline fitting and template fitting), sometimes resulting in different velocities for the same event. This work compares and contrasts both methods, identifying sources of error which are not accounted for by most authors and quantifying their impact on the final velocity measurement. Finally, it identifies the cause of velocity discrepancies for events measured using both methods. We quantified the impact of pre-smoothing the spectra prior to use of both methods using two well-sampled cases. To identify the source of velocity discrepancies, two cases were measured and directly compared. Additional sources of error for template fitting arise due to the choice of phase of the template spectrum ($\sim$1000 km/s) and smoothing of the input spectrum ($\sim$500 km/s). The impact of phase shifts is minimised at peak time. The spline fitting method tends to underestimate uncertainties by around 1000 km/s. This method can also be impacted by fine tuning of the smoothing parameters ($\sim$500-1000 km/s). Optimum smoothing parameters for different cases are presented along with suggestions for best practice. Direct comparison of both methods showed that velocity discrepancies are not always present, debunking the claim that the template fitting method always handles blending better than spline fitting. Spline fitting seems to struggle to handle blending only in cases where the Fe II features are superimposed on a red continuum, which biases the minimum of this feature towards the bluest line of the triplet, creating an artificially higher velocity. This situation may be relatively rare among Ic-BLs, based on typical temperature evolution. Both methods can be applied under certain circumstances with similar results. The morphology of the velocity evolution of an SN appears to be the same regardless of the method used.
Figures
Figures from the paper (10 more)
Forward citations
Cited by 1 Pith paper
-
Velocity evolution of broad-lined type-Ic supernovae with and without gamma-ray bursts
GRB-linked and ordinary broad-lined type Ic supernovae show statistically indistinguishable expansion velocities and velocity decay rates in the largest such sample to date.
Reference graph
Works this paper leans on
-
[1]
Arnett, W. D. 1982, ApJ, 253, 785
1982
-
[2]
2011, A&A, 534, A43
Bazin, G., Ruhlmann-Kleider, V ., Palanque-Delabrouille, N., et al. 2011, A&A, 534, A43
2011
-
[3]
B., Modjaz, M., Hicken, M., et al
Bianco, F. B., Modjaz, M., Hicken, M., et al. 2014, ApJS, 213, 19
2014
-
[4]
D., Walters, R., et al
Blagorodnova, N., Neill, J. D., Walters, R., et al. 2018, PASP, 130, 035003
2018
-
[5]
2017, Advances in Astronomy, 2017, 8929054 D’Elia, V ., Pian, E., Melandri, A., et al
Cano, Z., Wang, S.-Q., Dai, Z.-G., & Wu, X.-F. 2017, Advances in Astronomy, 2017, 8929054 D’Elia, V ., Pian, E., Melandri, A., et al. 2015, A&A, 577, A116
work page 2017
-
[6]
2024a, arXiv e-prints, arXiv:2411.08866
Finneran, G., Cotter, L., & Martin-Carrillo, A. 2024a, arXiv e-prints, arXiv:2411.08866
-
[7]
2024b, arXiv e-prints, arXiv:2411.11503
Finneran, G., Cotter, L., & Martin-Carrillo, A. 2024b, arXiv e-prints, arXiv:2411.11503
-
[8]
J., Vreeswijk, P
Galama, T. J., Vreeswijk, P. M., van Paradijs, J., et al. 1998, Nature, 395, 670
1998
Show all 30 references
-
[9]
Ho, A. Y . Q. 2020, PhD thesis, California Institute of Technology
2020
-
[10]
Ho, A. Y . Q., Kulkarni, S. R., Perley, D. A., et al. 2020, ApJ, 902, 86
2020
-
[11]
2020, A&A, 639, L11
Izzo, L., Auchettl, K., Hjorth, J., et al. 2020, A&A, 639, L11
2020
-
[12]
B., & Graur, O
Liu, Y .-Q., Modjaz, M., Bianco, F. B., & Graur, O. 2016, ApJ, 827, 90
2016
-
[13]
2023, GRB Coordinates Net- work, 34370, 1
Martin-Carrillo, A., Schneider, B., Laskar, T., et al. 2023, GRB Coordinates Net- work, 34370, 1
2023
-
[14]
A., Iwamoto, K., & Nomoto, K
Mazzali, P. A., Iwamoto, K., & Nomoto, K. 2000, ApJ, 545, 407
2000
-
[15]
P., et al
Modjaz, M., Blondin, S., Kirshner, R. P., et al. 2014, AJ, 147, 99
2014
-
[16]
Q., Bianco, F
Modjaz, M., Liu, Y . Q., Bianco, F. B., & Graur, O. 2016, ApJ, 832, 108
2016
-
[17]
2001, ApJ, 555, 900
Patat, F., Cappellaro, E., Danziger, J., et al. 2001, ApJ, 555, 900
2001
-
[18]
Piro, A. L. & Nakar, E. 2013, ApJ, 769, 67
2013
-
[19]
J., Ashall, C., James, P
Prentice, S. J., Ashall, C., James, P. A., et al. 2019, MNRAS, 485, 1559
2019
-
[20]
J., Ashall, C., Mazzali, P
Prentice, S. J., Ashall, C., Mazzali, P. A., et al. 2018, MNRAS, 478, 4162
2018
-
[21]
J., Mazzali, P
Prentice, S. J., Mazzali, P. A., Pian, E., et al. 2016, MNRAS, 458, 2973
2016
-
[22]
R., et al
Rho, J., Evans, A., Geballe, T. R., et al. 2021, ApJ, 908, 232
2021
-
[23]
& Golay, M
Savitzky, A. & Golay, M. J. E. 1964, Analytical Chemistry, 36, 1627
1964
-
[24]
2014, A&A, 566, A102
Schulze, S., Malesani, D., Cucchiara, A., et al. 2014, A&A, 566, A102
2014
-
[25]
M., Kong, J
Silverman, J. M., Kong, J. J., & Filippenko, A. V . 2012, MNRAS, 425, 1819
2012
-
[26]
P., Yang, S., Anand, S., et al
Srinivasaragavan, G. P., Yang, S., Anand, S., et al. 2024, arXiv e-prints, arXiv:2408.14586
2024 arXiv
-
[27]
2019, A&A, 621, A71
Taddia, F., Sollerman, J., Fremling, C., et al. 2019, A&A, 621, A71
2019
-
[28]
2015, A&A, 574, A60
Taddia, F., Sollerman, J., Leloudas, G., et al. 2015, A&A, 574, A60
2015
-
[29]
L., Cenko, S
Toy, V . L., Cenko, S. B., Silverman, J. M., et al. 2016, ApJ, 818, 79
2016
-
[30]
& Gal-Yam, A
Yaron, O. & Gal-Yam, A. 2012, PASP, 124, 668 Article number, page 14 G. Finneran and A. Martin-Carrillo : Measuring the expansion velocities of broad-line Ic supernovae Appendix A: Additional violin and smoothing plots 1.0 1.5 2.5 5.0 7.5 10.0 SG Window length [% length of spe...
2024
