Diffusion Models Meet Network Management: Improving Traffic Matrix Analysis with Diffusion-based Approach

T0 review · 3 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A diffusion-based framework, Diffusion-TM, recovers traffic matrices from partial link loads or sparse flow measurements, and the paper proves its measurement-guidance corrections keep estimates on the data manifold.

desk verdict Useful diffusion-based toolkit for traffic matrix tasks with real empirical gains, but the advertised theoretical guarantee in Theorem 1 is not established by the proof as written. read the letter →

arxiv 2411.19493 v1 pith:7PRYVKU4 submitted 2024-11-29 cs.NI cs.LG

Xinyu Yuan , Yan Qiao , Zhenchun Wei , Zeyu Zhang , Minyue Li , Pei Zhao , Rongyao Hu , Wenjing Li This is my paper · ORCID
classification cs.NIcs.LG
keywords diffusionmodelstrafficmatrixestimationnetworktomographycompletionmanagementgenerativemissingdata
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Traffic matrices—the traffic volumes between every pair of network nodes—are expensive and lossy to measure directly, so operators often work from partial flow records or link-load counts. This paper claims that a pre-trained diffusion model, steered during reverse sampling by a gradient term that penalizes disagreement with whatever measurements exist, can recover the full traffic matrix while still producing samples that look like real traffic. The framework, Diffusion-TM, is a single plug-and-play method for three tasks: network tomography, traffic matrix completion, and synthetic traffic generation, with no task-specific retraining. The paper also claims a theoretical guarantee (Theorem 1) that the measurement-guidance correction keeps estimates on the data manifold, and a two-stage training scheme that tolerates heavily incomplete training data. Experiments on two real backbone traces show improved accuracy over existing baselines even when only 5% of the flow values are known.

What carries the argument

The load-bearing object is the guided reverse-diffusion step. At each time $t$, the algorithm performs the ordinary DDPM/DDIM denoising update to get $x'_{t-1}$, then adds the measurement gradient $\rho_t \nabla_{x_t} \lVert y - \mathcal{A}(\hat{x}_0)\rVert_2^2$, where $\hat{x}_0 = E[x_0 \mid x_t]$ comes from Tweedie's formula. This gradient is the tractable proxy for the intractable likelihood term $\nabla_{x_t}\log p_t(y \mid x_t)$, and Theorem 1 states that, for linear manifolds, this correction lies in the tangent space of the data manifold and cannot push the sample outside it. The supporting identity is Tweedie's formula, which makes the conditional expectation available in closed form from the learned score function. Around this core sit the EM iteration for tomography, the replace-based guidance for completion, and the two-stage masked training (autoencoder infilling followed by a loss computed only on observed entries).

What would settle it

A decisive test is to train Diffusion-TM on a synthetic traffic dataset whose ground-truth manifold is deliberately nonlinear (for example, points on a low-dimensional curve embedded into the flow space) and then measure whether the guided samples stay close to that manifold, using the distance from each final estimate to the nearest true sample; if estimates consistently fall far from the manifold or are no more accurate than unguided sampling, the paper's linear-projection assumption fails.

Watch

Extended reading notes

Core claim

Diffusion-TM turns the reverse process of an unconditional diffusion model into a posterior sampler for network measurements by adding a single correction at each denoising step. For a noisy state $x_t$, the conditional score $\nabla_{x_t} \log p_t(x_t \mid y)$ is approximated as the unconditional score plus $- (1/\sigma_z^2) \nabla_{x_t} \lVert y - \mathcal{A}(\hat{x}_0)\rVert_2^2$, where $\hat{x}_0 = E[x_0 \mid x_t]$ is the Tweedie estimate of the clean matrix and $\mathcal{A}$ is the measurement operator (the routing matrix for tomography or the observation mask for completion). Theorem 1 then asserts that, under a linear-manifold assumption on traffic data, each guided step remains on the data manifold, so the final estimate is both measurement-consistent and distribution-realistic. The same construction is augmented with an EM refinement for tomography, a replace-based guidance for completion, and a masked training loss preceded by autoencoder-based infilling of missing values. The result is a single framework for traffic matrix estimation, completion, and generation.

Load-bearing premise

The guarantee that gradient guidance keeps estimates on the data manifold assumes the set of valid traffic matrices is a linear (or affine) subspace and that the Tweedie estimate $D_t(x_t) = E[x_0 \mid x_t]$ acts locally as an orthogonal projection onto it; real traffic data may live on a nonlinear manifold.

Editorial extensions

If this is right

  • One unconditional diffusion model, once trained, can be applied at sampling time to traffic matrix estimation from link loads, completion from sparse flow entries, and synthetic traffic generation without retraining for each task.
  • Network operators can reconstruct all origin-to-destination flows from cheap link-load or partial-flow measurements, with the experiments showing useful accuracy even when only 2% to 5% of flow values are observed.
  • Because the guided estimates stay on the learned traffic distribution, downstream management tasks such as capacity planning and anomaly detection can treat the reconstructed matrices as realistic traffic data.
  • Multiple measurement sources can be combined in one sampling run, so operators can use both link loads and known OD pairs together rather than being limited to a single observation type.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The manifold-stability theorem is only proven for linear or affine data manifolds; if real traffic matrices live on a nonlinear manifold, the same guarantee does not automatically follow, though the experiments suggest the method still works in practice.
  • The same measurement-gradient recipe could be applied to other network inverse problems with differentiable forward maps, such as link-delay tomography or router-level latency estimation, whenever a diffusion prior over the target quantity is available.
  • The masked-loss plus autoencoder-infilling training scheme could serve as a general recipe for training deep generative models on heavily incomplete industrial datasets, a setting that goes beyond traffic matrices.
  • The paper argues that the method avoids the fixed-routing requirement of learning-based tomography, but it does not experiment with dynamically changing routing; testing under adaptive routing would be a natural next step.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes Diffusion-TM, a diffusion-model framework for traffic matrix (TM) analysis that targets network tomography, TM completion, and synthetic TM generation in a plug-and-play manner. The method uses a pre-trained unconditional DDPM/DDIM prior and injects measurement consistency at each reverse step via a gradient guidance term (Eq. 24) derived from an approximation to the conditional score (Eqs. 22-23); a two-stage training scheme with an autoencoder preprocessing module and a masked reconstruction loss (Eq. 29) is designed for highly incomplete training sets. The authors claim a theoretical guarantee (Theorem 1) that the guidance correction keeps the iterate on the data manifold, and they evaluate the approach on Abilene and GÉANT traces against tensor-completion and deep tomography baselines using NMAE, NRMSE, TRE, and MMD. Empirically, Diffusion-TM reports consistently lower errors and lower MMD across sampling rates, with ablations supporting the contribution of each component.

Significance. If the reported empirical results are reproducible, the paper makes a useful practical contribution: a single trained diffusion model can handle several TM-related tasks, and the two-stage training scheme appears to reduce sensitivity to missing data, which is a realistic operational constraint. The paper also ships a public code repository, uses two real-world traces, and compares against a broad set of baselines with ablation and sensitivity studies. The theoretical guarantee, however, is currently not established, and because it is advertised in the abstract and in the contribution list, the paper is not yet ready in its present form.

major comments (3)
  1. [V.C and Appendix "Proof for Theorem 1"] Theorem 1 as stated is not established by the appendix proof. The proof inserts the condition that the data manifold M has linear structure and asserts that p(x0|xt) is radial with center E[x0|xt], neither of which appears in the theorem statement or is verified for traffic data; a weighted average of points on a nonlinear manifold need not lie on the manifold, and the conditional posterior of a diffusion model at finite noise level is not generally radial. Moreover, the calculation in Eq. (40) shows only that the gradient correction vector lies in the tangent space Ts(M, Dt(xt)); it does not show that the updated iterate x_{t-1}, which at intermediate steps is a noisy point outside the clean-data manifold, remains in M. The proof therefore establishes a different statement from the theorem's claim that the correction "will not leave the data manifold."
  2. [V.B, Eqs. (22)-(24)] The approximation ∇xt log p(y|xt) ≈ ∇xt log p(y|E[x0|xt]) is introduced without an error bound or stated validity conditions, and the displayed Eq. (22) omits the logarithm that is used in Eq. (15); at intermediate diffusion steps, when xt is far from the clean manifold and the posterior p(x0|xt) is multimodal, this approximation can be arbitrarily poor. Since Eqs. (23)-(24) and the claimed posterior-sampling interpretation depend on this step, the derivation is heuristic rather than a rigorous theoretical guarantee.
  3. [Abstract and Section I contribution list] The paper advertises a theoretical proof as a key contribution ("theoretically prove its efficiency"), but the only supporting argument is Theorem 1, which is not proven under the stated conditions. The authors should either supply a rigorous theorem with explicitly stated and empirically checked assumptions, or reclassify the claim as a heuristic with strong empirical support; as written, the central contribution is overclaimed.
minor comments (6)
  1. [Section II] There is a typo in the phrase "DM-basd approach," which should read "DM-based approach."
  2. [Algorithm 1, lines 4-5] Line 4 defines a variable ŝθ but line 5 uses sθ without making clear whether these are the same object; please make the notation consistent.
  3. [Section VII.G.3] The ablation text refers to "DDIM shown in Eqn. 12," but the DDIM update is Eqn. 13; the cross-reference should be corrected.
  4. [Notation throughout] The symbol M is used both for the observation mask in Eq. (2) and for the data manifold in Theorem 1 and Appendix C, which is confusing; one of the two should be renamed.
  5. [Eq. (40)] The chain rule for the gradient ∇xt ||y - H D_t(xt)||^2 is written with ambiguous notation J_{HD_t}; the expression should be expanded explicitly so that the role of the Jacobian of D_t is clear.
  6. [Table II caption] The meaning of "Diffusion-TM (p%)" in the table body is explained only in the text; the caption should state that p denotes the percentage of link loads used as additional constraints.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the empirical evaluation is anchored to external datasets and baselines, and the theoretical guarantee, while resting on strong imported manifold assumptions, is not a fit or definitional reduction.

full rationale

Walking the derivation chain, the core update in Eq. (24) follows the standard DPS-style decomposition of the conditional score, with rho_t derived from the noise model rather than fitted to the target. Proposition 1 is a direct application of Tweedie's formula, and Eq. (22) is explicitly labeled an approximation. The two-stage training scheme uses losses restricted to observed entries, which is a design choice rather than a renamed prediction. The experimental claims are tested against public Abilene and GEANT data and external baselines (DATC, NTC, NTM, NTF, CoSTCo, VAE-TME, WGAN-TME, BPTME, MNETME), so the main empirical results are self-contained. The only author-overlapping citation, [36], is used in Related Work to distinguish the single-run conditional sampling approach from a prior latent-diffusion TM estimator; it is not load-bearing in any derivation. The proof of Theorem 1 is a genuine rigor concern but not a circularity: it imports the manifold-constraint argument from the external reference [38] and introduces strong assumptions (linear manifold structure, radial conditional density) to conclude that D_t is locally an orthogonal projection onto M. Even granting those assumptions, the proof only places the gradient vector in the tangent space at D_t(x_t), and does not establish that the updated iterate x_{t-1} remains on the clean-data manifold. That is a soundness gap, not an equation that reduces to its own input or a fitted parameter renamed as a prediction. No step in the paper satisfies the quoted reduction test for circularity.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The method relies on no new physical entities. The free parameters are mostly algorithm hyperparameters, with guidance strength and diffusion steps being the most consequential. The axioms include the standard diffusion/Tweedie background, the linear-measurement domain model, and two ad hoc assumptions in the theoretical proof: linear data manifold and the point-estimate approximation of the conditional score. The theoretical guarantee is the weakest part of the paper because these latter axioms are not empirically justified.

free parameters (4)
  • Guidance strength rho_t (fixed rho = 0.05) = 0.05
    Grid-searched over {1e0, 1e-1, 5e-2, 1e-2, 1e-3}; Fig. 10 shows significant sensitivity in GÉANT, so the final value is tuned to the experimental scenarios.
  • Total diffusion steps T = 300
    Selected from {50, 100, 300, 500, 1000} as the 'most economical but effective setup'; Fig. 12 shows that the optimal value depends on sampling rate.
  • Transformer hyperparameters (batch size, attention heads, base dimension) = not reported precisely
    Chosen by grid search 'that perform well across datasets' with no explicit held-out validation split documented.
  • Measurement noise variance sigma_z^2 = not estimated or reported
    The guidance formula uses rho_t = (1 - alpha_t) / (sqrt(alpha_t) * sigma_z^2), but sigma_z is not estimated from data; it is effectively absorbed into the tuned rho.
assumptions (5)
  • domain assumption Gaussian measurement noise z ~ N(0, sigma_z^2 I) in Eqn. 3
    Used to write the likelihood in Eqn. 23; SNMP and flow sampling noise are not necessarily Gaussian.
  • domain assumption Linear routing model Y = HX + z with known routing matrix A
    Assumes the routing matrix is known and fixed during training and inference, which is stated as a limitation for other methods but also assumed for the diffusion guidance.
  • ad hoc to paper Traffic data manifold M is linear and D_t(x_t) = E[x_0|x_t] acts as an orthogonal projection onto M
    Invoked in the Appendix proof of Theorem 1; no evidence is given that real traffic matrices lie on a linear manifold, and weighted averages of points on a nonlinear manifold are not generally on the manifold.
  • ad hoc to paper Approximation grad_{x_t} log p(y|x_t) ≈ grad_{x_t} log p(y|E[x_0|x_t]) in Eqn. 22
    This approximation is the bridge to the tractable guidance term, but the paper provides no error bound or validity conditions.
  • standard math Tweedie's formula and DDPM score matching provide the posterior mean (Eqns. 19 and 21)
    Background results from [41] and [16]; the paper sketches the proof of Lemma 1 and Proposition 1 but does not independently establish the required regularity conditions.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Diffusion Models Meet Network Management: Improving Traffic Matrix Analysis with Diffusion-based Approach." pith.science (2026). https://pith.science/paper/7PRYVKU4

@misc{pith2026241119493,
  author       = {Pith},
  title        = {Pith review of: Diffusion Models Meet Network Management: Improving Traffic Matrix Analysis with Diffusion-based Approach},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/7PRYVKU4}},
  note         = {Machine review of arXiv:2411.19493}
}
abstract

Due to network operation and maintenance relying heavily on network traffic monitoring, traffic matrix analysis has been one of the most crucial issues for network management related tasks. However, it is challenging to reliably obtain the precise measurement in computer networks because of the high measurement cost, and the unavoidable transmission loss. Although some methods proposed in recent years allowed estimating network traffic from partial flow-level or link-level measurements, they often perform poorly for traffic matrix estimation nowadays. Despite strong assumptions like low-rank structure and the prior distribution, existing techniques are usually task-specific and tend to be significantly worse as modern network communication is extremely complicated and dynamic. To address the dilemma, this paper proposed a diffusion-based traffic matrix analysis framework named Diffusion-TM, which leverages problem-agnostic diffusion to notably elevate the estimation performance in both traffic distribution and accuracy. The novel framework not only takes advantage of the powerful generative ability of diffusion models to produce realistic network traffic, but also leverages the denoising process to unbiasedly estimate all end-to-end traffic in a plug-and-play manner under theoretical guarantee. Moreover, taking into account that compiling an intact traffic dataset is usually infeasible, we also propose a two-stage training scheme to make our framework be insensitive to missing values in the dataset. With extensive experiments with real-world datasets, we illustrate the effectiveness of Diffusion-TM on several tasks. Moreover, the results also demonstrate that our method can obtain promising results even with $5\%$ known values left in the datasets.

Figures

Figures reproduced from arXiv: 2411.19493 by the authors.

Figure 1
Figure 1. Illustration of studied problems in this paper. We seek an estimated TM X that satisfies the conditions imposed by the set of measurements R or Y . However, the considered problem is highly underdetermined . each entry represents an OD flow between a pair of nodes in the network. To facilitate calculations, we reshape TM to a vector {X1:N }, where N = |V | × |V | is the total number of OD flows in TM. We denote a se… view at source ↗
Figure 2
Figure 2. Geometrical visualization of diffusion models. The central area represents the original data manifold which has been proved to be encircled by manifolds of noisy data pt (xt) [38]. The encoding (forward) process depicted by orange arrows gradually converts original data distribution p0 (x0), into a simple isotropic Gaussian N (0,I). While the decoding (reverse) process depicted by green arrows can be considered as t… view at source ↗
Figure 3
Figure 3. Illustration of our diffusion-based approach for solving TM estimation problems. The reverse inference process (from right to left) iteratively denoises the target traffic matrix x0 conditioned on the measurement y. Concretely, following the prediction of the estimated xˆ0 by an unconditional diffusion model, the measurement y is incorporated by solving a proximal subproblem depicted by red arrows in the VP-SDE. Alg… view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: Guiding generation process toward target solutions. Each curve represents a manifold Mi of (noisy) TM data. The proposed correction step (red arrow) alleviates reverse diffusion step (green arrow) leaving the solution space of inverse problems. The proof of Proposition…
Figure 5
Figure 5. Figure 5: (Top) Architecture of Pre-processing Module. The training of diffusion models starts with a AutoEncoder-based pre-processing module, which generates coarse-grained estimations of missing values in training set. (Bottom) Overall model structure of Diffusion-TM. The unde…
Figure 6
Figure 6. Figure 6: t-SNE plots for Diffusion-TM (1st row), WGAN (2nd row), VAE [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]
Figure 7
Figure 7. Figure 7: t-SNE plots for Diffusion-TM (1st row), WGAN (2nd row), VAE (3rd [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]
Figure 8
Figure 8. Figure 8: Network tomography performance for complete TM estimation under [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 9
Figure 9. Figure 9: Temporal relative errors (TREs) on three sampling rates in Abilene (top) and G [PITH_FULL_IMAGE:figures/full_fig_p013_9.png]

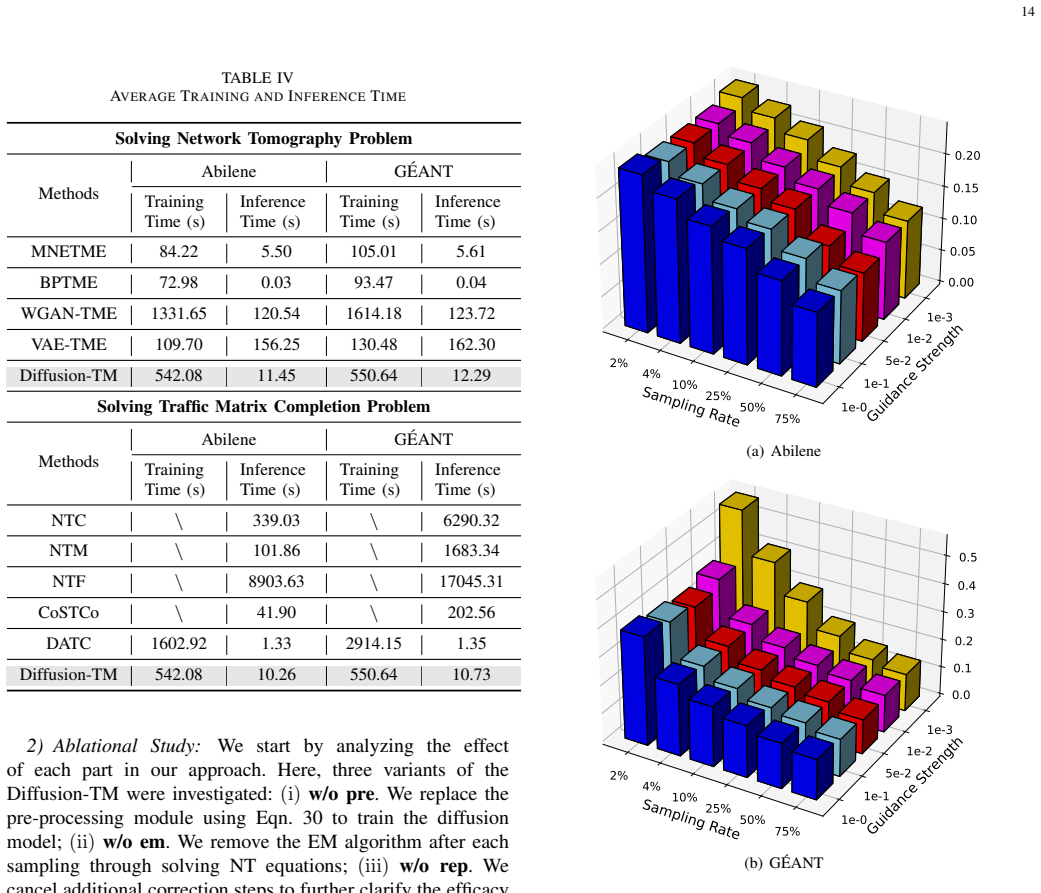

Figure 10
Figure 10. Figure 10: The performance (NMAE) of Diffusion-TM with different guidance [PITH_FULL_IMAGE:figures/full_fig_p014_10.png]
Figure 11
Figure 11. Figure 11: Results of Diffusion-TM and its three variants. [PITH_FULL_IMAGE:figures/full_fig_p015_11.png]
Figure 12
Figure 12. Figure 12: Diffusion-TM for different diffusion steps. [PITH_FULL_IMAGE:figures/full_fig_p015_12.png]

Discussion (0). Continue with ORCID to comment.
