Improving Object Detection by Modifying Synthetic Data with Explainable AI

T0 review · 2 major / 4 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims that SHAP-guided edits to synthetic 3D mesh models—reinforcing distinctive features and disrupting confusable ones—improve infrared vehicle detection beyond simply adding unmodified synthetic data.

desk verdict Novel SHAP-guided mesh editing idea, but the 1.5% gain is tuned on the test set and lacks a random-edit control, so the causal claim is not yet established. read the letter →

arxiv 2412.01477 v3 pith:XD7JTH7F submitted 2024-12-02 cs.CV

Nitish Mital , Simon Malzard , Richard Walters , Celso M. De Melo , Raghuveer Rao , Victoria Nockles This is my paper · ORCID
classification cs.CV
keywords syntheticdataexplainableAISHAPobjectdetectioninfraredimageryhuman-in-the-loopYOLOv8domainrandomization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proposes that when synthetic training images are used to improve object detection, the choice of what to change in the 3D models behind those images can be guided by explainable AI rather than trial and error. Its central claim is that SHAP saliency maps, compared across correct classifications and a target misclassification, let a human operator locate unique features that distinguish two vehicle classes and common features that confuse them, and that editing a game-engine mesh to reinforce or disrupt those features improves detection beyond simply adding unmodified synthetic data. In the infrared vehicle-detection test bed, this workflow raises mean average precision at IoU 0.5 from 90.0% with real data alone to 94.6% with initial synthetic data and then to 96.1% after the XAI-guided edits. The paper also shows that both increasing realism on distinctive regions and deliberately reducing realism on confusable regions can help, and that these targeted data changes outperform training-time fixes such as varifocal loss and online hard example mining.

What carries the argument

The carrying object is the distinction between unique and common features, formalized in a toy linear classifier where the optimal class weight vector is $w_k^* \propto \mathbb{E}[\phi(x_k)] - \mathbb{E}[\phi(x_{k'})]$, so large weights go to features prominent in class $k$ but not $k'$ and small weights to features prominent in both. The mechanism that identifies these features in practice is a comparison of three SHAP (SHapley Additive exPlanations) saliency maps: the correct classification of class A, the correct classification of class B, and the misclassification of A as B, clustered by vehicle orientation. High saliency at the same location in the misclassification and in the correct classification of B marks a common feature to disrupt; saliency present only in the correct classification of A marks a unique feature to reinforce. The edits are applied to material properties of faces in Unity 3D mesh models via Probuilder, so the change is in the training data, not in the loss function or model weights.

What would settle it

Retrain with the same mesh edits after choosing them from SHAP maps computed on a validation split that is never used for the final evaluation; if mAP50 no longer rises 1.5% over the unmodified synthetic baseline, the reported gain was an in-sample fit. A second check is to apply random mesh edits of comparable visual magnitude in the same regions; if they produce the same gain, XAI guidance is not the cause.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that misclassifications between visually similar classes can be traced, via SHAP attributions, to specific regions of the image where the two classes share a bright or salient pattern, and that editing the synthetic mesh model in exactly those regions steers the trained detector away from the confusion. Reinforcing edits make the unique features of a class more prominent in the rendered images (here, changing the SUV's surface smoothness to remove reflections and match the real rear and side texture), while disruptive edits deliberately reduce realism in a region that is common to two classes (here, darkening the ZSU23's hot engine panel so it no longer resembles the BTR70's hot exhaust). Both edits individually raise mAP50 from 94.6% to 95.7%, and together they raise it to 96.1%, averaged over four random seeds. The same edits also improve YOLOv8s and YOLOv8x, though the size of the gain differs.

Load-bearing premise

The reported 1.5% gain assumes the test images used to compute the final mAP50 were not the same images whose SHAP maps and confusion matrices were used to choose the mesh edits, but the paper does not describe a separate validation split.

Editorial extensions

If this is right

  • If the proof of concept holds, synthetic data for object detection can be curated by letting the model's own explanation point to the exact mesh region to edit, reducing the trial-and-error burden on human operators.
  • Both increasing realism (reinforcing unique features) and decreasing realism (disrupting common features) can improve performance, so realism is not a one-way axis for synthetic data design.
  • The XAI-guided edits transfer to larger YOLOv8 variants, with reinforcing giving larger gains for YOLOv8s and YOLOv8x than disruptive; the size of the gain varies with architecture.
  • In this setting, targeted synthetic-data modification outperforms altering the training procedure with varifocal loss or online hard example mining, which slightly reduced mAP50 relative to unmodified synthetic data.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension would be to turn the unique/common feature criterion into a quantitative design rule: modify synthetic data where the SHAP correlation between misclassified samples and the confusable class is high and the corresponding image regions are visually similar.
  • The disruptive modification is essentially targeted domain randomization; a natural extension is to randomize only the SHAP-identified common regions across many synthetic samples and measure whether the gain scales with the number of disrupted regions.
  • The procedure's dependence on a human reading SHAP heat maps suggests an automation path: map 2D saliency onto the 3D mesh via ray tracing and let a second model propose mesh edits, which the authors mention as future work.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper proposes a human-in-the-loop framework in which SHAP saliency maps computed on a detection model's failures are used to guide modifications to the 3D mesh models used to generate synthetic training images. The authors distinguish 'unique' features (which should be reinforced) from 'common' features (which should be disrupted), motivated by a simple logistic-regression toy model. On the DSIAC ATR infrared vehicle dataset, they report that adding a base set of 9,000 synthetic images to 9,000 real images raises YOLOv8n mAP50 from 90.0% to 94.6%, and that further SHAP-guided reinforcing and disruptive mesh edits raise it to 96.1% (Table 1). The same edits also improve YOLOv8s, with mixed results for YOLOv8x.

Significance. The idea of using XAI to decide where and how to increase or decrease realism in synthetic data is novel and practically relevant, and the paper contains several methodological strengths: the orientation-based train/test split is designed to avoid the temporal leakage that affects much prior work on this dataset; the authors include controls for dataset size and real:synthetic ratio; results are averaged over multiple seeds; and the toy model gives a clean conceptual vocabulary for the editing rules. If the 96.1% result were obtained from a clean evaluation, the paper would be a useful proof of concept for explainable synthetic-data curation. As it stands, the key empirical claim is not yet supported, because the edits were selected using the same test set that is later used for evaluation.

major comments (2)
  1. [Section 2 and Section 5.1] The SHAP attributions guiding the mesh edits are computed over '50 randomly selected test samples' (Section 2), and the target misclassifications are chosen from confusion matrices that are computed on the test orientation split Otest (Figs. 4 and 8; Supplementary Figs. 23 and 24 are explicitly described as being 'over the test dataset'). The final mAP50 is also reported on Otest, so the 1.5% gain (94.6% to 96.1%) is an in-sample, human-in-the-loop optimization score rather than an unbiased estimate of the XAI workflow's value. The manuscript even refers to these samples as 'validation images' in Section 5.1, which is inconsistent with the 'test samples' wording in Section 2. To validate the claim, the authors must either introduce a separate validation split used for all SHAP-based selection and threshold decisions, or pre-register the modifications before any test-set inspection.
  2. [Section 5.1 and Table 1] No control is reported for arbitrary mesh edits that are not guided by SHAP. The comparisons to varifocal loss and OHEM only rule out two specific training-time alternatives; they do not show that the SHAP-guided unique/common-feature logic is what causes the gain. A control in which the same number and type of mesh modifications are made without SHAP guidance (e.g., randomly, or on a different vehicle region) is needed to attribute the improvement to the XAI procedure rather than to any dataset perturbation or to the operator's prior domain knowledge.
minor comments (4)
  1. [Section 1] There is a typo in the introduction: 'whilst previous works have have either improved' should read 'have either improved'.
  2. [Table 1] It would be helpful to report real-only baselines for YOLOv8s and YOLOv8x; the current columns start with Real+Syn v0, so the reader cannot directly assess whether synthetic data helps or hurts for those architectures (note that for YOLOv8x, v0 gives 89.6%, below the YOLOv8n real-only 90.0%, and no real-only YOLOv8x number is given).
  3. [Section 2 and Figure 5] The description of the SHAP masking thresholds (40% contribution threshold and 50% visualization mask threshold) is clear, but the authors should state explicitly whether these thresholds were chosen before or after observing test performance; if after, they are additional in-sample tuning choices.
  4. [Supplementary Figure 22] The caption says 'our dataset size is also 9000 images' for the ratio experiment, while the main experiments use 9000 real plus 9000 synthetic images; clarifying this distinction in the main text would prevent confusion about the dataset sizes used in the two analyses.

Circularity Check

1 steps flagged · score 6.0 of 10

The reported 1.5% XAI-guided gain is selected on the test set: SHAP attributions and target misclassifications come from Otest, and the final mAP50 is measured on the same Otest, making the central empirical claim an in-sample fit.

  1. fitted input called prediction [Section 2 (SHAP computation) and Section 5.1 (target misclassification selection and evaluation); Table 1.]
    "We compute pixel attributions over 50 randomly selected test samples for which the model predicts high confidence for the specified class. ... To understand the increase in mAP50 score from the addition of the v0 synthetic data to the training dataset, we compare the confusion matrices in Fig. 8a,b ... In the following sections we target these misclassifications using our new procedure from Section 2.1, demonstrating the use of both Reinforcing and Disruptive modifications to the synthetic data v0 in order to reduce model confusion and improve performance."

    The Reinforcing and Disruptive mesh edits are selected by inspecting SHAP attributions over test samples and by picking target misclassifications from confusion matrices computed on the same Otest used for all reported mAP50 values. The human operator's edit choices are therefore optimized against the test set, and the resulting mAP50 increase from 94.6% to 96.1% is the value of the very objective (reducing those test misclassifications) that guided the edits. The final score is not an independent prediction of the XAI-guided workflow; it is an in-sample fit of the mesh modifications to the evaluation set. No separate validation split, pre-specified edit protocol, or random-edit control is presented to break this loop.

full rationale

The toy derivation in Section 2 (optimal weights w*_k = E[phi(x_k)] - E[phi(x_k')]) is self-contained and not circular; it merely motivates why reinforcing unique features and disrupting common features could help. The v0-versus-real-only comparison (94.6% vs 90.0%) is also a legitimate external comparison because v0 was not chosen by inspecting test errors. The circularity lies in the XAI-guided step: the SHAP maps that drive the mesh modifications are computed on '50 randomly selected test samples' (Section 2), the target misclassifications are taken from confusion matrices on the same Otest (Section 5.1 and Figs. 4/8, with mAP50 reported on Otest), and the final mAP50 after modification is measured on that same Otest (Table 1). The human-in-the-loop operator is effectively minimizing test-set confusion without any held-out split; the 1.5% improvement is therefore a fitted result selected against the evaluation metric, not an independent estimate of the XAI workflow's causal benefit. The absence of a random-edit control further means the gain cannot be attributed to the specific XAI logic, though that is a confounding/control issue rather than a definitional circularity. Self-citations to the authors' prior work are not load-bearing for the central result. Overall partial circularity: score 6.

Assumptions & free parameters 7 free parameters · 6 assumptions · 0 invented entities

The central empirical result rests on a chain of choices: a toy linear model is assumed to describe deep classifiers; SHAP maps are assumed to locate class-confusing features; human visual mapping from 2D saliency to 3D mesh edits is assumed reliable; and Unity material settings are assumed to translate into the intended image changes. None of these is validated independently, and the free parameters are set by inspection rather than measurement. No new particles, forces, or physical entities are introduced.

free parameters (7)
  • real:synthetic data ratio = 0.5
    Selected from a performance sweep (Supplementary Fig. 22a) as optimal; used in all reported experiments.
  • SHAP contribution threshold = 40% of per-sample maximum
    User-defined threshold in Section 2 to count a pixel as contributing; affects saliency maps and thus which mesh region is edited.
  • SHAP visualization mask threshold = 50% of maximum score
    User-defined threshold in Section 2 for masking low-contribution pixels in displayed maps.
  • SHAP computation settings = 1000 random masks, 50 test samples
    Choices in Section 2 that shape the stability and localization of attributions.
  • orientation bin size for SHAP comparison = 5 degrees
    Chosen in Section 5.1 and Supplementary Section 11 to group validation samples by vehicle orientation.
  • SUV mesh material smoothness reduction = not quantified
    Human operator edits material parameter in Unity (Section 5.1) to reduce reflections; exact value absent.
  • ZSU23 engine panel darkening = not quantified
    Human operator darkens hot engine panel (Section 5.1); exact change absent and no visual or radiometric measurement.
assumptions (6)
  • domain assumption The toy binary classifier derivation (w*_k proportional to E[phi(x_k)] - E[phi(x_k')]) is assumed to transfer to deep object detectors with nonlinear, entangled features.
    Section 2 states the toy model is for motivation and 'suggest[s] this concept is more generally applicable', without proof for deep networks.
  • ad hoc to paper Kernel SHAP over 1000 random masks localizes the visual features responsible for class confusion.
    Section 2 relies on SHAP attributions to identify unique and common features; no validation that SHAP regions correspond to causally editable mesh parts.
  • ad hoc to paper A human operator can reliably map 2D saliency regions to 3D mesh properties by visual inspection.
    Section 2.1 step 5 and the examples in Section 5.1 require this mapping; no inter-operator agreement or objective metric is reported.
  • ad hoc to paper Modifying material smoothness and emission in Unity produces image changes with the intended reinforcing or disrupting effect and no harmful side effects.
    Section 5.1 assumes the smoothness reduction makes the SUV more uniform and the darkening removes confusion; only aggregate mAP is reported.
  • domain assumption The orientation-based train/test split removes data leakage sufficiently for mAP gains to be interpreted as generalization.
    Supplementary Section 12 uses PCA to argue reduced leakage, but PCA separation does not prove the model cannot exploit remaining correlations.
  • domain assumption Four random seeds (three for YOLOv8x) are enough to treat mAP differences of 1.1-1.5% as reliable.
    Table 1 reports averages without variance; no significance tests are provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Improving Object Detection by Modifying Synthetic Data with Explainable AI." pith.science (2026). https://pith.science/paper/XD7JTH7F

@misc{pith2026241201477,
  author       = {Pith},
  title        = {Pith review of: Improving Object Detection by Modifying Synthetic Data with Explainable AI},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XD7JTH7F}},
  note         = {Machine review of arXiv:2412.01477}
}
read the original abstract

Limited real-world data severely impacts model performance in many computer vision domains, particularly for samples that are underrepresented in training. Synthetically generated images are a promising solution, but 1) it remains unclear how to design synthetic training data to optimally improve model performance (e.g, whether and where to introduce more realism or more abstraction) and 2) the domain expertise, time and effort required from human operators for this design and optimisation process represents a major practical challenge. Here we propose a novel conceptual approach to improve the efficiency of designing synthetic images, by using robust Explainable AI (XAI) techniques to guide a human-in-the-loop process of modifying 3D mesh models used to generate these images. Importantly, this framework allows both modifications that increase and decrease realism in synthetic data, which can both improve model performance. We illustrate this concept using a real-world example where data are sparse; detection of vehicles in infrared imagery. We fine-tune an initial YOLOv8 model on the ATR DSIAC infrared dataset and synthetic images generated from 3D mesh models in the Unity gaming engine, and then use XAI saliency maps to guide modification of our Unity models. We show that synthetic data can improve detection of vehicles in orientations unseen in training by 4.6% (to mAP50 = 94.6%). We further improve performance by an additional 1.5% (to 96.1%) through our new XAI-guided approach, which reduces misclassifications through both increasing and decreasing the realism of different parts of the synthetic data. Our proof-of-concept results pave the way for fine, XAI-controlled curation of synthetic datasets tailored to improve object detection performance, whilst simultaneously reducing the burden on human operators in designing and optimising these datasets.

Figures

Figures reproduced from arXiv: 2412.01477 by the authors.

Figure 1
Figure 1. Conceptual illustration of our proposed approach for improving the performance of object detection and classification algorithms [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Illustration of the DSIAC ATR Dataset and Synthetic [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Experimental Setup. (left) Training data for only real data, showing vehicle orientations (blue segments) for all classes in training [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (21 more)
Figure 4
Figure 4. Figure 4: Confusion matrices calculated by taking an average over [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Illustration of the synthetic data modification process for reducing confusion. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 7
Figure 7. Figure 7: Example plots of SHAP contributions of pixels to out [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
Figure 8
Figure 8. Figure 8: Confusion matrices calculated by taking an average over [PITH_FULL_IMAGE:figures/full_fig_p014_8.png]
Figure 9
Figure 9. Figure 9: Confusion matrices for the YOLOv8n model trained on only real data from the dataset (i.e no synthetic data). Panels (a)-(d) [PITH_FULL_IMAGE:figures/full_fig_p014_9.png]
Figure 10

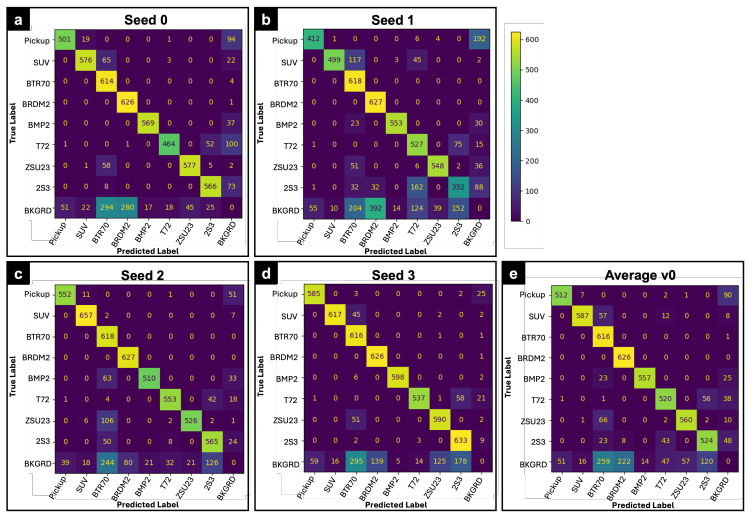

Figure 10. Figure 10: Confusion matrices for the YOLOv8n model trained on real data and the initial synthetic data (dataset v0). Panels (a)-(d) [PITH_FULL_IMAGE:figures/full_fig_p015_10.png]
Figure 11
Figure 11. Figure 11: Confusion matrices for the YOLOv8n model trained on real data and synthetic data after the reinforcing modification (dataset [PITH_FULL_IMAGE:figures/full_fig_p015_11.png]
Figure 12
Figure 12. Figure 12: Confusion matrices for the YOLOv8n model trained on real data and synthetic data after the disruptive modification (dataset [PITH_FULL_IMAGE:figures/full_fig_p016_12.png]
Figure 13
Figure 13. Figure 13: Confusion matrices for the YOLOv8n model trained on real data and synthetic data after the reinforcing and disruptive modi [PITH_FULL_IMAGE:figures/full_fig_p016_13.png]
Figure 14
Figure 14. Figure 14: Confusion matrices for the YOLOv8s model trained on real data and initial synthetic data (dataset v0). Panels (a)-(d) correspond [PITH_FULL_IMAGE:figures/full_fig_p017_14.png]
Figure 15
Figure 15. Figure 15: Confusion matrices for the YOLOv8s model trained on real data and synthetic data after reinforcing modification (dataset vR) [PITH_FULL_IMAGE:figures/full_fig_p017_15.png]
Figure 16
Figure 16. Figure 16: Confusion matrices for the YOLOv8s model trained on real data and synthetic data after disruptive modification (dataset vD) [PITH_FULL_IMAGE:figures/full_fig_p018_16.png]
Figure 17
Figure 17. Figure 17: Confusion matrices for the YOLOv8s model trained on real data and synthetic data after reinforcing + disruptive modifications [PITH_FULL_IMAGE:figures/full_fig_p018_17.png]
Figure 18
Figure 18. Figure 18: Confusion matrices for the YOLOv8x model trained on real data and initial synthetic data (dataset v0). Panels (a)-(c) correspond [PITH_FULL_IMAGE:figures/full_fig_p019_18.png]
Figure 19
Figure 19. Figure 19: Confusion matrices for the YOLOv8x model trained on real data and synthetic data after reinforcing modification (dataset vR) [PITH_FULL_IMAGE:figures/full_fig_p020_19.png]
Figure 20
Figure 20. Figure 20: Confusion matrices for the YOLOv8x model trained on real data and synthetic data after disruptive modification (dataset vD) [PITH_FULL_IMAGE:figures/full_fig_p021_20.png]
Figure 21
Figure 21. Figure 21: Confusion matrices for the YOLOv8x model trained on real data and synthetic data after reinforcing + disruptive modifications [PITH_FULL_IMAGE:figures/full_fig_p021_21.png]
Figure 22
Figure 22. Figure 22: (a) Model performance with respect to different ratios [PITH_FULL_IMAGE:figures/full_fig_p022_22.png]
Figure 23
Figure 23. Figure 23: (a) Fraction of the misclassifications of the SUV as BTR70 for each [PITH_FULL_IMAGE:figures/full_fig_p023_23.png]
Figure 24
Figure 24. Figure 24: (a) Fraction of the misclassifications of the ZSU23 as the BTR70 for each [PITH_FULL_IMAGE:figures/full_fig_p023_24.png]
Figure 25
Figure 25. Figure 25: Scatter plot of PCA dimensional reduction to two di [PITH_FULL_IMAGE:figures/full_fig_p024_25.png]
