Optical losses as a function of beam position on the mirrors in a 285-m suspended Fabry-Perot cavity

T0 review · 3 major / 6 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Round-trip losses in a 285-m filter cavity vary from 42 to 87 ppm with beam position on the input mirror.

desk verdict The first credible position-resolved loss map of a 285-m filter cavity, with an overclaimed budget comparison that needs a residual-map check. read the letter →

arxiv 2412.02180 v1 pith:B2UFAGGX submitted 2024-12-03 physics.ins-det physics.opticsquant-ph

Y. Zhao , M. Vardaro , E. Capocasa , J. Ding , Y. Guo , M. Lequime , M. Barsuglia This is my paper · ORCID
classification physics.ins-detphysics.opticsquant-ph
keywords round-triplossesfiltercavitysqueezedvacuumgravitational-wavedetectorsbeampositionscanscatteringFabry-Perotin-situmeasurement
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper establishes that round-trip optical losses in the 285-m Virgo filter cavity depend on where the infrared beam strikes the mirrors, not just on the mirrors' intrinsic quality. By scanning the beam over a two-centimeter region, the authors found losses varying from 42 ppm to 87 ppm on the input mirror while the end mirror stayed nearly uniform at 53–61 ppm, with a statistical error below 4 ppm across repeated measurements. The lowest measured value, 42 ppm, is close to the 30.3–39.3 ppm budget predicted from pre-installation mirror characterisation, which the authors interpret as evidence that no major loss mechanism has been overlooked. This matters because filter cavities with finesse near 10,000 are extremely sensitive to losses, which degrade squeezed vacuum and limit quantum noise reduction in gravitational-wave detectors. The methodology also provides a practical way to find the optimal cavity axis for minimal loss.

What carries the argument

The argument is carried by an on-off resonance reflectivity measurement: with the infrared sub-carrier beam locked to the cavity, the ratio of reflected power on resonance to off resonance gives the round-trip loss via $L \simeq (T_1/2)(1-R_{\mathrm{cav}})/(1+R_{\mathrm{cav}})$, where $T_1 = 562 \pm 1$ ppm is the input mirror transmissivity. Around this sits an automated beam-scanning system: the green alignment beam is steered with two mirrors, wavefront-sensing loops re-point the cavity axis onto the beam, and the dithering technique converts the longitudinal control error into a calibrated readout of beam position on each mirror, letting the beam move on one mirror while staying fixed on the other. The predicted-loss comparison is assembled from three scattering regimes: small-angle scattering simulated with the Oscar FFT code from a Zygo flatness map, large-angle scattering from a CASI scatterometer raster scan scaled by a single representative angle-resolved scattering curve via Eq. (5), and middle-angle scattering from a power-law extrapolation of the surface power spectral density, with end-mirror transmission (3.9 ppm) added to reach the 30.3–39.3 ppm budget.

What would settle it

Measure the angle-resolved scattering (ARS) at several positions across the coated input mirror's scanned region using a spatially and angularly resolving scatterometer or an integrating-sphere scanner; if the angular dependence of ARS differs between points, the total-integrated-scattering map built by scaling a single ARS curve is wrong, and recomputing the predicted loss budget with the true map would show whether the 42 ppm measured minimum genuinely matches the 30.3–39.3 ppm prediction.

Watch

Extended reading notes

Core claim

The central claim is that round-trip losses in the Virgo filter cavity are a function of beam position: scanning the input mirror changes the measured loss from 42 ppm to 87 ppm, whereas the equivalent scan of the end mirror spans only 53 ppm to 61 ppm. The measurement, repeated ten times over ten days at three fixed points, is reproducible to better than ±4 ppm. The lowest measured losses, 42 ppm, sit slightly above the 30.3–39.3 ppm budget assembled from pre-installation mirror characterisation, which the authors take to mean that no major loss mechanism has been neglected; the higher losses at other positions are attributed to contamination introduced during cavity integration. The same automated scan locates a cavity axis position whose round-trip losses are among the lowest ever measured for a cavity of this scale.

Load-bearing premise

The predicted loss budget assumes that the angle-resolved scattering pattern measured at one representative point on the coated input mirror can be scaled to every point, even though micro-roughness, point defects, and contaminants scatter light differently.

Editorial extensions

If this is right

  • Operating the Virgo filter cavity at the beam position that yields the minimum measured loss (42 ppm) gives round-trip losses among the lowest ever measured for a cavity of this scale.
  • The closeness of the measured minimum to the pre-installation prediction indicates that the mirror characterisation pipeline (flatness maps, scatterometry, PSD extrapolation) captures the dominant loss mechanisms.
  • The strong position dependence on the input mirror means that a single loss number is insufficient: loss budgets and quantum-noise projections for filter cavities must specify the beam position.
  • The scan's repeatability below 4 ppm over ten days makes the method a practical diagnostic for localising contamination spots and for checking the effectiveness of in-situ cleaning techniques.
  • For high-finesse filter cavities used in frequency-dependent squeezing, choosing the low-loss axis position directly improves the achievable squeezing for a given input power.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The single-point scaling assumption behind the large-angle scattering map (Eq. 5) is the weakest link in the loss-budget closure; a spatially and angularly resolved scatterometer scan of the same input mirror would directly test it, and if the angular scattering varies across the surface the predicted 30.3–39.3 ppm could shift materially.
  • The same beam-scanning method could be applied to the main arm cavities of current and future gravitational-wave detectors to re-optimise the cavity axis after installation or after contamination events, turning loss mapping into an operational tool rather than a one-time characterisation.
  • The asymmetry between input and end mirror maps hints that coating or contamination state, rather than bulk substrate properties, drives the spatially varying losses; a mirror swap or a spatially resolved scatterometer check could confirm this.
  • A natural extension is to monitor the loss map over months to quantify contamination growth rates and correlate loss spikes with vacuum or integration events.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper reports an in-situ measurement of round-trip optical losses in the 285-m Virgo filter cavity as a function of the intra-cavity beam position on the two mirrors. Losses are inferred from the ratio of reflected power when the IR sub-carrier is on and off resonance, and the beam position is reconstructed using a calibrated dithering technique. The authors map a roughly 2-cm region on each mirror and find that the round-trip loss varies strongly with beam position on the input mirror (42-87 ppm) while remaining more uniform on the end mirror (53-61 ppm). Measurements repeated over ten days show repeatability with a statistical error below 4 ppm and an estimated systematic error of 1.3 ppm. The lowest measured loss is compared with a pre-installation budget built from small-angle scattering (Oscar simulation of a flatness map), large-angle scattering (CASI scatterometer with a single-angle scaling assumption), middle-angle scattering (PSD extrapolation), and end-mirror transmission, giving a predicted range of 30.3-39.3 ppm. The authors conclude that no major loss mechanism has been neglected and attribute the higher losses at some positions to contamination. Appendices provide the cavity-geometry relations and dithering calibration details.

Significance. If the measured loss map is accepted, this is a valuable experimental contribution: it provides the first precise loss-vs-position mapping of a 100-m-scale suspended Fabry-Perot cavity, with a carefully characterized measurement chain (repeatability over ten days, statistical error below 4 ppm, systematic error 1.3 ppm, beam-position uncertainty of 0.3 mm). The method is directly relevant to optimizing filter-cavity performance for frequency-dependent squeezing in current and future gravitational-wave detectors. However, the secondary claim that the pre-installation budget proves no major loss mechanism has been neglected is not supported at the same evidentiary level: the large-angle scattering term rests on an explicitly acknowledged scaling assumption in Eq. (5), and the comparison is made between a single global minimum and a broad predicted range rather than as a spatially resolved validation.

major comments (3)
  1. [Sec. VI, Eq. (5)] The large-angle scattering contribution to the predicted loss budget (15-24 ppm) is constructed by assuming that the angular dependence of ARS measured at one representative point (x0,y0) applies to every point on the mirror, so that TIS(x,y) is obtained by scaling with ARS(x,y;θ0,φ0). The authors themselves acknowledge in the same section that this assumption is problematic because micro-roughness, point defects, and contaminants scatter differently. Since the predicted range 30.3-39.3 ppm includes this term and the abstract and conclusions use the proximity of the 42 ppm minimum to this range to rule out missing loss mechanisms, Eq. (5) is load-bearing. The authors should either validate the assumption with angular-resolved measurements at several positions (for example with SPARSE or an integrating-sphere scanner) or explicitly refrain from the "no major loss mechanism neglected" conclusion.
  2. [Secs. V-VII] The comparison between measurement and prediction is made between a single global minimum (42 ppm) and a broad pre-installation range (30.3-39.3 ppm). The paper never overlays the predicted loss map on the measured RTL map: the small-angle map from Oscar (Fig. 4b), the large-angle map after convolution (Fig. 4d), and the middle-angle plus transmission terms are not combined into a spatial prediction that can be compared with Fig. 3. A point-by-point comparison, such as a residual map or a predicted-vs-measured scatter plot over the scanned region, would test whether the model explains the spatial structure of the measured losses rather than merely matching by chance at a single location. The authors should add such a comparison before using the closeness of the minimum to support the claim that no major loss mechanism is missing.
  3. [Table II] The expected-loss budget is reported as a range (30.3-39.3 ppm) with no uncertainty on the small-angle scattering (10 ppm), middle-angle scattering (1.4 ppm), or end-mirror transmission (3.9 ppm). The difference between the measured minimum (42 ppm) and the upper end of the predicted range (39.3 ppm) is only 2.7 ppm, which is likely within the combined uncertainty of the budget terms. The authors should state the uncertainty on each term and on the total budget before interpreting the agreement as evidence that no significant loss mechanism has been neglected.
minor comments (6)
  1. [Abstract and Sec. IV] The abstract reports a statistical error smaller than 4 ppm, while Sec. IV states that each individual measurement has a statistical error always below 1.4 ppm; the relationship between these two numbers (for example, day-to-day repeatability of the map) should be clarified.
  2. [Fig. 2(b)] The horizontal spread in the reconstructed end-mirror positions is attributed to piezo hysteresis, but the text does not state how this systematic effect propagates into the RTL map uncertainty; please quantify or explicitly bound its impact.
  3. [Sec. VI, Eq. (4)] The integration lower limit θ_min is not specified; please define it (presumably the CASI lower-angle limit near 3 degrees) and state the numerical value used in the TIS calculation.
  4. [Sec. VI, middle-angle paragraph] The sentence "we use extrapolate the mirror surface power spectral density" contains a grammatical error and should be rewritten.
  5. [Footnote 28] The footnote qualifying the statement that the GR and IR beams share the same cavity axis should be expanded or moved into the main text, as it bears on the assumed beam-size scaling between the two wavelengths.
  6. [Fig. 2(c)] A table listing the numerical RTL values and uncertainties for the three repeated points would be easier to read than the plotted data alone, which is given without error bars in the figure.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the measured RTL map and the pre-installation loss budget use independent data; the 42 ppm vs 30.3-39.3 ppm comparison is a comparison, not a fit.

full rationale

The central measurement (Sec. IV-V) extracts round-trip losses from the on/off resonance reflected-power ratio via Eq. (1), with the input-mirror transmissivity T1 = 562 +/- 1 ppm taken from an independent LMA coating measurement [29], not from the measured RTL values. The pre-installation budget (Sec. VI) is built from separate mirror characterizations: Oscar small-angle scattering from the post-polishing flatness map, middle-angle scattering from a PSD power-law extrapolation, and large-angle scattering from CASI scatterometer maps via Eq. (5). None of these inputs uses the in-situ RTL map, so the 30.3-39.3 ppm prediction is not a refit of the 42 ppm measured minimum. The paper's own caveat that Eq. (5)'s same-angular-dependence assumption is 'problematic' is a robustness concern about the predicted budget, not a circularity. Citations to earlier work by the same group [19], [21], [31] supply method and context (on/off resonance readout, filter-cavity setup, loss-estimation formalism), but the load-bearing result does not reduce to those citations; the method is standard and is checked against external characterization data. No fitted parameter is renamed as a prediction, and no uniqueness theorem or ansatz is imported to force the choice. Overall circularity score 1 reflects only minor, non-load-bearing self-citations.

Assumptions & free parameters 1 free parameters · 5 assumptions · 0 invented entities

The central RTL measurement uses no fitted free parameters; losses are inferred from on/off reflected power with an independently calibrated transmissivity. The pre-installation comparison relies on several modeling assumptions, listed above, the most fragile being the ARS uniformity assumption and the PSD power-law extrapolation.

free parameters (1)
  • PSD power-law slope/intercept for middle-angle extrapolation = not stated numerically
    The 1D PSD in Sec. VI is fit by a straight line in log-log and extrapolated from fmax-map to fmin-CASI to estimate sigma_middle = 0.069 nm; the fitted slope is not quoted and drives the 1.4 ppm middle-angle loss estimate.
assumptions (5)
  • standard math Small-loss approximation in Eq. (1) relating on/off reflected power to round-trip losses
    Valid for T1 << 1 and L << 1; introduces a few-ppm-level truncation error that is smaller than the quoted 1.3 ppm systematic error.
  • domain assumption Micro-polished mirror surfaces are self-affine, so the 1D PSD can be extrapolated as a straight line into the missing middle-angle frequency band
    Sec. VI and Fig. 5; without this, the 1.4 ppm middle-angle estimate is not justified.
  • domain assumption Angle-resolved scattering has the same angular shape at every point on the coated mirror, so a single TIS(x0,y0) can be scaled by ARS(x,y)/ARS(x0,y0)
    Eq. (5); authors call the assumption problematic because defects and roughness scatter differently.
  • domain assumption Waviness map measured after polishing remains valid after coating (only ROC changes by 0.34%)
    Sec. VI; used for Oscar small-angle scattering simulation; coating defects at sub-mm scale are not captured by this map.
  • standard math TIS = (4*pi*sigma/lambda)^2 is valid under the Rayleigh smooth-surface criterion
    Footnote [39] verifies 4*pi*sigma*cos(theta_i)/lambda << 1, so the formula applies.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Optical losses as a function of beam position on the mirrors in a 285-m suspended Fabry-Perot cavity." pith.science (2026). https://pith.science/paper/B2UFAGGX

@misc{pith2026241202180,
  author       = {Pith},
  title        = {Pith review of: Optical losses as a function of beam position on the mirrors in a 285-m suspended Fabry-Perot cavity},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/B2UFAGGX}},
  note         = {Machine review of arXiv:2412.02180}
}
read the original abstract

Reducing optical losses is crucial for reducing quantum noise in gravitational-wave detectors. Losses are the main source of degradation of the squeezed vacuum. Frequency dependent squeezing obtained via a filter cavity is currently used to reduce quantum noise in the whole detector bandwidth. Such filter cavities are required to have high finesse in order to produce the optimal squeezing angle rotation and the presence of losses is particularly detrimental for the squeezed beam, as it does multiple round trip within the cavity. Characterising such losses is crucial to assess the quantum noise reduction achievable. In this paper we present an in-situ measurement of the optical losses, done for different positions of the beam on the mirrors of the Virgo filter cavity. We implemented an automatic system to map the losses with respect to the beam position on the mirrors finding that optical losses depend clearly on the beam hitting position on input mirror, varying from 42 ppm to 87 ppm, while they are much more uniform when we scan the end mirror (53 ppm to 61 ppm). We repeated the measurements on several days, finding a statistical error smaller than 4 ppm. The lowest measured losses are not much different with respect to those estimated from individual mirror characterisation performed before the installation (30.3 - 39.3 ppm). This means that no major loss mechanism has been neglected in the estimation presented here. The larger discrepancy found for some beam positions is likely to be due to contamination. In addition to a thorough characterisation of the losses, the methodology described in this paper allowed to find an optimal cavity axis position for which the cavity round trip losses are among the lowest ever measured. This work can contribute to achieve the very challenging losses goals for the optical cavities of the future gravitational-wave detectors.

Figures

Figures reproduced from arXiv: 2412.02180 by the authors.

Figure 1
Figure 1. FIG. 1. Experiment scheme. The beam scan consists of three steps. Firstly, the input beam direction is changed of the desired [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Round trip losses measurement for three points on the input mirror. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Measured round trip loss maps obtained changing the beam position on the input mirror (left plot) and on the end [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Analysis of small-angle and large-angle scattering. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 4
Figure 4. Figure 4: The large angle scattering map before convolution [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5. One dimension PSD from the mirror surface height [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. Direction convention when cavity alignment is [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7

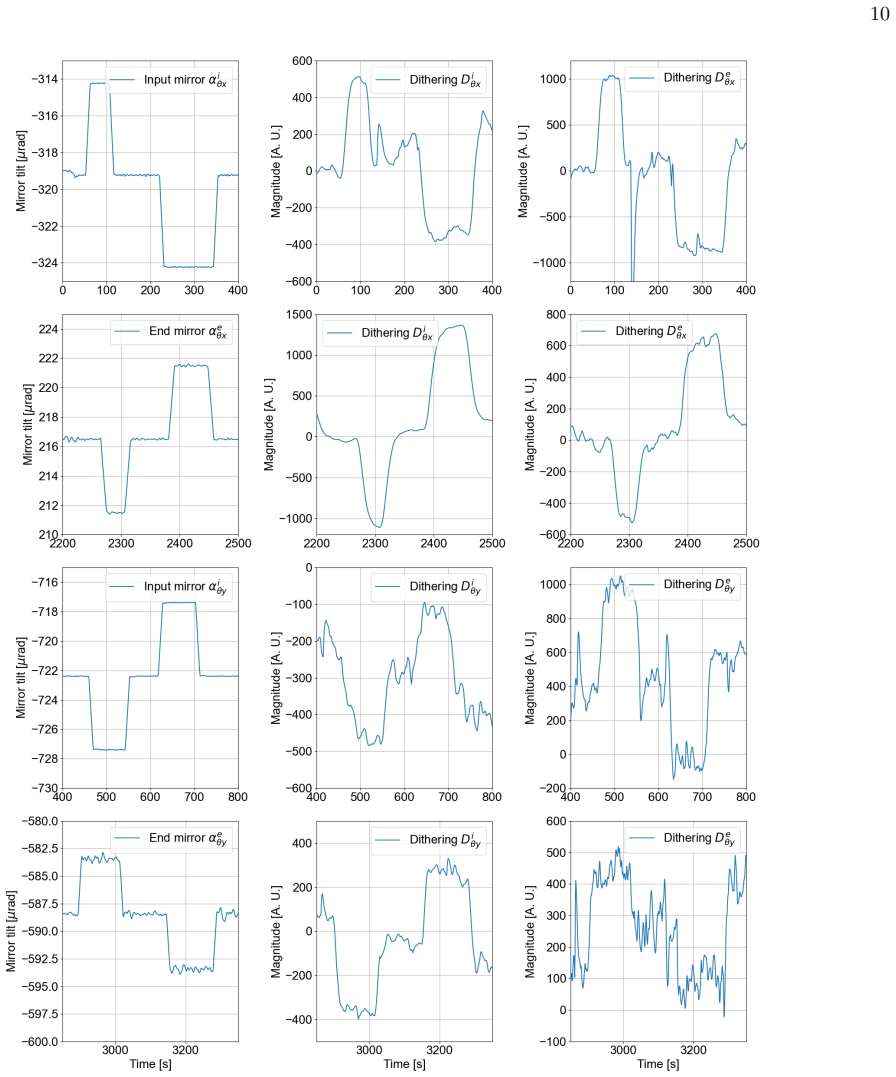

Figure 7. Figure 7: FIG. 7. Measurements of calibration matrix. Each row corresponds to a degree of freedom: the left subplot shows the mirror [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]

Discussion (0). Continue with ORCID to comment.
