LLaVA-SpaceSGG: Visual Instruct Tuning for Open-vocabulary Scene Graph Generation with Enhanced Spatial Relations

T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Depth-derived spatial instruction data raises open-vocabulary scene graph recall by 8.6% and mean recall by 28.4% over ASMv2.

desk verdict A useful new depth-informed SGG dataset, but the paper's signature spatial-reasoning claim leans on a small, partly circular validation set with unexplained ablation zeros; the PSG gain over ASMv2 is modest but external. read the letter →

arxiv 2412.06322 v1 pith:BUH2ZE5I submitted 2024-12-09 cs.CV

Mingjie Xu , Mengyang Wu , Yuzhi Zhao , Jason Chun Lok Li , Weifeng Ou This is my paper · ORCID
classification cs.CV
keywords scenegraphgenerationopen-vocabularyspatialrelationsmultimodallargelanguagemodelinstructiontuningdepthestimationlayeringPSGdataset
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to show that scene graph generation, extracting (subject, predicate, object) triplets from an image, can be made open-vocabulary and spatially aware at the same time by training a multimodal large language model on synthetic data that encodes 3D layout. The authors build the SpaceSGG instruction dataset: monocular depth estimates are turned into object depth ranges, objects are assigned to near-to-far layers, and an LLM rewrites this layout with scene graph triplets into three data formats, spatial descriptions, single-turn QA, and multi-turn conversations. Training LLaVA-SpaceSGG with this mixture, they report recall of 15.43 versus 14.2 and mean recall of 13.23 versus 10.3 against the ASMv2 baseline on the PSG validation set, plus 52.48% accuracy on a spatial-relation validation set they constructed. If correct, the paper shows that explicit depth-derived spatial supervision is what an open-vocabulary SGG model needs to produce relations such as 'in front of' without regression on the open-set task.

What carries the argument

The load-bearing object is the depth-layered scene graph description produced by the SpaceSGG pipeline. A monocular depth estimator (Depth Anything) gives per-pixel depth; camera calibration converts it into a point cloud; Algorithm 1 computes each object's z-range and coverage relations; Algorithm 2 sorts objects into layers by distance and builds sub-layers for covered objects; and an LLM rewrites this structured layout into natural-language layer-by-layer descriptions. Those descriptions, paired with spatially focused QA and chain-of-thought multi-turn conversations, become instruction-tuning targets in the second stage. The mechanism works because spatial predicates are expressed not as abstract labels but as textual layer orderings, letting the MLLM reuse its language priors about 'in front of', 'behind', and 'attached to' while grounding them in geometry.

What would settle it

Re-train the identical model with the same SpaceSGG data but evaluate on an independent human-annotated spatial relation benchmark built from images the pipeline never processed; if accuracy falls to the 25% random-choice level, the depth-derived training data did not teach transferable spatial understanding.

Watch

Extended reading notes

Core claim

The central claim is that the reason existing open-vocabulary SGG models miss spatial relations is not a lack of model capacity but a lack of spatial signal in their training text: their instruction data is mostly 2D captions and common predicates. LLaVA-SpaceSGG demonstrates the fix by injecting depth-derived layering into the instruction stream. The depth map from a monocular estimator is calibrated into a point cloud, per-object depth ranges determine which objects cover or lie behind which, and objects are sorted into layers from near to far; this layered scene layout is then narrated by an LLM as SpaceSGG-Desc, SpaceSGG-QA, and SpaceSGG-Conv. On the external PSG benchmark the resulting model improves recall by 8.6% and mean recall by 28.4% over ASMv2, and on the authors' spatial benchmark it reaches 52.48%, outperforming LLaVA-1.5-13B at 45.13% and ASMv2-13B at 50.52%.

Load-bearing premise

The load-bearing premise is that the automatically generated and manually corrected spatial labels used for both training and evaluation faithfully describe true 3D layout.

Editorial extensions

If this is right

  • Open-vocabulary SGG can be improved by changing the training text, not the label space: adding 40K spatial instruction samples raises PSG recall from 14.2 to 15.43.
  • Monocular depth is sufficient to teach a model front-back and occlusion relations for SGG, avoiding the need for 3D sensors at inference time.
  • The same two-stage training paradigm, stage-1 image-level alignment followed by stage-2 SGG instruction tuning, is the recipe that transfers MLLM priors to structured scene graphs.
  • Because the SpaceSGG dataset and code are released, other models can be re-tuned on this data and compared under identical PSG evaluation.
  • Spatial-only data formats each contribute: the paper's ablations show removing any one of Desc, QA, or Conv lowers either PSG recall or spatial accuracy.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Since the spatial benchmark shares its construction pipeline with the training data, the 52.48% figure should be read as an upper bound on genuine spatial transfer; an independent human-annotated test set would give the sharper number.
  • The same depth-layering-to-text pipeline could be used to synthesize spatial supervision for other structured outputs, such as referring expressions, layout-based VQA, or robot instruction data, with the same caveat that model and benchmark would share biases.
  • The reported gain from depth-derived layers likely depends on the choice of monocular depth estimator, and scenes with ambiguous depth such as mirrors, transparent objects, or textureless regions are where the approach would most visibly fail.
  • If the method generalizes, a practical outcome is that open-vocabulary scene graphs with reliable 'in front of' and 'behind' relations become cheap to produce from ordinary photographs, which would directly help image retrieval and captioning systems that consume scene graphs.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes LLaVA-SpaceSGG, a multimodal LLM for open-vocabulary scene graph generation with enhanced spatial relations. It introduces the SpaceSGG instruction-tuning dataset, built from public datasets plus a synthetic data pipeline that combines 2D object detection, monocular depth estimation (DepthAnything), camera calibration, point-cloud layering, and LLM-generated descriptions, QA, and conversations. The model is trained with a two-stage paradigm and evaluated on the PSG validation set and on a self-constructed spatial relation validation set. The main reported results are Recall 15.43 vs. ASMv2's 14.2 and mRecall 13.23 vs. 10.3 on PSG, and 52.48% accuracy on the spatial validation set.

Significance. If the PSG results are reproducible, the paper makes a useful contribution: it demonstrates that adding depth-derived spatial instruction data can improve open-vocabulary triplet recall and mean recall for an MLLM-based SGG method, and it releases code, data, and models. The PSG evaluation is externally benchmarked and not circular. The main weakness is that the distinctive spatial-relation claim rests entirely on a self-constructed validation set generated by the same pipeline as the training data, with no error bars, no stated image disjointness, and a very small performance margin. The paper's central PSG claim is credible, but the spatial-relation contribution needs stronger independent evidence before the broader claims can be accepted.

major comments (3)
  1. [§4.1, §3.1.4] The spatial relation validation set is built by randomly selecting 30 images from COCO-Val-2017 and generating QA with the same data generation pipeline (DepthAnything, camera calibration, LLM prompting) used for SpaceSGG training data. The manuscript does not state that the 30 validation images are disjoint from the SpaceSGG training images, nor does it quantify noise in the manual correction step. With only 271 questions, the reported 52.48% vs. 50.52% difference is approximately five questions, and no error bars or significance test are provided. Because this benchmark is the sole support for the spatial-relation contribution, the spatial claim is not yet independently established. Please evaluate on an external or independently human-annotated spatial benchmark, report confidence intervals or repeated runs, and state the image disjointness explicitly.
  2. [Table 3, ab-train-1] The ablation without the SpaceSGG dataset reports 1.47% accuracy on a four-choice spatial benchmark, which is far below the 25% random-choice baseline. This strongly suggests that the free-form answer evaluation or output parsing is not robust for that model configuration, or that the benchmark is not measuring spatial ability in a controlled way. Since the same evaluation protocol produces the headline 52.48% result, this discrepancy must be explained and the evaluation protocol must be fixed (for example, with constrained decoding or manual grading).
  3. [Table 6, ab-data-9 and ab-data-10] Rows ab-data-9 and ab-data-10 report Recall=0, mRecall=0, and Accuracy=0. These values are implausible as genuine model performance and are not discussed in the text. If these runs failed to converge or the evaluation failed, they cannot support the placebo-ablation conclusion; if the numbers are real, the cause must be explained with training details. As written, these rows undermine the supplementary ablation evidence.
minor comments (5)
  1. [Figure 4] The prompt text contains a typo: 'Qeustion' should be 'Question'. Please proofread the figure text.
  2. [Algorithm 2] The algorithm title says 'Devide objects into layers'; 'Devide' should be 'Divide'. The pseudo-code also uses the phrase 'covered by' without a precise definition in the algorithm; please clarify how coverage is determined from the depth ranges and bounding boxes.
  3. [Throughout] The model name is written inconsistently as 'LLaVA-SpaceSGG' and 'LLaV A-SpaceSGG', and the baseline is sometimes 'ASMv2' and sometimes 'AS-V2'. Please standardize the notation.
  4. [§4.3.3, Table 5] The text states that results 'vary minimally' across generative models, but Table 5 shows GPT-4o giving 53.725% spatial accuracy vs. 52.48% for Llama 3, and mRecall ranging from 9.53 to 13.23. Please either provide a statistical or practical significance argument or soften the claim.
  5. [Figures 10 and 11] Some QA examples appear malformed, such as 'Is the snow in larger than the skis?' and answers that repeat the same entity names without disambiguation. If these are representative samples from the released dataset, they suggest the synthetic data may contain template errors; please clean the examples or note known artifacts.

Circularity Check

1 steps flagged · score 4.0 of 10

PSG gains are externally benchmarked and non-circular, but the distinctive spatial-relation accuracy claim is evaluated on a validation set generated by the same pipeline that produced the SpaceSGG training data, making that claim partially circular.

  1. fitted input called prediction [Section 4.1 (Spatial Relation Validation Set), cross-referencing Section 3.1.4]
    "We randomly select 30 images from COCO-Val-2017 and generate two types of questions (QA and multi-turn conversations) using the data generation pipeline in Section 3.1.4. These are manually annotated as single-choice QA with factual corrections, resulting in 271 questions."

    Section 3.1.4 is the same procedure that creates the SpaceSGG-QA and SpaceSGG-Conv training samples: it starts from scene graph descriptions, triplets, and object depth distributions, and uses LLM queries to produce front-back, up-down, occlusion, and multi-object sorting questions. The 271 validation questions are therefore not an independent spatial ground truth; they are outputs of the same depth-estimation, camera-calibration, layering, and LLM-prompting pipeline on which the model was trained. The paper says the questions are 'manually annotated as single-choice QA with factual corrections,' but this operates on pipeline-generated content and does not establish that the labels are independent of the pipeline's biases.

full rationale

The headline PSG comparison is not circular: LLaVA-SpaceSGG is evaluated on the external PSG validation set against ASMv2 and TextPSG using standard triplet recall and mean recall, so the reported 8.6% recall and 28.4% mRecall gains rest on independent annotations. No load-bearing self-citation chain is present; the cited prior works are external. However, the paper's novel spatial-relation contribution is supported by a self-constructed validation set that is generated with the exact data-generation pipeline used to create the SpaceSGG training data. Because the benchmark answers derive from DepthAnything-based depth extraction, camera calibration, layer assignment, and Llama-3 question generation, and because only 'factual corrections' are applied to those generated questions, the spatial accuracy claim is partly circular and does not yet independently establish genuine spatial reasoning. Additional warning signs, such as the below-random 1.47% accuracy for one ablation row and the absence of significance testing on a 271-question benchmark, reinforce that the spatial benchmark is not yet trustworthy; those are correctness concerns rather than circularity per se. Overall, the central open-vocabulary SGG claim remains externally grounded, so the paper is only partially circular.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The paper introduces a dataset and a training recipe, not a new physical entity. The only 'postulated' things are the spatial layering rules (Algorithm 2) and the assumption that synthetic LLM-generated QA reflects true spatial layout. These are domain assumptions rather than free parameters; the trained network weights are fit to data, but no hand-fitted scalar constants are used in the method.

assumptions (4)
  • domain assumption PSG ground-truth scene graphs and the triplet matching protocol (IoU>0.5) are accepted as correct evaluation basis.
    Used in Section 4.1 metrics and Table 1; the central recall claim depends on these external labels.
  • domain assumption Depth-Anything monocular depth estimates are accurate enough to determine relative object depths and layer ordering.
    Section 3.1.2 uses DepthAnything to produce depth maps and z-ranges; if depth is noisy, the derived spatial relations and QA answers inherit errors.
  • domain assumption Camera calibration and 3D point cloud construction from a single RGB image preserve the true spatial layout of objects.
    Section 3.1.2 applies camera calibration to convert depth maps to point clouds; errors in intrinsics/scale propagate to the layering algorithms.
  • domain assumption LLM-generated descriptions, QA pairs, and conversations contain correct spatial facts about the image.
    Section 3.1.3 and 3.1.4 use Llama 3 70B to generate training and validation text; if the LLM hallucinates spatial relations, the model is trained on false targets.

how reviews work

0 comments
Cite this review

Pith. "Pith review of LLaVA-SpaceSGG: Visual Instruct Tuning for Open-vocabulary Scene Graph Generation with Enhanced Spatial Relations." pith.science (2026). https://pith.science/paper/BUH2ZE5I

@misc{pith2026241206322,
  author       = {Pith},
  title        = {Pith review of: LLaVA-SpaceSGG: Visual Instruct Tuning for Open-vocabulary Scene Graph Generation with Enhanced Spatial Relations},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BUH2ZE5I}},
  note         = {Machine review of arXiv:2412.06322}
}
read the original abstract

Scene Graph Generation (SGG) converts visual scenes into structured graph representations, providing deeper scene understanding for complex vision tasks. However, existing SGG models often overlook essential spatial relationships and struggle with generalization in open-vocabulary contexts. To address these limitations, we propose LLaVA-SpaceSGG, a multimodal large language model (MLLM) designed for open-vocabulary SGG with enhanced spatial relation modeling. To train it, we collect the SGG instruction-tuning dataset, named SpaceSGG. This dataset is constructed by combining publicly available datasets and synthesizing data using open-source models within our data construction pipeline. It combines object locations, object relations, and depth information, resulting in three data formats: spatial SGG description, question-answering, and conversation. To enhance the transfer of MLLMs' inherent capabilities to the SGG task, we introduce a two-stage training paradigm. Experiments show that LLaVA-SpaceSGG outperforms other open-vocabulary SGG methods, boosting recall by 8.6% and mean recall by 28.4% compared to the baseline. Our codebase, dataset, and trained models are publicly accessible on GitHub at the following URL: https://github.com/Endlinc/LLaVA-SpaceSGG.

Figures

Figures reproduced from arXiv: 2412.06322 by the authors.

Figure 1

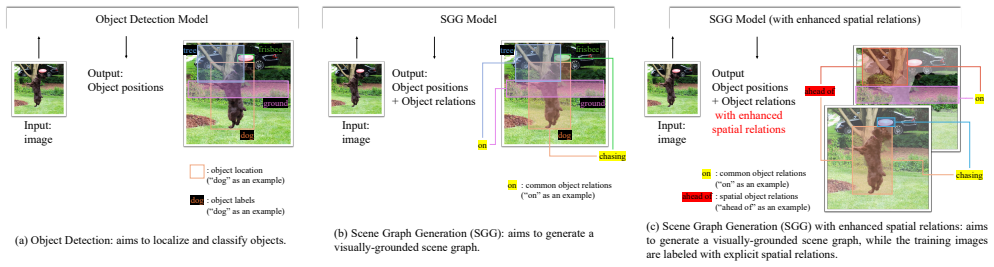

Figure 1. The illustration of different tasks: (a) Object Detection, (b) Scene Graph Generation (SGG), and (c) Scene Graph Generation [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

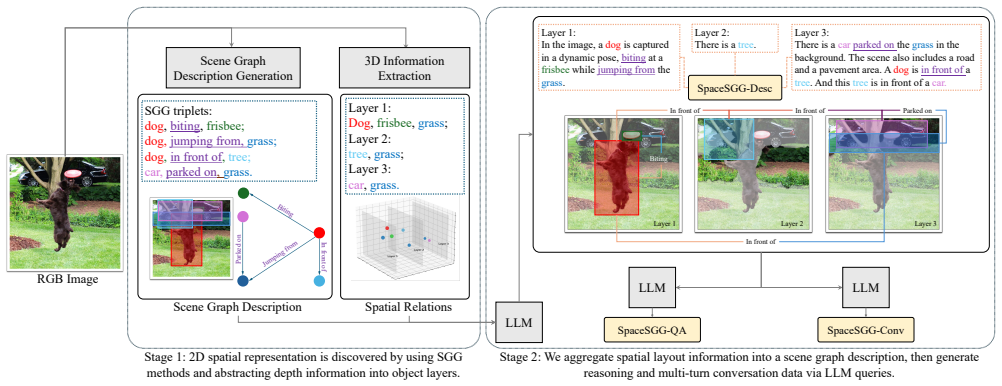

Figure 2. SpaceSGG dataset construction pipeline. We utilize both SGG description and spatial relationships, where we generate 3 types [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. 3D Information Extraction: We retrieve the spatial lay [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (9 more)
Figure 5
Figure 5. Figure 5: Our proposed training paradigm and used training [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 4
Figure 4. Figure 4: An example of SpaceSGG-Desc, SpaceSGG-QA, and [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 6
Figure 6. Figure 6: Qualitative result of open-vocabulary SGG, particularly from traditionally state-of-arts models. Note that the cyan-coloured [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: We conduct two types of ablation studies: training [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: We conduct placebo ablation studies by testing the same [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 9
Figure 9. Figure 9: Data Examples of SpaceSGG-Desc in SpaceSGG. [PITH_FULL_IMAGE:figures/full_fig_p013_9.png]
Figure 10

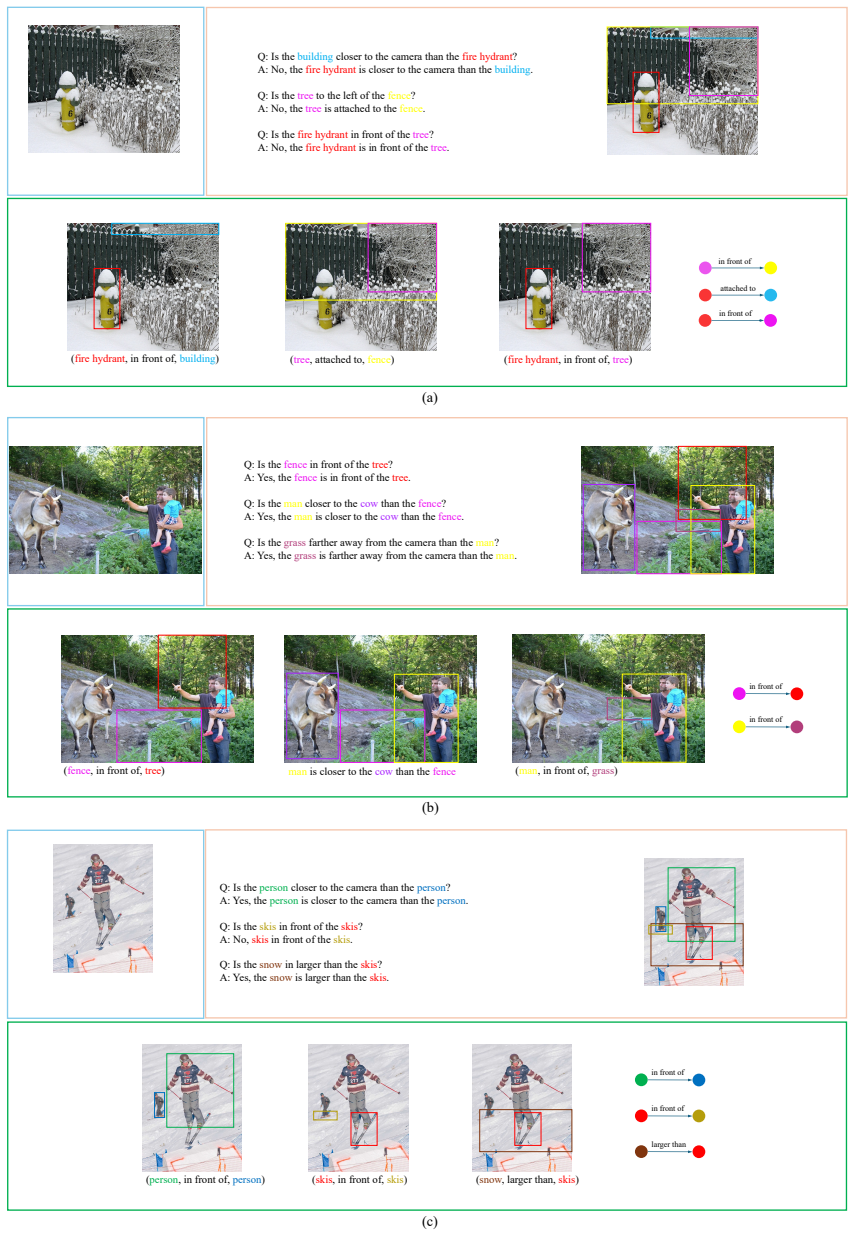

Figure 10. Figure 10: Data Examples of SpaceSGG-QA in SpaceSGG. [PITH_FULL_IMAGE:figures/full_fig_p014_10.png]
Figure 11
Figure 11. Figure 11: Data Examples of SpaceSGG-Conv in SpaceSGG. [PITH_FULL_IMAGE:figures/full_fig_p015_11.png]
Figure 12
Figure 12. Figure 12: Additional examples of LLaVA-SpaceSGG Open-Vocabulary SGG prediction compared with others on PSG validation set. [PITH_FULL_IMAGE:figures/full_fig_p016_12.png]

Discussion (0). Continue with ORCID to comment.
