A Massively Parallel Interior-Point Method for Arrowhead Linear Programs with Local Linking Structure

T0 review · 2 major / 1 minor · reviewed 2026-05-23 · grok-4.3

Challenge this review Download PDF Read on arXiv ↗

Pith's one-line read A hierarchical Schur complement decomposition distributes the solution of arrowhead linear programs across many processors in interior-point methods.

desk verdict The paper gives a hierarchical Schur complement decomposition that keeps arrowhead structure alive in IPM KKT systems for parallel solves on instances with over 10^9 nonzeros. read the letter →

arxiv 2412.07731 v2 submitted 2024-12-10 math.OC

Nils-Christian Kempke , Daniel Rehfeldt , Thorsten Koch This is my paper · ORCID
classification math.OC
keywords interior-pointmethodsparallelalgorithmsarrowheadstructureSchurcomplementlinearprogrammingdistributedfactorizationunitcommitment
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper introduces a decomposition technique for the linear systems that arise inside interior-point methods when the constraint matrix has a doubly-bordered block-diagonal or arrowhead structure. The structure is preserved in the KKT systems at every iteration, so the same hierarchical Schur complement approach can be applied repeatedly. The technique factors the local blocks independently and couples them only through the border, which lets the work be divided across many processors. The authors demonstrate the approach on unit-commitment instances whose constraint matrices contain more than 10^9 nonzeros. If the method works as described, interior-point solvers can exploit modern many-core hardware without altering the core algorithm.

What carries the argument

The hierarchical Schur complement decomposition that decouples the factorization of the arrowhead KKT systems by exploiting locality of the border constraints.

What would settle it

Running the method on an instance whose KKT matrices lose the arrowhead structure after the first iteration, or measuring that runtime does not improve when more processors are added, would show the claim does not hold.

Watch

Extended reading notes

Core claim

The paper claims that a hierarchical Schur complement decomposition, built on the locality of the border constraints, distributes and solves the KKT systems that appear in each iteration of an interior-point method for arrowhead linear programs, and that this decomposition scales with the number of available processors.

Load-bearing premise

The arrowhead structure is preserved in the KKT systems at every interior-point iteration and the locality of the border constraints can be used to separate the factorization work.

Editorial extensions

If this is right

  • Large linear programs with arrowhead structure become solvable on distributed-memory machines without changing the interior-point iteration itself.
  • The same decomposition applies at every iteration because the structure is inherited by the KKT matrices.
  • Instances with more than 10^9 nonzeros in the constraint matrix can be handled on current high-performance platforms.
  • The approach is directly motivated by and tested on unit-commitment problems.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same locality argument might be applied to other block-bordered structures that appear in stochastic or multistage optimization.
  • If the decomposition cost stays low, the method could be embedded inside existing parallel interior-point codes with only modest changes to the linear-algebra layer.
  • Performance on problems whose arrowhead blocks are themselves sparse could be further improved by combining the Schur step with sparse direct solvers inside each block.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a hierarchical Schur complement decomposition for an interior-point method applied to linear programs with doubly-bordered block-diagonal (arrowhead) structure. It asserts that this structure is preserved in the KKT systems at every IPM iteration, enabling a distributed factorization that exploits locality of the border constraints; the approach is implemented in PIPS-IPM++ and is motivated by unit-commitment problems, with reported scaling on instances containing more than 10^9 nonzeros.

Significance. If the structural-preservation claim holds and the reported scaling is reproducible, the work would provide a practical route to solving previously intractable structured LPs on massively parallel architectures, with direct relevance to large-scale energy-system optimization.

major comments (2)
  1. [Section on KKT-system structure and preservation] The central claim that the arrowhead structure is inherited by the KKT matrix at every IPM iteration is load-bearing, yet the explicit block form of the augmented system (or normal equations) after multiplication by the IPM diagonal scaling matrix D is not derived; without this derivation it is impossible to confirm that border-block updates do not introduce fill-in that breaks the hierarchical Schur complement.
  2. [Numerical results and demonstration] The performance section reports scaling on instances with >10^9 nonzeros but supplies neither timing tables, speedup curves, residual norms, nor implementation details (e.g., communication volume or load-balance metrics); these data are required to substantiate the claim that the method “scales well with the availability of additional computing resources.”
minor comments (1)
  1. [Introduction / notation] The notation distinguishing the local blocks from the linking border rows could be introduced with a small illustrative matrix example early in the paper.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the recommendation for major revision. We address each point below and will revise the manuscript to incorporate the requested clarifications and data.

read point-by-point responses

  1. Referee: [Section on KKT-system structure and preservation] The central claim that the arrowhead structure is inherited by the KKT matrix at every IPM iteration is load-bearing, yet the explicit block form of the augmented system (or normal equations) after multiplication by the IPM diagonal scaling matrix D is not derived; without this derivation it is impossible to confirm that border-block updates do not introduce fill-in that breaks the hierarchical Schur complement.

    Authors: We agree that an explicit derivation of the scaled KKT system is essential to substantiate the structural-preservation claim. In the revised manuscript we will insert a dedicated derivation (in the section on KKT-system structure) that writes out the block form of the augmented system after multiplication by the IPM diagonal D and shows that the arrowhead pattern is exactly preserved, with no fill-in introduced in the border blocks that would invalidate the hierarchical Schur complement. revision: yes

  2. Referee: [Numerical results and demonstration] The performance section reports scaling on instances with >10^9 nonzeros but supplies neither timing tables, speedup curves, residual norms, nor implementation details (e.g., communication volume or load-balance metrics); these data are required to substantiate the claim that the method “scales well with the availability of additional computing resources.”

    Authors: We acknowledge that the current performance section is insufficiently detailed. The revised version will add timing tables, speedup curves, residual norms, and implementation metrics (communication volume and load-balance statistics) for the reported instances, thereby providing quantitative support for the scalability claim. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: algorithmic structure preservation is an independent claim

full rationale

The paper introduces a hierarchical Schur complement decomposition for arrowhead-structured LPs inside an IPM solver. The central assertion that the doubly-bordered block-diagonal form is preserved under the IPM diagonal scaling is a structural property of the matrix class and the iteration, not a self-definition or a fitted quantity renamed as a prediction. No equations reduce to their inputs by construction, no parameters are fitted to subsets and then 'predicted,' and no load-bearing uniqueness theorems or ansatzes are imported via self-citation. The method is motivated by unit-commitment instances and evaluated on concrete large-scale problems, rendering the contribution externally falsifiable rather than tautological.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

Review performed from abstract only; no free parameters, axioms, or invented entities are identifiable.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Massively Parallel Interior-Point Method for Arrowhead Linear Programs with Local Linking Structure." pith.science (2026). https://pith.science/paper/2412.07731

@misc{pith2026241207731,
  author       = {Pith},
  title        = {Pith review of: A Massively Parallel Interior-Point Method for Arrowhead Linear Programs with Local Linking Structure},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2412.07731}},
  note         = {Machine review of arXiv:2412.07731}
}

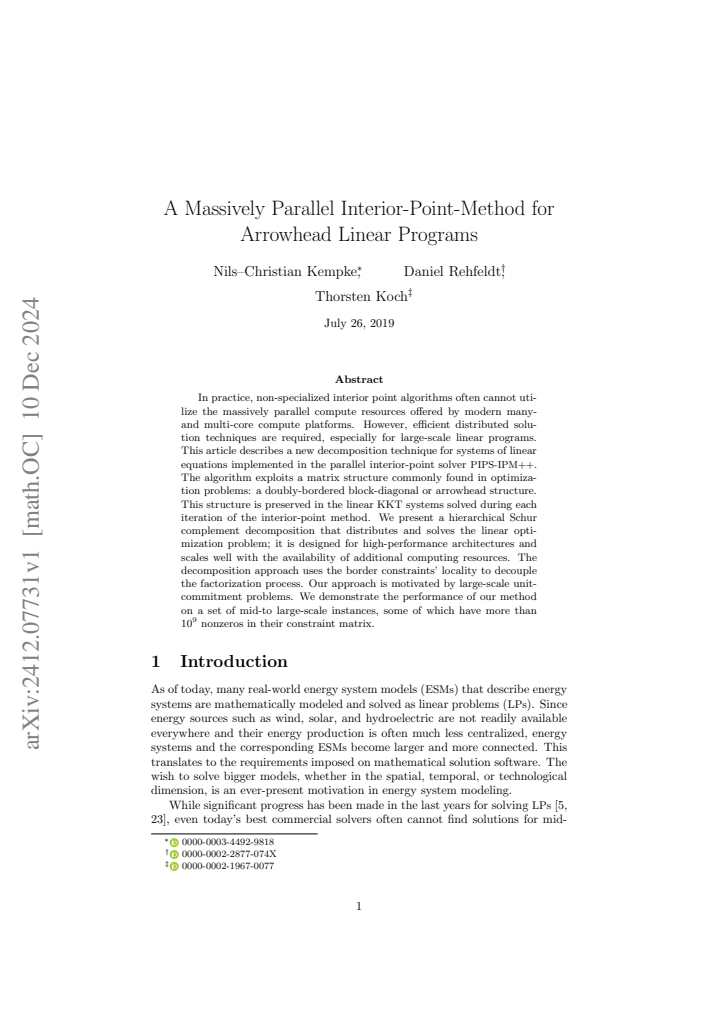

read the original abstract

In practice, non-specialized interior point algorithms often cannot utilize the massively parallel compute resources offered by modern many- and multi-core compute platforms. However, efficient distributed solution techniques are required, especially for large-scale linear programs. This article describes a new decomposition technique for systems of linear equations implemented in the parallel interior-point solver PIPS-IPM++. The algorithm exploits a matrix structure commonly found in optimization problems: a doubly-bordered block-diagonal or arrowhead structure. This structure is preserved in the linear KKT systems solved during each iteration of the interior-point method. We present a hierarchical Schur complement decomposition that distributes and solves the linear optimization problem; it is designed for high-performance architectures and scales well with the availability of additional computing resources. The decomposition approach uses the border constraints' locality to decouple the factorization process. Our approach is motivated by large-scale unit commitment problems. We demonstrate the performance of our method on a set of mid-to large-scale instances, some of which have more than 10^9 nonzeros in their constraint matrix.

Figures

Figures reproduced from arXiv: 2412.07731 by the authors.

Figure 1
Figure 1. Constraint matrix with doubly-bordered block diagonal structure of [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Permuting the inner linear system. eq. (23) with expanded linking constraints:                     Σ1 BT 1 F T 1 0 B1 0 0 0 Σ2 BT 2 F T ′ 1 F T 2 B2 0 0 0 . . . . . . ΣN BT N F T ′ N−1 BN 0 0 F1 0 F ′ 1 0 0 0 0 F2 0 . . . F ′ N−1 0                                   ∆x1 ∆y1 . . . ∆xN ∆yN ∆y0,1 . . . ∆y0,N−1               =              … view at source ↗
Figure 3
Figure 3. Scaling behavior of all solvers on MISO DISP 488. the latest incomplete LU factorization approach applied in [40, 42] and origi￾nally used within PIPS-IPM++. Generally, we observed that the factorization routine of MA57 was much slower than the one in PARDISO, especially as the linear systems grow in size. Additionally, we lose PARDISO’s significant speed￾up when computing the bottommost Schur complement contributio… view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: Comparison of the original PIPS-IPM++ and the hierarchical approach for different block sizes and constant amount of linking constraints. of local linking constraints), as compared to O(n) for the original approach. At the same time, the hierarchical approach is worse …

Discussion (0). Continue with ORCID to comment.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score. Full citation record

  1. Computational acceleration strategies for large-scale energy system optimization: a comparative study of GPU-accelerated and distributed-memory solvers

    math.OC 2026-05 unverdicted novelty 6.0 of 10

    On 46 large energy-system LPs, GPU first-order methods offer the largest speedups on the hardest instances at medium accuracy, distributed IPMs win on block-angular models, and shared-memory IPMs remain the accuracy baseline.

Reference graph

Works this paper leans on

46 extracted references · 46 canonical work pages · cited by 1 Pith paper

  1. [1]

    A recursive algebraic coloring technique for hardware- efficient symmetric sparse matrix-vector multiplication

    Alappat et al. A recursive algebraic coloring technique for hardware- efficient symmetric sparse matrix-vector multiplication. ACM Trans. Par- allel Comput. , 7(3), June 2020

    work page 2020

  2. [2]

    A fully asynchronous multifrontal solver using distributed dynamic scheduling

    Amestoy et al. A fully asynchronous multifrontal solver using distributed dynamic scheduling. SIAM J. Matrix Anal. Appl. , 23(1):15–41, 2001

    work page 2001

  3. [3]

    Performance and Scalability of the Block Low-Rank Mul- tifrontal Factorization on Multicore Architectures

    Amestoy et al. Performance and Scalability of the Block Low-Rank Mul- tifrontal Factorization on Multicore Architectures. ACM Trans. Math. Softw., 45:2:1–2:26, 2019

    work page 2019

  4. [4]

    Andersen

    Knud D. Andersen. A modified schur-complement method for handling dense columns in interior-point methods for linear programming. ACM Trans. Math. Softw., 22(3):348–356, sep 1996

    work page 1996

  5. [5]

    Robert E. Bixby. Solving real-world linear programs: A decade and more of progress. Oper. Res., 50(1):3–15, 2002

    work page 2002

  6. [6]

    Large-scale sparse inverse covariance matrix estimation

    Bollh¨ ofer et al. Large-scale sparse inverse covariance matrix estimation. SIAM J. Sci. Comput. , 41(1):A380–A401, 2019

    work page 2019

  7. [7]

    Springer International Publishing, Cham, 2020

    Bollh¨ ofer et al.State-of-the-Art Sparse Direct Solvers, pages 3–33. Springer International Publishing, Cham, 2020

    work page 2020

  8. [8]

    Ferreira, and Alexander Martin

    Ralf Bornd¨ orfer, Carlos E. Ferreira, and Alexander Martin. Decomposing matrices into blocks. SIAM J. Optim. , 9(1):236–269, 1998

    work page 1998

Show all 46 references
  1. [9]

    K. Cao, J. Metzdorf, and S. Birbalta. Incorporating Power Transmis- sion Bottlenecks into Aggregated Energy System Models. Sustainability, 10(6):1–32, 2018

    2018

  2. [10]

    A specialized interior-point algorithm for multicommodity network flows

    Jordi Castro. A specialized interior-point algorithm for multicommodity network flows. SIAM J. Optim. , 10(3):852–877, 2000

    2000

  3. [11]

    Interior-point solver for convex separable block-angular prob- lems

    Jordi Castro. Interior-point solver for convex separable block-angular prob- lems. Optim. Methods Softw. , 31(1):88–109, 2016

    2016

  4. [12]

    Chv´ atal

    V. Chv´ atal. Linear Programming. Series of books in the mathematical sciences. W. H. Freeman, 1983. 21

    1983

  5. [13]

    The mpi message pass- ing interface standard

    Lyndon Clarke, Ian Glendinning, and Rolf Hempel. The mpi message pass- ing interface standard. In Programming Environments for Massively Par- allel Distributed Systems , pages 213–218, 1994

    1994

  6. [14]

    Further development of multiple centrality correctors for interior point methods

    Marco Colombo and Jacek Gondzio. Further development of multiple centrality correctors for interior point methods. Comput. Optim. Appl. , 41(3):277–305, Dec 2008

    2008

  7. [15]

    Openmp: an industry standard api for shared-memory programming

    Leonardo Dagum and Ramesh Menon. Openmp: an industry standard api for shared-memory programming. IEEE Comput. Sci. Eng. , 5(1):46–55, 1998

    1998

  8. [16]

    Iain S. Duff. Ma57—a code for the solution of sparse symmetric definite and indefinite systems. ACM Trans. Math. Softw., 30(2):118–144, jun 2004

    2004

  9. [17]

    Duff and John Ker Reid

    Iain S. Duff and John Ker Reid. Ma27 – a set of fortran subroutines for solving sparse symmetric sets of linear equations, 1982

    1982

  10. [18]

    On implementing mehrotra’s predictor–corrector interior-point method for linear programming

    Lustig et al. On implementing mehrotra’s predictor–corrector interior-point method for linear programming. SIAM J. Optim. , 2(3):435–449, 1992

    1992

  11. [19]

    Cardinal optimizer user guide, 2023

    Ge et al. Cardinal optimizer user guide, 2023

    2023

  12. [20]

    Remix: A gams-based framework for optimizing energy system models

    Hans Christian Gils et al. Remix: A gams-based framework for optimizing energy system models. JOSS preprint, 2023

    2023

  13. [21]

    Integrated modelling of variable renewable energy-based power supply in europe

    Gils et al. Integrated modelling of variable renewable energy-based power supply in europe. Energy, 123:173–188, 2017

    2017

  14. [22]

    First experiments with structure-aware presolving for a par- allel interior-point method

    Gleixner et al. First experiments with structure-aware presolving for a par- allel interior-point method. In Oper. Res. Proc., pages 105–111. Springer, 2020

    2020

  15. [23]

    Interior point methods 25 years later

    Jacek Gondzio. Interior point methods 25 years later. EJOR Eur. J. Oper. Res., 218(3):587–601, 2012

    2012

  16. [24]

    Parallel interior-point solver for structured quadratic programs: Application to financial planning prob- lems

    Jacek Gondzio and Andreas Grothey. Parallel interior-point solver for structured quadratic programs: Application to financial planning prob- lems. Ann. Oper. Res., 152:319–339, 07 2007

    2007

  17. [25]

    Exploiting structure in parallel im- plementation of interior point methods for optimization

    Jacek Gondzio and Andreas Grothey. Exploiting structure in parallel im- plementation of interior point methods for optimization. Comput Manag Sci 6, page 135–160, 2009

    2009

  18. [26]

    Grigoriadis and Leonid G

    Michael D. Grigoriadis and Leonid G. Khachiyan. An interior point method for bordered block-diagonal linear programs. SIAM J. Optim. , 6(4):913– 932, 1996

    1996

  19. [27]

    Wsmp: Watson sparse matrix package

    Anshul Gupta. Wsmp: Watson sparse matrix package. part i - direct solu- tion of symmetric sparse systems version 1.0.0, 2000

    2000

  20. [28]

    Gurobi Optimizer, 2023

    Gurobi Optimization, LLC. Gurobi Optimizer, 2023

    2023

  21. [29]

    Hogg and Jennifer A

    J. Hogg and Jennifer A. Scott. An indefinite sparse direct solver for large problems on multicore machines. Rutherford Appleton Laboratory Technical Reports, 2010. 22

    2010

  22. [30]

    Cplex 22.1.2, 2024

    IBM ILOG. Cplex 22.1.2, 2024

    2024

  23. [31]

    Intel math kernel library, 2024

    Intel Corporation. Intel math kernel library, 2024

    2024

  24. [32]

    JUWELS: Modular Tier-0/1 Supercom- puter at the J¨ ulich Supercomputing Centre.Journal of large-scale research facilities, 5(A135), 2019

    J¨ ulich Supercomputing Centre. JUWELS: Modular Tier-0/1 Supercom- puter at the J¨ ulich Supercomputing Centre.Journal of large-scale research facilities, 5(A135), 2019

    2019

  25. [33]

    An asynchronous bundle-trust-region method for dual de- composition of stochastic mixed-integer programming

    Kim et al. An asynchronous bundle-trust-region method for dual de- composition of stochastic mixed-integer programming. SIAM J. Optim. , 29(1):318–342, 2019

    2019

  26. [34]

    Lubin, C

    M. Lubin, C. G. Petra, Mihai Anitescu, and V. M. Zavala. Scalable stochas- tic optimization of complex energy systems. In 11 ACM/IEEE Supercom- puting Conference, 2011

    2011

  27. [35]

    On parallelizing dual decomposition in stochastic integer pro- gramming

    Lubin et al. On parallelizing dual decomposition in stochastic integer pro- gramming. Oper. Res. Lett., 41(3):252–258, 2013

    2013

  28. [36]

    The role of the augmented system in interior point methods

    Istv´ an Maros and Csaba M´ esz´ aros. The role of the augmented system in interior point methods. EJOR Eur. J. Oper. Res. , 107(3):720–736, 1998

    1998

  29. [37]

    On the implementation of a primal-dual interior point method

    Sanjay Mehrotra. On the implementation of a primal-dual interior point method. SIAM J. Optim. , 2(4):575–601, 1992

    1992

  30. [38]

    Detecting “dense” columns in interior point methods for linear programs

    Csaba M´ esz´ aros. Detecting “dense” columns in interior point methods for linear programs. Comput. Optim. Appl. , 36(2–3):309–320, apr 2007

    2007

  31. [39]

    Numerical optimization

    Jorge Nocedal and Stephen Wright. Numerical optimization . Springer Science & Business Media, 2006

    2006

  32. [40]

    Petra, Olaf Schenk, and Mihai Anitescu

    Cosmin G. Petra, Olaf Schenk, and Mihai Anitescu. Real-time stochastic optimization of complex energy systems on high-performance computers. IEEE Comput. Sci. Eng. , 16(5):32–42, 2014

    2014

  33. [41]

    Potra and Stephen J

    Florian A. Potra and Stephen J. Wright. Interior-point methods. J. Com- put. Appl. Math. , 124(1):281–302, 2000

    2000

  34. [42]

    A massively parallel interior-point solver for LPs with gen- eralized arrowhead structure, and applications to energy system models

    Rehfeldt et al. A massively parallel interior-point solver for LPs with gen- eralized arrowhead structure, and applications to energy system models. EJOR Eur. J. Oper. Res. , 296(1):60–71, 2022

    2022

  35. [43]

    Speeding up energy system models - a best practice guide

    Scholz et al. Speeding up energy system models - a best practice guide. Technical report, BEAM-ME project, 06 2020

    2020

  36. [44]

    Springer Science & Business Media, 2013

    Tam´ as Terlaky.Interior point methods of mathematical programming , vol- ume 5. Springer Science & Business Media, 2013

    2013

  37. [45]

    Stability of augmented system factorizations in interior- point methods

    Stephen Wright. Stability of augmented system factorizations in interior- point methods. SIAM J. Matrix Anal. Appl. , 18(1):191–222, 1997

    1997

  38. [46]

    Stephen J. Wright. Primal-dual interior-point methods. SIAM, 1997. 23

    1997
