Orbits by the up-down action of braid diagrams
T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash
Pith's one-line read The paper proves that the up-down action of classical braid diagrams on $\mathbb{Z}^n$ is orbit-classified by the coordinate sum and the parity-type count $I$, while virtual braid diagrams are classified by the sum alone.
desk verdict Complete orbit classification for the up-down action on Z^n, with a clean invariant argument and a constructive proof that leans on unverified figure-based computations; referee should demand those be justified. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The working object is the up-down coloring rule, which makes each braid diagram act on $\mathbb{Z}^n$: a strand passing over a crossing gains 1, a strand passing under loses 1, and a virtual crossing leaves values unchanged, so the bottom tuple is obtained from the top tuple by these coordinate shifts together with the diagram's permutation. The invariants carrying the orbit classification are the coordinate sum $\operatorname{tr}$, preserved because each classical crossing changes two coordinates by $+1$ and $-1$, and the parity-type count $I$, preserved because the two exchanged coordinates swap and shift by $\pm 1$ without changing whether an index and its value have the same or opposite parity. The constructive engine is the family of irreducible pure braid diagrams $\alpha,\beta_1,\beta_2$ of degree 3 in Figure 9: Theorem 3.7 asserts that inserting these blocks into degree $n$ via trivial strands produces exactly the even coordinate changes $(0,\ldots,2a,0,-2a,\ldots)$, and additivity for pure braids (Corollary 2.16) then assembles any trace-zero even difference vector. A second device, the OU matrix, records over/under counts between strands and gives row-sum-minus-column-sum formulas for the action, used to characterize the isotropy submonoid of the zero tuple and up-down colorability of closures.
What would settle it

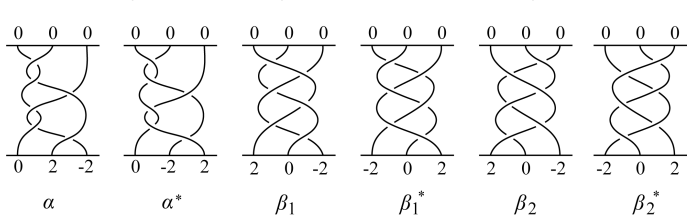

Draw the degree-3 block $\beta_1$ from Figure 9, start the up-down coloring at $(0,0,0)$, and check whether the bottom tuple is $(2,0,-2)$ as asserted in the proof of Theorem 3.7 for $a=1$; if the nonzero entries do not appear in exactly those positions with those signs, the explicit construction realizing even trace-zero tuples fails. A broader check is to compute $I$-values and sums for all tuples reached from $(0,0,0)$ by all classical braid diagrams of degree 3 with up to a fixed small number of crossings and verify that every tuple with the claimed invariants appears.
Extended reading notes
Core claim
The discovery is an exact orbit formula for the up-down action. Writing $\operatorname{tr}(\vec{x})$ for the sum of the coordinates and $I(\vec{x})$ for the number of coordinates $x_i$ for which the index $i$ and the value $x_i$ have opposite parity, the paper proves (Theorem 1.1) that for $n\ge 3$, $\vec{x}\cdot BD_n = \{\vec{y}\in\mathbb{Z}^n \mid \operatorname{tr}(\vec{x})=\operatorname{tr}(\vec{y}),\ I(\vec{x})=I(\vec{y})\}$, and that this same set is already $\vec{x}\cdot IBD_n$, so every reachable tuple is reachable by a diagram with no non-alternating bigon. The virtual-braid analogue (Theorem 1.2) is $\vec{x}\cdot VBD_n = \{\vec{y}\in\mathbb{Z}^n \mid \operatorname{tr}(\vec{x})=\operatorname{tr}(\vec{y})\}$, also with irreducibility. The proof is constructive: Theorem 3.7 builds an irreducible pure braid diagram realizing any prescribed even trace-zero tuple from the zero tuple, using small degree-3 building blocks inserted into higher degree by trivial strands, and Lemmas 3.13 and 3.14 extend this to arbitrary tuples by first applying a permutation braid that matches parity types and then a pure braid that corrects the difference. Section 5 adds an OU-matrix description of the action: a braid fixes zero exactly when each row sum of its over/under matrix equals the corresponding column sum, which yields a sufficient condition for the braid's closure to admit an up-down coloring.
Load-bearing premise
The construction proving that every tuple with the right invariants is reachable assumes that the stated up-down outputs of the degree-3 blocks in Figure 9 are correct as drawn—the text says 'we have' for $(0,\ldots,2a,0,-2a,\ldots)$ and relies on the figure—so a wrong block computation would break the reachability half of Theorem 3.7 and hence of the orbit theorem.
Editorial extensions
If this is right
- Orbit membership is decidable by two integers for classical braid diagrams of degree $n\ge 3$: a target tuple lies in $\vec{x}\cdot BD_n$ exactly when its sum and $I$-value match those of $\vec{x}$.
- Irreducibility costs nothing for $n\ge 3$: the full orbit $\vec{x}\cdot BD_n$ coincides with $\vec{x}\cdot IBD_n$, so no reachable tuple ever requires a cancelling bigon to be realized.
- For virtual braid diagrams of degree $n\ge 3$, the orbit of $\vec{x}$ is exactly the set of all tuples with the same coordinate sum, and irreducible virtual diagrams already realize it.
- A virtual braid diagram fixes every constant tuple precisely when its OU matrix has matching row and column sums; therefore the closure of such a braid always admits an up-down coloring.
- The degree-2 classical case is the sole exception: the orbit under reducible diagrams is all trace-zero pairs, while the irreducible orbit has exactly three elements, so the irreducibility statement in Theorem 1.1 genuinely requires $n\ge 3$.
Reading between the lines
- Because the classification is so coarse, reachability under the up-down action reduces to comparing two integer invariants; one concrete testable consequence is that for fixed $n$ and fixed invariants, any two tuples in the same orbit can be connected by a diagram whose crossing count is bounded by an explicit function of the tuple sizes, since the paper's construction is explicit—the paper does n
- The same method might classify orbits for twisted virtual braid diagrams, the problem the authors name as future work; the virtual result suggests the twisted classification will again be coarser than the classical one, but the parity-type count $I$ may need to be replaced by a twisted analogue because twisting changes how strands meet at crossings.
- The OU-matrix criterion gives a cheap linear-algebra test for up-down colorability of closures: balance the over/under matrix and the closure is colorable without drawing the diagram or solving the coloring equations.
- An implicit consequence of the irreducibility result is that any nontrivial up-down orbit step can be realized without introducing temporary cancellations, which may make the up-down action well suited to studying minimal-crossing representatives of orbit classes; this is not explored in the paper.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper studies the up-down action of the monoid of classical and virtual braid diagrams on Z^n. It claims Theorem 1.1: for n ≥ 3, the classical orbit of a tuple x is exactly the set of tuples y with the same coordinate sum tr(x)=tr(y) and the same parity-type count I(x)=I(y), and that the same orbit is already obtained using only irreducible classical braid diagrams. Theorem 1.2 gives the virtual analogue: orbits are precisely the level sets of the trace, again with an irreducible realization. The paper also reformulates the action via the OU matrix, characterizes the isotropy submonoid of the zero tuple, gives a sufficient condition for a closure to admit an up-down coloring, and computes the action for torus and weaving braids.
Significance. The invariants used (tr and I) are simple and natural, and the claimed classification is complete and clean. If fully justified, the results give a satisfying description of the up-down action and a useful irreducibility strengthening. The constructive formulas in Theorem 3.7 and Lemma 4.3 are explicit and falsifiable, and the OU-matrix perspective in Section 5 is a valuable addition. The invariant half of the argument is elegant: Proposition 3.10 and Lemma 3.13 correctly show that the parity-type count is preserved and that the trace and type count are sufficient once the zero-orbit construction is available. However, the current manuscript leaves some load-bearing computations to the figures, so the result is not yet fully demonstrated.
major comments (3)
- [§3.2, proof of Theorem 3.7] The line 'We have 0·ι_h(...)(β_i^a) = (0,...,2a,0,-2a,0,...)' and the analogous statement for α are asserted without derivation from Definition 2.5. These local action values are the sole numerical inputs to the componentwise verification that the constructed diagram b realizes (2a_1,...,2a_n); if any of them were incorrect, the sufficiency half of Theorem 1.1 would fail. Please provide explicit computations for α, β1, β2 and their inverses (e.g., a table of the bottom tuple obtained from 0, or the edge colorings) rather than relying on Figure 9. Lemma 3.6's construction β = β_1^a α^b depends on the same unstated local data.
- [§3.4, Lemma 3.14] The irreducibility argument in Steps 2 and 3 is informal: the statements 'there is only one possibility' for a non-alternating bigon between γ and w (resp. between w and b) and 'at least one of γwb and γww*b has no non-alternating bigons' are asserted without a case analysis. Since the equality x·IBD_n = x·BD_n is one of the paper's main theorems, this step needs a rigorous justification that identifies the exact strands and crossings that could form a bigon in each concatenation and proves that the insertion of w or w* removes it without creating a new one.
- [Theorem 3.7, odd n case] The proof verifies only the even case n = 2k in detail and then says 'Similarly, it holds for the case that n is odd.' The odd case uses a different alternating pattern of β1 and β2 factors, so the component-by-component verification should be spelled out or at least clearly indicated, showing which factors contribute to each component of the resulting tuple.
minor comments (5)
- [§4, Lemma 4.3] The range 'h ∈ {1,2,...,n−2}' should be 'h ∈ {0,1,...,n−2}', since the first factor in the displayed product uses h = 0.
- [§5, Corollary 5.7] In the statement, 'M_{kj}(b_s)' should be 'M_{kj}(b)'.
- [§6, Corollary 6.2(iv)] The clause 'y_k = −1, if k ≡ 1 (mod 2), otherwise y_k = −1' is redundant; both cases give −1. Please check whether one of the cases should be +1.
- [Example 3.15] The notation Sx and Sy is used without definition; presumably it denotes the tuple of parity types, but please define it or replace it with I(x) and I(y).
- [Theorems 1.1 and 1.2] Both theorems state n ≥ 3, but the virtual result is also proved for n = 2 in Lemma 4.1 and Remark 4.5; please clarify the precise range in the theorem statements.
Circularity Check
No significant circularity: the orbit classifications are derived from the definition of the up-down action by direct, explicit construction, and the self-citations are only to background definitions.
full rationale
The main theorems are not assumed or fitted. Theorem 1.1 is proven in two independent halves: the necessary conditions use Lemma 2.14 (trace preservation) and Proposition 3.10 (I-invariance), both proved from Definition 2.5; the sufficient condition is constructive, using an explicit permutation braid gamma and an explicit irreducible pure braid b produced by Theorem 3.7. Theorem 3.7 itself constructs b from the local building blocks alpha, beta_1, beta_2 in Figure 9 and checks the output componentwise. This is not circular: the component values are claimed directly from the coloring rule, not from the theorem being proved. Lemma 3.14's irreducibility argument adds weaving braids that fix the output, again by explicit computation. The virtual case is similar: Lemma 4.3 gives an explicit pure virtual braid diagram realizing any zero-sum tuple, and Theorem 1.2 follows by adding the constant shift. The only cited prior work is Definition 2.5 citing [5,6] for the up-down coloring, and [7] for the OU matrix in Section 5; these are background definitions and none of the orbit claims is imported from them. One verification gap exists: in the proof of Theorem 3.7, the identities '0 · iota(β_i^a) = (0,...,2a,0,-2a,...)' and the corresponding statement for alpha are asserted from Figure 9 rather than derived algebraically. If those local computations were wrong, the construction would fail. This is a correctness risk, not a circularity, because the asserted values are inputs supplied by the local action rule rather than consequences of the theorem they are used to prove.
Assumptions & free parameters
assumptions (4)
- domain assumption The up-down coloring is well-defined and invariant under planar isotopy fixing the boundary bars, so it induces a right monoid action (Proposition 2.7).
- ad hoc to paper The degree-3 pure braid diagrams α, β1, β2 in Figure 9 have the up-down action outputs used in Theorem 3.7's proof, e.g., 0·ι_h(...)(β_i^a) = (0,...,2a,0,-2a,...).
- standard math Every permutation of degree n is realized by a positive permutation braid diagram in which each pair of strands crosses at most once.
- standard math The monoid of braid diagrams up to planar isotopy has the usual associative product with identity.
Cite this review
Pith. "Pith review of Orbits by the up-down action of braid diagrams." pith.science (2026). https://pith.science/paper/PWUEPZGN
@misc{pith2026241212553,
author = {Pith},
title = {Pith review of: Orbits by the up-down action of braid diagrams},
year = {2026},
howpublished = {\url{https://pith.science/paper/PWUEPZGN}},
note = {Machine review of arXiv:2412.12553}
}
abstract
The set of all virtual or classical braid diagrams forms a monoid and gives a natural monoid action on a direct product of ${\mathbb Z}$ called the up-down action. In this paper, we determine the orbit of every tuple of ${\mathbb Z}$ under the up-down action of virtual or classical braid diagrams. Moreover, we determine the orbit for irreducible braid diagrams. We also consider the isotropy submonoid and give a condition for a braid diagram to admit an up-down coloring to its closure.
