Graph-neural-network predictions of solid-state NMR parameters from spherical tensor decomposition

T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Graph-neural-network models trained on amorphous silica predict the full tensor quantities that determine solid-state NMR spectra—magnetic shielding and electric field gradients—well enough to reproduce static 1D spectra from…

desk verdict Solid methods paper for in-distribution a-SiO2, with thinner out-of-domain evidence on zeolites and a minor overstatement of the ISD advantage. read the letter →

arxiv 2412.15063 v1 pith:CY672AY3 submitted 2024-12-19 cond-mat.mtrl-sci physics.comp-phstat.ML

Chiheb Ben Mahmoud , Louise A. M. Rosset , Jonathan R. Yates , Volker L. Deringer This is my paper · ORCID
classification cond-mat.mtrl-sciphysics.comp-phstat.ML
keywords graphneuralnetworkssolid-stateNMRmagneticshieldingtensorelectricfieldgradientsphericaldecompositionamorphoussilicazeolitescristobalitephasetransition
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that an equivariant graph neural network can learn the full tensor quantities that determine solid-state NMR spectra—the anisotropic magnetic shielding tensor and the electric field gradient—from atomic coordinates alone, not just the isotropic shift. If that works, computational NMR for materials becomes much cheaper: once a model is trained, spectra for large, disordered, or dynamically evolving structures can be generated without repeated quantum-mechanical calculations. The authors test this on a diverse set of 1,000 amorphous SiO2 configurations, show that simulated static 1D NMR spectra match DFT calculations, and then apply the models out-of-domain to hypothetical zeolites and to the α–β inversion in cristobalite, where thermally averaged tensors agree with experimental peak separations and asymmetry parameters. The upshot is a route to ML-driven NMR for both static and dynamic behavior of complex oxides.

What carries the argument

The central machinery is the spherical tensor decomposition of a rank-2 tensor, $T = T^{(0)} \oplus T^{(1)} \oplus T^{(2)}$, in which each piece transforms independently under spatial rotation and all pieces are parity-even. The models are equivariant graph neural networks that map atom-centred local environments to these irreducible components; the tensor-product variant replaces a single decomposition with a learnable linear combination of tensor products of spherical-harmonic features, using Clebsch–Gordan coefficients to extract ranks 0–2. This construction makes the tensor orientation (Euler angles) and anisotropy descriptors (span, skew, asymmetry) available as outputs, not just the isotropic value.

What would settle it

If a zeolite or low-density silica structure with rings larger than those in the training set (say 20- and 22-membered rings) systematically yields ML spectra whose peak positions or line shapes deviate from the DFT reference by much more than the training error, the claimed out-of-domain accuracy would be refuted; a direct test is to compare ML and GIPAW spectra for a library of zeolites with ring sizes 18–24 and check whether error grows with ring-size mismatch.

Watch

Extended reading notes

Core claim

The central claim is that decomposing rank-2 NMR tensors into irreducible spherical components—rank 0 (isotropic), rank 1 (antisymmetric), and rank 2 (anisotropic symmetric)—makes them natural targets for equivariant graph neural networks, and that models trained this way are accurate enough to reproduce static 1D NMR spectra from quantum-mechanical computations. Magnetic shielding uses all three irreducible components; the electric field gradient, being symmetric and traceless, is fully captured by the rank-2 part alone. An alternative tensor-product decomposition, built from learnable linear combinations of Clebsch–Gordan-coupled spherical-harmonic tensors, reaches comparable accuracy with roughly three times fewer parameters. Beyond the training distribution, the models predict spectra for hypothetical zeolites and track the α–β cristobalite transition through simulated magic-angle-spinning spectra, where the ML-derived oxygen electric-field-gradient asymmetry ($\eta_Q = 0.13$) matches an experimental value.

Load-bearing premise

Everything rests on the training set of 1,000 melt-quench-anneal amorphous SiO2 structures covering local environments well enough that hypothetical zeolites and the α–β cristobalite transition, with their different ring-size distributions, stay within the learned representation.

Editorial extensions

If this is right

  • Static 1D NMR spectra for amorphous silica at densities from 2.2 to 2.6 g/cm³ can be generated from ML tensor predictions in good agreement with DFT reference spectra.
  • The same ML models transfer, without retraining, to hypothetical zeolites, with the best spectral agreement occurring when ring sizes resemble the training distribution.
  • For the α–β cristobalite transition, ML-driven molecular dynamics combined with tensor prediction yields thermally averaged 29Si MAS spectra whose peak separation and oxygen EFG asymmetry match experiment, demonstrating a practical route to studying phase-transition dynamics without per-snapshot DFT NMR.
  • Because NMR tensors are learned per atom in an equivariant representation, the same framework applies to other chemical species and to other tensorial properties such as dielectric response or polarization, without retraining from scratch.
  • Predicting anisotropy parameters (span, skew, asymmetry) and tensor orientations from learned tensors is more reliable than specialized scalar models, so spectral shape, not just peak position, becomes accessible.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural stress test would be to train on structures with ring sizes larger than 18 and see whether zeolite and low-density predictions improve, since the paper itself reports that ring-size distribution correlates with error.
  • The oxygen $\sigma^{(1)}$ component is the least accurate target; a weighted loss function or separate loss balance could recover it, potentially improving the oxygen spectra further.
  • The same spherical-tensor scheme could be applied to other tensor-valued NMR quantities such as spin–spin coupling tensors or to non-NMR properties like the Born effective charge tensor, where orientation information matters.
  • Combining the tensor model with a fast machine-learned interatomic potential could enable closed-loop screening: propose a hypothetical structure, generate its spectrum, and refine, all without first-principles NMR.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper presents two graph-neural-network strategies for predicting solid-state NMR tensors (magnetic shielding and electric field gradient) from spherical tensor decompositions: an irreducible spherical decomposition (ISD) and a tensor-product (TP) combination with learnable weights. The models are trained on a diverse dataset of 1000 amorphous SiO2 structures and benchmarked against GIPAW reference data in terms of irreducible tensor components, anisotropy parameters, Euler angles, and simulated static 1D NMR spectra. The authors then apply the models to larger a-SiO2 configurations, 50 hypothetical zeolites, and the alpha-to-beta cristobalite transition, reporting good agreement with quantum-mechanical and experimental spectra. The central claim is that machine-learned tensor predictions can substitute for DFT-based NMR calculations in silica-based materials, including out-of-domain applications.

Significance. If the central claim holds, this work represents a substantial step toward ML-accelerated solid-state NMR prediction, with potential high-throughput impact on structural characterization of framework and amorphous silicates. The paper is methodologically strong: it uses a clear train-validation-test split, normalized error metrics, learning curves, direct spectral comparison to GIPAW, and a systematic comparison of two tensor-decomposition strategies. The transparent discussion of the tensor-product representation and its parameter count is a useful contribution. The main scientific value lies in demonstrating that equivariant GNNs can predict full tensorial NMR parameters, not only isotropic shifts, and that static spectra can be reconstructed from these predictions. However, the out-of-domain claims, especially for zeolites, are supported by only a biased subset of examples, and the quantitative evidence for the full zeolite set is deferred to the Supplementary Material.

major comments (3)
  1. [Section III C (Fig. 6) and Section V] The claim that the ML models generalize to zeolites is not quantitatively supported in the main text. The authors state that they "choose these four representative structures based on the accuracy of the ISD models," which explicitly selects best- and worst-case examples rather than a representative or random sample. No spectral similarity metric or aggregate error distribution for the full 50-zeolite set is reported in the main text; the paper instead notes a "possible correlation between the ring distribution in the zeolites and ML prediction errors" and defers further investigation. Because the training set contains ring sizes mostly between 6 and 16 while zeolites have different ring distributions, the typical out-of-domain performance remains unverified. The authors should either report the full 50-zeolite error distribution (or a quantitative spectral similarity metric) in the main text, or substantially soften the extrapolation claim in the conclusions.
  2. [Section V (Conclusions) vs. Figure 3] The conclusion states that "the irreducible spherical decomposition yielded the lowest prediction errors," but Figure 3 shows no significant difference between the ISD and tensor-product models across the tested magnetic-shielding parameters for either silicon or oxygen. This overstatement should be corrected to say that the two decompositions perform comparably, with only minor differences that are within the spread of the reported errors.
  3. [Abstract and Conclusions] The central claim that "both models produce simulated static 1D NMR spectra in good agreement with quantum-mechanical computations" is directly demonstrated only for the a-SiO2 structures in Figure 5. For zeolites, only a hand-picked subset is shown and no aggregate metric is provided; for cristobalite, the comparison in Figure 7 is to an experimental spectrum rather than to GIPAW calculations. The abstract and conclusions should be rephrased to distinguish the in-distribution demonstration from the exploratory out-of-domain applications.
minor comments (5)
  1. [Section III (error metrics)] The text contains a typographical error: "We use the the root mean square error (RMSE)" should read "We use the root mean square error (RMSE)."
  2. [Section II E] The phrase "based on test errorsor 50 independent configurations" should be corrected to "based on test errors on 50 independent configurations."
  3. [Section III B] There is a duplicate word in "for all tensor product models models when the training set size is 10 structures," which should be "for all tensor product models when the training set size is 10 structures."
  4. [Section II E] The hyperparameter optimization is performed only for the ISD model and a TP model with a l=1 target; it would be helpful to state explicitly whether the same hyperparameters were used for all other TP variants compared in Figures 2 and 3, since differences in hyperparameters could confound the decomposition comparison.
  5. [Section III A] The comparison of models with different numbers of tensor products is made at a fixed maximum rank lmax=4 and a fixed number of features per rank; the authors should note explicitly in the text or a footnote that the 4096-tensor-product model has a different parameter count than the single-tensor-product model, since this affects the interpretation of the performance gains.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the ML NMR predictions are benchmarked against independent GIPAW labels on held-out structures, and the self-citations are tooling only.

full rationale

The derivation chain is self-contained with respect to external DFT labels. The ML models are trained on GIPAW-computed magnetic shielding and electric field gradient tensors for 800 a-SiO2 structures, validated on 50, and tested on 150 held-out structures; the reported error metrics are computed on that separate test set, so no fitted parameter is renamed as a prediction. The static 1D spectra are generated from ML-predicted tensors using SOPRANO and compared against GIPAW spectra on the same structures, which is a standard held-out benchmark rather than an identity by construction. Self-citations to the authors' machine-learning potentials and phase classifier (Refs. 64, 72, 76) are used as structure-generation and phase-labeling tools, not as evidence for the NMR predictions themselves, and the NMR claims do not reduce to those citations. The paper itself flags extrapolation limitations in Section III C, noting that the training set contains mostly rings of sizes 6-16 while a low-density test structure contains rings of size 20 and 22 and that zeolites have different ring distributions, and it defers a possible correlation between zeolite ring distribution and prediction errors to future work; these are generalization and reporting concerns, not circularity. No equation reduces to its own input, no uniqueness theorem is imported from the authors' prior work to force the choice of decomposition, and no ansatz is smuggled in to guarantee the central spectral agreement. The external comparisons to experimental spectra of cristobalite and to the published experimental EFG asymmetry provide independent support for the application-level claims.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new physical entities. Its central claim rests on the standard mathematics of spherical tensor decomposition, the accuracy of PBE-GIPAW references, and the representativeness of the training set for out-of-domain applications. The free parameters are the usual ML hyperparameters and learned weights.

free parameters (2)
  • NequIP hyperparameters (cutoff radius, number of layers, feature ranks, maximum rank ℓmax=4) = Selected by Bayesian optimization (XPOT) on 100 validation structures; exact values in Supplementary Materials
    Architecture choices affect accuracy and are tuned to the dataset.
  • Linear combination weights w_k1k2 in Eq. (3) for tensor-product representation = Learned during training; number of tensor products varied as 1, 64, 4096
    These weights are free parameters fit to the NMR labels, and the number of tensor products is a model capacity choice.
assumptions (4)
  • standard math Rank-2 Cartesian NMR tensors admit the irreducible spherical decomposition T = T(0) ⊕ T(1) ⊕ T(2) with even parity for all components
    Standard angular momentum algebra and Clebsch-Gordan coefficients, used in Eq. (1) and throughout Section II B.
  • domain assumption PBE-GIPAW DFT provides reference NMR parameters of sufficient accuracy
    All ML labels are PBE-GIPAW values; the paper notes discrepancies with experiment, e.g., the cristobalite peak separation is 2.3 ppm in ML predictions versus 2.6 ppm experimentally (Section IV).
  • domain assumption The 1000 melt-quench-anneal a-SiO2 structures represent the relevant structural space for SiO2 polymorphs and amorphous phases
    Training set covers densities 2.0 to 2.7 g/cm3 and quench rates 1e11 to 1e13 K/s, but the paper acknowledges out-of-domain ring sizes up to 22 in a low-density test structure (Section III C).
  • domain assumption NequIP's equivariant features can be linearly mapped to the tensor components through an e3nn linear layer
    Implementation choice described in Section II C; assumes the learned representation is sufficient for the tensor targets.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Graph-neural-network predictions of solid-state NMR parameters from spherical tensor decomposition." pith.science (2026). https://pith.science/paper/CY672AY3

@misc{pith2026241215063,
  author       = {Pith},
  title        = {Pith review of: Graph-neural-network predictions of solid-state NMR parameters from spherical tensor decomposition},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CY672AY3}},
  note         = {Machine review of arXiv:2412.15063}
}
abstract

Nuclear magnetic resonance (NMR) is a powerful spectroscopic technique that is sensitive to the local atomic structure of matter. Computational predictions of NMR parameters can help to interpret experimental data and validate structural models, and machine learning (ML) has emerged as an efficient route to making such predictions. Here, we systematically study graph-neural-network approaches to representing and learning tensor quantities for solid-state NMR -- specifically, the anisotropic magnetic shielding and the electric field gradient. We assess how the numerical accuracy of different ML models translates into prediction quality for experimentally relevant NMR properties: chemical shifts, quadrupolar coupling constants, tensor orientations, and even static 1D spectra. We apply these ML models to a structurally diverse dataset of amorphous SiO$_2$ configurations, spanning a wide range of density and local order, to larger configurations beyond the reach of traditional first-principles methods, and to the dynamics of the $\alpha\unicode{x2013}\beta$ inversion in cristobalite. Our work marks a step toward streamlining ML-driven NMR predictions for both static and dynamic behavior of complex materials, and toward bridging the gap between first-principles modeling and real-world experimental data.

Figures

Figures reproduced from arXiv: 2412.15063 by the authors.

Figure 1
Figure 1. Spherical decomposition strategies for a rank-2 spherical tensor, denoted [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Evolution of ML model errors, reported on the isotropic and anisotropic properties of the MS tensor, as a function [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

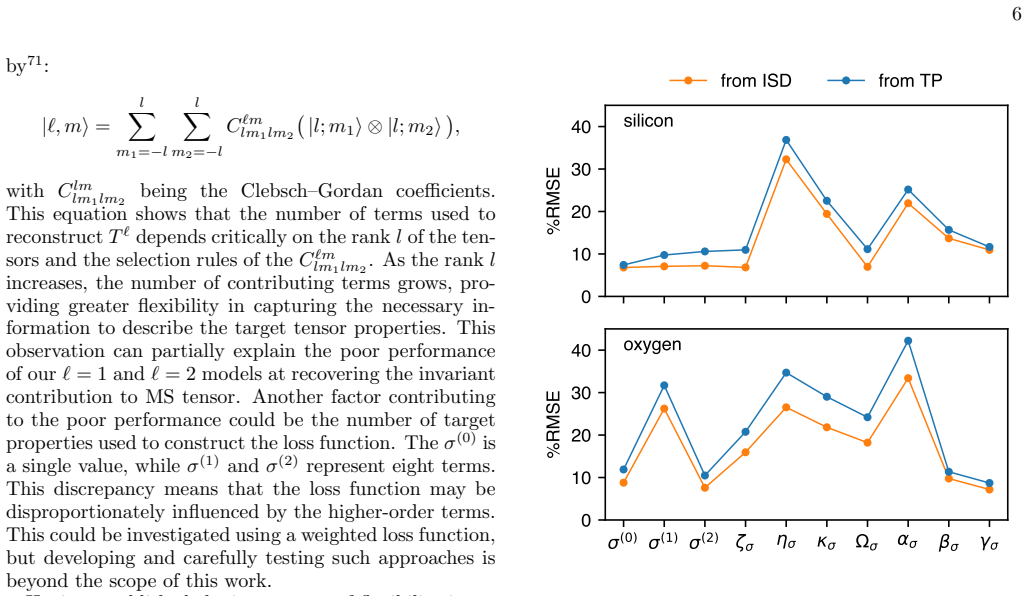

Figure 3
Figure 3. Comparison between the best models from the ten [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: Learning curves for the irreducible tensors of the [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 6
Figure 6. Figure 6: Best and worst ML-predicted simulated 1D static [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: NMR fingerprints of an α-cristobalite to β-cristobalite displacive phase transition. (a) Simulated 29Si MAS spectra of a selection of MD snapshots describing a single α → β transition. The α : β ratio reported on every spectrum describes the ratio of the α-like and β-l…
