Neural network biased corrections: Cautionary study in background corrections for quenched jets

David Stewart; Joern Putschke

REVIEW 3 major objections 4 minor 1 cited by

Neural network biased corrections: Cautionary study in background corrections for quenched jets

T0 review · 3 major / 4 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Neural-network jet corrections trained on unquenched jets are biased on quenched jets, distorting a simulated R_AA by 18-47%.

desk verdict Qualitative claim about NN background-correction bias on quenched jets is solid; the headline 18–47% RAA range is illustrative rather than robust, resting on a lightly validated brick approximation. read the letter →

arxiv 2412.15440 v2 pith:OJG5D74C submitted 2024-12-19 physics.data-an hep-exnucl-ex

David Stewart , Joern Putschke This is my paper · ORCID

classification physics.data-anhep-exnucl-ex PACS 25.75.-q07.05.Mh

keywords neuralnetworksjetquenchingbackgroundsubtractionsubstructureheavy-ioncollisionsnuclearmodificationfactorRAAJETSCAPE

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Jets in heavy-ion collisions are measured on top of a huge background of soft particles, and neural networks that use jet substructure have been shown to correct for that background more precisely than simple area-based subtraction. This paper argues that such networks carry a hidden assumption: because they are trained on unquenched proton-proton jets, applying them to jets quenched in the quark-gluon plasma biases the correction, since quenching changes exactly the substructure variables the network relies on. Using JETSCAPE simulations of central Au+Au collisions at $\sqrt{s_{NN}}=200$ GeV and faster "brick" simulations of quenching, the bias is shown to grow with quenching and to propagate into a mock leading-jet $R_\mathrm{AA}$ measurement, lowering the extracted ratio by 18-47% depending on the substructure inputs. The paper's conclusion is a caution: any substructure-based ML background correction presupposes an amount of quenching, so ambiguous results should be reported as bounded ranges rather than single values.

What carries the argument

The load-bearing object is the residual-error distribution $\delta p_{T,\mathrm{jet}} \equiv p^{\mathrm{corr}}_{T,\mathrm{jet}} - p^{\mathrm{truth}}_{T,\mathrm{jet}}$, the difference between the background-corrected jet $p_T$ and the true jet $p_T$ known from simulation. The paper tracks how the mean and width of this distribution evolve as jets are quenched in QGP bricks of increasing length, establishing that a 3.5 fm brick reproduces the substructure modification seen in the full hydrodynamically modeled events. The neural networks are trained on unquenched pp jets embedded in hydro backgrounds, and they map reco-jet parameters to truth $p_T$ using either only the area-based inputs ($p^{\mathrm{reco}}_{T,\mathrm{jet}}$, $\rho_\mathrm{bkg}$, $A_\mathrm{jet}$) or those inputs plus substructure features such as jet angularity, the number of constituents, and the $p_T$ of the leading constituents; the substructure features are what make the correction sensitive to quenching, and the sensitivity is what produces the bias.

What would settle it

Real-data embedding test: take high-$p_T$ jets of known identity, embed them into recorded central Au+Au events, apply the pp-trained network corrections exactly as in this paper, and check whether the mean residual $\delta p_{T,\mathrm{jet}}$ grows with the amount of recorded substructure modification; if the mean residual stays at zero, the claimed bias is a simulation artifact rather than a property of the correction method.

Watch

Extended reading notes

Core claim

The central claim is that neural-network background corrections trained on unquenched pp jets embedded in heavy-ion backgrounds are systematically biased when applied to quenched jets, and that the bias is not a small correction but a large, $p_T$-dependent offset. In the JETSCAPE test, the residual error $\delta p_{T,\mathrm{jet}} \equiv p^{\mathrm{corr}}_{T,\mathrm{jet}} - p^{\mathrm{truth}}_{T,\mathrm{jet}}$ shifts as brick thickness grows, with the hydrodynamically modeled events matching quenching in roughly 3.5 fm QGP bricks. When those bricks are used to build a full quenched-jet spectrum and a leading-jet $R_\mathrm{AA}$ is measured through the same unfolding procedure used experimentally, every substructure-fed network biases the result by at least 18% in every $p_T$ bin, up to about 47% for the network using constituent count; the only unbiased network is the one trained on the same parameters as the area-based method, which contains no substructure information.

Load-bearing premise

The load-bearing premise is that JETSCAPE's simulations of jet quenching—both the hydrodynamically modeled QGP and the 3.5 fm brick used for the full spectrum—faithfully capture how real quenching changes jet substructure in central Au+Au collisions at 200 GeV; if they do not, the quantified 18-47% biases would not transfer to real data.

Editorial extensions

If this is right

Any ML background correction that uses jet substructure must assume a particular amount of quenching before it can be used to measure quenching.
In the simulated RHIC kinematics, the area-based method returns approximately the true leading-jet $R_\mathrm{AA}$, while every substructure-based network studied is biased by 18-47%, with the largest bias coming from the network that uses the number of jet constituents.
The bias varies with jet $p_T$, so it cannot be absorbed by a global scale factor or a single efficiency correction.
When the amount of quenching remains ambiguous after unfolding, results should be reported as a bounded range rather than as a single value, the paper recommends.
The paper points to two possible remedies: iterative refinement of the assumed quenching during the correction, and ML classifiers that separate fake jets from real jets without depending on substructure.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

If the mechanism is generic, other observables built from substructure-corrected jet $p_T$—dijet momentum imbalance, jet fragmentation functions, groomed jet shapes—would carry similar quenching-dependent offsets even though the paper only demonstrates the effect for $R_\mathrm{AA}$.
A direct closure test of the explanation would retrain the same networks on jets quenched at several brick lengths; if the $R_\mathrm{AA}$ bias then disappears, the effect can be parameterized and corrected by interpolation, whereas if it persists, the mismatch is not purely due to the training sample.
The 18-47% figures come from a simulation without detector effects or medium response, so they should be read as evidence of a large systematic risk in real measurements rather than as a prediction of the exact experimental bias.
Because the brick-to-hydro equivalence is established using JETSCAPE's own energy-loss model, comparing the bias from an independent quenching implementation would reveal how much of the effect is generic to the logic and how much is model-specific.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The thing to know: this is a serious, honest cautionary study, and the qualitative claim is solid. The headline quantitative claim—RAA bias of 18–47%—is real, but it is anchored to a brick approximation that is validated only at the level of δpT means and widths, not the full response matrix. Treat the number as illustrative of the mechanism, not as a robust prediction for RHIC.

What is actually new: prior work (Haake-Loizides, ALICE, Mengel et al.) established NN background corrections, but this is the first systematic look at what happens when those corrections are applied to quenched jets. The authors train on unquenched pp jets and then apply to JETSCAPE jets quenched in hydrodynamically modeled QGP backgrounds, which is a meaningful step up from toy backgrounds. The result—that the correction bias grows with quenching and depends on the substructure variable—is well supported by the residual distributions and the RAA comparisons. The paper is also transparent about the leading-jet-only selection, the training-boundary artifacts, and the absence of detector response. That transparency earns trust.

Soft spots, in proportion. First, the 18–47% range comes from jets quenched in fixed 3.5 fm bricks embedded in hydro backgrounds. The authors themselves note that bricks kill variable path lengths and the evolving medium. The brick-to-hydro equivalence is checked only via the mean and standard deviation of δpT (Fig. 8) and a fragmentation comparison. But the RAA result depends on the full response matrix, including tails, matching inefficiencies, and unfolding. So the quantitative claim is not yet established even within JETSCAPE. That does not hurt the qualitative conclusion, but the abstract should not let readers think the number is firmer than it is. Second, Table I's footnote lists ptruth as a training parameter; in context it is clearly the regression target, but the wording invites a leakage accusation and should be fixed. Third, the code link is malformed and no data or trained weights are released; for a simulation-only cautionary study, that is a moderate reproducibility gap. Fourth, only the leading jet per event is used, which the authors say likely underestimates the effect.

Verdict: deserves a serious referee. The core message will survive review; the quantitative claim needs qualification or a fuller validation of the brick-to-hydro mapping. I would take it to a reading group and would cite it if I work on jet background corrections.

Recommendation: send to peer review, with a request that the authors either soften the RAA claim or validate the brick equivalence at the response-matrix level.

Referee Report

3 major / 4 minor

Summary. This paper studies whether neural-network (NN) background corrections for jet pT, trained on unquenched proton-proton jets embedded in heavy-ion backgrounds, remain unbiased when applied to quenched jets. Using JETSCAPE simulations of central Au+Au collisions at sqrt(s_NN)=200 GeV, the authors train five NNs with different jet-substructure inputs plus an area-based baseline, evaluate the residual error distributions on quenched jets from hydrodynamic QGP events and from fixed-length QGP bricks, and then build a simulated leading-jet RAA measurement using 3.5 fm brick jets. They find that substructure-sensitive NNs produce pT-dependent biases on quenched jets, with RAA values systematically below the true quenched jet RAA, and they argue that any substructure-based background correction must presuppose an amount of quenching before quenching can be measured.

Significance. If correct, the paper identifies a real and often underappreciated risk in ML-based heavy-ion jet background subtraction: the training distribution encodes unquenched jet substructure, so applying the correction to quenched jets can bias the measured RAA. The study is useful as a cautionary benchmark for experimental analyses, especially given the upcoming RHIC run and the existing ALICE use of ML corrections at the LHC. The authors are transparent about their cuts, their training-boundary artifacts, the absence of detector response, and the leading-jet-only simplification. They also make the code and notebooks publicly available, which strengthens reproducibility. The main caveat is that the quantitative RAA bias range is derived from brick quenching, whose equivalence to hydro quenching is validated only at the level of first and second moments of the correction residual and of fragmentation functions, not at the level of the full response matrix that controls the RAA.

major comments (3)

[Section III B 2 and IV] The quantitative RAA claim in Section V ("up to a maximum of around 47% when using NN Ncons, and no less than 18% for any pT range for any NN") is computed from jets quenched in 3.5 fm bricks. Section III A validates brick-hydro equivalence by comparing the mean and standard deviation of delta-pT,jet at selected truth-pT values (Fig. 8) and by comparing fragmentation functions (Fig. 1). The RAA result, however, is controlled by the full response matrix, including the tails of delta-pT, matching inefficiencies, and the unfolding procedure. Since the paper itself notes in the Introduction that bricks "destroy effects from variable path lengths and the evolving medium on jet quenching," the 18-47% numbers are not established as representative even of JETSCAPE hydro quenching. Please either validate the full response matrix for the 3.5 fm brick against hydro events, or explicitly present the RAA numbers as an illustration of brick quenching only and soften the unqualified summary-statement claim.
[Table I and Section II D] Table I and its footnote state that ptruth_T,jet is "used with each NN" alongside preco_T,jet, Ajet, and rho_bkg. If ptruth were an input feature, the training would be circular and the reported nonzero biases could not arise; if, as the rest of the text indicates, ptruth is the regression target, then the table and several appendix captions must be corrected to distinguish input features from the target. Please state unambiguously that ptruth is the target and list only preco, Ajet, rho_bkg, and the substructure variables as inputs.
[Section II D and Figures 4-5] The training-boundary artifact is acknowledged but not quantitatively separated from the quenching-induced bias. Because quenched jets shift toward the low-pT training boundary, part of the observed delta-pT bias in Figs. 7 and A.5-A.9 could reflect the learned boundary rather than substructure mismatch. The fact that NNAB shows little bias is reassuring, but a control with a wider training pT range or with training on a spectrum matched to the quenched distribution would make the central interpretation cleaner. Please add such a control or explicitly state the residual ambiguity.

minor comments (4)

[Figure 9 vs Figure 10] The cut on the area-based corrected pT is quoted as preco_T,jet - Ajet*rho_bkg > 0 GeV/c in Figure 9 but as > 12 GeV/c in Figure 10; please make these cut definitions consistent or explain the difference.
[Appendix A.5/A.6] The captions for Figures A.5 and A.6 are mislabeled: Figure A.5 is described as "NN: AB" while the text describes training with angularity-related inputs, and Figure A.6 is described as "NN: Ang." with a similar mismatch. Please correct the captions.
[Appendix A.10/A.12/A.13] Several appendix captions confuse ptruth and preco, and Figures A.12/A.13 have duplicated or swapped NN labels (both subcaptions say "NNNcons" in places). Please correct these labels and repeat the input-feature list consistently.
[Section II D] There is a typo in the first sentence of Section II D: "an set of pp jets" should read "a set of pp jets."

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the NN bias on quenched jets is computed against independent simulation truth labels, and the RAA error is a derived output rather than a fitted input; the authors' stated limitations are model-fidelity caveats, not logical circularity.

full rationale

The derivation chain is: (1) train NNs on unquenched pp jets embedded in hydro backgrounds to map preco to ptruth; (2) apply the frozen NNs to independently generated quenched jets (hydro and brick) and measure δpT,jet ≡ pcorr − ptruth against the simulation truth labels; (3) calibrate a 3.5 fm brick proxy to hydro using the mean and standard deviation of δpT,jet and the fragmentation function (Fig. 1, Fig. 8); (4) generate a full brick-quenched spectrum and propagate the measured δpT,jet bias through an unfolding-based simulated RAA measurement. The central claim — NN corrections trained on unquenched jets are biased on quenched jets, up to 47% in simulated RAA — is an output of this chain. Nothing in the claim is defined in terms of the target: the NNs never see quenched jets in training, the truth RAA is taken directly from brick simulation truth (independent of NN outputs), and the 3.5 fm calibration is a diagnostic choice (matching ⟨δpT,jet⟩ and σ(δpT,jet)), not the predicted quantity (the fractional RAA bias). The RAA bias could in principle differ from the moment-based calibration signal; it is computed, not assumed. The only self-citation is the JETSCAPE framework [26] (a co-author paper, with tunes from [27,28]); this is a public simulation code used as a tool whose output the analysis then computes on, not a conclusion imported from the citation, so it is not load-bearing in the circularity sense. The paper's own stated limitations — no jet-medium response modeled (Sec. I; 'They do not, however, model medium response to the jets'; Sec. V: 'jet-medium interactions are not captured in the simulations used'), fixed brick path length destroying variable path-length and evolving-medium effects (Sec. I: 'it also destroys effects from variable path lengths and the evolving medium on jet quenching'), and the brick-to-hydro equivalence validated on first moments of δpT,jet rather than the full response matrix that governs the RAA — are model-fidelity and transferability concerns, as the skeptic headline notes, not instances where a prediction reduces to its input by construction. Score 1 reflects one minor co-author self-citation and a simulation-based validity caveat, with no step of the derivation equivalent to its own input.

Assumptions & free parameters 6 free parameters · 6 assumptions · 0 invented entities

The central claim rests on the realism of JETSCAPE's jet quenching and hydro backgrounds, plus a set of analysis choices (leading jet, training pT range, brick length matching, no detector response). No new physical entities are introduced; the QGP brick is a computational proxy. The free parameters are mostly architectural or cut choices; only the brick length is explicitly matched to hydro data, and it affects the quantitative RAA bias, not the qualitative bias.

free parameters (6)

NN architecture and training protocol = 3 dense layers (100, 50, 50), ReLU, 12 epochs
Chosen without a systematic sensitivity study; the qualitative bias is robust to architecture, but the exact RAA error bands may depend on it.
Training pT range = 0-60 GeV/c flat spectrum
The NNs learn sharp boundaries at 0 and 60 GeV/c, creating boundary biases in delta pT; this training-range choice is an input, not fitted to data.
QGP brick length = 3.5 fm
Selected as the equivalent of hydro event quenching by matching mean and width of delta pT (Fig. 8); used to generate the RAA 'data' spectrum.
Background density estimator cuts = Two highest pT jets removed for rho; pcorr > 0 GeV/c cut
Standard AB method choices; they affect the AB comparison but not the central NN bias.
Leading jet selection and pT thresholds = Leading jet, |eta| < 1, truth pT > 12 GeV/c, reco-area rho > 0 (or >12 in Fig. 10)
Analysis cuts that define the reported RAA; the paper notes leading-jet selection likely underestimates quenching effects.
Unfolding iterations = 4 iterations Bayesian, or 1-bin efficiency
Unfolding instability is accounted for by shaded bands; the choice affects the reconstructed RAA but is varied.

assumptions (6)

standard math Anti-kT jet clustering is infrared and collinear safe and yields stable areas for R=0.4 jets
Invoked in Sec II C for jet clustering and rho measurement, based on Cacciari-Salam-Soyez [17].
domain assumption JETSCAPE with the stated tune provides a realistic simulation of pp and Au+Au events at sqrt(s)=200 GeV
The central bias study is entirely generated within JETSCAPE (Sec II A); the quantitative RAA bias inherits this assumption.
domain assumption The hydrodynamically modeled QGP events (3,100 Au+Au, hadronized 10x) produce realistic background particle distributions
Used as the embedding background and for training; no medium response is modeled, which is flagged.
ad hoc to paper Quenching in a 3.5 fm static QGP brick is equivalent, for substructure modification, to quenching in hydro events
Brick length matched to hydro delta pT mean and width in Sec III A; this equivalence determines the RAA 'data' spectrum.
domain assumption The experimental practice of constructing the response matrix from unquenched pp MC, rather than quenched MC, is the correct comparator
The bias study presupposes that real measurements use unquenched MC response matrices; this is stated in Sec III B as the mimicked algorithm.
domain assumption No detector effects or efficiencies are needed to estimate the NN-induced bias
Explicitly excluded in Sec III B 2 c.2 to isolate NN effects; the paper acknowledges the focus.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Neural network biased corrections: Cautionary study in background corrections for quenched jets." pith.science (2026). https://pith.science/paper/OJG5D74C

@misc{pith2026241215440,
  author       = {Pith},
  title        = {Pith review of: Neural network biased corrections: Cautionary study in background corrections for quenched jets},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/OJG5D74C}},
  note         = {Machine review of arXiv:2412.15440}
}

abstract

Jets clustered from heavy ion collision measurements combine a dense background of particles with those actually resulting from a hard partonic scattering. The background contribution to jet transverse momentum ($p_{T}$) may be corrected by subtracting the collision average background; however, the background inhomogeneity limits the resolution of this correction. Many recent studies have embedded jets into heavy ion backgrounds and demonstrated a markedly improved background correction is achievable by using neural networks (NNs) trained with aspects of jet substructure which are used to map measured jet $p_\mathrm{T}$ to the embedded truth jet $p_\mathrm{T}$. However, jet quenching in heavy ion collisions modifies jet substructure, and correspondingly biases the NNs' background corrections. This study investigates those biases by using simulations of jet quenching in central Au+Au collisions at $\sqrt{s_\mathrm{NN}}=200\;\mathrm{GeV}/c$ with hydrodynamically modeled quark-gluon plasma (QGP) evolution. To demonstrate the magnitude of the effect of such biases in measurement, a leading jet nuclear modification factor ($R_\mathrm{AA}$) is calculated and reported using the NN background correction on jets quenched utilizing a brick of QGP.

Figures

Figures reproduced from arXiv: 2412.15440 by the authors.

**Figure 2.** FIG. 2. Distribution of the numbers of background particles [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 4.** FIG. 4. The probability distribution of the residual error, [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

Figures from the paper (5 more)

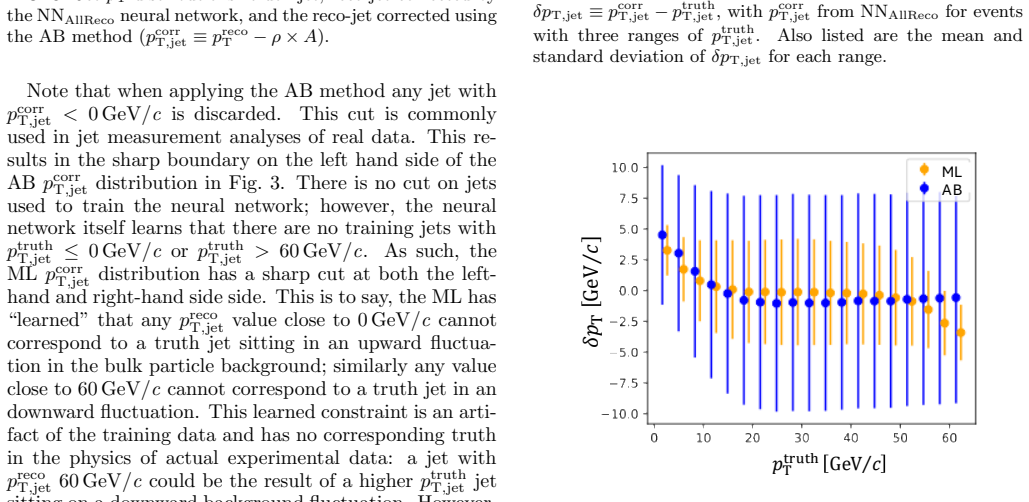

**Figure 5.** Figure 5: FIG. 5. The values of the mean (markers) and standard de [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]

**Figure 6.** Figure 6: FIG. 6. The residual error distribution in neural network [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]

**Figure 7.** Figure 7: FIG. 7. The evolution of the distribution of [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]

**Figure 9.** Figure 9: FIG. 9. Top panel: Spectra of the leading jet per event for [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]

**Figure 10.** Figure 10: FIG. 10. The measured [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
